Automatic Transmission Shift Lock Control Connector End Views

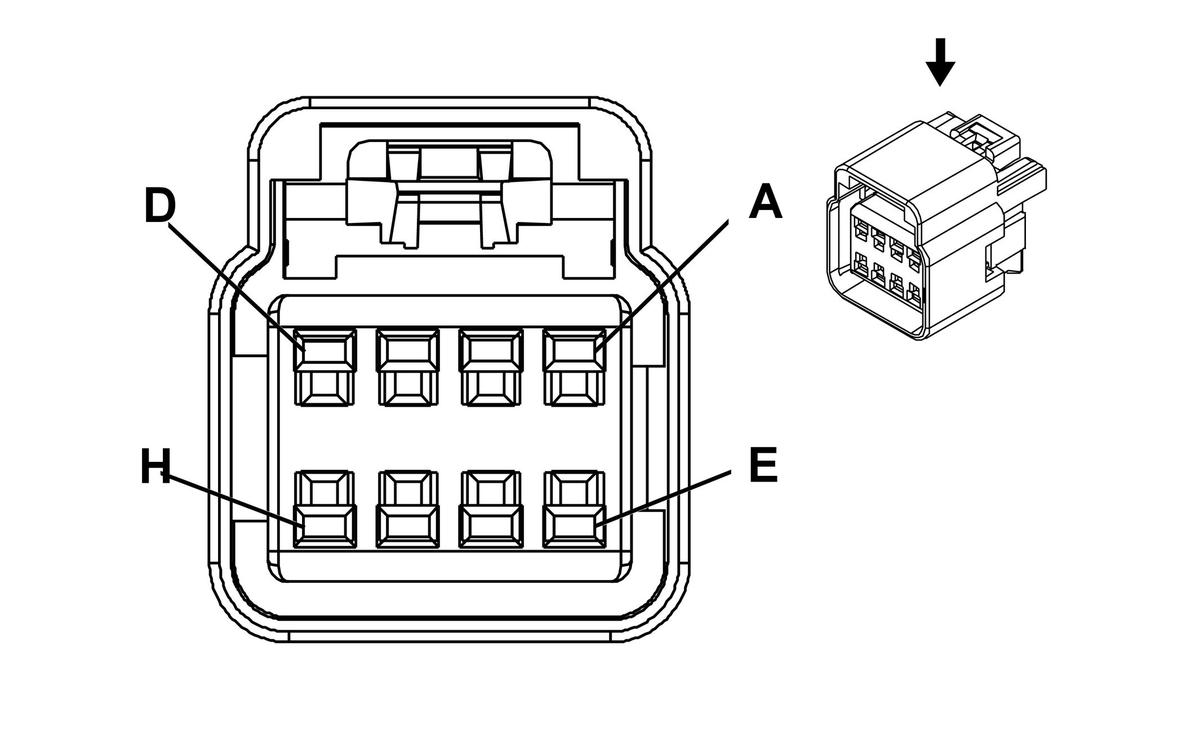

A/T Shift Lock Control Assembly

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15332145 8-Way F Global Terminal 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	GY	8	Instrument Panel Lamp Supply Voltage
B	-	-	Not Used
C	PK	339	Ignition 1 Voltage (GT)
D	D-GN	5525	Tap Up/Tap Down Enable Signal (GT)
E	D-GN/WH	1135	Brake Transmission Shift Interlock Solenoid Supply Voltage
F	PU	5526	Tap Up/Tap Down Switch Signal
G	BK	1150	Ground
H	-	-	Not Used

A/T Shift Lock Control Solenoid

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052832 2-Way F Metri-Pack 150 Series BK
Pin	Wire Color	Circuit No.	Function
A	BK	1150	Ground
B	D/GN	1135	A/T Shift Lock Control Solenoid Supply Voltage
