Automatic Transmission Shift Lock Control Schematics

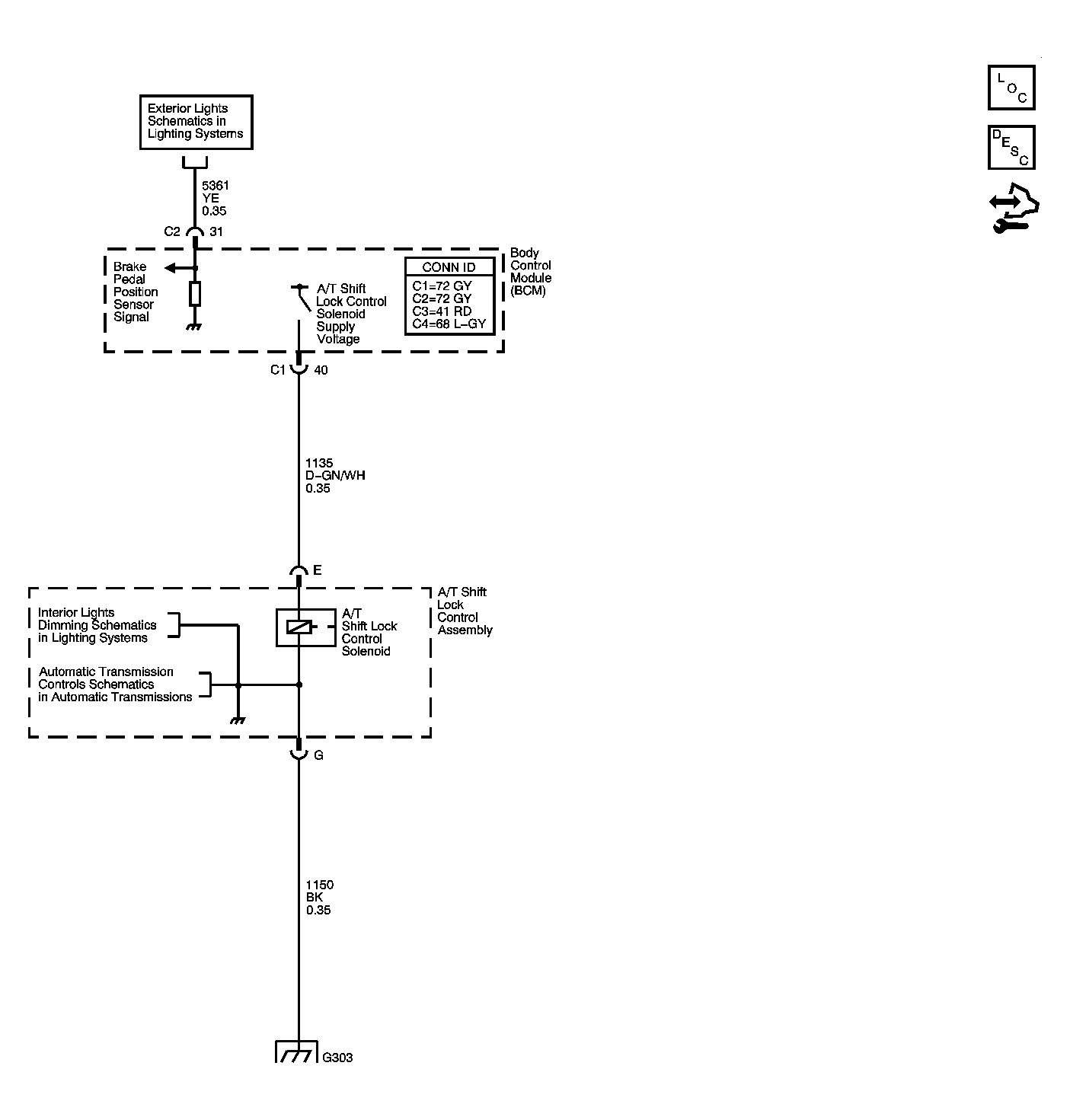

Fig 1: Automatic Transmission Shift Lock Control Schematics
GM1460582Courtesy of GENERAL MOTORS CORP.
