Engine Controls Connector End Views
A/C Refrigerant Pressure Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GN/OG | 5514 | Low Reference |
| B | PU/WH | 2700 | 5-Volt Reference |
| C | GN/BK | 380 | A/C Refrigerant Pressure Sensor Signal |

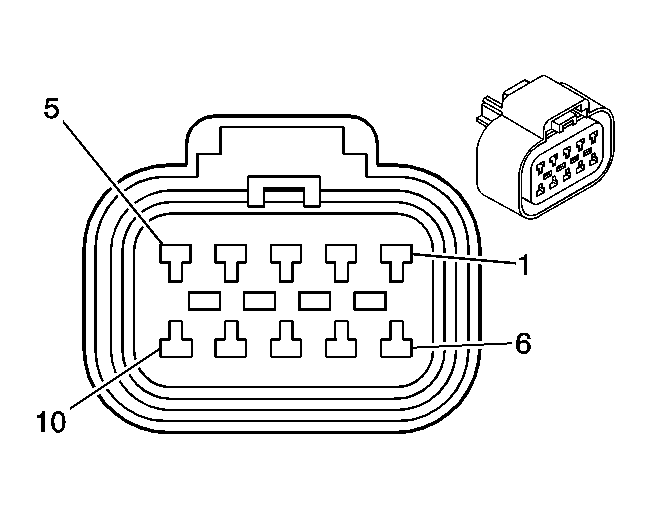

Accelerator Pedal Position Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BN | 1271 | Reference Low Signal |
| 2 | WH/BK | 1164 | 5-Volt Reference Signal |
| 3 | L-BU | 1162 | Throttle Pedal Position Signal |
| 4 | - | - | Not Used |
| 5 | BU | 1161 | Throttle Pedal Position Signal |
| 6 | TN | 1274 | 5-Volt Reference Signal |
| 7 | PU | 1272 | Reference Low Signal |
| 8-10 | - | - | Not Used |

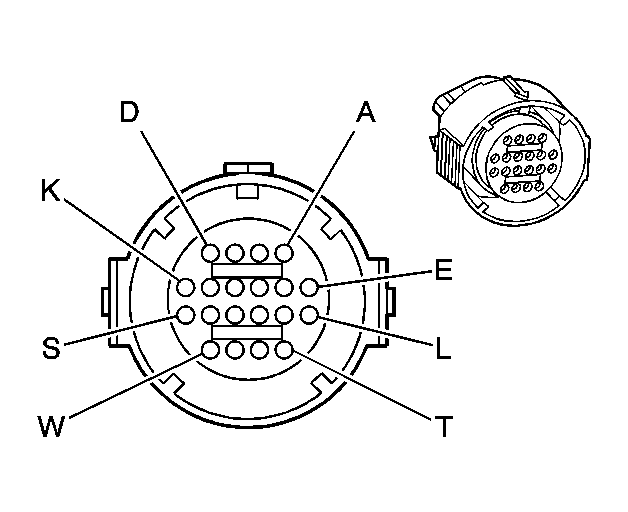

Automatic Transmission (C2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | L-GN | 1222 | 1-2 Shift Solenoid Valve Control |
| B | YE/BK | 1223 | 2-3 Shift Solenoid Valve Control |
| C | RD | 1228 | PC Solenoid High Control |
| D | GY/BU | 1229 | PC Solenoid Low Control |
| E | PK/BU | 339 | Ignition 1 Voltage |
| F-K | - | - | Not Used |
| L | BK/YE | 1227 | TFT Sensor Signal |
| M | BK/WH | 2762 | Low Reference |
| N | BN/YE | 1224 | Transmission Switch Signal A |
| P | GY | 1226 | Transmission Switch Signal C |
| R | YE | 1225 | Transmission Switch Signal B |
| S | GN/WH | 898 | Shift Solenoid Valve 3 High Control |
| T | GY/RD | 422 | TCC Solenoid Valve Control |
| U | BN | 418 | TCC PWM Solenoid Valve Control |
| V-W | - | - | Not Used |
Camshaft Position (CMP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BN | 633 | CMP Sensor Signal |
| B | RD/WH | 632 | Low Reference |
| C | WH/BK | 631 | 12-Volt Reference |

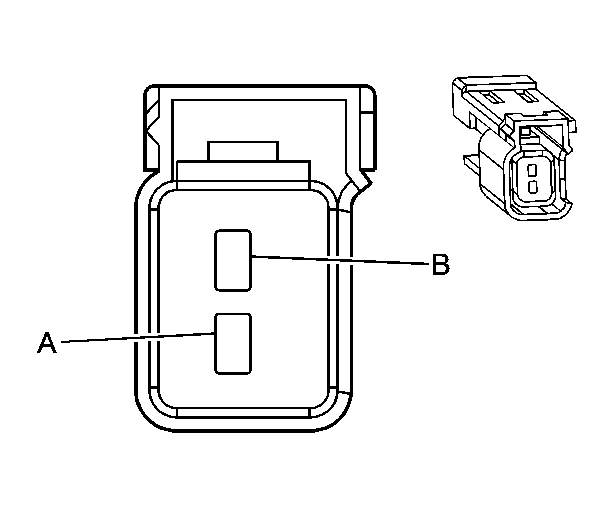

Clutch Pedal Position (CPP) Switch C1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GR/BU | 275 | Ignition Voltage |
| B | GY | 434 | Park Neutral Position Switch Park Signal |
Clutch Pedal Position (CPP) Switch C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 139 | Ignition Voltage |
| B | PU/WH | 379 | Cruise Cancel Signal |
Crankshaft Position (CKP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | L-BU | 573 | CKP Sensor Signal |
| B | L-BU/BK | 574 | Low Reference |
| C | L-BU/WH | 2867 | 12-Volt Reference |

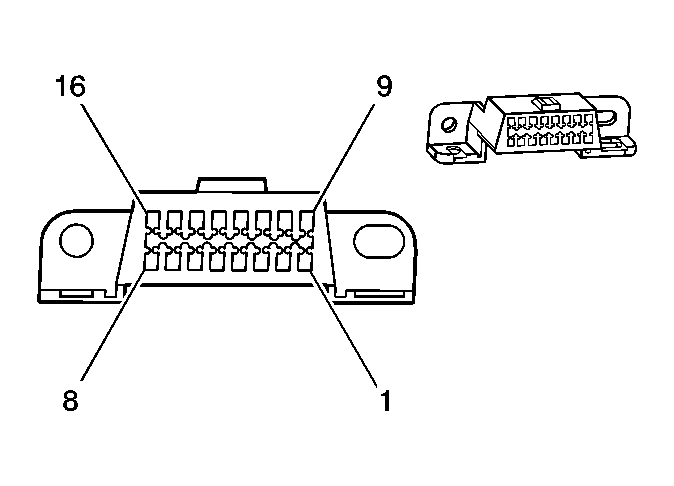

Data Link Connector (DLC)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used |
| 2 | YE | 1045 | RFA Class 2 Serial Data |
| 3 | - | - | Not Used |
| 4 | BK | 150 | Ground |
| 5 | BK/YE | 251 | Ground |
| 6-8 | - | - | Not Used |
| 9 | RD/BK | 800 | UART Serial Data (Primary) |
| 10-11 | - | - | Not Used |
| 12 | BU/BK | 799 | ABS Serial Data |
| 13-15 | - | - | Not Used |
| 16 | OG/BK | 740 | Battery Positive Voltage |
Engine Coolant Level Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GN | 68 | Low Coolant Level Indicator Control |
| B | BK/RD | 450 | Ground |

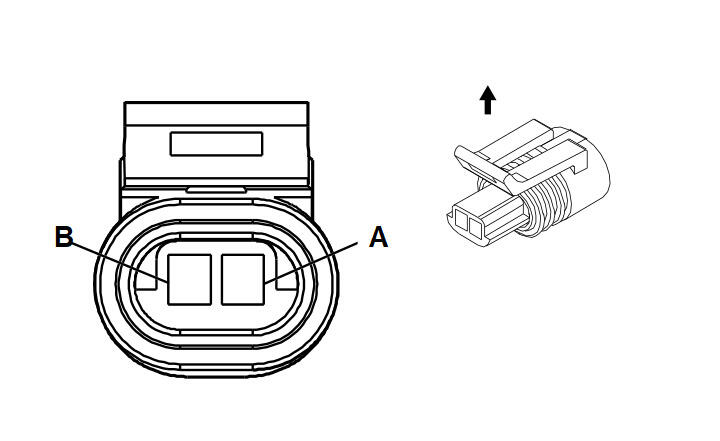

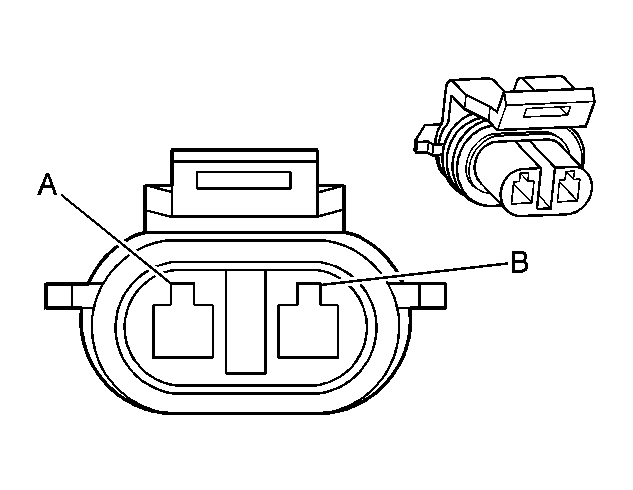

Engine Coolant Temperature (ECT) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GY/BK | 2761 | Low Reference |
| B | YE | 410 | ECT Sensor Signal |
Engine Oil Pressure (EOP) Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GN | 470 | Low Reference |
| B | BU/YE | 596 | 5-Volt Reference |
| C | BU/WH | 331 | Engine Oil Pressure Signal |

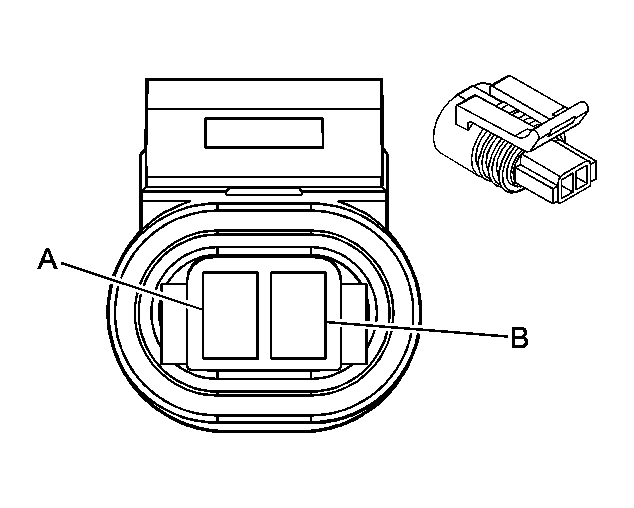

Evaporative Emission (EVAP) Canister Purge Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 439 | Ignition 1 Voltage |
| B | GN/YE | 428 | EVAP Canister Purge Solenoid Control |
Evaporative Emission (EVAP) Canister Vent Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 439 | Ignition 1 Voltage |
| B | WH | 1310 | EVAP Canister Vent Solenoid Control |

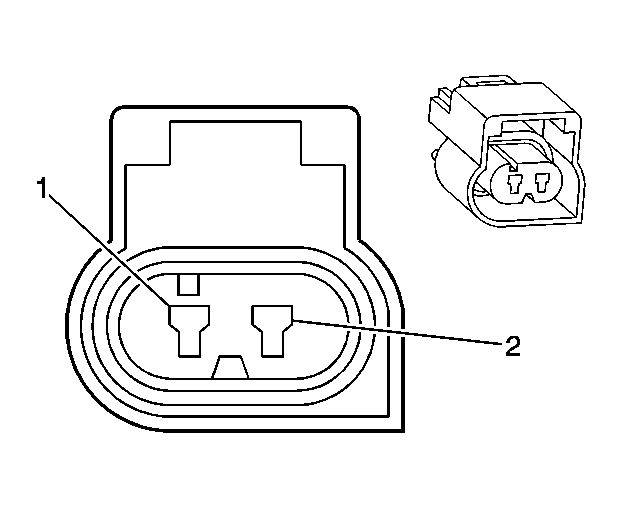

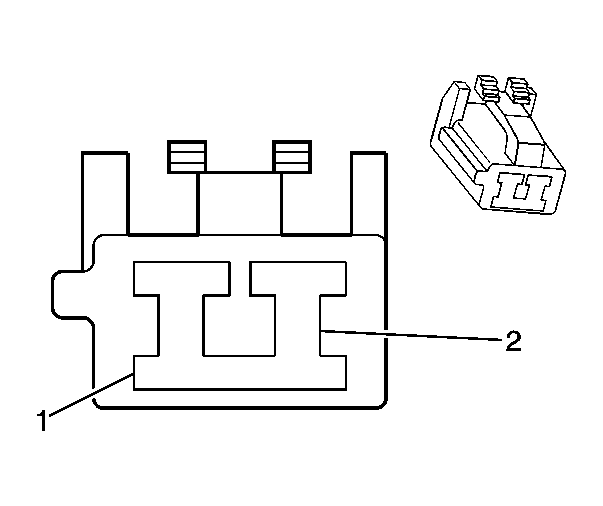

Fuel Injector 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-GN | 1039 | Ignition 1 Voltage |
| 2 | BU | 1744 | Fuel Injector #1 Control |
Fuel Injector 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD | 639 | Ignition 1 Voltage |
| 2 | GN | 1745 | Fuel Injector #2 Control |
Fuel Injector 3
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-GN | 1039 | Ignition 1 Voltage |
| 2 | PU | 1746 | Fuel Injector #3 Control |
Fuel Injector 4
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD | 639 | Ignition 1 Voltage |
| 2 | BN/YE | 844 | Fuel Injector #4 Control |
Fuel Injector 5
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-GN | 1039 | Ignition 1 Voltage |
| 2 | GY | 845 | Fuel Injector #5 Control |
Fuel Injector 6
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD | 639 | Ignition 1 Voltage |
| 2 | YE | 846 | Fuel Injector #6 Control |
Fuel Injector 7
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-GN | 1039 | Ignition 1 Voltage |
| 2 | PK/BU | 877 | Fuel Injector #7 Control |
Fuel Injector 8
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD | 639 | Ignition 1 Voltage |
| 2 | L-GN | 878 | Fuel Injector #8 Control |

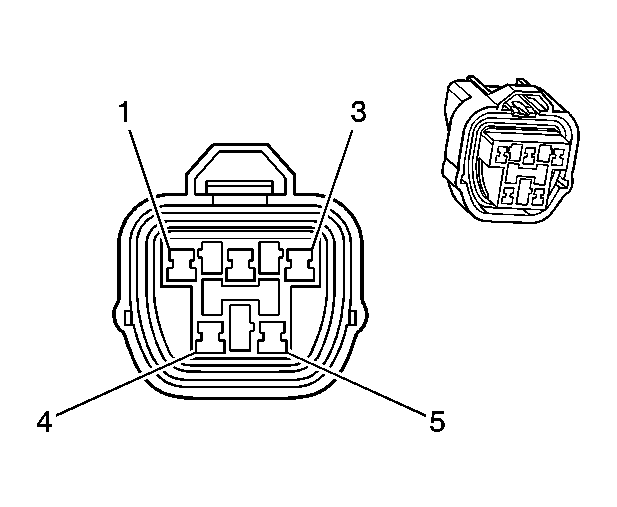

Fuel Pump and Sender Assembly
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used |
| 2 | PU | 30 | Fuel Level Sensor Signal |
| 3 | BK | 2759 | Low Reference |
| 4 | PU | 120 | Fuel Pump Supply Voltage |
| 5 | BK/BU | 650 | Ground |
Fuel Tank Pressure (FTP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 2759 | Low Reference |
| B | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| C | GY | 2709 | 5-Volt Reference Voltage |

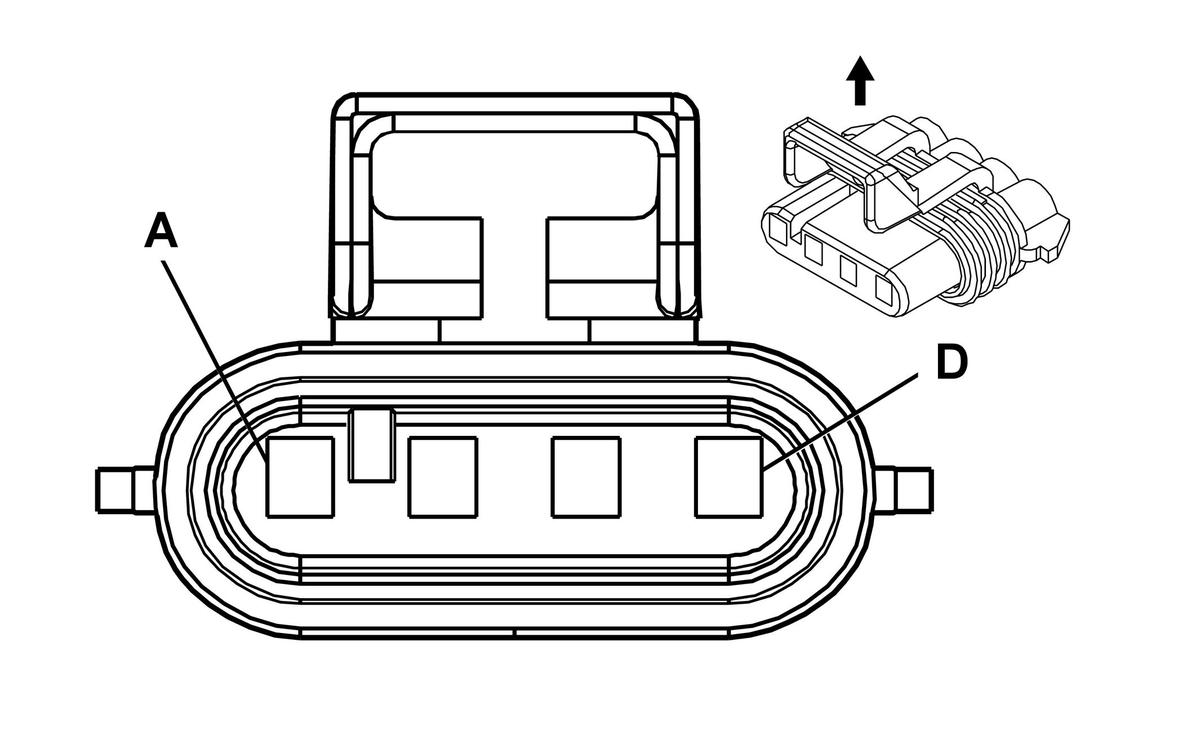

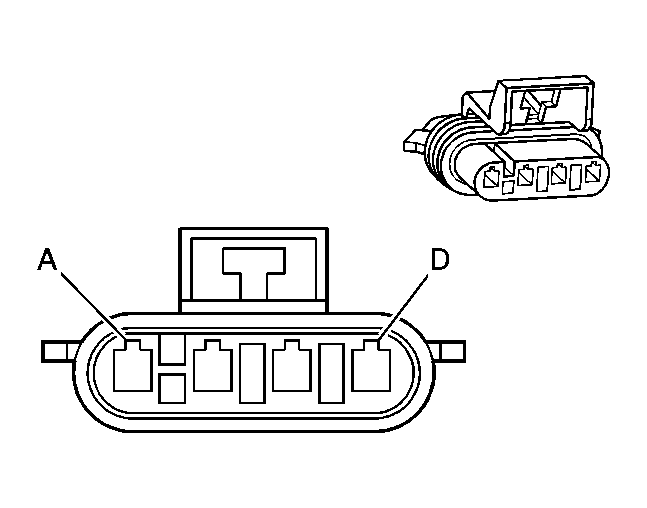

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BU/BK | 1664 | HO2S Low Signal Bank 1 Sensor 1 |
| B | PU | 1665 | HO2S High Signal Bank 1 Sensor 1 |
| C | BK/WH | 1050 | HO2S Bank 1 Sensor 1 Heater Low Control |
| D | PK | 439 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN/WH | 1669 | HO2S Low Signal Bank 1 Sensor 2 |
| B | PU/WH | 1668 | HO2S High Signal Bank 1 Sensor 2 |
| C | L-BU | 1150 | HO2S Bank 1 Sensor 2 Heater Low Control |
| D | PK | 439 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GY/BK | 1667 | HO2S Low Signal Bank 2 Sensor 1 |
| B | GY | 1666 | HO2S High Signal Bank 2 Sensor 1 |
| C | L-GN/RD | 1250 | HO2S Bank 2 Sensor 1 Heater Low Control |
| D | PK | 439 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN | 1671 | HO2S Low Signal Bank 2 Sensor 2 |
| B | PU/BK | 1670 | HO2S High Signal Bank 2 Sensor 2 |
| C | RD/WH | 1350 | HO2S Bank 2 Sensor 2 Heater Low Control |
| D | PK | 439 | Ignition 1 Voltage |

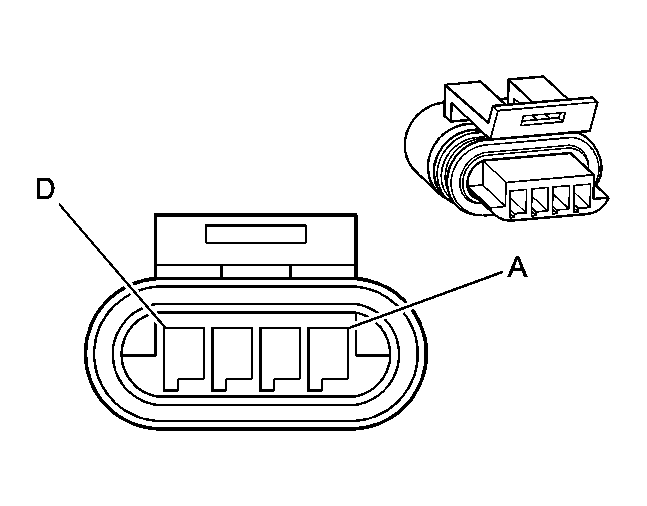

Idle Air Control (IAC) Valve
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | L-GN/BK | 444 | IAC Coil B Low Control |
| B | L-GN/WH | 1749 | IAC Coil B High Control |
| C | L-BU/BK | 1748 | IAC Coil A Low Control |
| D | L-BU | 1747 | IAC Coil A High Control |
Ignition Coil Cylinder 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 450 | Ground |
| B | BN | 2129 | Low Reference |
| C | PU | 2121 | IC 1 Control |
| D | PK | 1039 | Ignition 1 Voltage |
Ignition Coil Cylinder 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 450 | Ground |
| B | BN | 2122 | IC 2 Control |
| C | RD | 2130 | Low Reference |
| D | PK | 639 | Ignition 1 Voltage |
Ignition Coil Cylinder 3
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 450 | Ground |
| B | BN | 2129 | Low Reference |
| C | L-BU | 2123 | IC 3 Control |
| D | PK | 1039 | Ignition 1 Voltage |
Ignition Coil Cylinder 4
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 450 | Ground |
| B | BN | 2130 | Low Reference |
| C | L-GN | 2124 | IC 4 Control |
| D | PK | 639 | Ignition 1 Voltage |
Ignition Coil Cylinder 5
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 450 | Ground |
| B | BN | 2129 | Low Reference |
| C | GN | 2125 | IC 5 Control |
| D | PK | 1039 | Ignition 1 Voltage |
Ignition Coil Cylinder 6
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 450 | Ground |
| B | BN | 2130 | Low Reference |
| C | L-BU | 2126 | IC 6 Control |
| D | PK | 639 | Ignition 1 Voltage |
Ignition Coil Cylinder 7
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 450 | Ground |
| B | BN | 2127 | IC 7 Control |
| C | RD | 2129 | Low Reference |
| D | PK | 1039 | Ignition 1 Voltage |
Ignition Coil Cylinder 8
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 450 | Ground |
| B | BN | 2130 | Low Reference |
| C | PU | 2128 | IC 8 Control |
| D | PK | 639 | Ignition 1 Voltage |

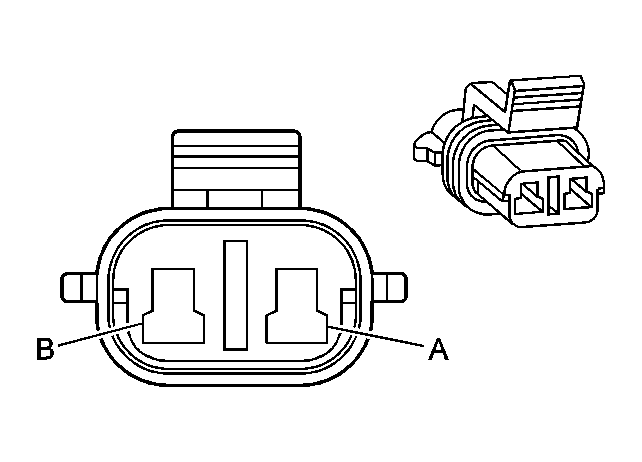

Intake Air Temperature (IAT) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GN/OG | 5514 | Low Reference |
| B | BN | 472 | IAT Sensor Signal |
Knock Sensor
|
GY |
|||
|---|---|---|---|
| Connector Part Information |
|
||
| Pin | Wire Color | Circuit No. | Function |
| 1 | GY | 2303 | Return |
| 2 | BU | 498 | Signal |
Manifold Absolute Pressure (MAP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 469 | Low Reference |
| B | L-GN | 432 | MAP Sensor Signal |
| C | PU/WH | 2704 | 5-Volt Reference |

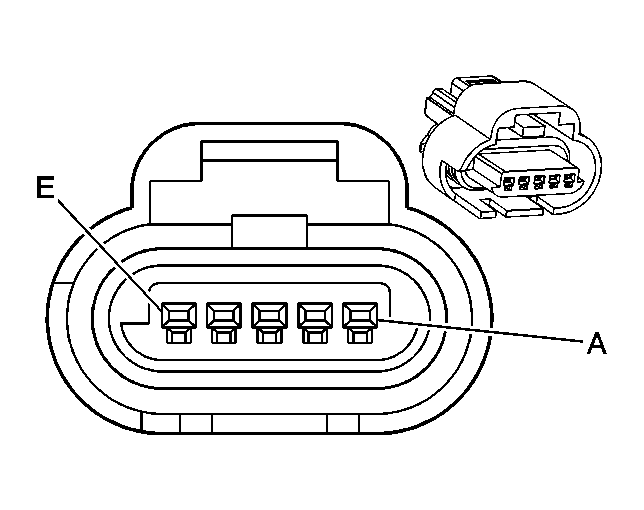

Mass Air Flow (MAF) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 2759 | Low Reference |
| B | BK | 472 | IAT Sensor Signal |
| C | BK/RD | 450 | Sensor Ground |
| D | PK | 439 | Sensor Voltage Supply |
| E | BN/WH | 492 | MAF Sensor Signal |

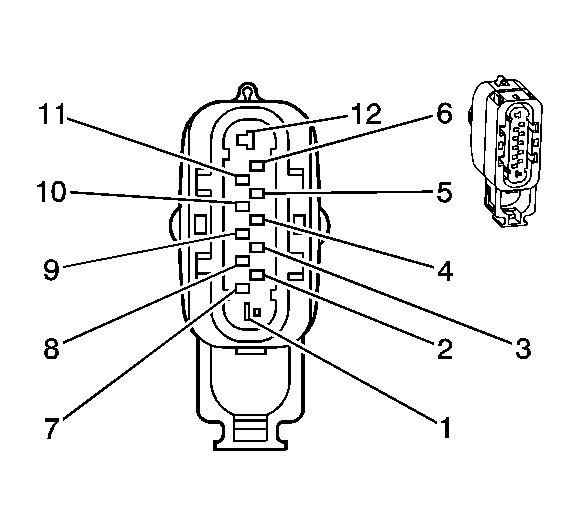

Park/Neutral Position Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | GY/BU | 275 | Park Neutral Position Switch Park Signal |
| 2 | - | - | Not Used |
| 3 | YE | 1479 | A/T Neutral Signal |
| 4 | YE/RD | 772 | Transmission Range Switch Signal B |
| 5 | BU/WH | 771 | Transmission Range Switch Signal A |
| 6 | GY | 773 | Transmission Range Switch Signal C |
| 7 | BK/RD | 450 | Ground |
| 8 | WH | 776 | Transmission Range Switch Signal P |
| 9 | - | - | Not Used |
| 10 | L-GN | 24 | Backup Lamp Supply Voltage |
| 11 | BN/BU | 239 | Ignition 1 Voltage |
| 12 | GY | 434 | Neutral Safety Switch Signal |
Powertrain Interface Module (PIM)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used |

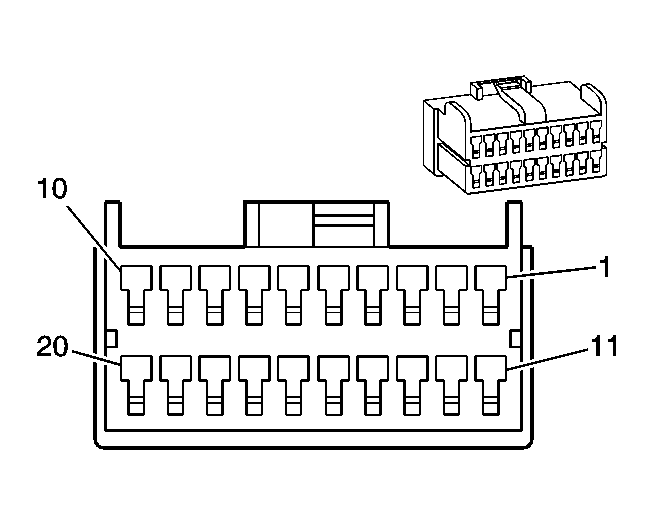

| 2 | RD/BK | 800 | UART Serial Data (Primary) |
| 3 | YE | 1045 | RFA Class 2 Serial Data |
| 4 | GY/BU | 275 | Park Neutral Position Switch Park Signal |
| 5 | - | - | Not Used |
| 6 | OG | 300 | Ignition 3 Voltage |
| 7 | BK/RD | 450 | Ground |
| 8 | GY/BK | 87 | Cruise Control Resume/Accel Switch Signal |
| 9 | BU | 84 | Cruise Control Set/Coast Switch Signal |
| 10 | RD/BK | 800 | Serial Data Signal |
| 11 | - | - | Not Used |
| 12 | - | - | Not Used |
| 13 | OG | 740 | Battery Positive Voltage |
| 14 | OG | 300 | Ignition 3 Voltage |
| 15 | BK/GN | 151 | Ground |
| 16 | - | - | Not Used |
| 17 | TN/BK | 2500 | Serial Data - Can Protocol - High |
| 18 | TN/BK | 2500 | Serial Data - Can Protocol - High |
| 19 | TN | 2501 | Serial Data - Can Protocol - Low |
| 20 | TN | 2501 | Serial Data - Can Protocol - Low |

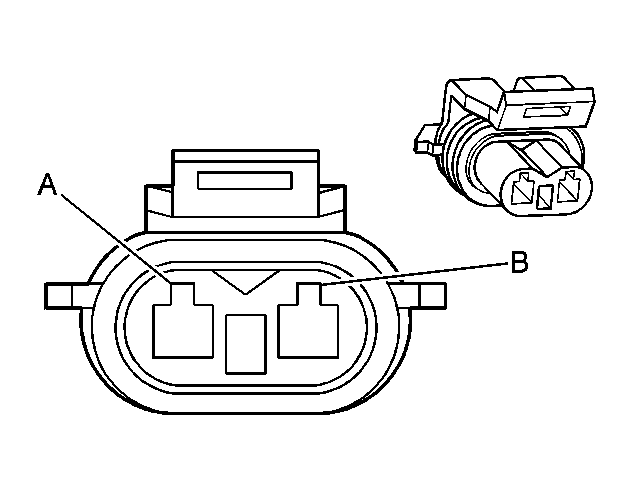

Reverse Lockout Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | YE | 1652 | Reverse Lockout Solenoid Control |
| B | PK/BU | 339 | Ignition 1 Voltage |
Skip Shift Coil Assembly
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GY | 587 | Skip/Shift Solenoid Control |
| B | PK/BU | 339 | Ignition 1 Voltage |
Throttle Position (TP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GY | 2701 | 5-Volt Reference |
| B | BK/YE | 2752 | Low Reference |
| C | BU | 411 | Throttle Position Signal |
Throttle Relaxer
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | RD/WH | 560 | Throttle Relaxer Motor - Feed |
| B | RD/BK | 561 | Throttle Relaxer Motor - Return |
Vehicle Speed Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BU/WH | 1230 | AT ISS High Signal |
| B | BN/RD | 1231 | AT ISS Low Signal |
