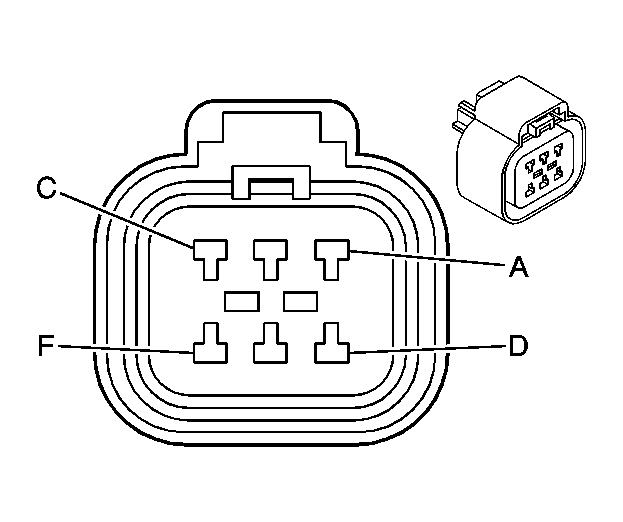

Throttle Actuator Control (TAC) Module Connector End Views

Throttle Actuator Control Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		GTO-Y38 6-Way Connector (BK)
Pin	Wire Color	Circuit Number	Function
A	BN	582	Throttle Motor Ground
B	YE	581	Throttle Motor Voltage
C	BN/WH	1704	Low Reference Signal
D	GN	485	Throttle Position Sensor Signal
E	L-BU/BK	1688	5-Volt Reference
F	PU	486	Throttle Position Sensor Signal
