Engine Controls Schematics

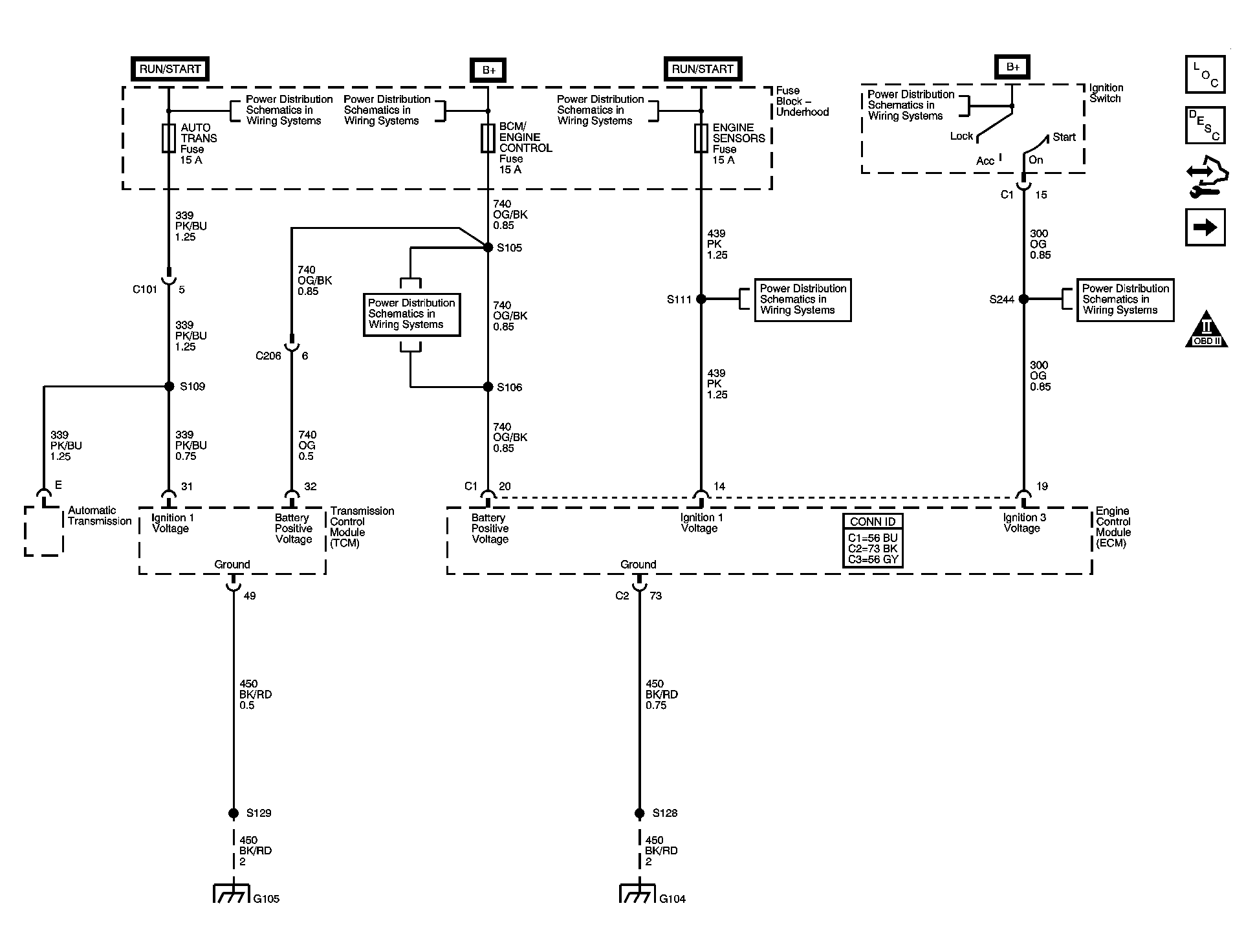

Fig 1: Engine Control Module (ECM), Transmission Control Module (TCM) Power and Ground

Courtesy of GENERAL MOTORS CORP.

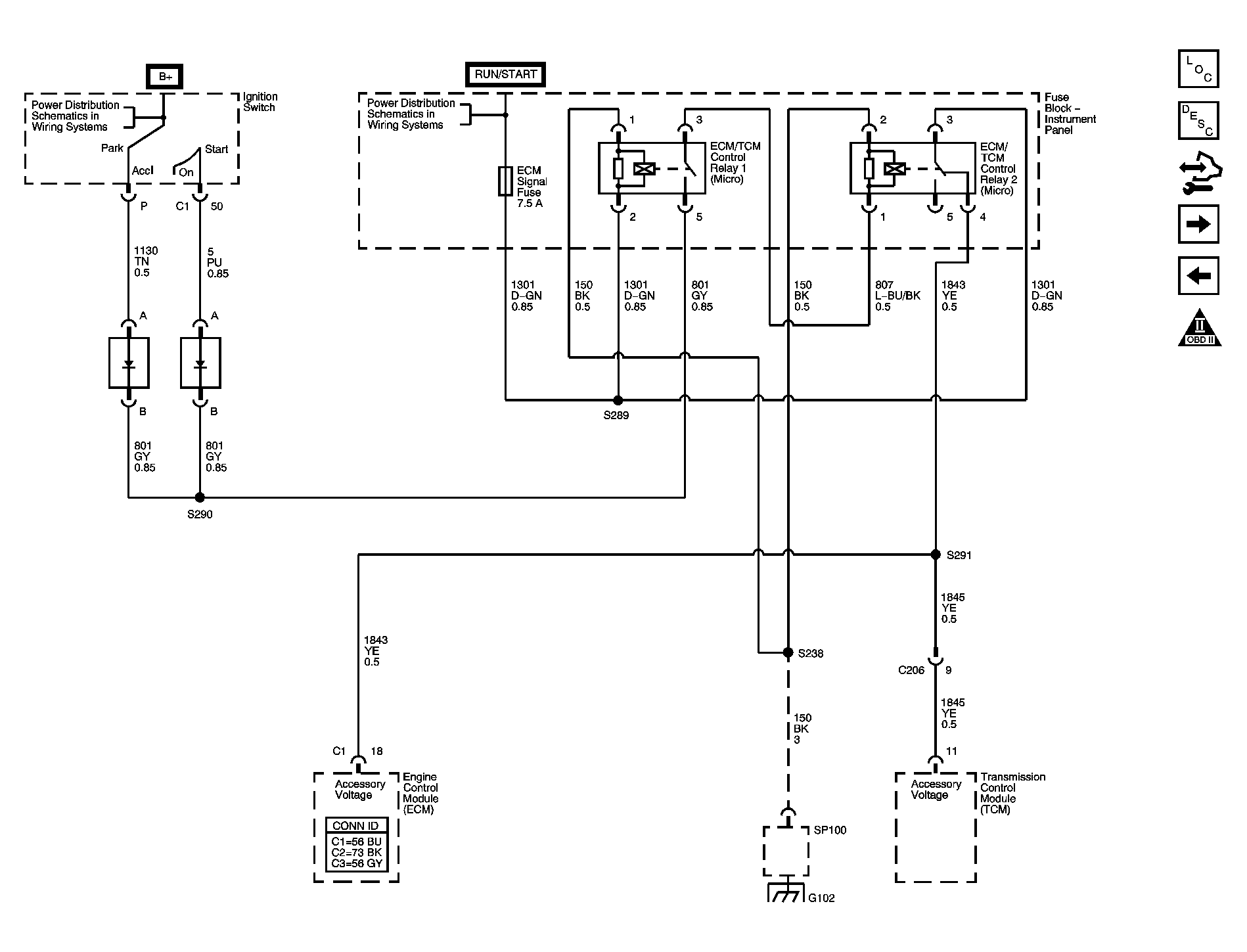

Fig 2: ECM/TCM Control Relays

Courtesy of GENERAL MOTORS CORP.

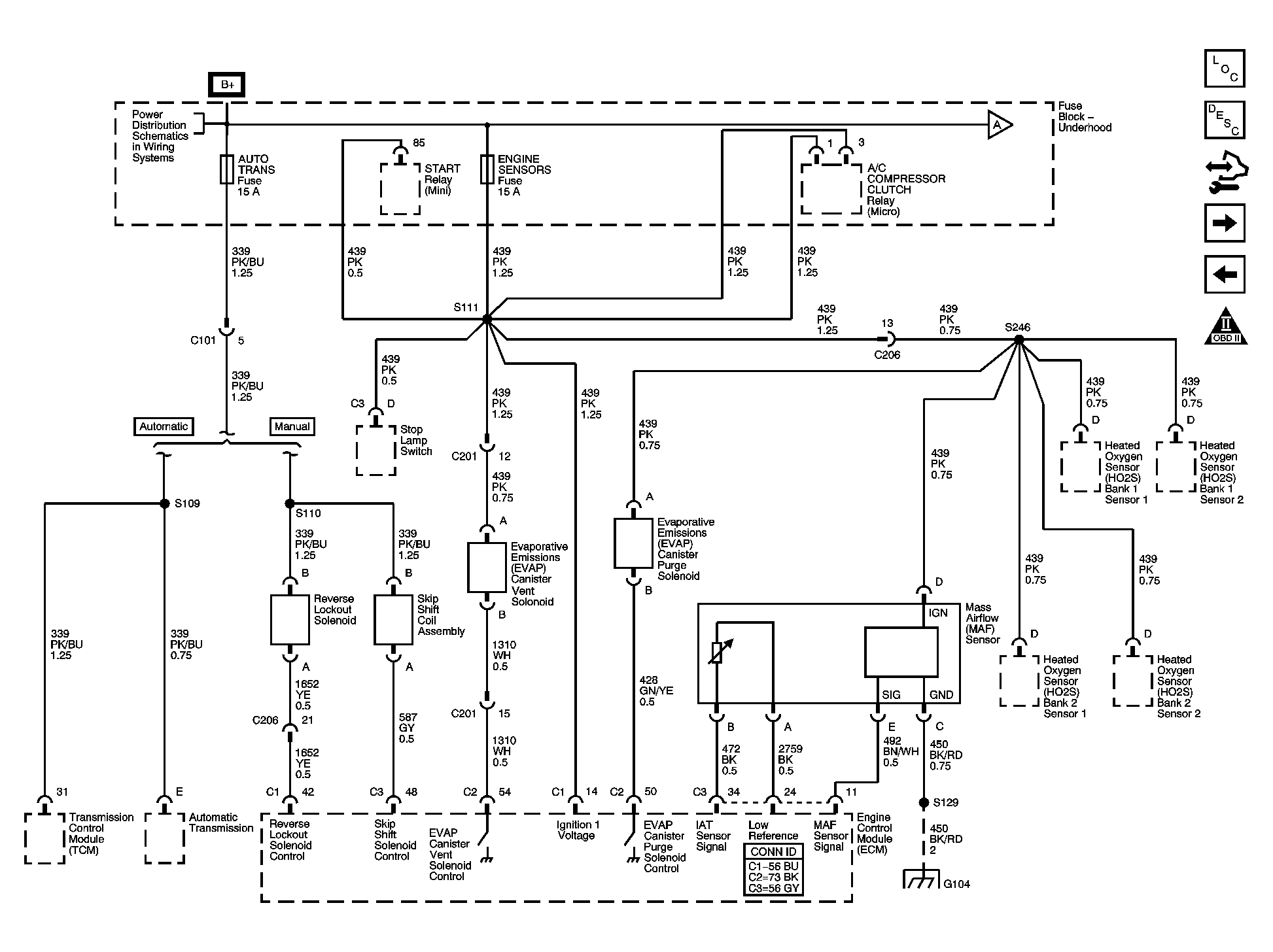

Fig 3: Manual Transmission Solenoids, EVAP Solenoids, Mass Air Flow (MAF) Sensor

Courtesy of GENERAL MOTORS CORP.

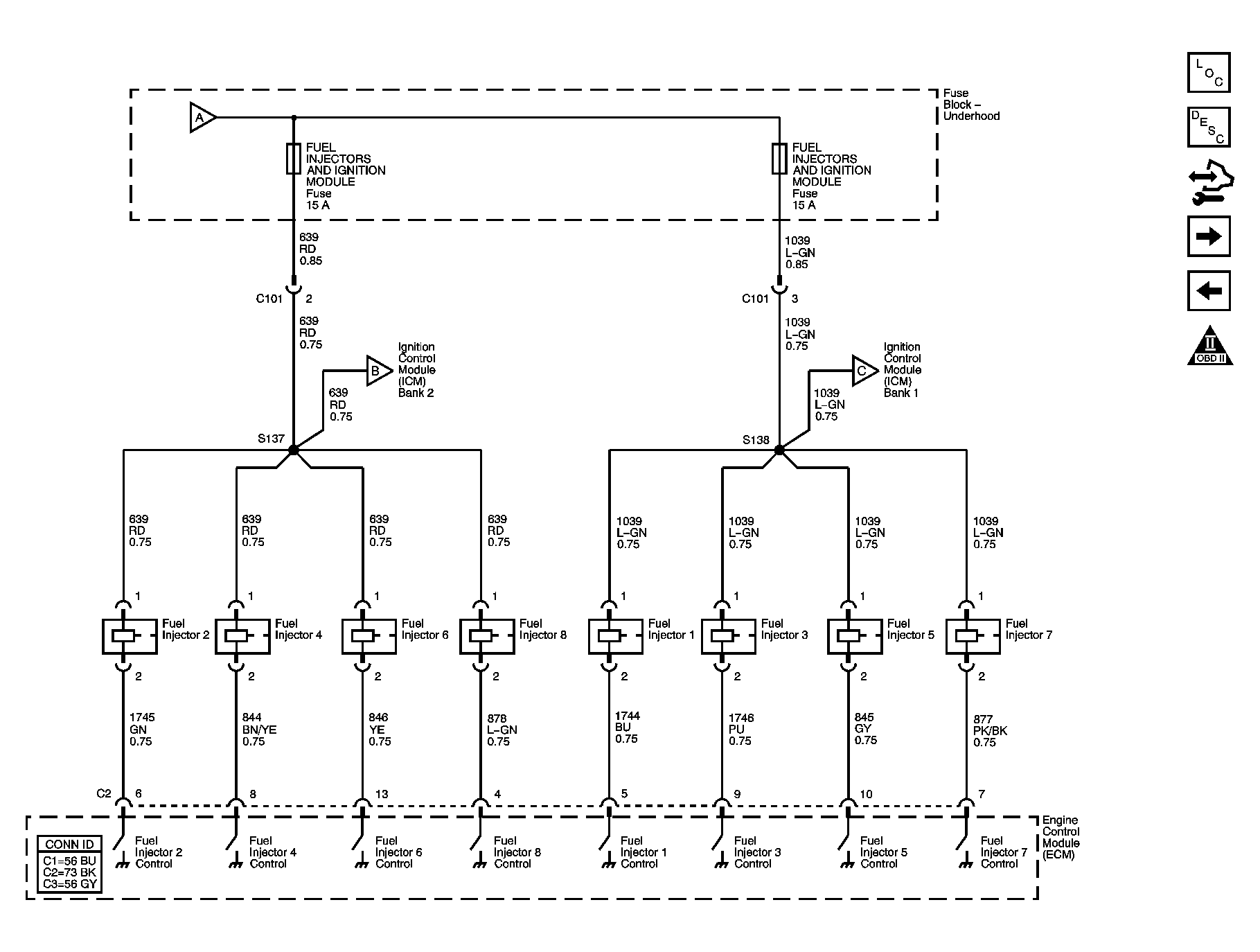

Fig 4: Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

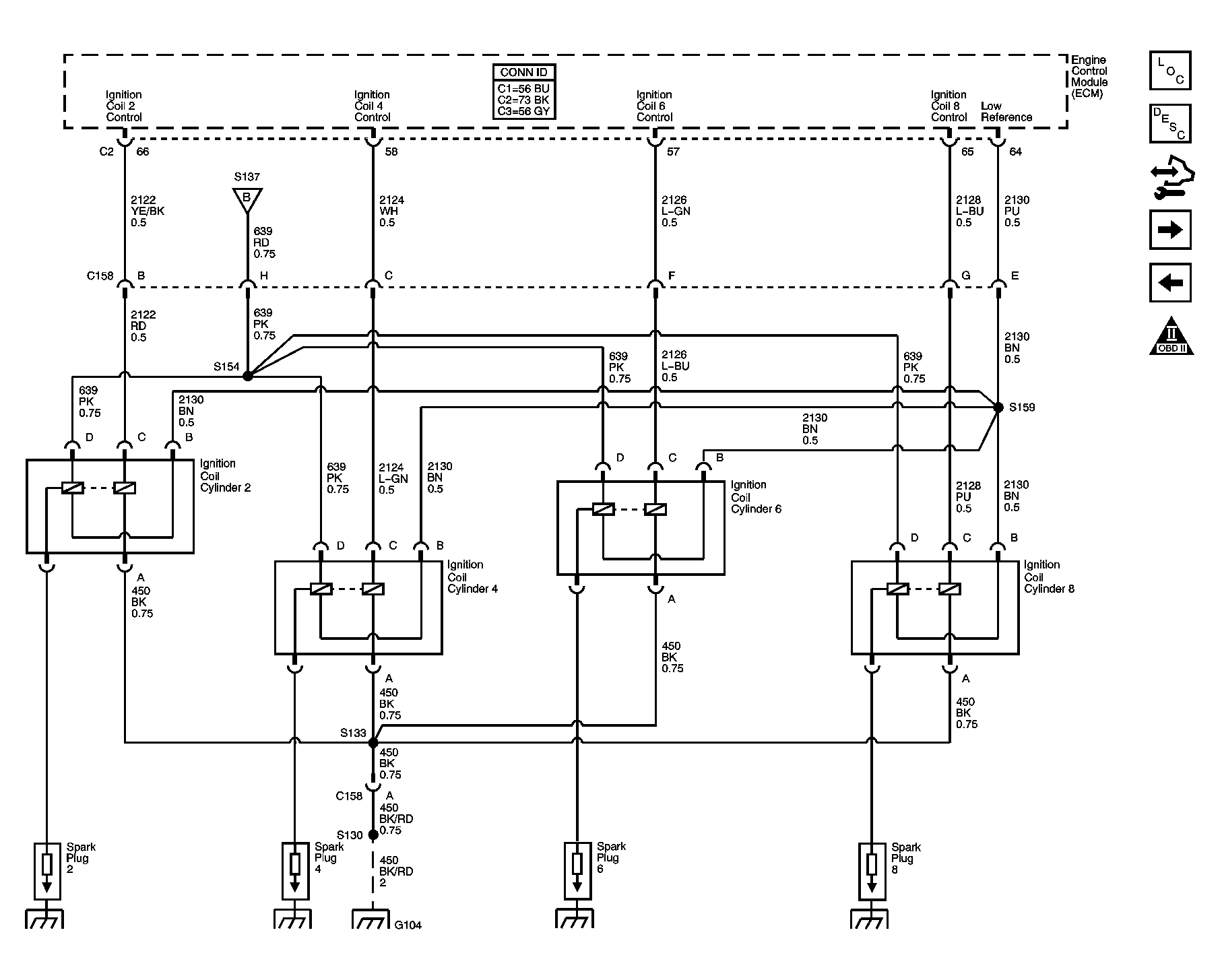

Fig 5: Ignition Coils - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Coils - 2 of 2

Courtesy of GENERAL MOTORS CORP.

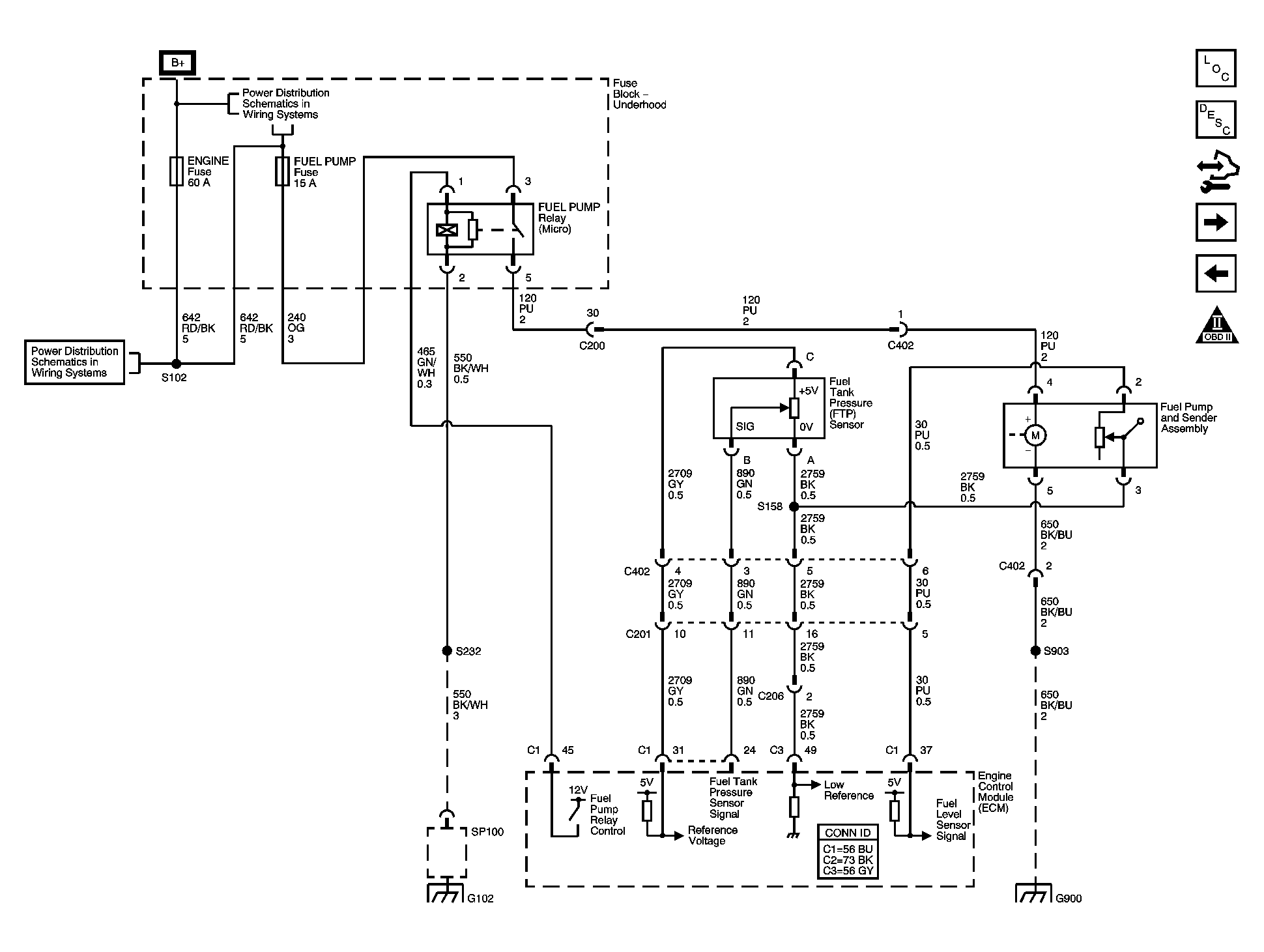

Fig 7: Fuel Pump and Sender Assembly

Courtesy of GENERAL MOTORS CORP.

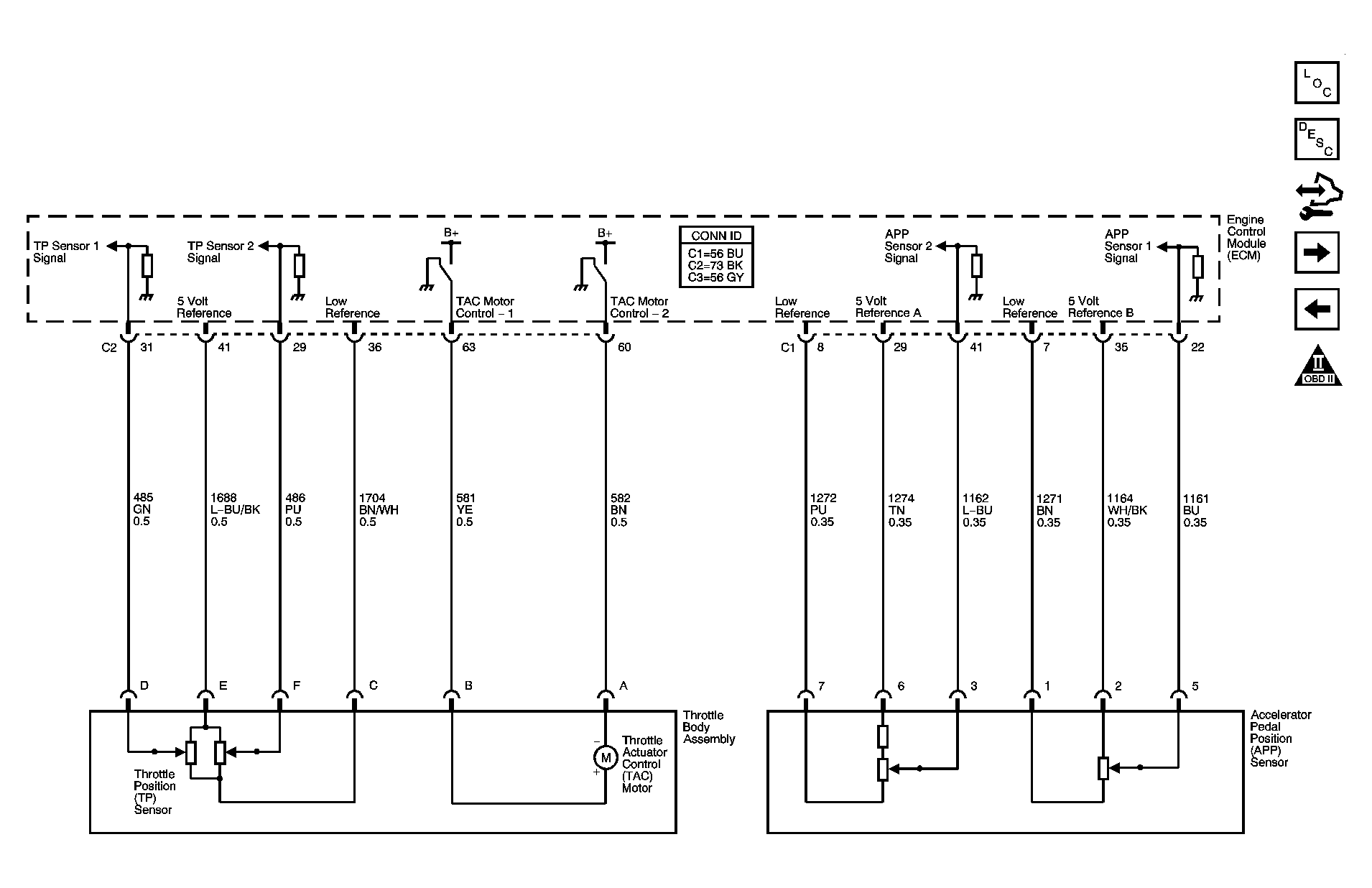

Fig 8: Throttle Position (TP) Sensor, Throttle Actuator Control (TAC) Motor, Accelerator Pedal Position (APP) Sensor

Courtesy of GENERAL MOTORS CORP.

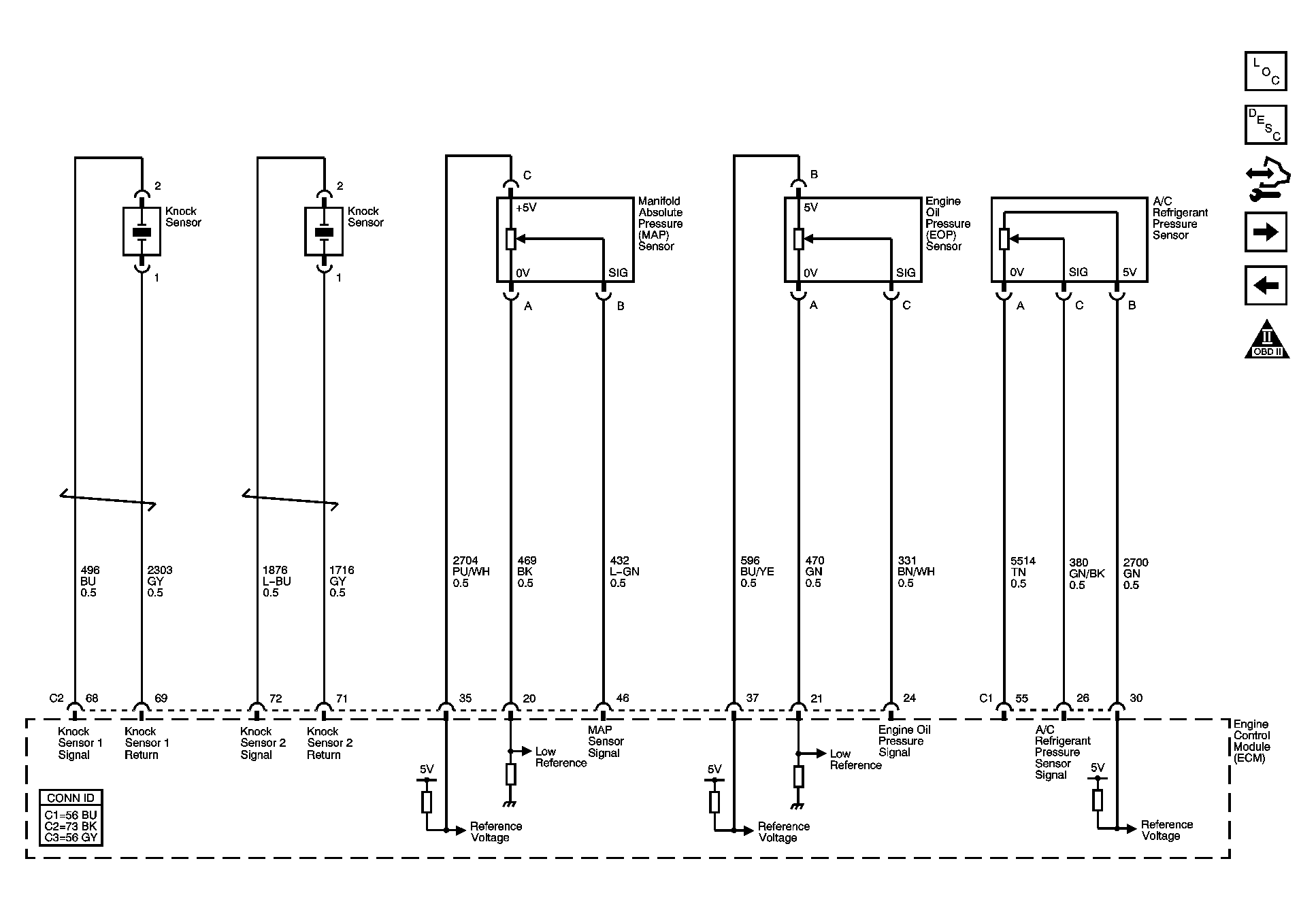

Fig 9: Knock Sensors (KS), Manifold Absolute Pressure (MAP), Engine Oil Pressure (EOP), A/C Refrigerant Pressure Sensors

Courtesy of GENERAL MOTORS CORP.

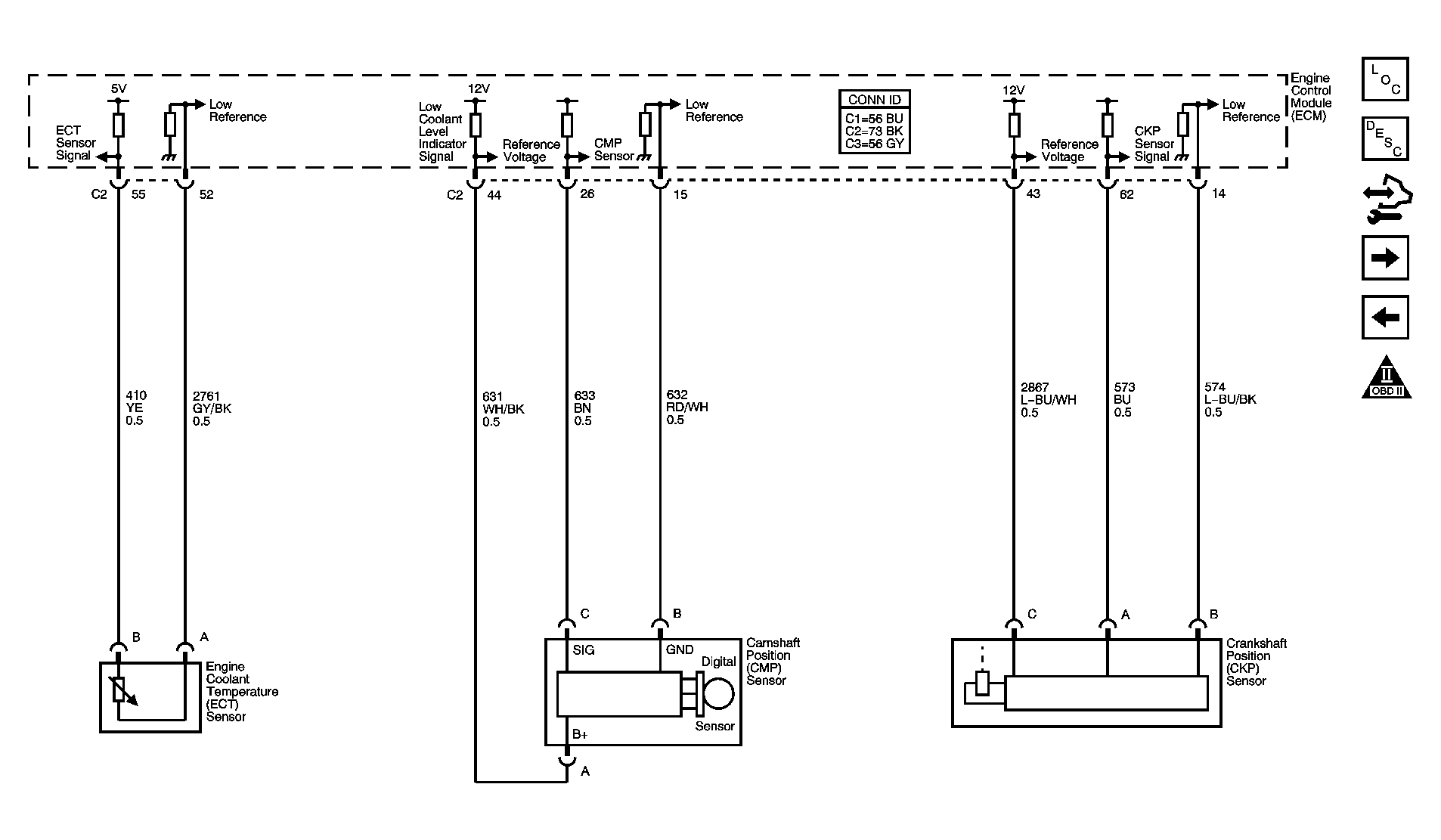

Fig 10: Engine Coolant Temperature (ECT), Camshaft Position (CMP) and Crankshaft Position (CKP) Sensors

Courtesy of GENERAL MOTORS CORP.

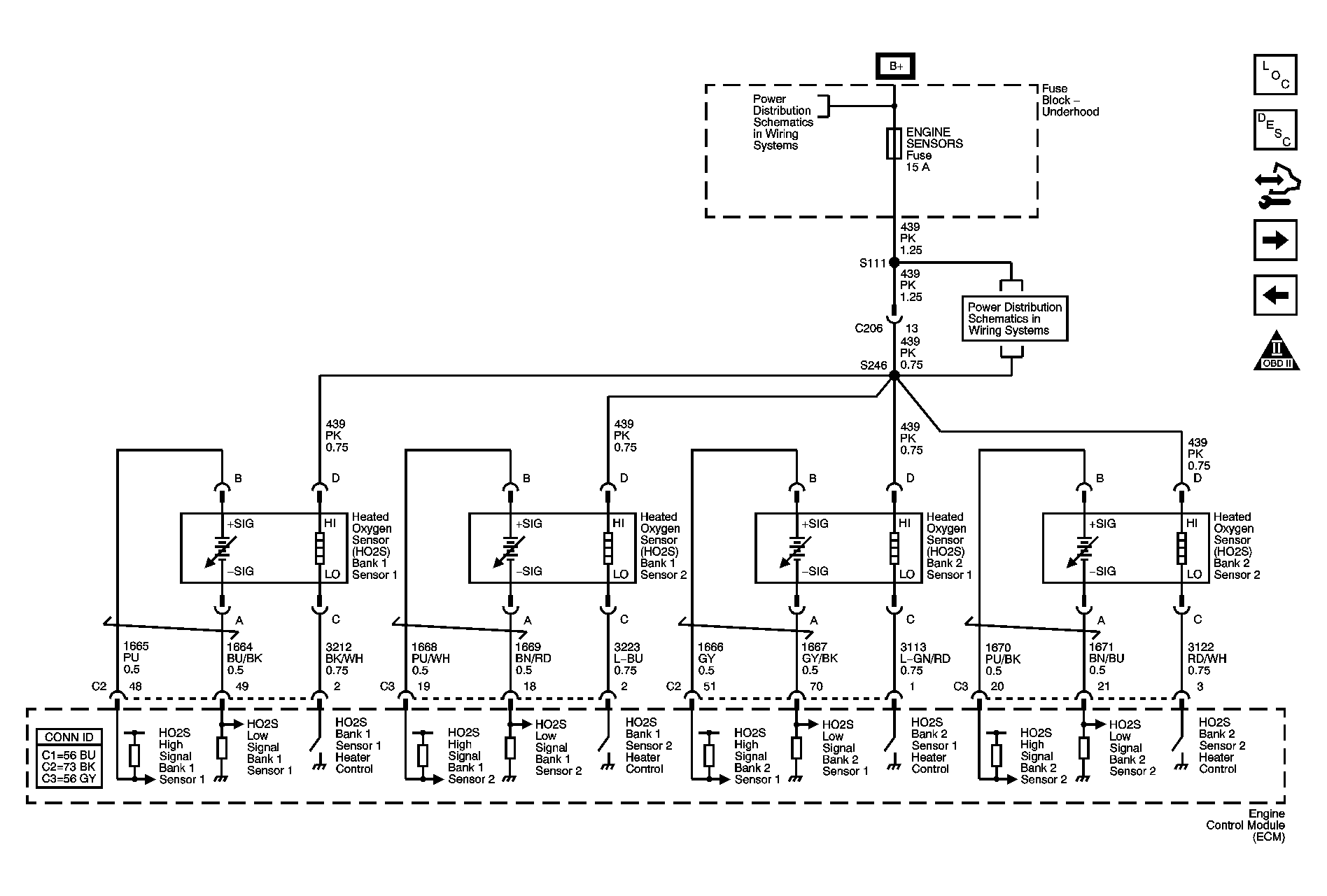

Fig 11: Heated Oxygen Sensors (HO2S)

Courtesy of GENERAL MOTORS CORP.

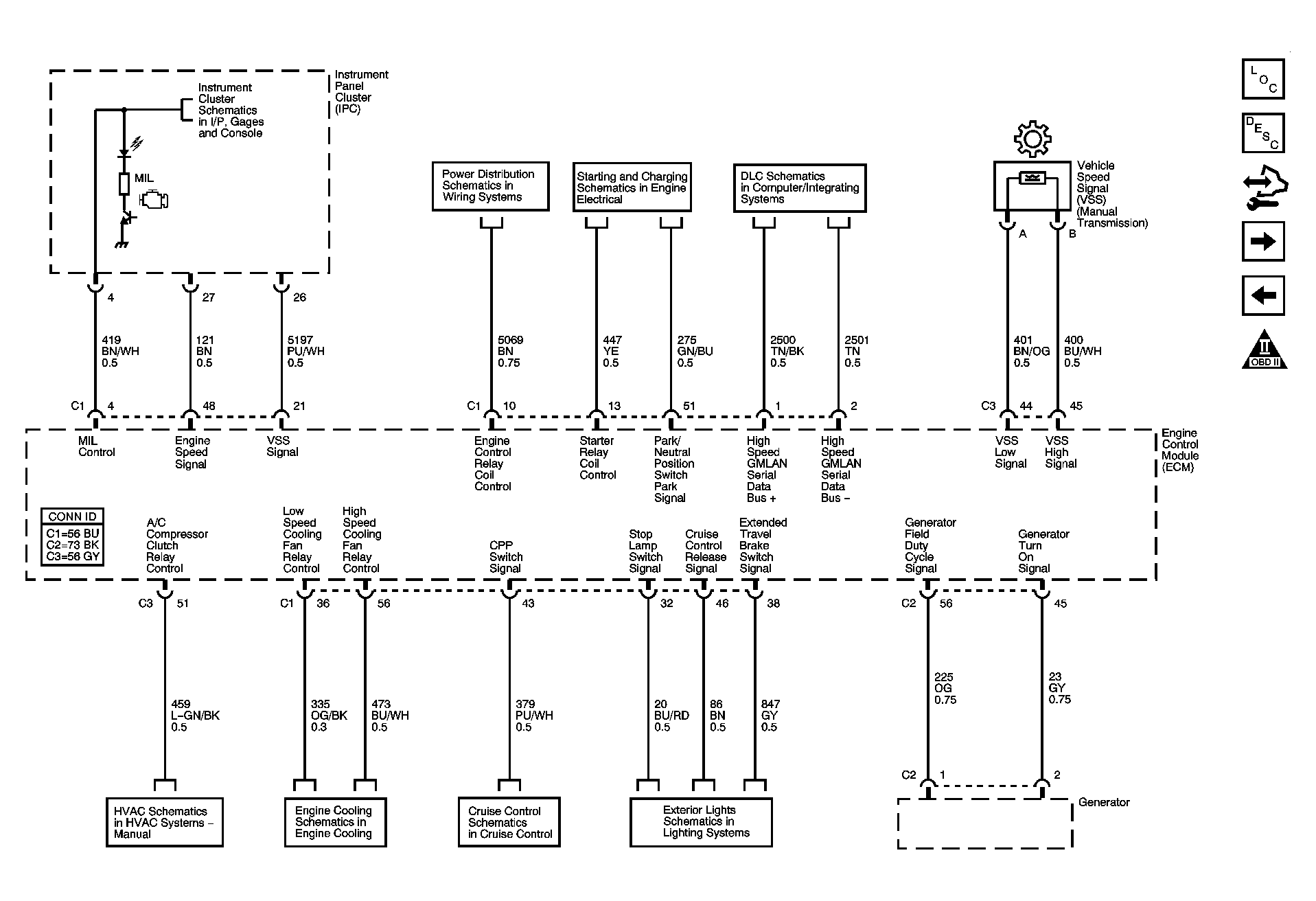

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

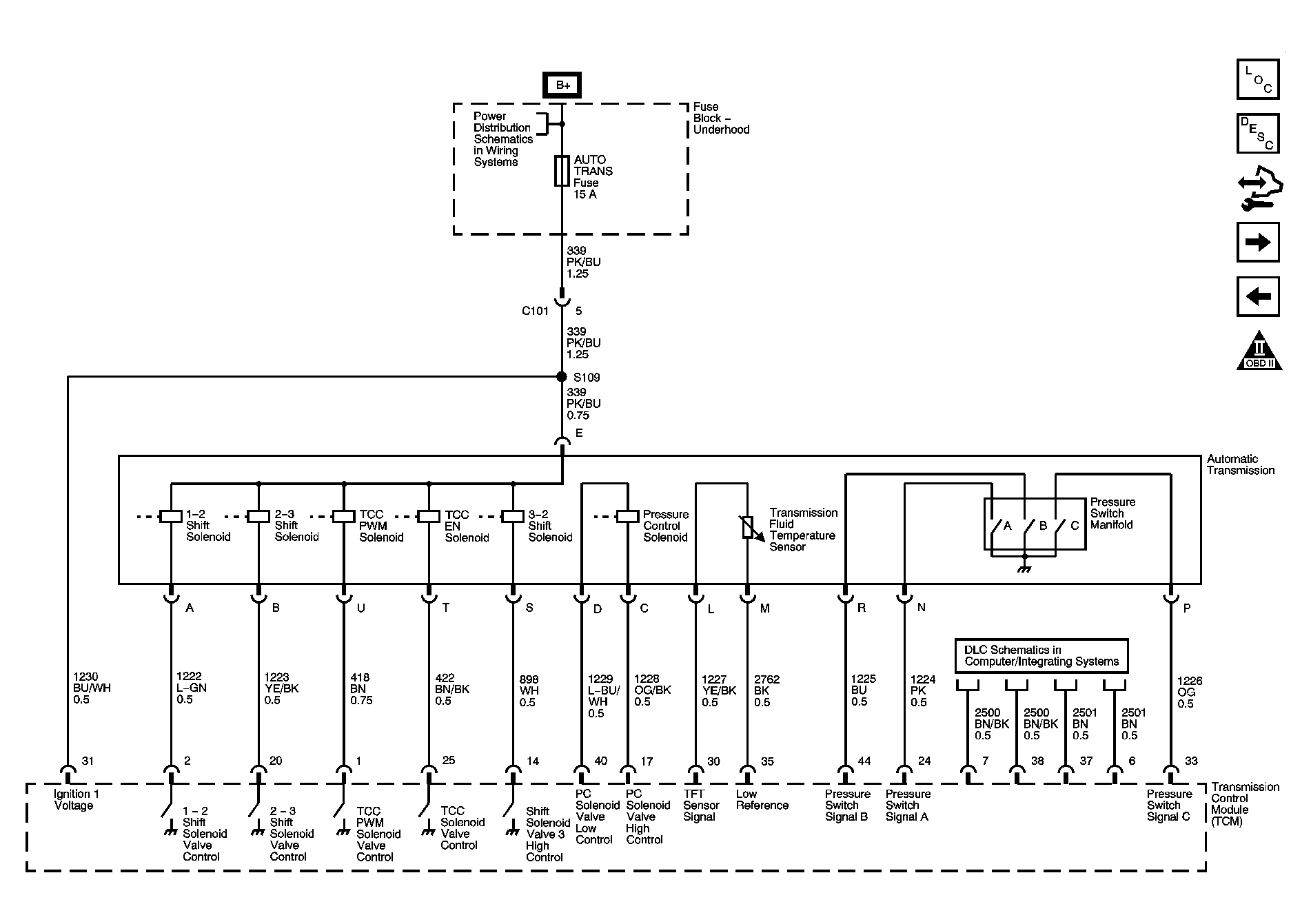

Fig 13: Automatic Transmission Controls

Courtesy of GENERAL MOTORS CORP.

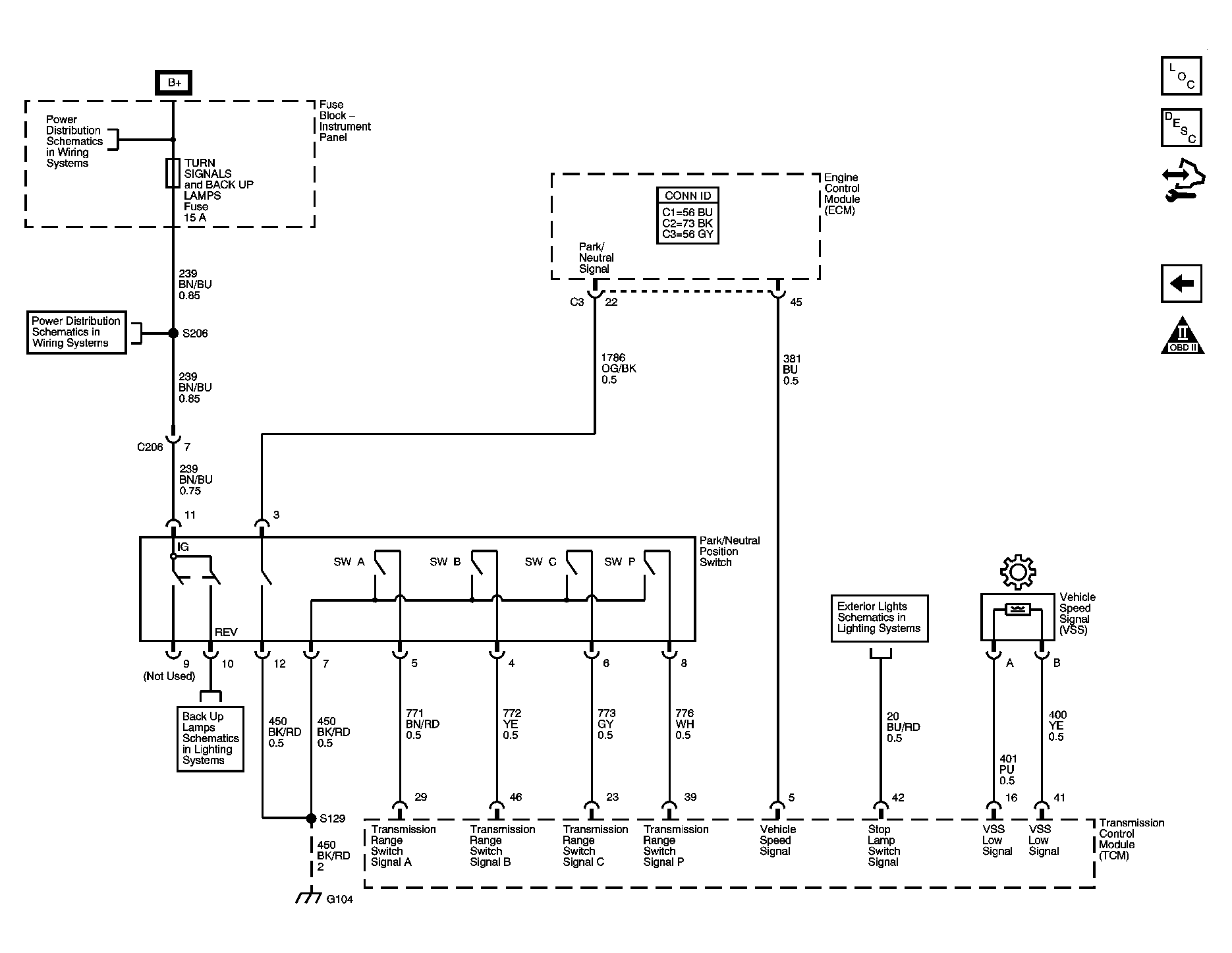

Fig 14: Park/Neutral Position (PNP) Switch, Vehicle Speed Sensor (VSS)

Courtesy of GENERAL MOTORS CORP.
