DTC B1372: Notes

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

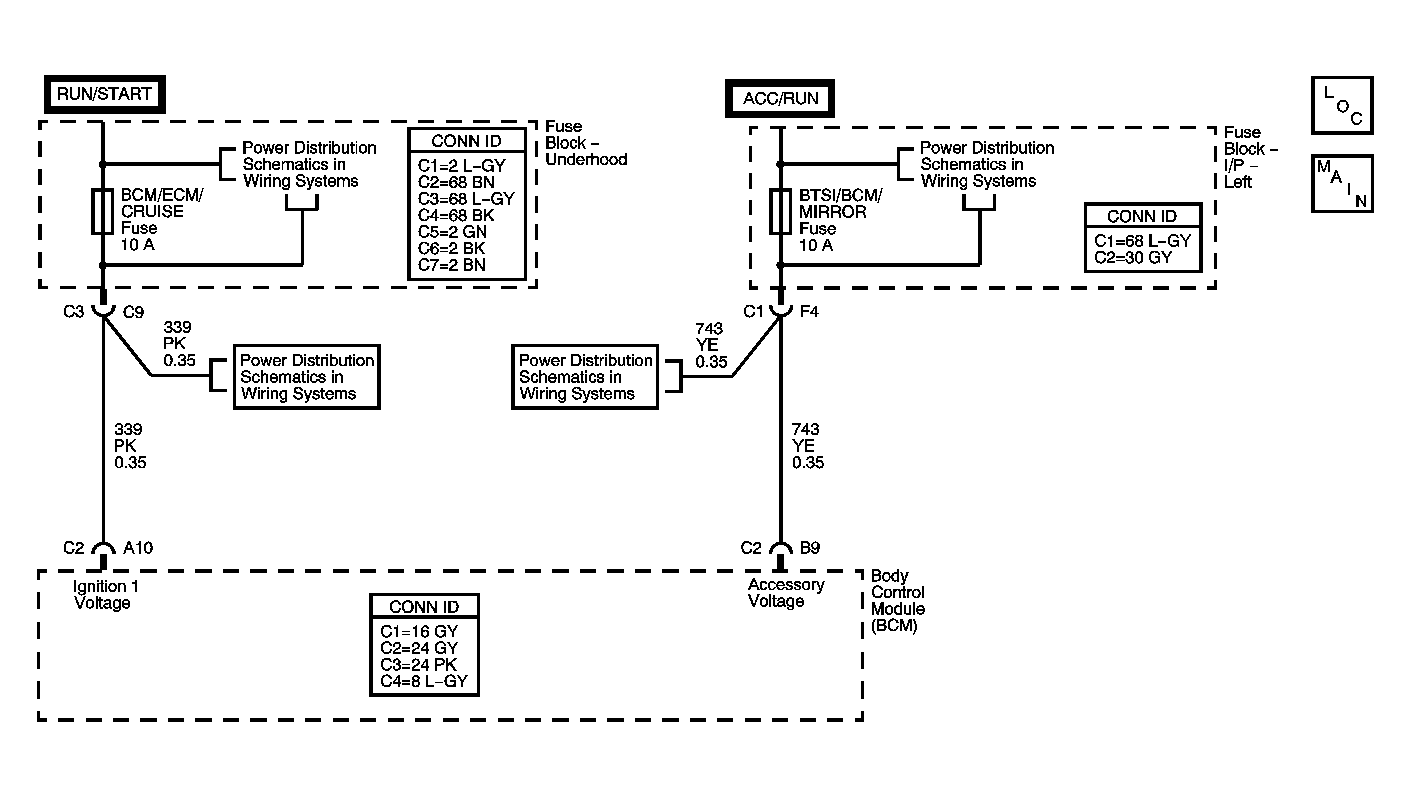

Fig 1: BCM Wiring Schematic For Detecting System Power Mode
GM1248077Courtesy of GENERAL MOTORS CORP.
