Seat Belt Component Views

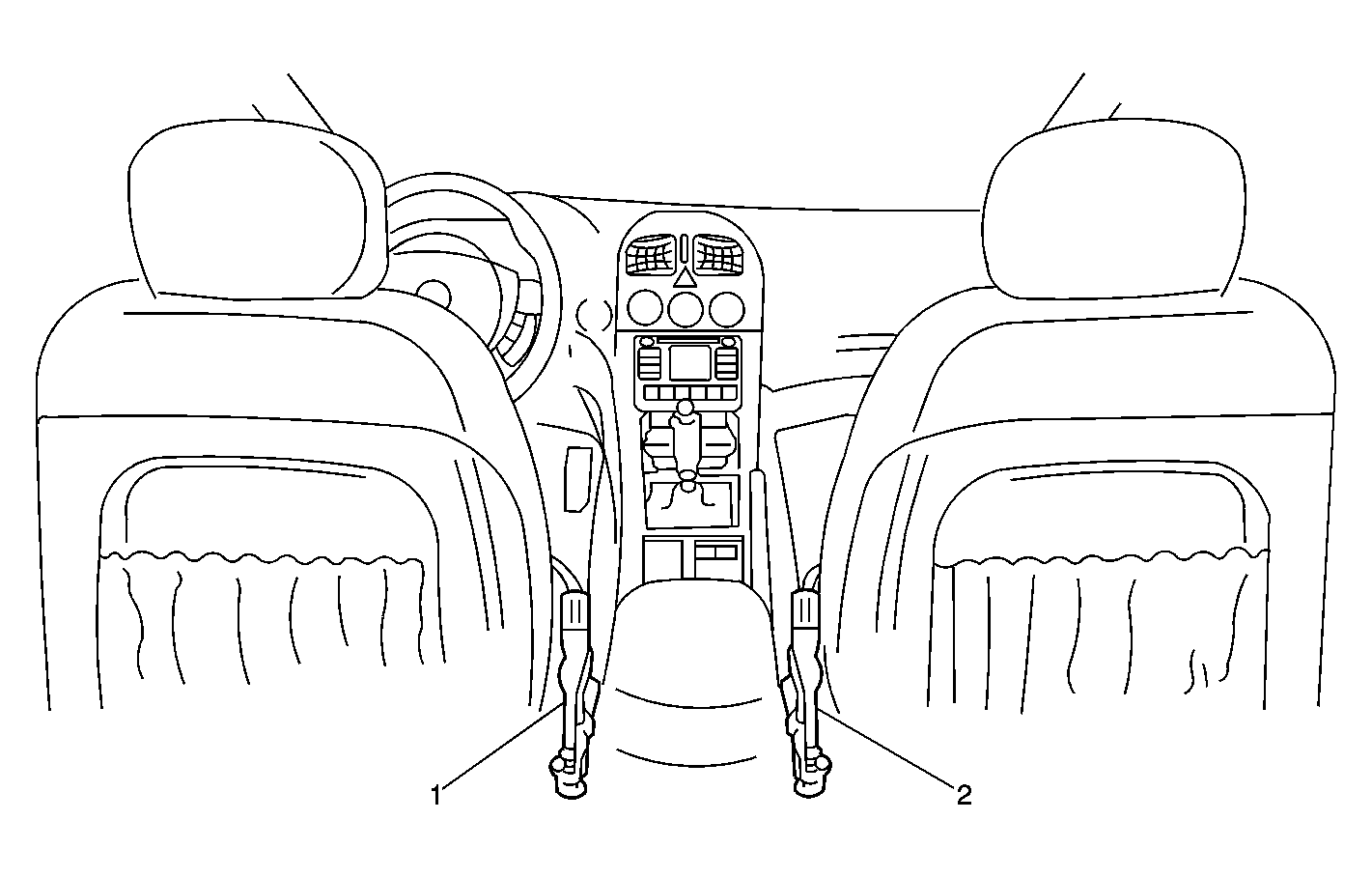

Fig 1: Seat Belt Pretensioner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Seat Belt Tensioner
2	Passenger Seat Belt Tensioner

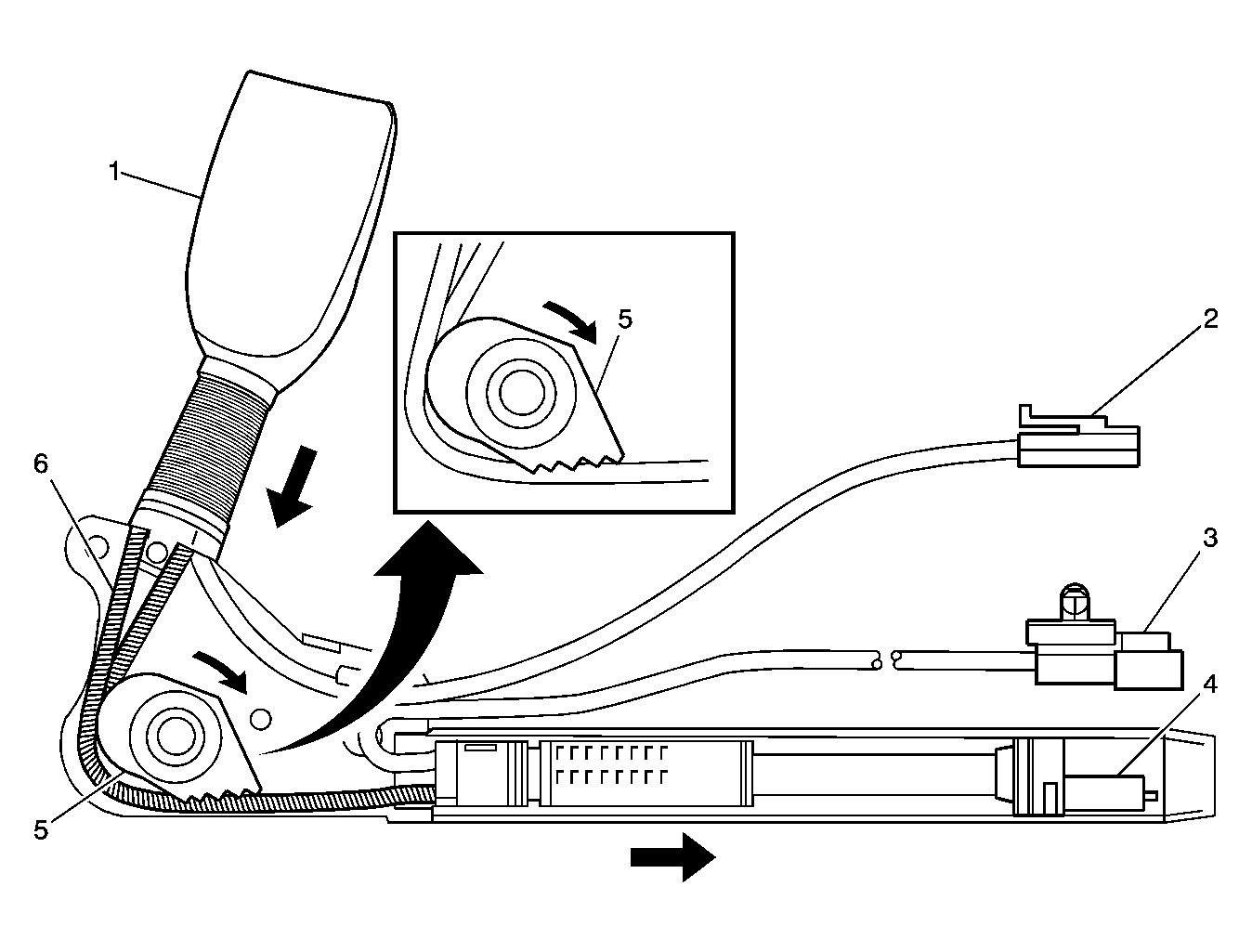

Fig 2: Seat Belt Pretensioner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Buckle Assembly
2	Seat Belt Buckle Switch Connector
3	Pretensioner Connector
4	Retractor Cable Piston
5	Buckle Retractor Cable
6	Retractor Cable Interlocking Cam Device
