Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 4: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 5: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 7: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 8: Lower Right Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Footwell
Courtesy of GENERAL MOTORS CORP.

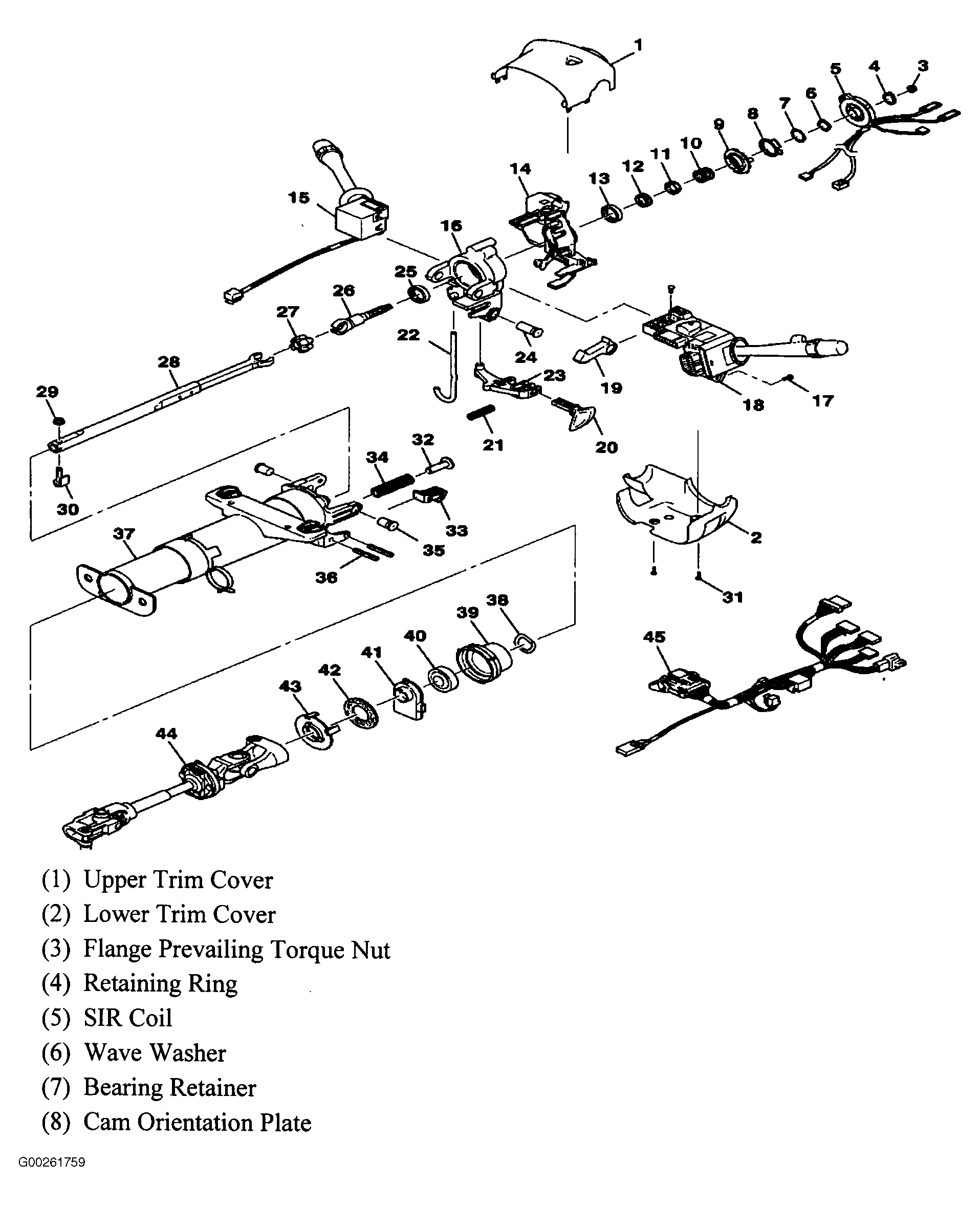

Fig 10: Steering Column Assembly (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

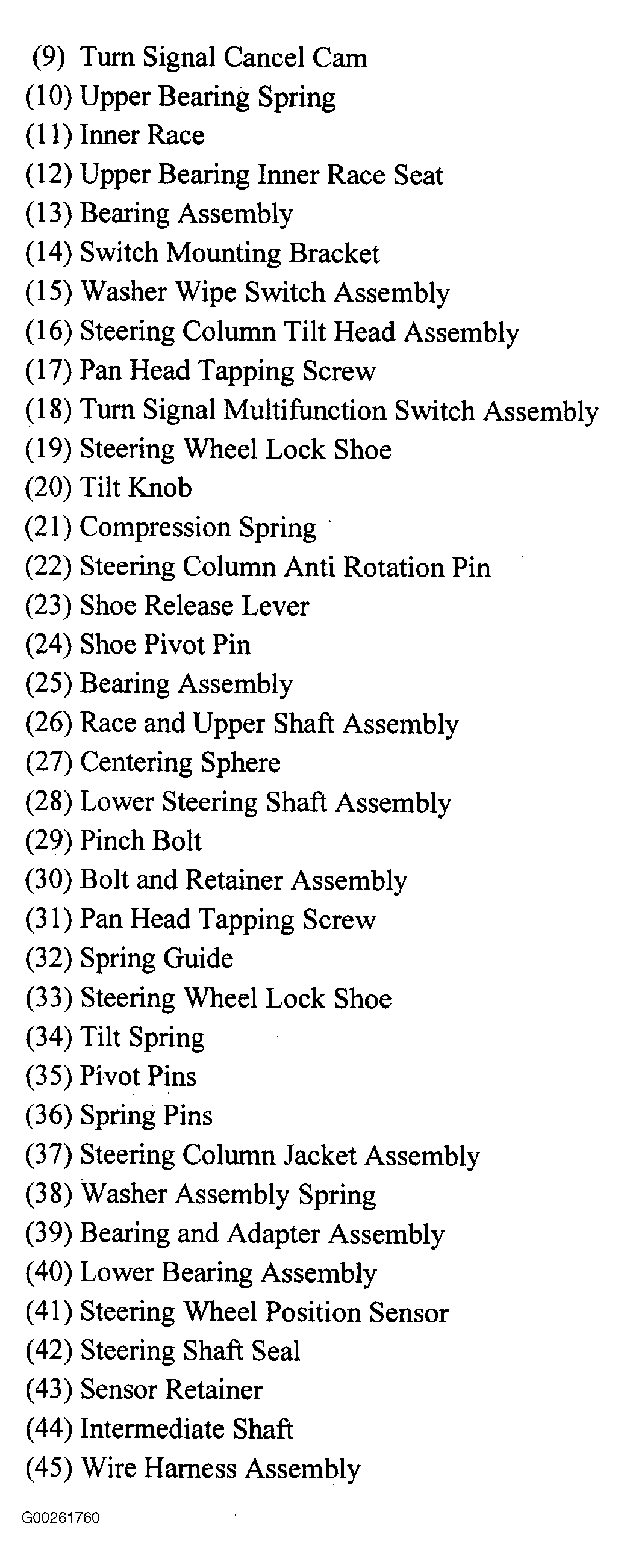

Fig 11: Steering Column Assembly (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 13: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 14: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 15: Steering Column Assembly (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Steering Column Assembly (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Under Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Rear Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 20: Upper Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 21: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 22: Lower Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 23: Top Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 24: Upper Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 25: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 26: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 27: Upper Left Rear Side Of Engine
Courtesy of GENERAL MOTORS CORP.

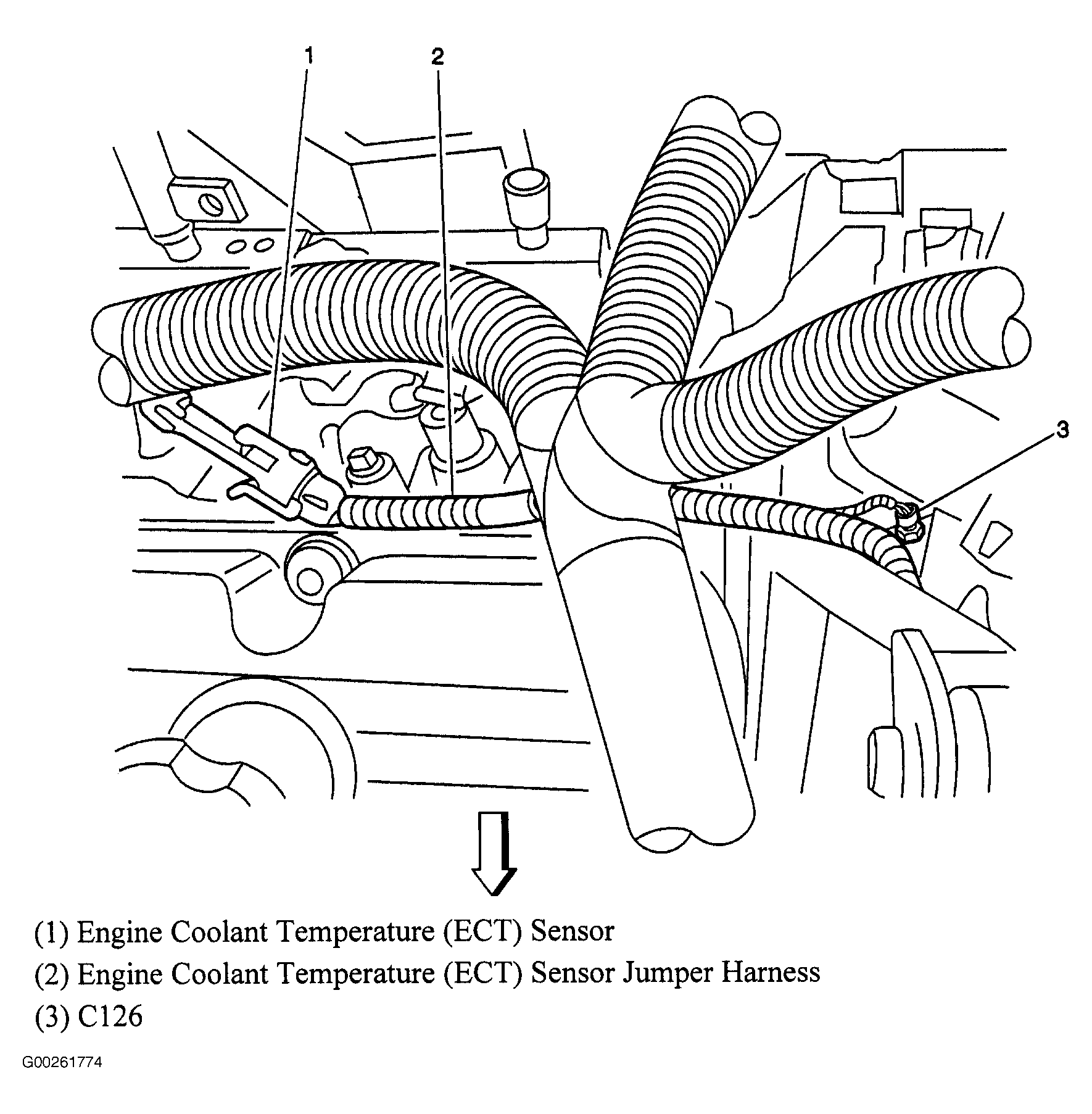

Fig 28: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 29: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 30: Exhaust
Courtesy of GENERAL MOTORS CORP.
Fig 31: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 32: Fuel Pump & Sender Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 33: Left Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 34: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 35: Automatic Transmission Shift Lock Control Components
Courtesy of GENERAL MOTORS CORP.
Fig 36: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 37: Underside Of Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 38: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 40: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 41: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 42: Underside Of Front Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 46: Front Center Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 47: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 48: Top Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 49: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 50: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 51: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 52: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 53: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 54: Center Rear Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 55: Underside Of Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Upper Left Side Of Left Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 58: Trunk Lid
Courtesy of GENERAL MOTORS CORP.
Fig 59: Upper Right Side Of Left Footwell
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Rear Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Rear Passenger Door
Courtesy of GENERAL MOTORS CORP.

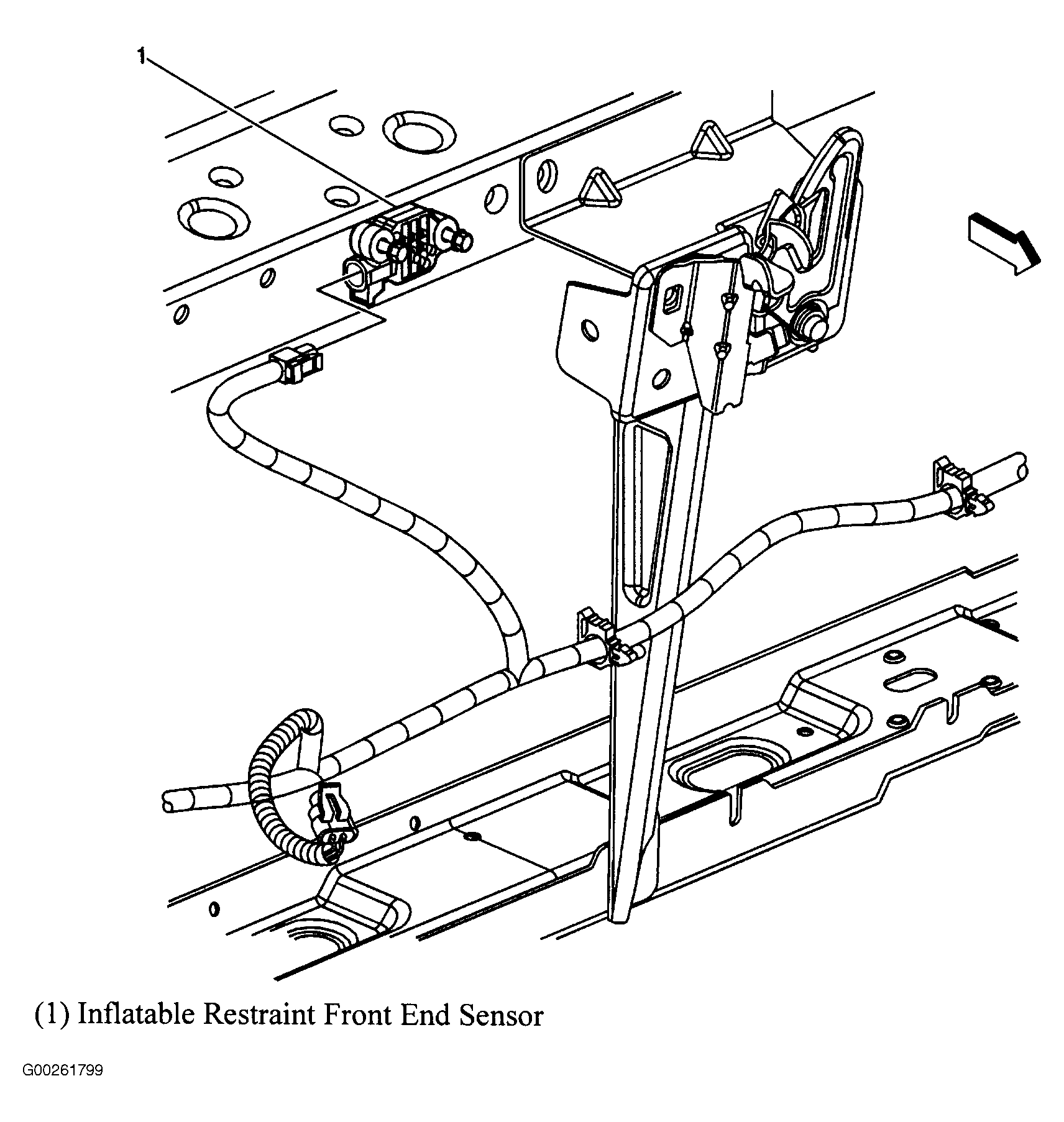

Fig 62: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 63: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 64: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 65: Lower Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 66: Inside Of Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 67: Vehicle Roof
Courtesy of GENERAL MOTORS CORP.
Fig 68: Rear Of Driver's Seat Back
Courtesy of GENERAL MOTORS CORP.
Fig 69: Passenger's Heated Seat Elements
Courtesy of GENERAL MOTORS CORP.
Fig 70: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 72: Steering System Components
Courtesy of GENERAL MOTORS CORP.

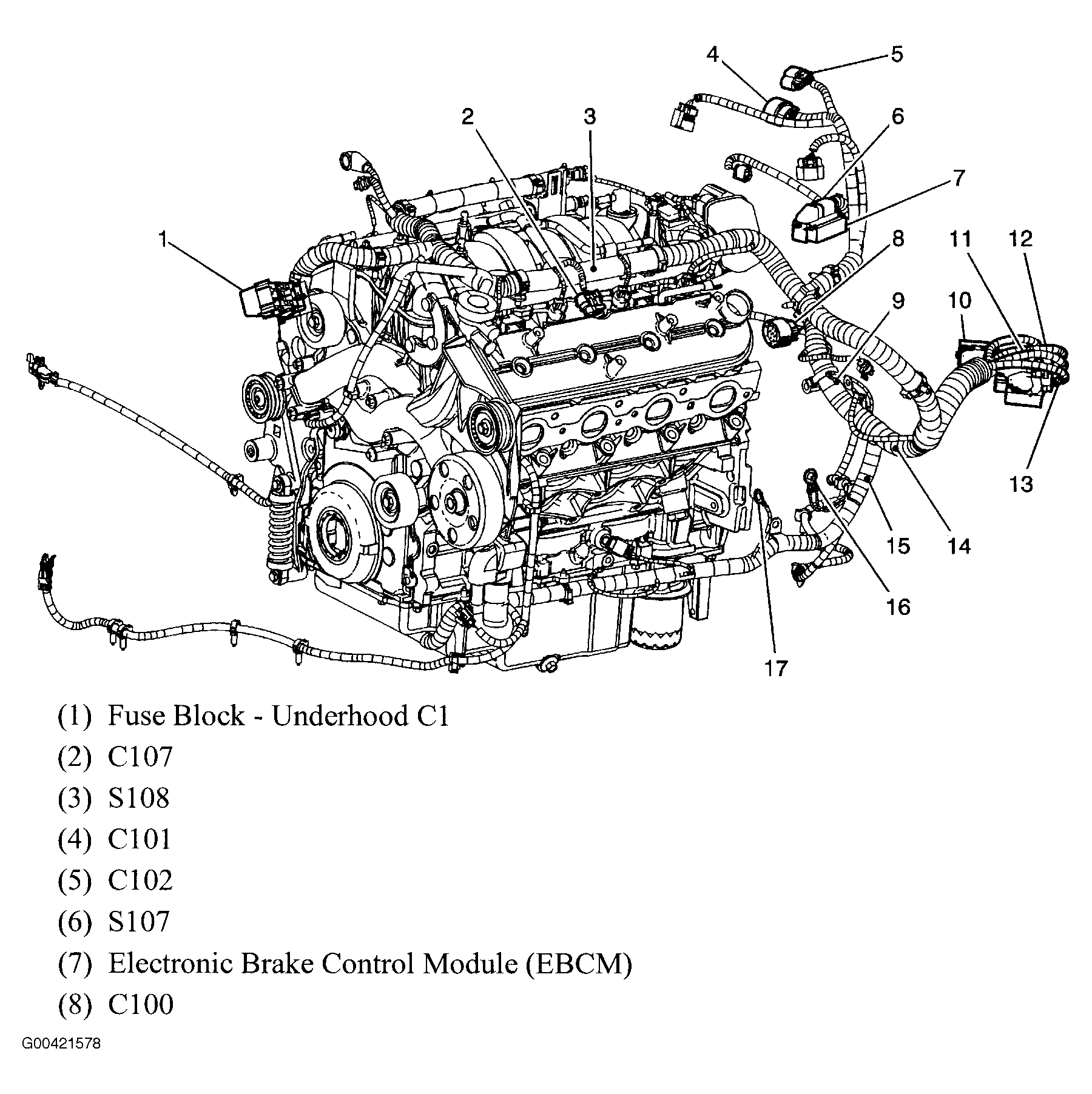

Fig 73: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Front Of Engine Compartment (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 75: Left Front Of Engine Compartment (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Rear Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.

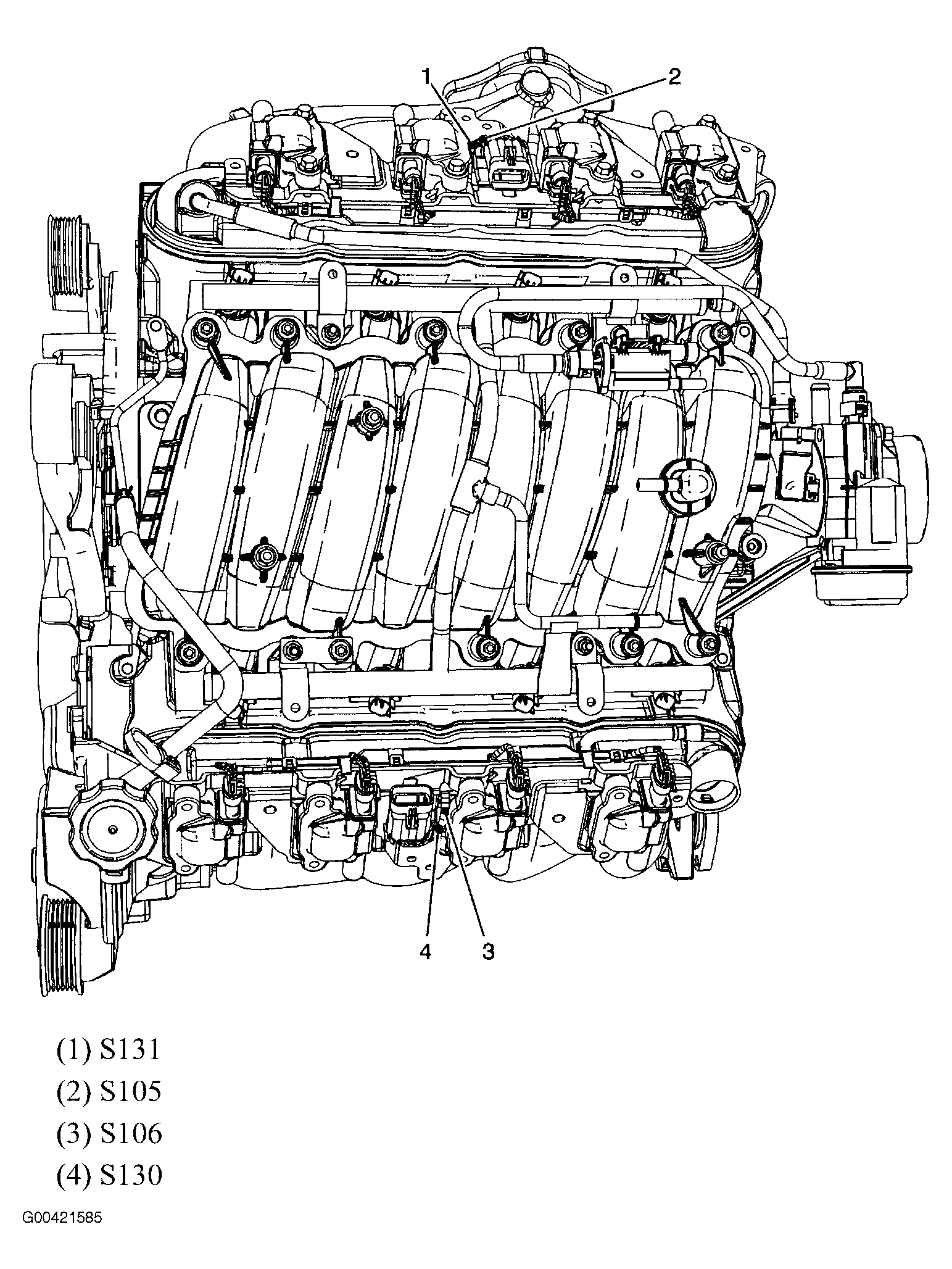

Fig 77: Top Of Engine (5.3L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Top Of Engine (5.3L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Underhood Fuse Block (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 80: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

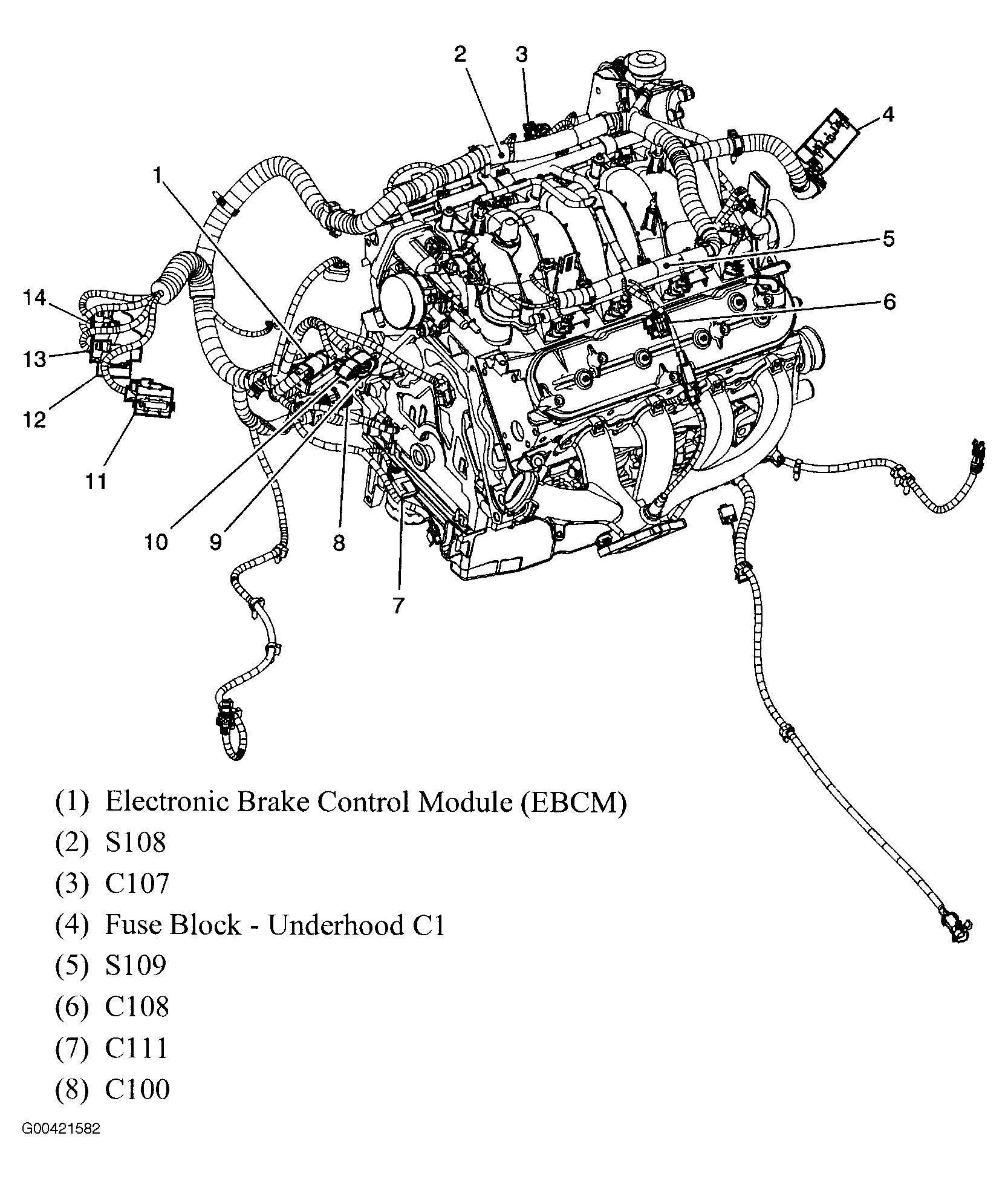

Fig 81: Left Side Of Engine (5.3L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 82: Left Side Of Engine (5.3L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.

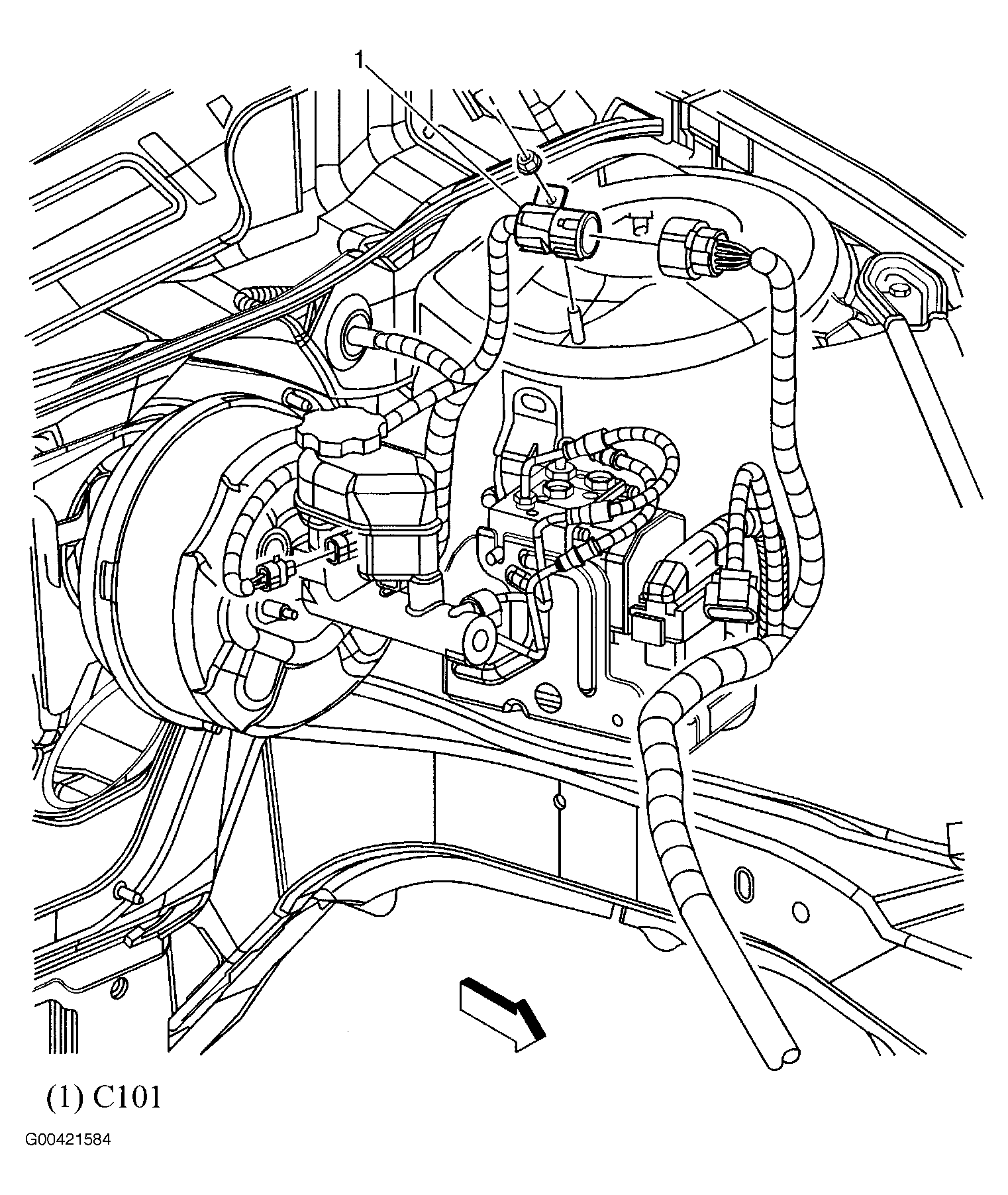

Fig 84: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 85: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 86: Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
