Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Processor | On lower right side of dash. See Figure. |
| Body Control Module | Behind left side of dash, left of steering column. See Figure. |
| Coolant Level Module | On right side of radiator. |
| Cruise Control Module | Front of left strut tower. |
| Daytime Running Lamps (DRL) Control Module | Behind left side of dash. |
| Digital Radio Receiver | Left side of rear compartment. See Figure. |
| Driver Seat Heater Control Module | Below right side of driver's seat, mounted on seat track. |
| Electronic Brake Control Module | Left side of engine compartment, part of brake pressure modulator valve. See Figure. |
| Electronic Compass Module | Top left side of rear package shelf. See Figure. |
| HVAC Control Module | Center of dash. |
| Ignition Control Module (ICM) | Top left front of engine. See Figure. |
| Inflatable Restraint I/P Module | Behind right side of dash. See Figure. |
| Inflatable Restraint I/P Module Connector | Right side of dash. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat. See Figure. |
| Powertrain Control Module (3.8L) | Left front side of engine compartment, in air cleaner assembly. See Figure. |
| Powertrain Control Module (5.3L) | Left side of engine compartment, inside air cleaner assembly. See Figure. |
| Radio Antenna Module | Center rear of roof. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Behind right side of dash. See Figure. |
| Roof Rail Module-Left | Left rear of passenger compartment. See Figure. |
| Roof Rail Module-Right | Right rear of passenger compartment. See Figure. |

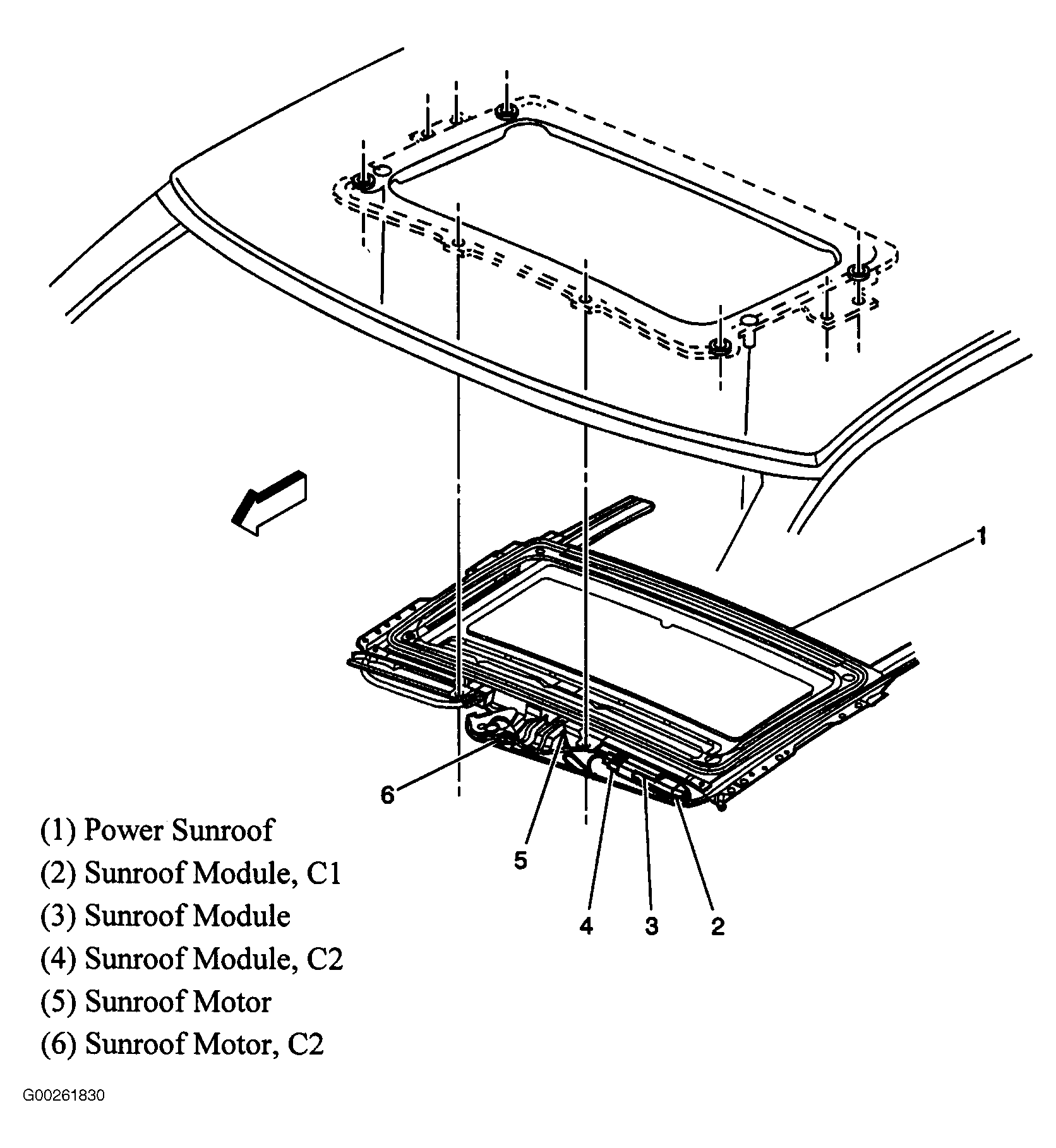

| Sun Roof Module | Front center of sun roof module. See Figure. |
| Theft Deterrent Exciter Module | Part of ignition key cylinder. See Figure. |
| Throttle Actuator Control (TAC) Module (3.8L) | On throttle body. See Figure. |
| Throttle Actuator Control (TAC) Module (5.3L) | Top rear of engine. See Figure. |
| Vehicle Communications Interface Module (VCIM) | In trunk, on left wheelwell. See Figure. |
| Vehicle Interface Unit | In trunk, on left wheelwell. |
