Installation Procedure

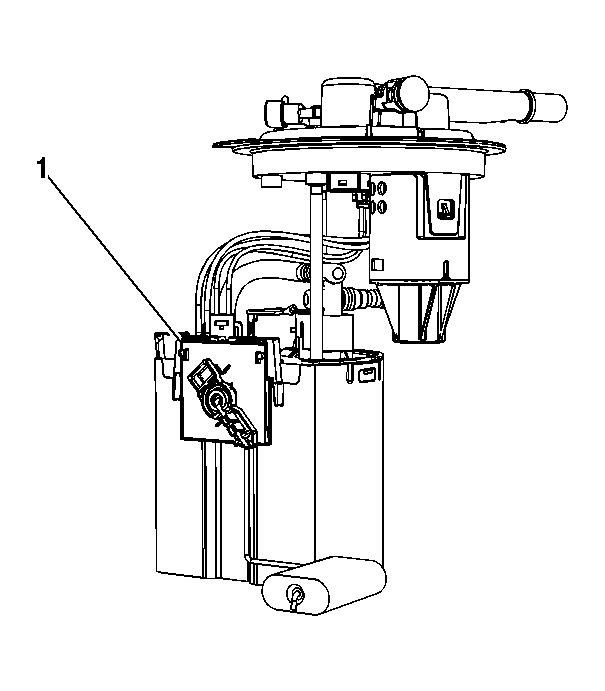

    Fig 1: Fuel Level Sensor
    GM1575967Courtesy of GENERAL MOTORS CORP.
  1. Slide the fuel level sensor (1) onto the bucket and upward.

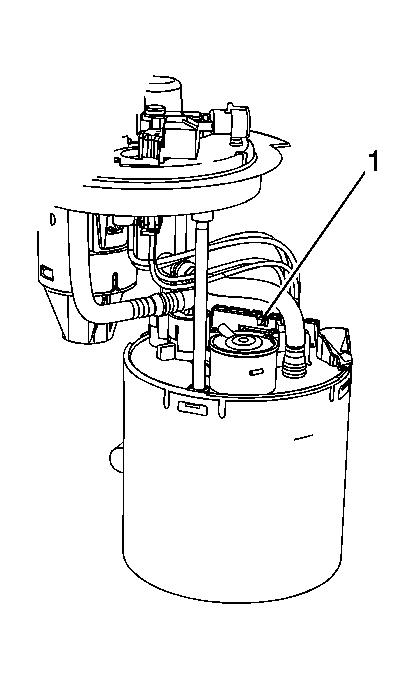

    2. Fig 2: Fuel Level Sensor Retainer
    GM1575966Courtesy of GENERAL MOTORS CORP.
  2. Slide the fuel level sensor upward until the retainer (1) locks.

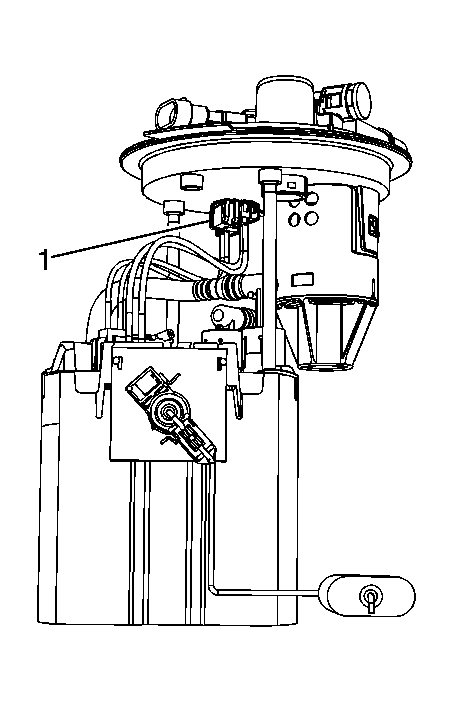

    3. Fig 3: Fuel Level Sensor Electrical Connector
    GM1575965Courtesy of GENERAL MOTORS CORP.
  3. Connect the fuel level sensor electrical connector (1).
  4. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
