Installation Procedure

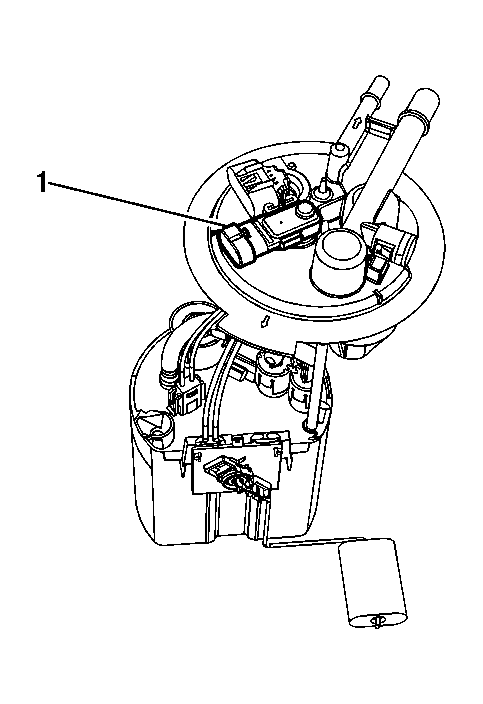

    Fig 1: View Of Fuel Sender Assembly
    GM1575963Courtesy of GENERAL MOTORS CORP.
  1. Install the new fuel tank pressure sensor (1) to the fuel sender assembly.
  2. Install the fuel tank. Refer to Fuel Tank Replacement .
