Engine Controls Schematics

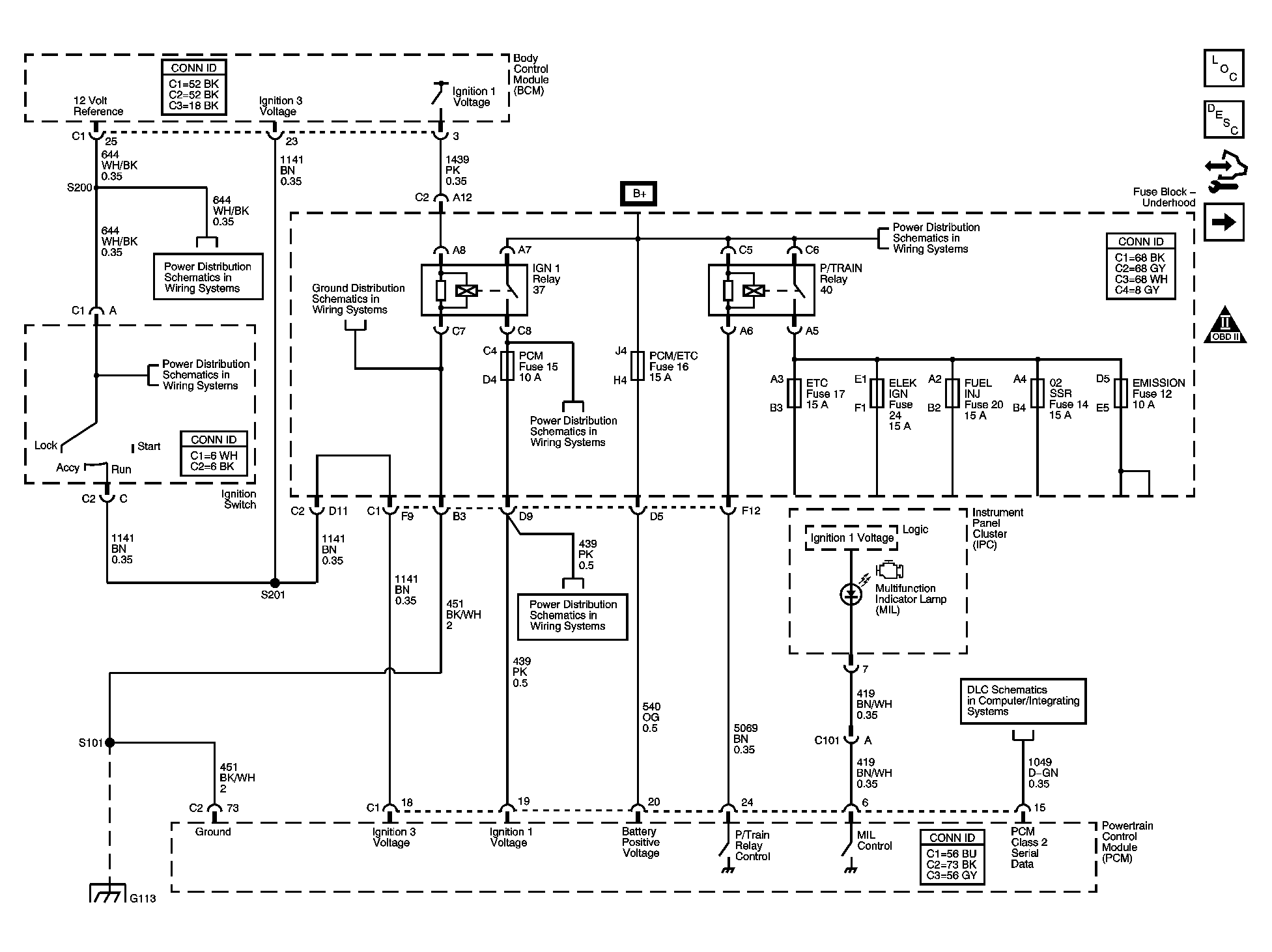

Fig 1: PCM Power, Ground, MIL, and Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

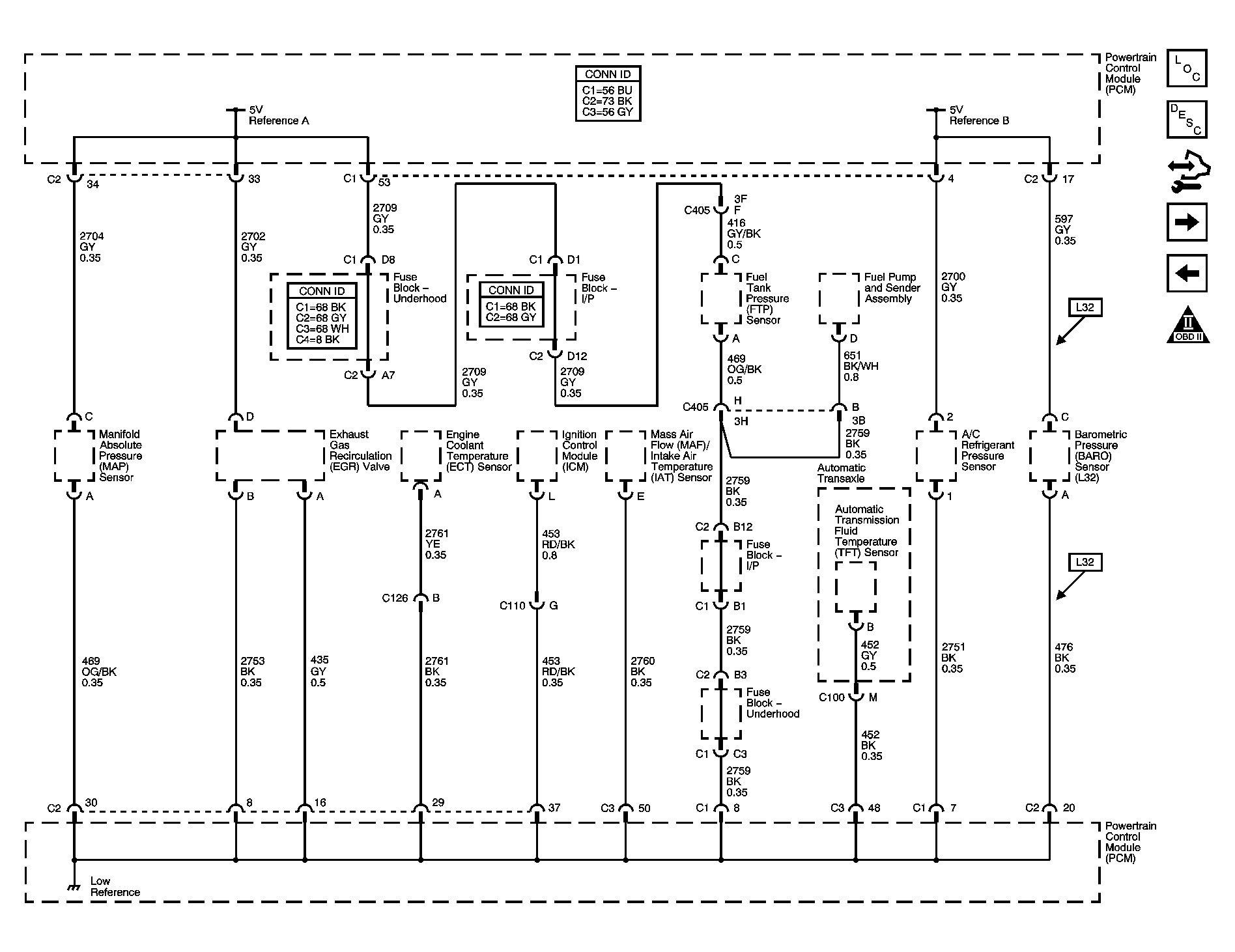

Fig 2: 5-Volt and Low Reference Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

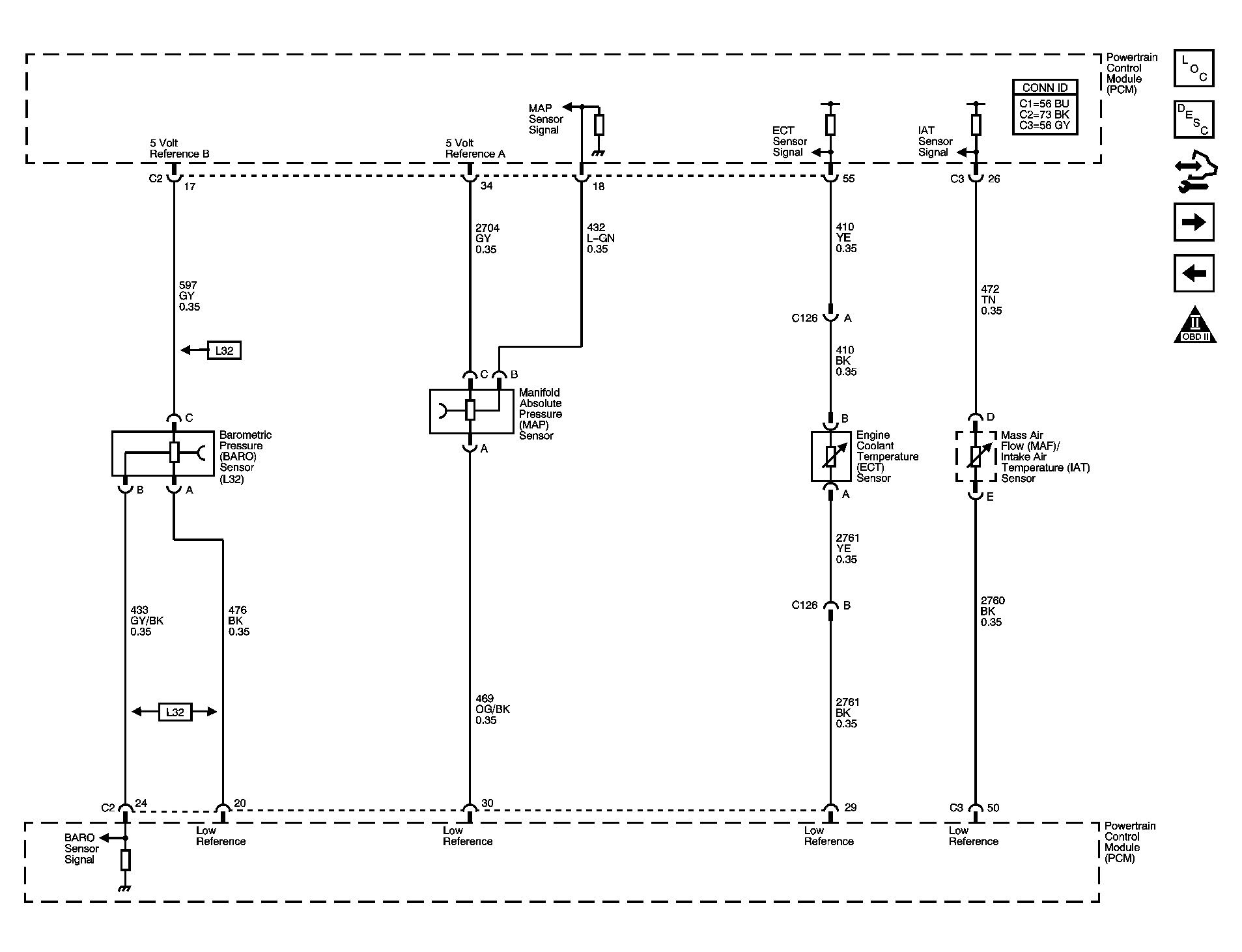

Fig 3: BARO, MAP, ECT, and IAT/MAF Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

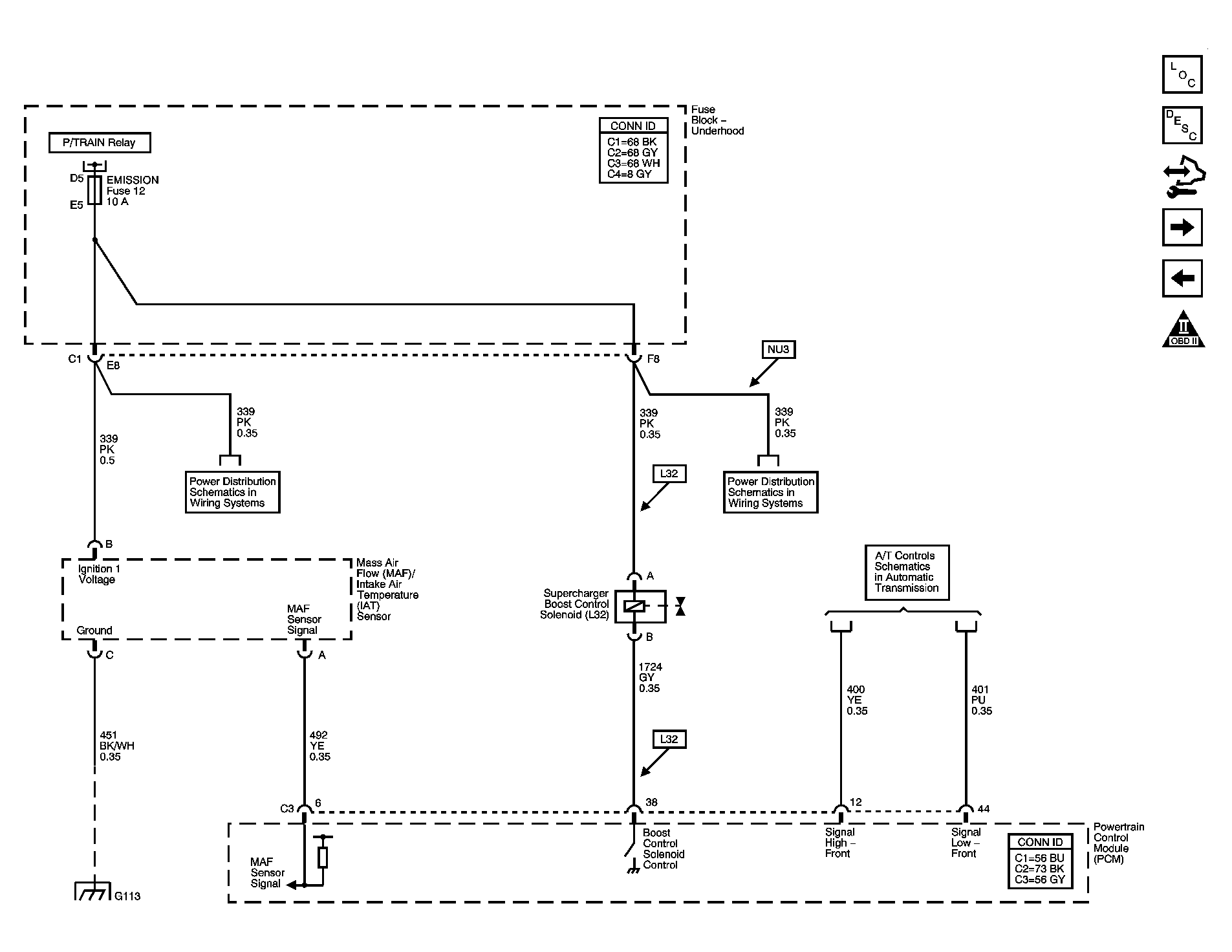

Fig 4: IAT/MAF Sensor, Super Charger Boost Control Solenoid, and A/T Controls VSS References Schematics

Courtesy of GENERAL MOTORS CORP.

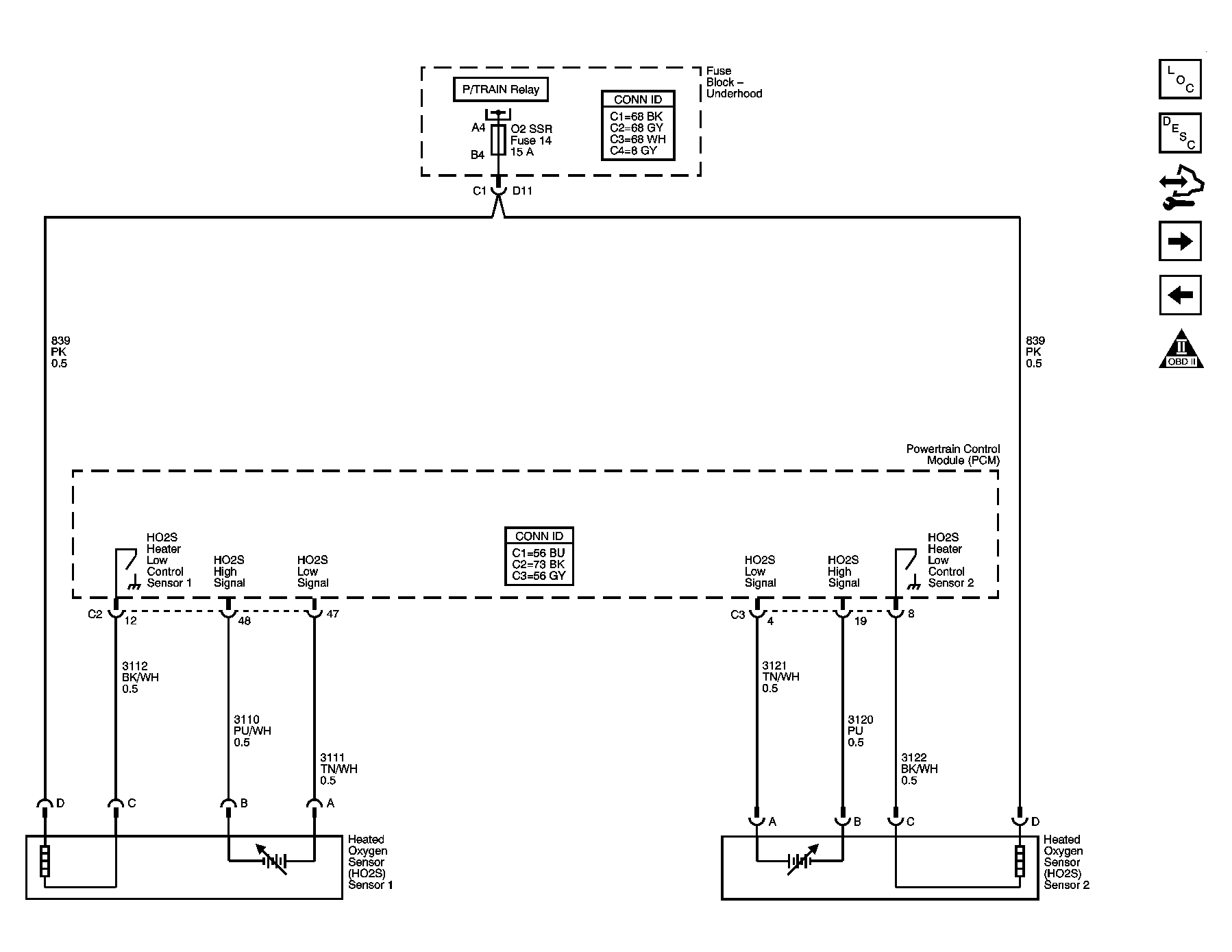

Fig 5: Heated Oxygen Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

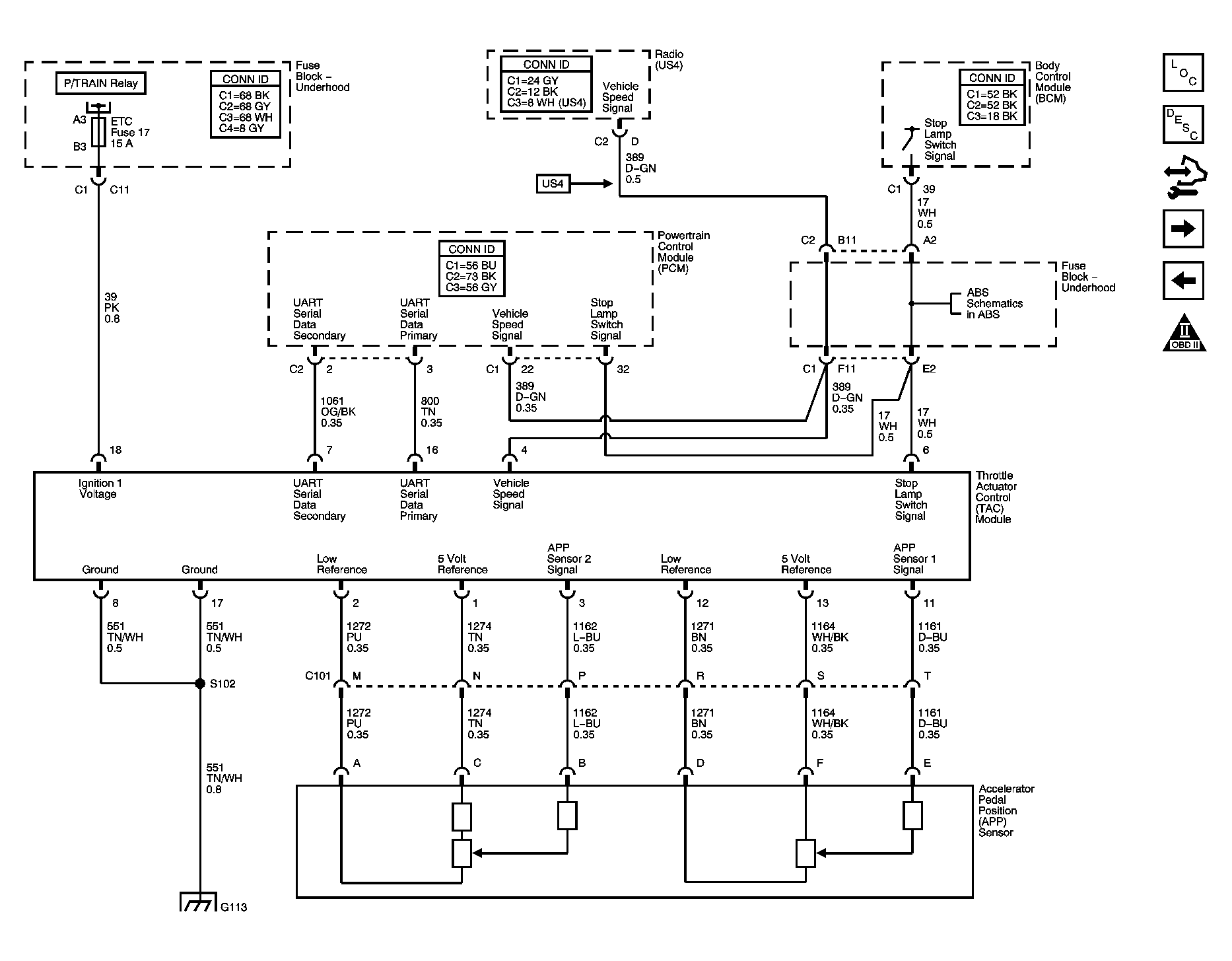

Fig 6: Electronic Throttle Controls Schematics

Courtesy of GENERAL MOTORS CORP.

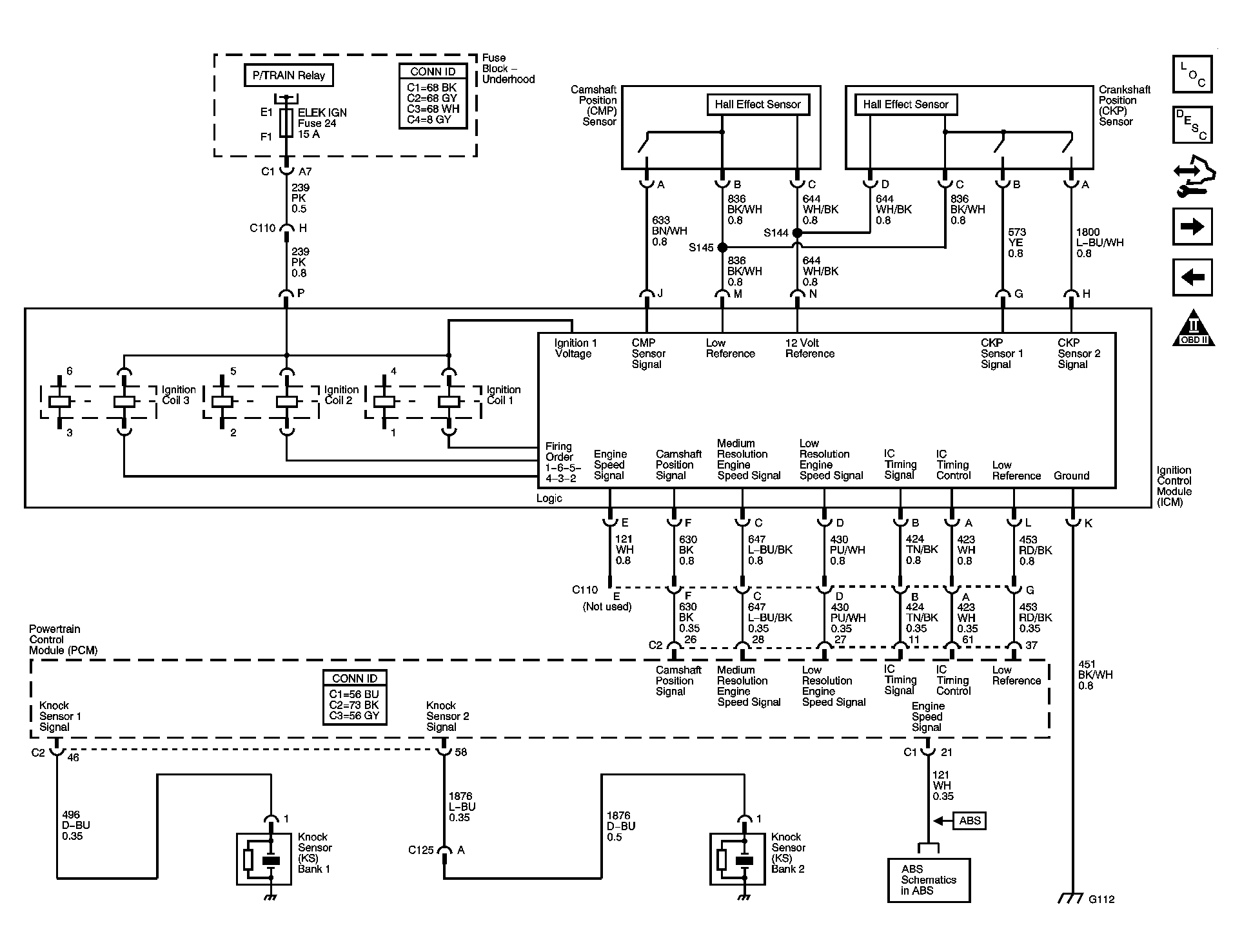

Fig 7: Ignition Control Module Schematics

Courtesy of GENERAL MOTORS CORP.

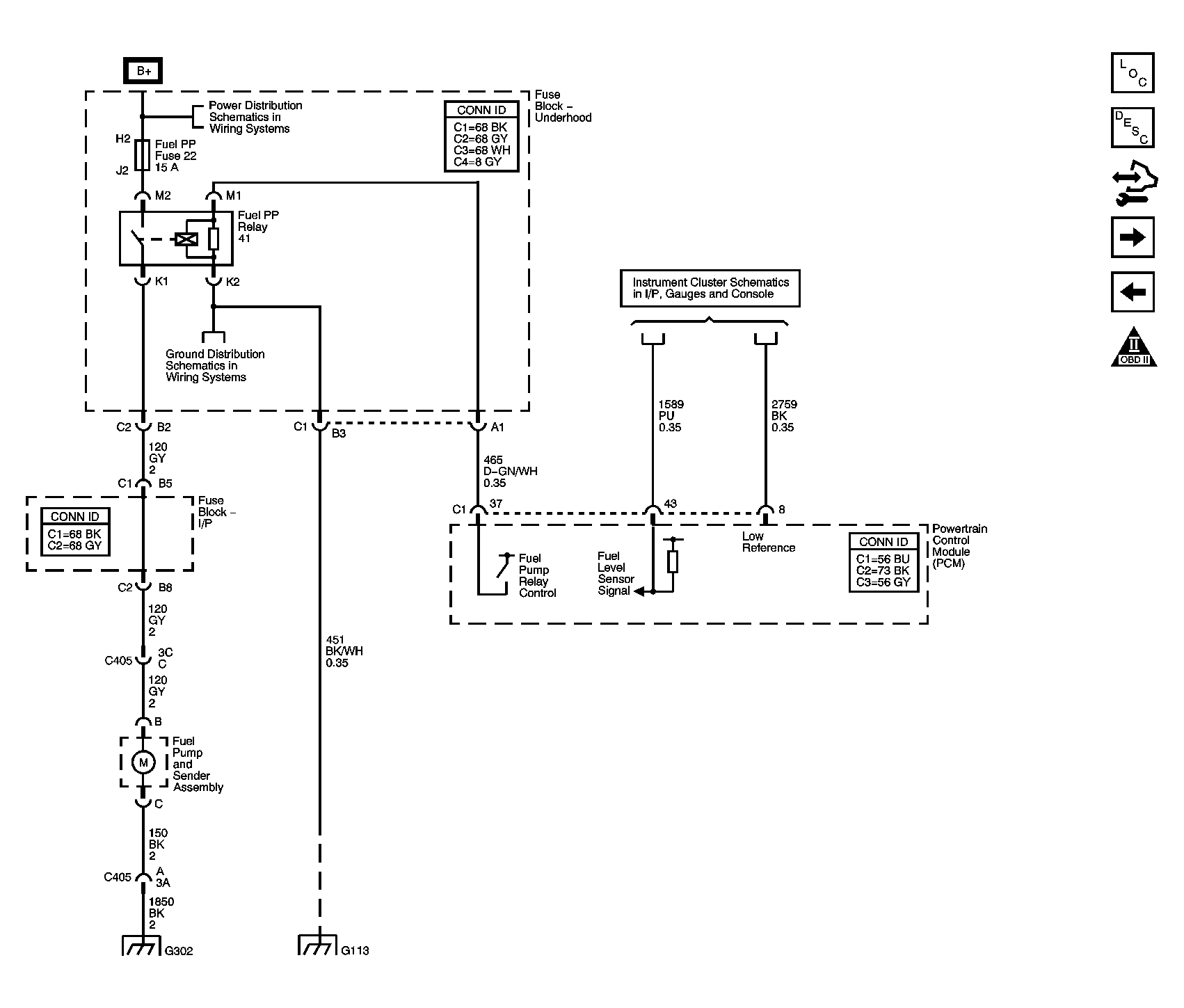

Fig 8: Fuel Pump Controls Schematics

Courtesy of GENERAL MOTORS CORP.

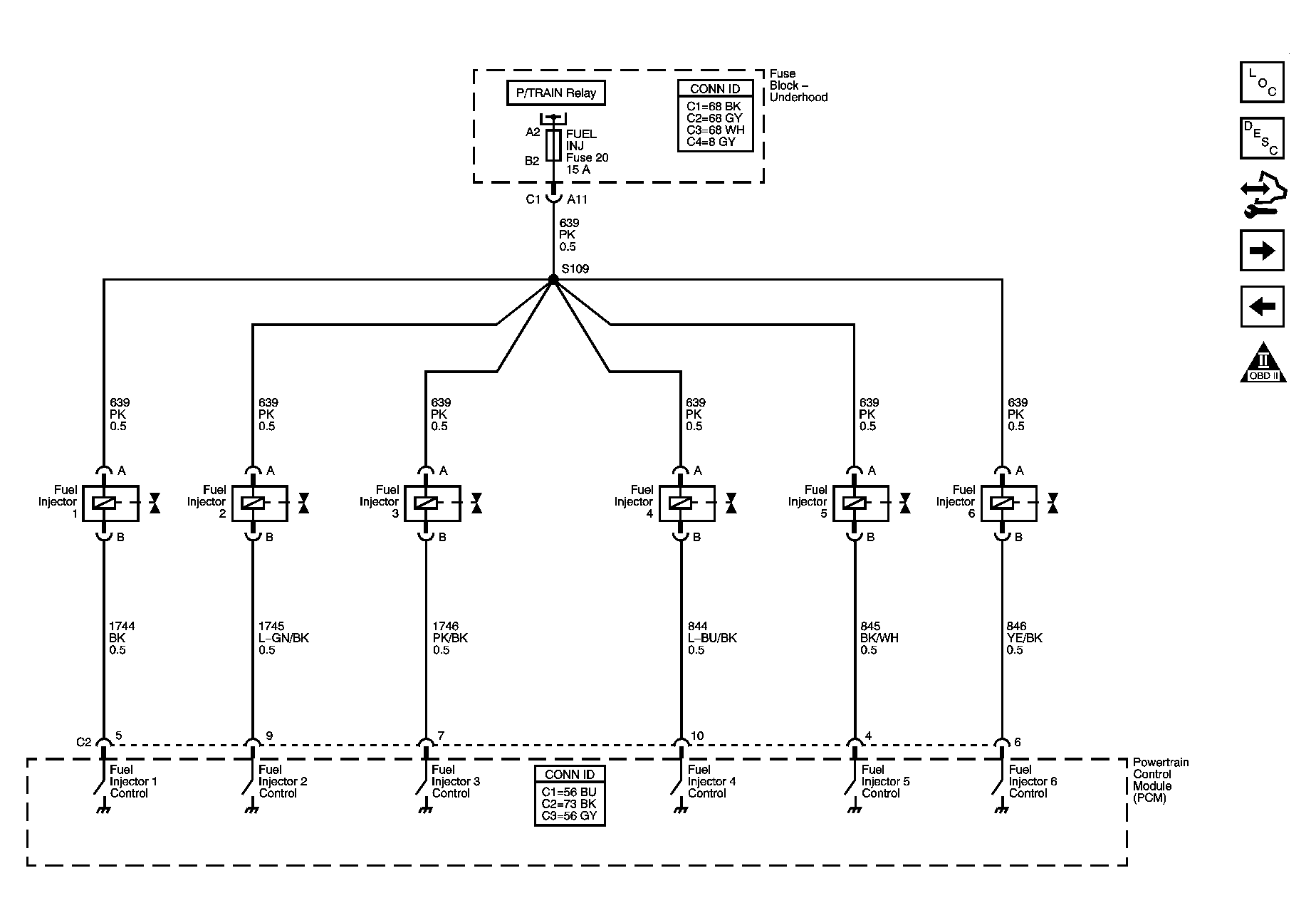

Fig 9: Fuel Injectors Schematics

Courtesy of GENERAL MOTORS CORP.

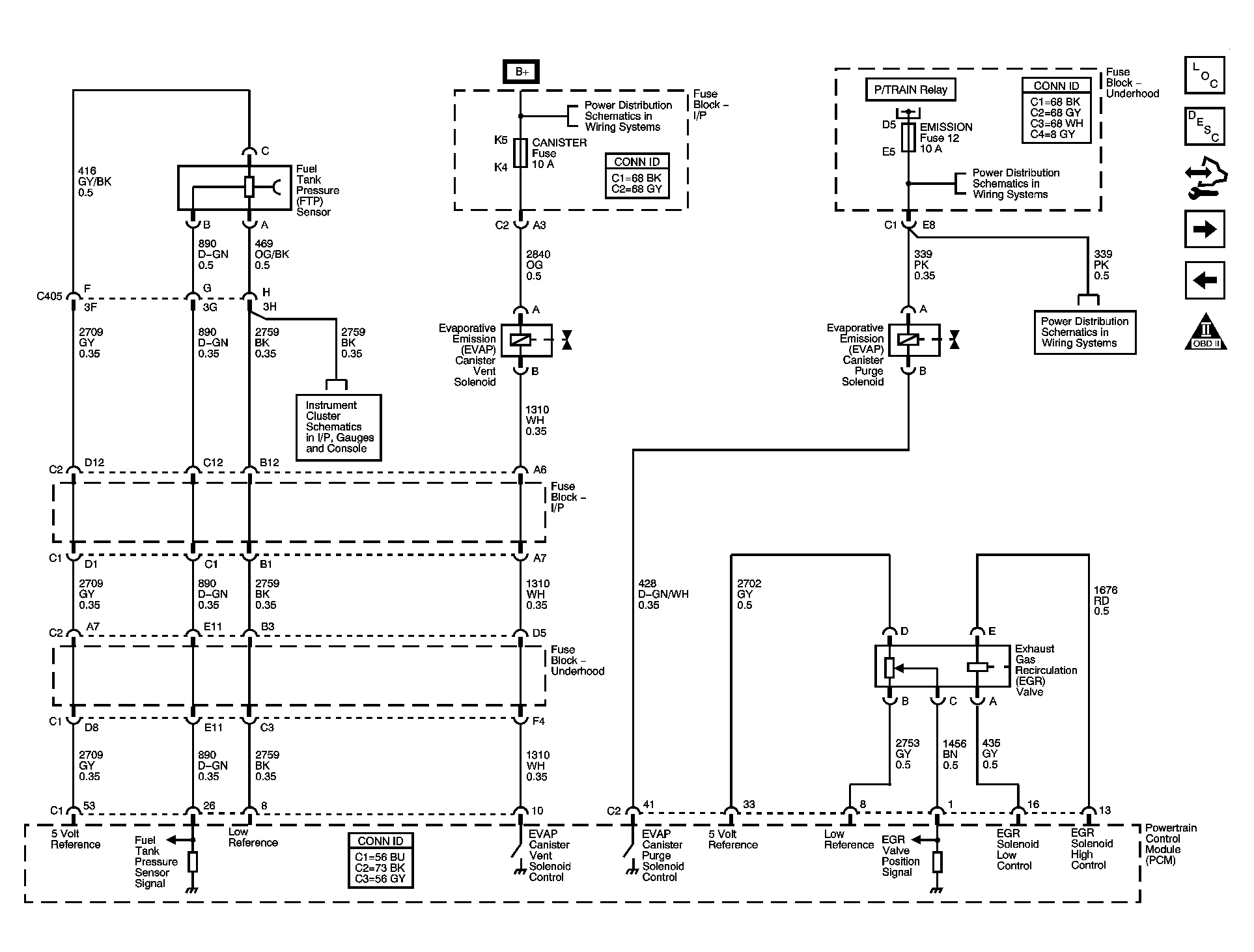

Fig 10: EVAP Solenoids, FTP Sensor, and EGR Valve Schematics

Courtesy of GENERAL MOTORS CORP.

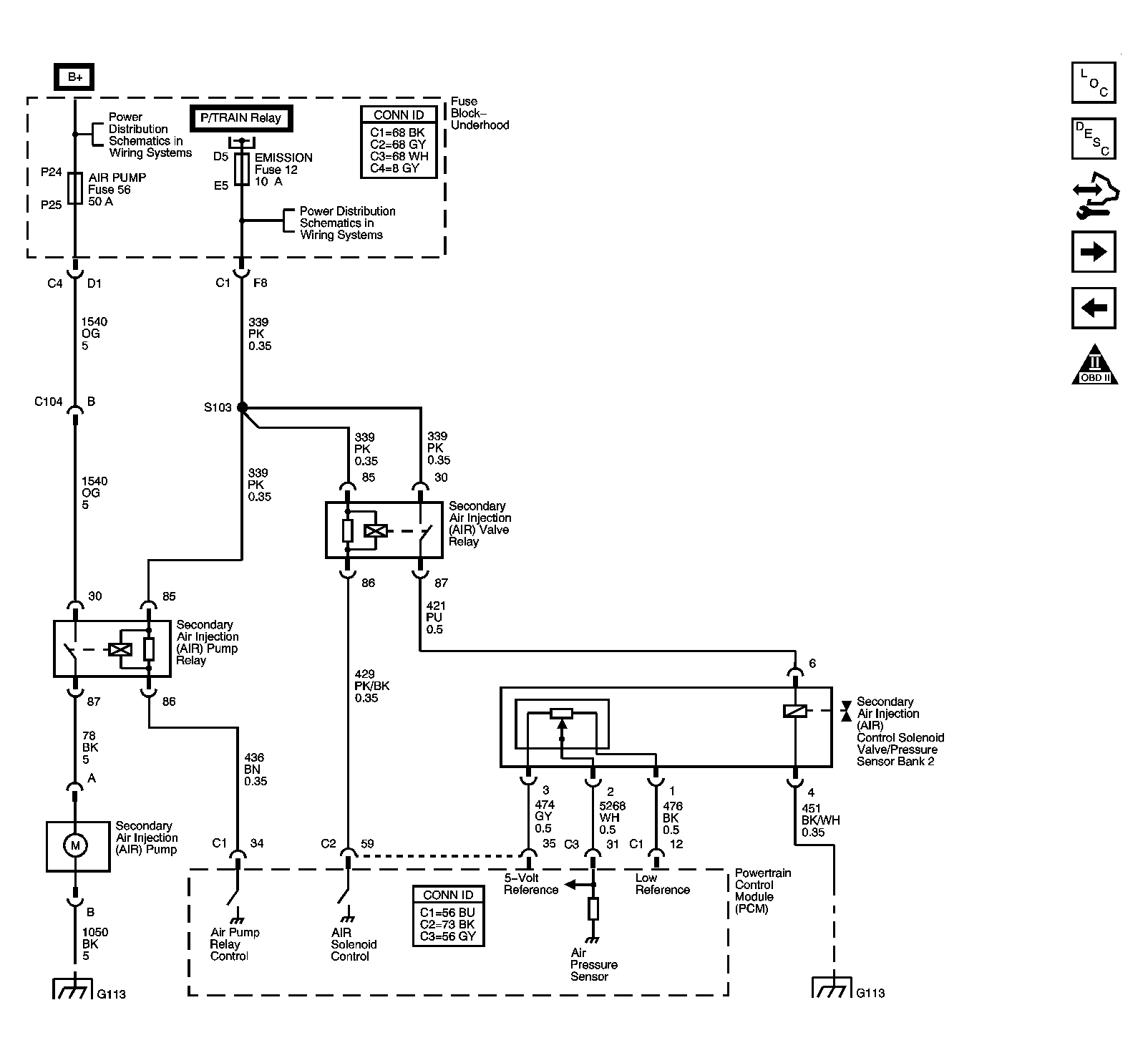

Fig 11: Secondary Air Injection (AIR) Schematics - NU3

Courtesy of GENERAL MOTORS CORP.

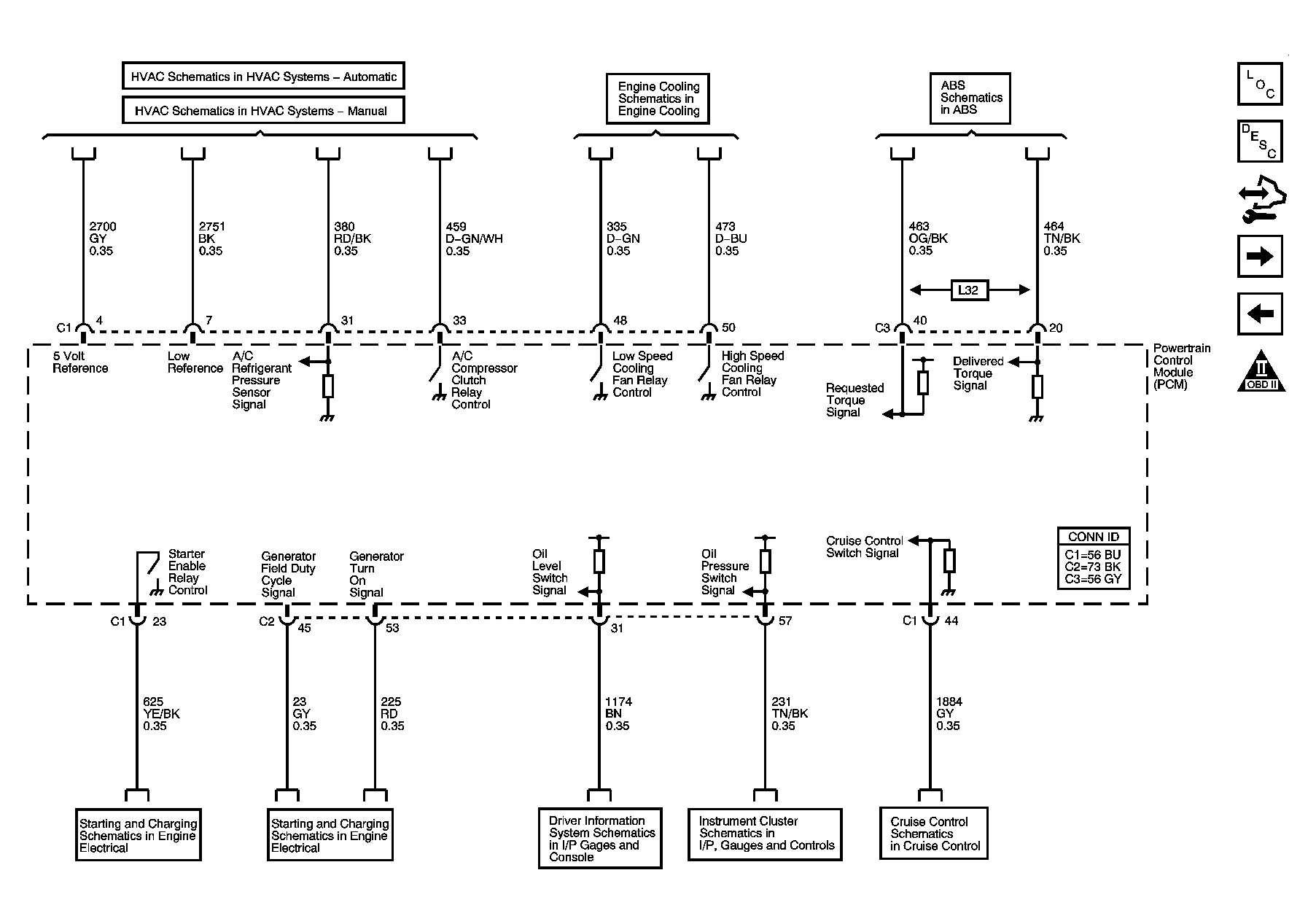

Fig 12: Controlled/Monitored Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.

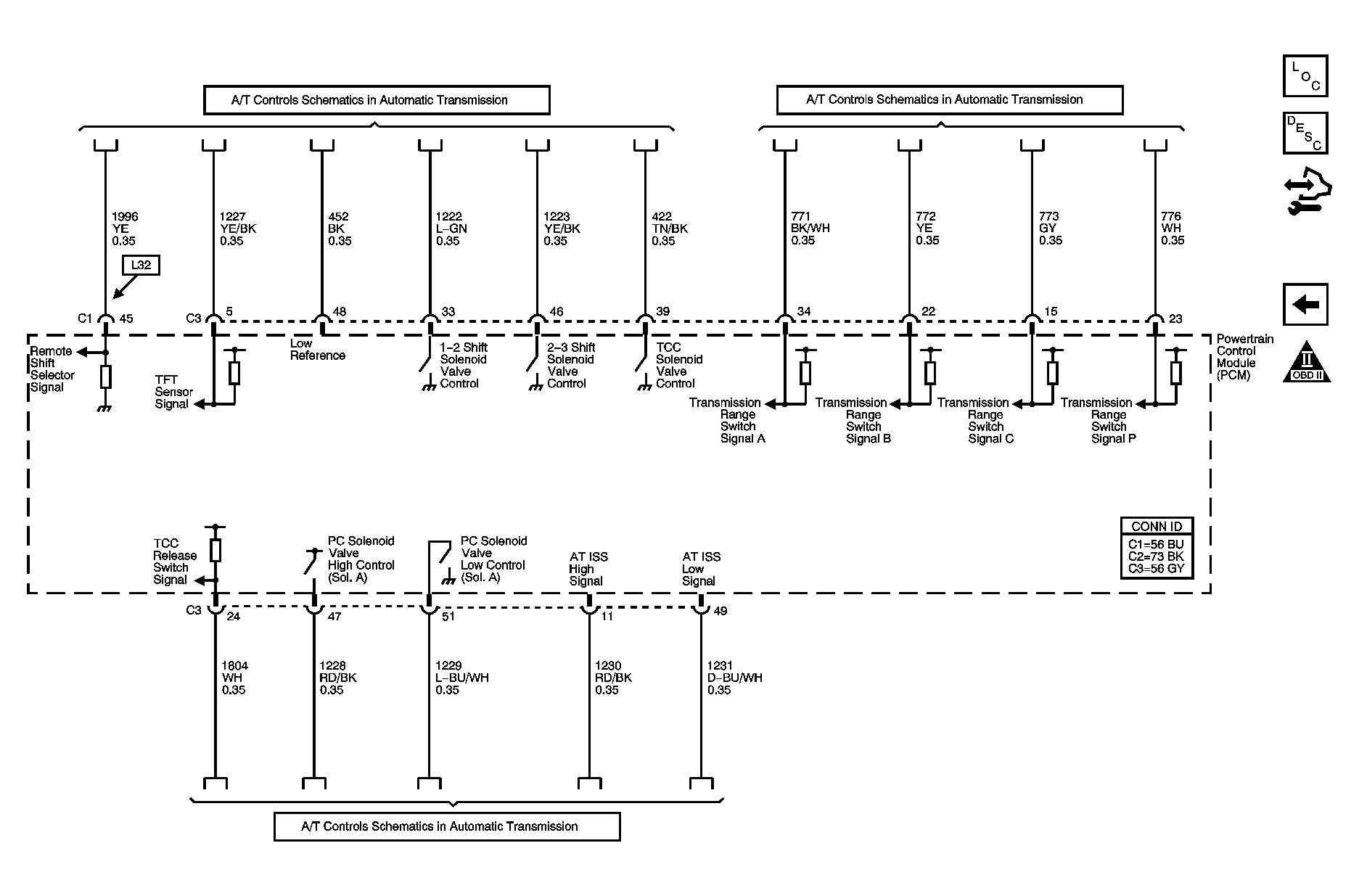

Fig 13: Automatic Transmission Controls References Schematics

Courtesy of GENERAL MOTORS CORP.
