Trim Height Specifications
Trim Height Specifications

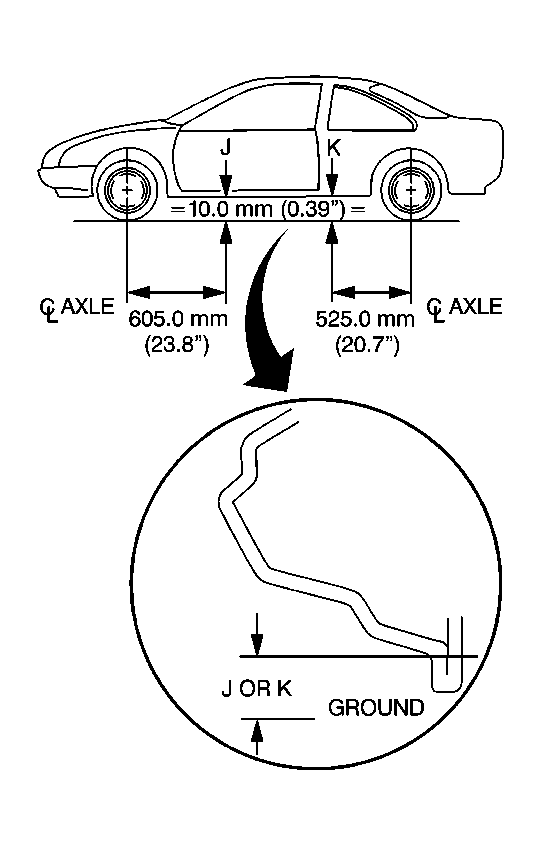

| Tire Size | Engine | Package | Style | D (Curb) | J (Curb) | K (Curb) | Z (Curb) |
|---|---|---|---|---|---|---|---|
| P225/60R16 | 3.8L | GT | 4-Door | 255 mm (10.0 in) | 213 mm (8.4 in) | 213 mm (8.4 in) | 35 mm (1.4 in) |
| P225/60R16 | 3.8L SC | GTP | 4-Door | 256 mm (10.1 in) | 213 mm (8.4 in) | 213 mm (8.4 in) | 36 mm (1.4 in) |
| F: P255/45R18 R: P225/50R18 |
5.3L | GXP | 4-Door | 254.9 mm (10.0 in) | 228.8 mm (9.0 in) | 221.6 mm (8.7 in) | 28.5 mm (1.1 in) |

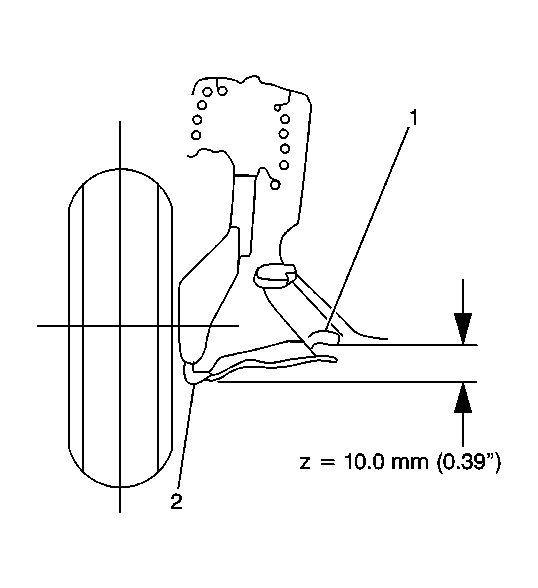

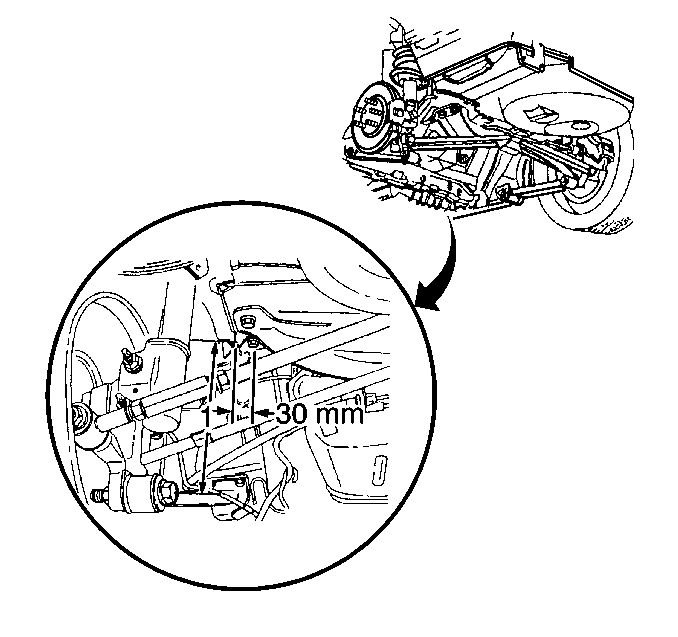

| * The D Height (represented as 1 on the figure) is measured from a point 30 mm outboard of the rear brake hose bracket bolt centerline to the bolt centerline of the trailing arm to the steering knuckle. ** The Z height is measured in line with the wheel center:
|
|||||||
