Grand Prix GTP
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Interlock System
>>
Schematic and Routing Diagrams
>>
Automatic Transmission Shift Lock Control Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Automatic Transmission Shift Lock Control Schematics

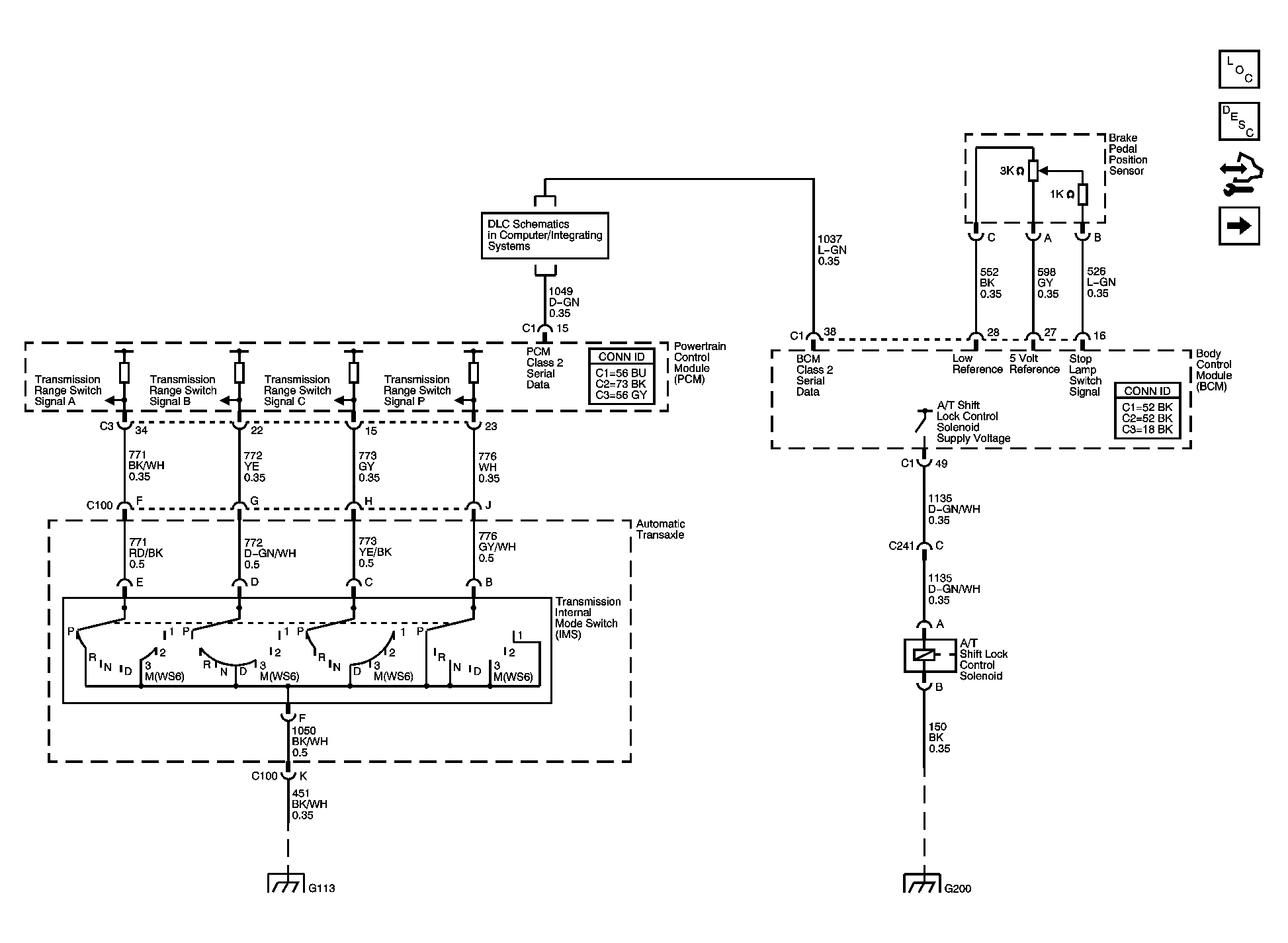

Fig 1: Automatic Transmission Shift Lock Control Schematics (L26, L32)
Courtesy of GENERAL MOTORS CORP.

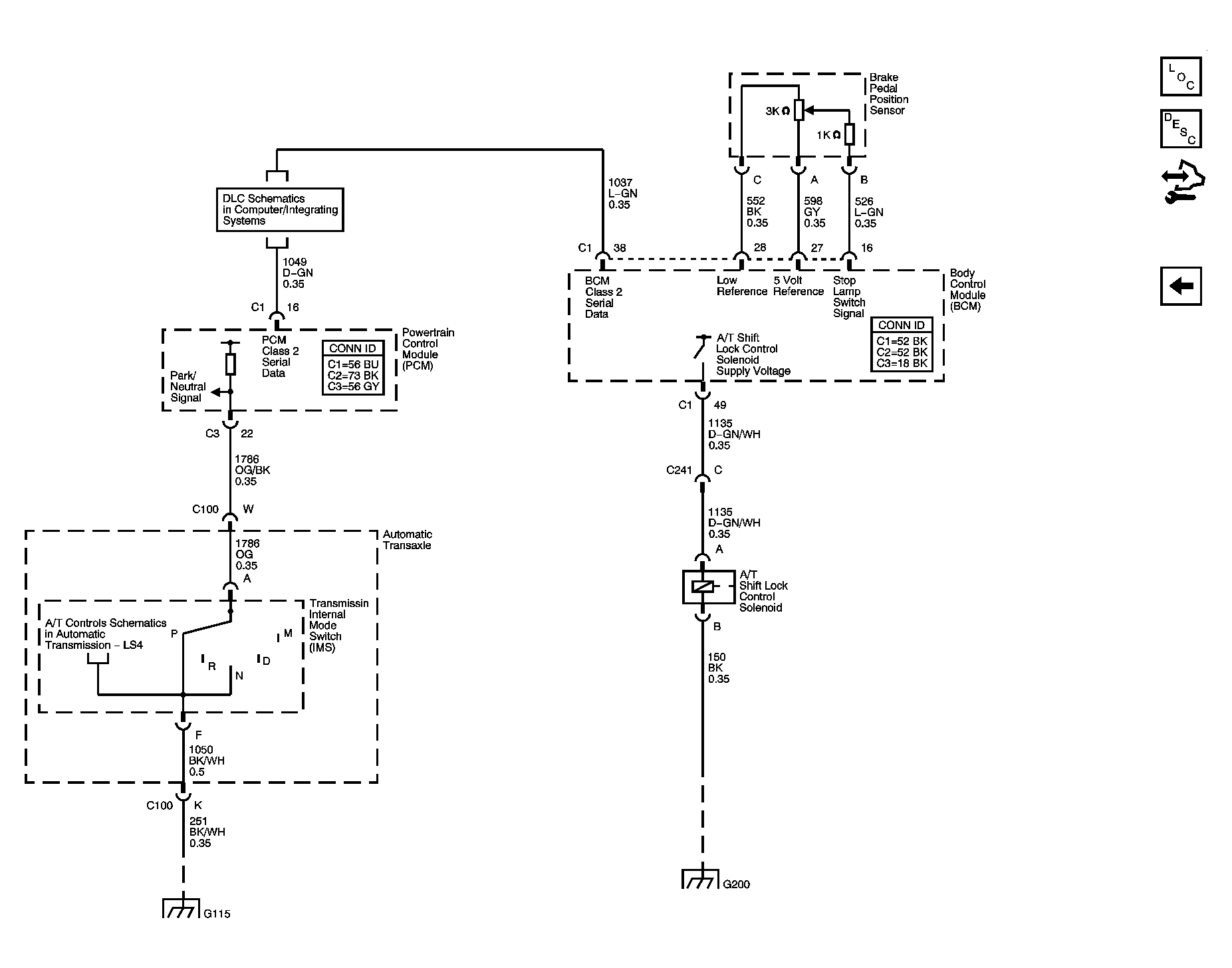

Fig 2: Automatic Transmission Shift Lock Control Schematics (LS4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
