Engine Controls Connector End Views

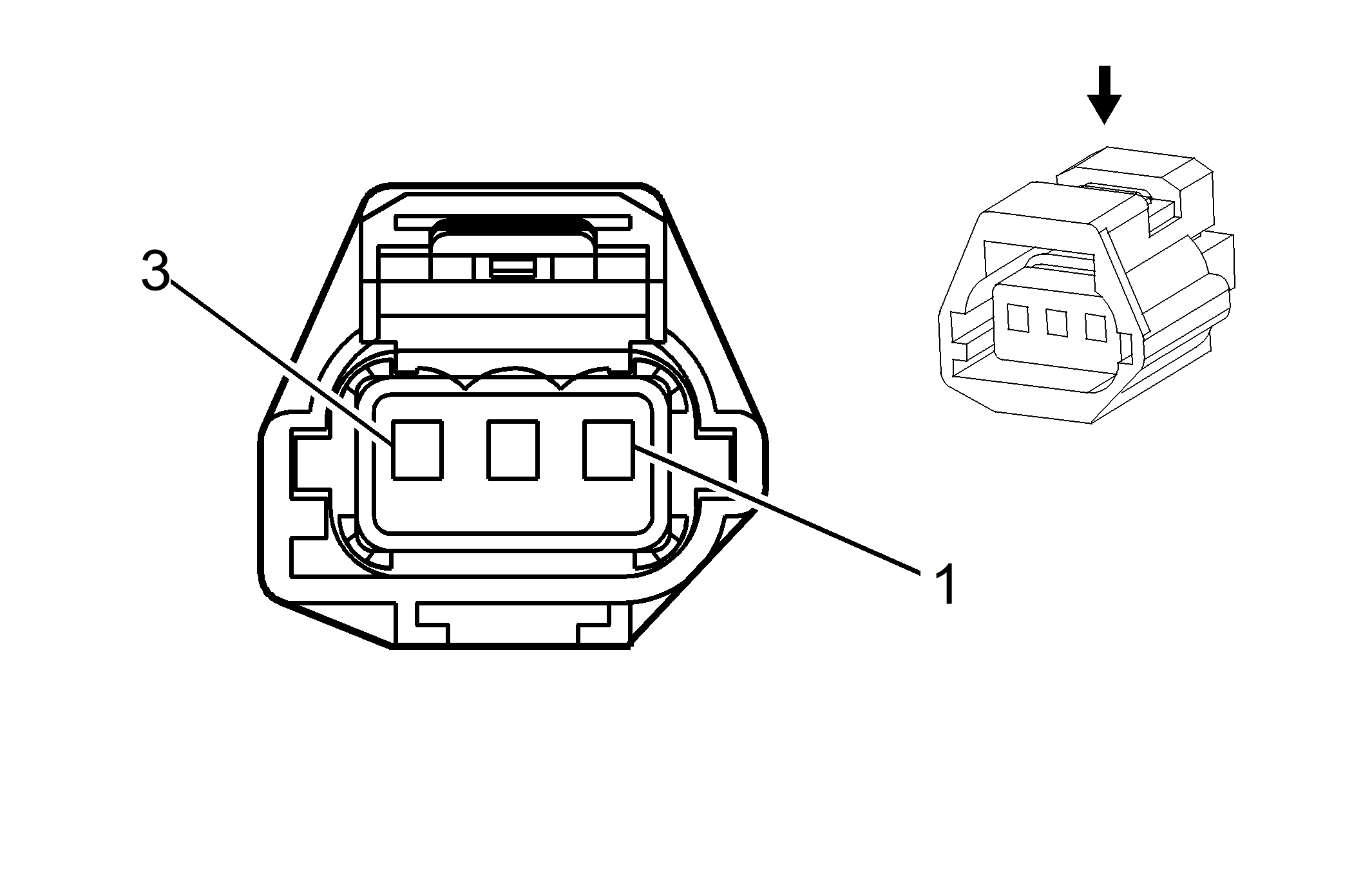

Brake Booster Vacuum Sensor Connector End View

GM1468512Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15448870
  • 3-Way F 3P 1.5mm (GY)
Pin Wire Color Circuit No. Function
1 OG 6030 Brake Booster Vacuum Signal
2 YE/BK 6032 Low Reference
3 GY 6031 5-Volt Reference
Crankshaft Position (CKP) Sensor Connector End View

GM366117Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324165
  • 3-Way F Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A D-BU 1869 CKP Sensor Signal
B YE 1868 Low Reference
C L-GN 1867 12-Volt Reference
Knock Sensor (KS) 2 Connector End View

GM1232999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15374222
  • 2-Way F GT 150 SLD (NA)
Pin Wire Color Circuit No. Function
A L-BU 1876 Knock Sensor 2 Signal
B GY 2303 Low Reference

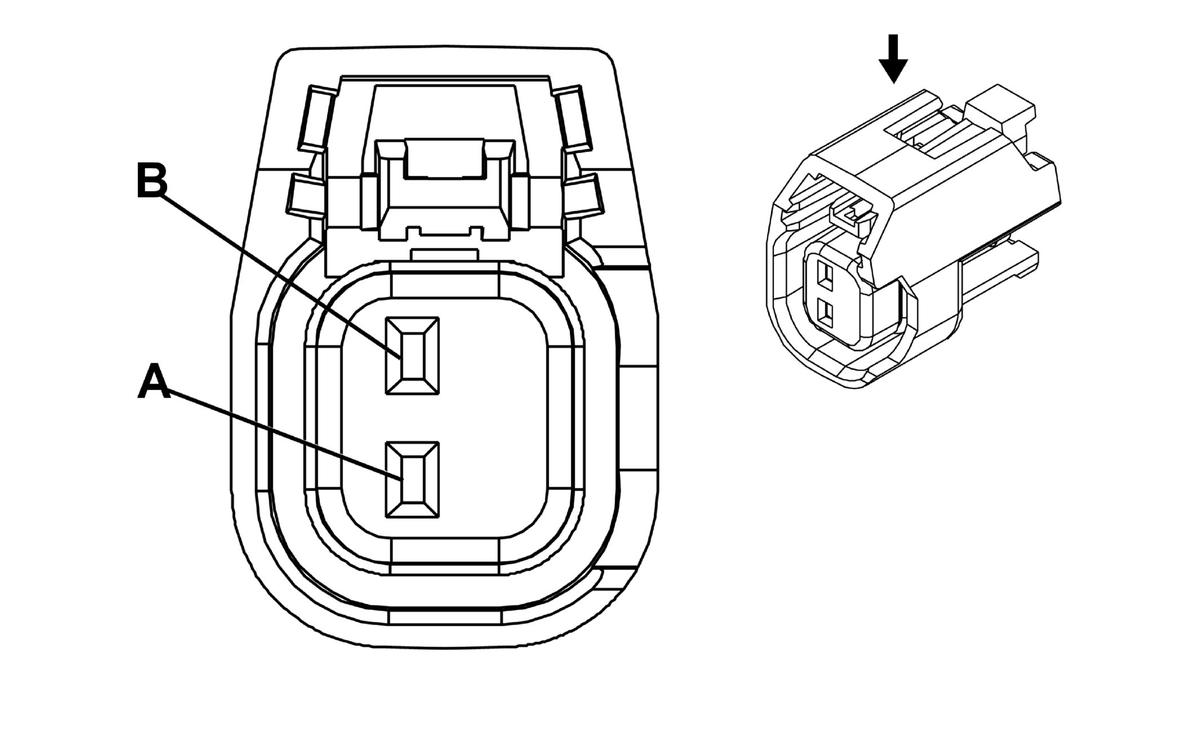

Fuel Injector 7 Connector End View

GM1527729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419715
  • 2-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A PK/BK 5291 Ignition 1 Voltage
B RD/BK 877 Fuel Injector 7 Control
Fuel Injector 5 Connector End View

GM1527729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419715
  • 2-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A PK/BK 5291 Ignition 1 Voltage
B BK/WH 845 Fuel Injector 5 Control
Fuel Injector 3 Connector End View

GM1527729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419715
  • 2-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A PK/BK 5291 Ignition 1 Voltage
B PK/BK 1746 Fuel Injector 3 Control
Fuel Injector 1 Connector End View

GM1527729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419715
  • 2-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A PK/BK 5291 Ignition 1 Voltage
B BK 1744 Fuel Injector 1 Control
Fuel Injector 2 Connector End View

GM1527729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419715
  • 2-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A PK/BK 5292 Ignition 1 Voltage
B L-GN/BK 1745 Fuel Injector 2 Control
Fuel Injector 4 Connector End View

GM1527729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419715
  • 2-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A PK/BK 5292 Ignition 1 Voltage
B L-BU/BK 844 Fuel Injector 4 Control
Fuel Injector 6 Connector End View

GM1527729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15419715
  • 2-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A PK/BK 5292 Ignition 1 Voltage
B YE/BK 846 Fuel Injector 6 Control
Fuel Injector 8 Connector End View

GM1527729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1527729
  • 2-Way F GT 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A PK/BK 5292 Ignition 1 Voltage
B D-BU/WH 878 Fuel Injector 8 Control
Heated Oxygen Sensor (HO2S) 2 Connector End View

GM806613Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326423
  • 4-Way M Metri-Pack 150 Sealed (GY)
Pin Wire Color Circuit No. Function
A TN/WH 1669 HO2S Low Signal
B PU/WH 1668 HO2S High Signal
C BN 2391 HO2S Heater Low Control Sensor 2
D PK/BK 5293 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 1 Connector End View

GM280761Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160825
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A TN 1664 HO2S Low Signal
B PU/WH 1665 HO2S High Signal
C BK/WH 3113 HO2S Heater Low Control Sensor 1
D PK/BK 5293 Ignition 1 Voltage
Camshaft Position (CMP) Sensor Connector End View

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A RD 631 12-Volt Reference
B PK/BK 632 Low Reference
C BN/WH 633 CMP Sensor Signal
Knock Sensor (KS) 1 Connector End View

GM1232999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15374222
  • 2-Way F GT 150 SLD (NA)
Pin Wire Color Circuit No. Function
A D-BU 496 Knock Sensor 1 Signal
B GY 1716 Low Reference
Manifold Absolute Pressure (MAP) Sensor Connector End View

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129946
  • 3-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B L-GN 432 MAP Sensor Signal
C GY 2704 5-Volt Reference
Evaporative Emission (EVAP) Canister Purge Solenoid Valve Connector End View

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A PK/BK 5293 Ignition 1 Voltage
B D-GN/WH 428 EVAP Canister Purge Solenoid Control
Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Connector End View

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A YE 492 MAF Sensor Signal
B PK/BK 5294 Ignition 1 Voltage
C BK/WH 451 Ground
D TN 472 IAT Sensor Signal
E BK 2760 Low Reference
Engine Coolant Temperature (ECT) Sensor Connector End View

GM1538760Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15449028
  • 2-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 2761 Low Reference
B YE 410 ECT Sensor Signal
Throttle Actuator Control (TAC) Module Connector End View

GM831368Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326836
  • 8-Way F GT 150 SLD (BK)
Pin Wire Color Circuit No. Function
A D-GN 485 TP Sensor 1 Signal
B L-BU/BK 1688 5-Volt Reference B
C BK/WH 1704 Low Reference
D PU 486 TP Sensor 2 Signal
E YE 581 TAC Motor Control 1
F BN 582 TAC Motor Control 2
G L-BU/BK 1688 5-Volt Reference B
H BK/WH 1704 Low Reference

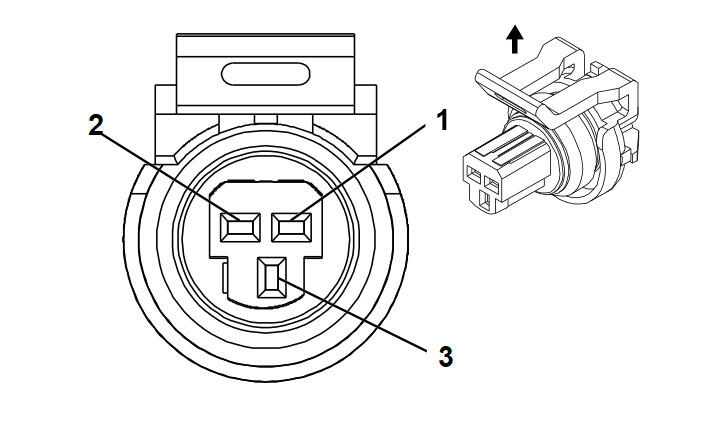

Engine Oil Pressure (EOP) Sensor Connector End View

GM1519475Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15477863
  • 3-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 BK 2755 Low Reference
2 GY 2705 5-Volt Reference
3 TN/WH 331 Oil Pressure Sensor Signal
Value Lifter Oil Manifold (VLOM) Assembly Connector End View

GM684863Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186057
  • 5-Way F Metri-Pack 15.2 Pull to Seat Sealed (BK)
Pin Wire Color Circuit No. Function
A OG 5494 Cylinder Shutoff Solenoid 4
B GY 5493 Cylinder Shutoff Solenoid 3
C D-BU 5491 Cylinder Shutoff Solenoid 1
D L-GN 5492 Cylinder Shutoff Solenoid 2
E PK/BK 5294 Ignition 1 Voltage
