Engine Controls Component Views

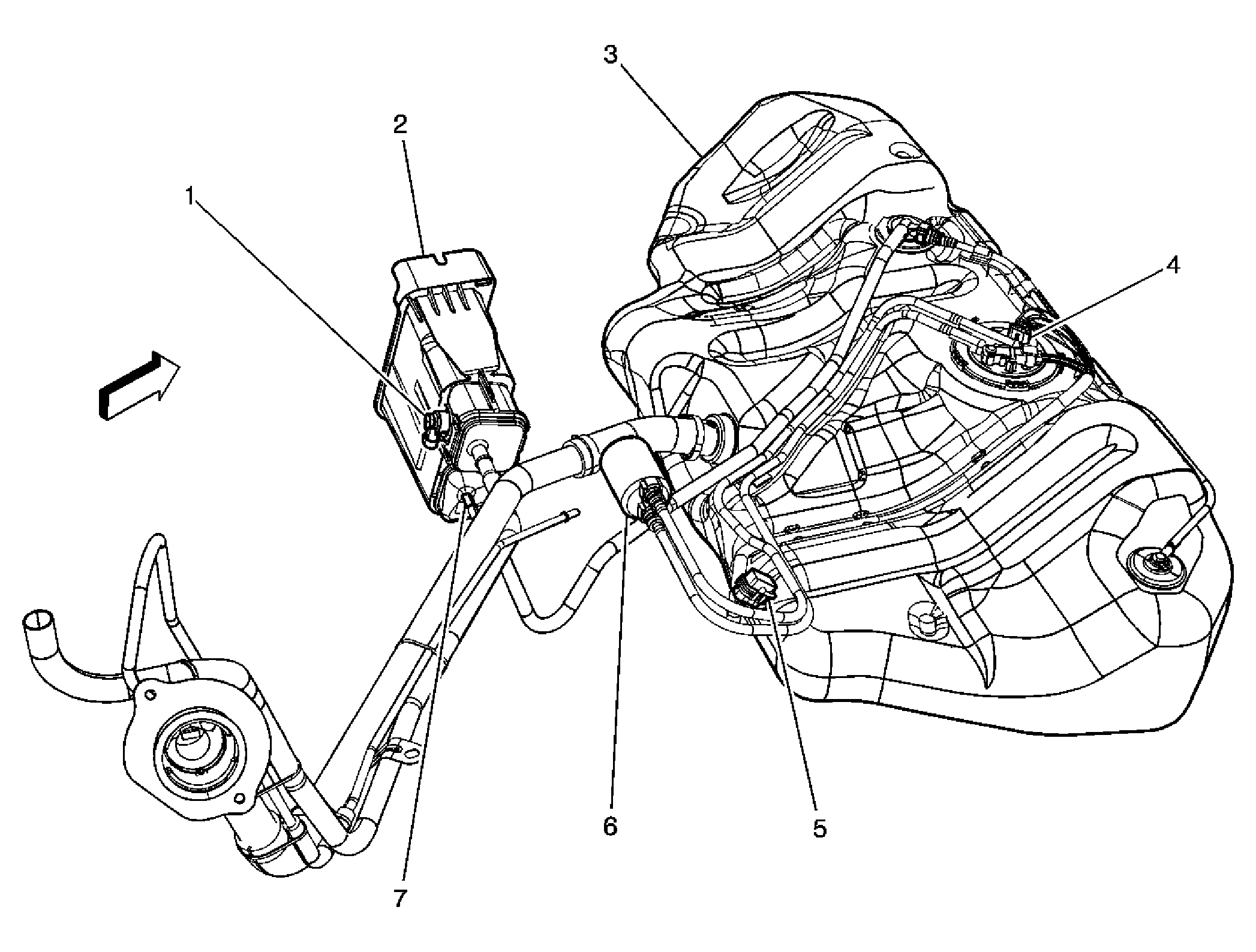

Fig 1: Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
2	Evaporative Emission (EVAP) Canister
3	Fuel Tank
4	Fuel Pump and Sender Assembly
5	Fuel Tank Pressure (FTP) Sensor
6	C305
7	Fuel Filter

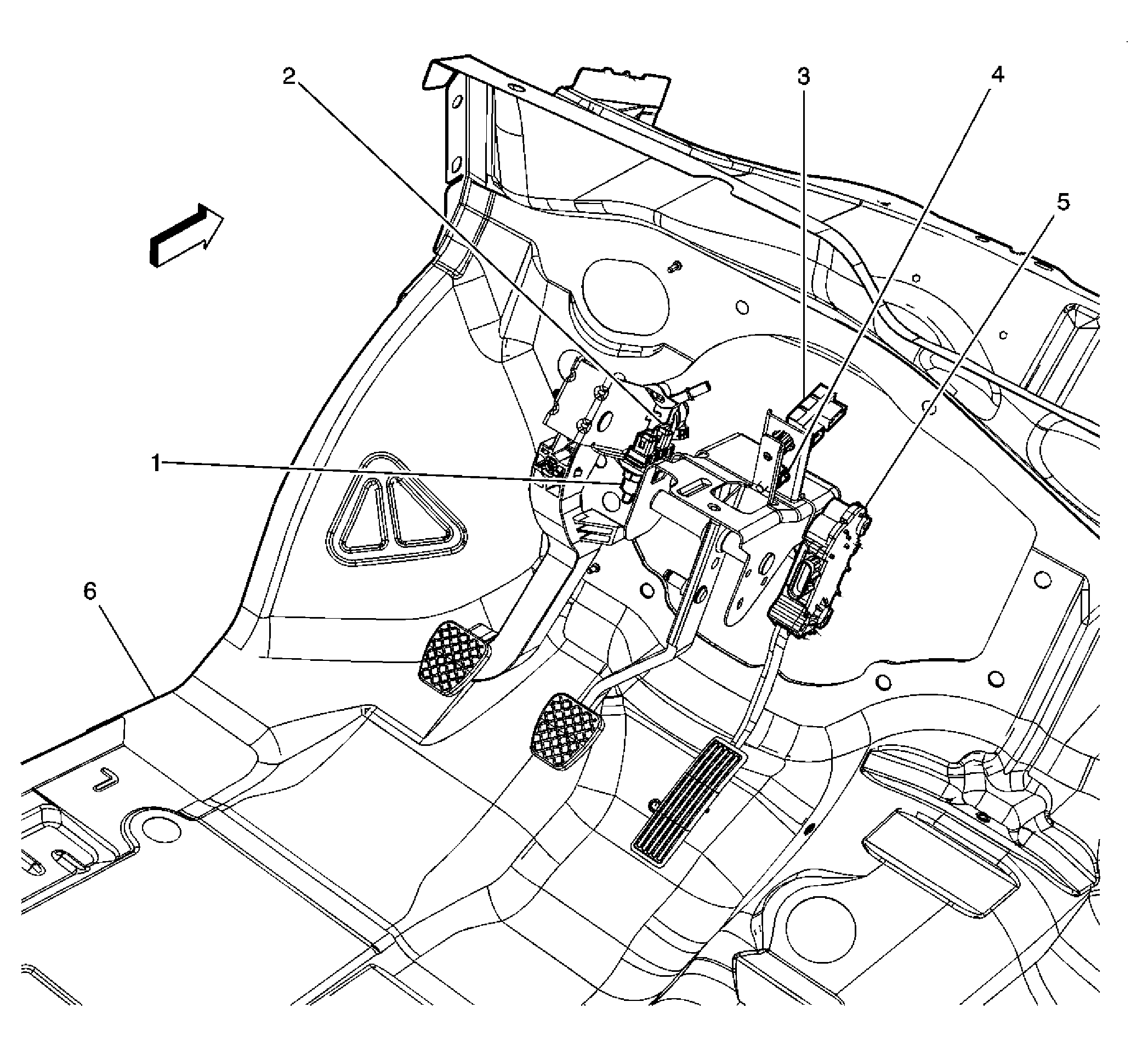

Fig 2: Pedal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CCP) Switch (M86)
2	Clutch Start Switch (M86)
3	Stop Lamp Switch
4	Cruise Control Cancel Switch (M86)
5	Accelerator Pedal Position (APP) Sensor
6	Floor Pan

Fig 3: Rear Of Engine Component View (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (M86)
2	Engine Coolant Temperature Sensor (ECT)
3	Heated Oxygen Sensor (HO2S)1
4	Heated Oxygen Sensor (HO2S)2 Connector

Fig 4: View Of Rear of Engine - L61

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) 1
2	Heated Oxygen Sensor (HO2S) 2

Fig 5: Top Front Of Engine Component View

Courtesy of GENERAL MOTORS CORP.

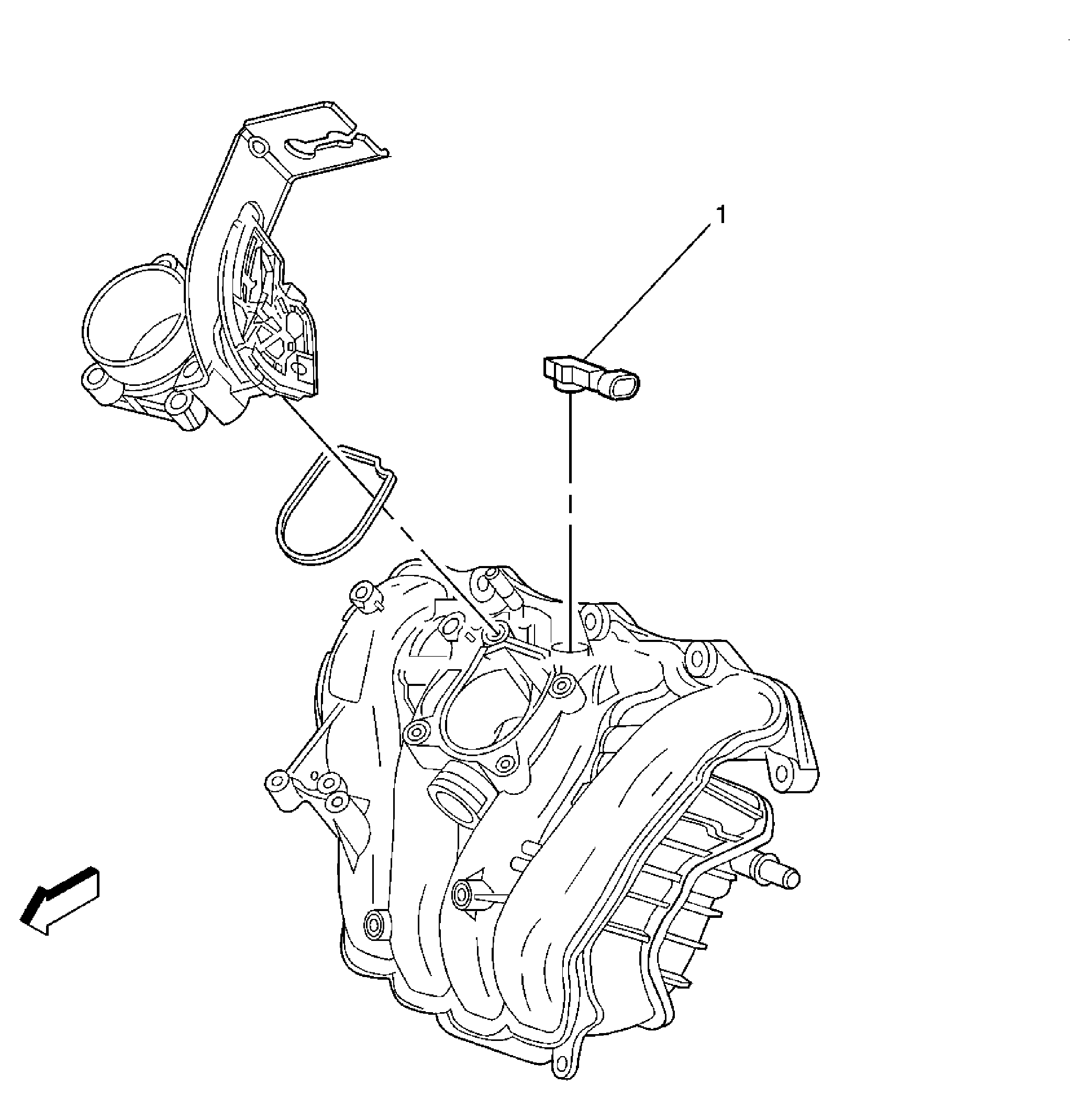

Fig 6: Manifold Absolute Pressure (MAP) Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor

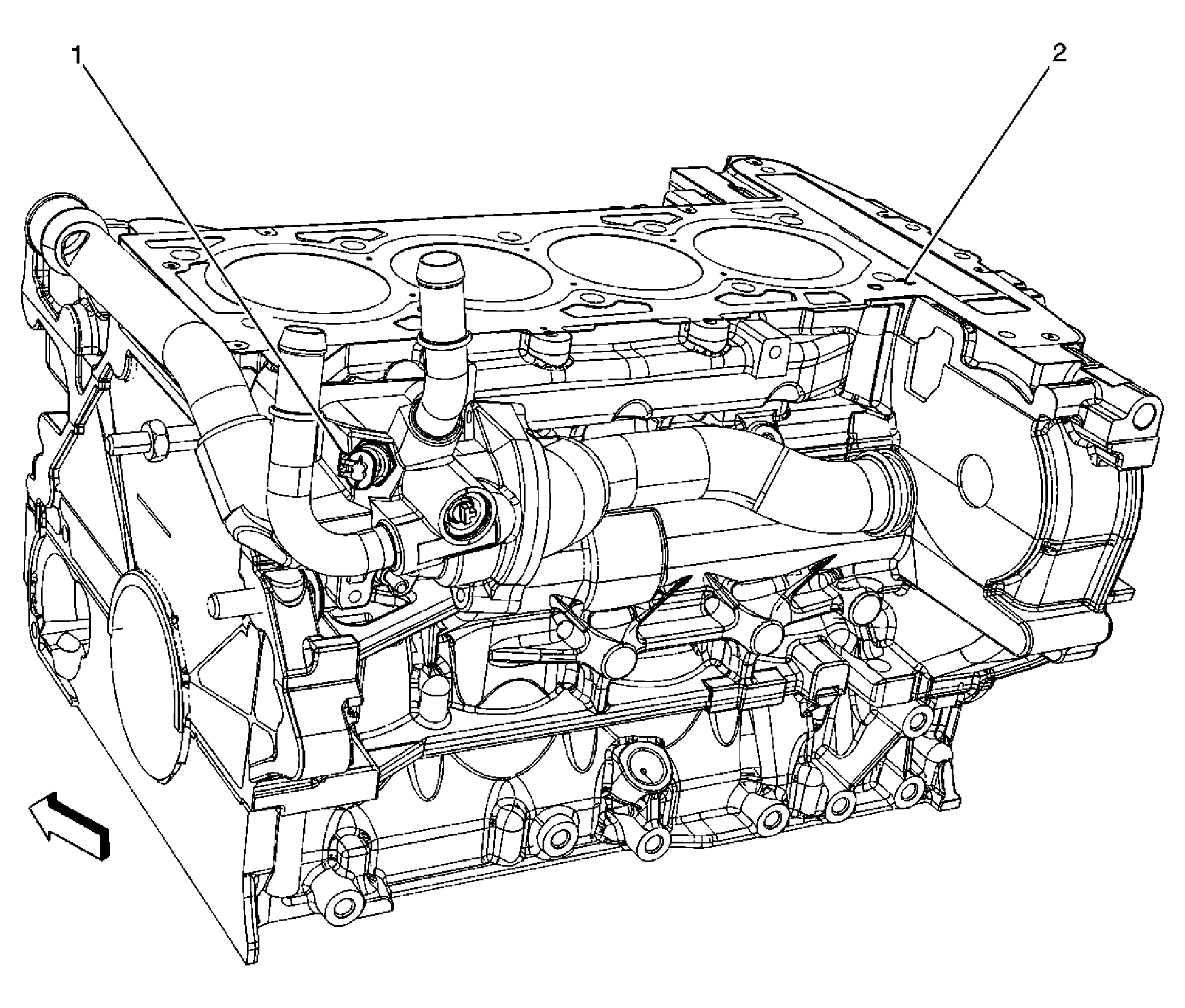

Fig 7: Rear of the Engine Block (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor
2	Engine Block

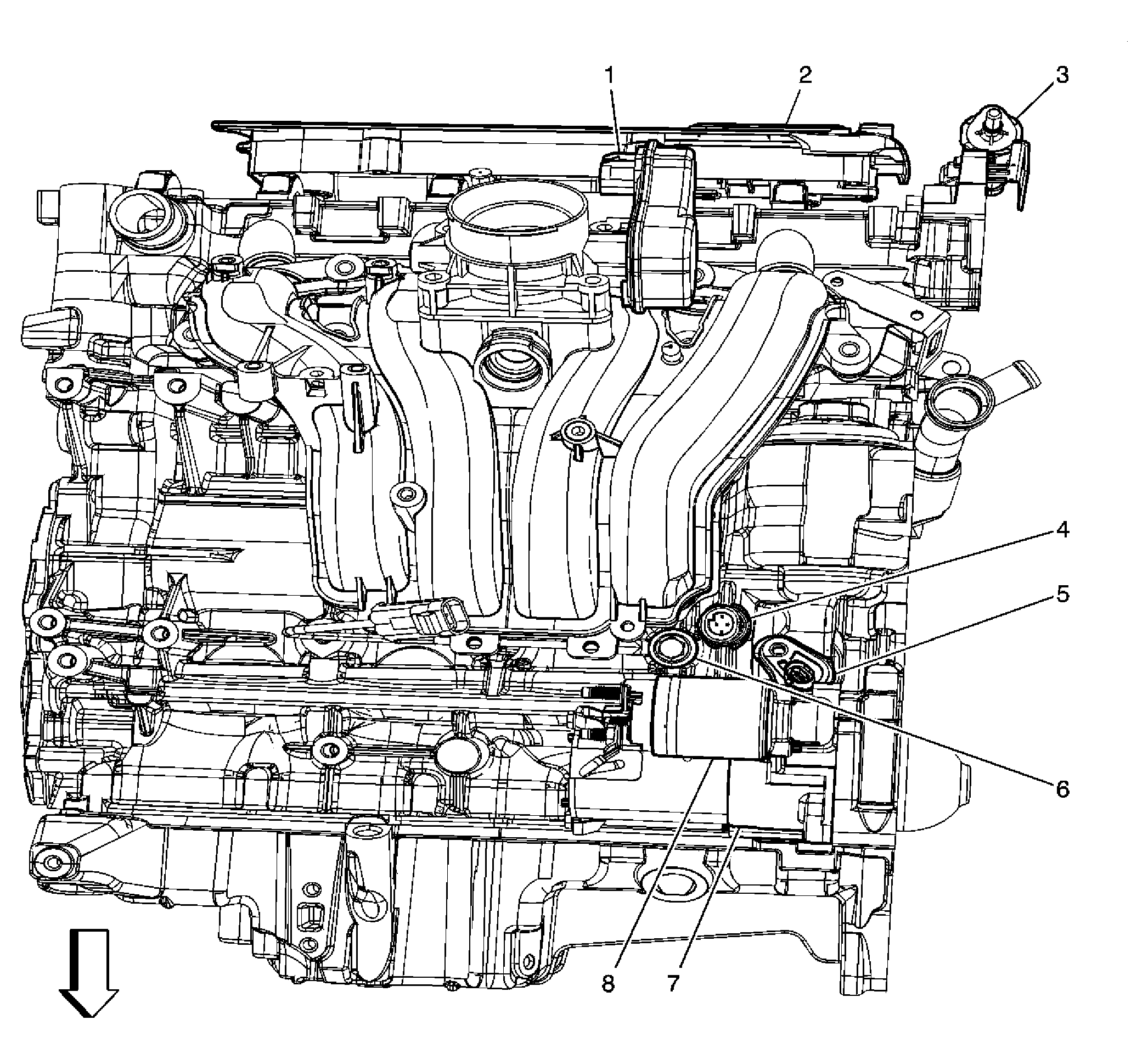

Fig 8: Front of the Engine (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Actuator Control (TAC) Module
2	Ignition Control Module (ICM)
3	Evaporative Emission (EVAP) Canister Purge Solenoid
4	Engine Oil Pressure (EOP) Switch
5	Crankshaft Position (CKP) Sensor
6	Knock Sensor (KS)
7	Starter
8	Starter Solenoid

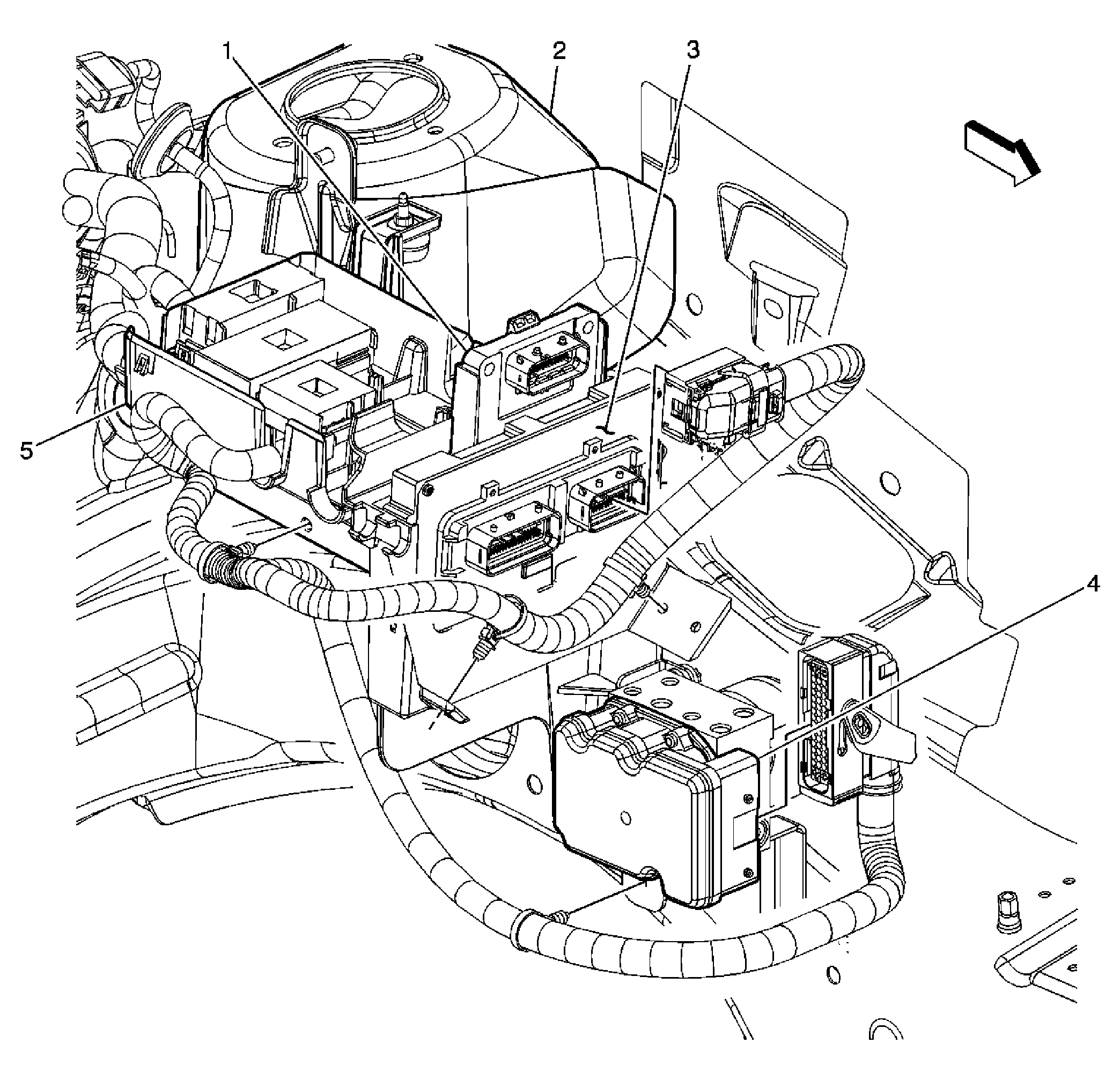

Fig 9: Left Side of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM) (MN5)
2	LF Strut Tower
3	Engine Control Module (ECM) (L61)
4	Electronic Brake Control Module (EBCM) (JM4/JL9)
5	Fuse Block - Underhood Bracket

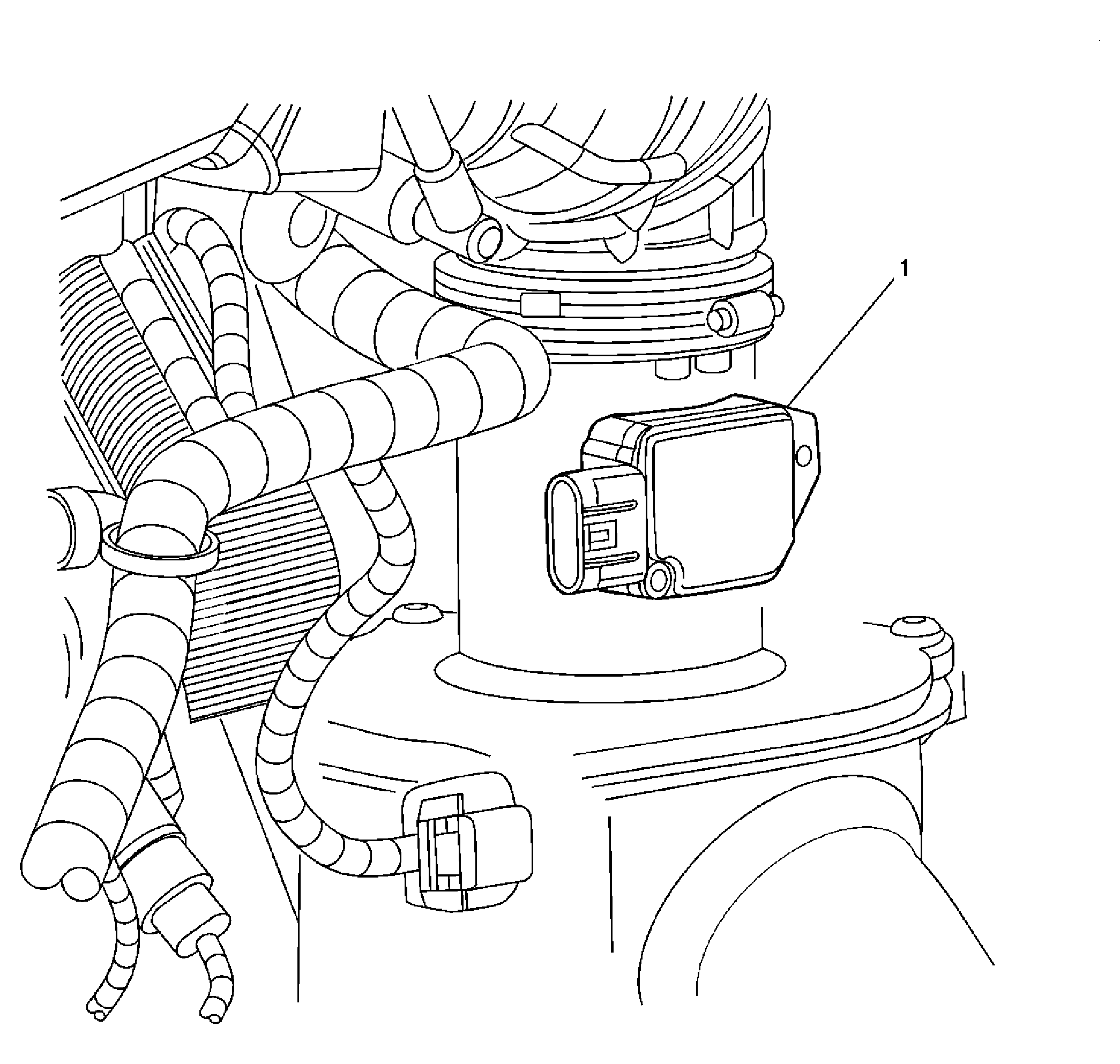

Fig 10: Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor
