Installation Procedure

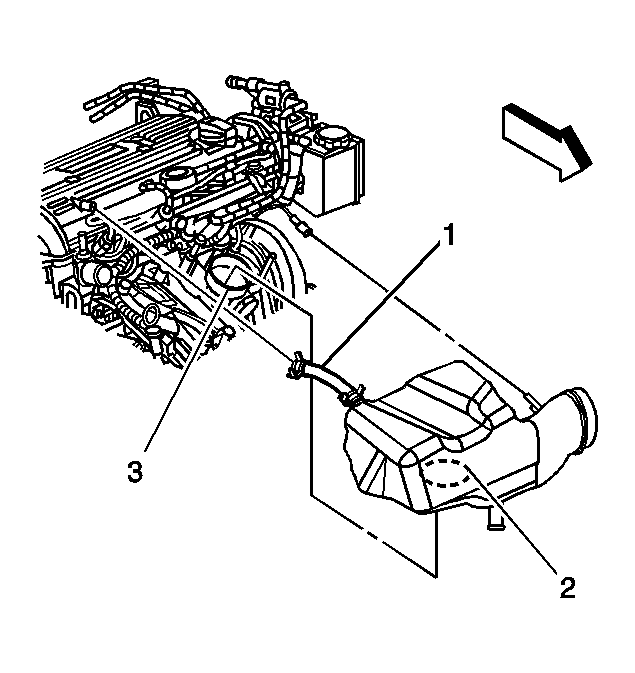

    Fig 1: Exploded View Of Air Inlet Duct & Resonator
    GM785334Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner resonator to the throttle body.
  2. Connect the vent hose to the air cleaner resonator.
  3. Move the spring clamp over the air cleaner resonator vent port and vent hose.
    4. Fig 2: Locating IAT Sensor
    GM785335Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Tighten the resonator to throttle body clamp.

    Tighten:  Tighten the clamp to 5 N.m (44 lb in).

  5. Connect the IAT sensor harness connector.
  6. Connect the vacuum pipe to the air cleaner resonator.
  7. Connect the air cleaner intake duct to the air cleaner resonator.

    Tighten:  Tighten the air cleaner intake duct clamp to 5 N.m (44 lb in).
