Installation Procedure

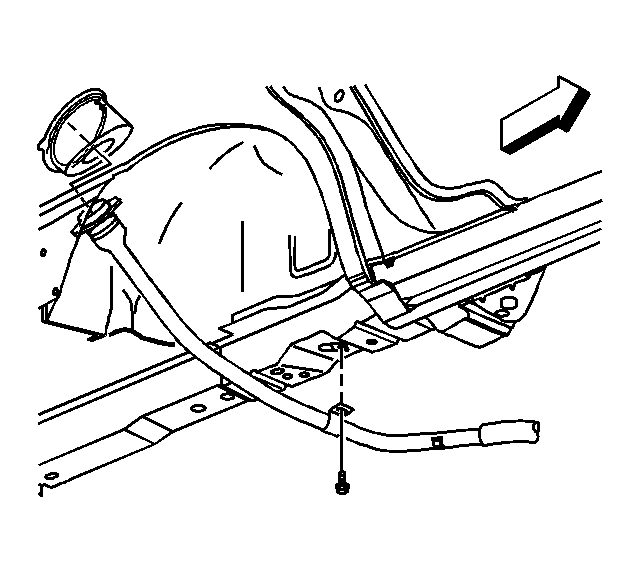

    Fig 1: Identifying Fuel Filler Pipe Attaching Screw
    GM783458Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel filler pipe.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fuel filler pipe attaching screw to the under body.

    Tighten:  Tighten the fuel filler pipe attaching screw to 10 N.m (89 lb in).

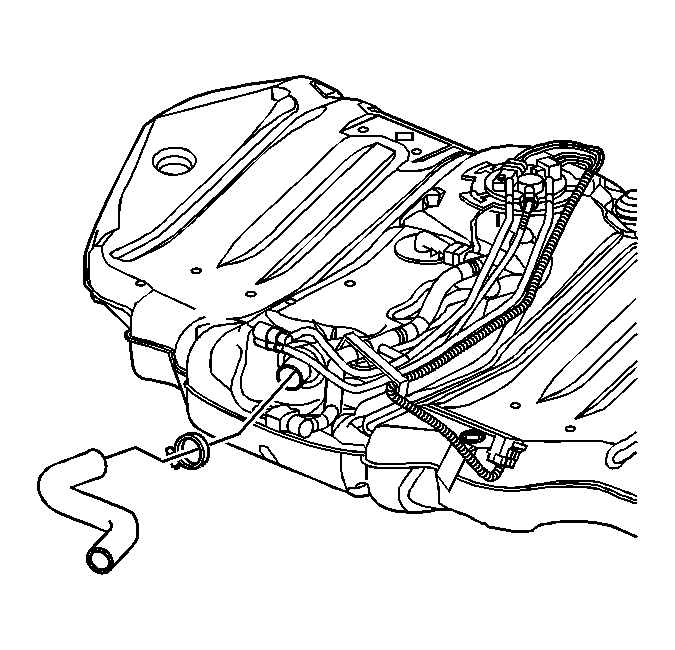

    3. Fig 2: View of Fuel Filler Hose
    GM783454Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel filler hose.
  4. Position the fuel filler hose clamp at the fuel tank and fuel fill tube.

    Tighten:  Tighten the fuel tank filler hose clamps to 3 N.m (27 lb in).

  5. Lower the vehicle.

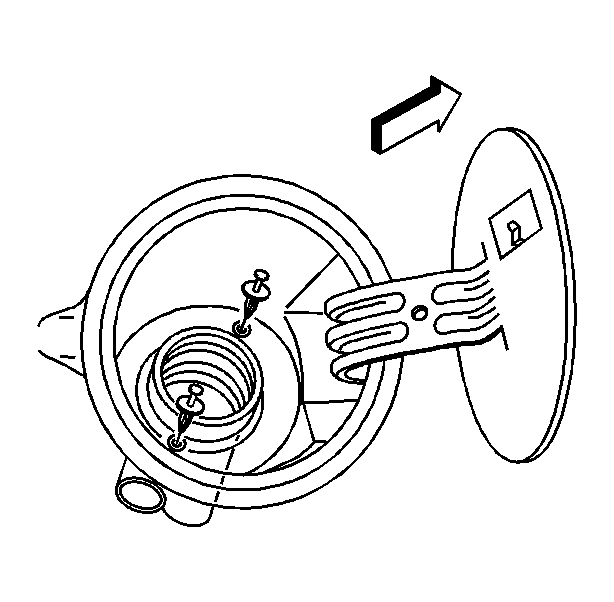

    6. Fig 3: Identifying Fuel Filler Pipe Retainers
    GM783460Courtesy of GENERAL MOTORS CORP.
  6. Install the fuel filler pipe retainers to the fuel filler pipe access panel.
  7. Install the fuel filler cap.
