Removal Procedure

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
  2. Disconnect the engine fuel pipes from the engine fuel flex hoses. Refer to Quick Connect Fitting(s) Service (Metal Collar) .

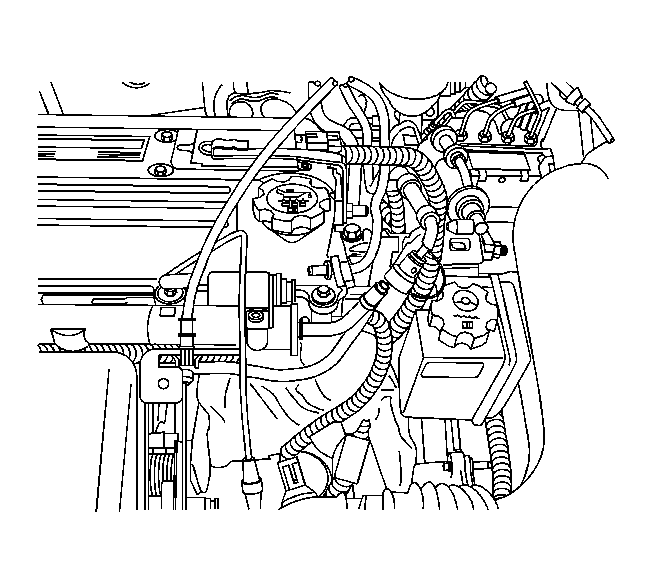

    3. Fig 1: Fuel Hose/Pipes View
    GM870564Courtesy of GENERAL MOTORS CORP.
  3. Use a back up wrench on the fuel pressure regulator and disconnect the return line.
  4. Disconnect the fuel feed line from the fuel rail.

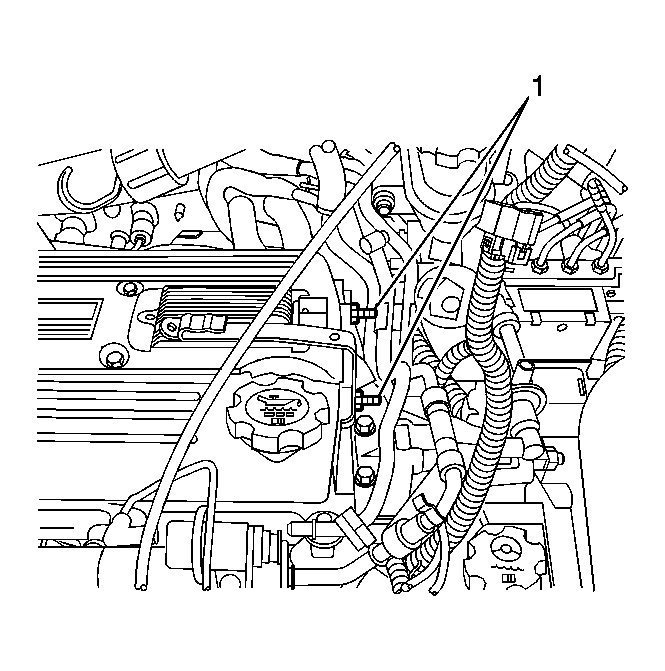

    5. Fig 2: Locating Engine Fuel Pipes Fasteners
    GM870566Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine fuel pipes fasteners (1) located on the engine.
  6. Remove the engine fuel pipes.
