Engine Controls Schematics

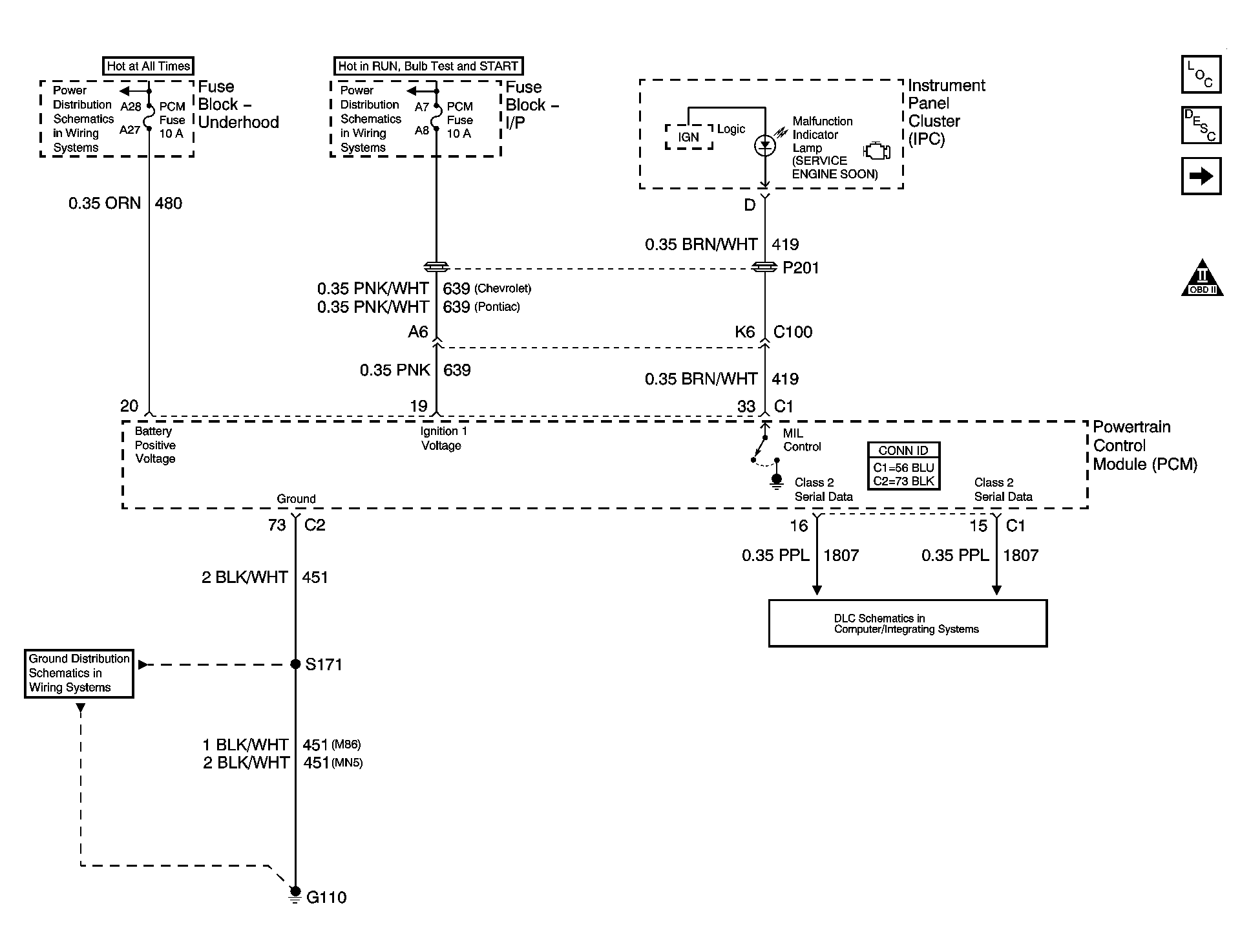

Fig 1: Module Power, Ground, Serial Data and MIL

Courtesy of GENERAL MOTORS CORP.

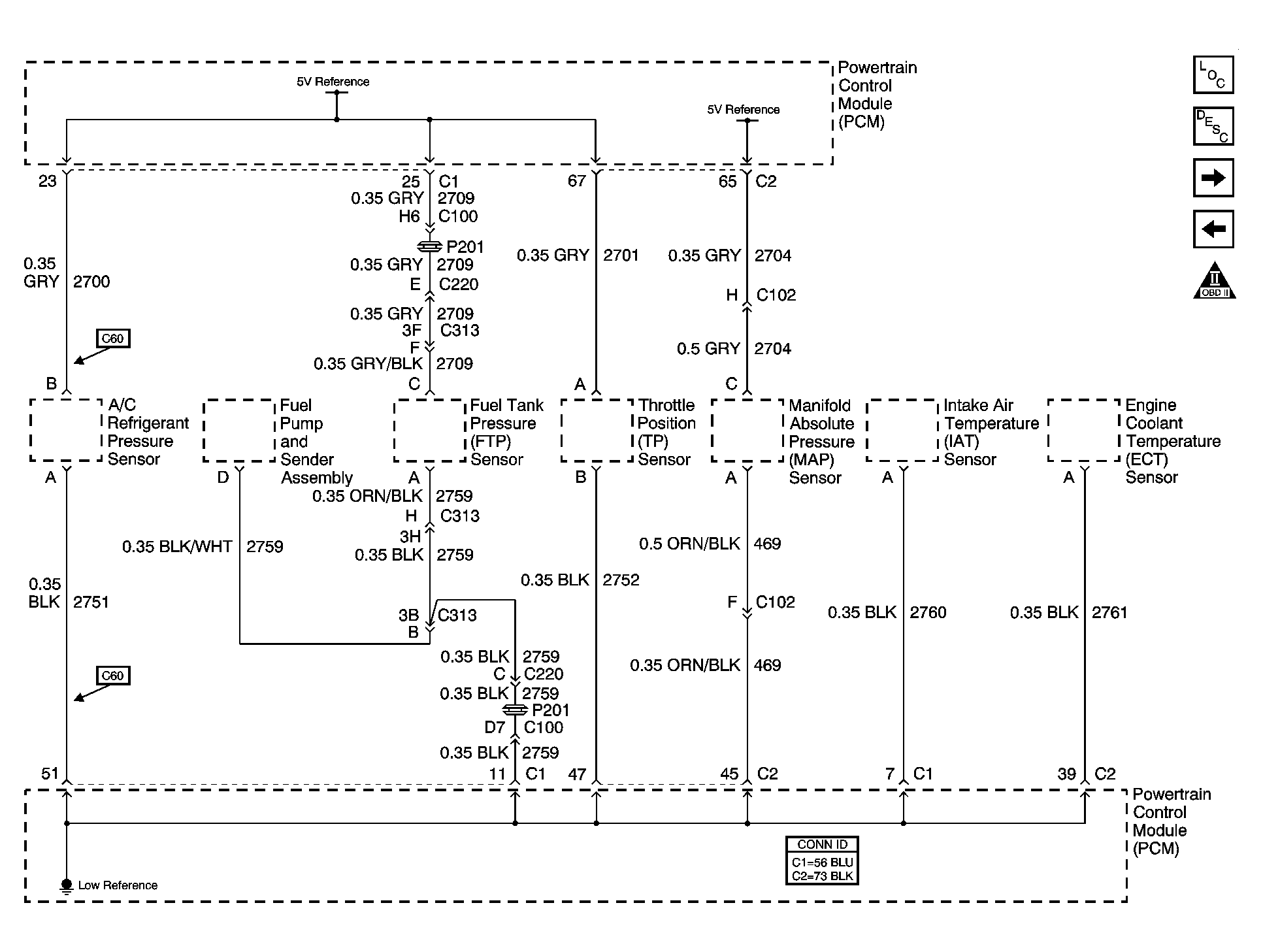

Fig 2: 5-Volt & Low Reference Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

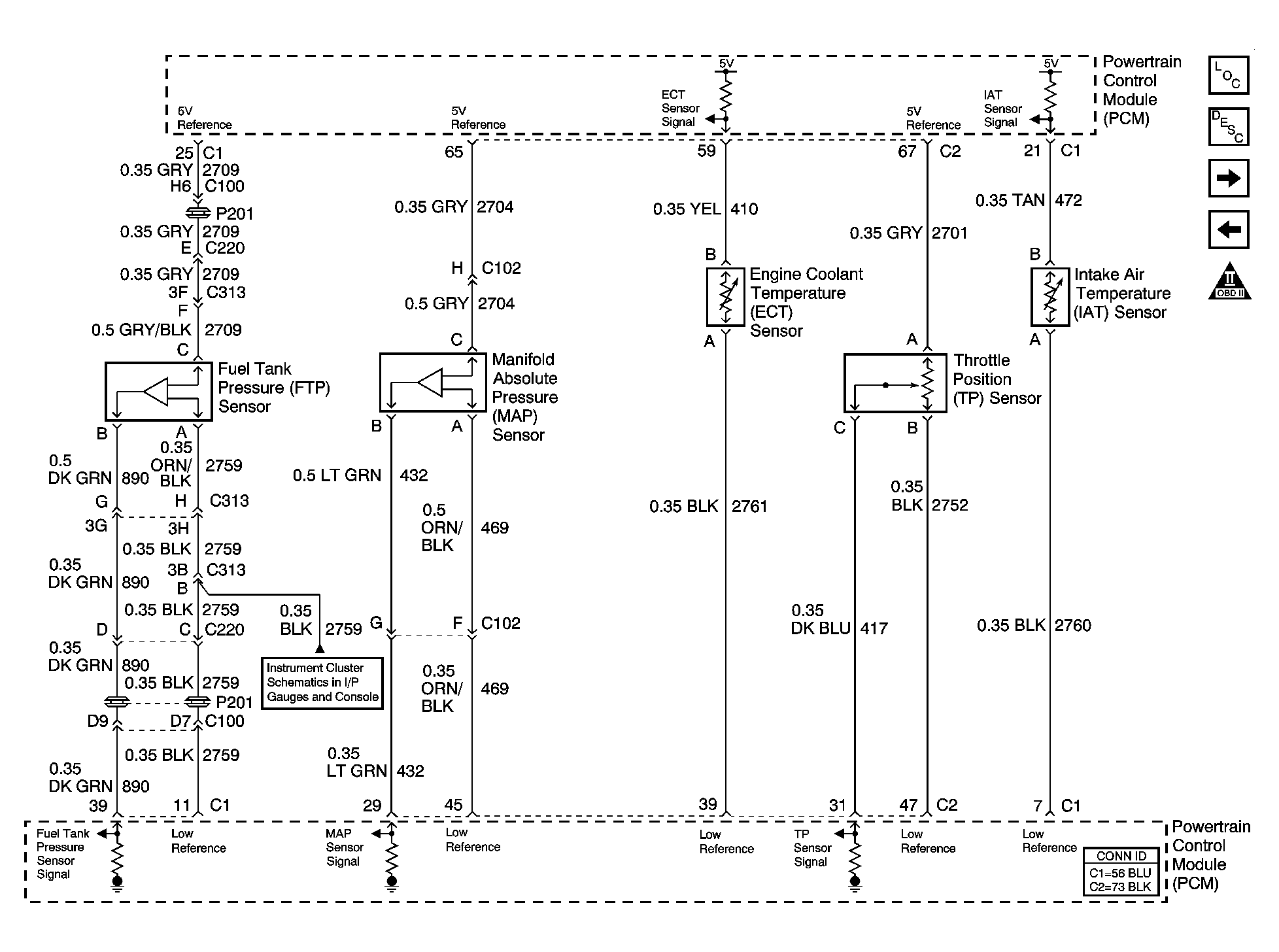

Fig 3: Engine Data Sensors - Pressure & Temperature Schematics

Courtesy of GENERAL MOTORS CORP.

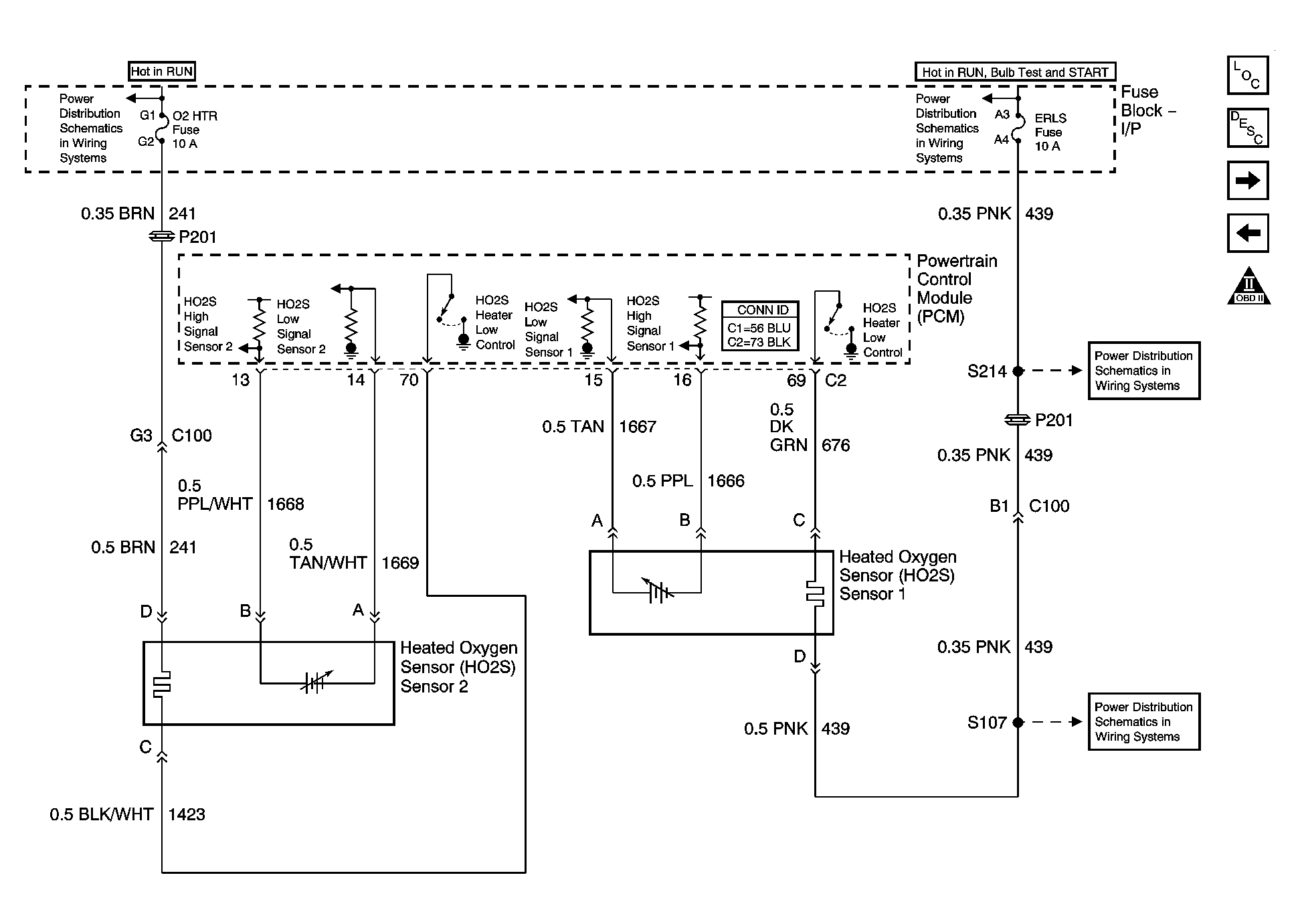

Fig 4: Heated Oxygen Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

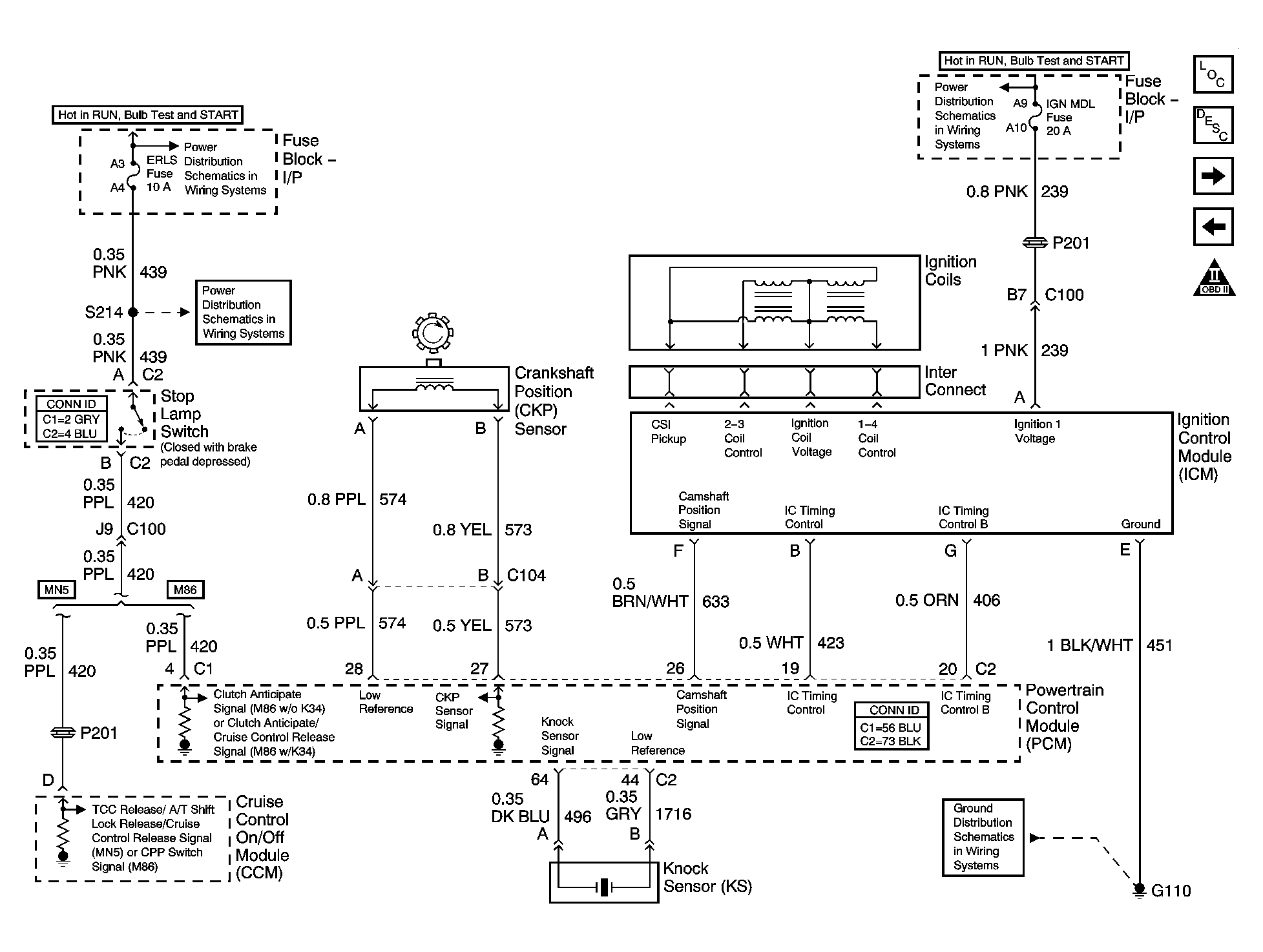

Fig 5: Ignition Controls

Courtesy of GENERAL MOTORS CORP.

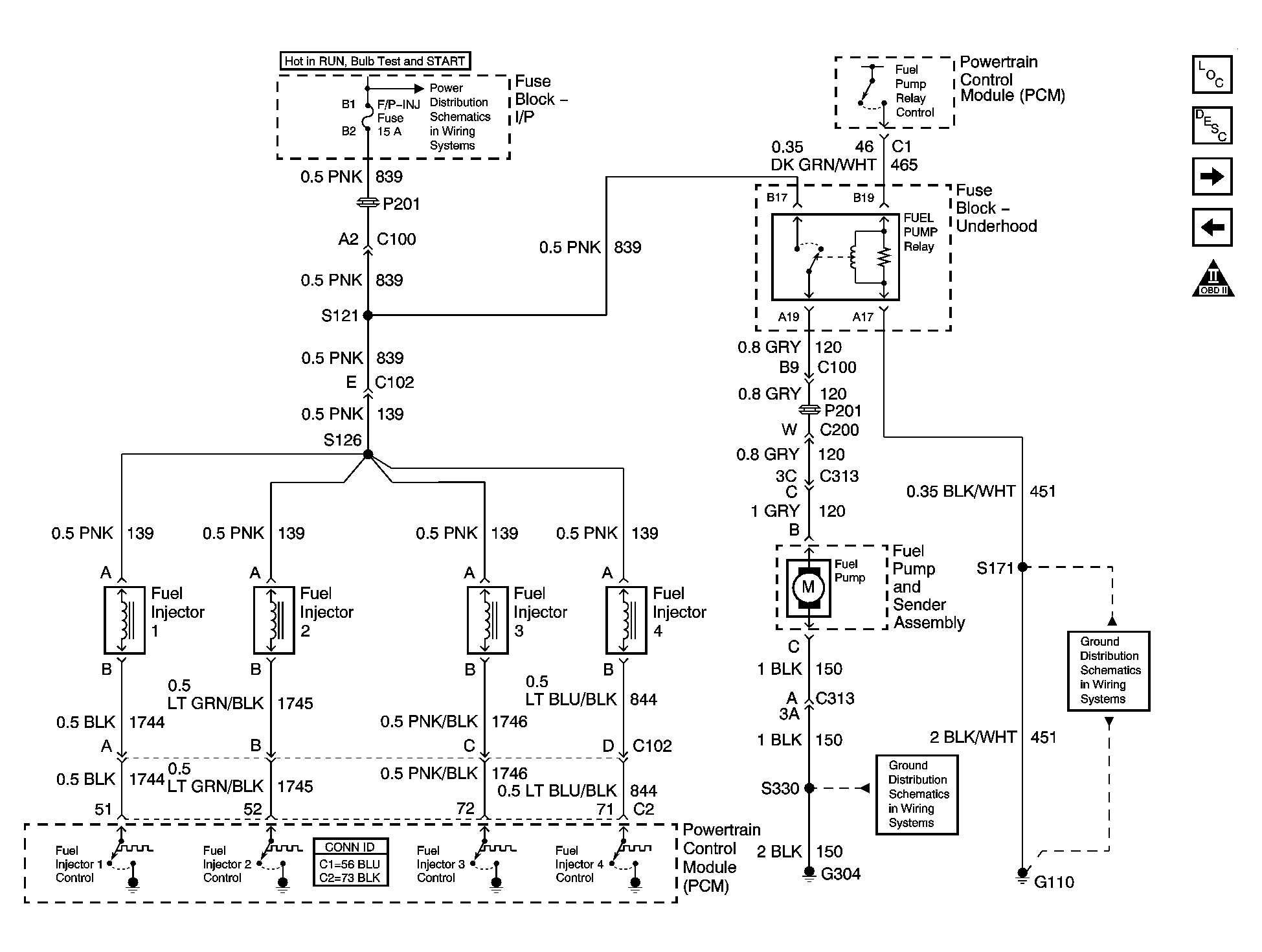

Fig 6: Fuel Delivery Schematics

Courtesy of GENERAL MOTORS CORP.

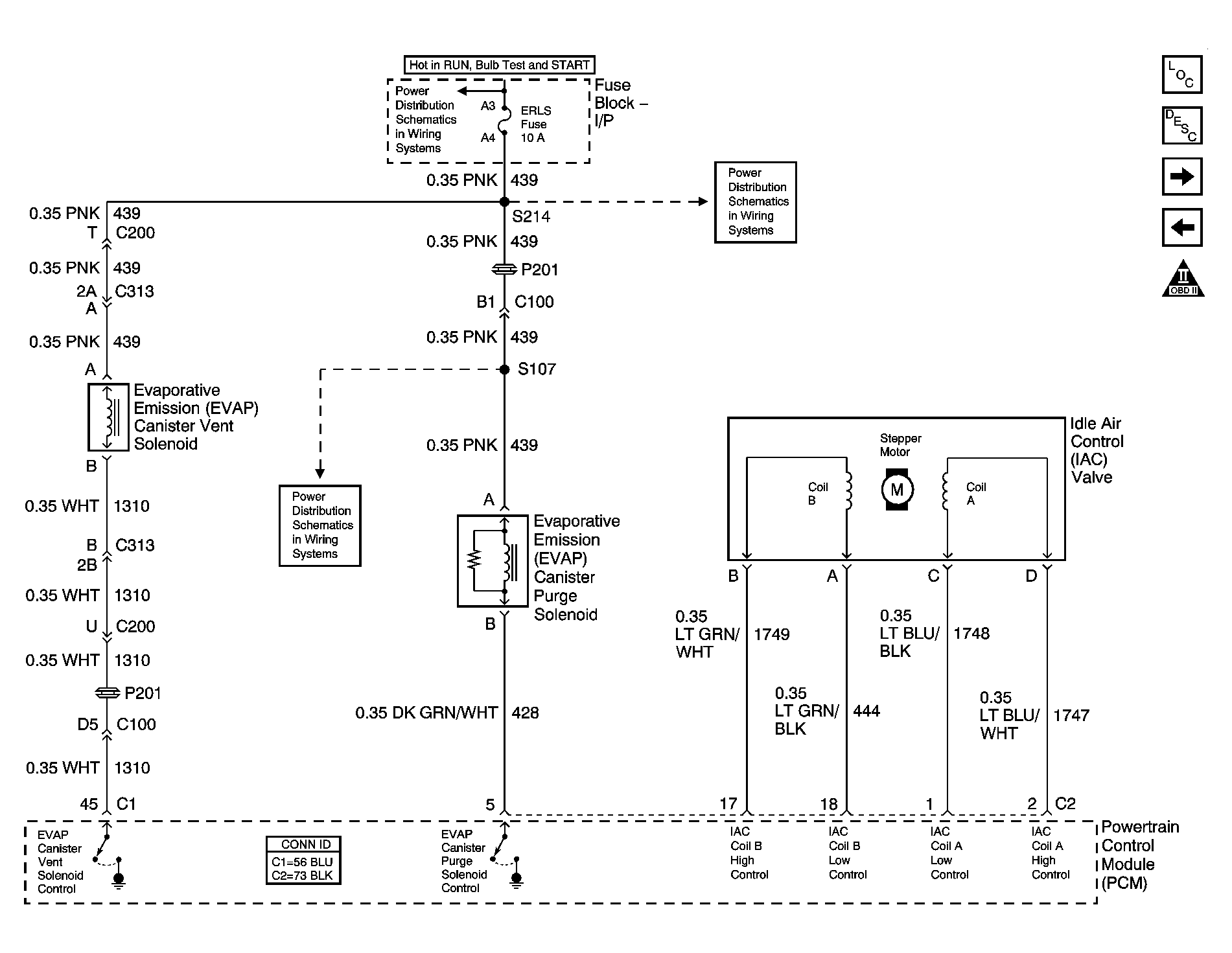

Fig 7: EVAP Controls and IAC

Courtesy of GENERAL MOTORS CORP.

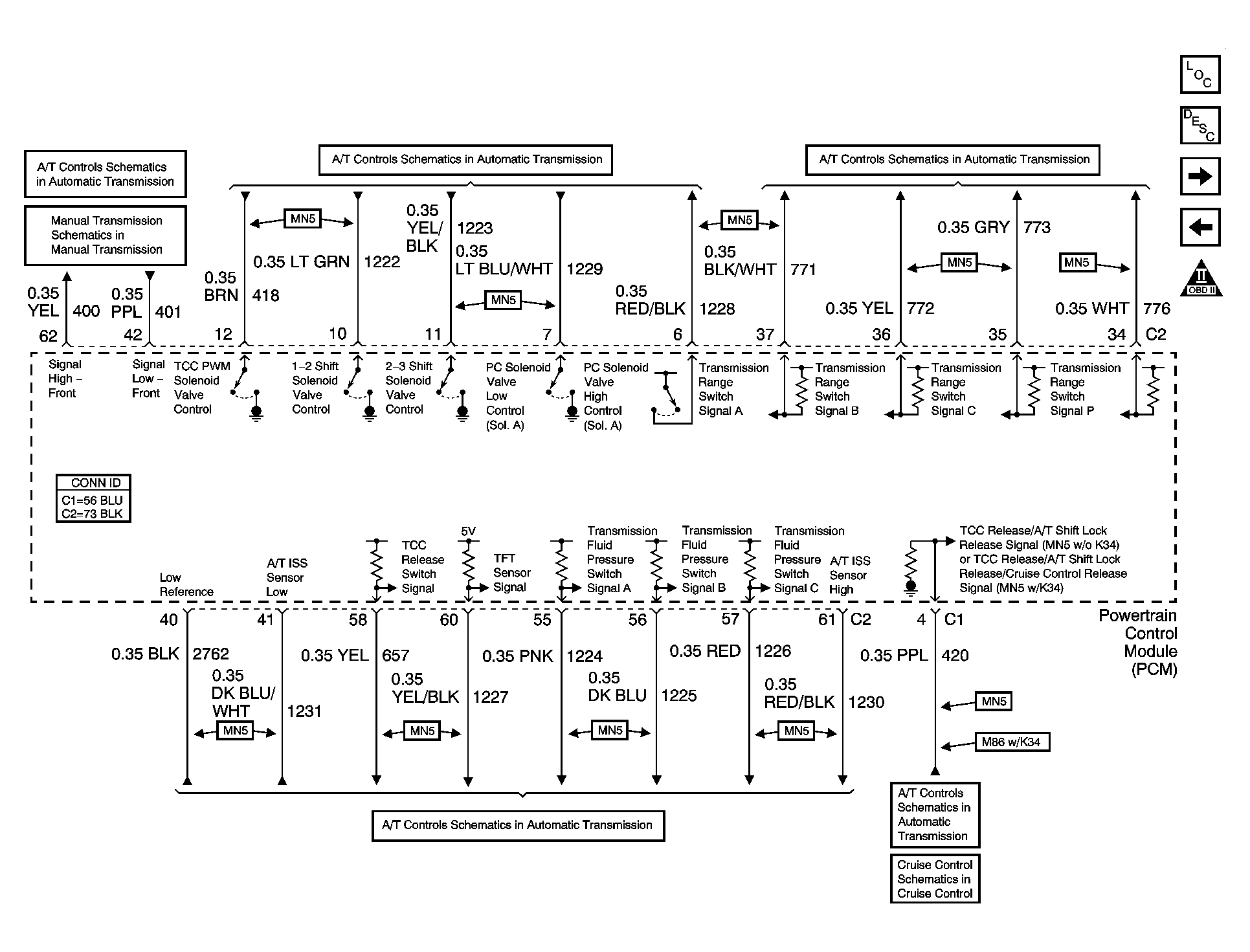

Fig 8: Transmission Controls - A/T

Courtesy of GENERAL MOTORS CORP.

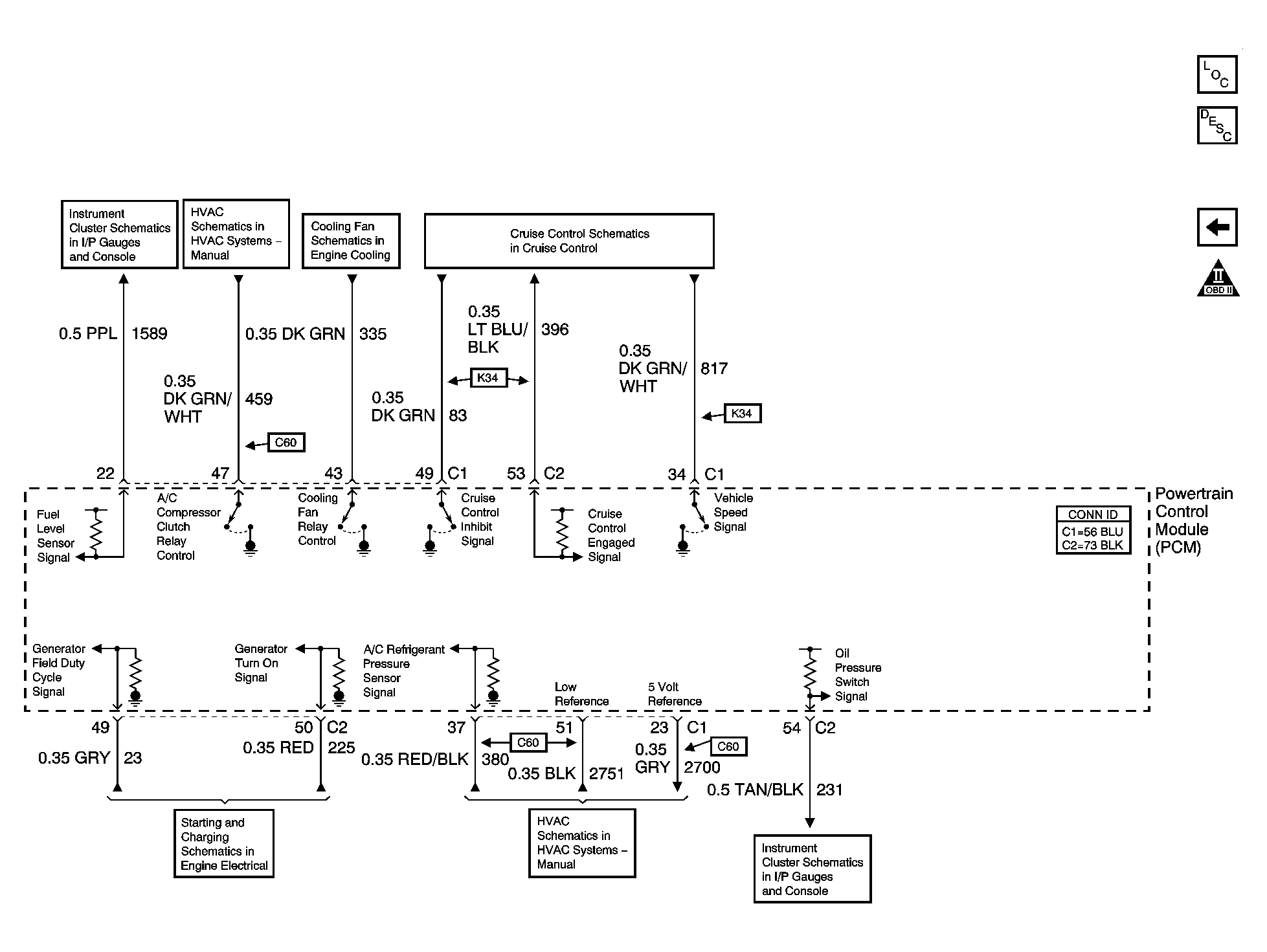

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
