Installation Procedure

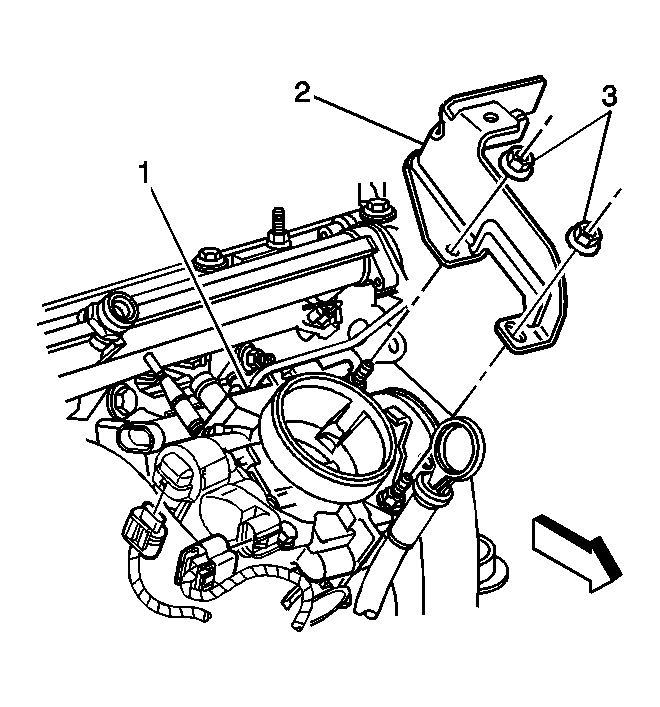

    Fig 1: View Of Accelerator Bracket
    GM782231Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the accelerator bracket (2) on the throttle body (1).

    Tighten:  Tighten the accelerator bracket nuts to 10 N.m (89 lb in).

    2. Fig 2: Control Cable Bracket View
    GM782246Courtesy of GENERAL MOTORS CORP.
  2. Connect the accelerator control cable (3) to the throttle body (4) and accelerator bracket (1).
    3. Fig 3: Identifying Cruise Control Cable
    GM782238Courtesy of GENERAL MOTORS CORP.
  3. Connect the cruise control cable (2) from the throttle body (3) and accelerator bracket (1).
  4. Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
