Installation Procedure

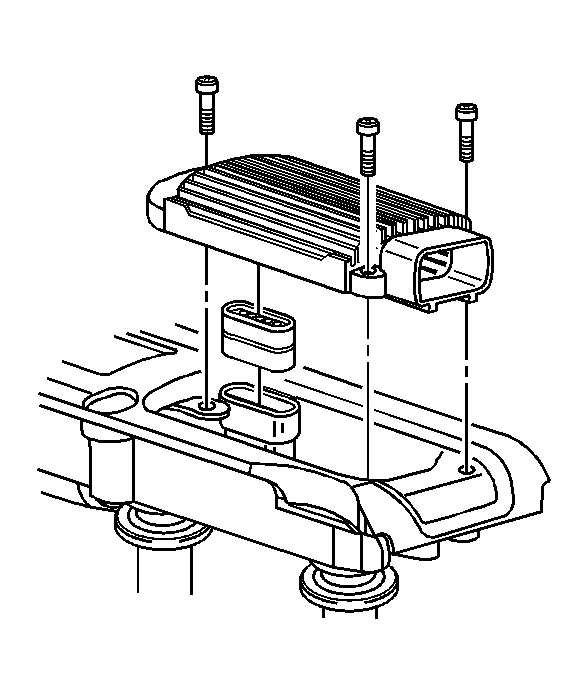

    Fig 1: View Of ICM
    GM783965Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure the interconnect and seal are lined up before module installation.
  1. Install the ignition control module in the ignition coil housing.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the ICM retaining screws.

    Tighten:  Tighten the retaining screws to 1.5 N.m (13 lb in).

  3. Connect the ICM harness connector.
  4. Install the accelerator cable bracket.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the accelerator cable bracket bolt.

    Tighten:  Tighten the retaining screws to 10 N.m (18 lb in).

  6. Install the accelerator cable to the bracket.
