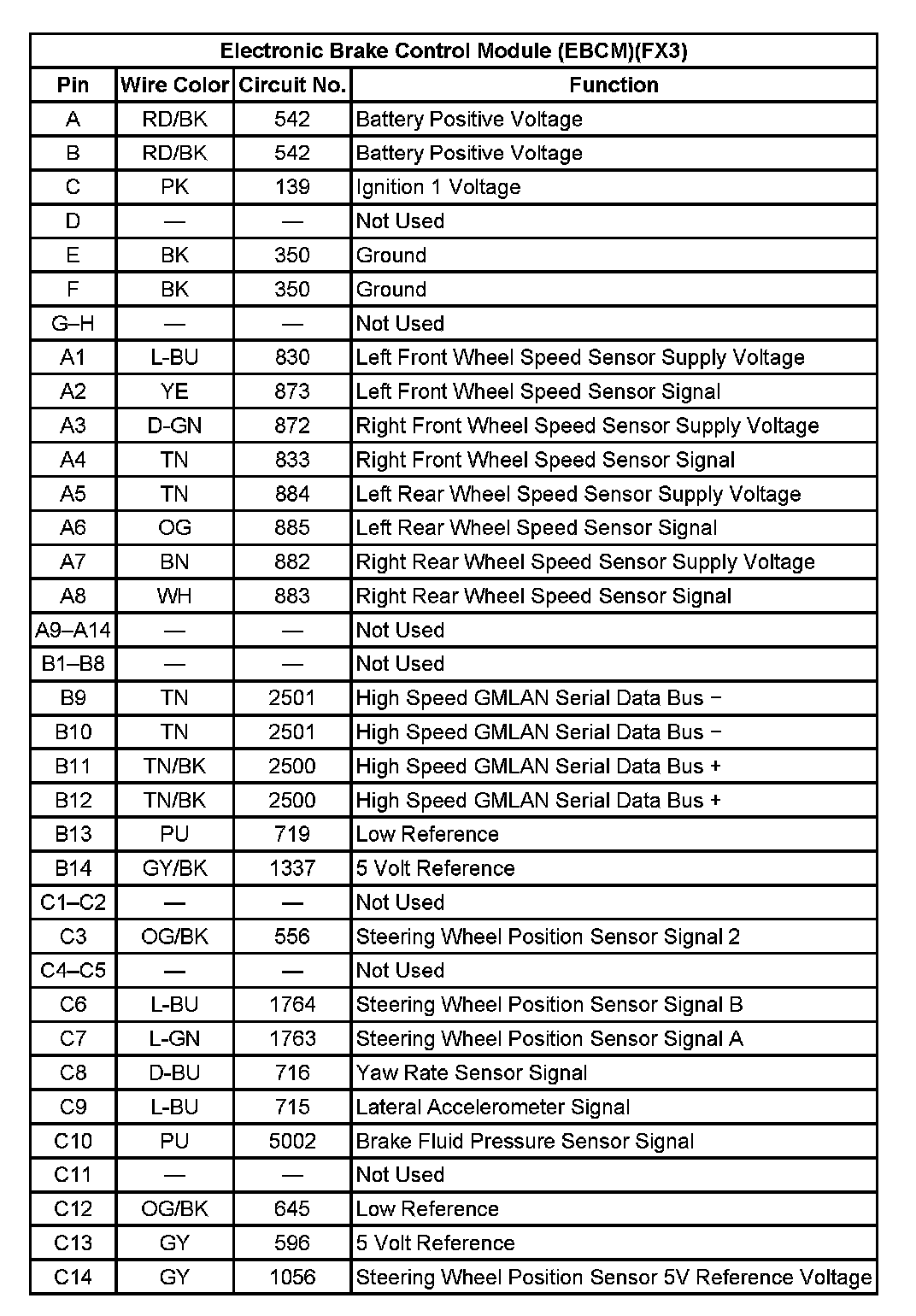

Electronic Brake Control Module (EBCM)(FX3)



Electronic Brake Control Module (EBCM)(FX3)




Electronic Brake Control Module (EBCM)(FX3):




Electronic Brake Control Module (EBCM)(FX3):
