Anti-Lock Brake System Schematics

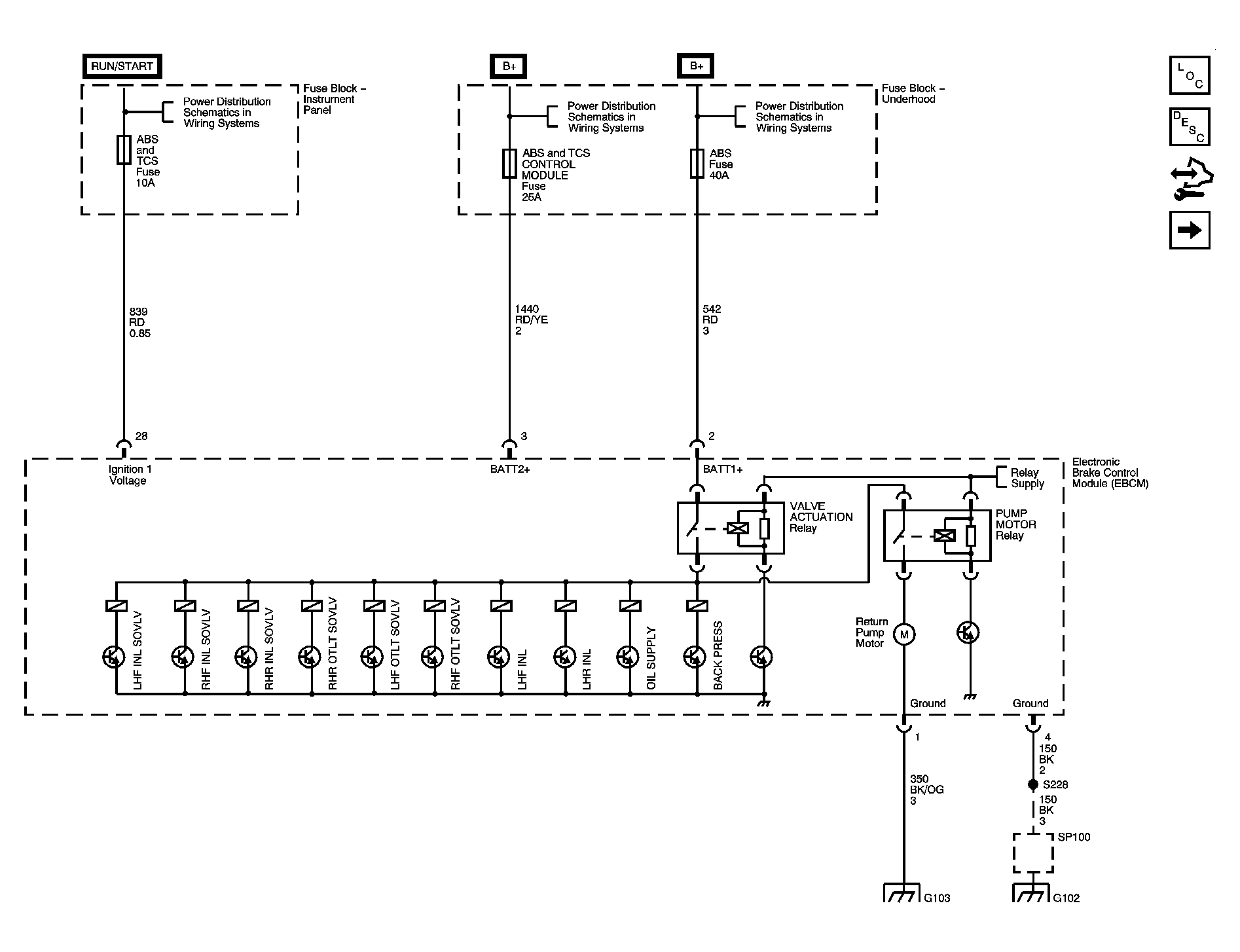

Fig 1: Electronic Brake Control Module (EBCM) Power and Ground
GM1519371Courtesy of GENERAL MOTORS CORP.

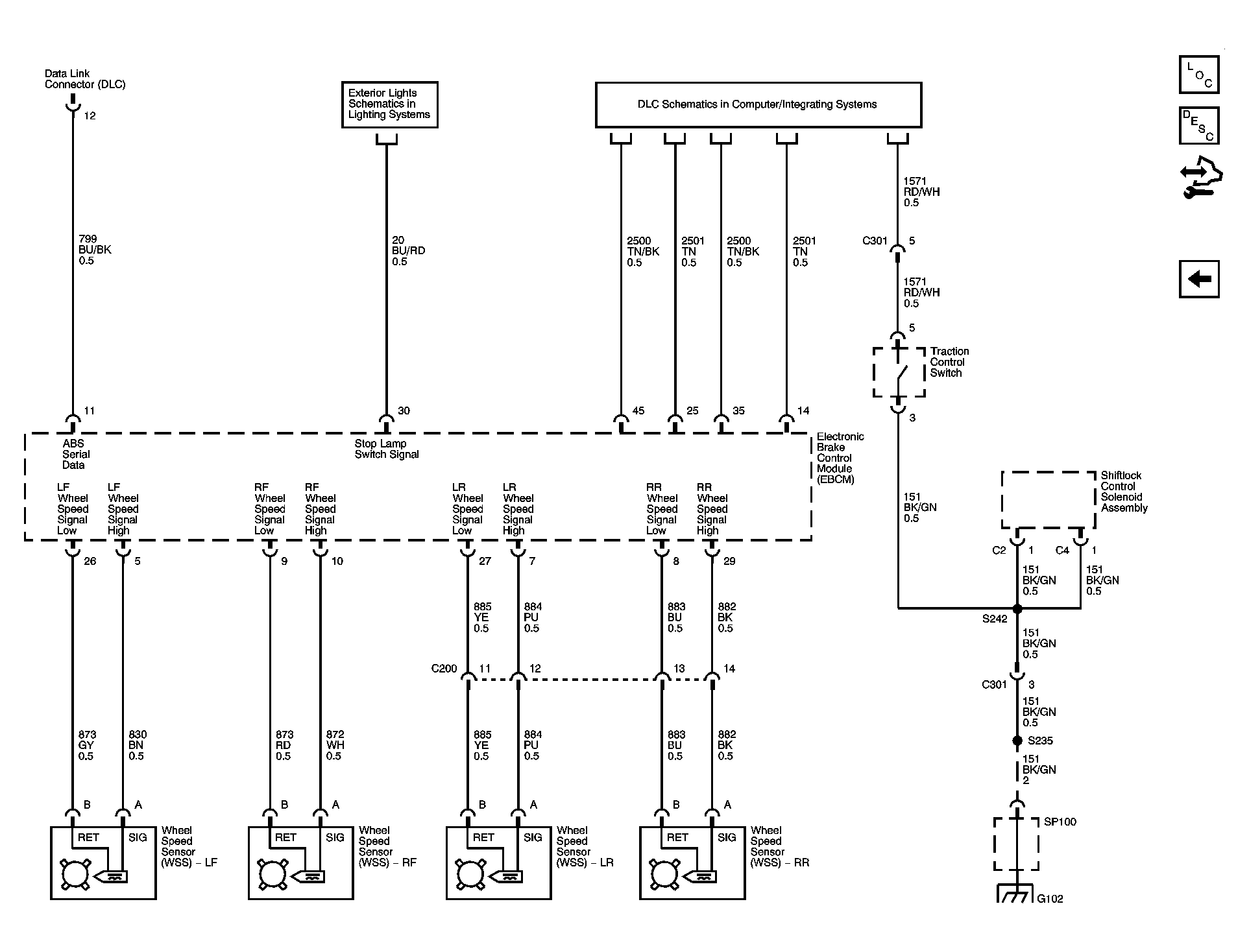

Fig 2: Wheel Speed Sensors, DLC
GM1519384Courtesy of GENERAL MOTORS CORP.
