Underhood Fuse Block

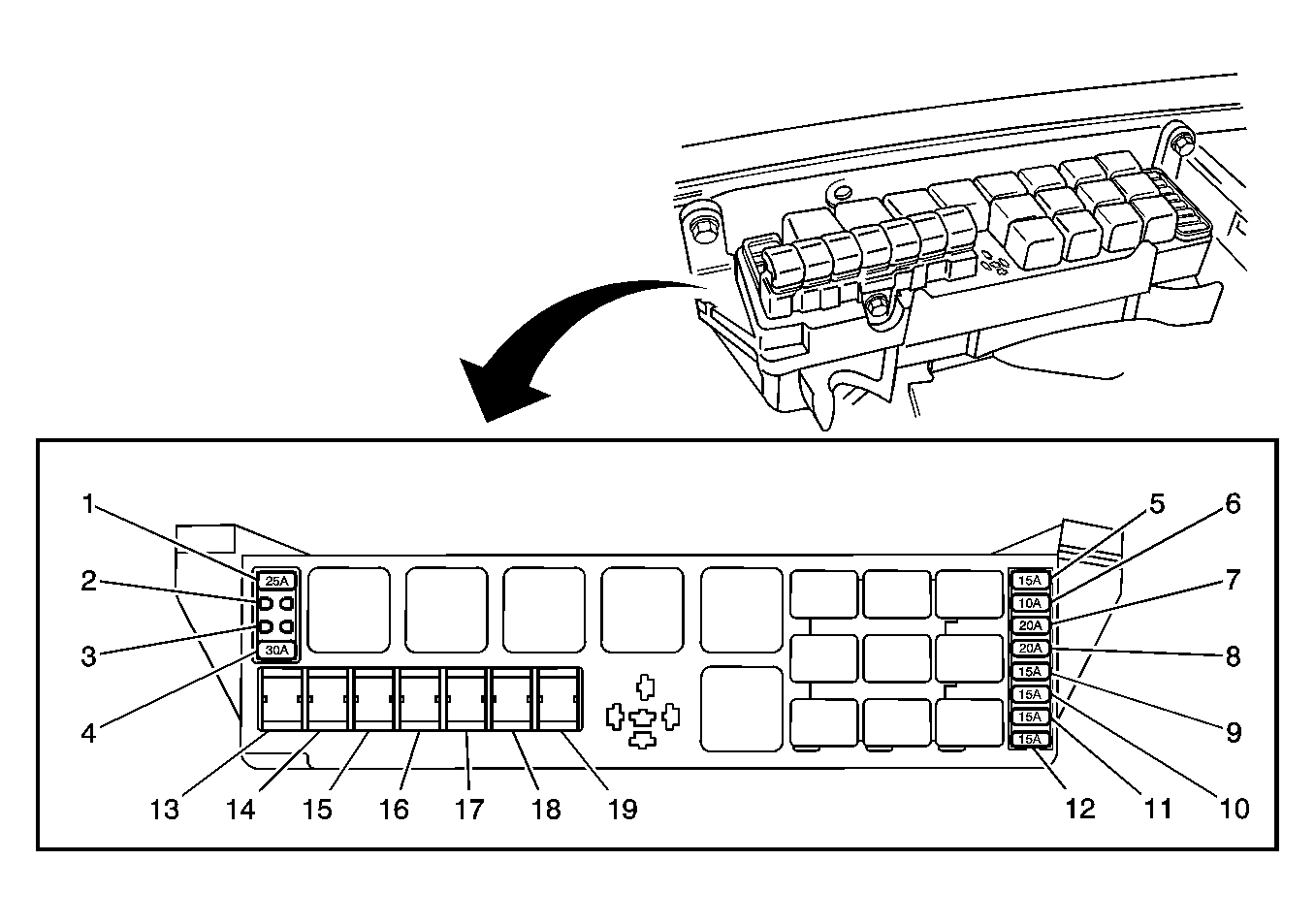

Underhood Fuse Block - Fuse Location
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | ABS/TCS Control Module Fuse | 25A | ABS/TCS Control Module Fuse |
| 2-3 | - | - | Not Used |
| 4 | REAR WINDOW Fuse | 30A | Rear Window Defogger Fuse |
| 5 | FUEL PUMP Fuse | 15A | Fuel Pump Fuse |
| 6 | ENGINE CONTROL BCM Fuse | 10A | Engine and BCM Fuse |
| 7 | RH HEADLAMP Fuse | 20A | Right Hand Headlamp Fuse |
| 8 | LH HEADLAMP Fuse | 20A | Left Hand Headlamp Fuse |
| 9 | AUTO TRANS Fuse | 15A | Automatic Transmission Fuse |
| 10 | ENG SENSORS Fuse | 15A | Engine Sensors Fuse |
| 11 | INJ/IGN Fuse | 15A | Fuel Injectors and Ignition Module Fuse |
| 12 | INJ/IGN Fuse | 15A | Fuel Injectors and Ignition Module Fuse |
| 13 | RAD FAN 2 Fuse | 30A | Engine Cooling Large Fan Fuse |
| 14 | LIGHTING Fuse | 60A | Lighting Fuse |
| 15 | ABS Fuse | 60A | ABS Fuse |
| 16 | ENGINE Fuse | 60A | Engine Fuse |
| 17 | MAIN Fuse | 60A | Main Fuse |
| 18 | BLOWER Fuse | 40A | Blower Motor Fuse |
| 19 | ENGINE FAN 2 Fuse | 30A | Engine Cooling Small Fan Fuse |

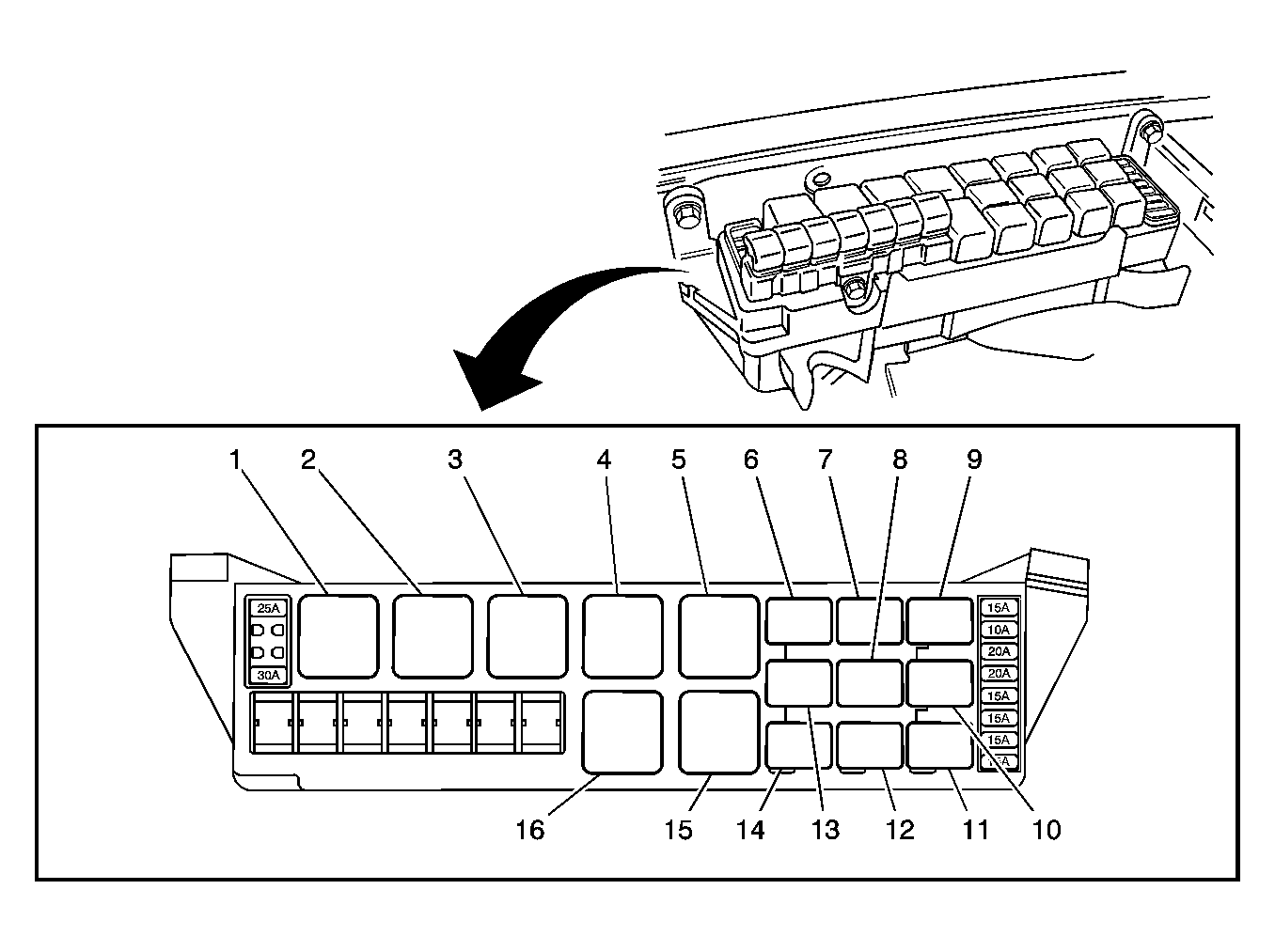

Underhood Fuse Block - Relay Location
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | START Relay | - | Starter Relay |
| 2 | BLOWER Relay | - | Blower Motor Relay |
| 3 | HEATED REAR WINDOW Relay | - | Rear Window Defogger Relay |
| 4 | ENGINE CONT. Relay | - | Engine Control EFI Relay |
| 5 | RAD FAN HIGH SPEED Relay | - | High Speed Engine Cooling Fan |
| 6 | HORN Relay | - | Horn Relay |
| 7 | DAYTIME RUNNING LAMP Relay | - | Daytime Running Lamps Relay |
| 8 | HIGH BEAM Relay | - | Headlamp High Beam Relay |
| 9 | FOG LAMP Relay | - | Fog Lamps Relay |
| 10 | FOG LAMP CANCEL Relay | - | Fog Lamps Cancel Relay |
| 11 | FUEL PUMP Relay | - | Fuel Pump Relay |
| 12 | CRUISE CANCEL Relay | - | Cruise Control Cancel Relay |
| 13 | A/C Relay | - | A/C Relay |
| 14 | LOW BEAM Relay | - | Headlamps Low Beam Relay |
| 15 | RAD FAN LOW SPEED Relay | - | Low Speed Engine Cooling Fan Relay |
| 16 | PCM BRAKE INPUT Relay | - | PCM Brake Input Relay |
