Inline Harness Connector End Views

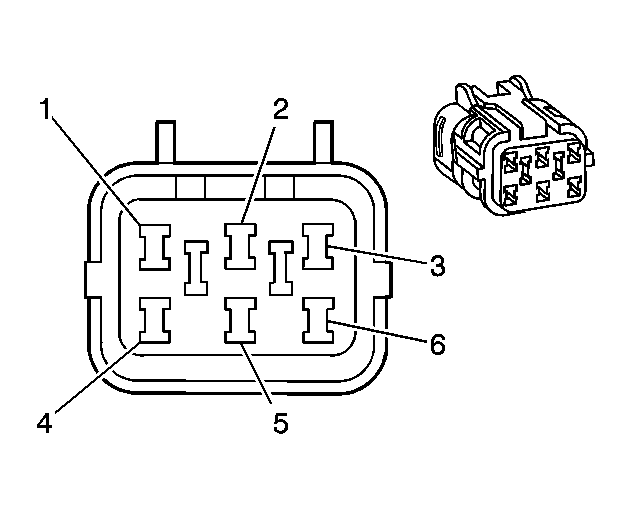

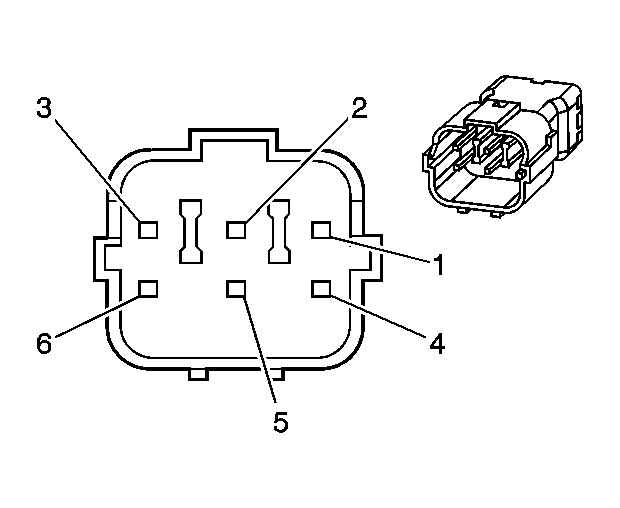

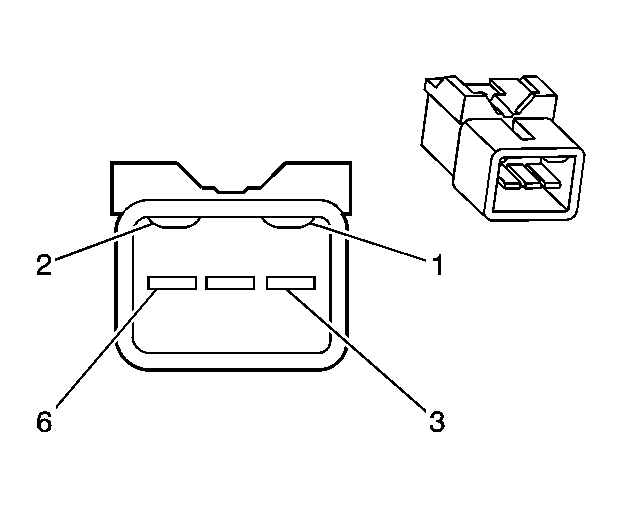

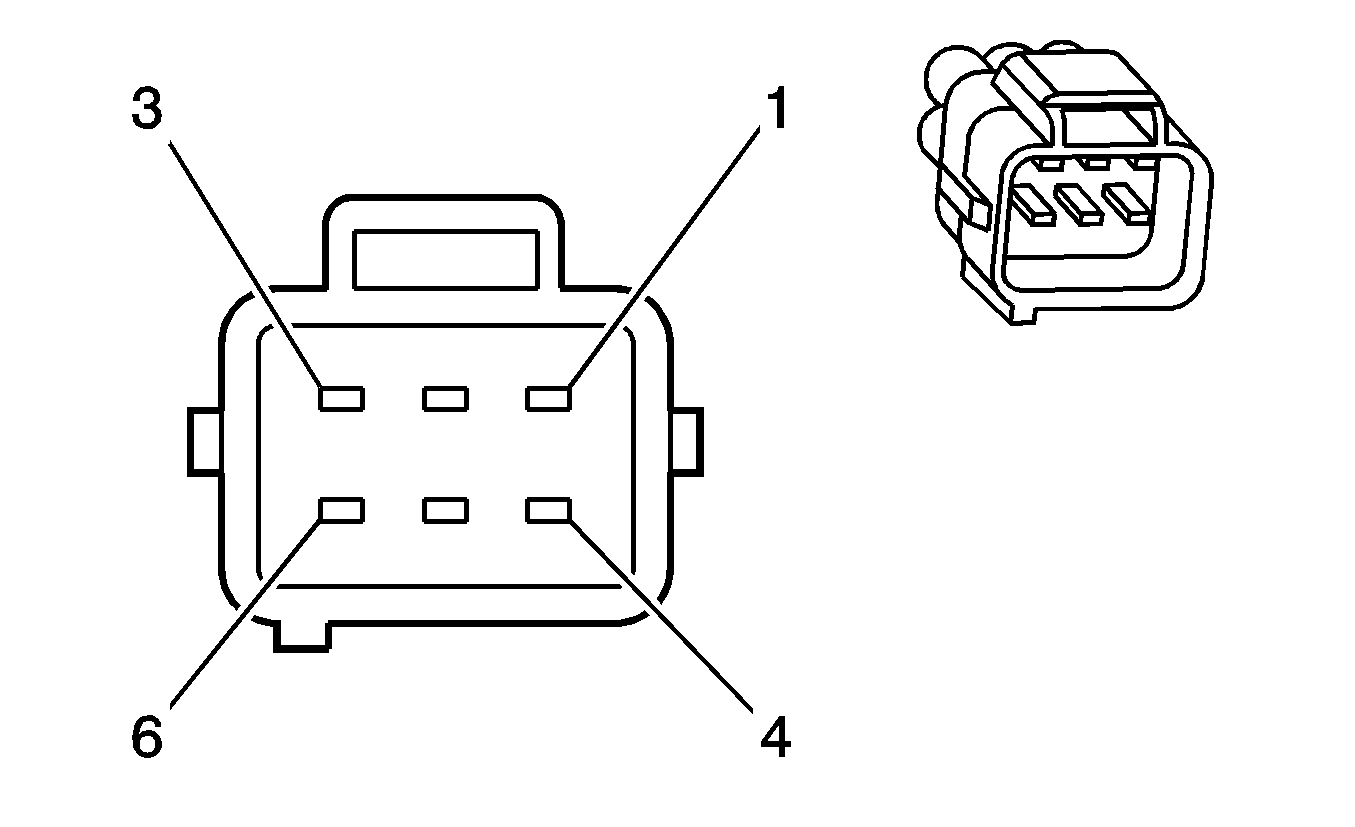

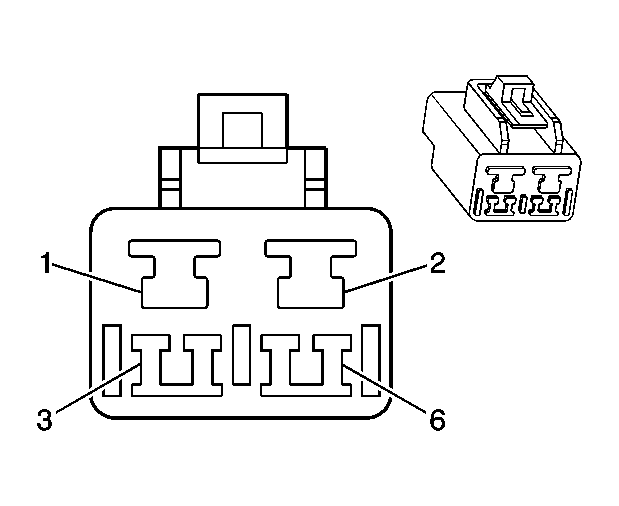

C101
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used | 1 | - | - | Not Used |
| 2 | RD | 639 | Ignition 1 Voltage | 2 | RD | 639 | Ignition 1 Voltage |
| 3 | L-GN | 1039 | Ignition 1 Voltage | 3 | L-GN | 1039 | Ignition 1 Voltage |
| 4 | BK/RD | 450 | Ground | 4 | BK/WH | 550 | Ground |
| 5 | PK/BU | 339 | Ignition 1 Voltage | 5 | PK/BU | 339 | Ignition 1 Voltage |
| 6 | PK/BU | 339 | Ignition 1 Voltage | 6 | PK/BU | 339 | Ignition 1 Voltage |

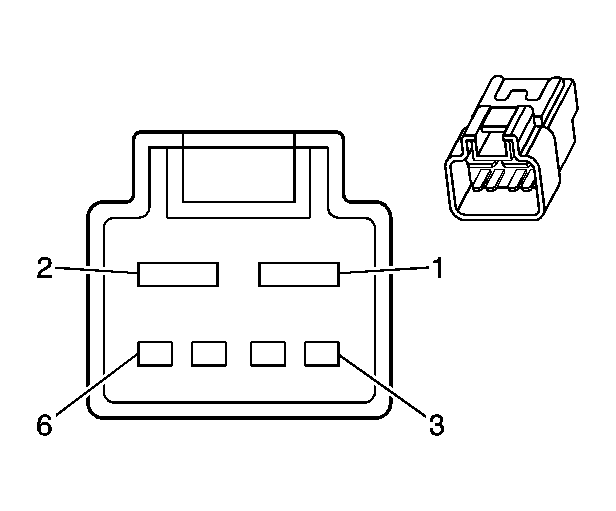

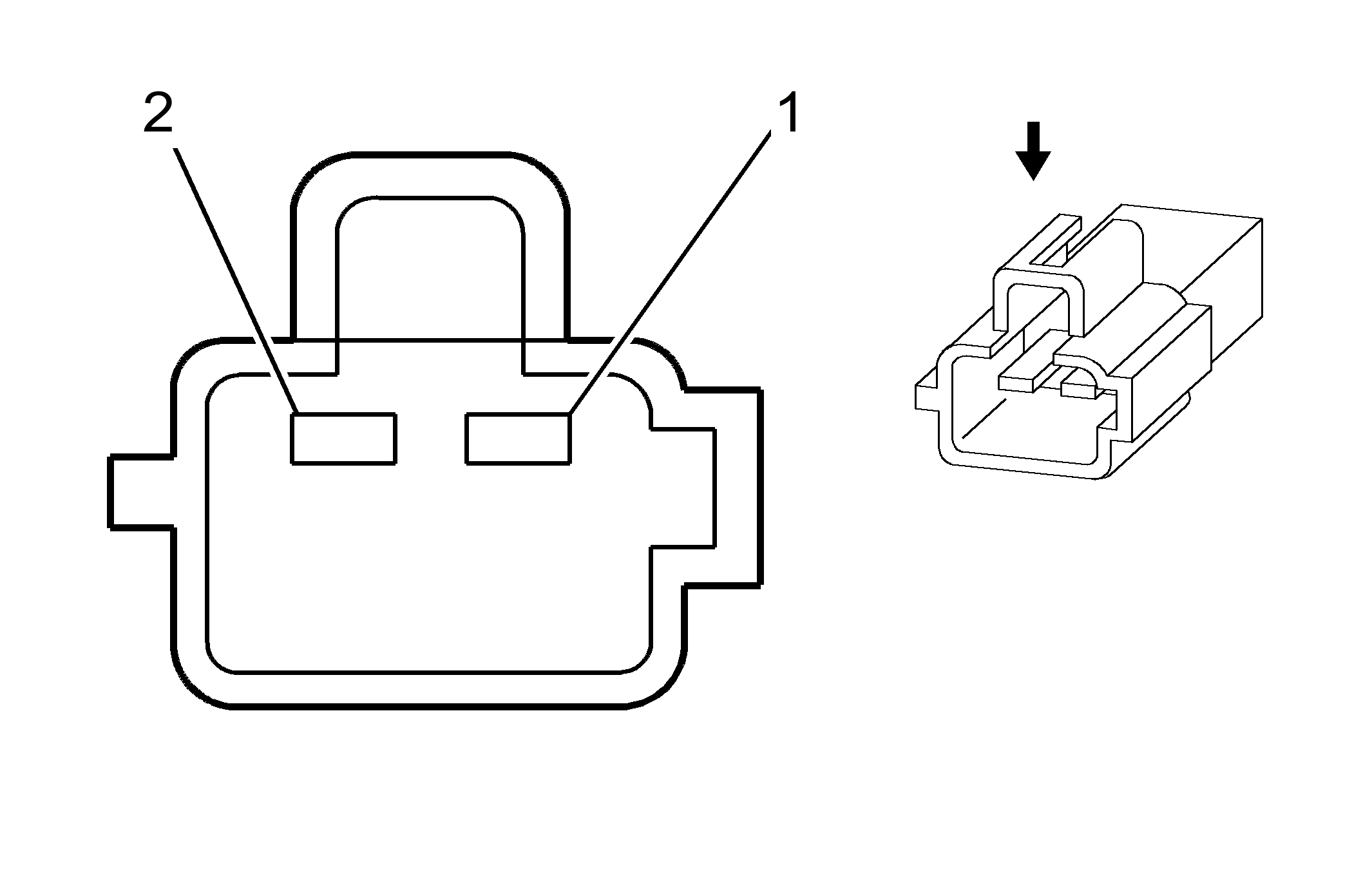

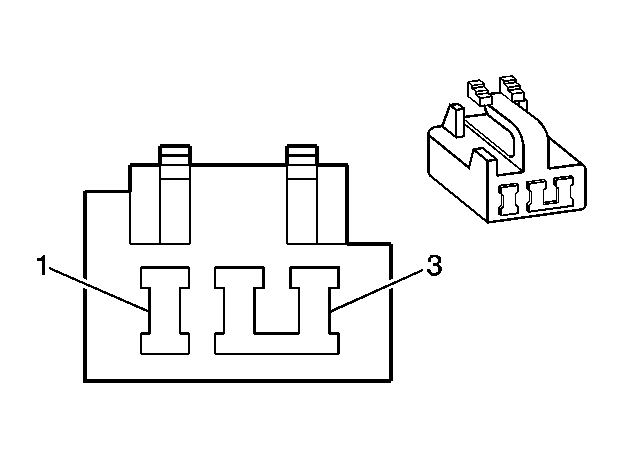

C106
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | PU/WH | 6 | Starter Solenoid Crank Voltage | 1 | PU | 6 | Starter Solenoid Crank Voltage |
| 2 | - | - | Not Used | 2 | - | - | Not Used |

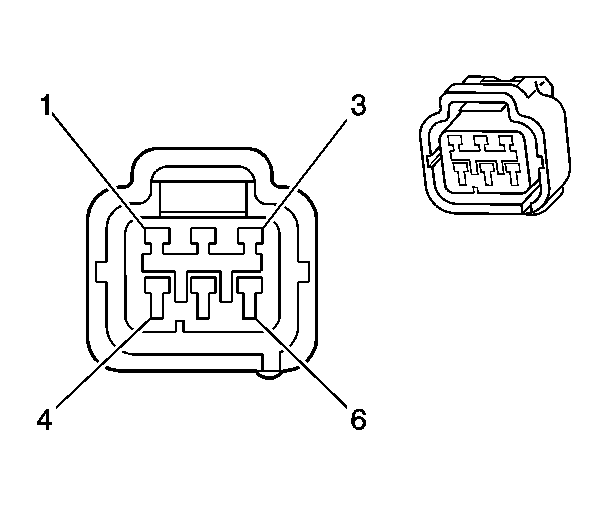

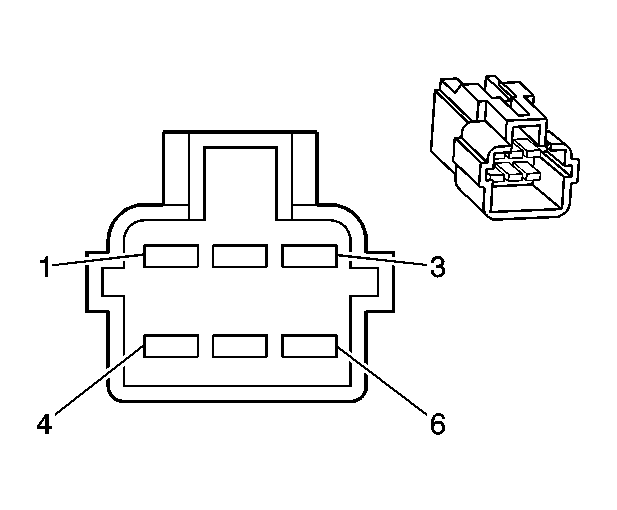

C110
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1D | WH/BU | 2140 | Battery Positive Voltage | 1D | WH/BU | 2140 | Battery Positive Voltage |
| 2E | PU/WH | 2234 | Front Off Road Lamps Supply Voltage | 2E | PU/WH | 2234 | Front Off Road Lamps Supply Voltage |
| 3F | BN | 9 | Park Lamps Supply Voltage | 3F | BN | 9 | Park Lamps Supply Voltage |
| 4C | WH/BK | 2040 | Battery Positive Voltage | 4C | WH/BK | 2040 | Battery Positive Voltage |
| 5B | BK/WH | 550 | Ground | 5B | BK/WH | 550 | Ground |
| 6A | - | - | Not Used | 6A | - | - | Not Used |

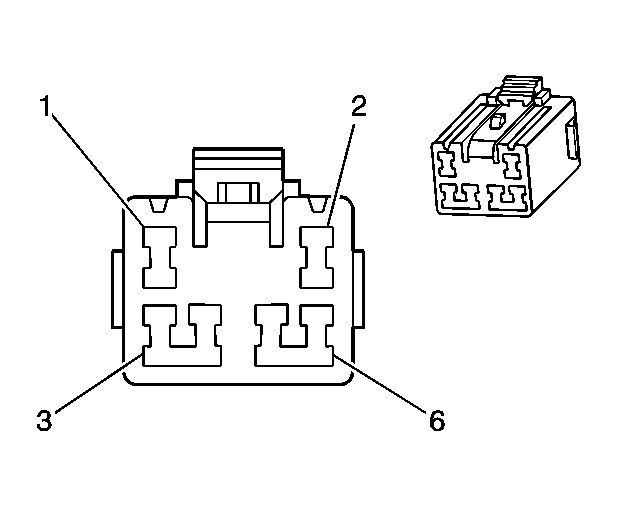

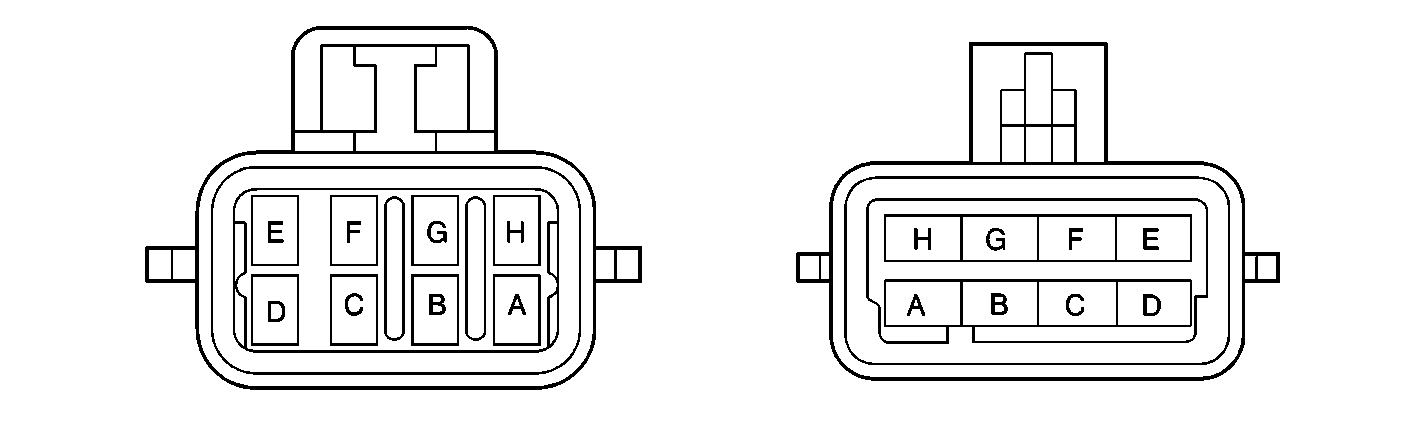

C158 - Right Ignition Module
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK/RD | 450 | Ground | A | BK | 450 | Ground |
| B | YE/BK | 2122 | IC 2 Control | B | RD | 2122 | IC 2 Control |
| C | WH | 2124 | IC 4 Control | C | L-GN | 2124 | IC 4 Control |
| D | - | - | Not Used | D | - | - | Not Used |
| E | PU | 2130 | Low Reference | E | BN | 2130 | Low Reference |
| F | L-GN | 2126 | IC 6 Control | F | L-BU | 2126 | IC 6 Control |
| G | L-BU | 2128 | IC 8 Control | G | PU | 2128 | IC 8 Control |
| H | RD | 639 | Ignition 1 Voltage | H | PK | 639 | Ignition 1 Voltage |

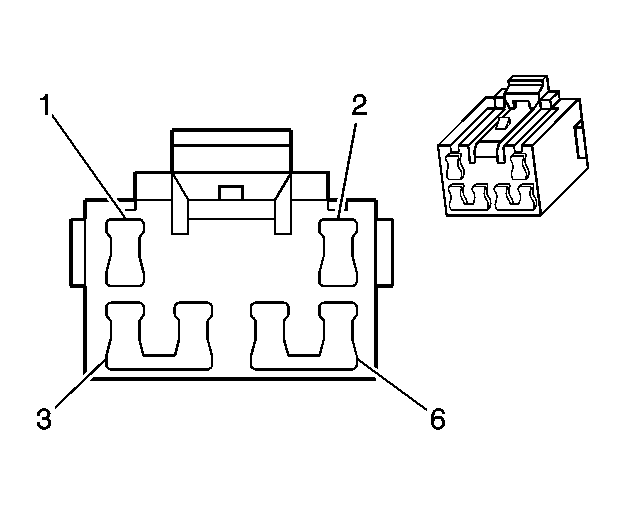

C159 - Left Ignition Module
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK/RD | 450 | Ground | A | BK | 450 | Ground |
| B | YE | 2127 | IC 7 Control | B | RD | 2127 | IC 7 Control |
| C | GN | 2125 | IC 5 Control | C | GN | 2125 | IC 5 Control |
| D | - | - | Not Used | D | - | - | Not Used |
| E | BN | 2129 | Low Reference | E | BN | 2129 | Low Reference |
| F | BU | 2123 | IC 3 Control | F | L-BU | 2123 | IC 3 Control |
| G | WH | 2121 | IC 1 Control | G | PU | 2121 | IC 1 Control |
| H | L-GN | 1039 | Ignition 1 Voltage | H | PK | 1039 | Ignition 1 Voltage |

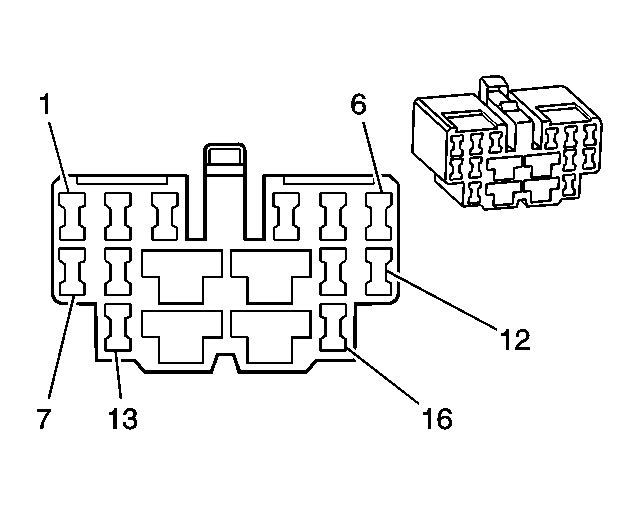

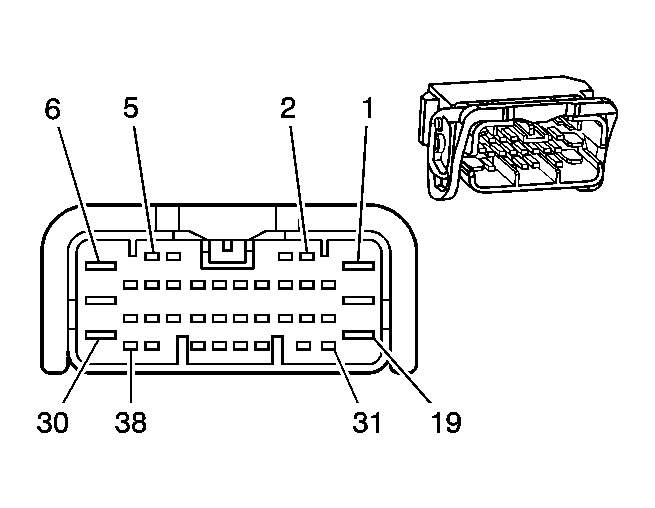

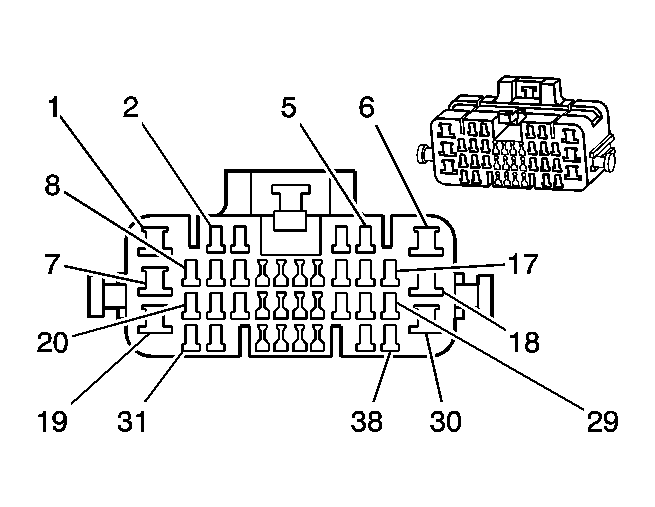

C200
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | PU/RD | 293 | Rear Defog Element Supply Voltage | 1 | PU/RD | 293 | Rear Defog Element Supply Voltage |
| 2 | - | - | Not Used | 2 | - | - | Not Used |
| 3 | PU/WH | 1447 | Fuel Door Release Switch Signal | 3 | PU/WH | 1447 | Fuel Door Release Switch Signal |
| 4 | OG/BK | 149 | Courtesy Lamp Supply Voltage | 4 | OG/BK | 149 | Courtesy Lamp Supply Voltage |
| 5 | L-BU | 1314 | Left Front Turn Signal Lamp Supply Voltage | 5 | L-BU | 1314 | Left Front Turn Signal Lamp Supply Voltage |
| 6-7 | - | - | Not Used | 6-7 | - | - | Not Used |
| 8 | L-GN | 200 | Right Front Speaker Output (+) | 8 | L-GN | 200 | Right Front Speaker Output (+) |
| 9 | BN/BK | 199 | Left Rear Speaker Output (+) | 9 | BN/BK | 199 | Left Rear Speaker Output (+) |
| 10 | TN | 201 | Left Front Speaker Output (+) | 10 | TN | 201 | Left Front Speaker Output (+) |
| 11 | YE | 885 | Left Rear Wheel Speed Sensor Low Reference | 11 | YE | 885 | Left Rear Wheel Speed Sensor Low Reference |
| 12 | PU | 884 | Left Rear Wheel Speed Sensor Signal | 12 | PU | 884 | Left Rear Wheel Speed Sensor Signal |
| 13 | BU | 883 | Right Rear Wheel Speed Sensor Low Reference | 13 | BU | 883 | Right Rear Wheel Speed Sensor Low Reference |
| 14 | BK | 882 | Right Rear Wheel Speed Sensor Signal | 14 | BK | 882 | Right Rear Wheel Speed Sensor Signal |
| 15 | PK | 139 | Ignition 1 Voltage | 15 | PK | 139 | Ignition 1 Voltage |
| 16 | BU | 1315 | Right Front Turn Signal Lamp Supply Voltage | 16 | BU | 1315 | Right Front Turn Signal Lamp Supply Voltage |
| 17 | - | - | Not Used | 17 | - | - | Not Used |
| 18 | OG/YE | 638 | Power Window Motor Driver Down Control | 18 | OG/YE | 638 | Power Window Motor Driver Down Control |
| 19 | OG/BK | 540 | Battery Positive Voltage | 19 | OG/BK | 540 | Battery Positive Voltage |
| 20 | GN | 117 | Right Front Speaker Output (-) | 20 | GN | 117 | Right Front Speaker Output (-) |
| 21 | YE/BU | 116 | Left Rear Speaker Output (-) | 21 | YE/BU | 116 | Left Rear Speaker Output (-) |
| 22 | GY | 118 | Left Front Speaker Output (-) | 22 | GY | 118 | Left Front Speaker Output (-) |
| 23 | WH/GN | 660 | Left Courtesy Lamp Control | 23 | WH/GN | 660 | Left Courtesy Lamp Control |
| 24-26 | - | - | Not Used | 24-25 | - | - | Not Used |
| 27 | BU/RD | 20 | Stop Lamp Supply Voltage | 27 | BU/RD | 20 | Stop Lamp Supply Voltage |
| 28 | OG/PU | 440 | Battery Positive Voltage | 28 | OG/PU | 440 | Battery Positive Voltage |
| 29 | YE/RD | 314 | Radio ON Signal | 29 | YE/RD | 314 | Radio ON Signal |
| 30 | PU | 120 | Fuel Pump Supply Voltage | 30 | PU | 120 | Fuel Pump Supply Voltage |
| 31 | BU/BK | 115 | Right Rear Speaker Output (-) | 31 | BU/BK | 115 | Right Rear Speaker Output (-) |
| 32 | BU/OG | 46 | Right Rear Speaker Output (+) | 32 | BU/OG | 46 | Right Rear Speaker Output (+) |
| 33 | OG | 238 | Seat Belt Switch Left | 33 | OG | 238 | Seat Belt Switch Left |
| 34 | GY/WH | 746 | Right Front Door Ajar Switch Signal | 34 | GY/WH | 746 | Right Front Door Ajar Switch Signal |
| 35 | BN/OG | 33 | Brake Warning Indicator Control | 35 | BN/OG | 33 | Brake Warning Indicator Control |
| 36 | - | - | Not Used | 36 | - | - | Not Used |
| 37 | L-GN | 24 | Backup Lamp Supply Voltage | 37 | L-GN | 24 | Backup Lamp Supply Voltage |
| 38 | BN | 9 | Park Lamps Supply Voltage | 38 | BN | 9 | Park Lamps Supply Voltage |

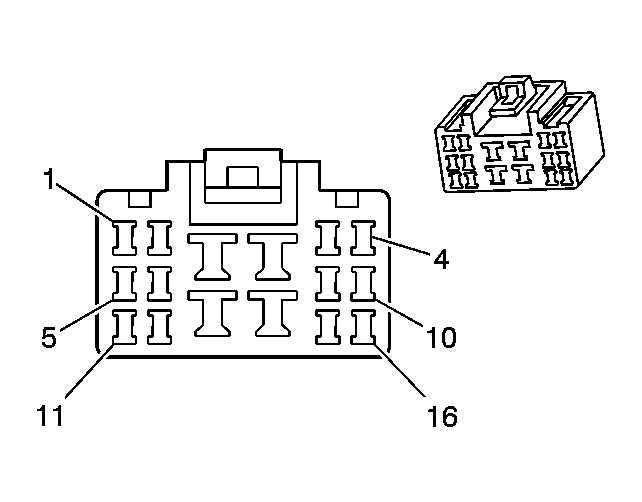

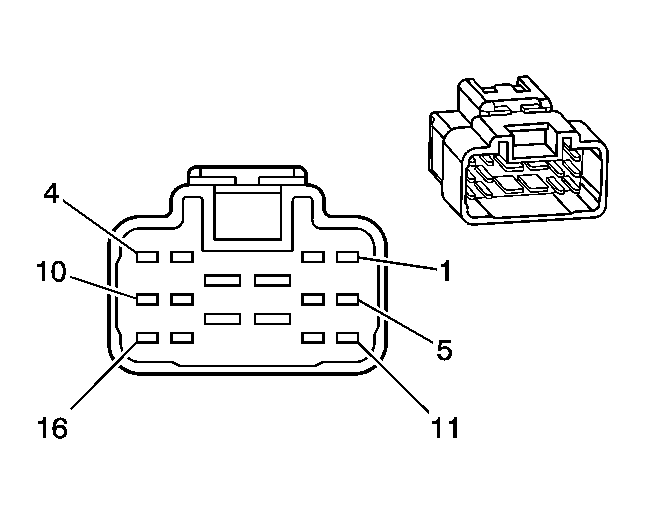

C201
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1-4 | - | - | Not Used | 1-4 | - | - | Not Used |
| 5 | PU | 30 | Fuel Level Sensor Signal | 5 | PU | 30 | Fuel Level Sensor Signal |
| 6 | - | - | Not Used | 6 | - | - | Not Used |
| 7 | OG/BU | 1540 | Battery Positive Voltage | 7 | OG/BU | 1540 | Battery Positive Voltage |
| 8-9 | - | - | Not Used | 8-9 | - | - | Not Used |
| 10 | GY | 2709 | 5-Volt Reference | 10 | GY | 2709 | 5-Volt Reference |
| 11 | D-GN | 890 | Fuel Tank Pressure Sensor Signal | 11 | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| 12 | PK | 439 | Ignition 1 Voltage | 12 | PK | 439 | Ignition 1 Voltage |
| 13-14 | - | - | Not Used | 13-14 | - | - | Not Used |
| 15 | WH | 1310 | EVAP Canister Vent Solenoid Control | 15 | WH | 1310 | EVAP Canister Vent Solenoid Control |
| 16 | BK | 2759 | Low Reference | 16 | BK | 2759 | Low Reference |

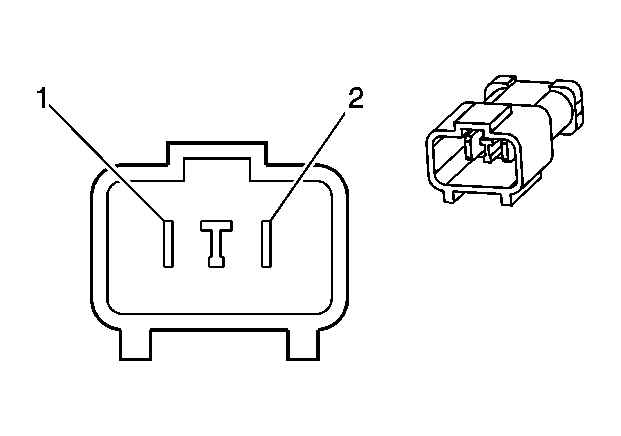

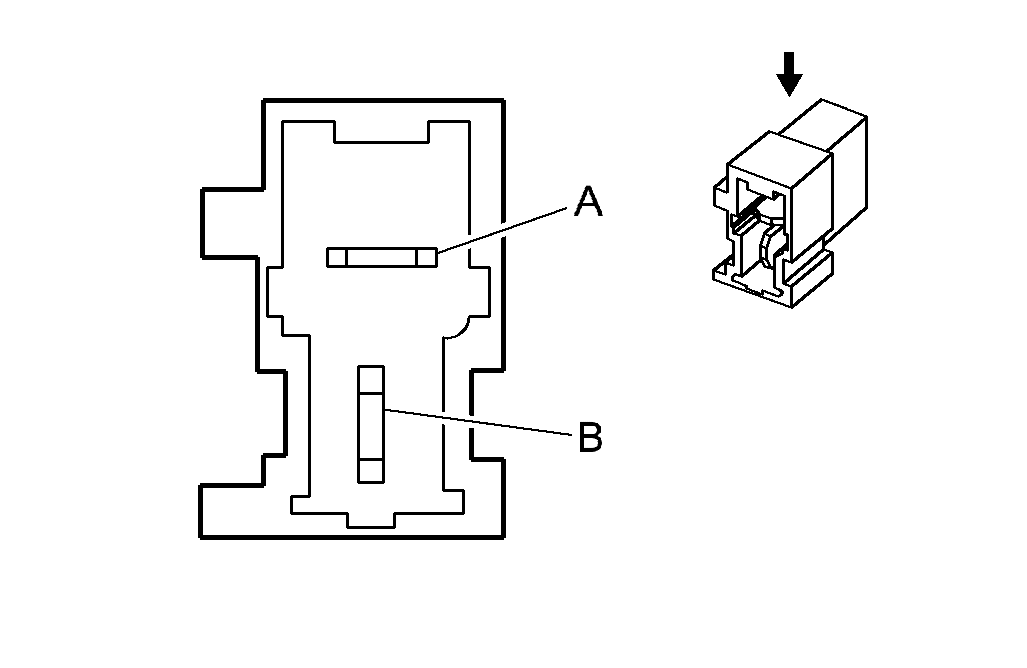

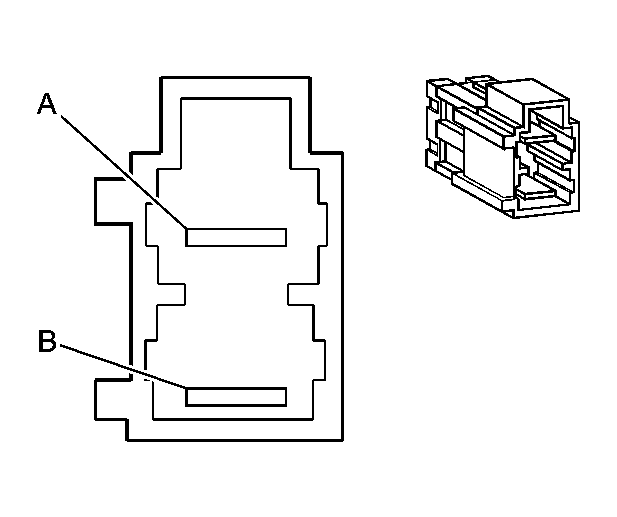

C204
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | RD | 242 | Battery Positive Voltage | A | RD | 242 | Battery Positive Voltage |
| B | YE | 101 | Blower Motor Supply Voltage | B | YE | 101 | Blower Motor Supply Voltage |

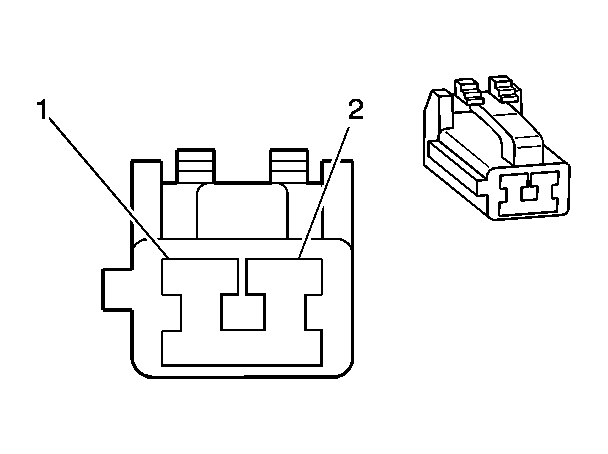

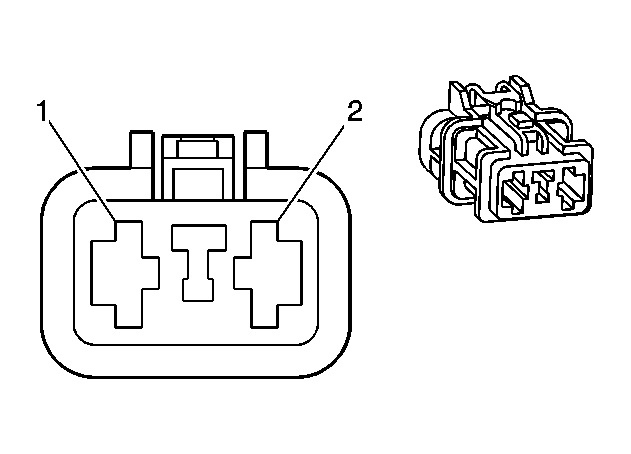

C205
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | GY/BK | 3024 | I/P Module - Stage 1 - Low Control | 1 | YE/BK | 3024 | I/P Module - Stage 1 - Low Control |
| 2 | YE/BK | 3025 | I/P Module - Stage 1 - High Control | 2 | GY/BK | 3025 | I/P Module - Stage 1 - High Control |

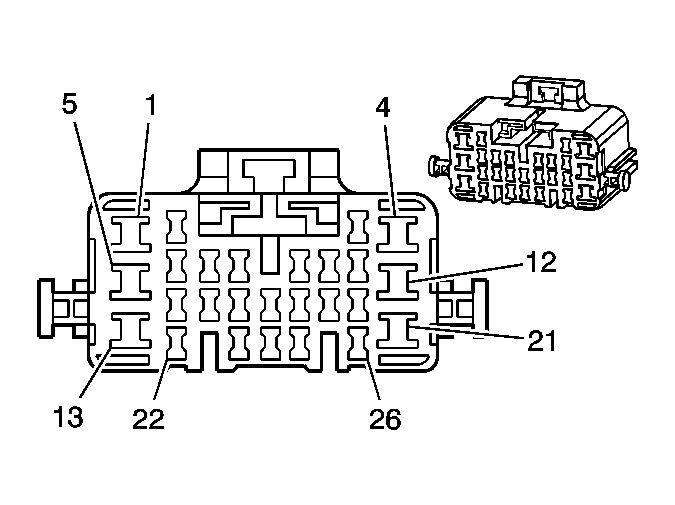

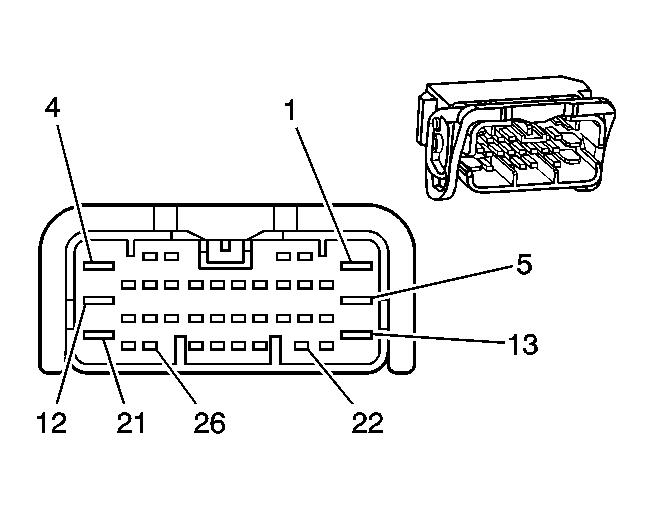

C206
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used | 1-2 | - | - | Not Used |
| 3 | PU/WH | 5197 | VSS Signal | 3 | PU/WH | 5197 | VSS Signal |
| 4 | BN | 2501 | High Speed Serial Data Buss - (Automatic transmission only) |
4 | TN | 2501 | High Speed Serial Data Buss - (Automatic transmission only) |
| 5 | TN/BK | 2500 | High Speed Serial Data Buss + (Automatic transmission only) |
5 | BN/BK | 2500 | High Speed Serial Data Buss + (Automatic transmission only) |
| 6 | OG | 740 | Battery Positive Voltage | 6 | OG/BK | 740 | Battery Positive Voltage |
| 7 | BN/BU | 239 | Ignition 1 Voltage | 7 | BN/BU | 239 | Ignition 1 Voltage |
| 8 | - | - | Not Used | 8 | - | - | Not Used |
| 9 | YE | 1843 | Accessory Fuse Output | 9 | YE | 1843 | Accessory Fuse Output |
| 10 | GN | 1149 | Content Theft Horn Control | 10 | GN | 1149 | Content Theft Horn Control |
| 11 | - | - | Not Used | 11 | - | - | Not Used |
| 12 | BN/BK | 2500 | High Speed Serial Data Buss + (Automatic transmission only) |
12 | TN/BK | 2500 | High Speed Serial Data Buss + (Automatic transmission only) |
| 13 | PK | 439 | Ignition 1 Voltage | 13 | PK | 439 | Ignition 1 Voltage |
| 14 | - | - | Not Used | 14 | - | - | Not Used |
| 15 | L-GN/BK | 459 | A/C Compressor Clutch Relay Control | 15 | L-GN/BK | 459 | A/C Compressor Clutch Relay Control |
| 16-18 | - | - | Not Used | 16-18 | - | - | Not Used |
| 19 | TN | 2501 | High Speed Serial Data Buss - (Automatic transmission only) |
19 | BN | 2501 | High Speed Serial Data Buss - (Automatic transmission only) |
| 20 | - | - | Not Used | 20 | - | - | Not Used |
| 21 | YE | 1652 | Reverse Lockout Solenoid Output | 21 | YE | 1652 | Reverse Lockout Solenoid Output |
| 22 | L-GN | 24 | Backup Lamps Supply Voltage | 22 | L-GN | 24 | Backup Lamps Supply Voltage |
| 23-24 | - | - | Not Used | 23-24 | - | - | Not Used |
| 25 | BN/RD | 121 | Engine Speed Signal | 25 | BN/RD | 121 | Engine Speed Signal |
| 26 | - | - | Not Used | 26 | - | - | Not Used |

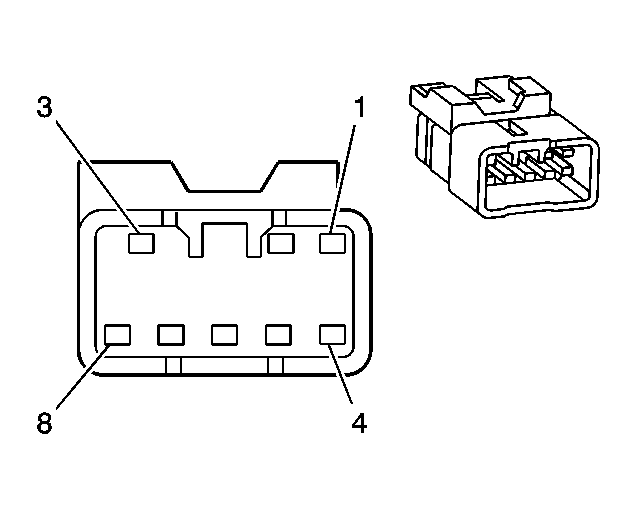

C300
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used | 1 | - | - | Not Used |
| 2 | WH/GN | 660 | Left Courtesy Lamp Control | 2 | WH/GN | 660 | Left Courtesy Lamp Control |
| 3 | OG/GN | 149 | Courtesy Lamp Supply Voltage | 3 | OG/GN | 149 | Courtesy Lamp Supply Voltage |
| 4 | - | - | Not Used | 4 | - | - | Not Used |
| 5 | BK/BU | 650 | Ground | 5 | BK/BU | 650 | Ground |
| 6 | OG/BK | 149 | Courtesy Lamps Supply Voltage | 6 | OG/BK | 149 | Courtesy Lamps Supply Voltage |
| 7 | YE/BU | 328 | Interior Lamp Switch Signal | 7 | YE/BU | 328 | Interior Lamp Switch Signal |
| 8 | PU | 157 | Left Speaker Output (+) | 8 | PU | 157 | Left Speaker Output (+) |

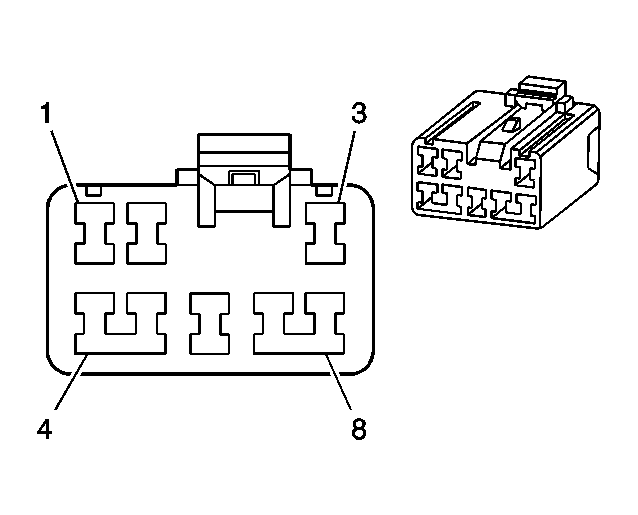

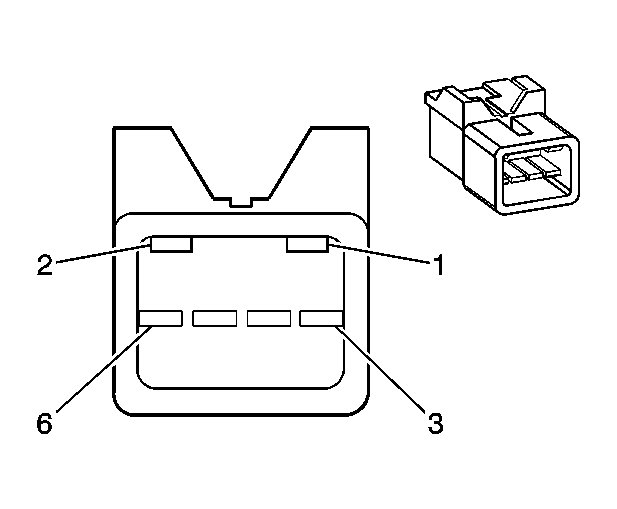

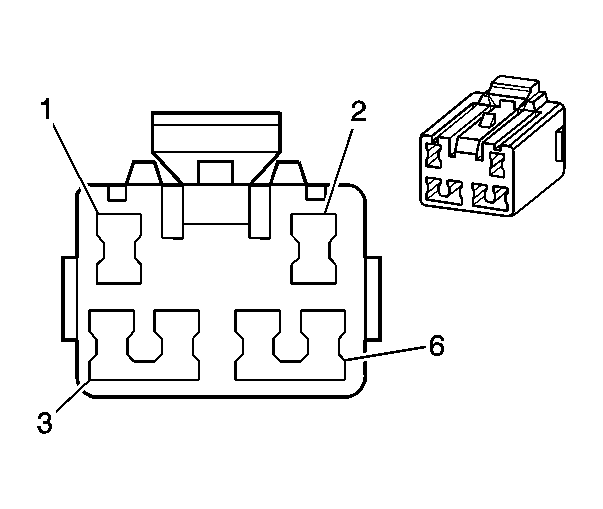

C301
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | TN/WH | 816 | A/T Shift Lock Solenoid Supply Voltage | 1 | TN/WH | 816 | A/T Shift Lock Solenoid Supply Voltage |
| 2 | BN/WH | 32 | Instrument Panel Lamp Supply Voltage | 2 | BN/WH | 32 | Instrument Panel Lamp Supply Voltage |
| 3 | BK/GN | 151 | Ground | 3 | BK/GN | 151 | Ground |
| 4 | L-BU | 1077 | Ignition Key/Shifter Interlock Solenoid Unlock | 4 | L-BU | 1077 | Ignition Key/Shifter Interlock Solenoid Unlock |
| 5 | RD/WH | 1571 | Traction Control Switch Signal | 5 | RD/WH | 1571 | Traction Control Switch Signal |
| 6 | GY | 230 | Instrument Panel Lamps Dimming Control | 6 | GY | 230 | Instrument Panel Lamps Dimming Control |

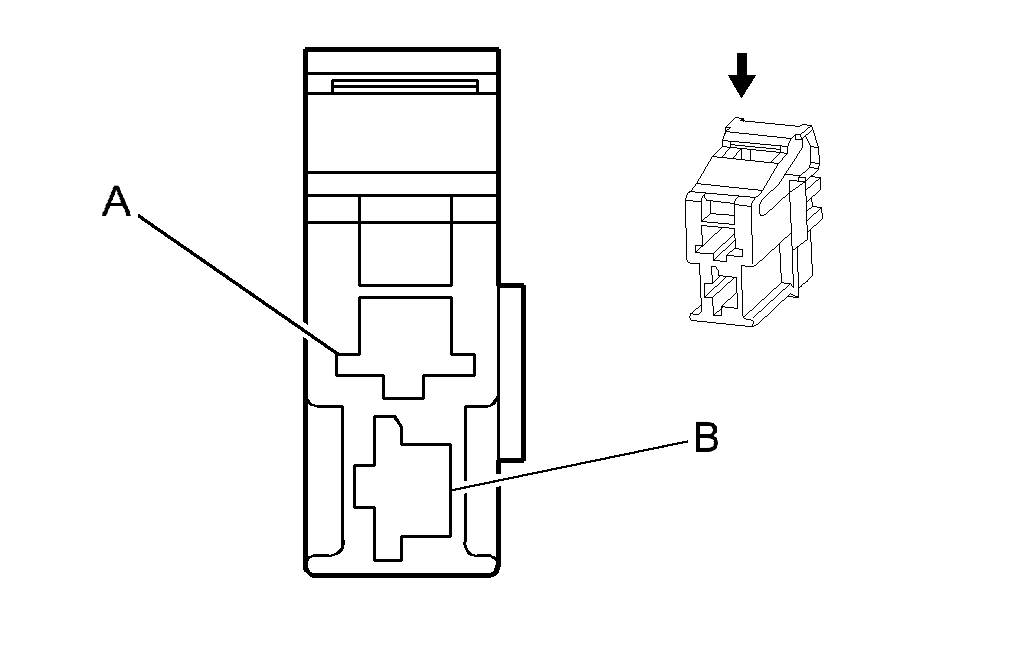

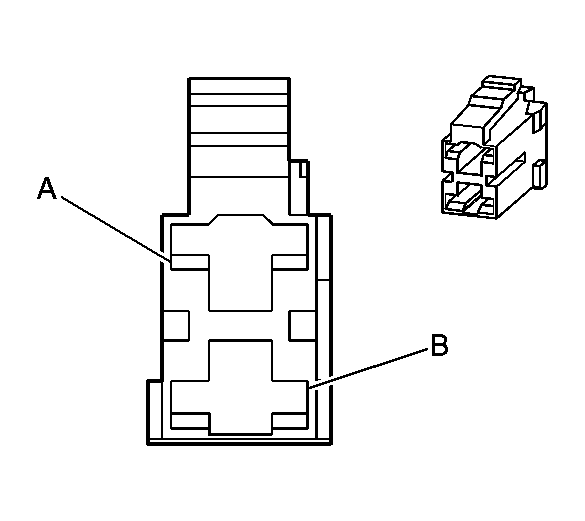

C302
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | BK/BU | 650 | Ground | A | BK | 650 | Ground |
| B | OG/BK | 540 | Battery Positive Voltage | B | RD | 540 | Battery Positive Voltage |

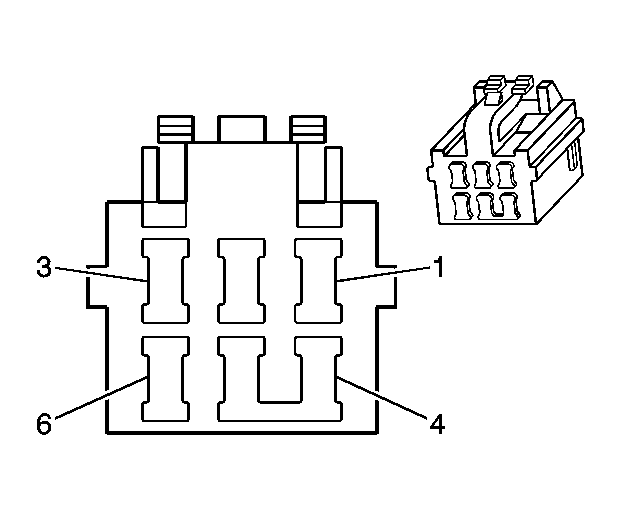

C303
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | PK/BK | 739 | Ignition 1 Voltage | 1 | PK/BK | 739 | Ignition 1 Voltage |
| 2 | WH/GN | 774 | UART Serial Data - Tertiary | 2 | WH/GN | 774 | UART Serial Data - Tertiary |
| 3 | GY/BK | 3024 | I/P Module - Stage 1 - Low Control | 3 | GY/BK | 3024 | I/P Module - Stage 1 - Low Control |
| 4 | YE/BK | 3025 | I/P Module - Stage 1 - High Control | 4 | YE/BK | 3025 | I/P Module - Stage 1 - High Control |
| 5 | GN | 3020 | Steering Wheel Module - Stage 1 - Low Control | 5 | GN | 3020 | Steering Wheel Module - Stage 1 - Low Control |
| 6 | WH | 3021 | Steering Wheel Module - Stage 1 - High Control | 6 | WH | 3021 | Steering Wheel Module - Stage 1 - High Control |
C309
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | BK/WH | 550 | Ground | 1 | BK/WH | 550 | Ground |
| 2 | - | - | Not Used | 2 | - | - | Not Used |
| 3 | BN/YE | 143 | Accessory Voltage | 3 | BN/YE | 143 | Accessory Voltage |
| 4 | BN/WH | 32 | Instrument Panel Lamp Supply Voltage | 4 | BN/WH | 32 | Instrument Panel Lamp Supply Voltage |
| 5 | YE | 39 | Ignition 1 Voltage | 5 | YE | 39 | Ignition 1 Voltage |
| 6 | OG/BK | 149 | Courtesy Lamp Supply Voltage | 6 | OG/BK | 149 | Courtesy Lamp Supply Voltage |

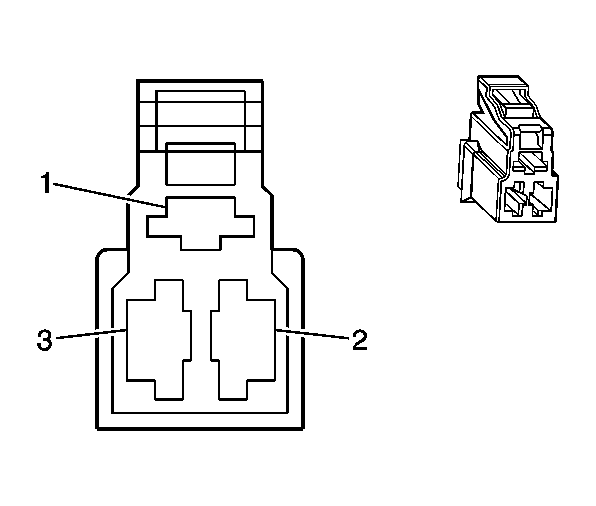

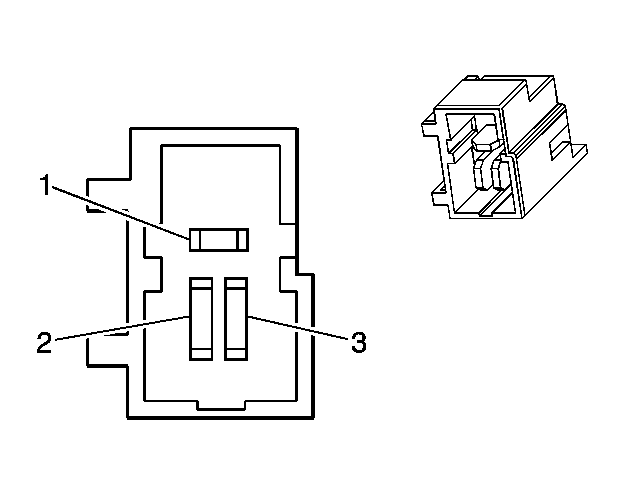

C310
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | BK/BU | 650 | Ground | 1 | BK/BU | 650 | Ground |
| 2 | OG/BK | 149 | Courtesy Lamps Control Voltage | 2 | OG/BK | 149 | Courtesy Lamps Control Voltage |
| 3 | - | - | Not Used | 3 | - | - | Not Used |

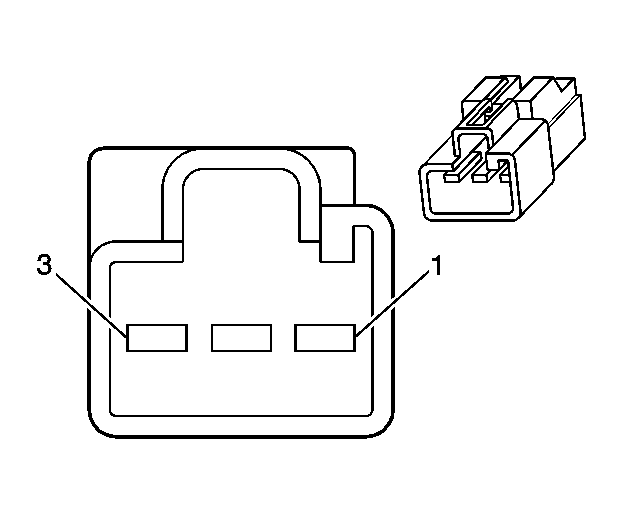

C315
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | BK/BU | 650 | Ground | 1 | BK | 650 | Ground |
| 2 | OG | 238 | Seat Belt Switch - Left | 2 | BK/WH | 238 | Seat Belt Switch - Left |
| 3 | OG/BK | 540 | Battery Positive Voltage | 3 | RD | 540 | Battery Positive Voltage |
C402
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 120 | Fuel Pump Supply Voltage | 1 | PU | 120 | Fuel Pump Supply Voltage |
| 2 | BK/BU | 650 | Ground | 2 | BK/BU | 650 | Ground |
| 3 | D-GN | 890 | Fuel Tank Pressure Sensor Signal | 3 | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| 4 | GY | 2709 | 5-Volt Reference | 4 | GY | 2709 | 5-Volt Reference |
| 5 | BK | 2759 | Low Reference | 5 | BK | 2759 | Low Reference |
| 6 | PU | 30 | Fuel Level Sensor Signal | 6 | PU | 30 | Fuel Level Sensor Signal |

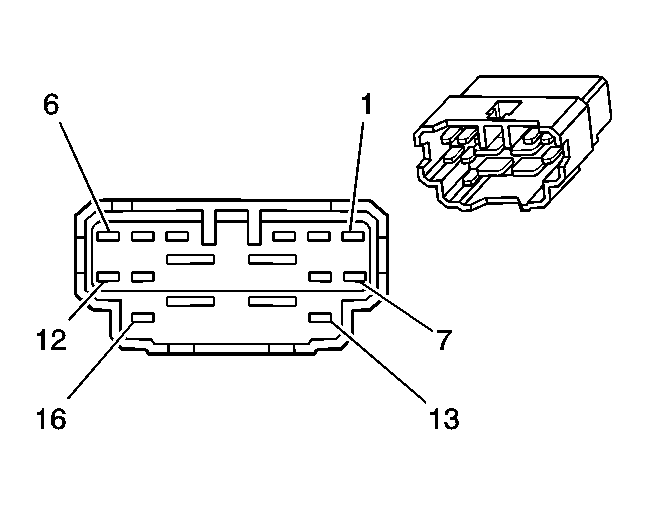

C500
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 881 | Passenger Mirror Motor Right Control | 1 | PU | 881 | Passenger Mirror Motor Right Control |
| 2 | BK/BU | 650 | Ground | 2 | BK/BU | 650 | Ground |
| 3 | TN | 201 | Left Front Speaker Output (+) | 3 | TN | 201 | Left Front Speaker Output (+) |
| 4 | GY | 118 | Left Front Speaker Output (-) | 4 | GN | 118 | Left Front Speaker Output (-) |
| 5 | BU/BK | 694 | Drive Door Lock Actuator - Unlock Control | 5 | BU/BK | 694 | Drive Door Lock Actuator - Unlock Control |
| 6 | BK/YE | 295 | Door Lock Actuator Lock Control | 6 | BK/YE | 295 | Door Lock Actuator Lock Control |
| 7 | GY | 1832 | Passenger Mirror Motor - Up Signal | 7 | GY | 1832 | Passenger Mirror Motor - Up Signal |
| 8 | L-GN/YE | 781 | Drive Door Lock Switch - Unlock Signal | 8 | L-GN/YE | 781 | Drive Door Lock Switch - Unlock Signal |
| 9 | BN/WH | 780 | UART Serial Data - Primary | 9 | BN/WH | 780 | UART Serial Data - Primary |
| 10 | BN/RD | 195 | Door Lock Control | 10 | BN/RD | 195 | Door Lock Control |
| 11 | PU/WH | 5171 | Folding Seat - Horizontal Position Sensor Signal | 11 | PU/WH | 5171 | Folding Seat - Horizontal Position Sensor Signal |
| 12 | BN | 330 | Passenger Mirror Motor - Supply Voltage | 12 | BN | 330 | Passenger Mirror Motor - Supply Voltage |
| 13 | - | - | Not Used | 13 | - | - | Not Used |
| 14 | YE | 165 | Power Window Motor - Left Front Down Control | 14 | GN/OG | 165 | Power Window Motor - Left Front Down Control |
| 15 | GN | 164 | Power Window Motor - Left Front Up Control | 15 | BU/WH | 164 | Power Window Motor - Left Front Up Control |
| 16 | PK | 139 | Ignition 1 Voltage | 16 | PK | 139 | Ignition 1 Voltage |

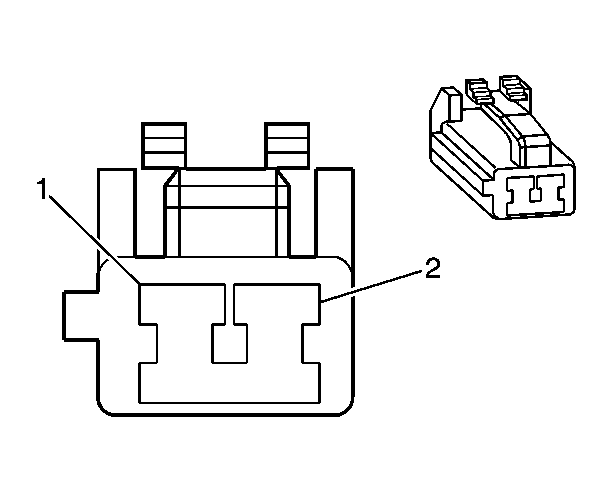

C501
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | OG/BK | 149 | Courtesy Lamps Supply Voltage | 2 | OG/BK | 149 | Courtesy Lamps Supply Voltage |
| 2 | WH/GN | 660 | Left Courtesy Lamp Control | 1 | BN | 660 | Left Courtesy Lamp Control |
C600
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 881 | Passenger Mirror Motor - Right Control | 1 | PU | 881 | Passenger Mirror Motor - Right Control |
| 2 | BK/BU | 650 | Ground | 2 | BK/BU | 650 | Ground |
| 3 | L-GN | 200 | Right Front Speaker Output (+) | 3 | L-GN | 200 | Right Front Speaker Output (+) |
| 4 | GN | 117 | Right Front Speaker Output (-) | 4 | GN | 117 | Right Front Speaker Output (-) |
| 5 | BK/RD | 294 | Door Lock Actuator - Unlock Control | 5 | BK/RD | 294 | Door Lock Actuator - Unlock Control |
| 6 | BK/YE | 295 | Door Lock Actuator - Lock Control | 6 | BK/YE | 295 | Door Lock Actuator - Lock Control |
| 7 | GY | 1832 | Passenger Mirror Motor Up Signal | 7 | GY | 1832 | Passenger Mirror Motor Up Signal |
| 8 | BN/OG | 194 | Door Unlock Control | 8 | BN/OG | 194 | Door Unlock Control |
| 9 | - | - | Not Used | 9 | - | - | Not Used |
| 10 | BN/RD | 195 | Door Lock Control | 10 | BN/RD | 195 | Door Lock Control |
| 11 | PU/WH | 5171 | Folding Seat - Horizontal Position Sensor Signal | 11 | PU/WH | 5171 | Folding Seat - Horizontal Position Sensor Signal |
| 12 | BN | 330 | Passenger Mirror Motor Supply Voltage | 12 | BN | 330 | Passenger Mirror Motor Supply Voltage |
| 13 | WH/GN | 660 | Left Courtesy Lamp Control | 13 | WH/GN | 660 | Left Courtesy Lamp Control |
| 14 | GN/OG | 667 | Power Window Motor - Right Front Down Control | 14 | GN/OG | 667 | Power Window Motor - Right Front Down Control |
| 15 | BU/WH | 666 | Power Window Motor - Right Front Up Control | 15 | GN | 666 | Power Window Motor - Right Front Up Control |
| 16 | OG/BK | 149 | Courtesy Lamps Supply Voltage | 16 | OG/BK | 149 | Courtesy Lamps Supply Voltage |
C903
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | BK/BU | 650 | Ground | 1 | BK/BU | 650 | Ground |
| 2 | BN/WH | 650 | Ground | 2 | BK/BU | 650 | Ground |
| 3 | BU | 1315 | Right Rear Turn Signal Lamp Supply Voltage | 3 | BU | 1315 | Right Rear Turn Signal Lamp Supply Voltage |
| 4 | L-GN | 24 | Backup Lamp Supply Voltage | 4 | L-GN | 24 | Backup Lamp Supply Voltage |
| 5 | BU/RD | 20 | Stop Lamp Supply Voltage | 5 | BU/RD | 20 | Stop Lamp Supply Voltage |
| 6 | BN | 9 | Park Lamps Supply Voltage | 6 | BN | 9 | Park Lamps Supply Voltage |
C904
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | BK/BU | 650 | Ground | 1 | BK/BU | 650 | Ground |
| 2 | BN/WH | 650 | Ground | 2 | BK/BU | 650 | Ground |
| 3 | L-BU | 1314 | Left Rear Turn Signal Lamp Supply Voltage | 3 | L-BU | 1314 | Left Rear Turn Signal Lamp Supply Voltage |
| 4 | L-GN | 24 | Backup Lamp Supply Voltage | 4 | L-GN | 24 | Backup Lamp Supply Voltage |
| 5 | BU/RD | 20 | Stop Lamp Supply Voltage | 5 | BU/RD | 20 | Stop Lamp Supply Voltage |
| 6 | BN | 9 | Park Lamps Supply Voltage | 6 | BN | 9 | Park Lamps Supply Voltage |
