Power and Grounding Component Views

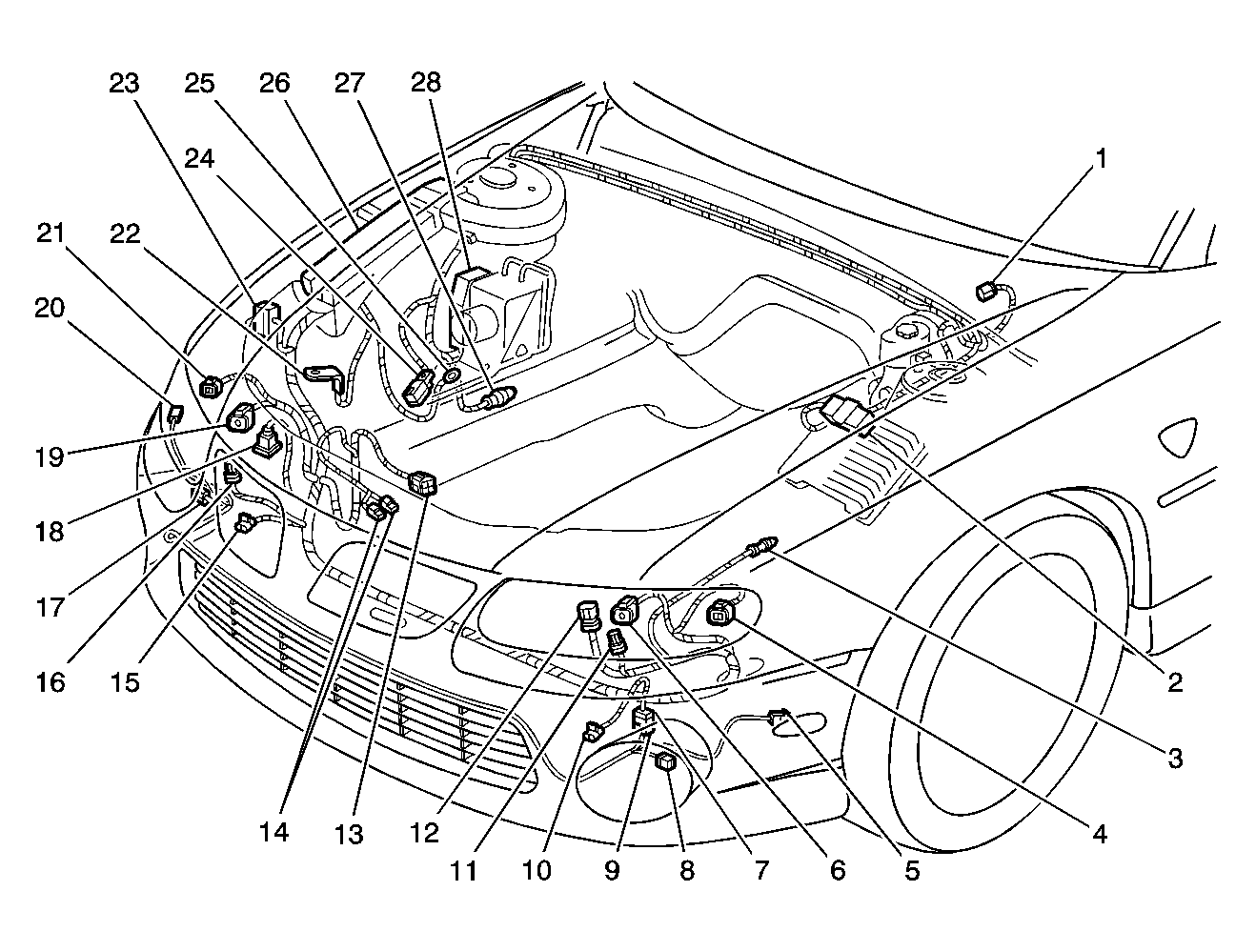

Fig 1: Engine Compartment Harness
GM1553826Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor Connector
2 Engine Control Module Connector
3 LH Front Wheel Speed Sensor Connector
4 LH Turn Signal and Park Lamp Connector
5 LH Marker Lamp Connector
6 LH Headlamp Connector
7 Front Body Harness to Fog Lamp Harness Connector
8 LF Fog Lamp Connector
9 Fog Lamp Harness to Front Body Harness Connector
10 LH Horn Connector
11 A/C Pressure Sensor Connector
12 Front Body Harness to Powertrain Harness Connector
13 Engine Cooling Fans Connector
14 Hood Theft Deterrent Connector
15 RH Horn Connector
16 Daytime Running Lamp Resistor Connector
17 RH Fog Lamp Connector
18 Windshield Washer Motor Connector
19 RH Headlamp Connector
20 RH Marker Lamp Connector
21 RH Turn Signal and Park Lamp Connector
22 Fusible Link Supply Connector
23 Ground Connector Splice Pack 102
24 Front Body Harness to Battery Wiring Harness Connector
25 ABS Bracket Connector
26 Engine Wiring Harness Junction Connector
27 RH Front Wheel Speed Sensor Connector
28 EBCM Connector

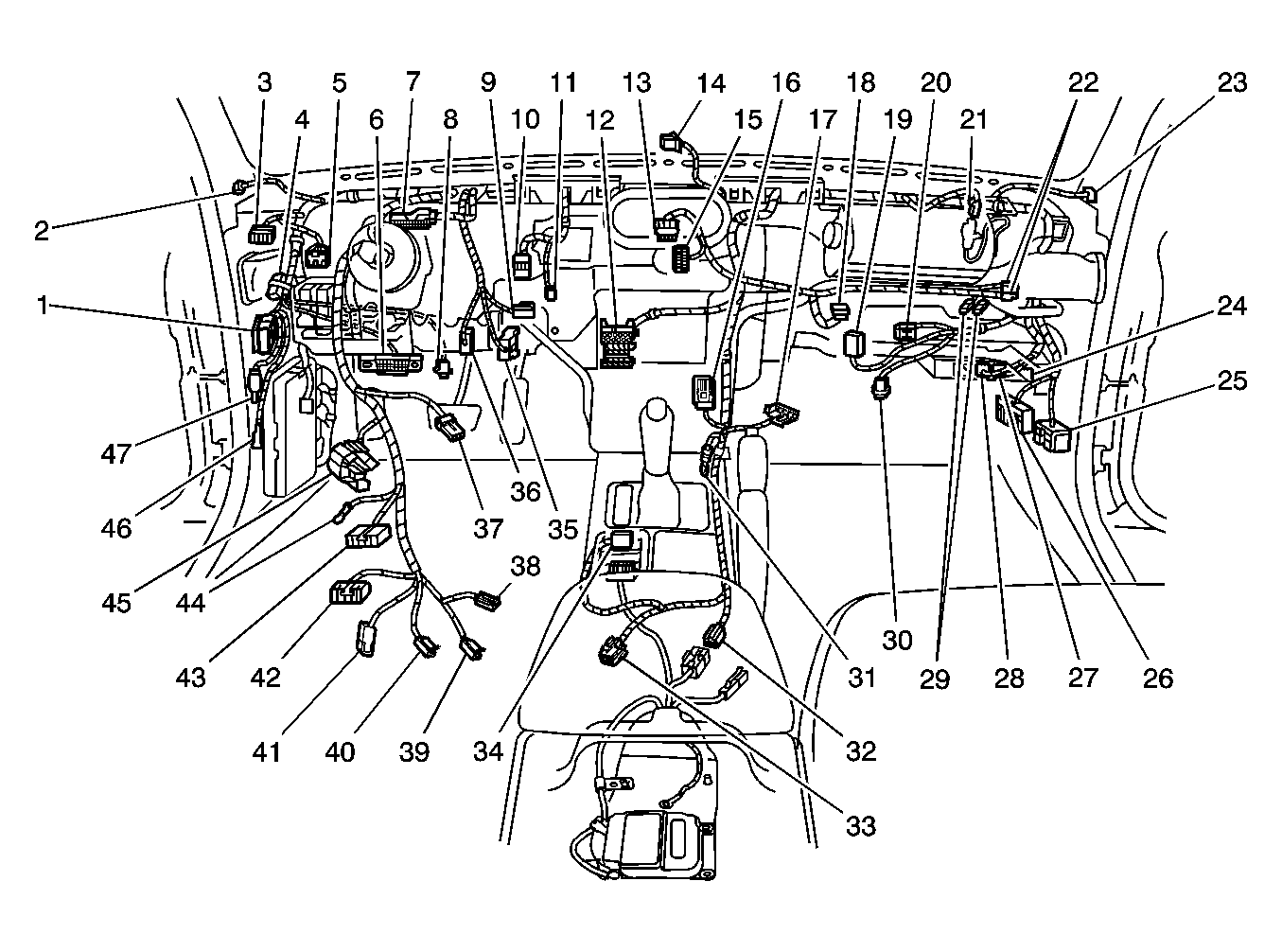

Fig 2: Instrument Panel Main Harness
GM1264099Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Main Wiring Harness to Powertrain Harness Connector
2 Radio Front Upper Dash Speaker Connector
3 Automatic Headlamp Control Switch Connector
4 Sunroof Control Module Connector (Not available on this vehicle)
5 Fuel Filler Door Release Connector
6 Data Link Connector
7 Instrument Cluster Connector
8 Step Well Lamp Connector
9 Stop Lamp Switch Connector
10 Trip Computer Switch Computer
11 Inside Air Temperature Connector
12 Radio Connector
13 Hazard Switch Connector
14 Ambient Light Sensor Connector
15 Blower Motor and A/C Compressor Connector
16 Front Cigar Lighter Connector
17 Cellular Phone Connector
18 Trunk Release Switch Connector
19 Blower Motor Resistor Connector
20 Body Main Wiring Harness to Body Wiring Harness Connector
21 Body Main Wiring Harness to Passenger Air Bag Harness Connector
22 Instrument Panel Lamp Switch Connector
23 Front Upper Dash Speaker Connector
24 Body Control Module (BCM) Connector
25 Engine Main Harness to Body Wiring Harness Connector
26 Engine Main Harness to Body Wiring Harness Connector
27 Body Control Module (BCM) Connector
28 Body Control Module (BCM) Connector
29 Instrument Panel Lamp Connector
30 Step Well Lamp Connector
31 Engine Main Harness to Body Wiring Harness Connector
32 Engine Main Harness to Body Wiring Harness Connector
33 Side Air bag Harness to Body Wiring Harness Connector
34 Engine Main Harness to Transmission Selector Harness Connector
35 Stop Lamp, Traction and Cruise Control Release Switch Connector
36 Stop Lamp, Traction and Cruise Control Release Switch Connector
37 Ignition Lock Cylinder Bulb Connector
38 Cruise Control Switch Connector
39 Ignition and Start Switch Connector
40 Windshield Wiper Module
41 Turn Signal and Headlamp Switch Connector
42 Steering Wheel SIR Coil Connector
43 Windshield Wiper and Washer Switch Connector
44 Ignition and Start Switch Terminal
45 Ignition and Start Switch Connector
46 Radio Antenna Amplifier Connector
47 Radio Antenna Connector

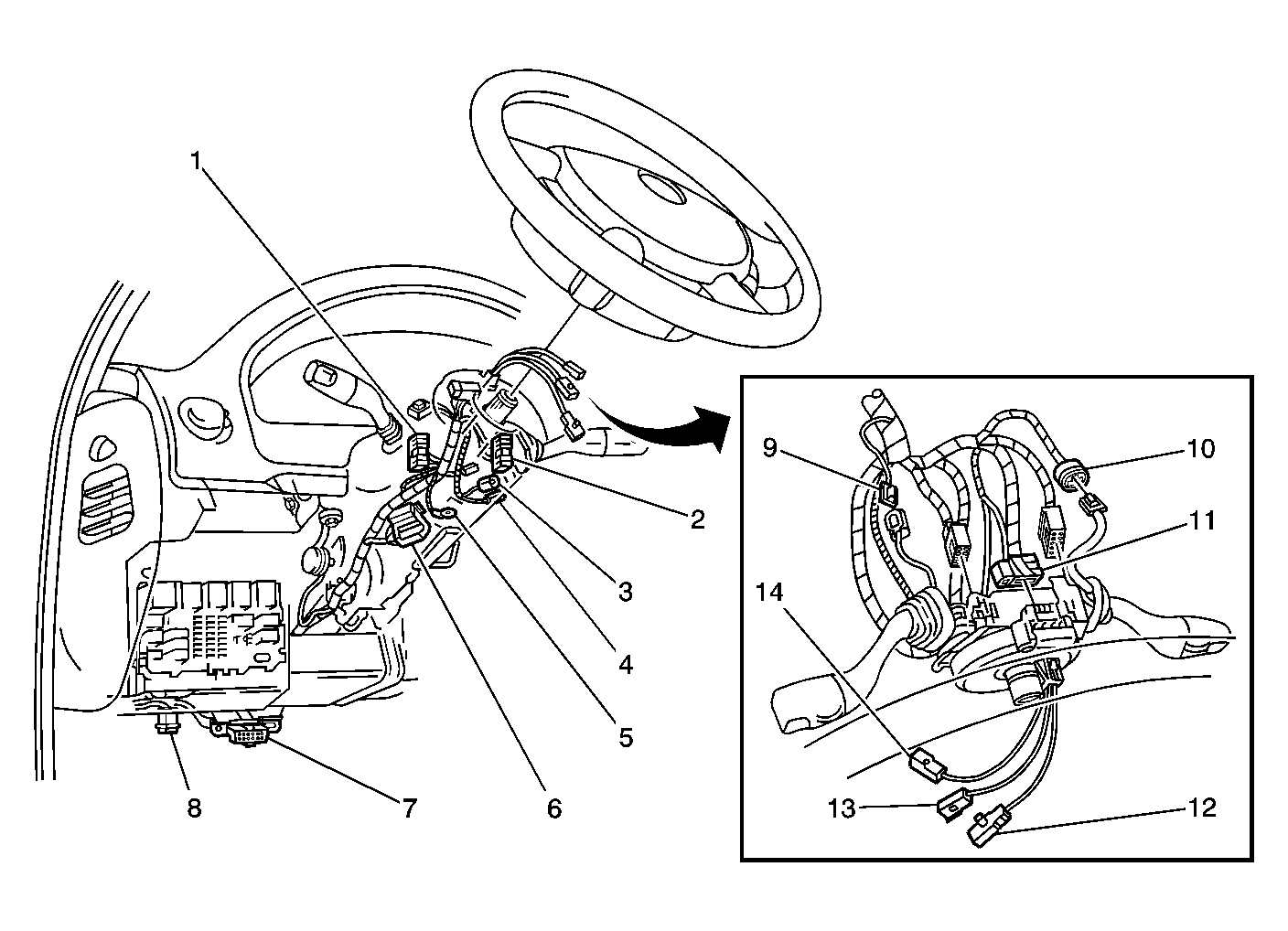

Fig 3: Steering Column Harness
GM1264648Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper/Washer Switch Connector
2 Turn Signal C1 and C2 Connector
3 Ignition Lock Cylinder Bulb Connector
4 Ignition and Start Switch Connector
5 Ignition and Start Switch Terminal
6 Ignition and Start Switch Connector
7 Data Link Connector
8 Step well Lamp Connector
9 Windshield Wiper Module Connector
10 Cruise Control Switch
11 SIR Coil Connector
12 Steering Wheel Inflatable restraint Module Connector
13 Steering Wheel Horn Connector
14 Radio Control Switch Connector

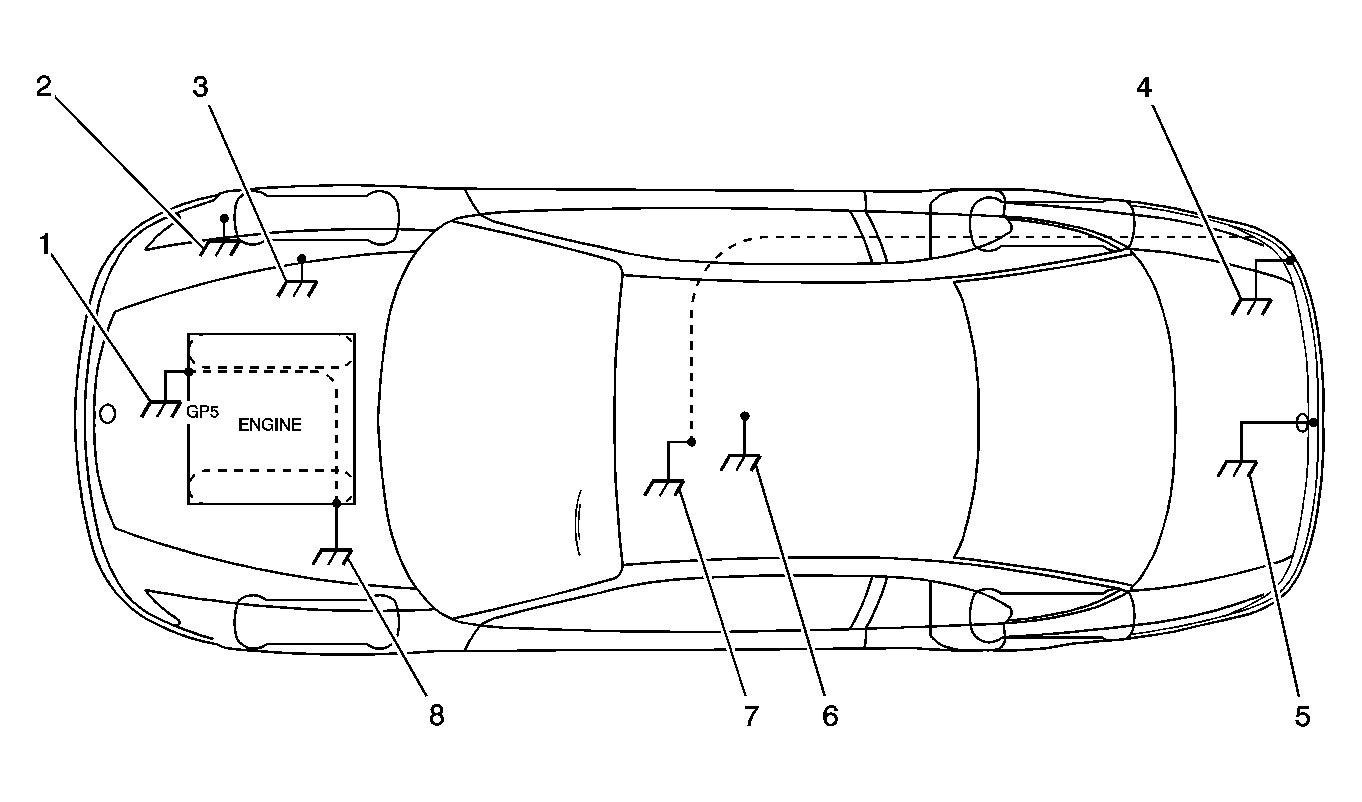

Fig 4: Ground Locations
GM1505501Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 G102
3 G103
4 G900
5 G901
6 G301
7 G300
8 G105
