Shift Lock Control Component Views

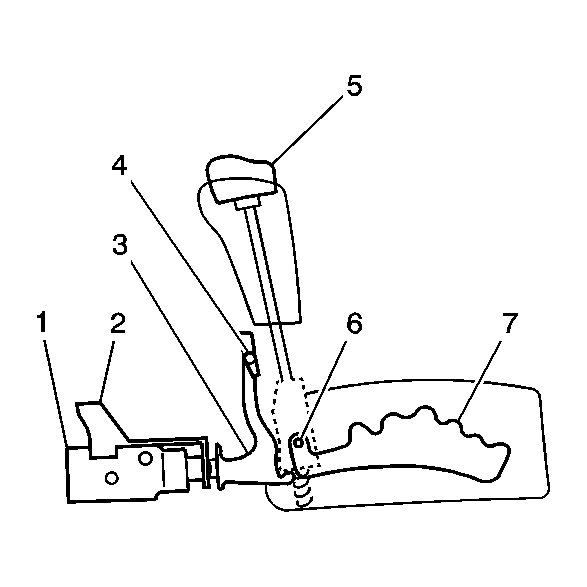

Fig 1: Automatic Transmission Shift Lock Control Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Shift Lock Actuator Solenoid
2
Manual Release Lever
3
Shift Interlock Lever
4
Shift Interlock Lever Spring
5
Shift Lever Release Button
6
Shift Lever Pin
7
Shift Guide Rail
