Shift Lock Control Connector End Views

Shift Lock Solenoid

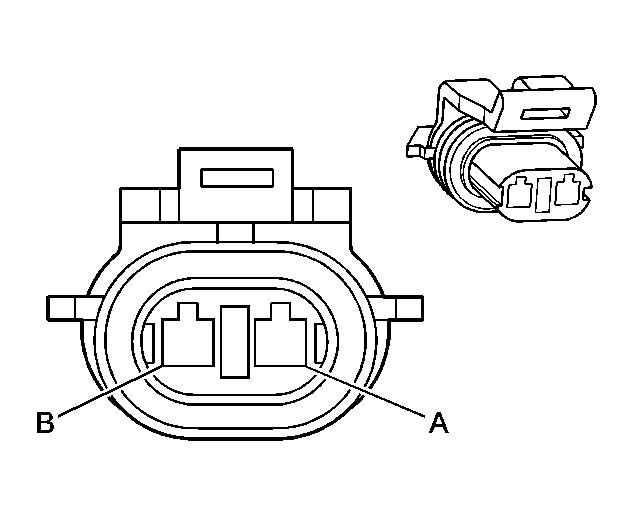

GM1356361Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9123-6521-30
  • 2-Way (BK)
Pin Wire Color Circuit No. Function
A TN/WH 816 A/T Shift lock Solenoid Supply Voltage
B PK 1077 Ignition Key/Shifter Interlock Solenoid Unlock
Stop Lamp Switch C3

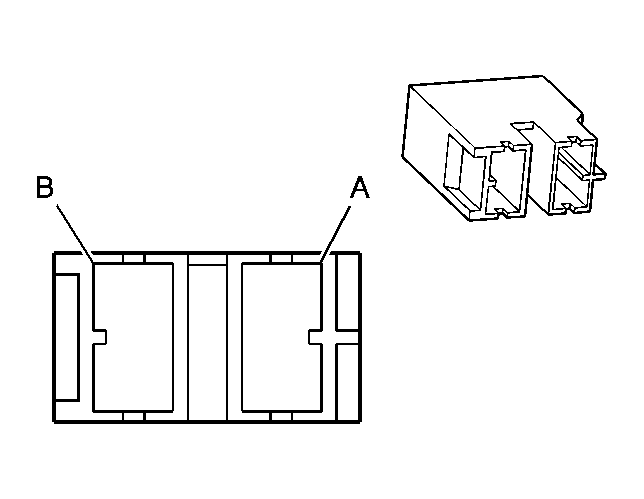

GM1356210Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9123-6521
  • 2-Way (BK)
Pin Wire Color Circuit No. Function
A TN/WH 816 A/T Shift lock Solenoid Supply Voltage
B PK 139 Ignition 1 Voltage
