Automatic Transmission Shift Lock Control Component Views

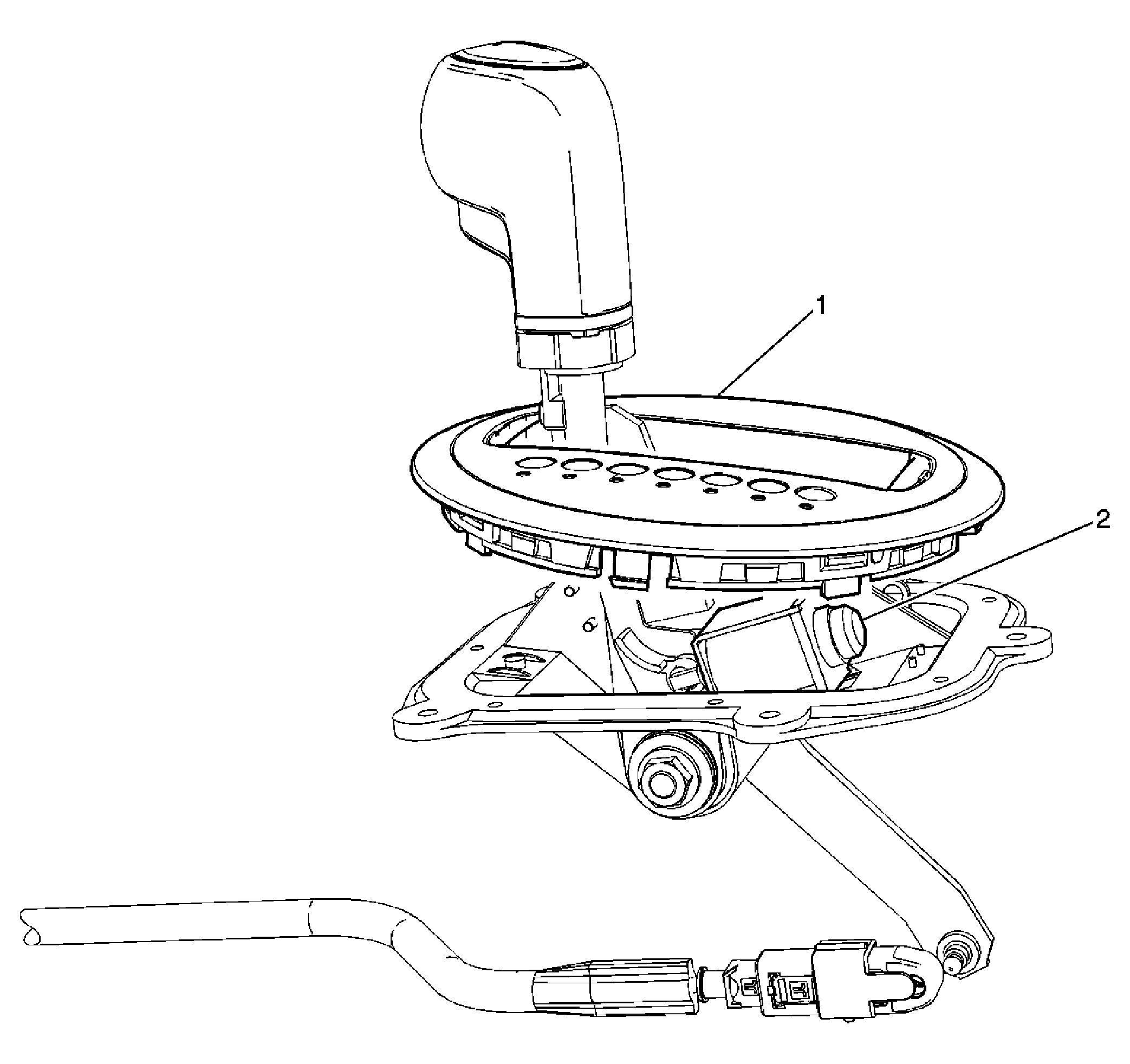

Fig 1: Inside Automatic Transmission Floor Shift
GM1641600Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission Floor Shift
2 Shift Lock Control Solenoid
