Component Location Graphics
NOTE:

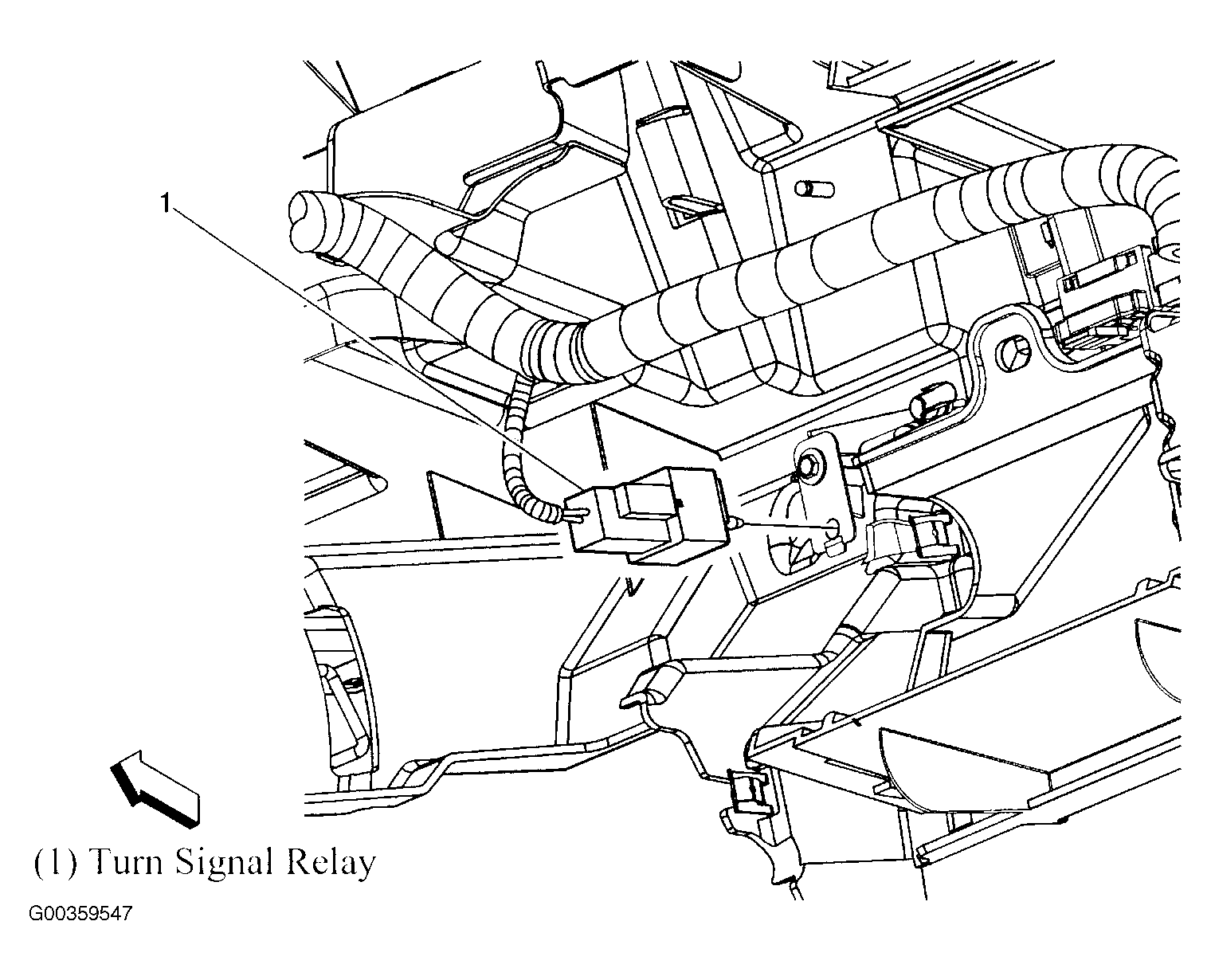

Figures may show multiple component locations. Refer to appropriate table for proper figure references.

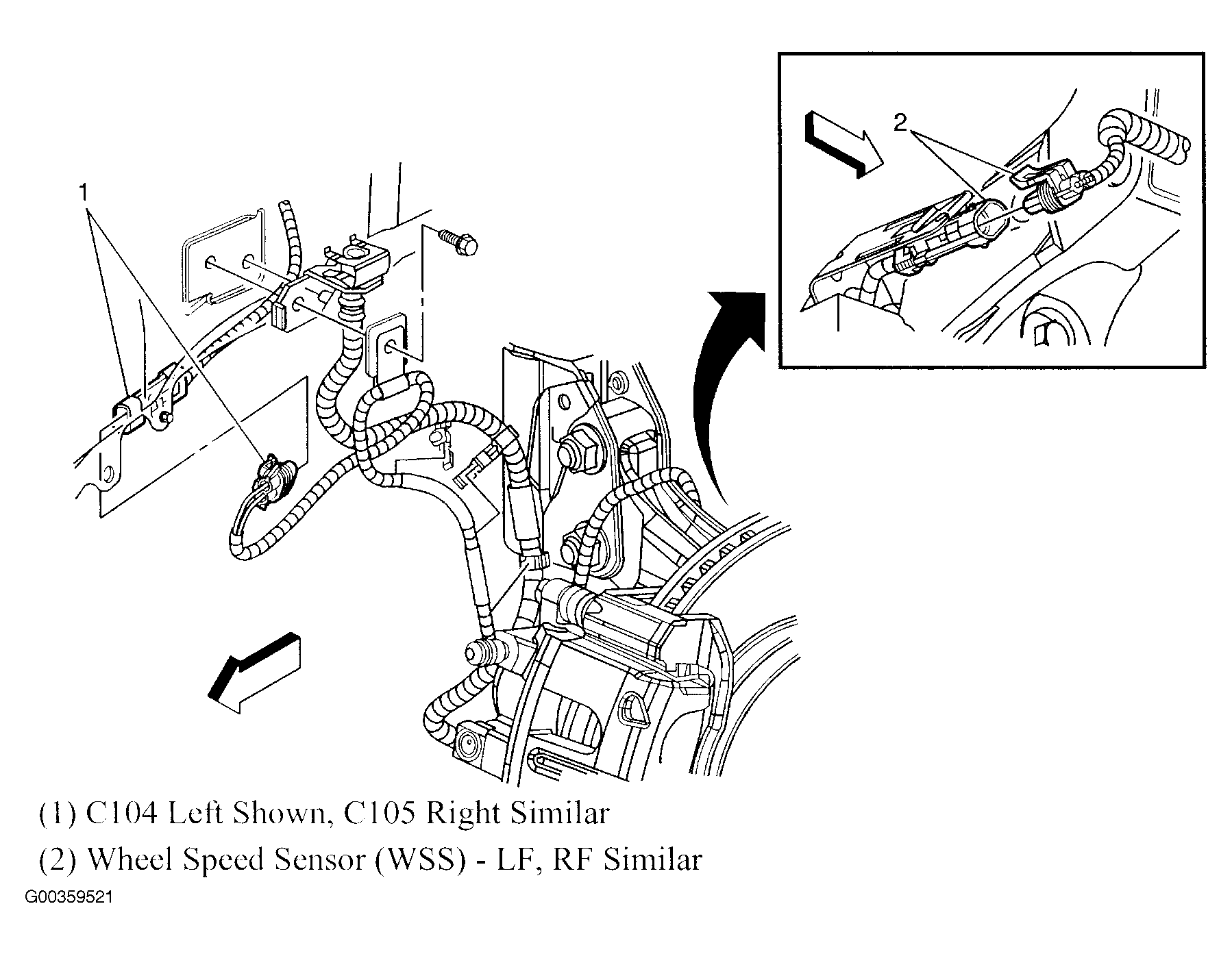

Fig 1: Left Front Suspension (Left Shown; Right Similar)
Courtesy of GENERAL MOTORS CORP.

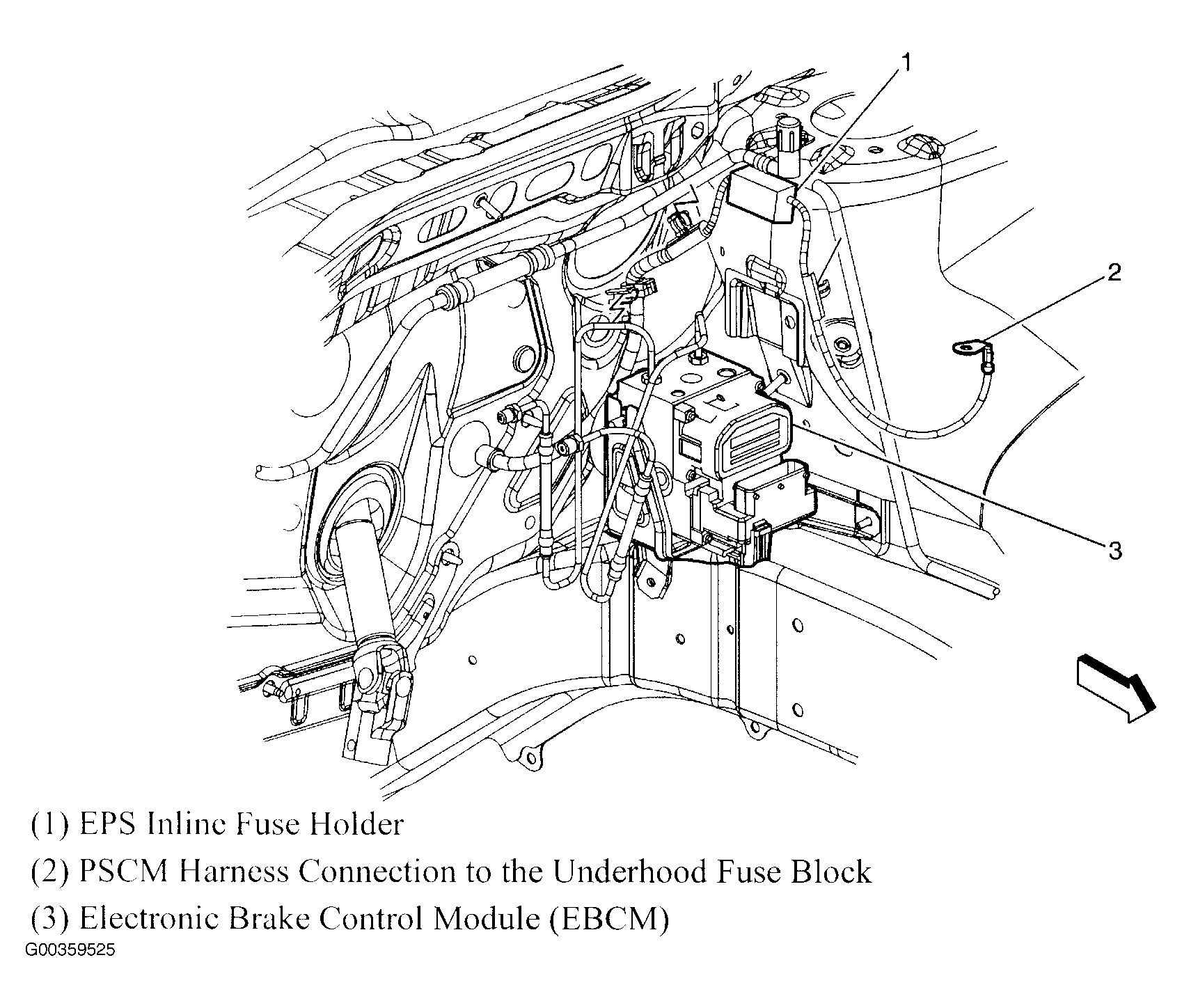

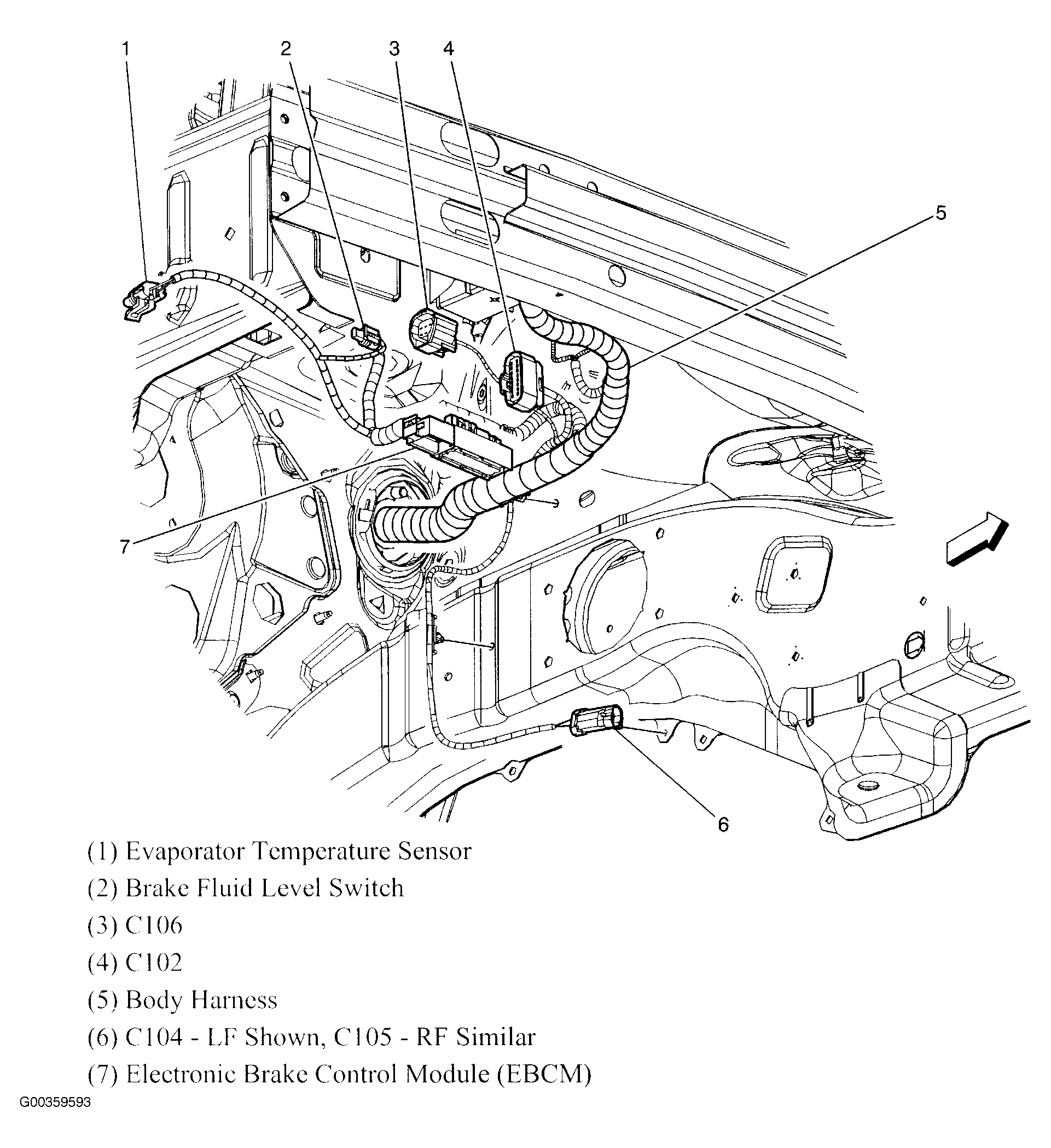

Fig 2: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

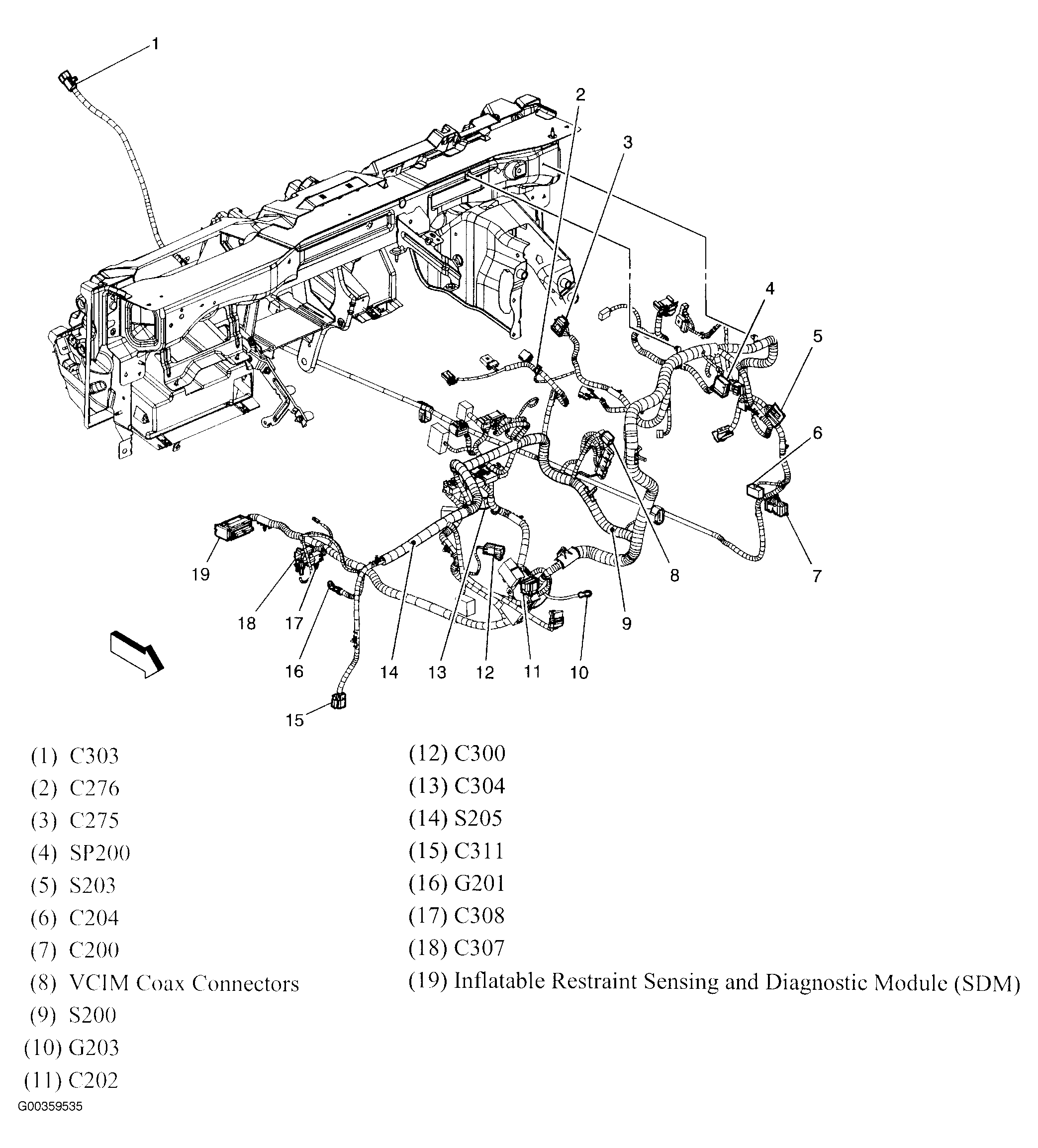

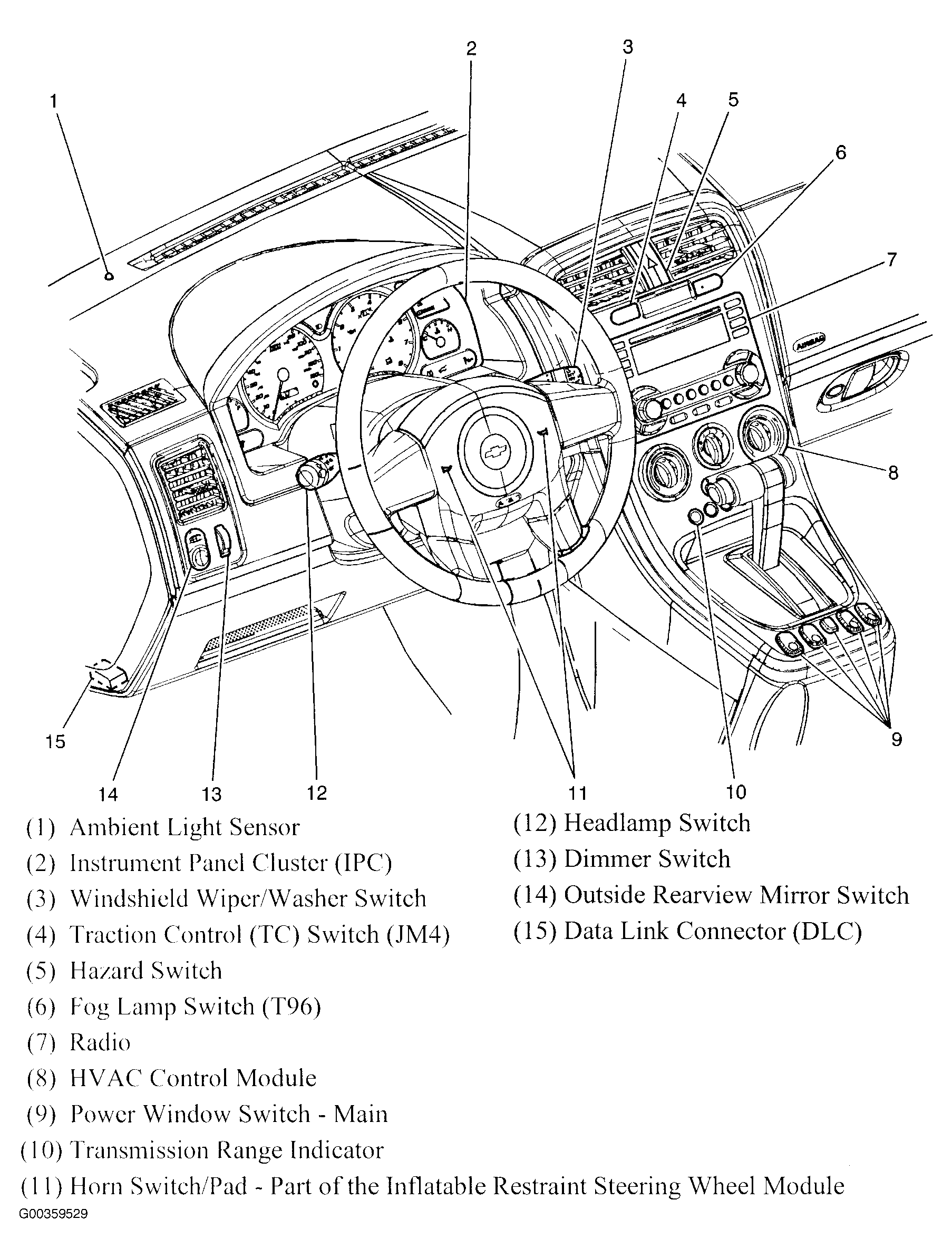

Fig 3: Dash
Courtesy of GENERAL MOTORS CORP.

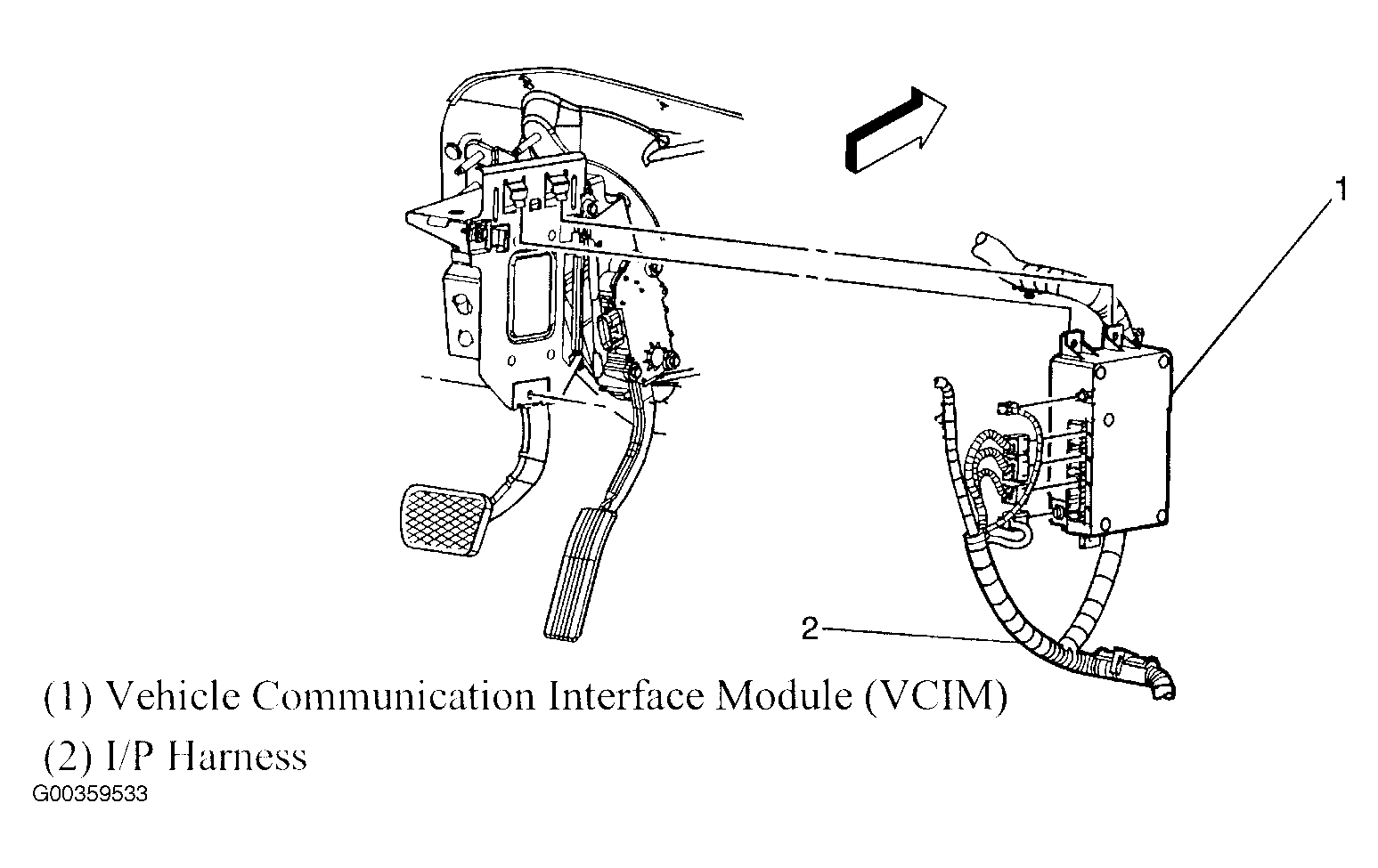

Fig 4: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

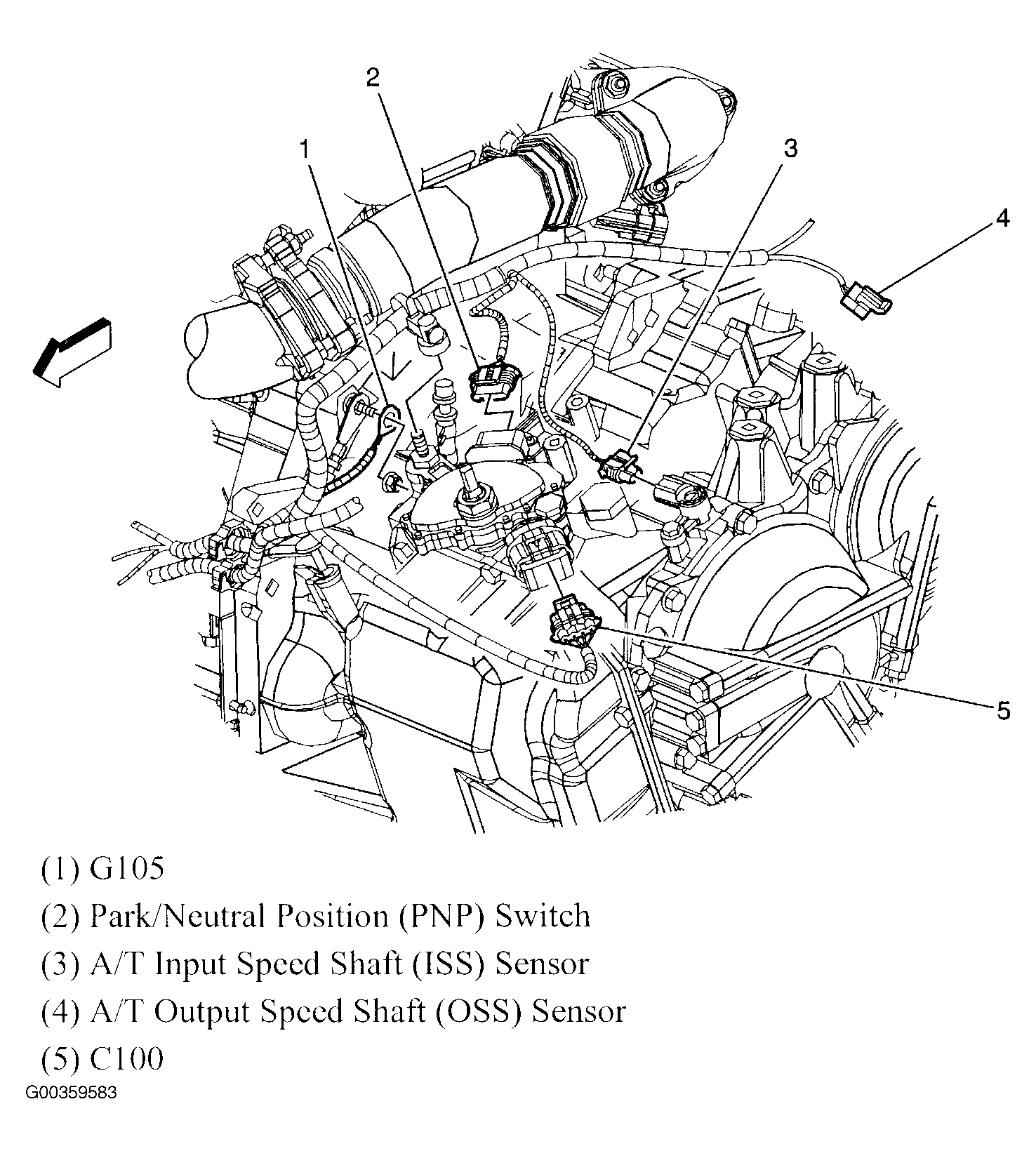

Fig 5: Automatic Transmission Electronic Components Overview (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Automatic Transmission Electronic Components Overview (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Under Right Side Of Headliner
Courtesy of GENERAL MOTORS CORP.

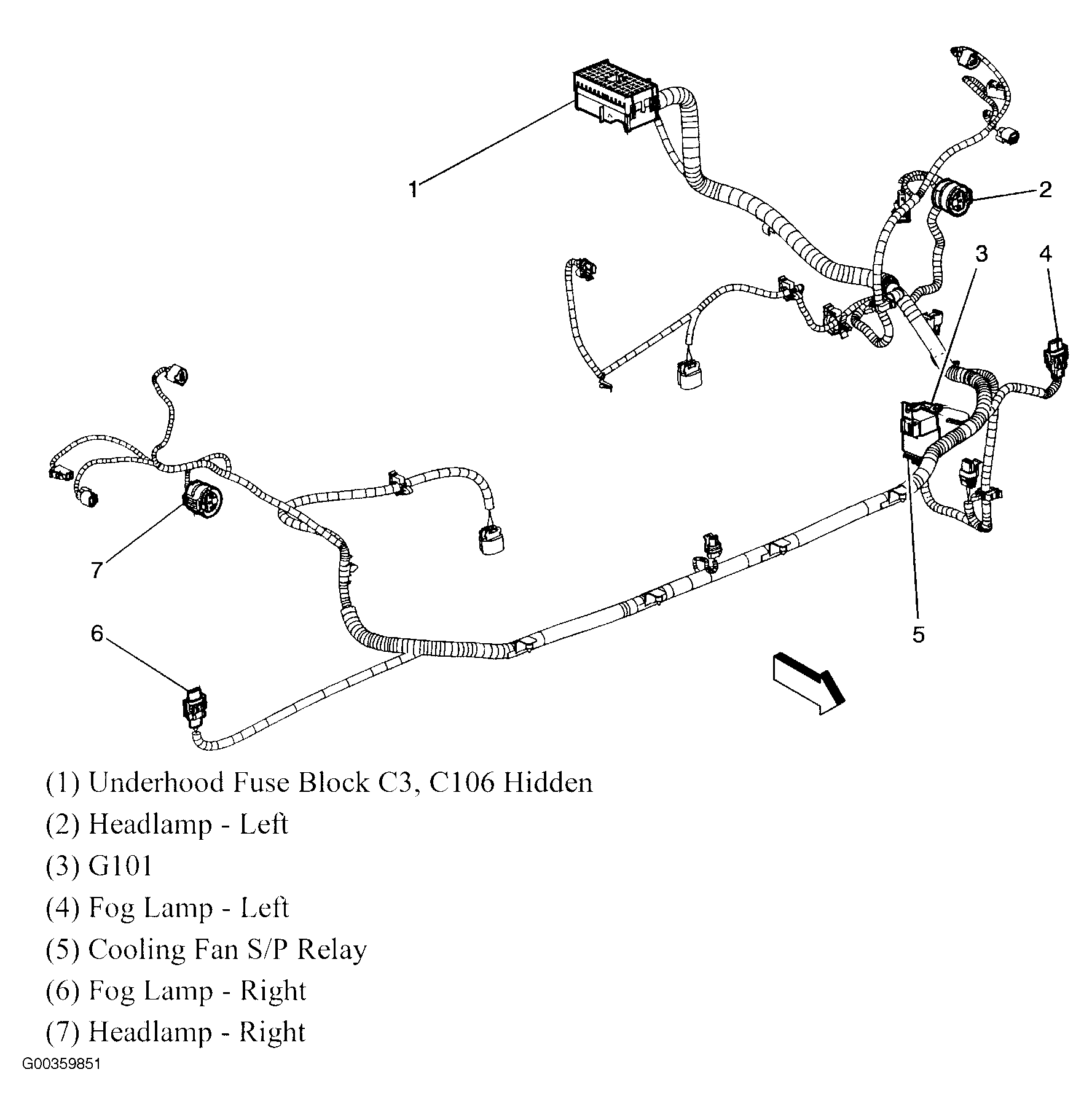

Fig 8: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

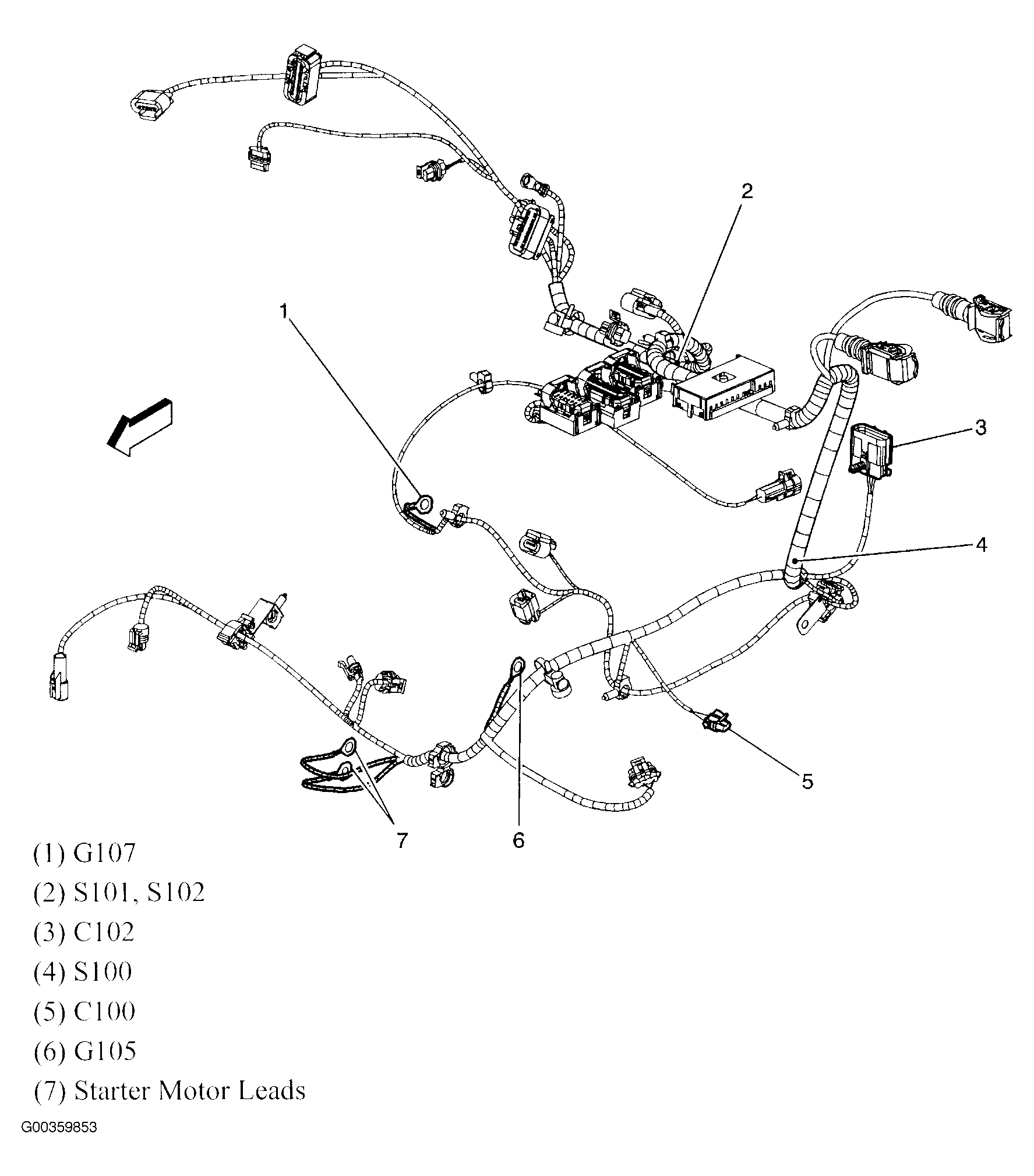

Fig 9: Engine Harness
Courtesy of GENERAL MOTORS CORP.
Fig 10: Dash
Courtesy of GENERAL MOTORS CORP.

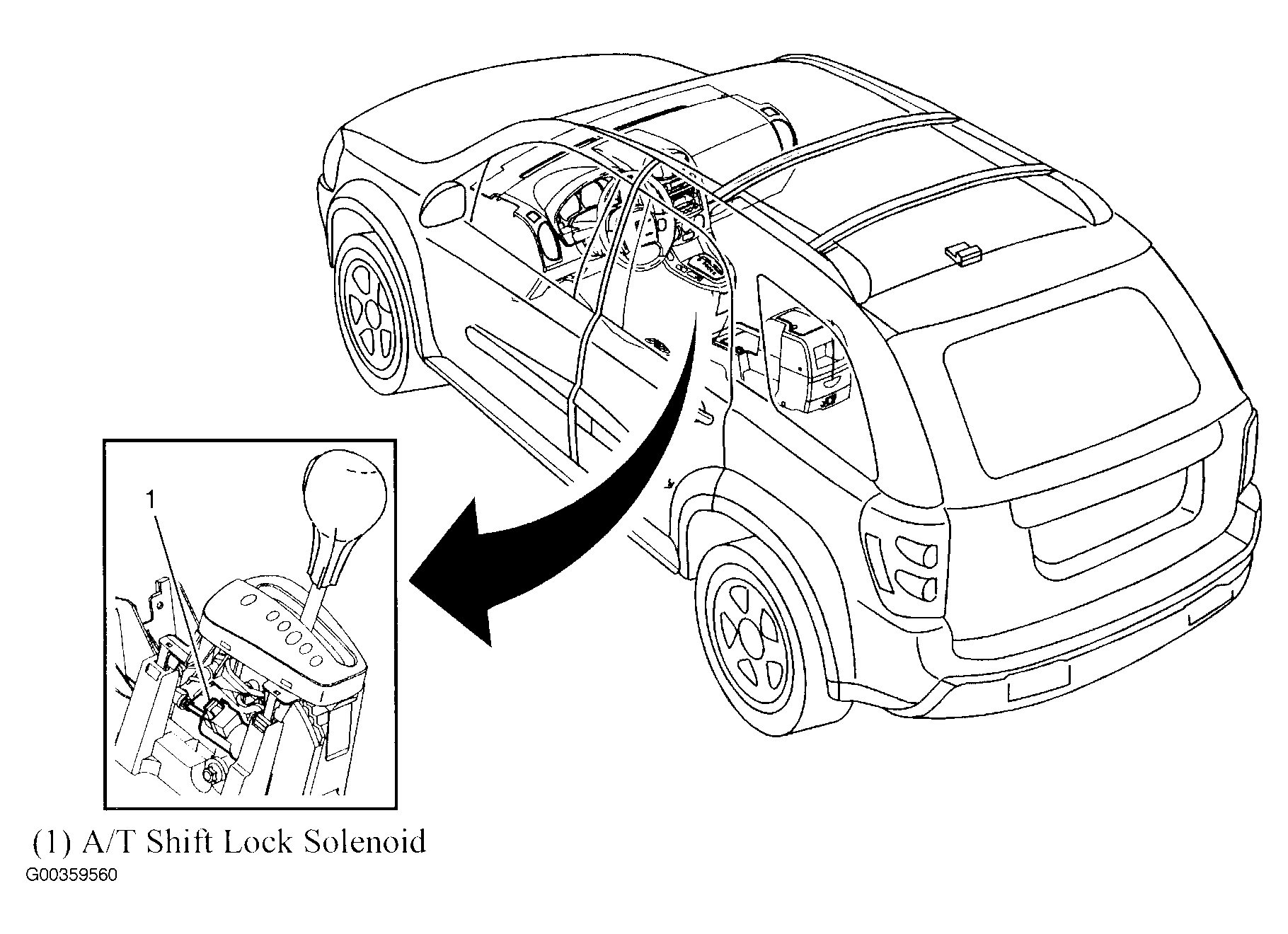

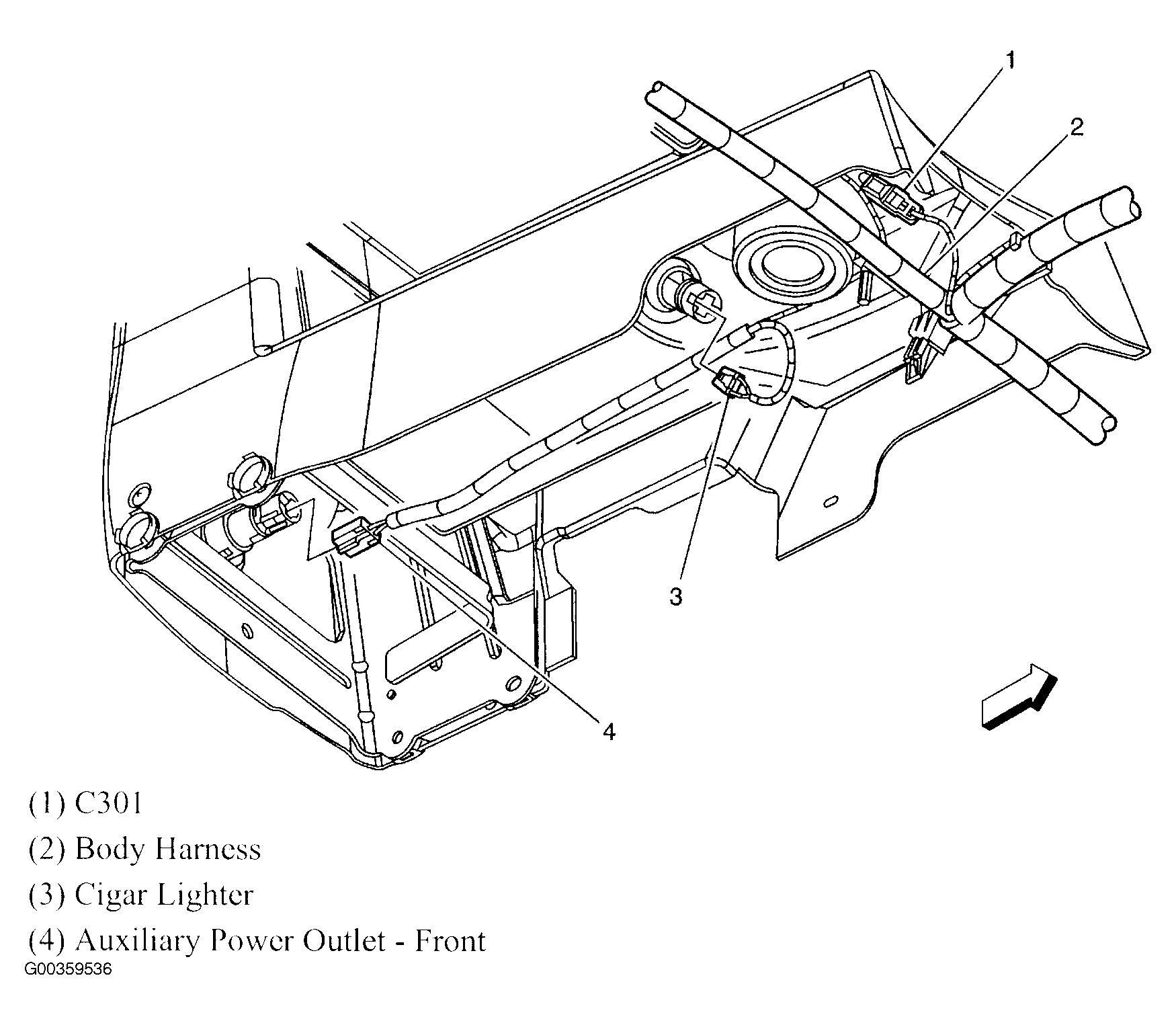

Fig 11: Center Console
Courtesy of GENERAL MOTORS CORP.

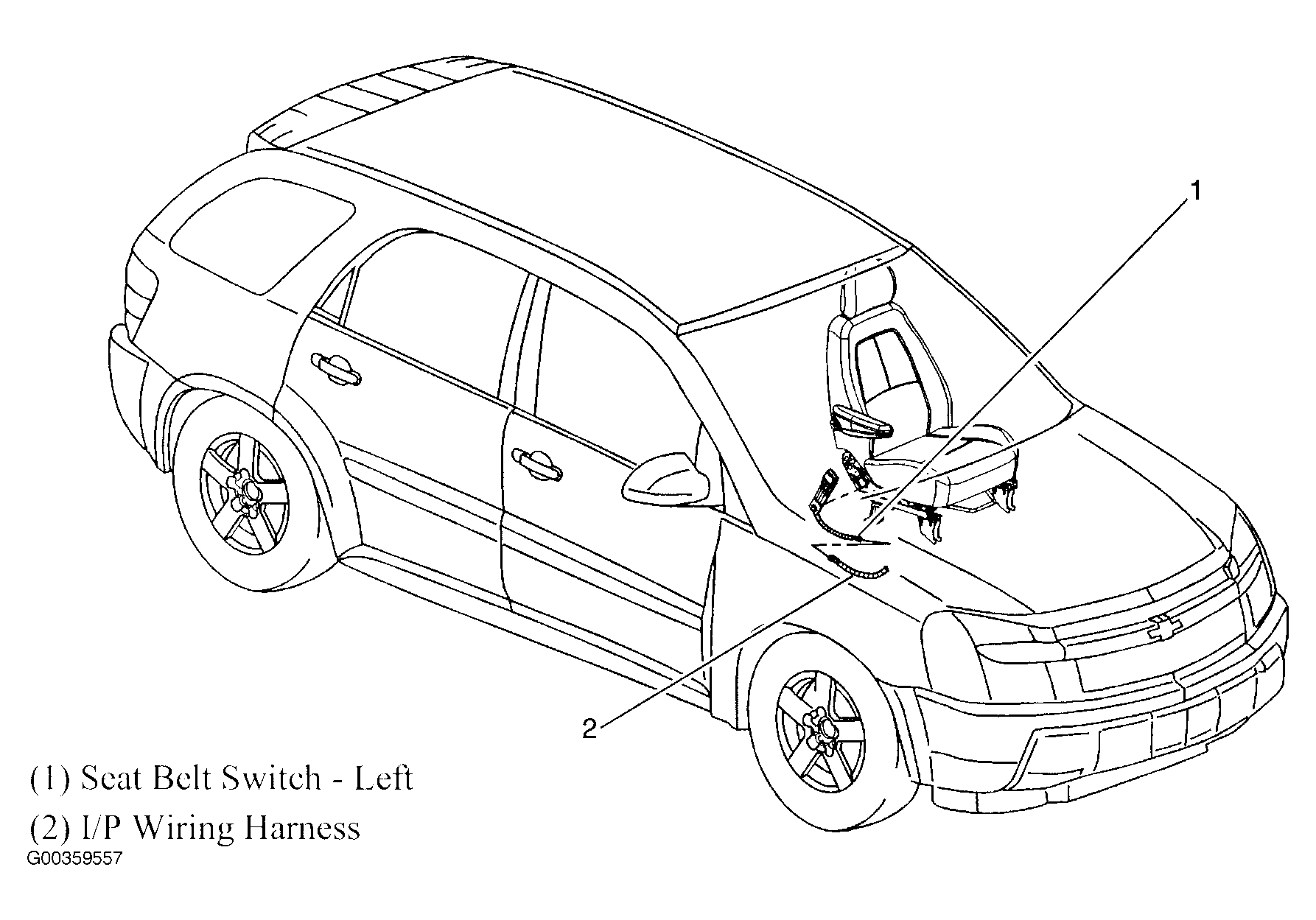

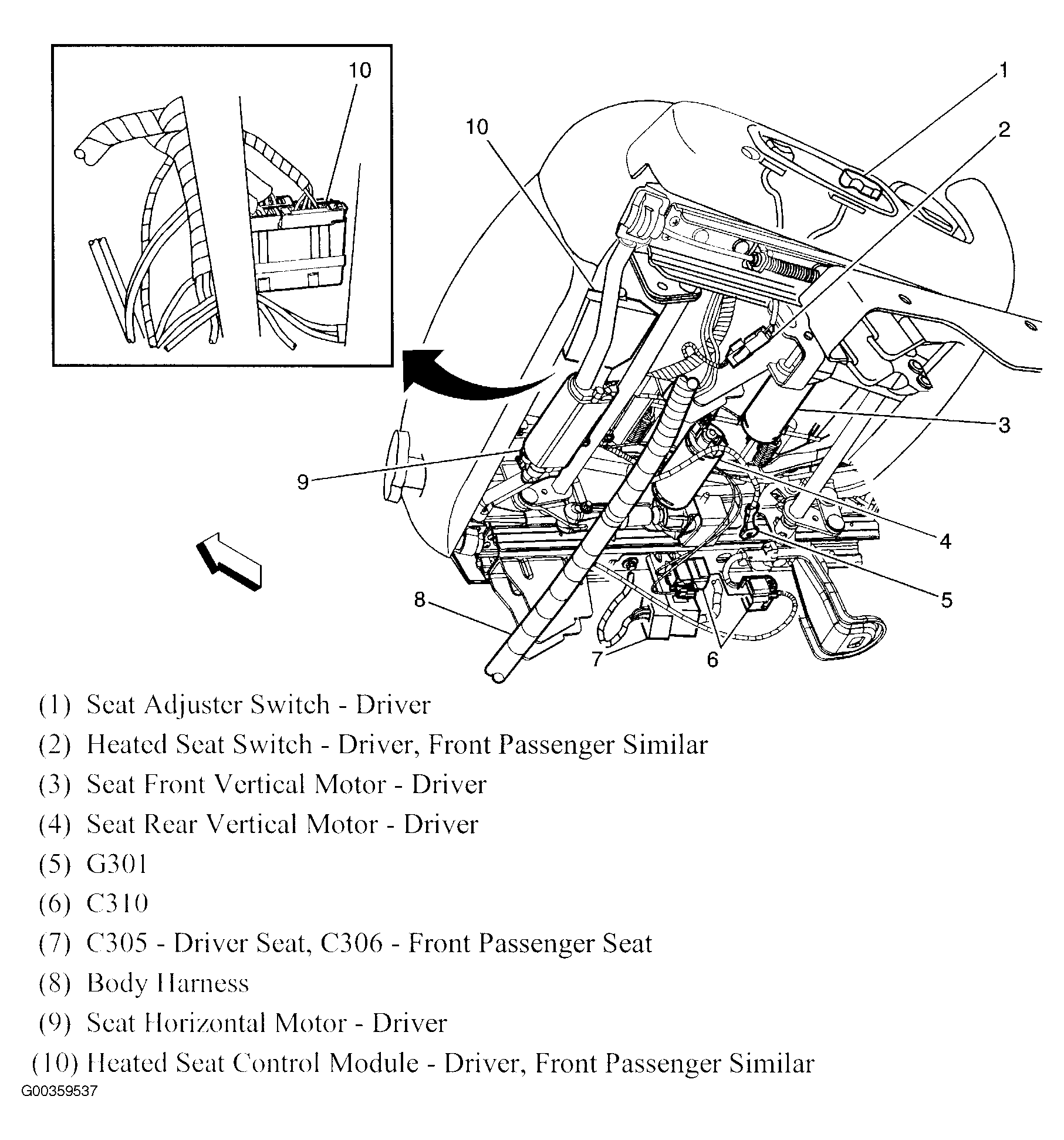

Fig 12: Front Seat (Driver Shown; Passenger Similar)
Courtesy of GENERAL MOTORS CORP.

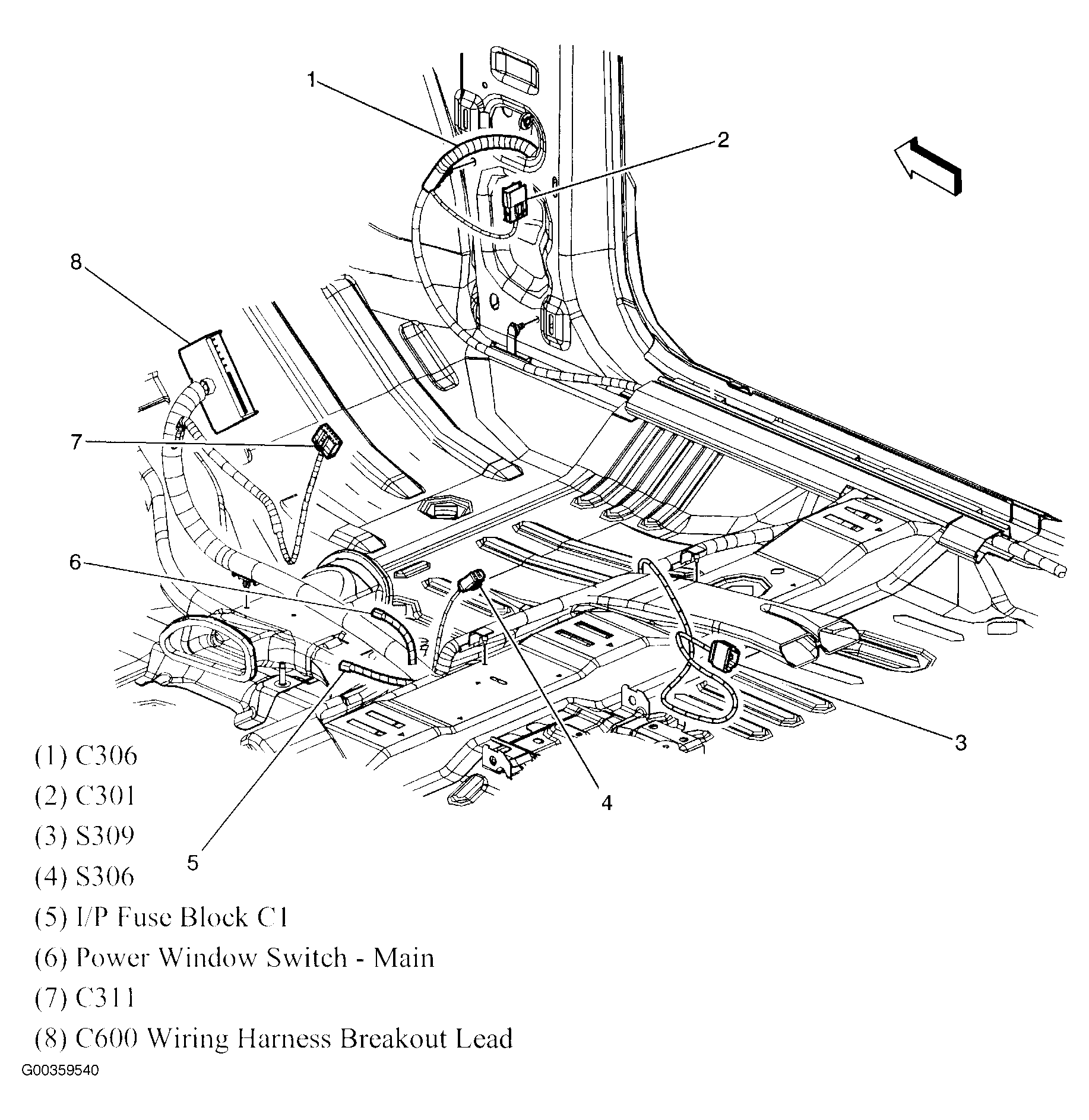

Fig 13: Right Front Floor
Courtesy of GENERAL MOTORS CORP.

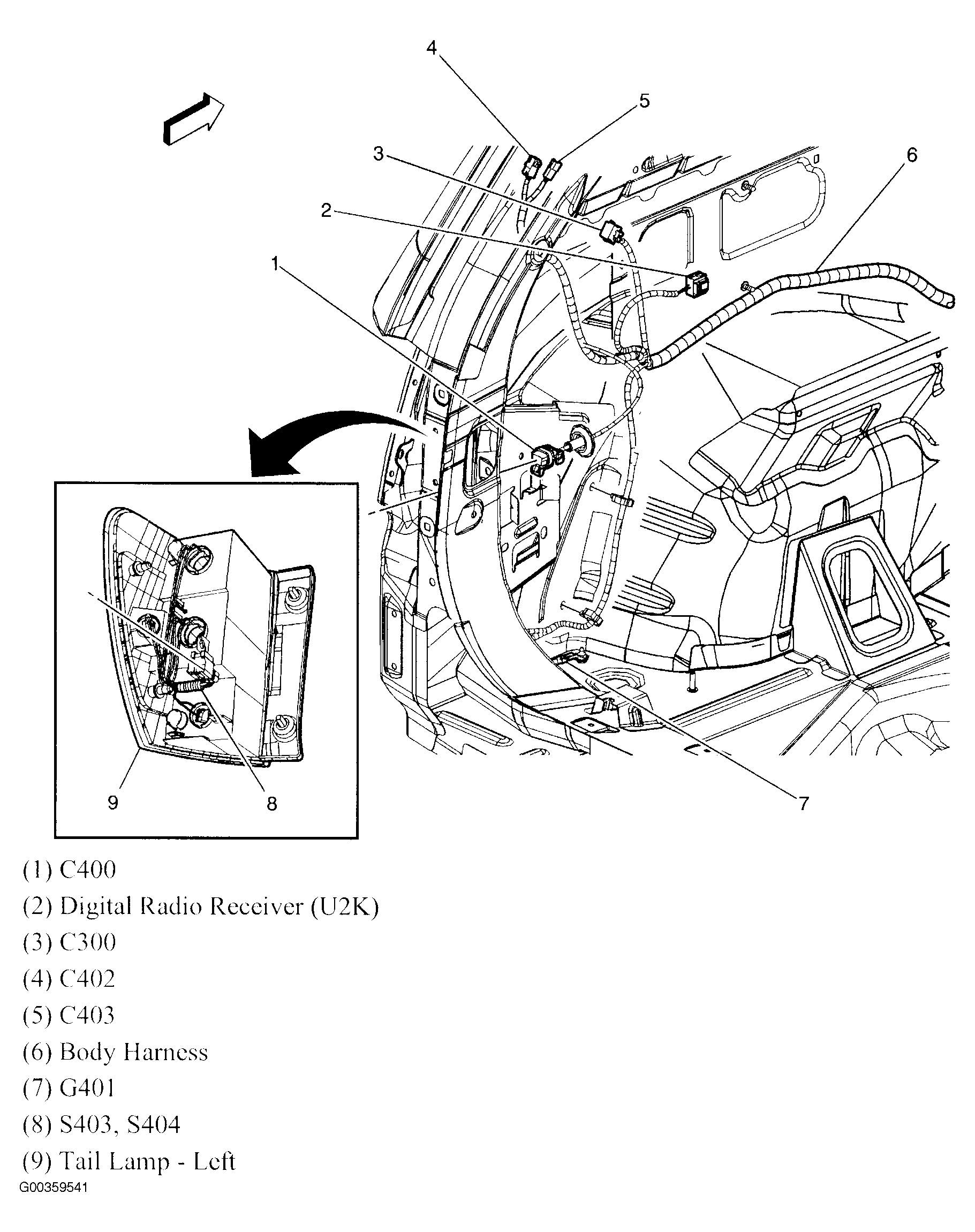

Fig 14: Left Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

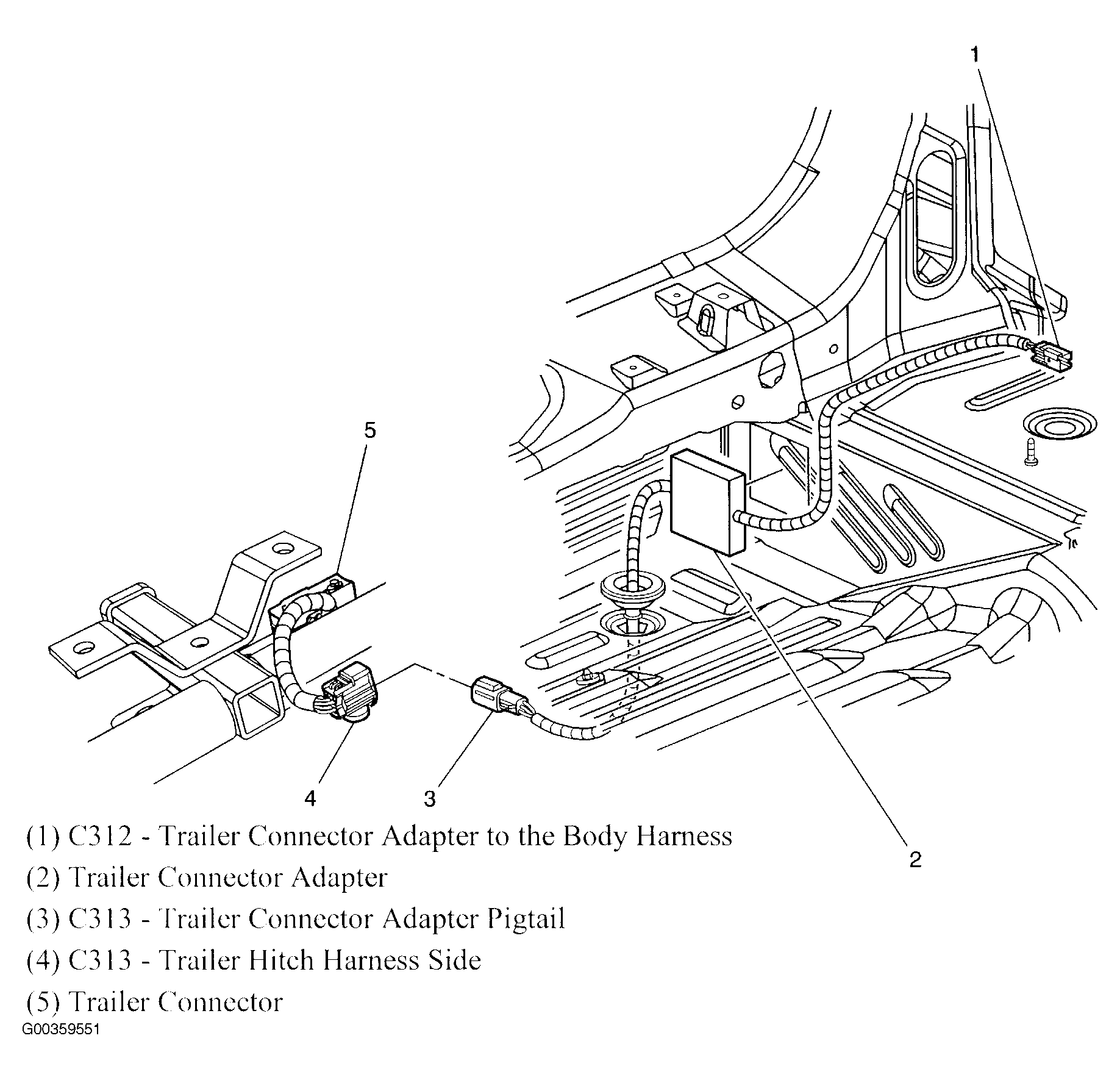

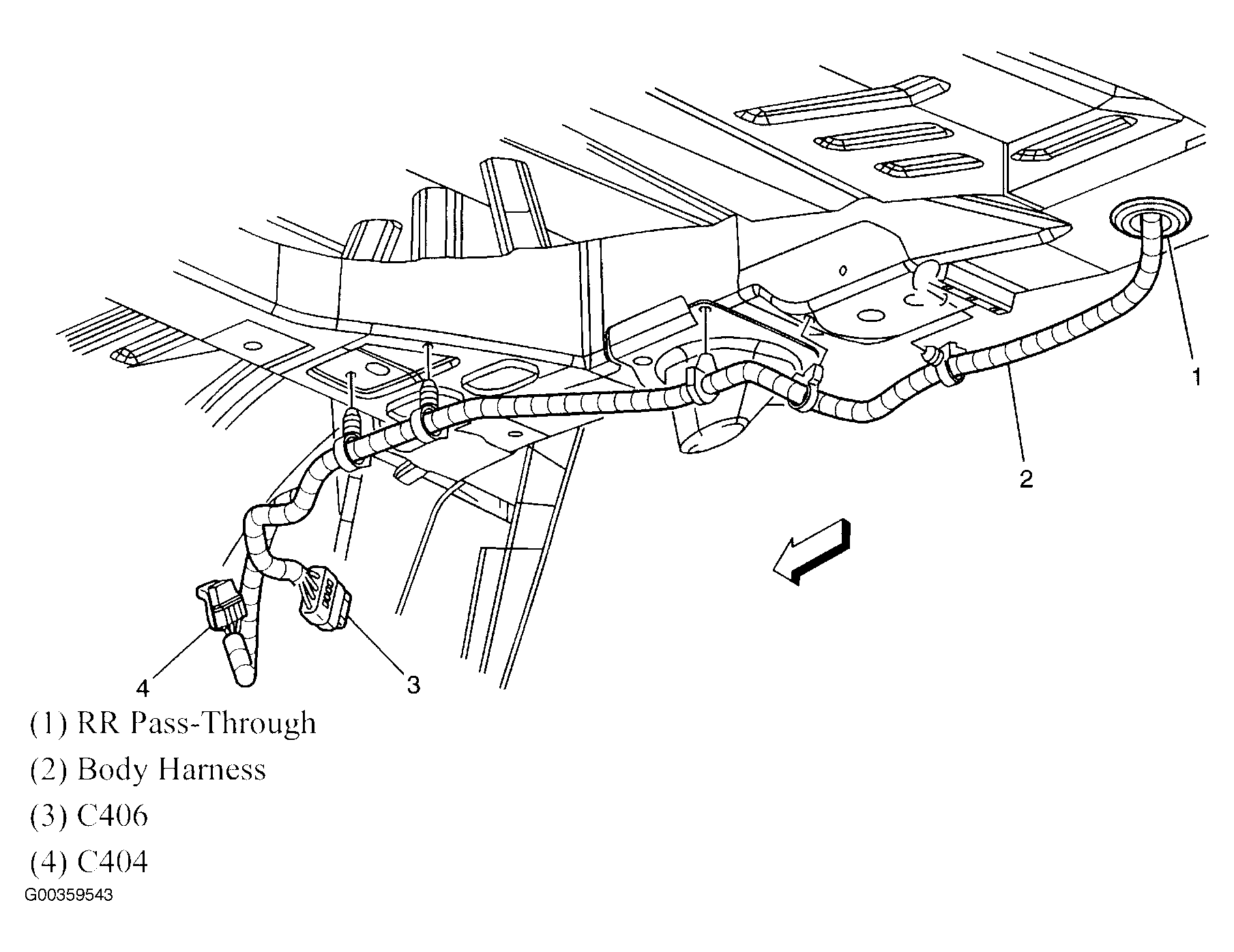

Fig 15: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

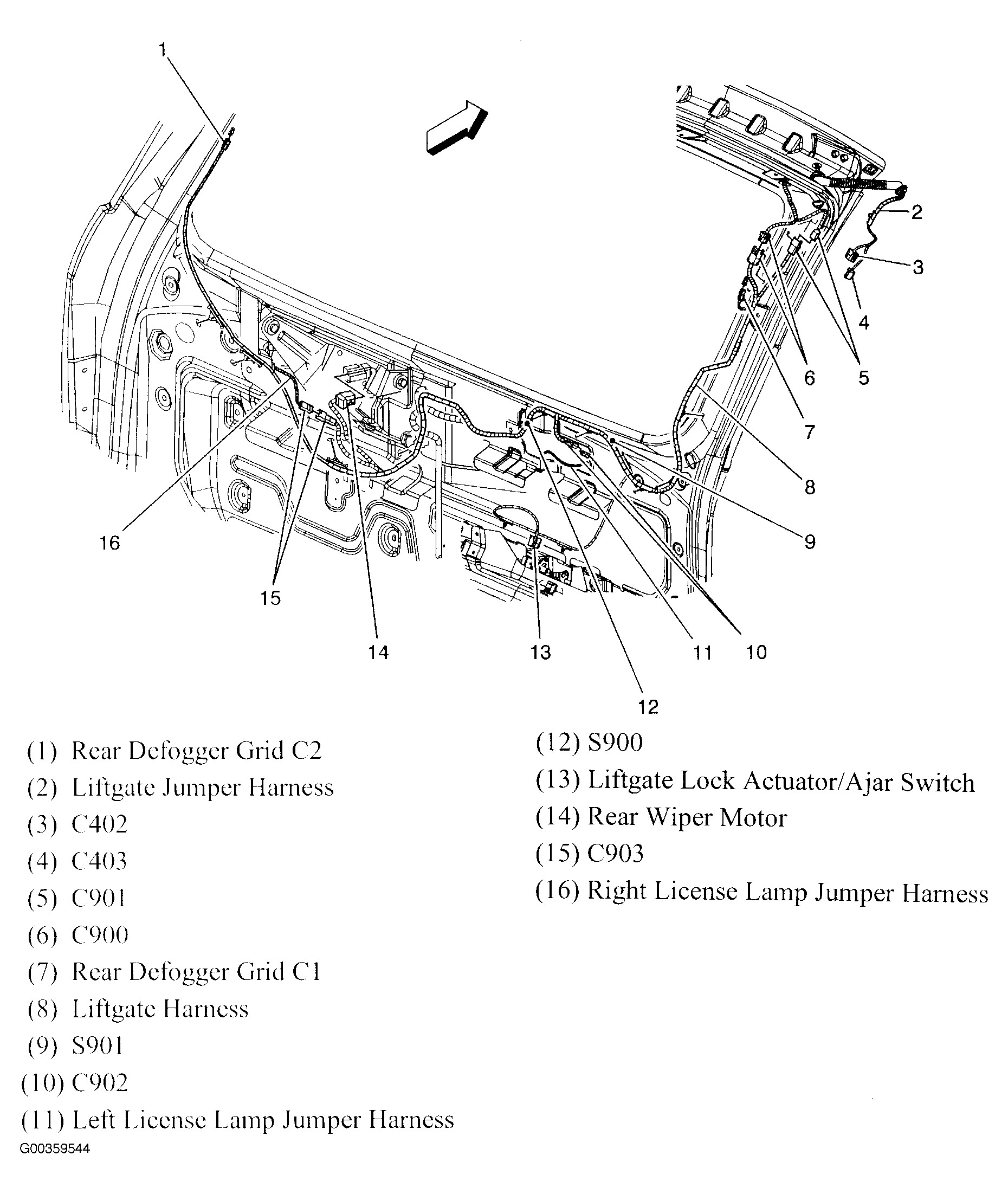

Fig 16: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 17: Behind Center Of Dash
Courtesy of GENERAL MOTORS CORP.

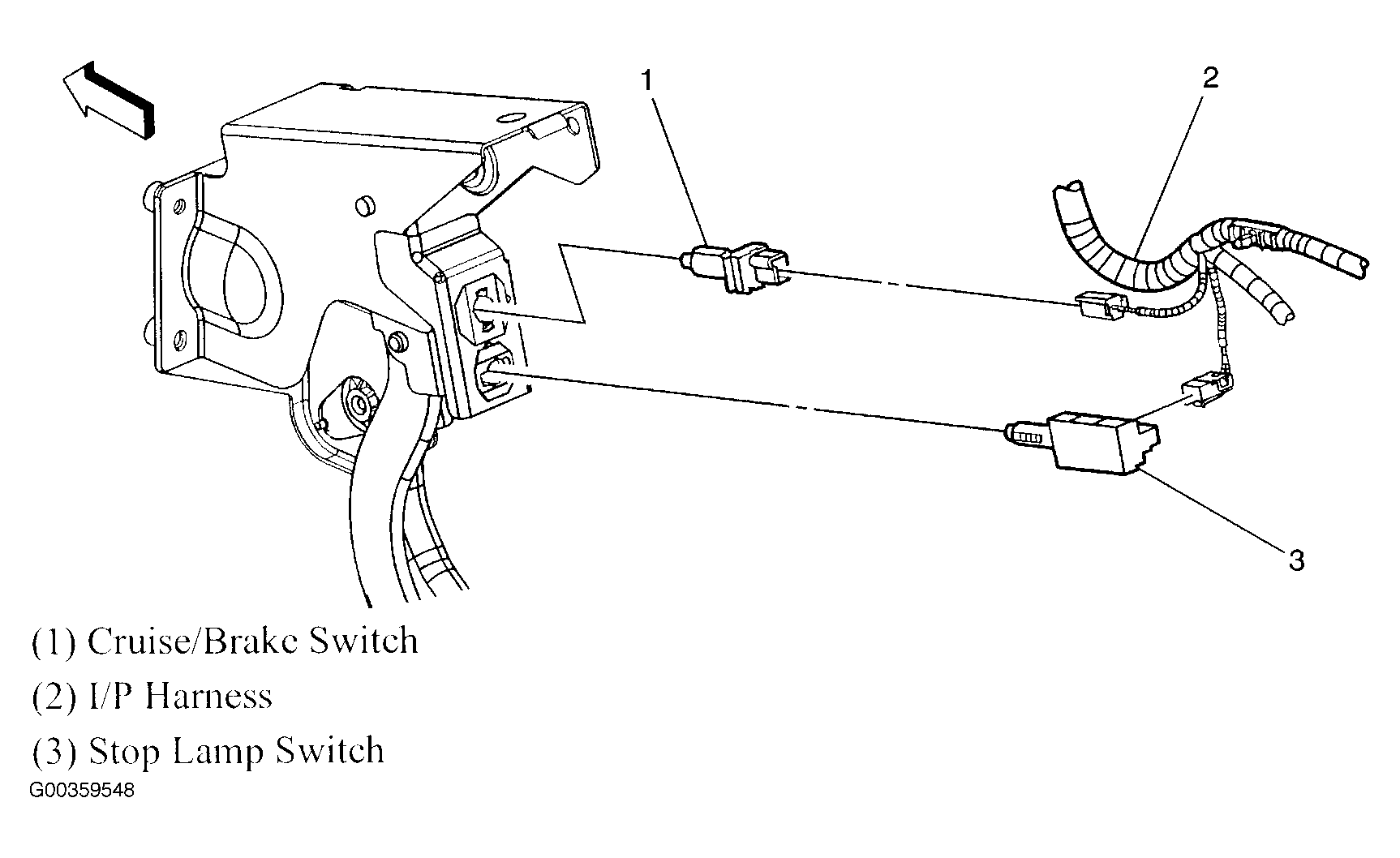

Fig 18: Brake Pedal
Courtesy of GENERAL MOTORS CORP.
Fig 19: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

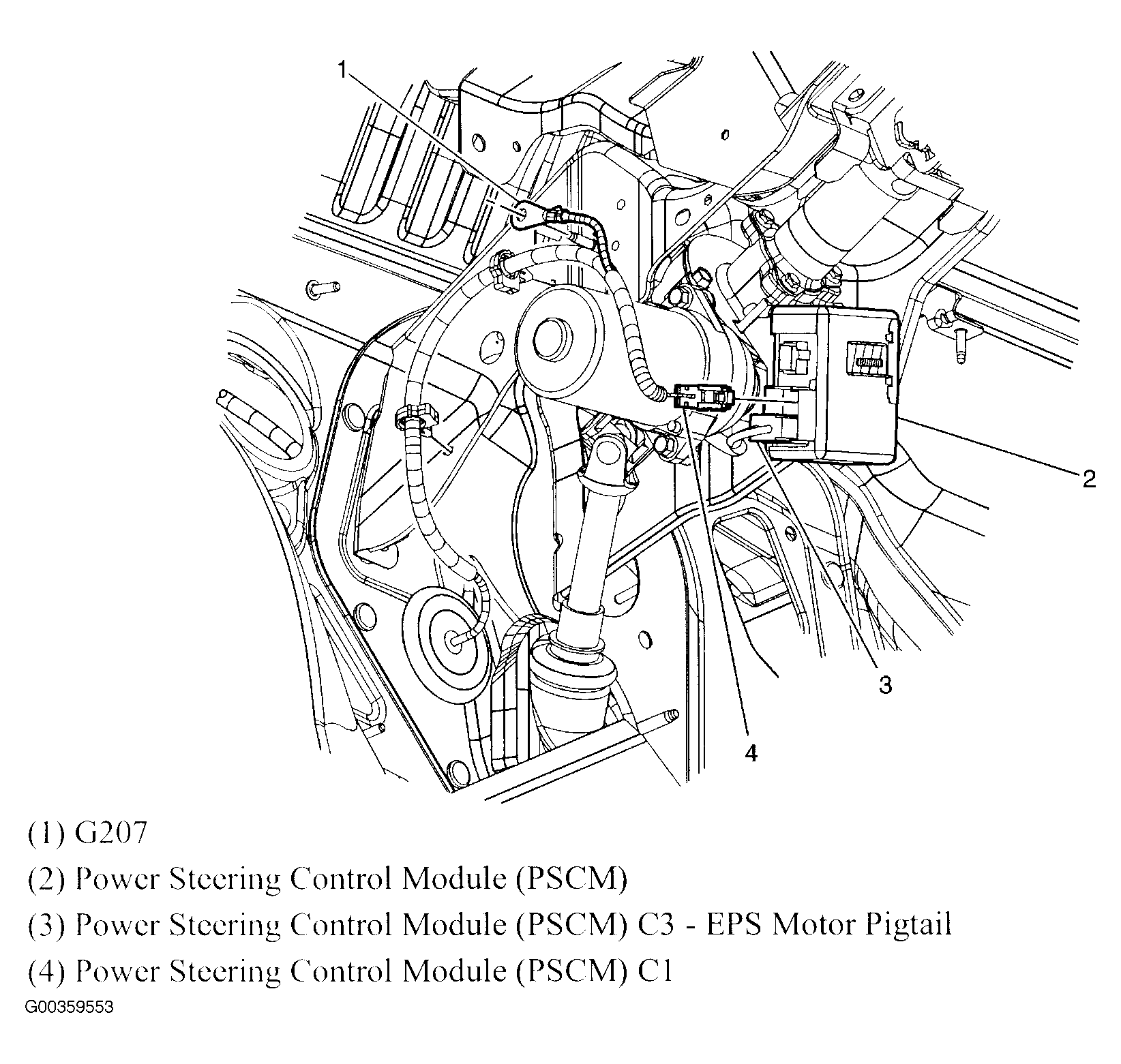

Fig 20: Base Of Steering Column
Courtesy of GENERAL MOTORS CORP.

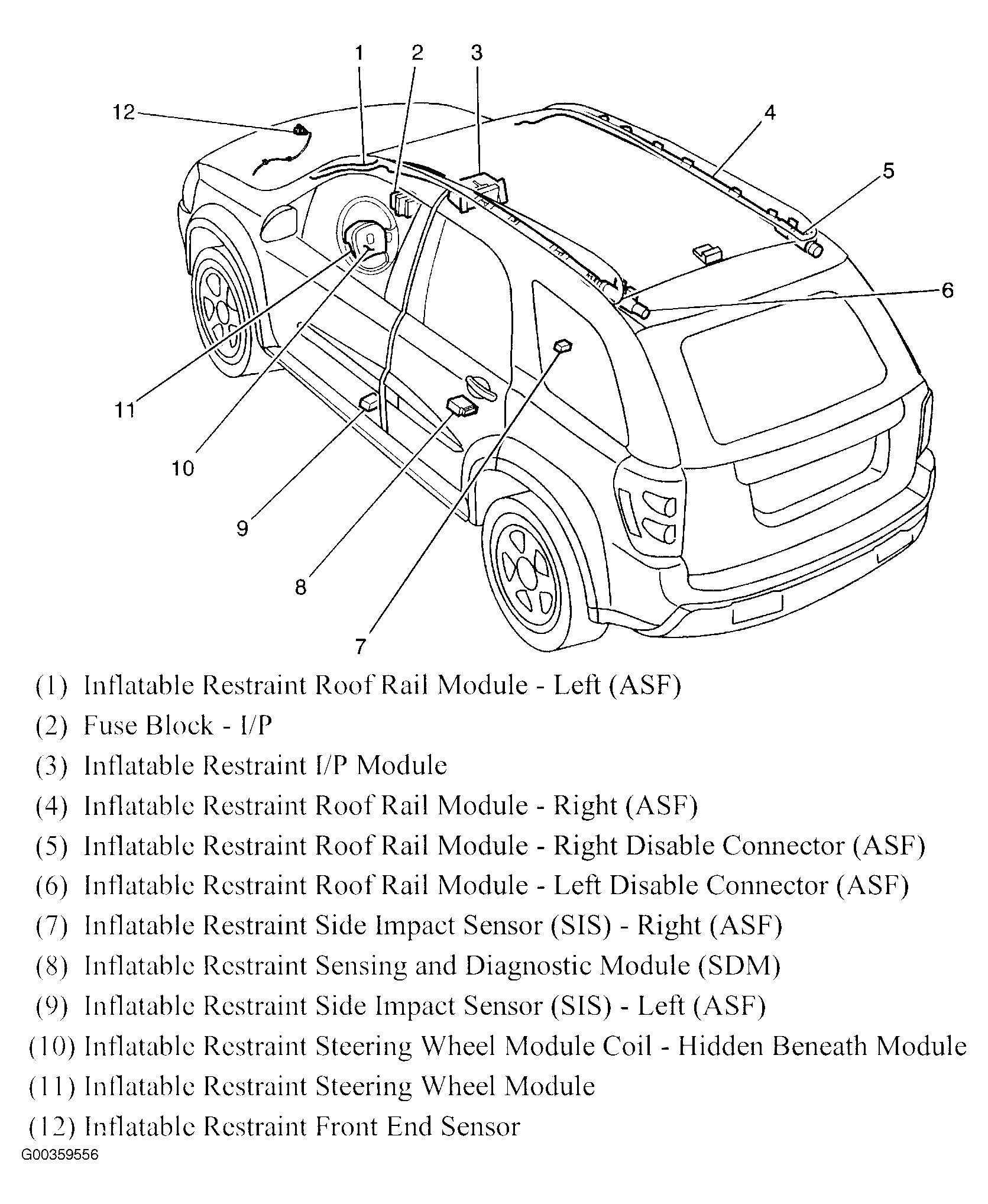

Fig 21: Restraints Overview
Courtesy of GENERAL MOTORS CORP.
Fig 22: Seat
Courtesy of GENERAL MOTORS CORP.
Fig 23: Dash & Center Console
Courtesy of GENERAL MOTORS CORP.

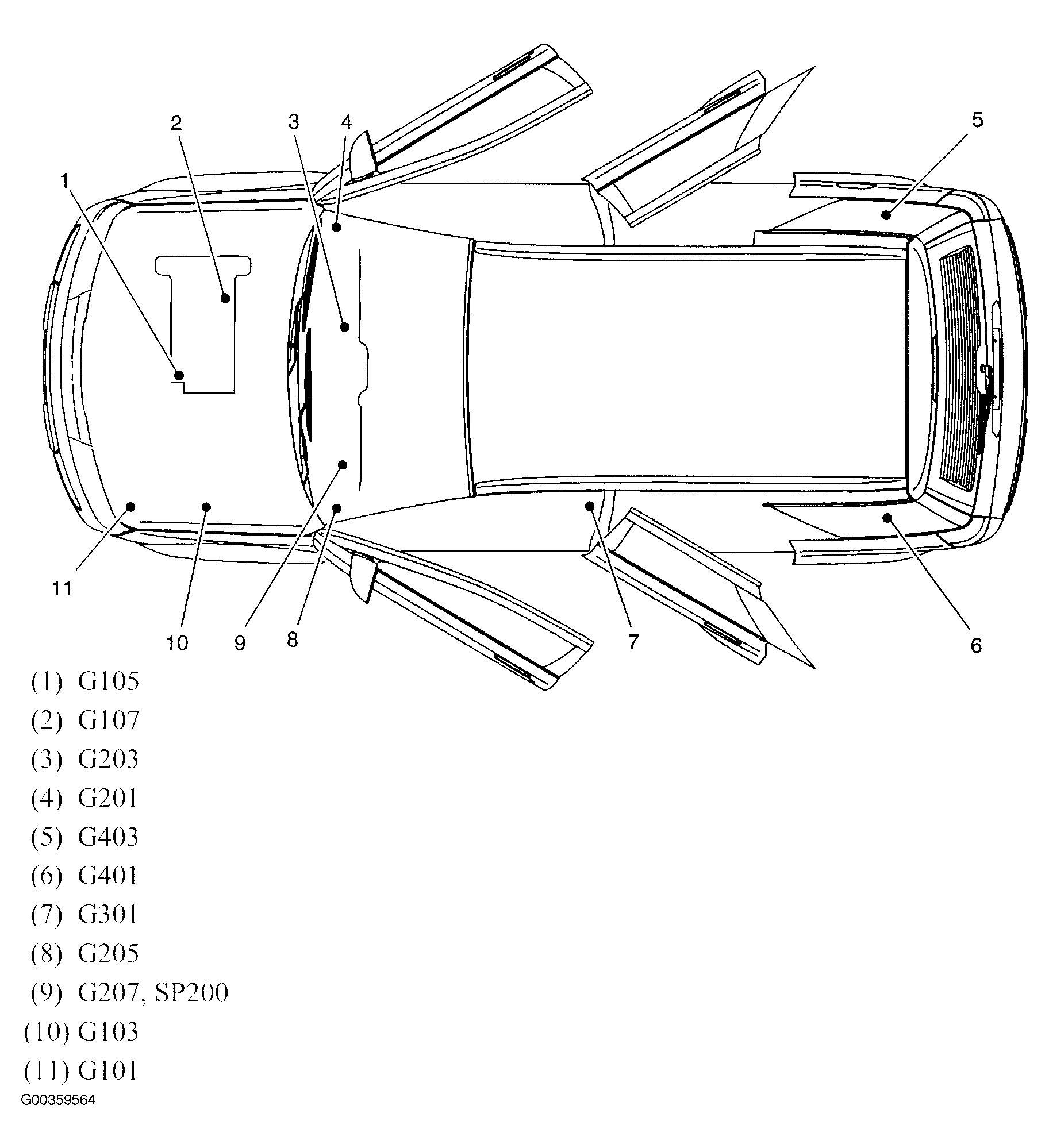

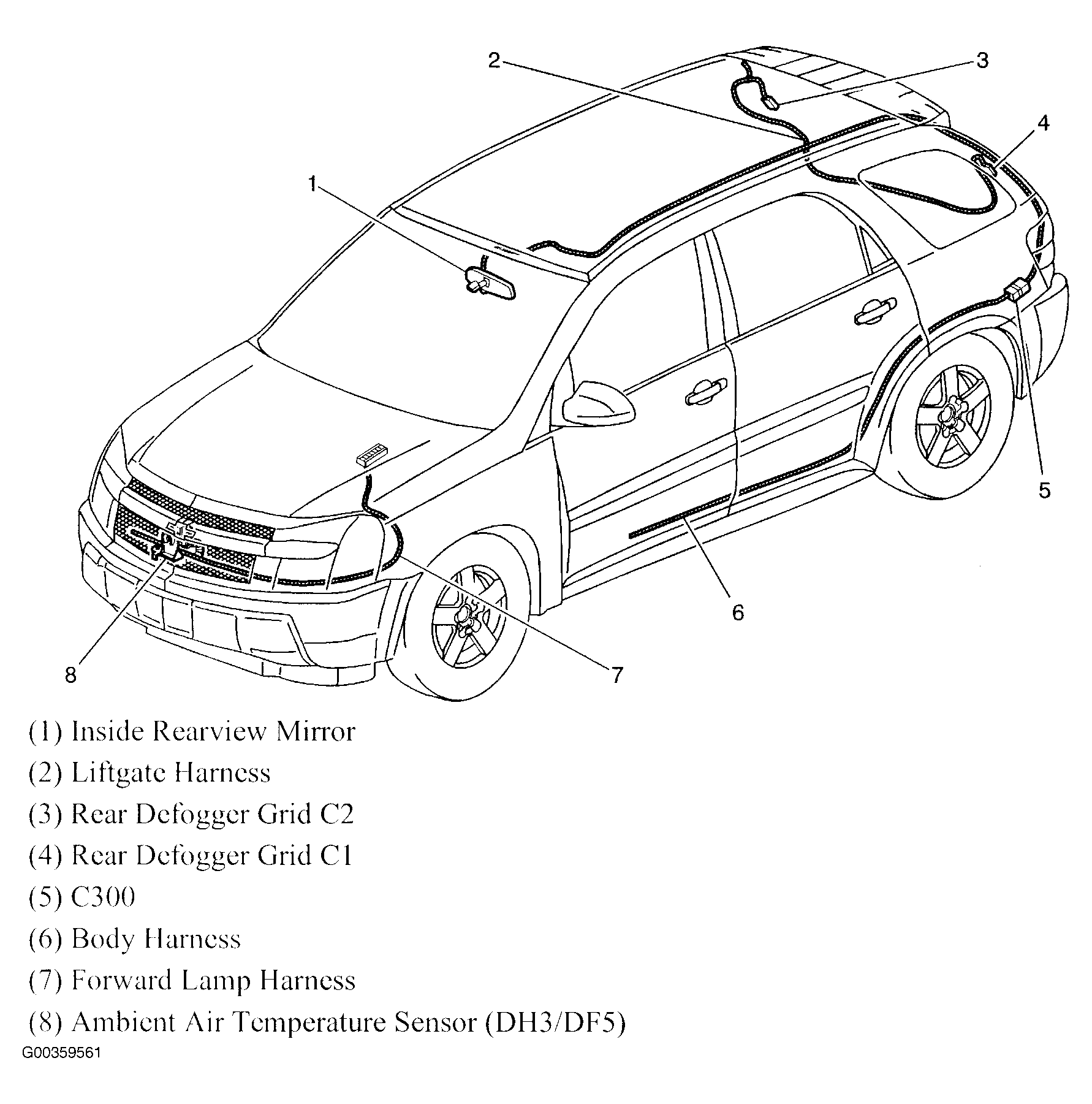

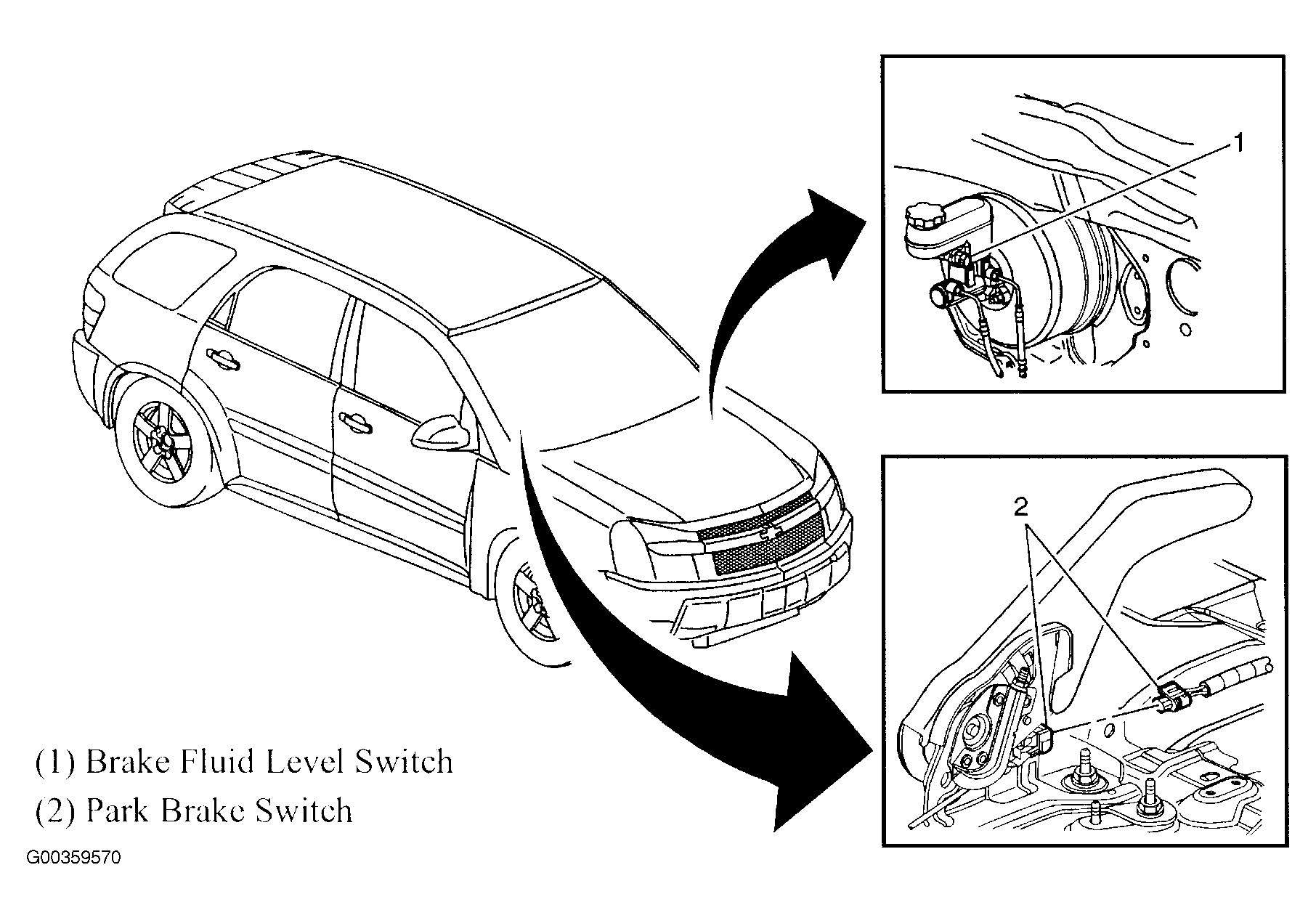

Fig 24: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

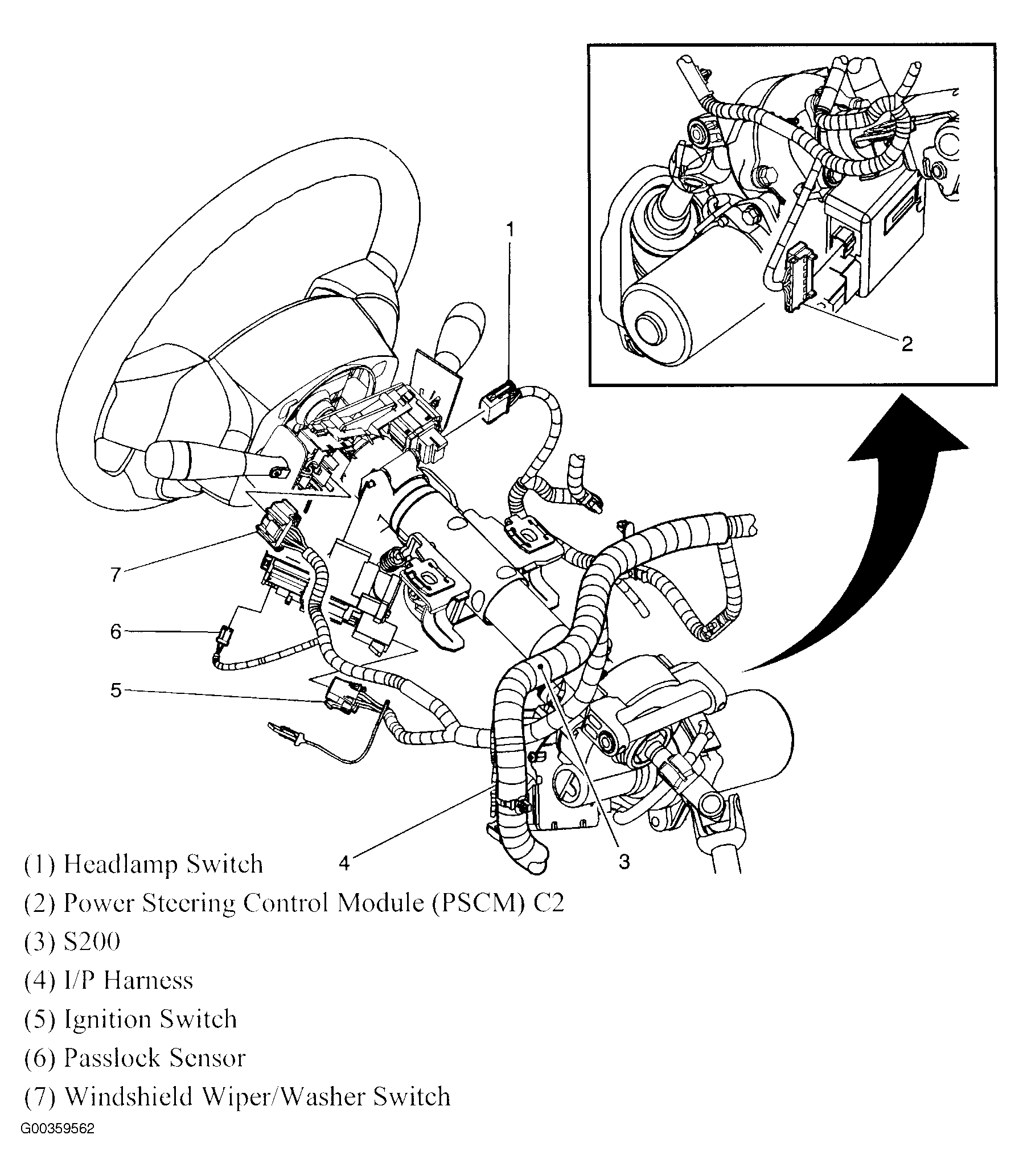

Fig 25: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 26: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 27: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

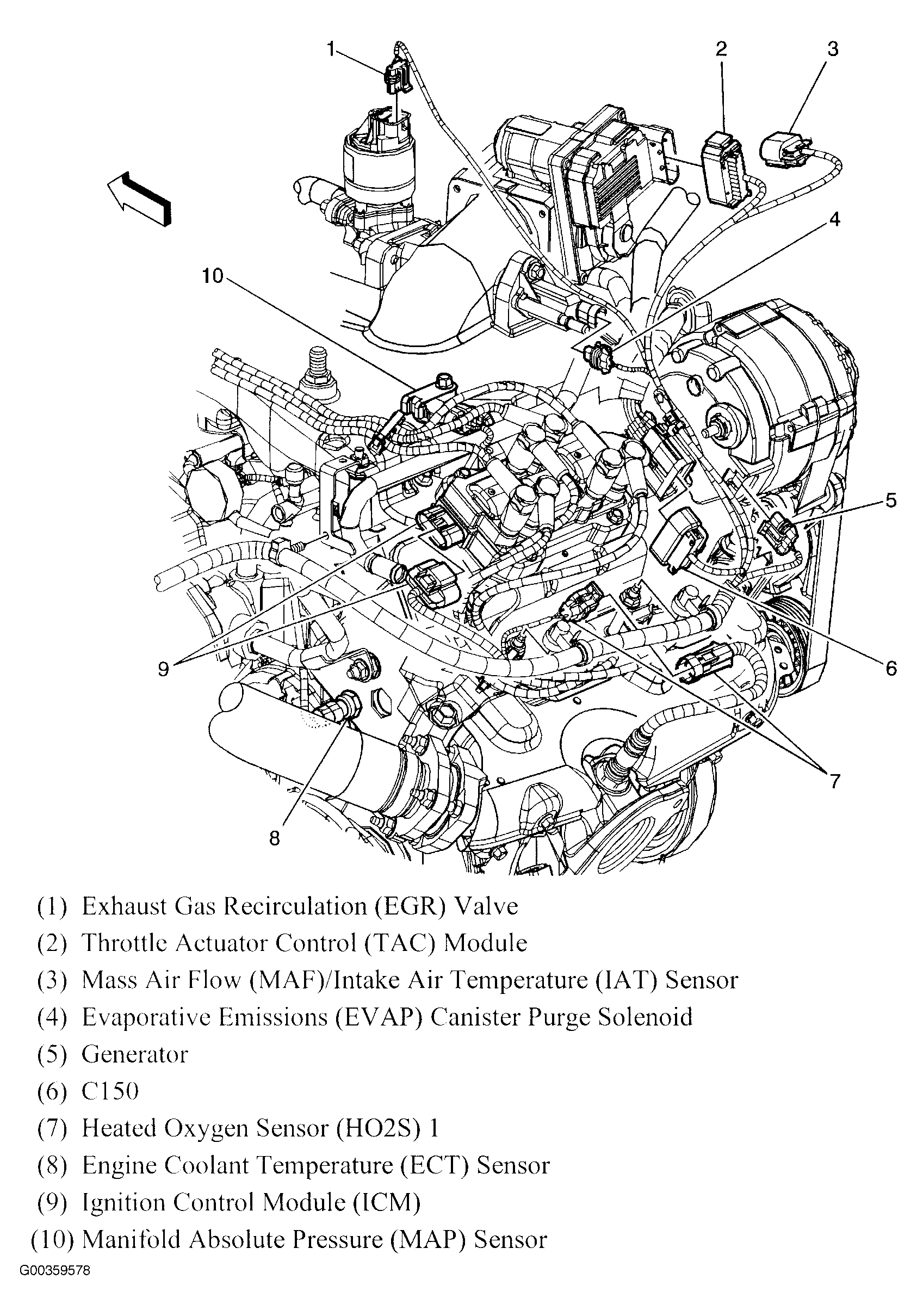

Fig 28: Underhood
Courtesy of GENERAL MOTORS CORP.
Fig 29: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

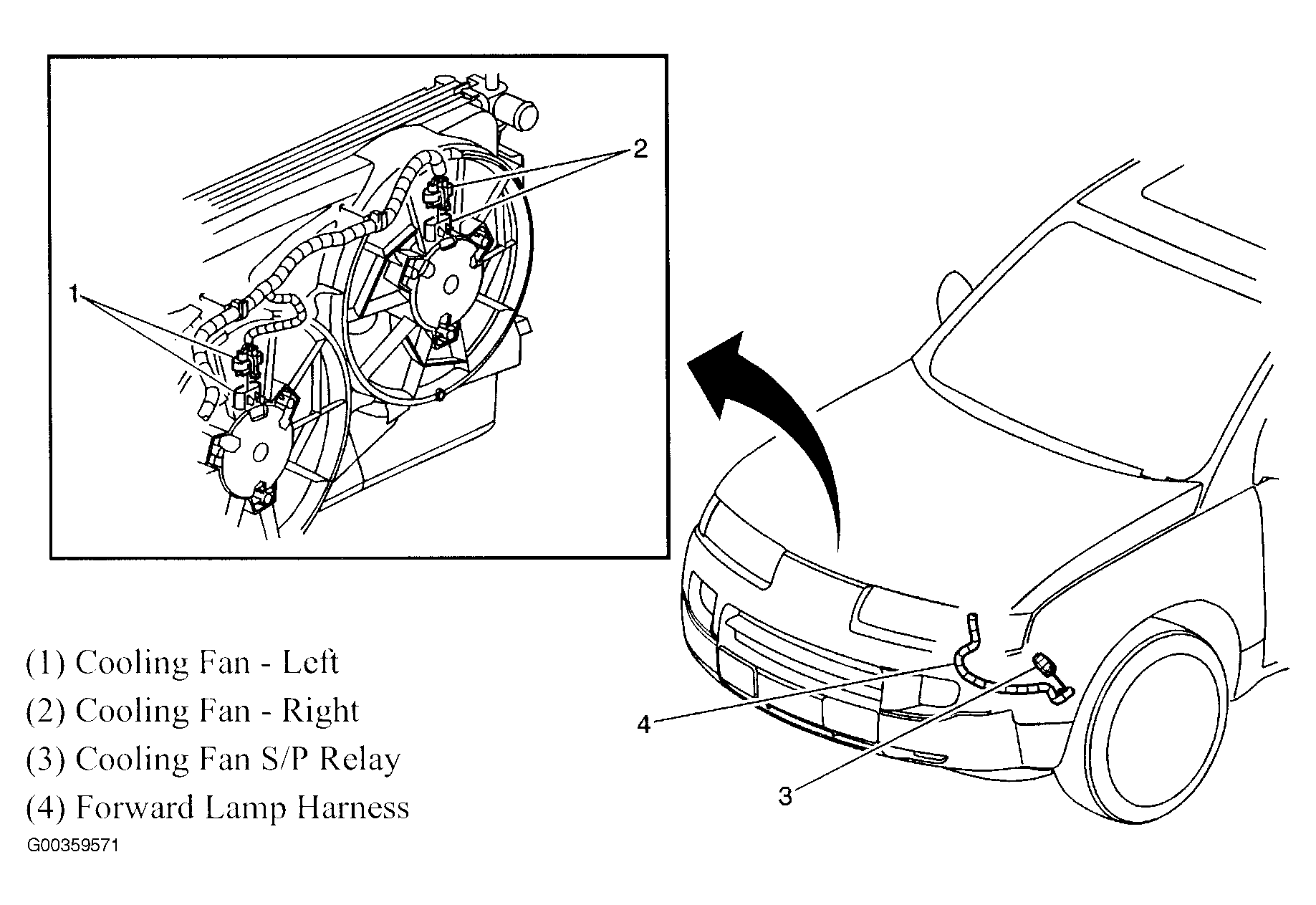

Fig 30: Behind Radiator
Courtesy of GENERAL MOTORS CORP.
Fig 31: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 32: Top Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

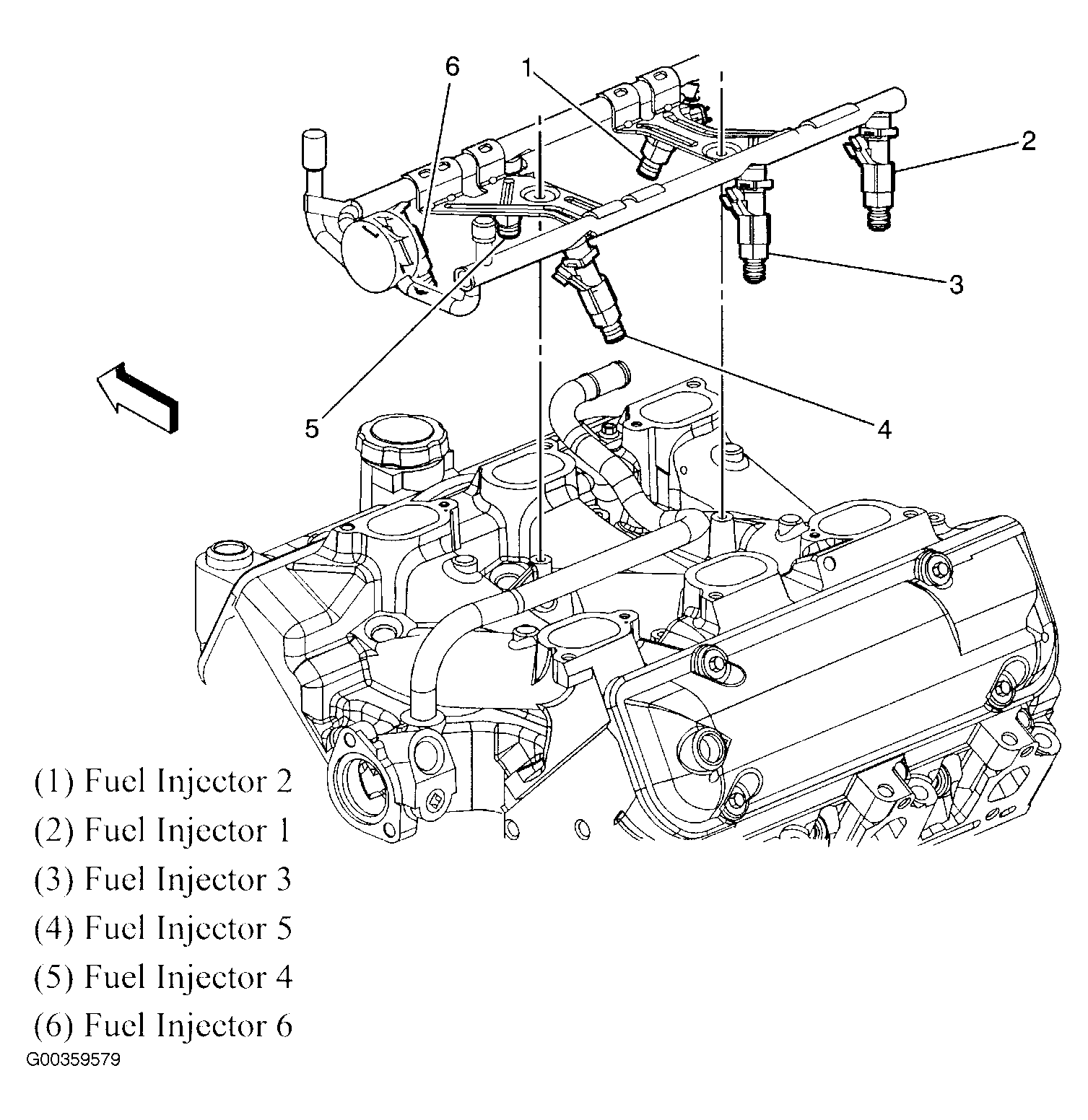

Fig 33: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

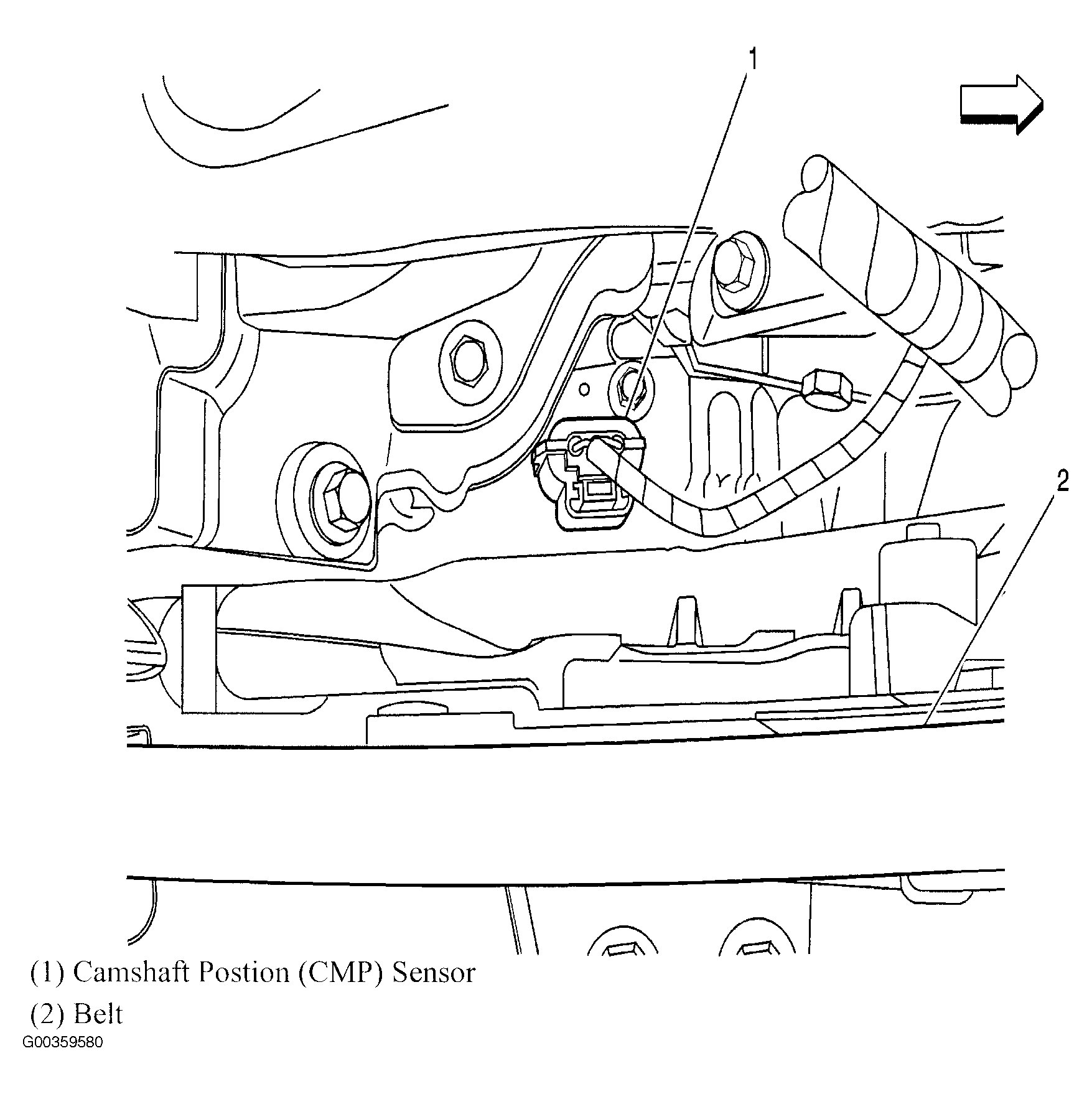

Fig 34: Top Front Of Engine
Courtesy of GENERAL MOTORS CORP.

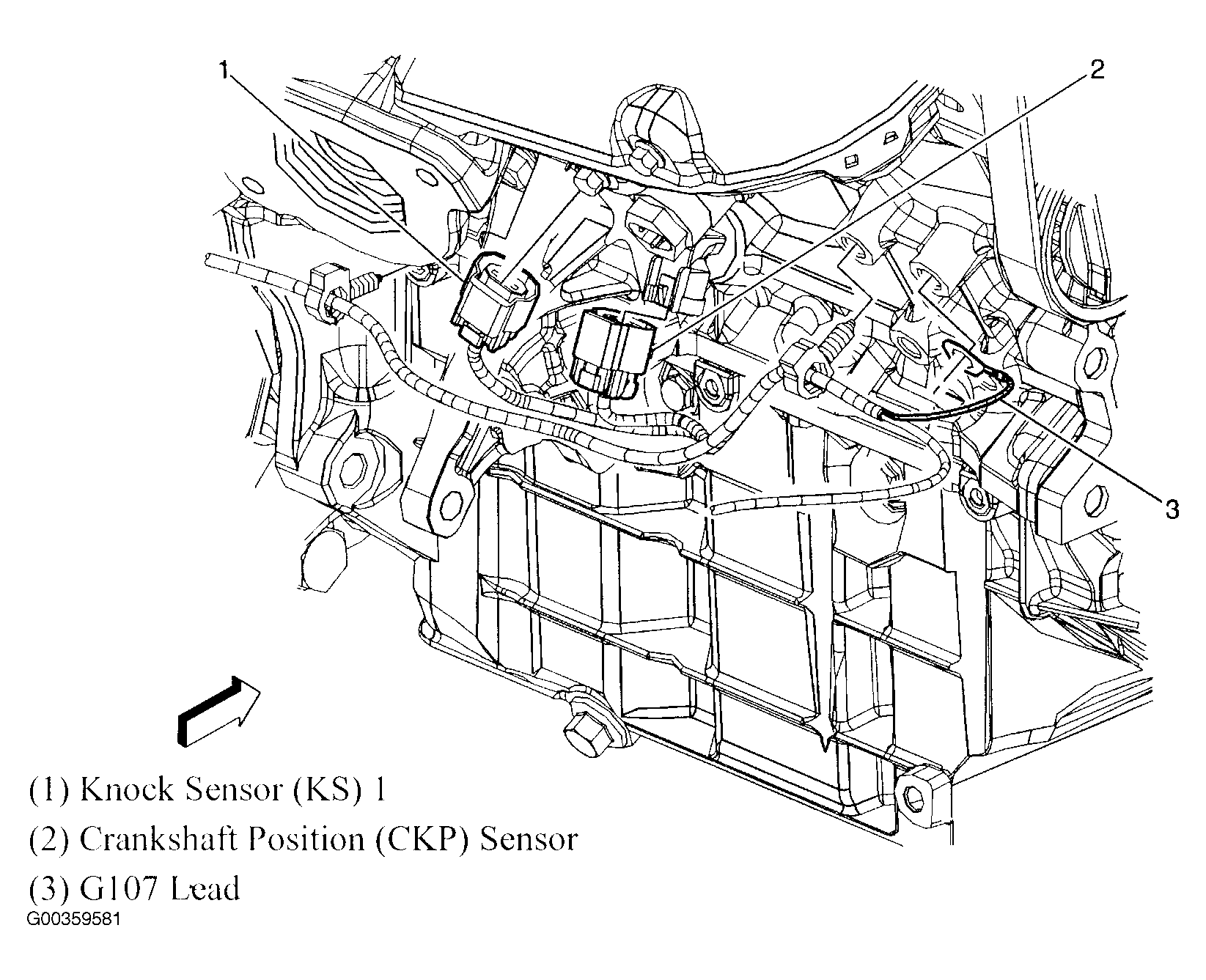

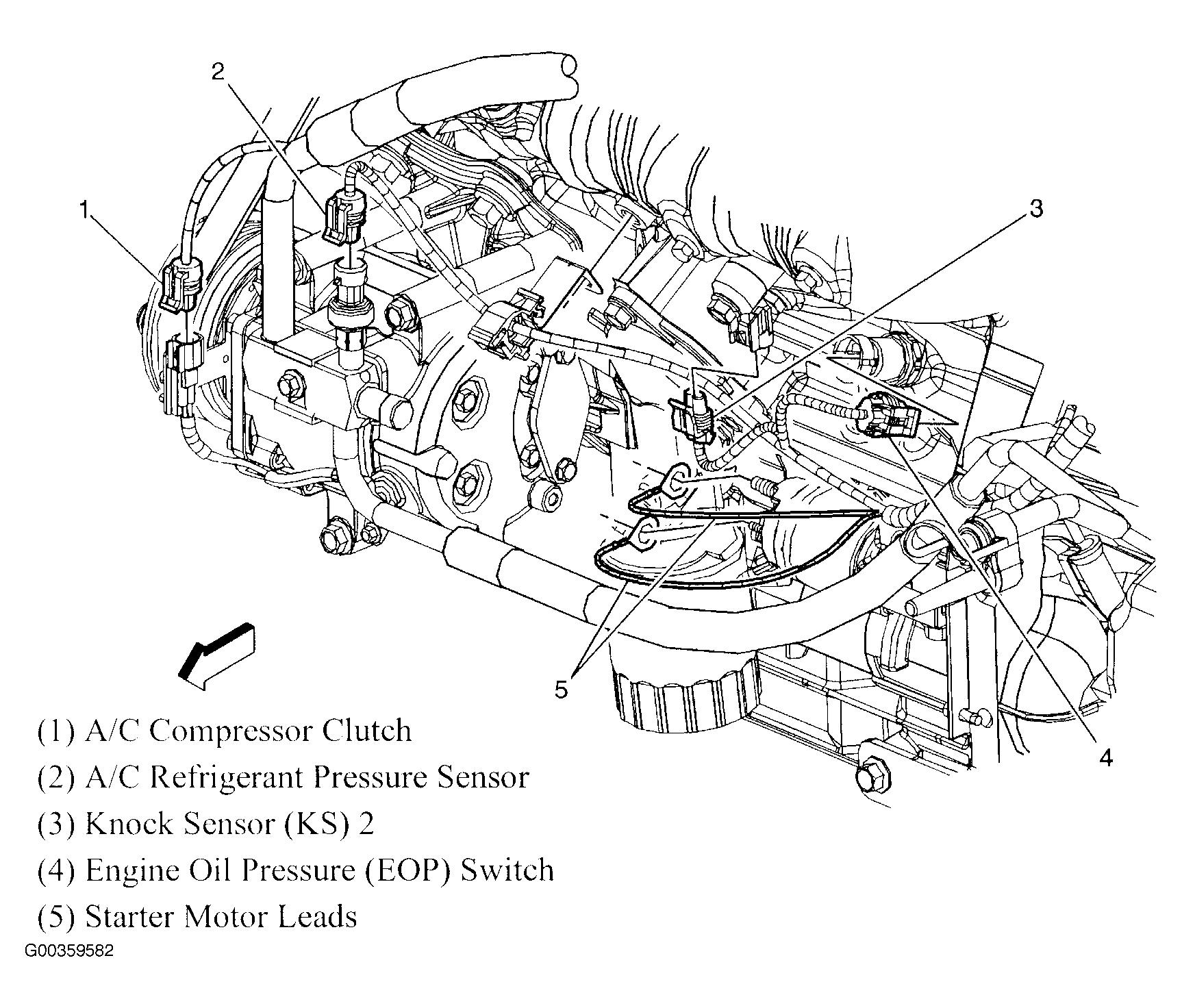

Fig 35: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 36: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 37: Top Of Transmission
Courtesy of GENERAL MOTORS CORP.

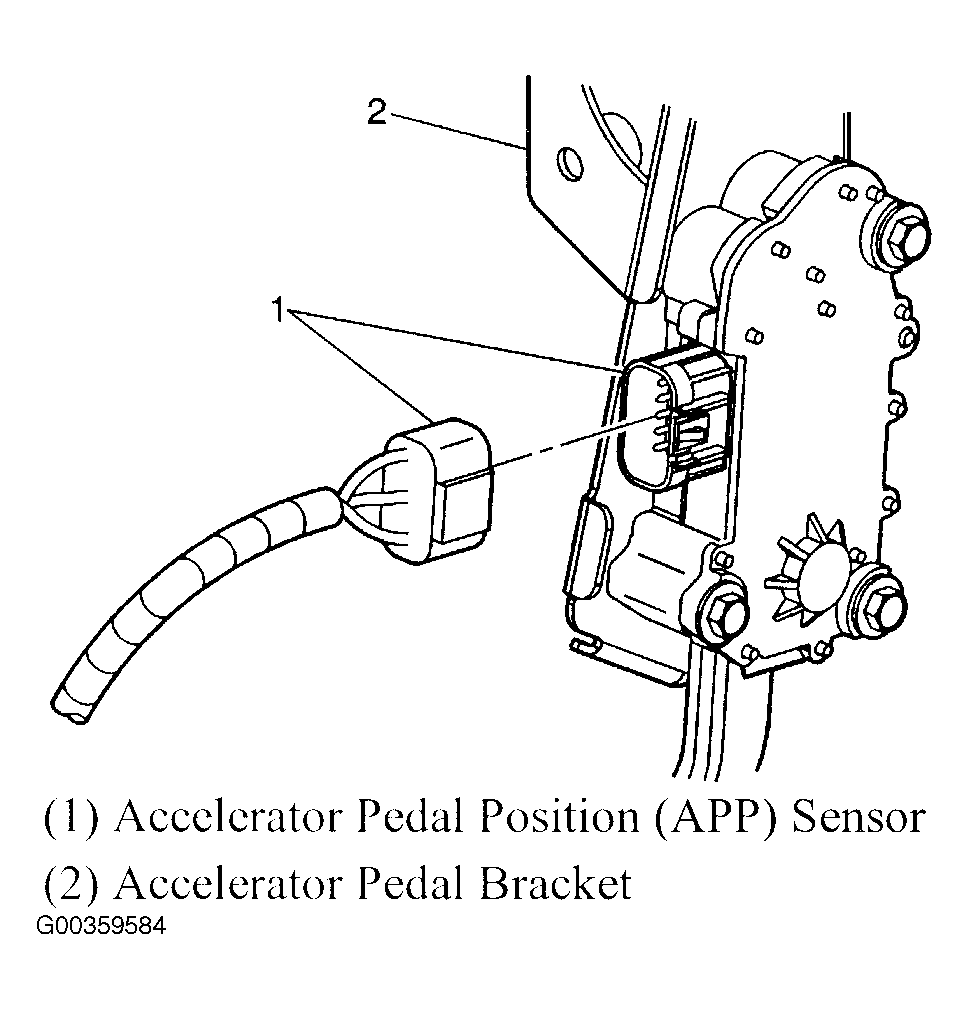

Fig 38: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

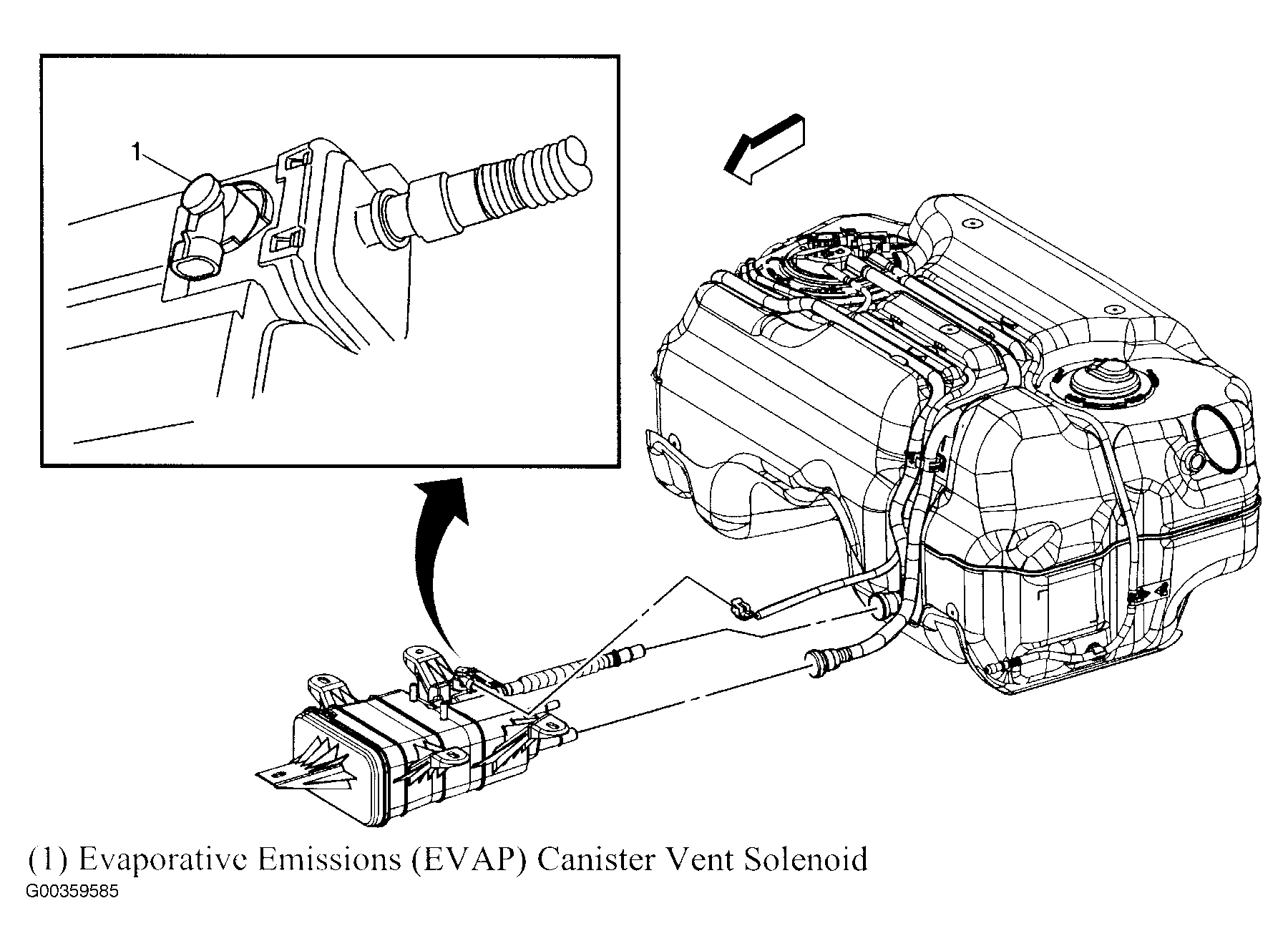

Fig 39: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 40: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

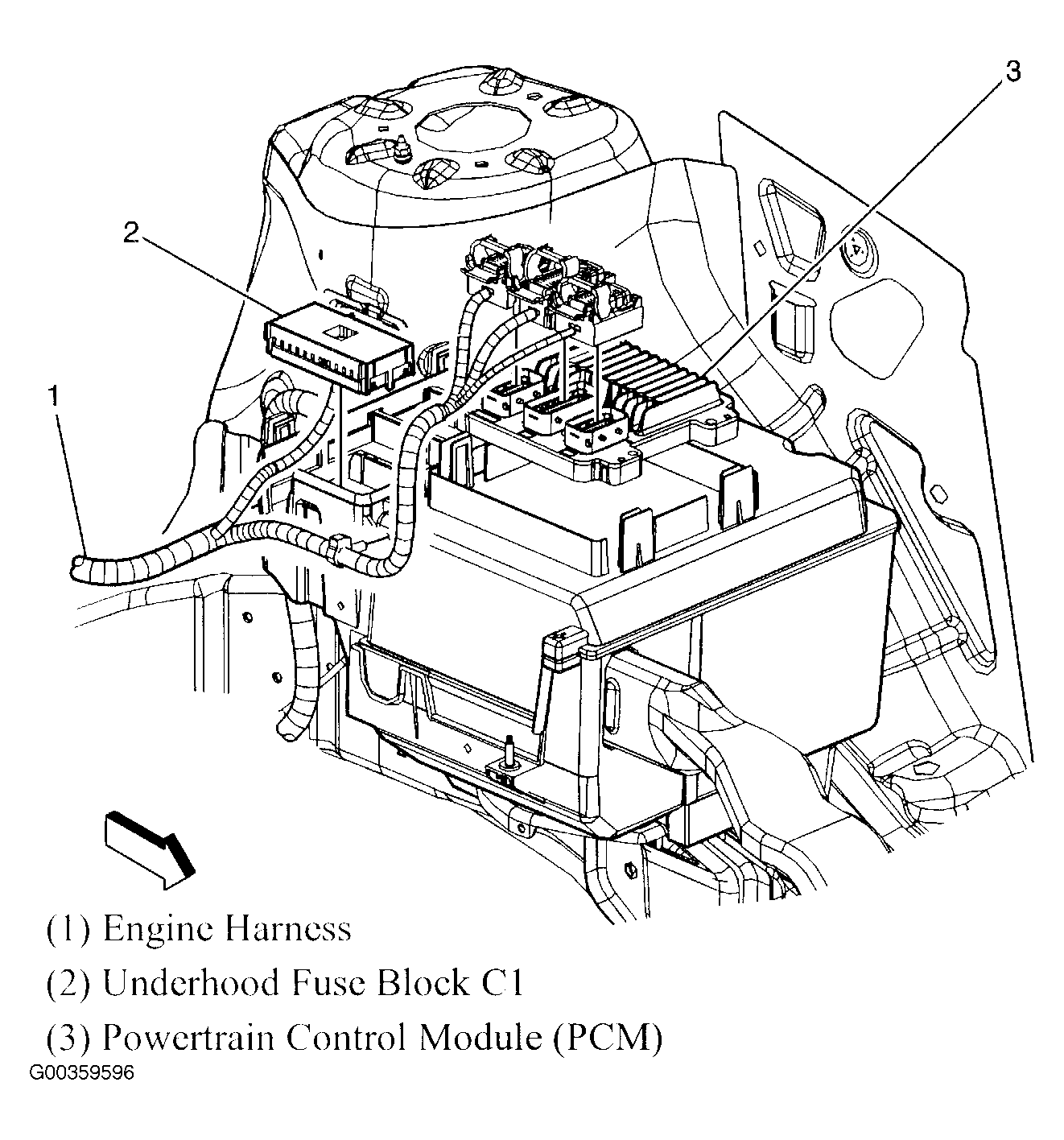

Fig 41: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

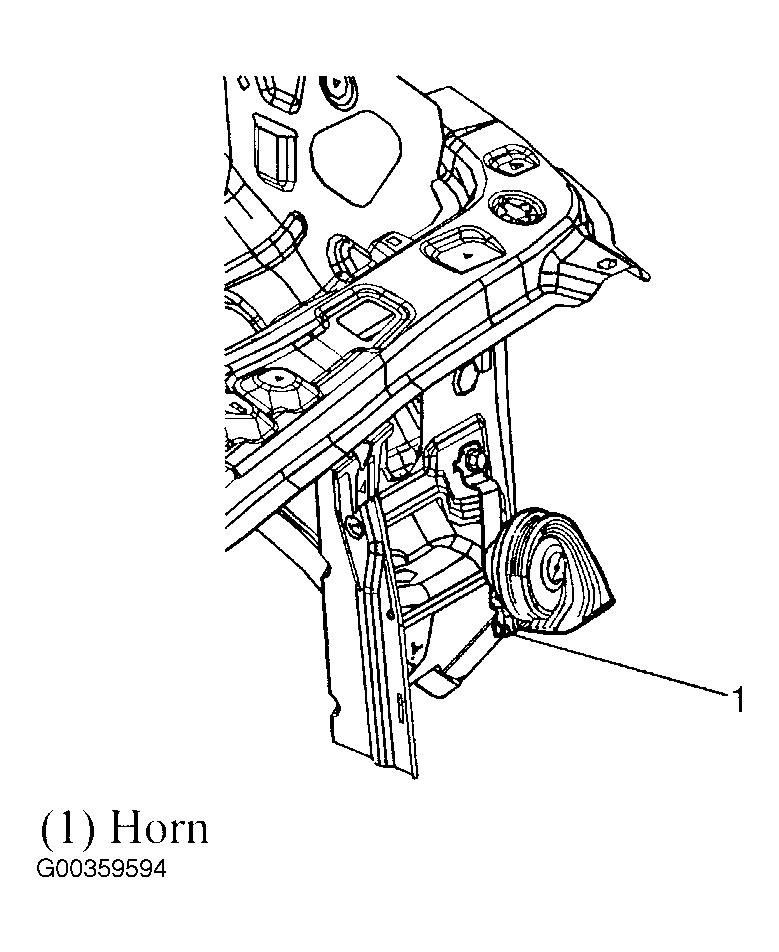

Fig 42: Behind Left Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 43: Left Front Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

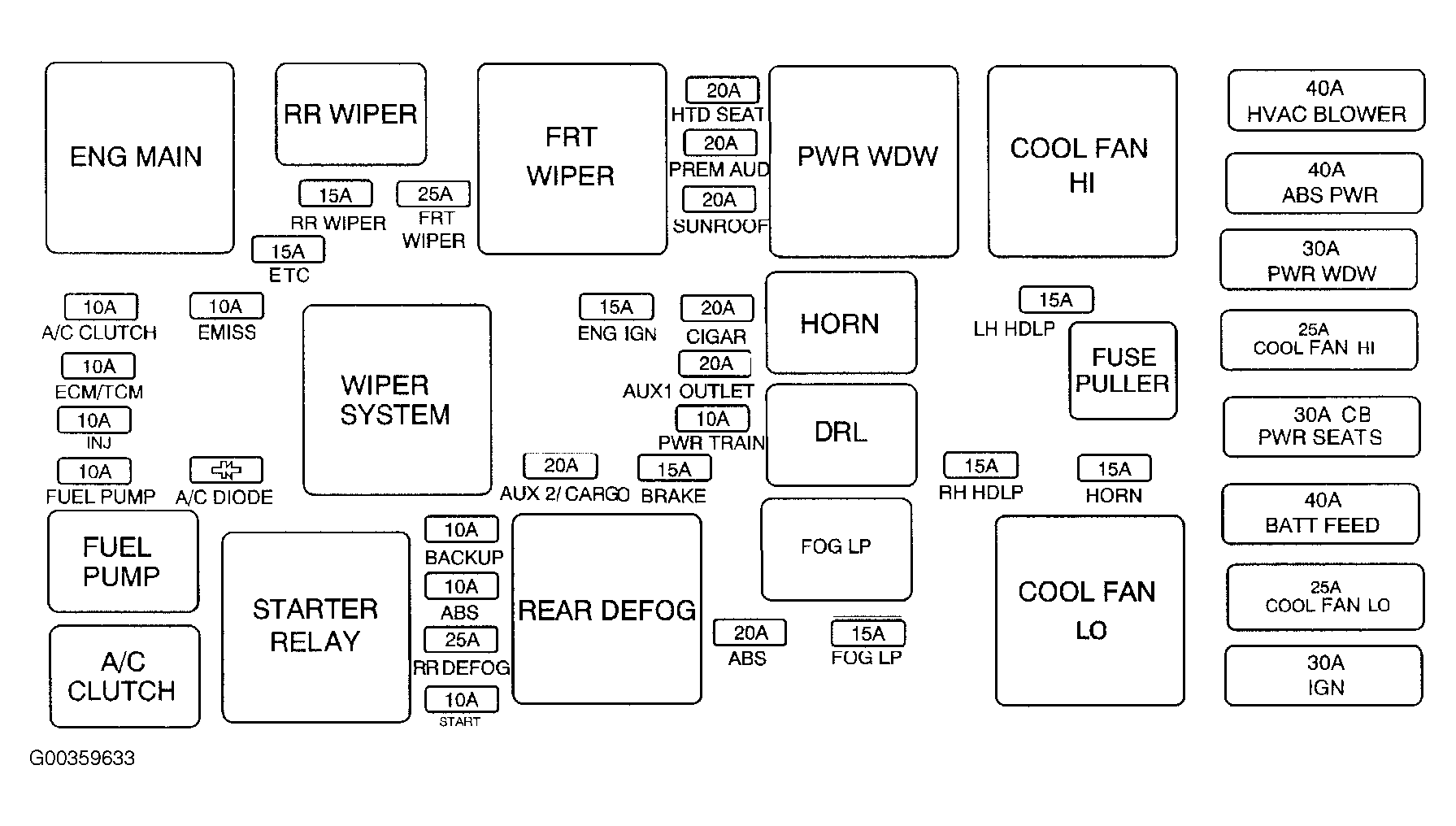

Fig 44: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

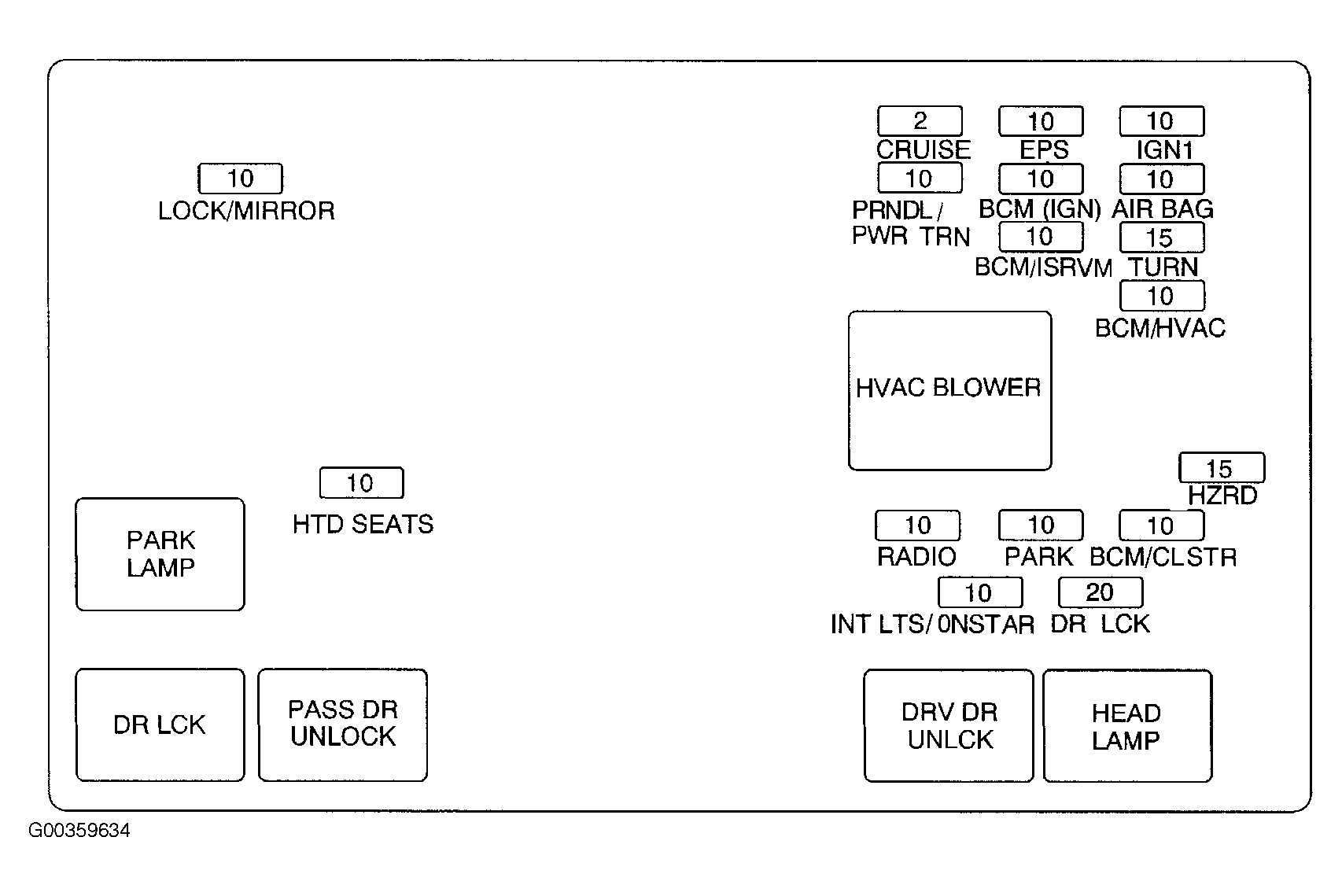

Fig 45: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.

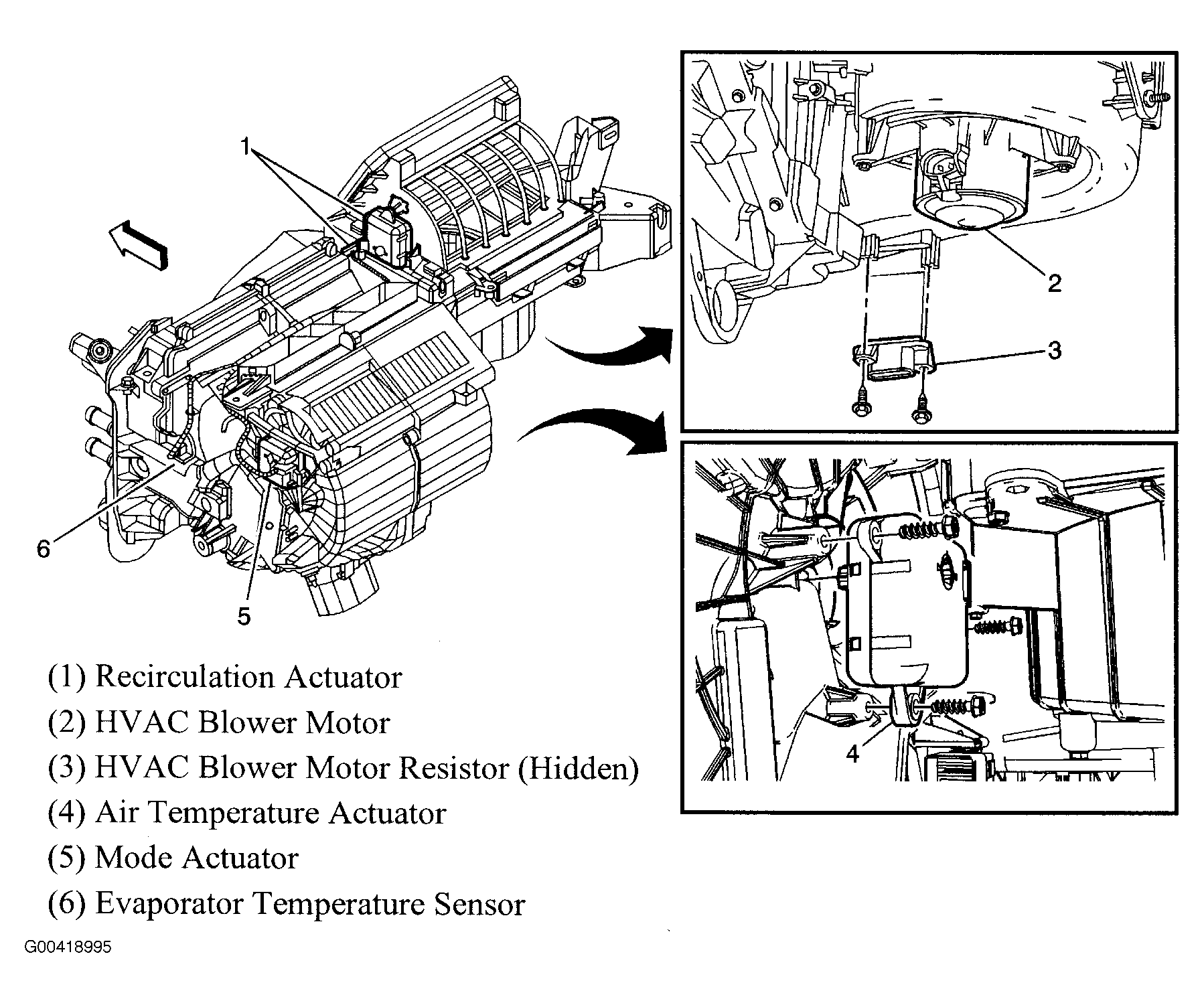

Fig 46: HVAC Module Assembly
Courtesy of GENERAL MOTORS CORP.
