Installation Procedure

  1. If applicable, install the heat shield.
    2. IMPORTANT: Ensure the stabilizer is swung in the upmost position for gear clearance.
  2. Install the steering gear from the right side of the vehicle.
    3. Fig 1: View Of Steering Gear & Steering Gear-To-Frame Bolts
    GM927957Courtesy of GENERAL MOTORS CORP.
  3. Center the gear mounting bushings into the cradle supports.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Hand start both steering gear to cradle mounting bolts.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

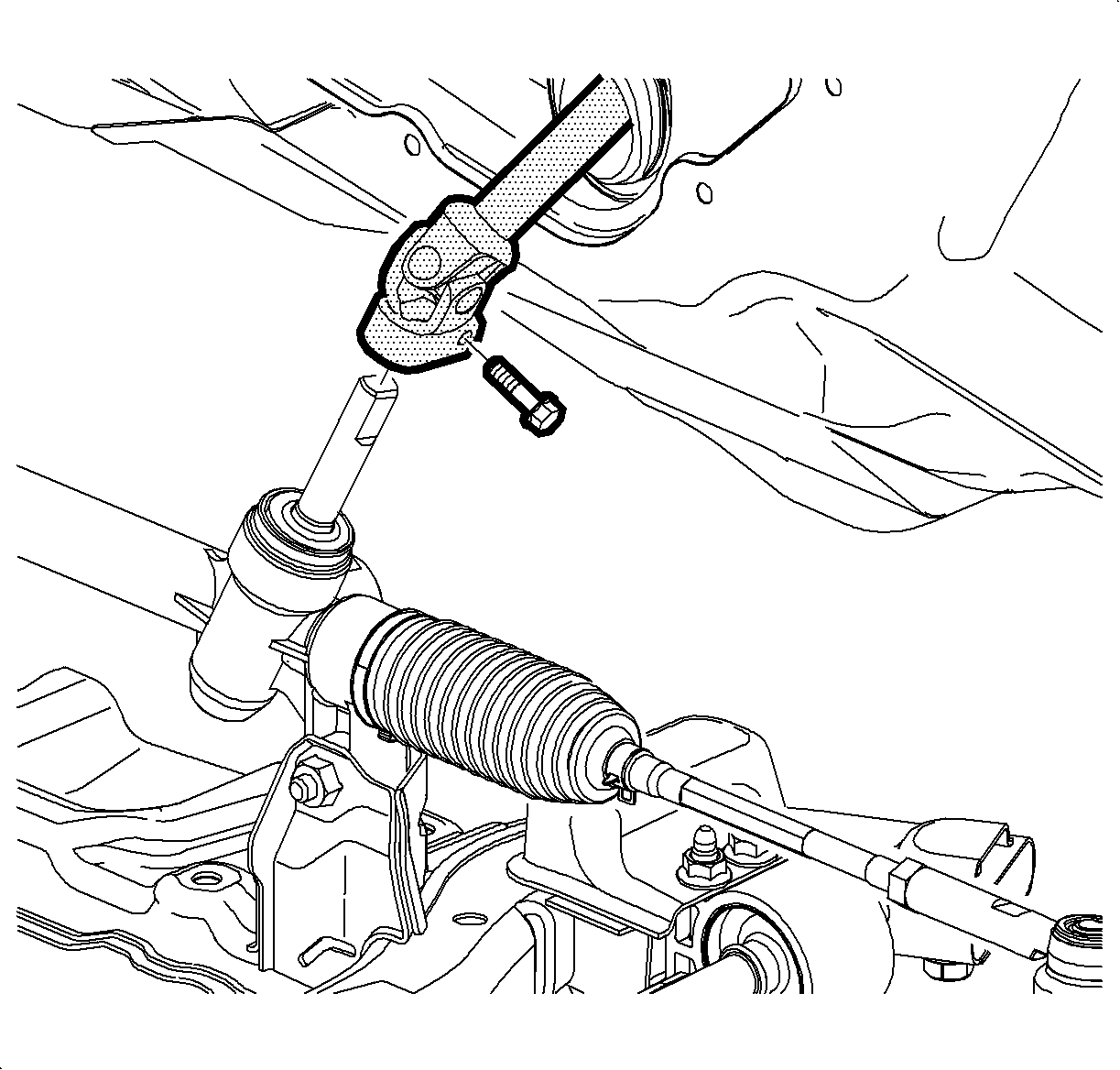

    5. Fig 2: Removing/Installing Steering Shaft To Intermediate Shaft
    GM927947Courtesy of GENERAL MOTORS CORP.
  5. Connect the intermediate shaft to the steering gear and install a new pinch bolt.

    Tighten:  Tighten the intermediate pinch bolt to 34 N.m (25 lb ft).

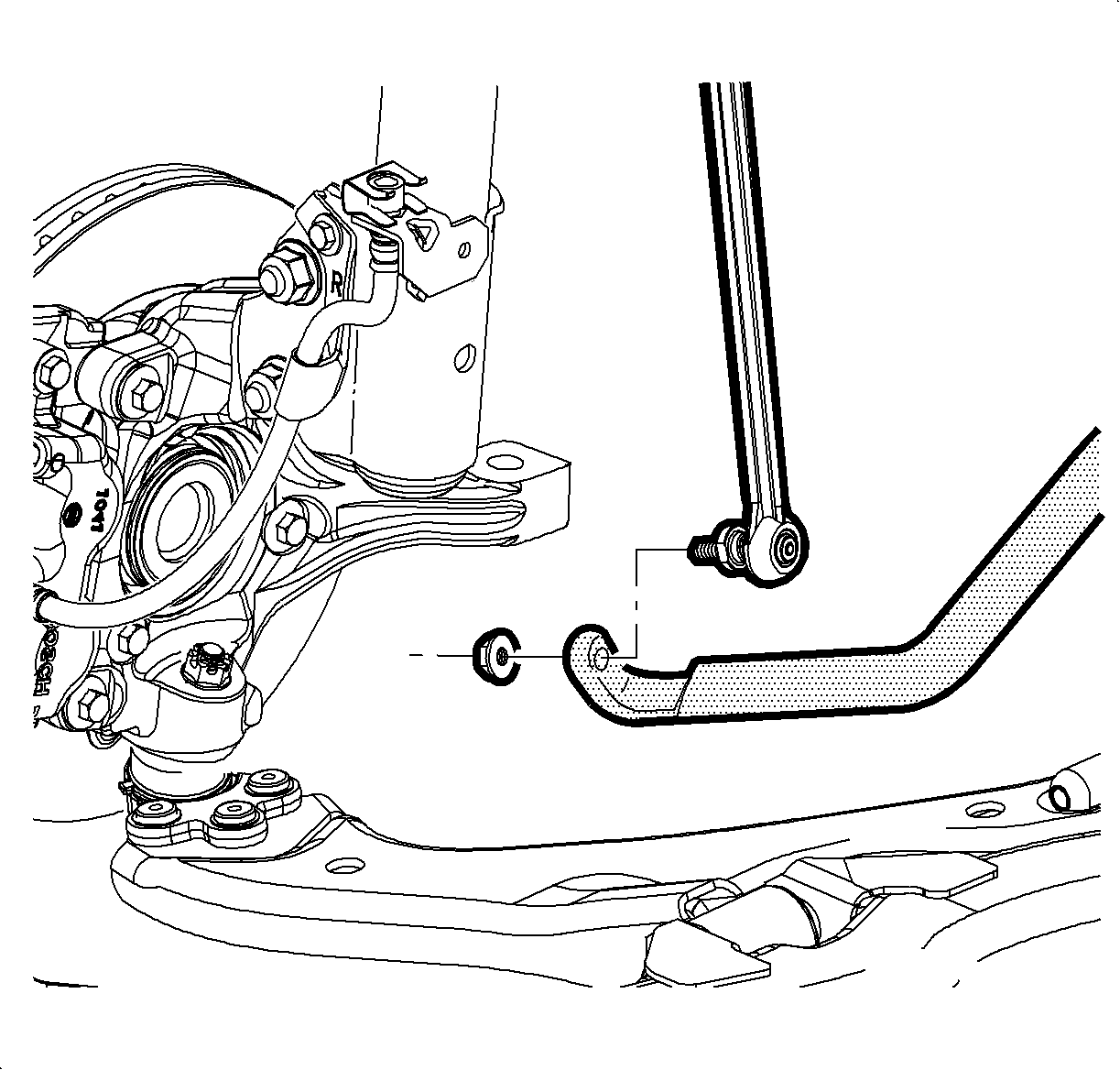

    6. Fig 3: View Of Stabilizer Shaft & Link
    GM927949Courtesy of GENERAL MOTORS CORP.
  6. Connect the stabilizer links to the stabilizer bar. Refer to Stabilizer Shaft Link Replacement in Front Suspension.
    7. Fig 4: View Of Tie Rod End To Steering Knuckle
    GM854972Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Hold the ball stud to prevent turning during installation of the nut.
  7. Connect the tie rod to the knuckle and install a new nut.

    Tighten:  Tighten the nut to 60 N.m (44 lb ft).

  8. Install the front tires and wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  9. Check the front wheel alignment and align as necessary. Refer to Measuring Wheel Alignment in Wheel Alignment.
  10. Lower the vehicle.
