Installation Procedure

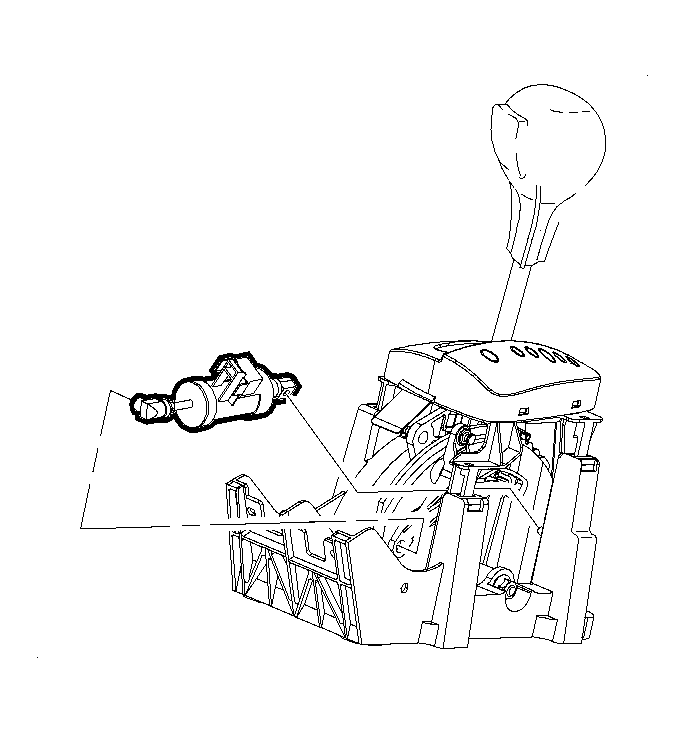

    Fig 1: Brake Transaxle Shift Interlock Solenoid
    GM944074Courtesy of GENERAL MOTORS CORP.
  1. Install the solenoid onto the shift control assembly. Connect the plastic retainers at the solenoid base and at the park lock lever.
  2. Connect the BTSI solenoid harness connector.
  3. Install the shift control assembly. Refer to Shift Control Replacement .
