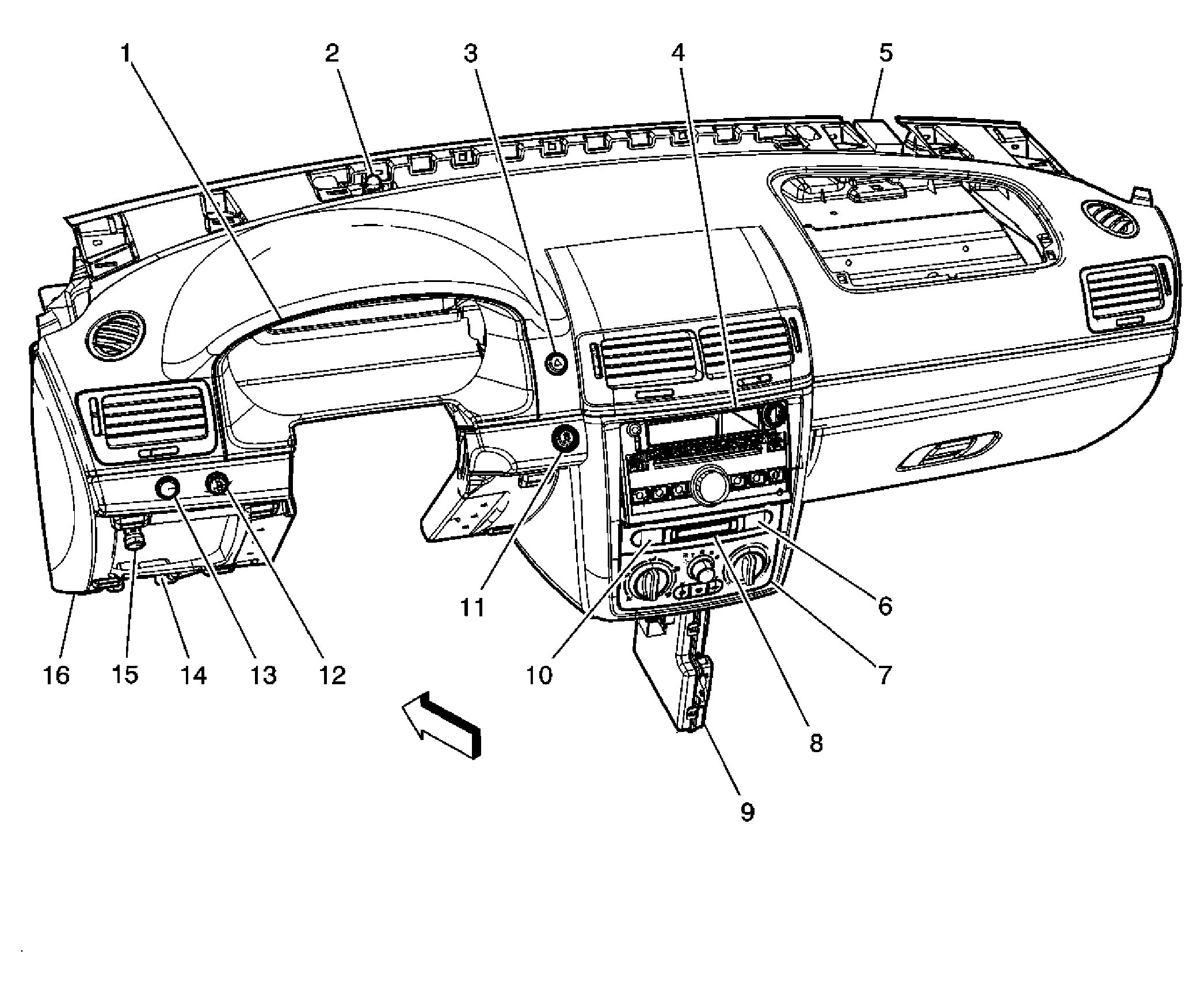

Remote Function Component Views
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Ambient Light Sensor |
| 3 | Hazard Switch |
| 4 | Radio |
| 5 | Remote Control Door Lock Receiver (RCDLR) (AUO) |
| 6 | Heated Seat Switch - Passenger (KA1) |
| 7 | HVAC Control Module |
| 8 | Body Control Module (BCM) |
| 9 | Heated Seat Switch - Driver (KA1) |
| 10 | I/P Dimmer Switch |
| 11 | Fog Lamp Switch (T37) |
| 12 | Data Link Connector (DLC) |
| 13 | Rear Compartment Lid Release Switch |
| 14 | I/P Trim |
