Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

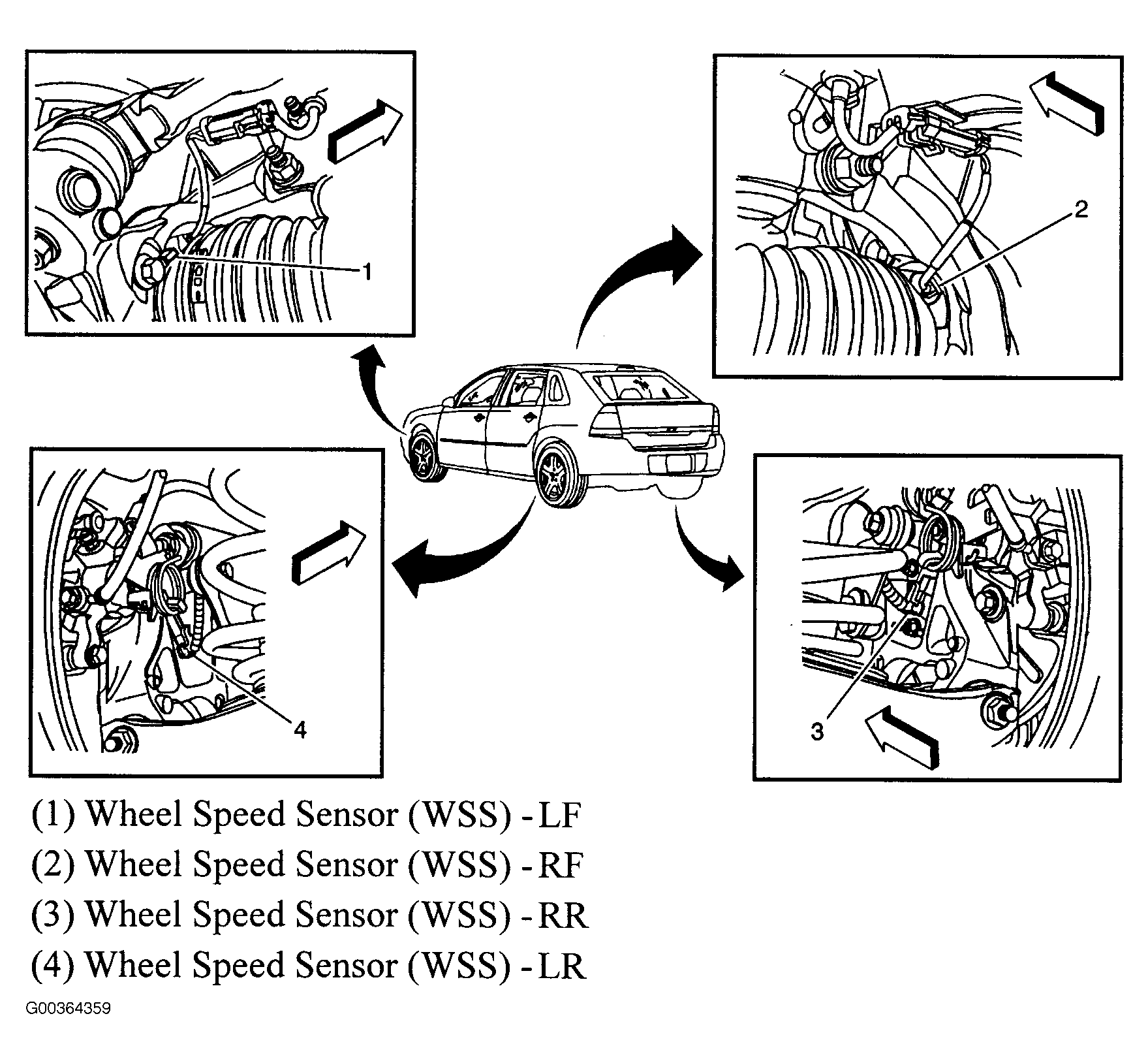

Fig 1: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

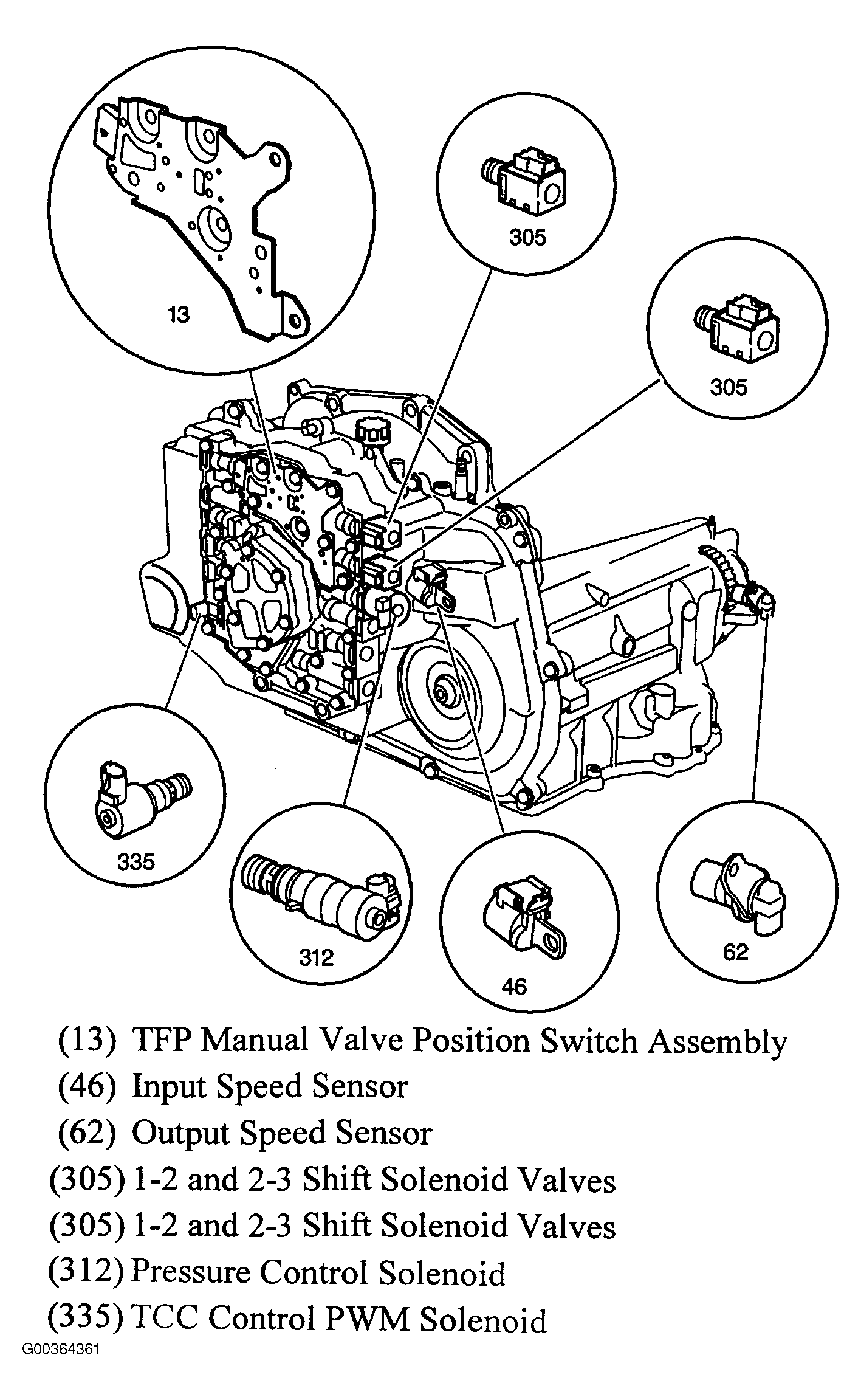

Fig 3: Automatic Transmission Electronic Component Views
Courtesy of GENERAL MOTORS CORP.

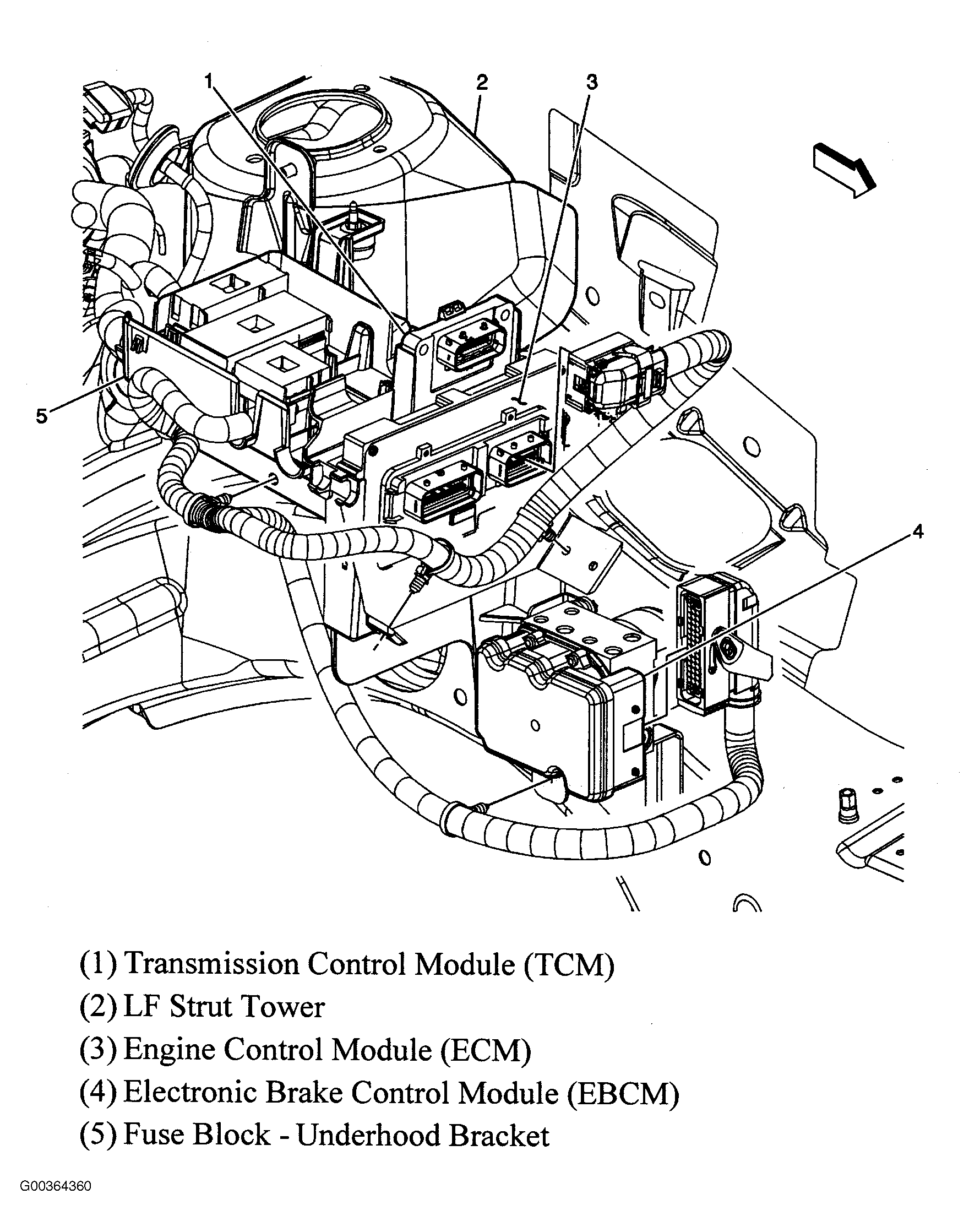

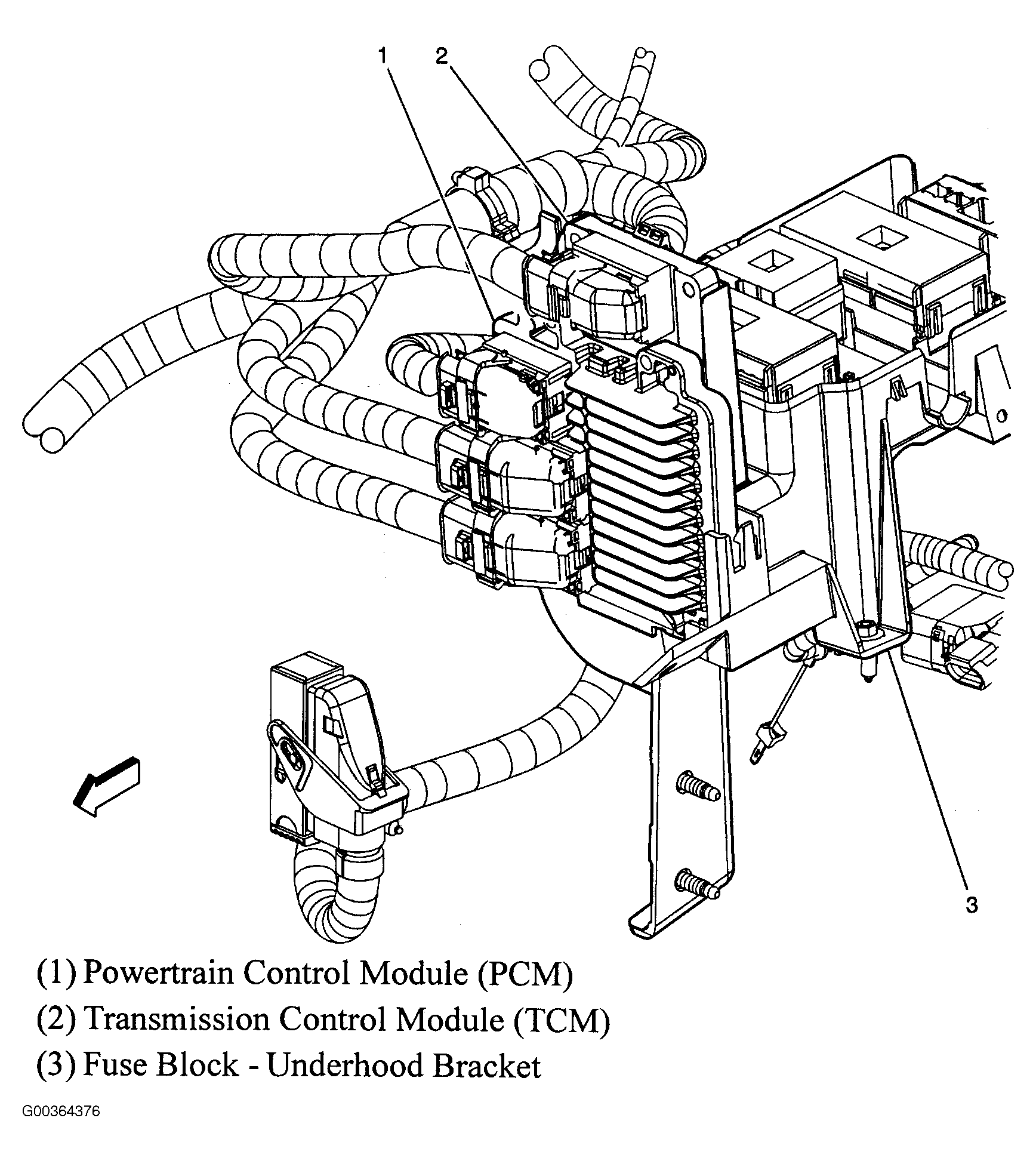

Fig 4: Engine & Transmission Modules
Courtesy of GENERAL MOTORS CORP.
Fig 5: Top Of Transmission (2.0L)
Courtesy of GENERAL MOTORS CORP.

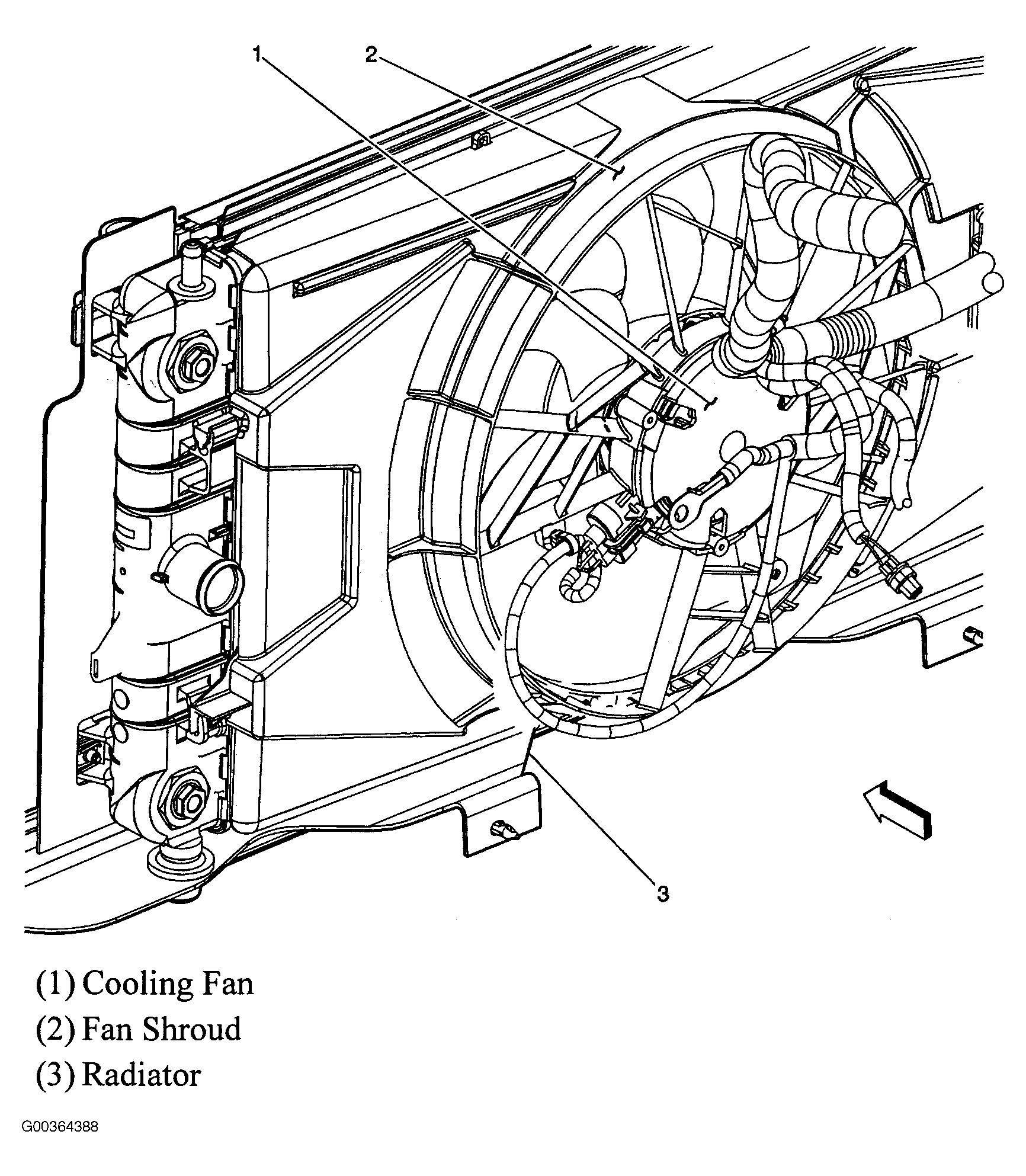

Fig 6: Cooling Fan (2.2L)
Courtesy of GENERAL MOTORS CORP.

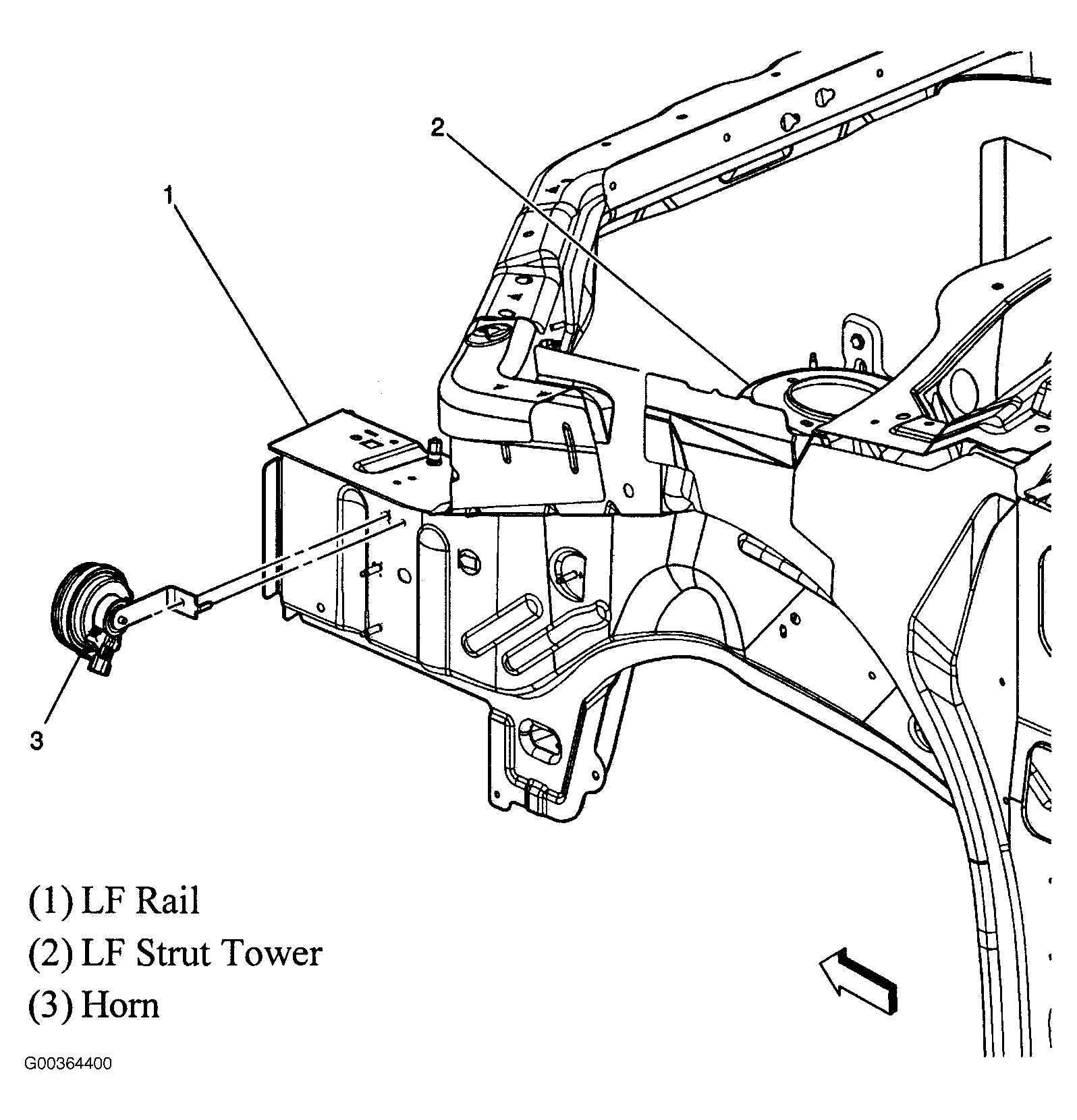

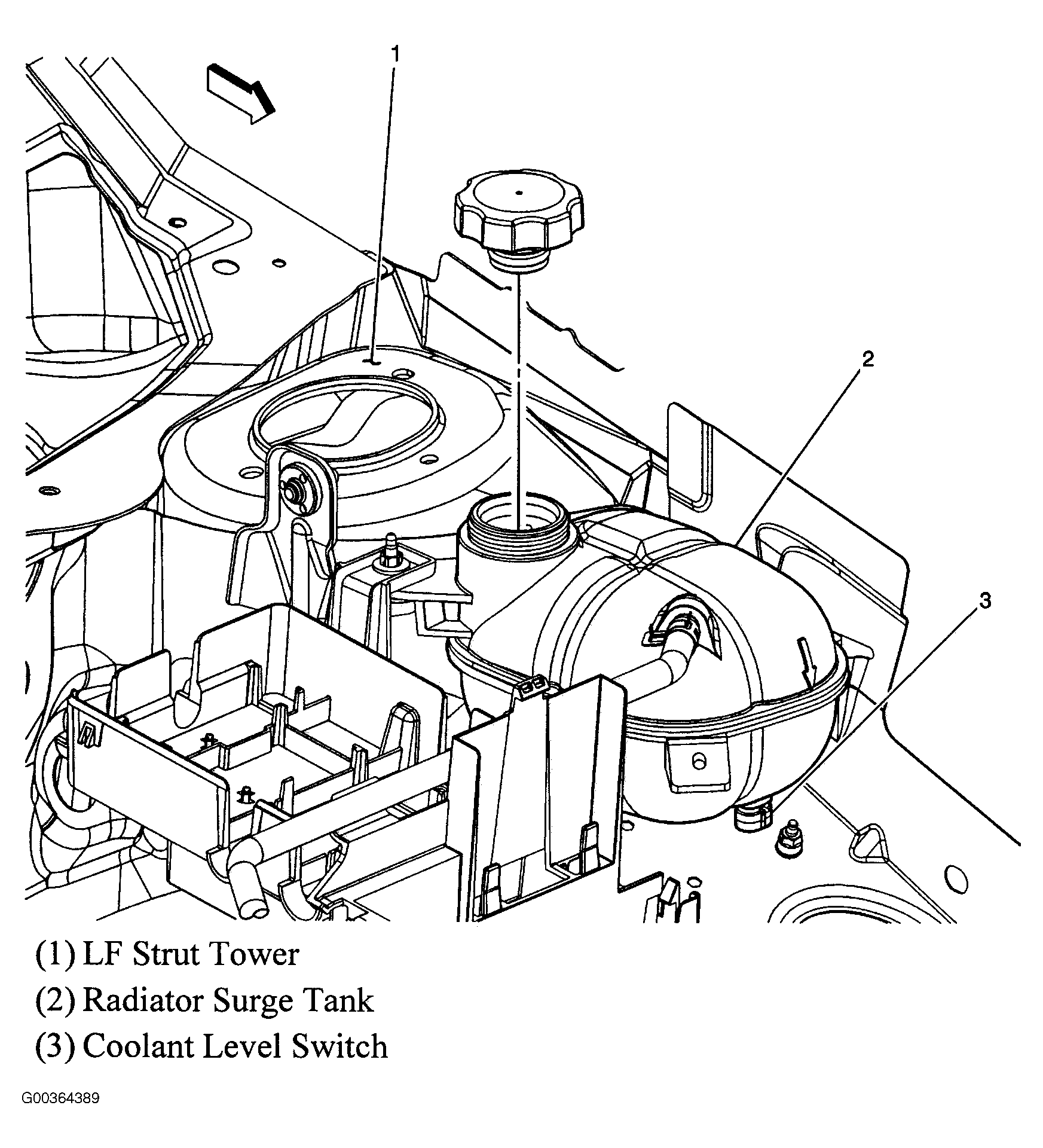

Fig 7: Left Front Strut Tower
Courtesy of GENERAL MOTORS CORP.

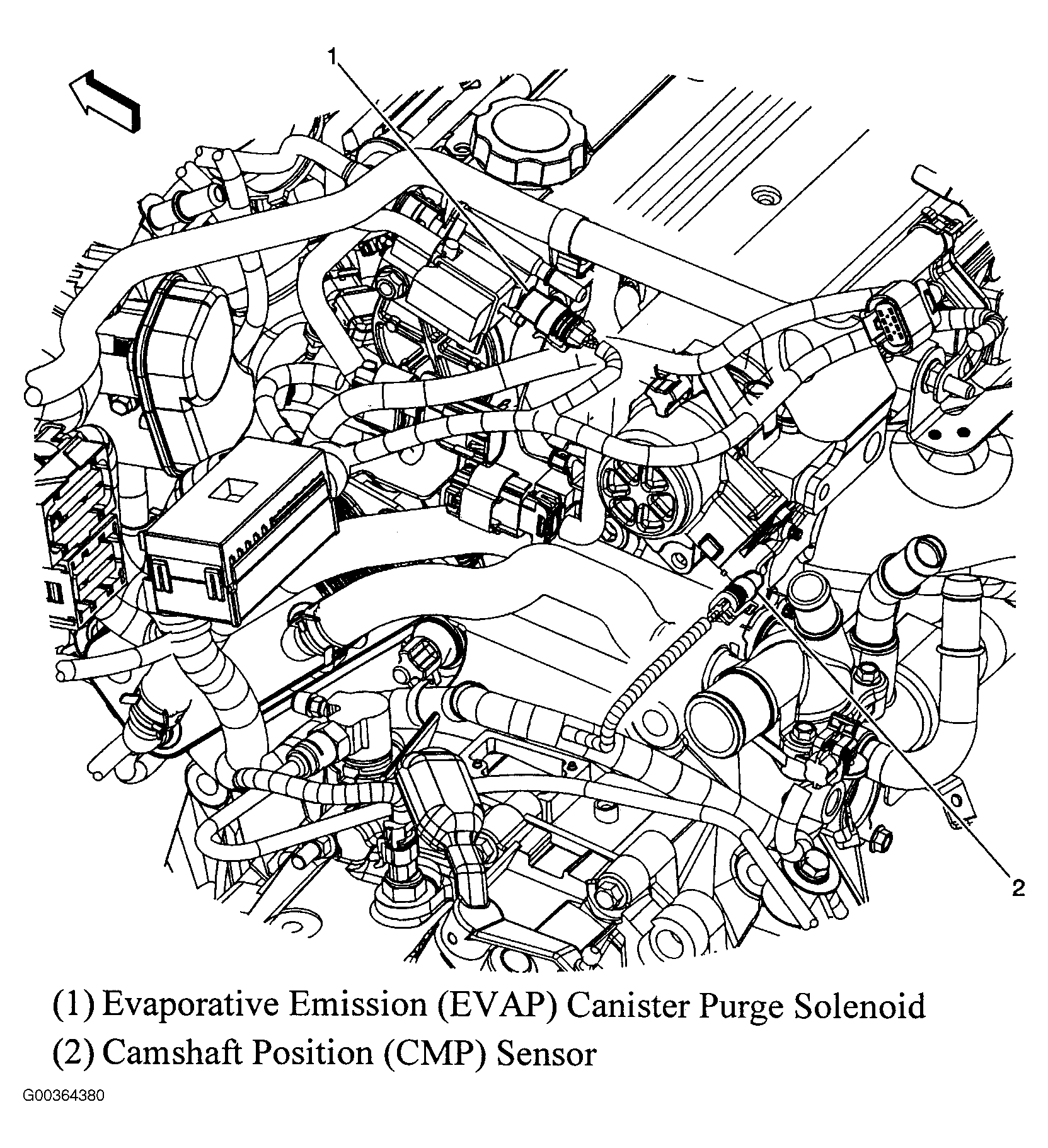

Fig 8: Left Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

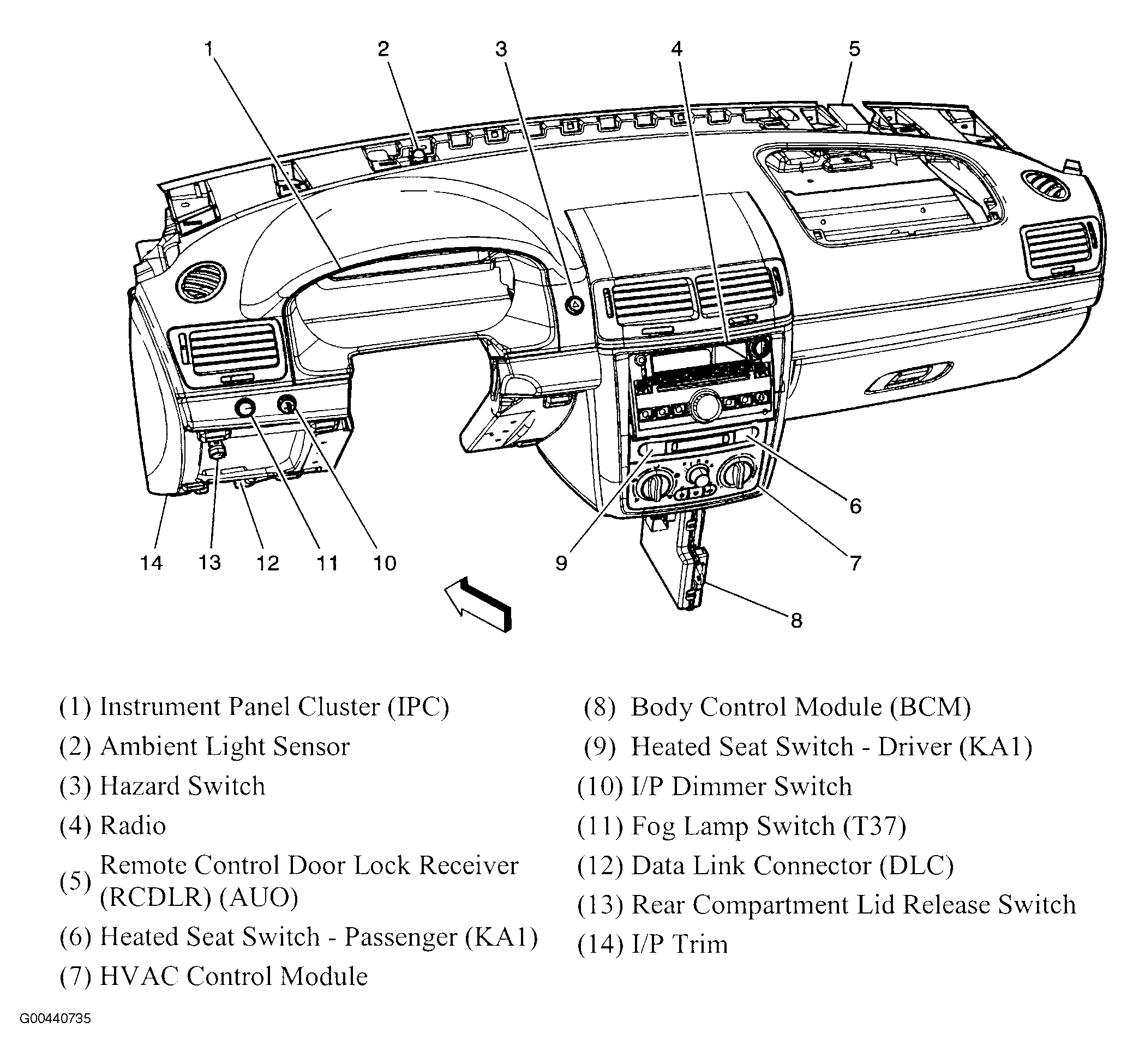

Fig 9: Interior Overview
Courtesy of GENERAL MOTORS CORP.

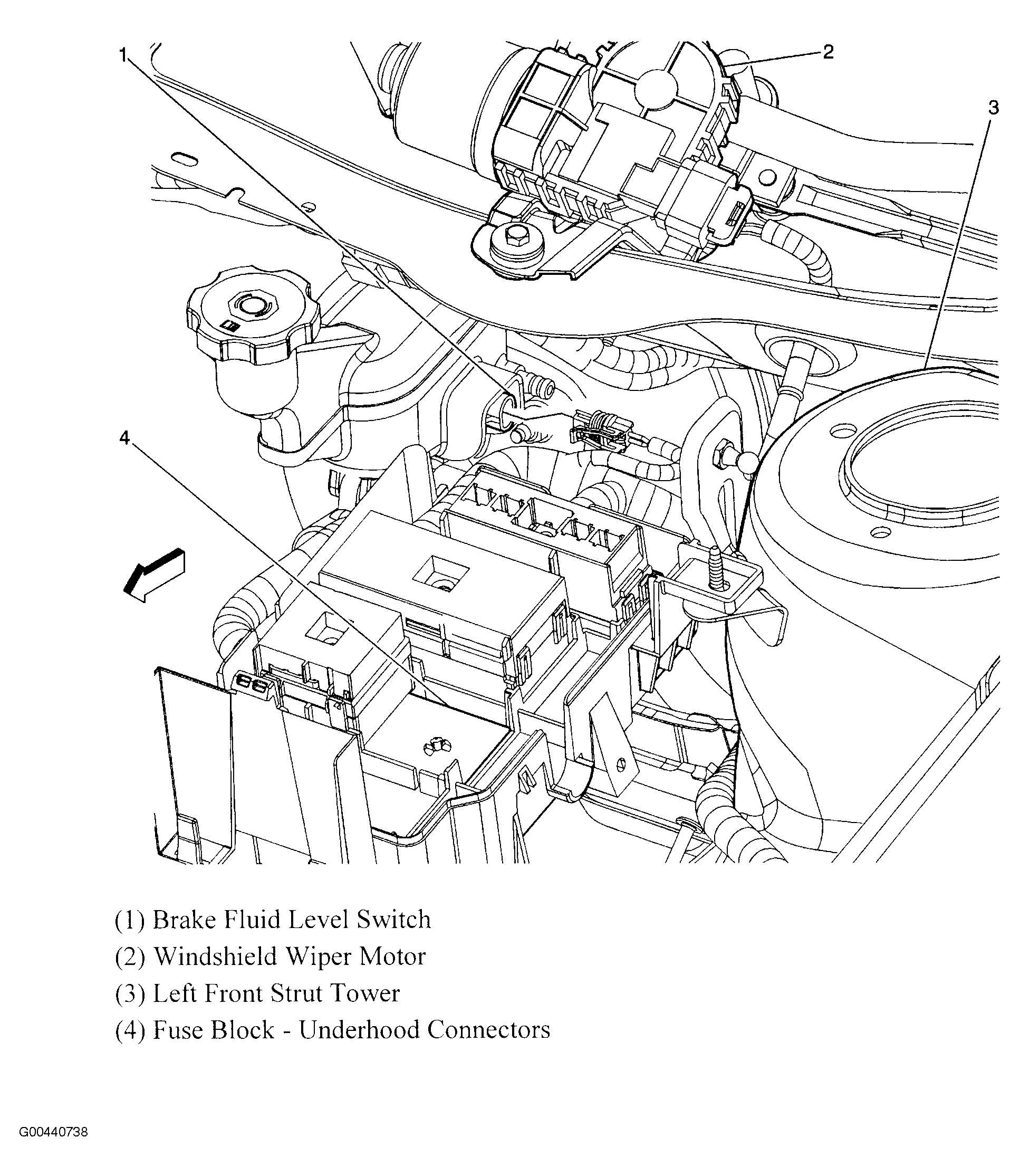

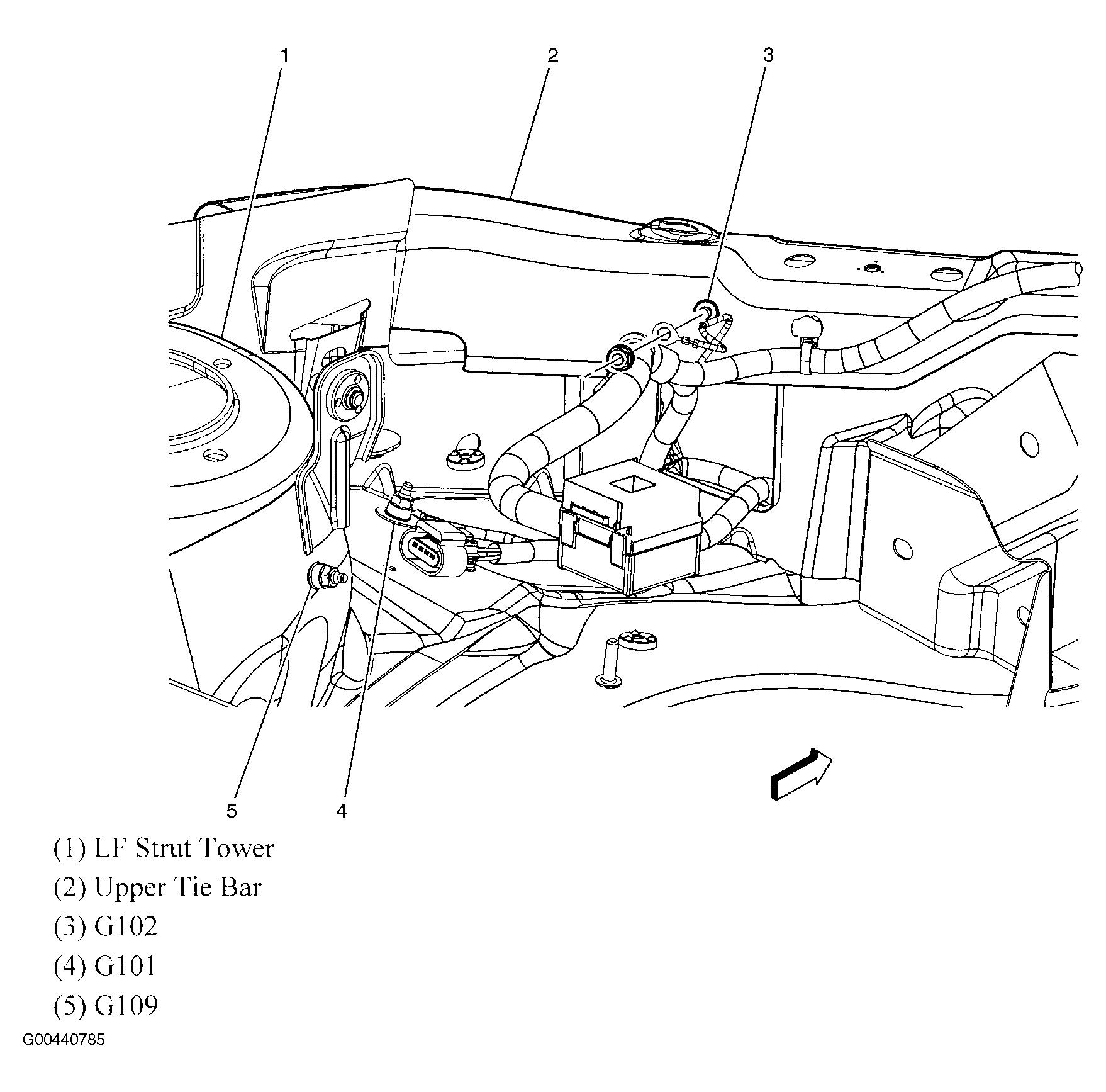

Fig 10: Left Front Strut Tower
Courtesy of GENERAL MOTORS CORP.

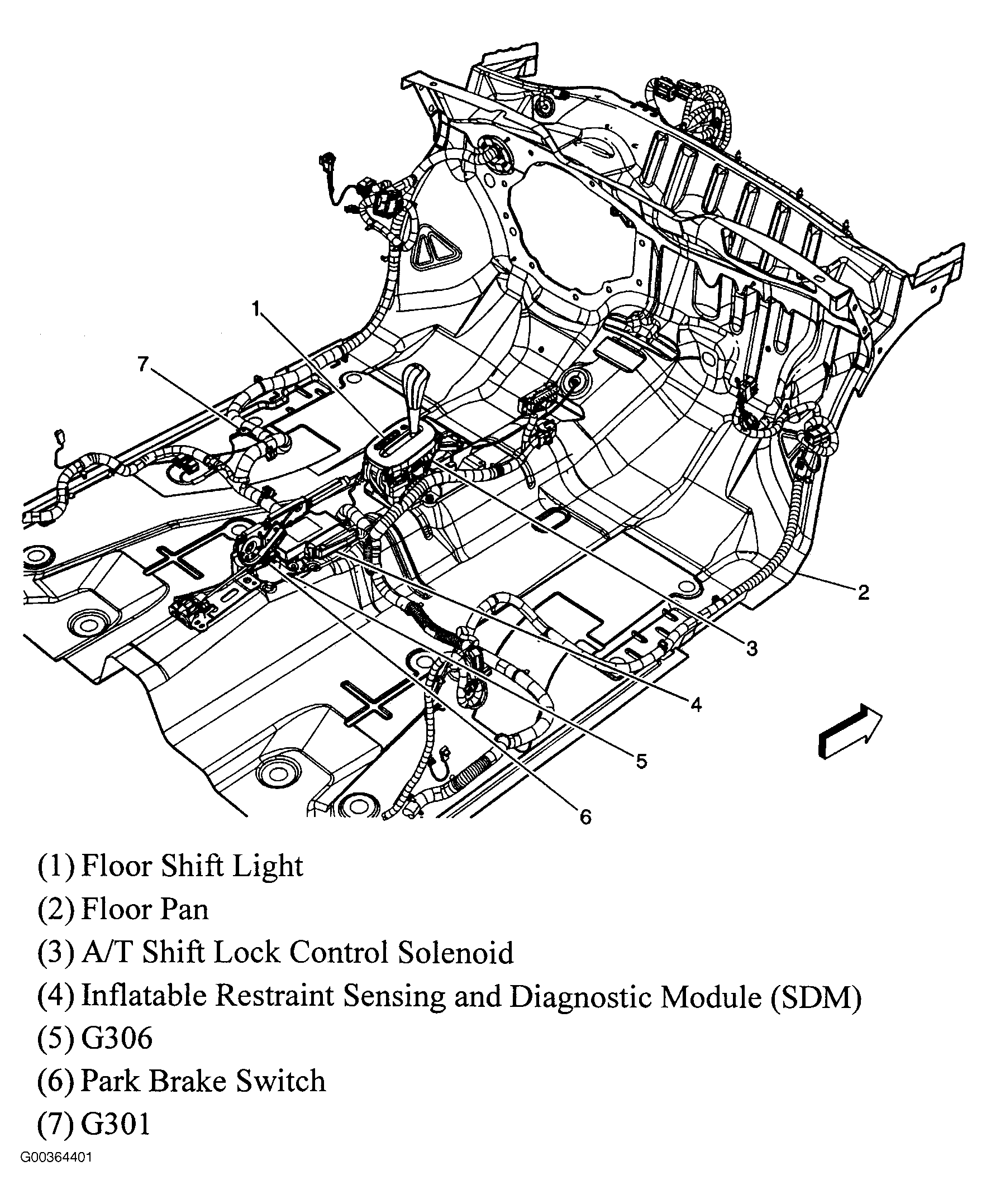

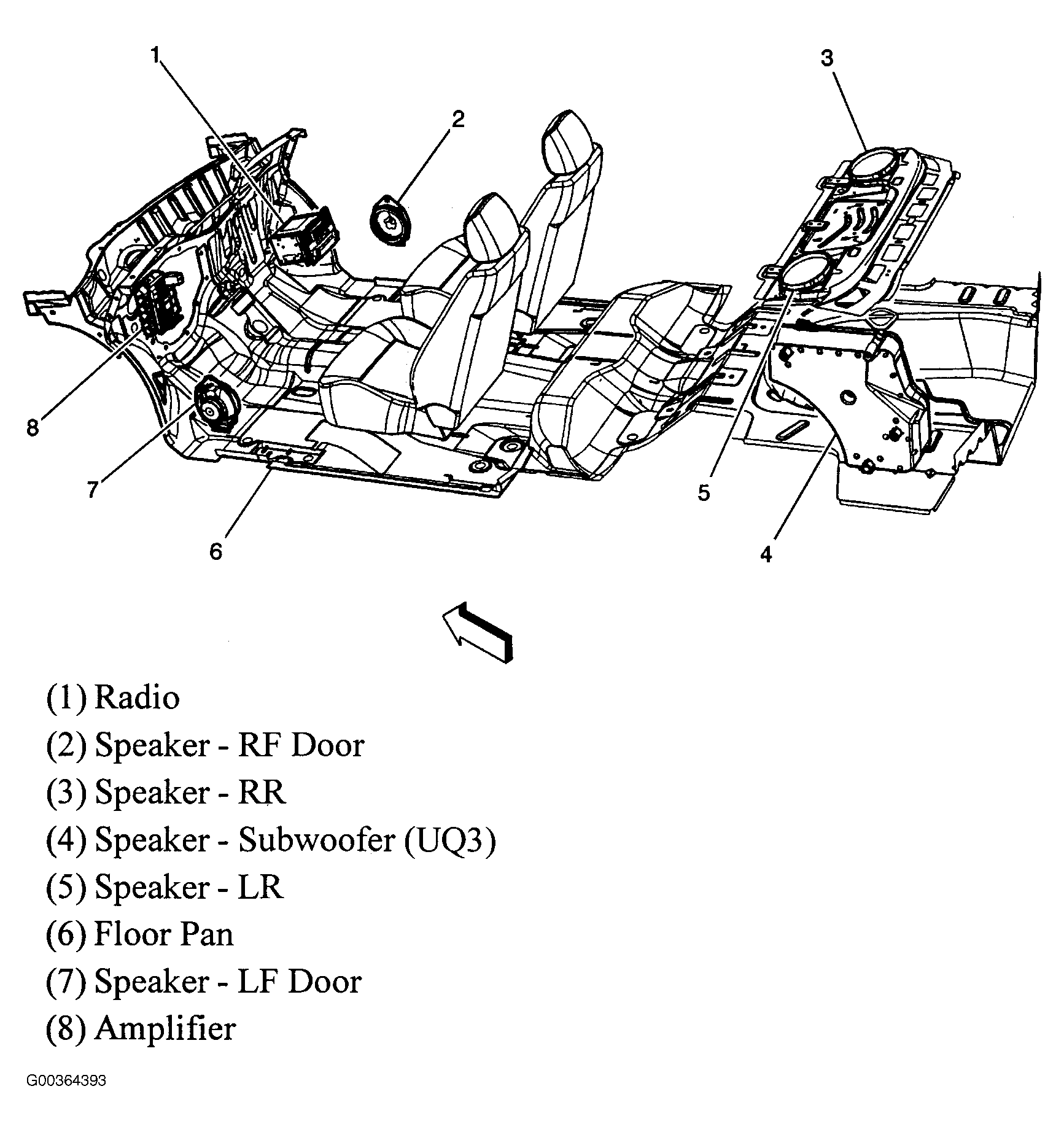

Fig 11: Floor Pan
Courtesy of GENERAL MOTORS CORP.

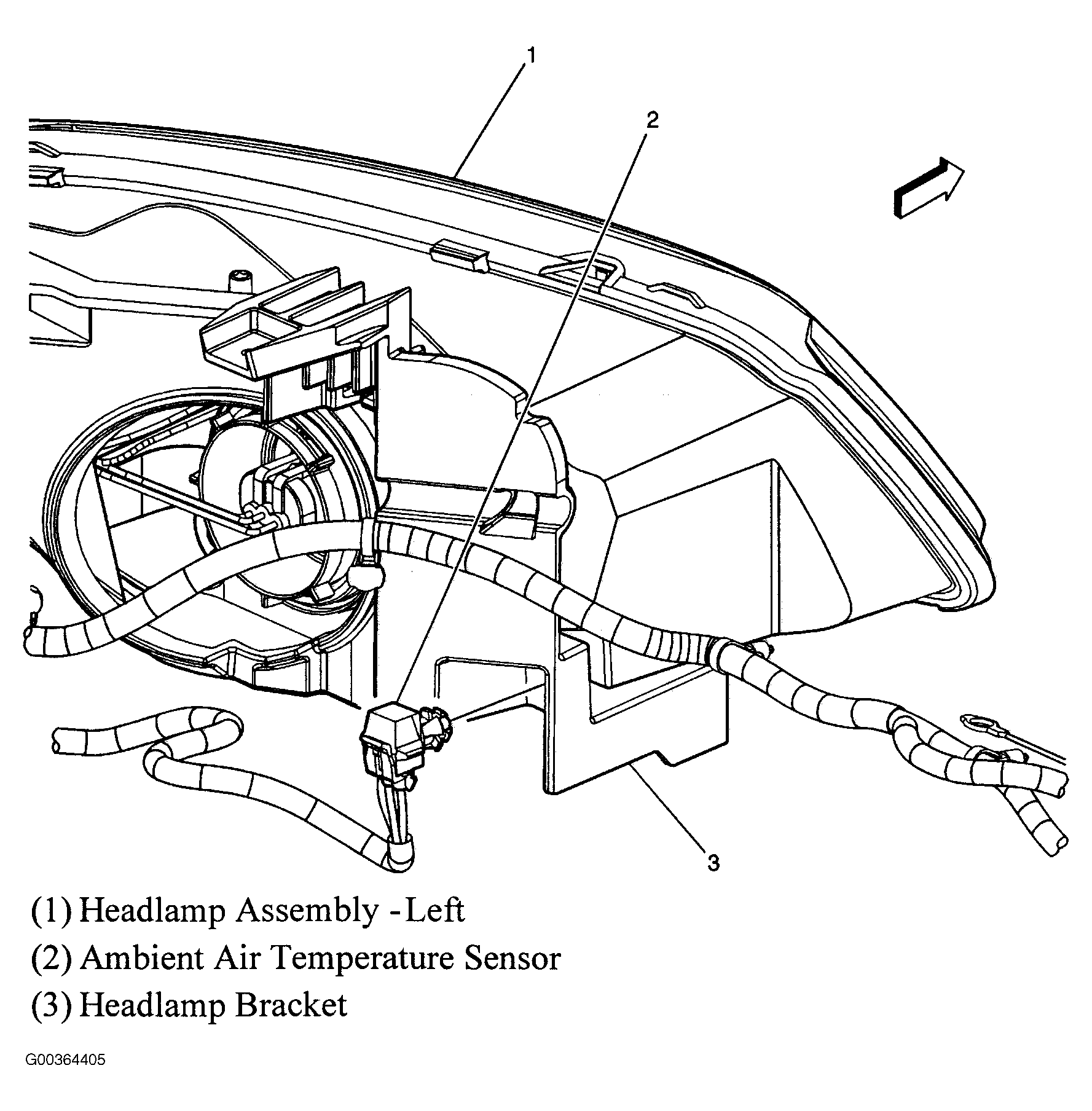

Fig 12: Ambient Air Temperature Sensor
Courtesy of GENERAL MOTORS CORP.

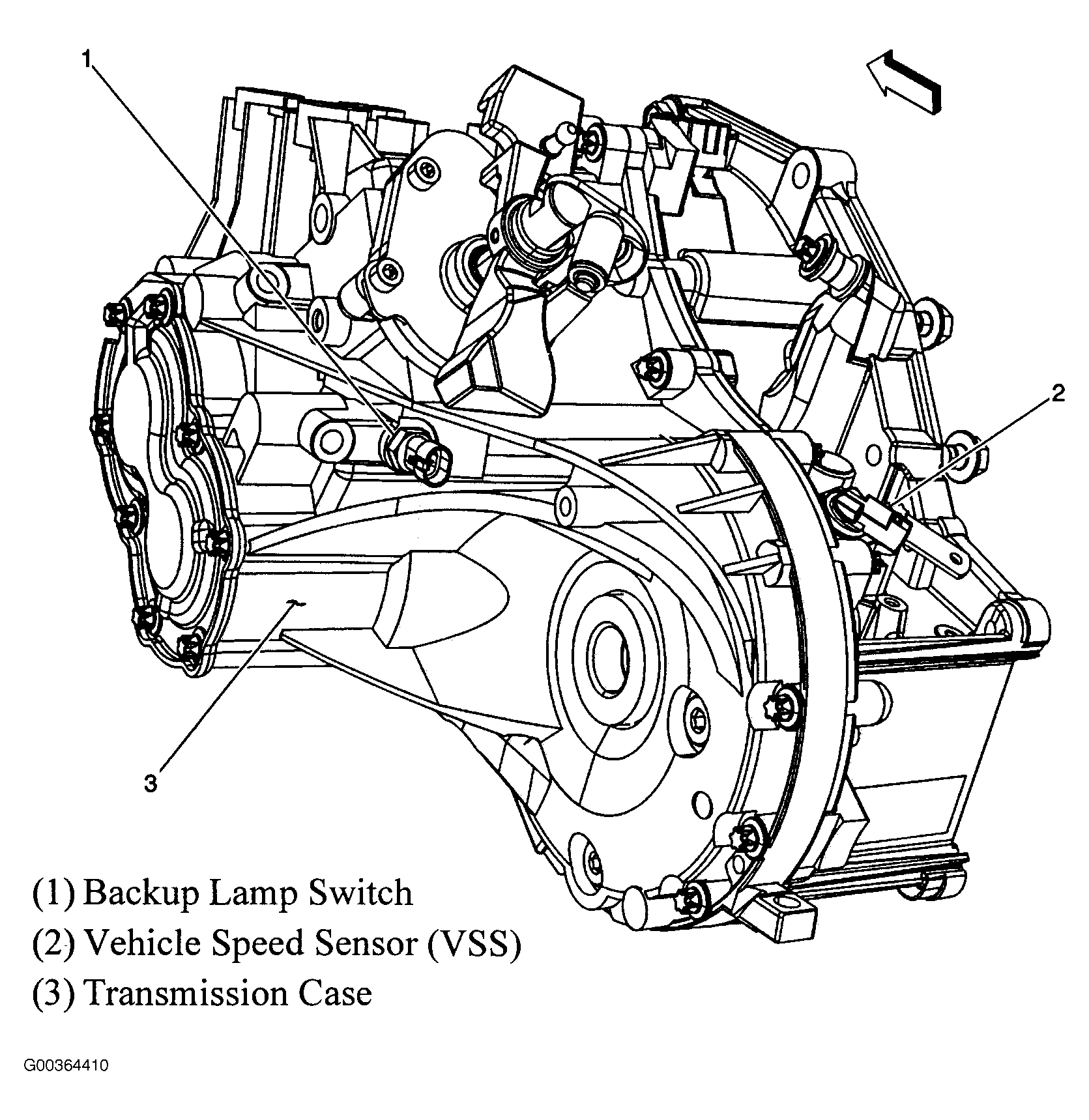

Fig 13: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.

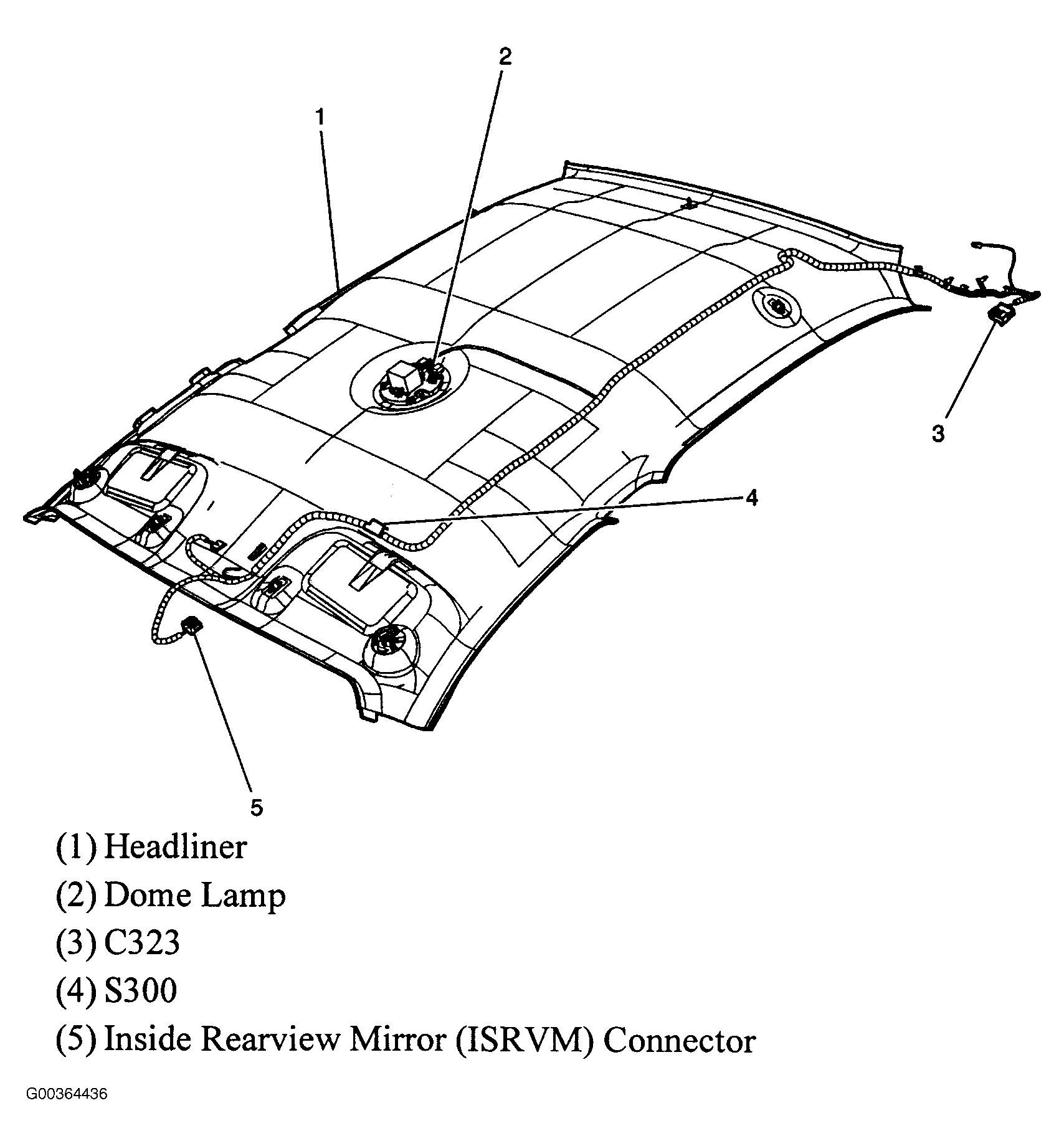

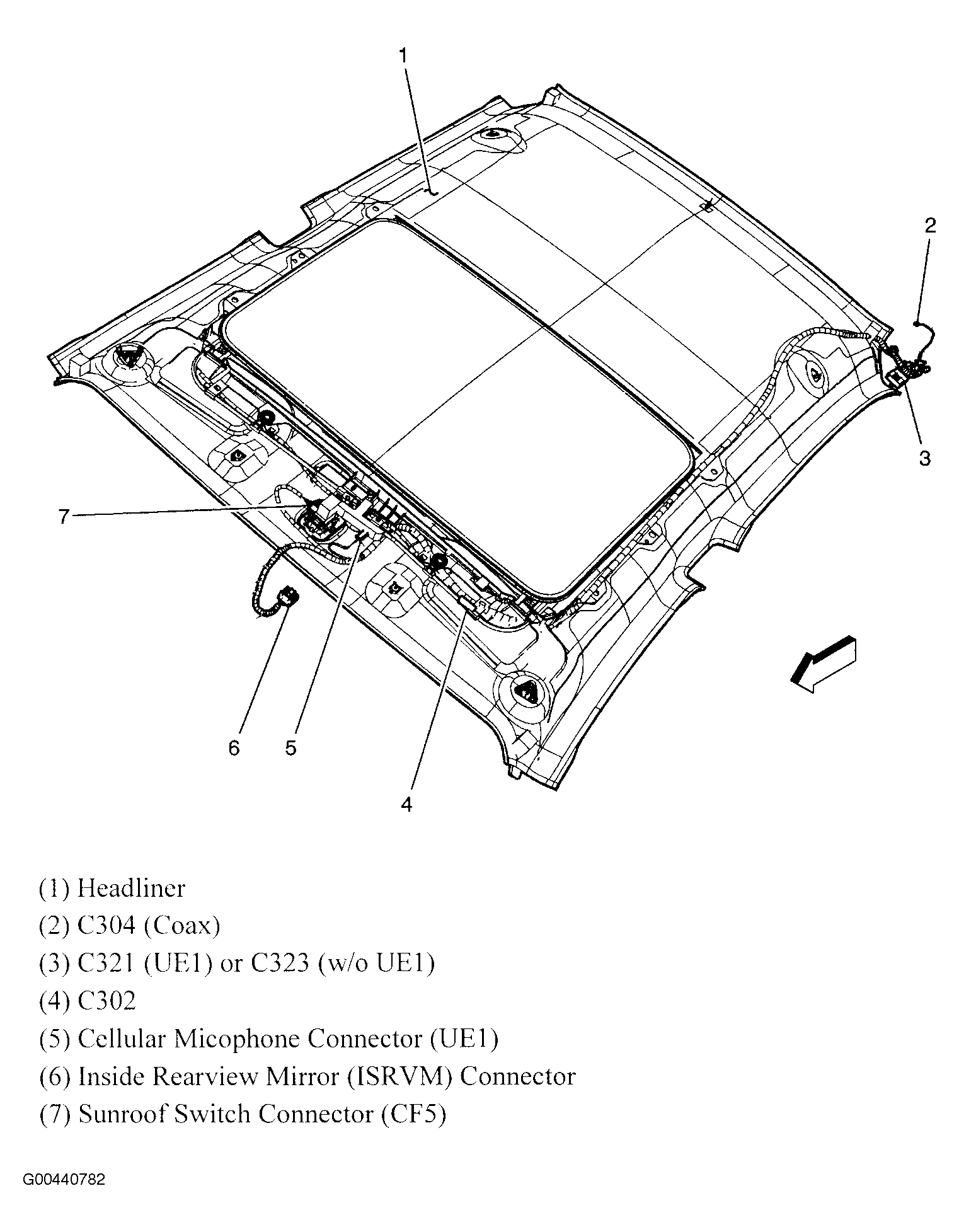

Fig 14: Headliner Components
Courtesy of GENERAL MOTORS CORP.

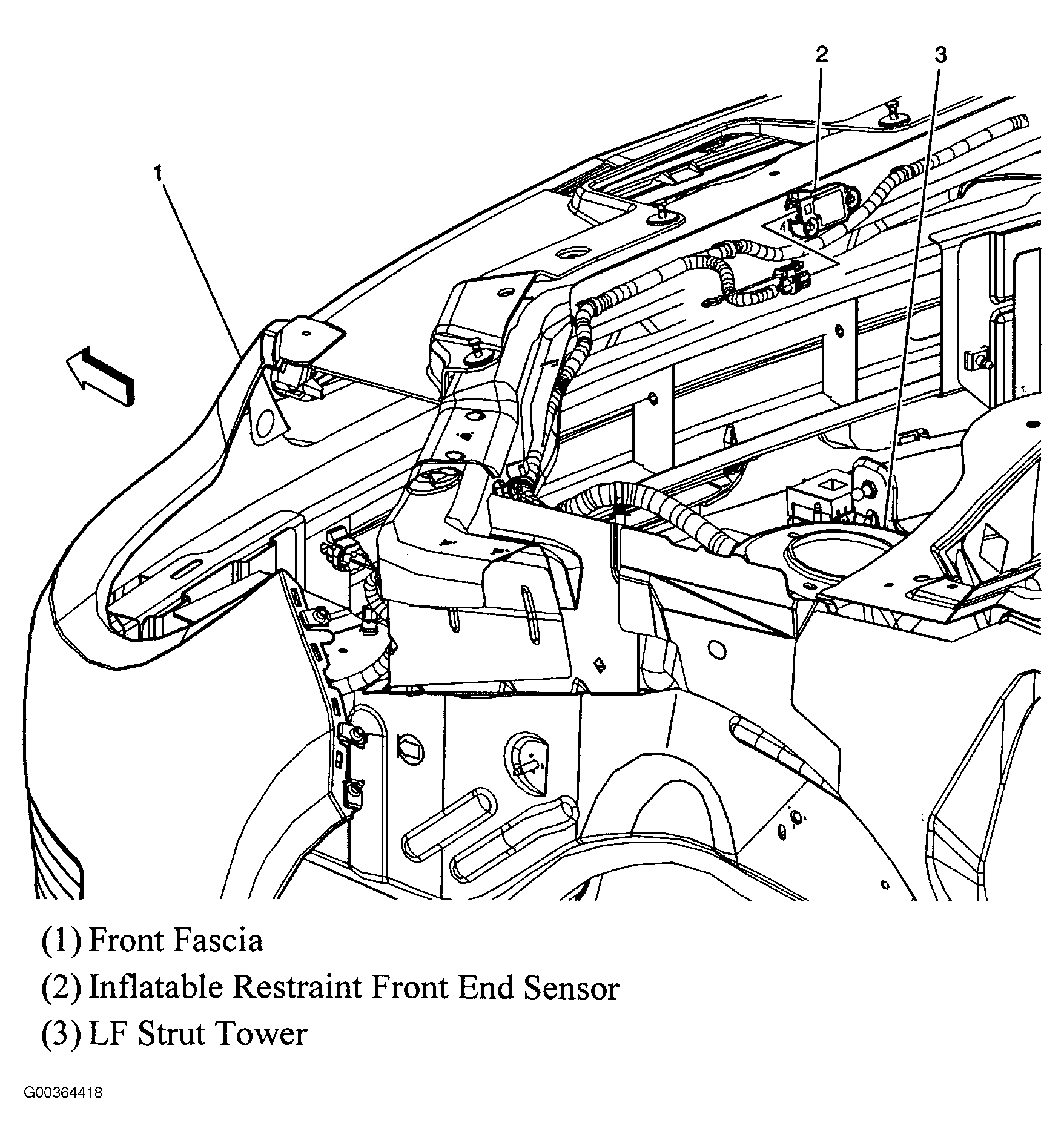

Fig 15: Left Front Strut Tower
Courtesy of GENERAL MOTORS CORP.

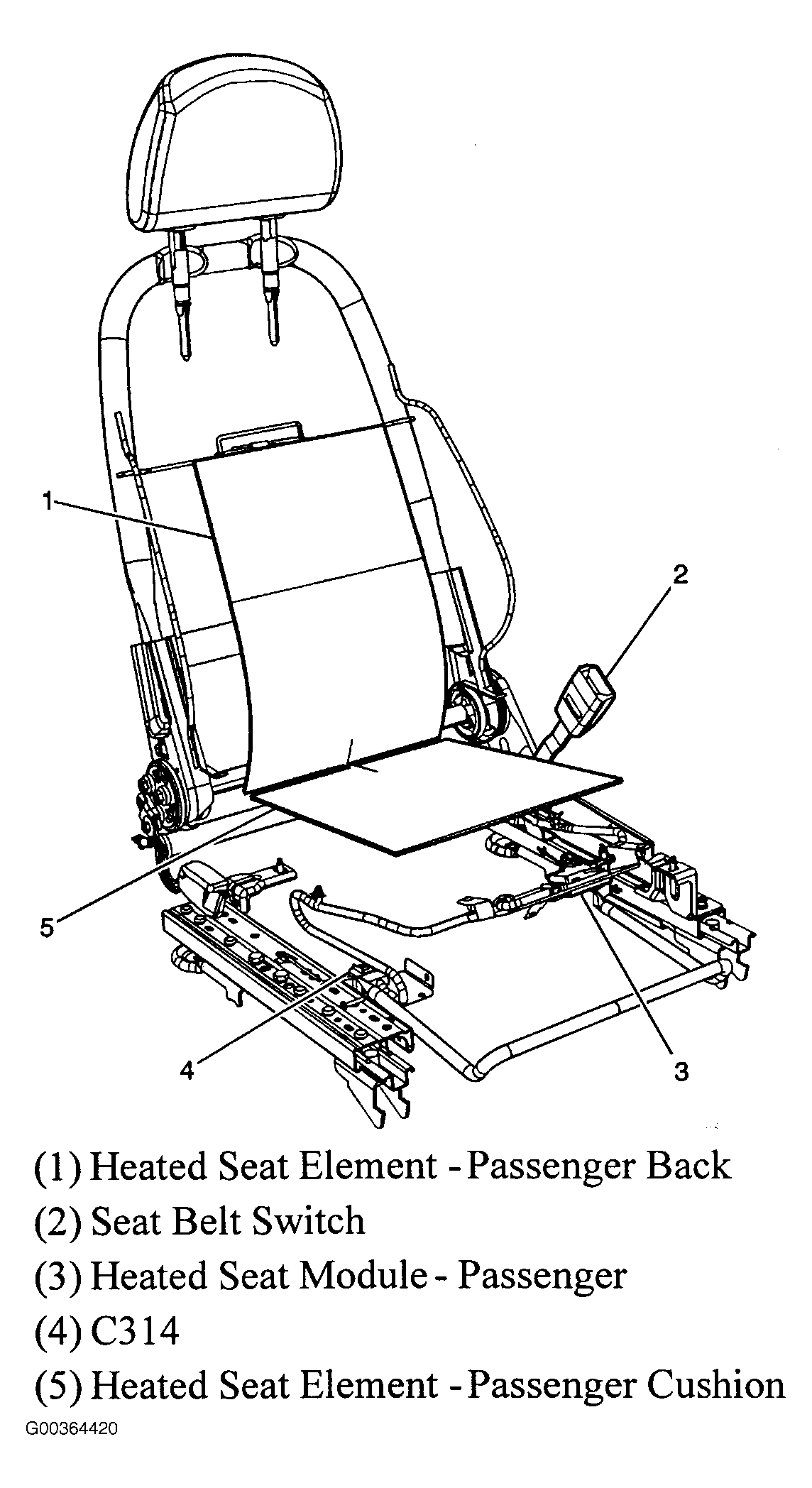

Fig 16: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

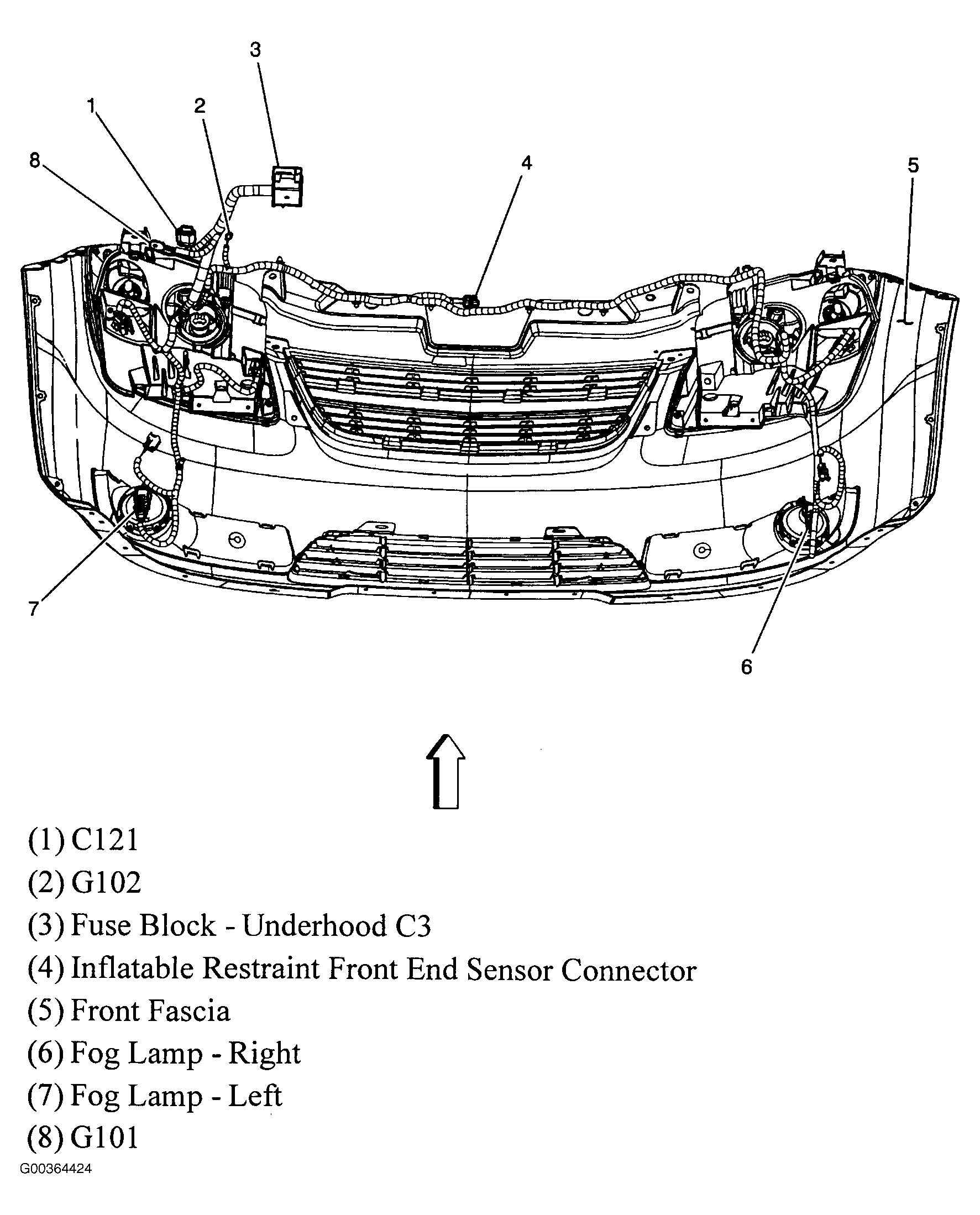

Fig 17: Front Bumper Assembly
Courtesy of GENERAL MOTORS CORP.

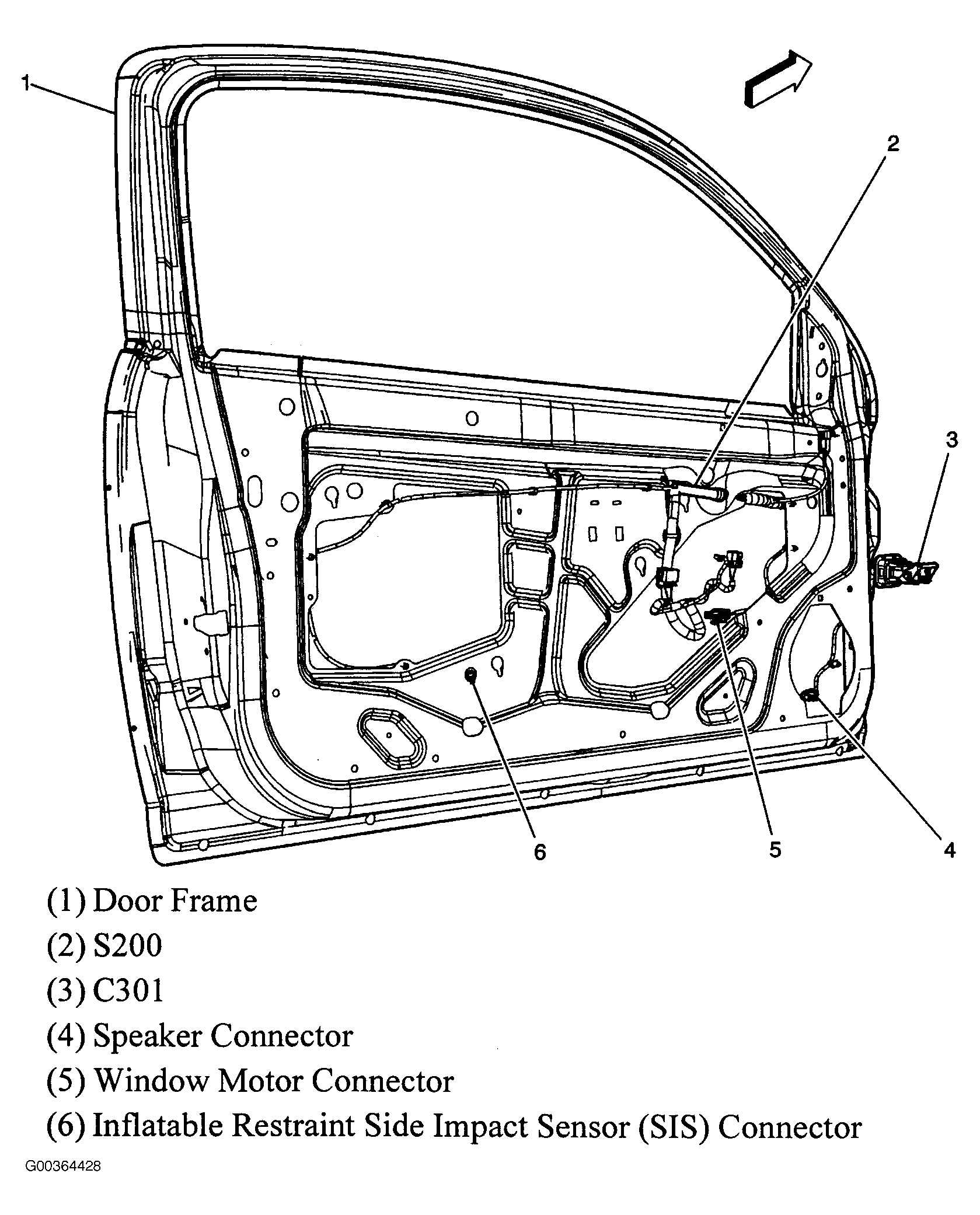

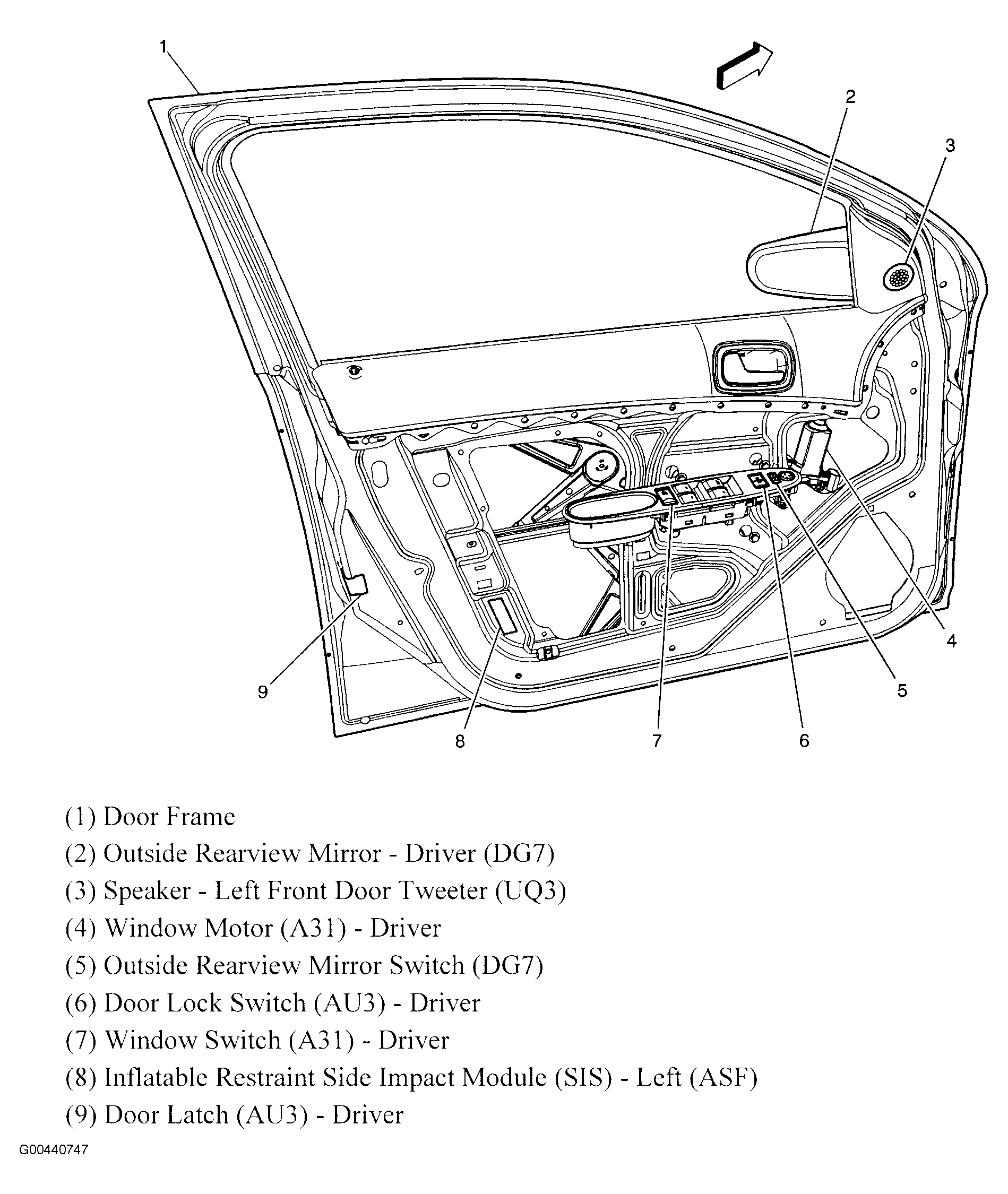

Fig 18: Left Front Door (Sedan)
Courtesy of GENERAL MOTORS CORP.

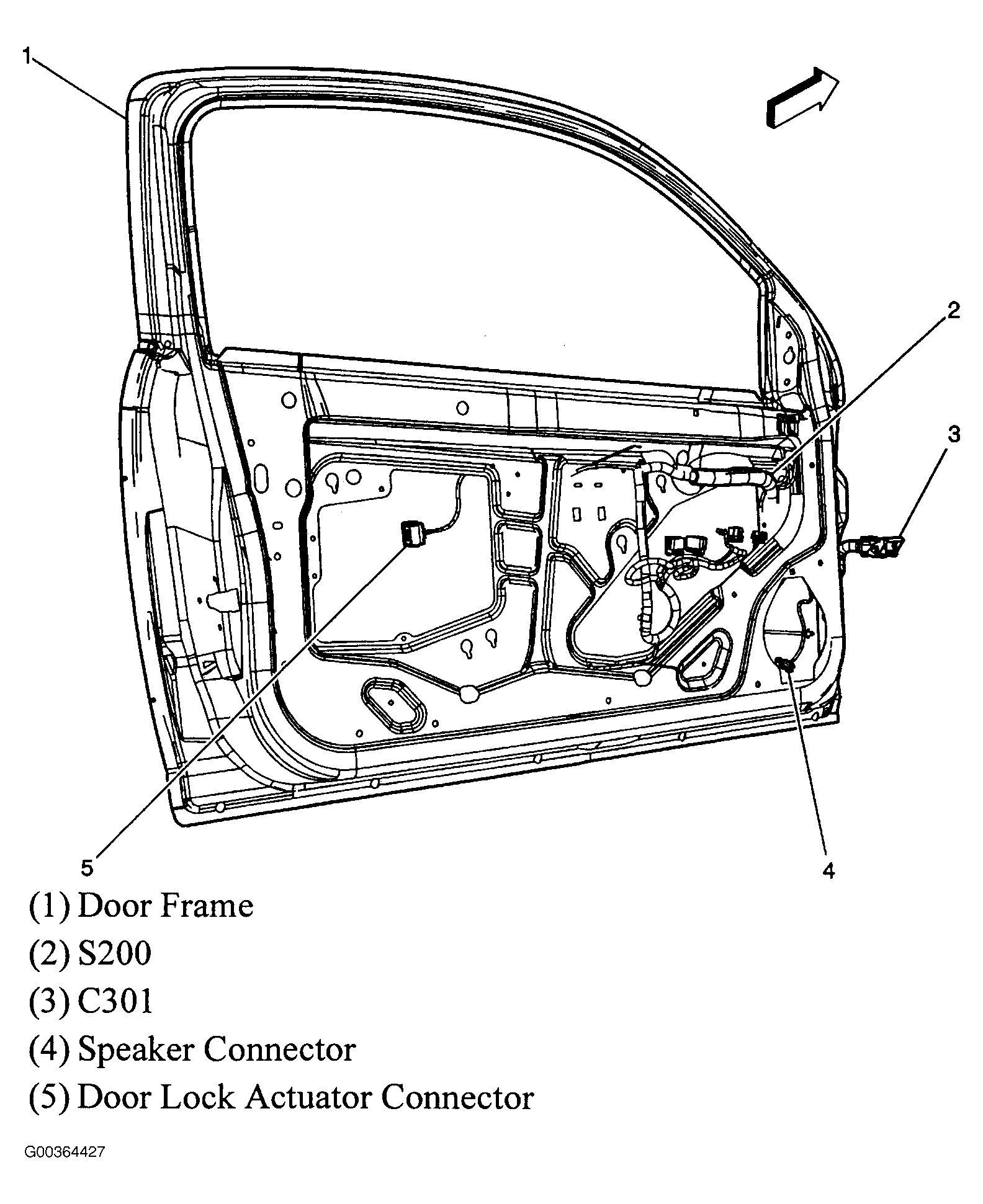

Fig 19: Left Front Door (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Headliner Harness (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.

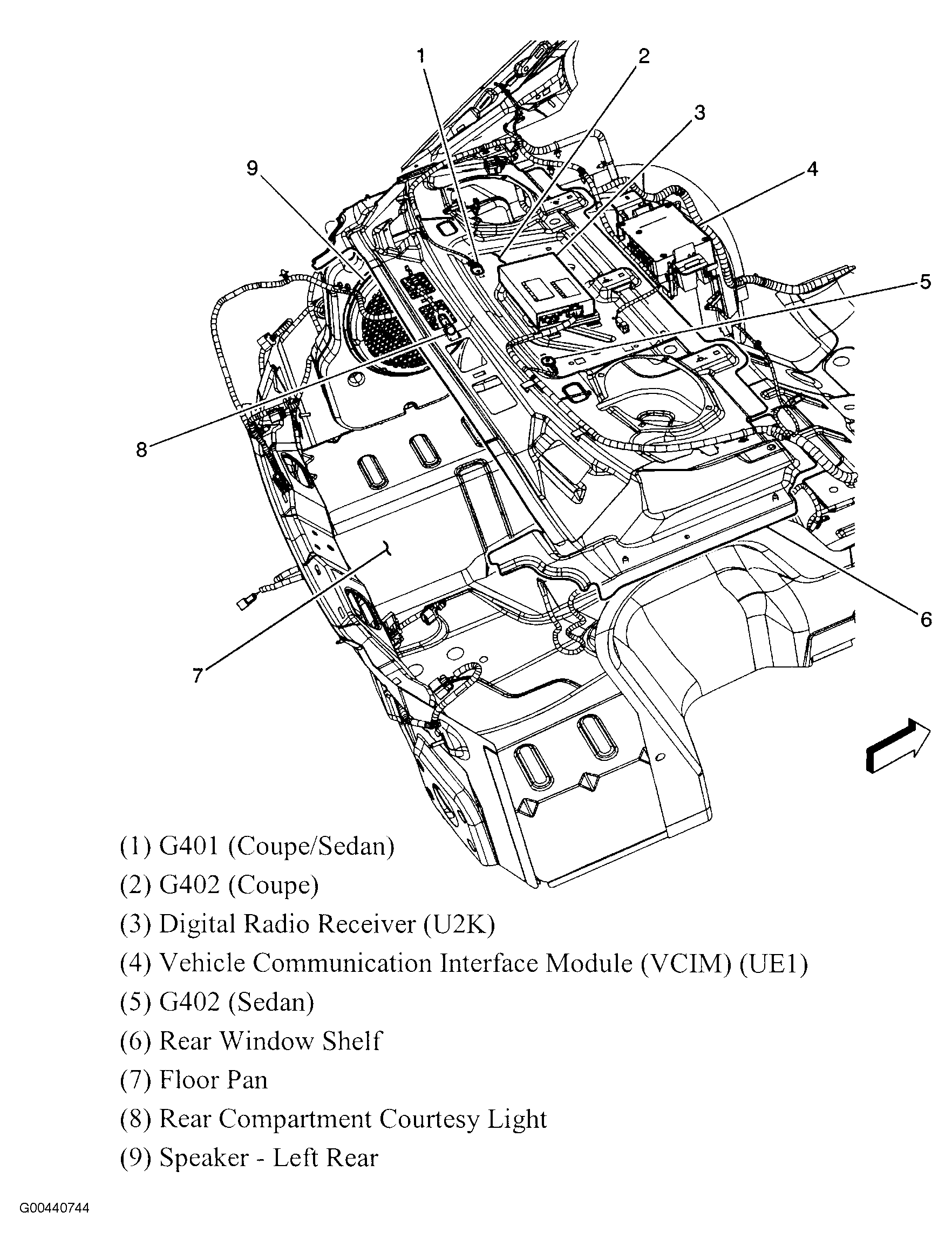

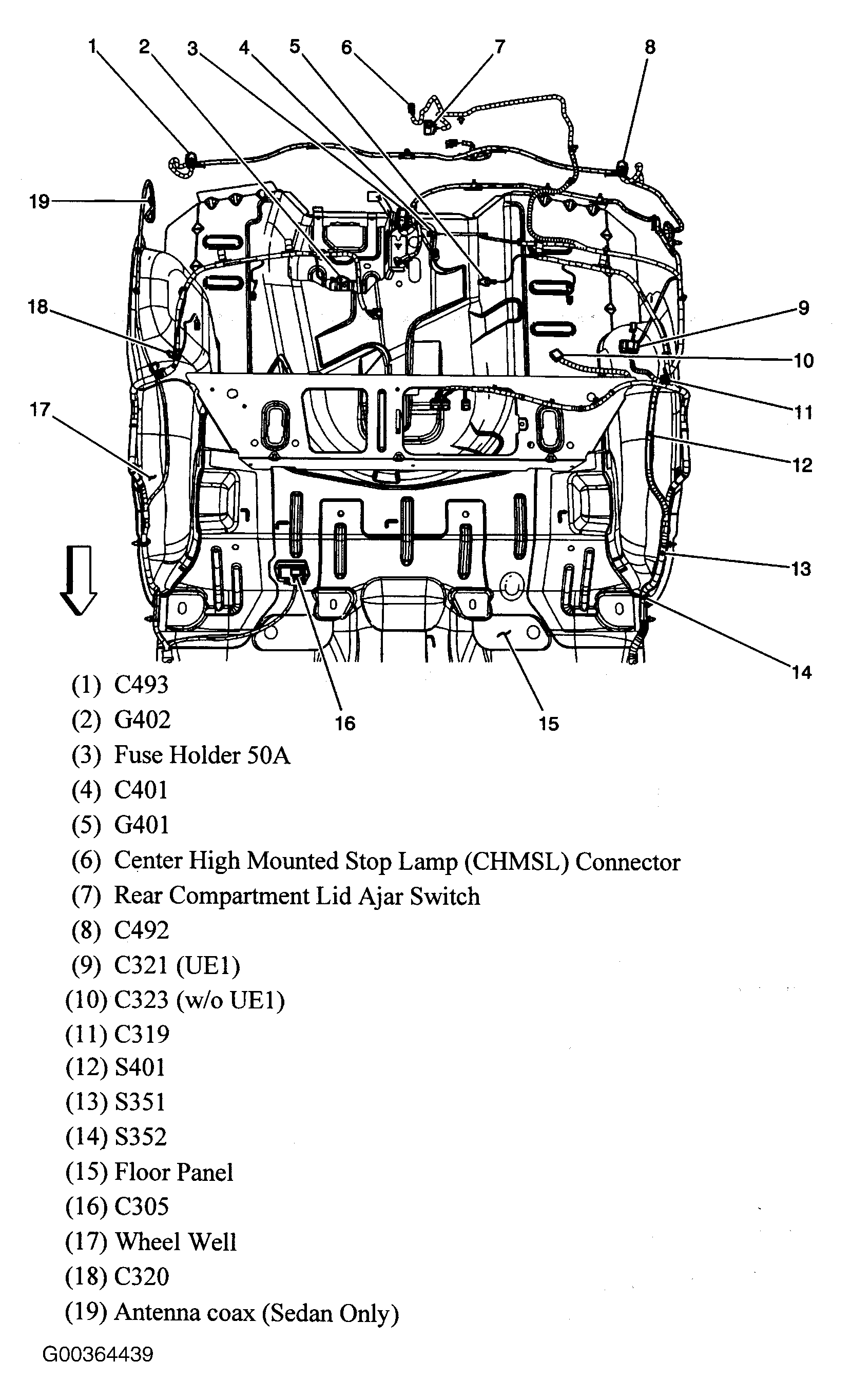

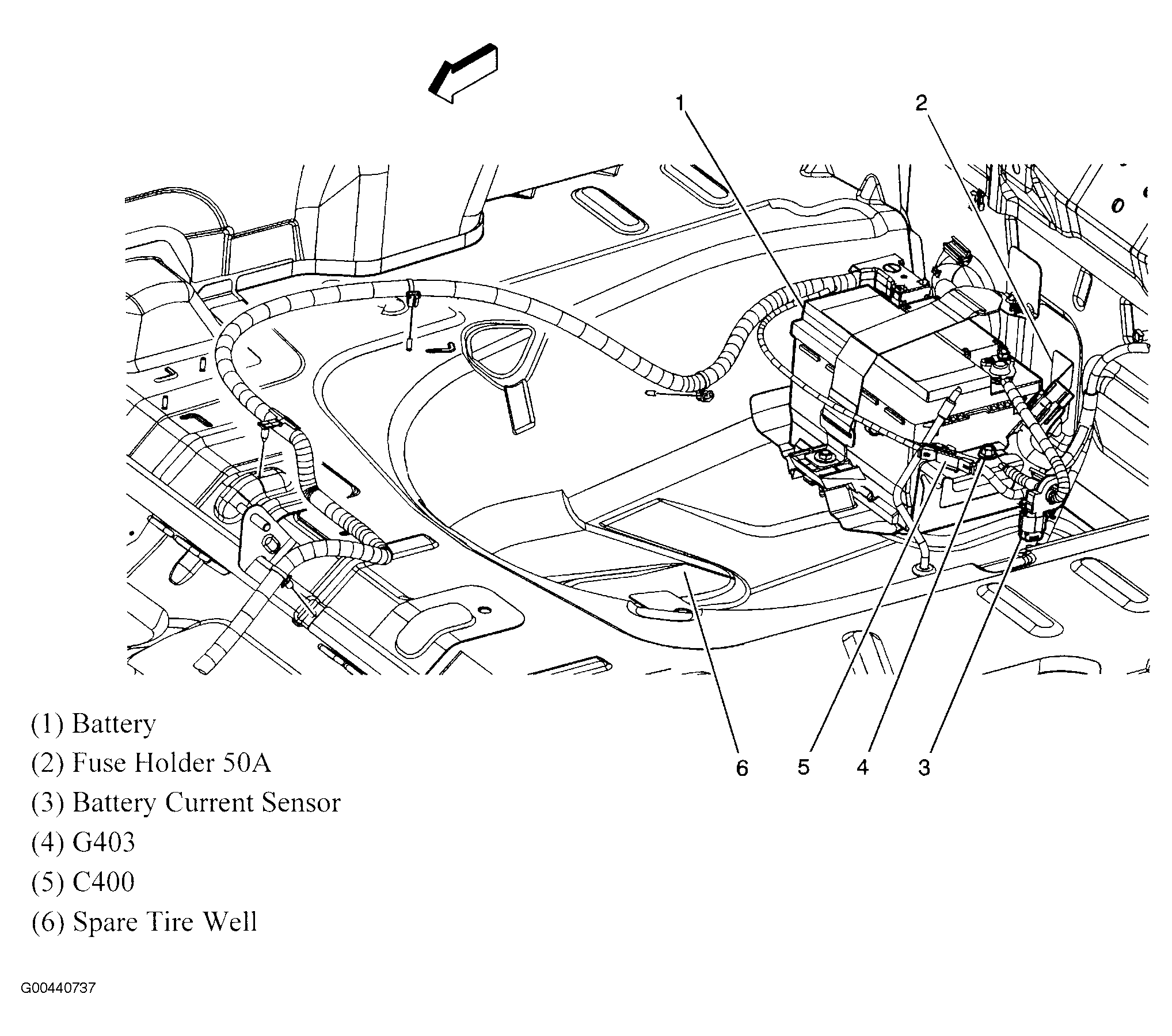

Fig 21: Rear Compartment
Courtesy of GENERAL MOTORS CORP.

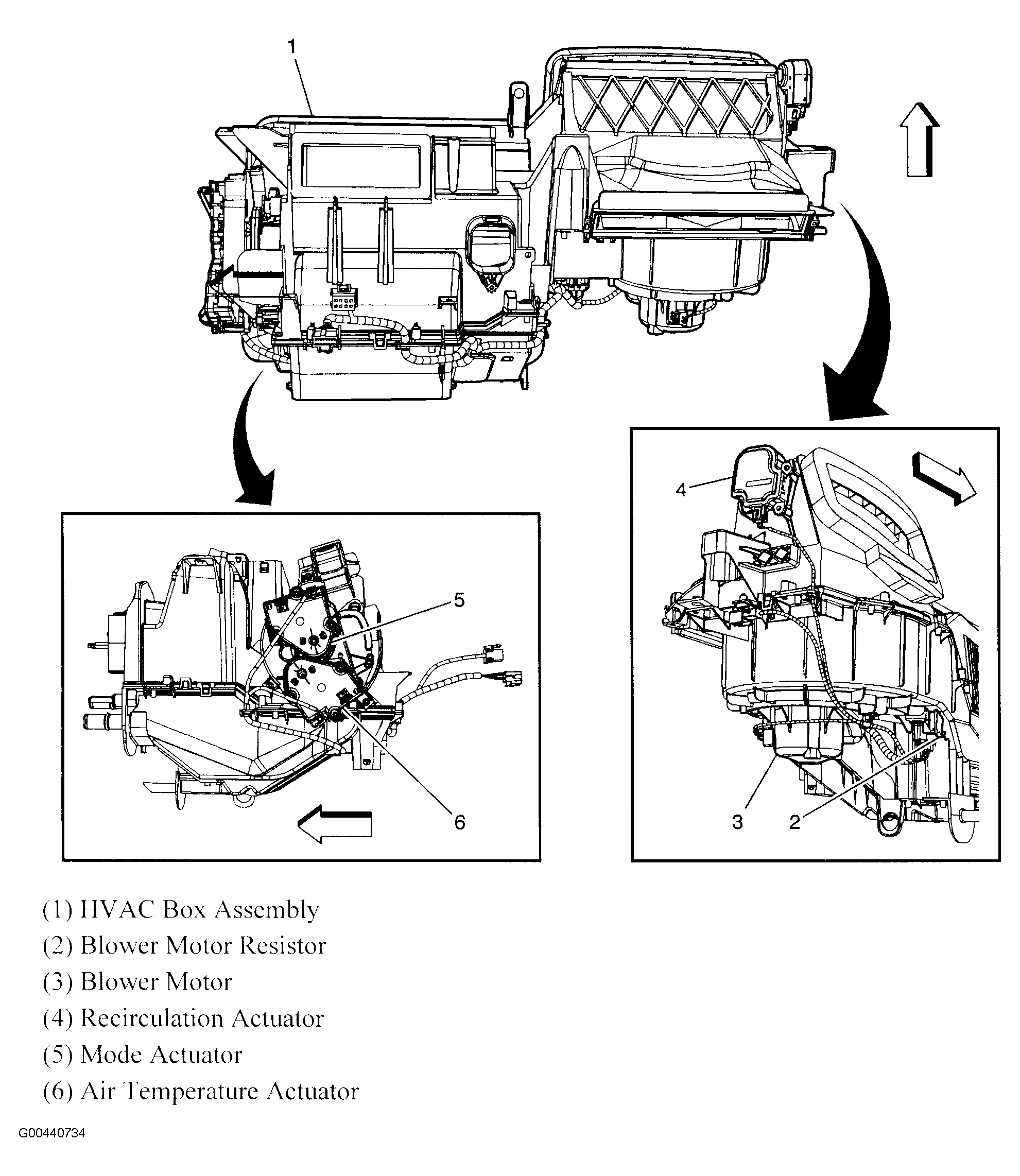

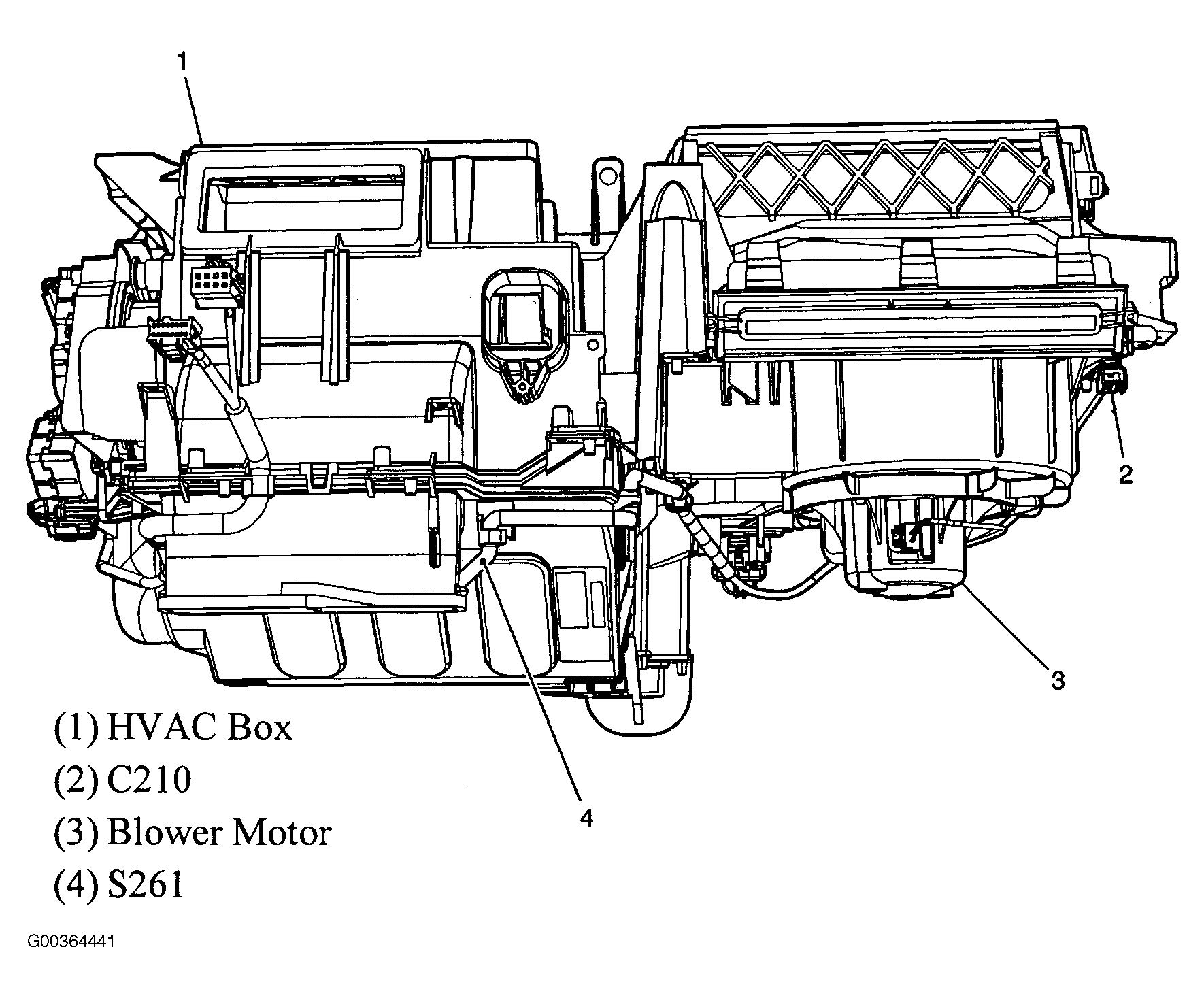

Fig 22: HVAC Box Assembly
Courtesy of GENERAL MOTORS CORP.

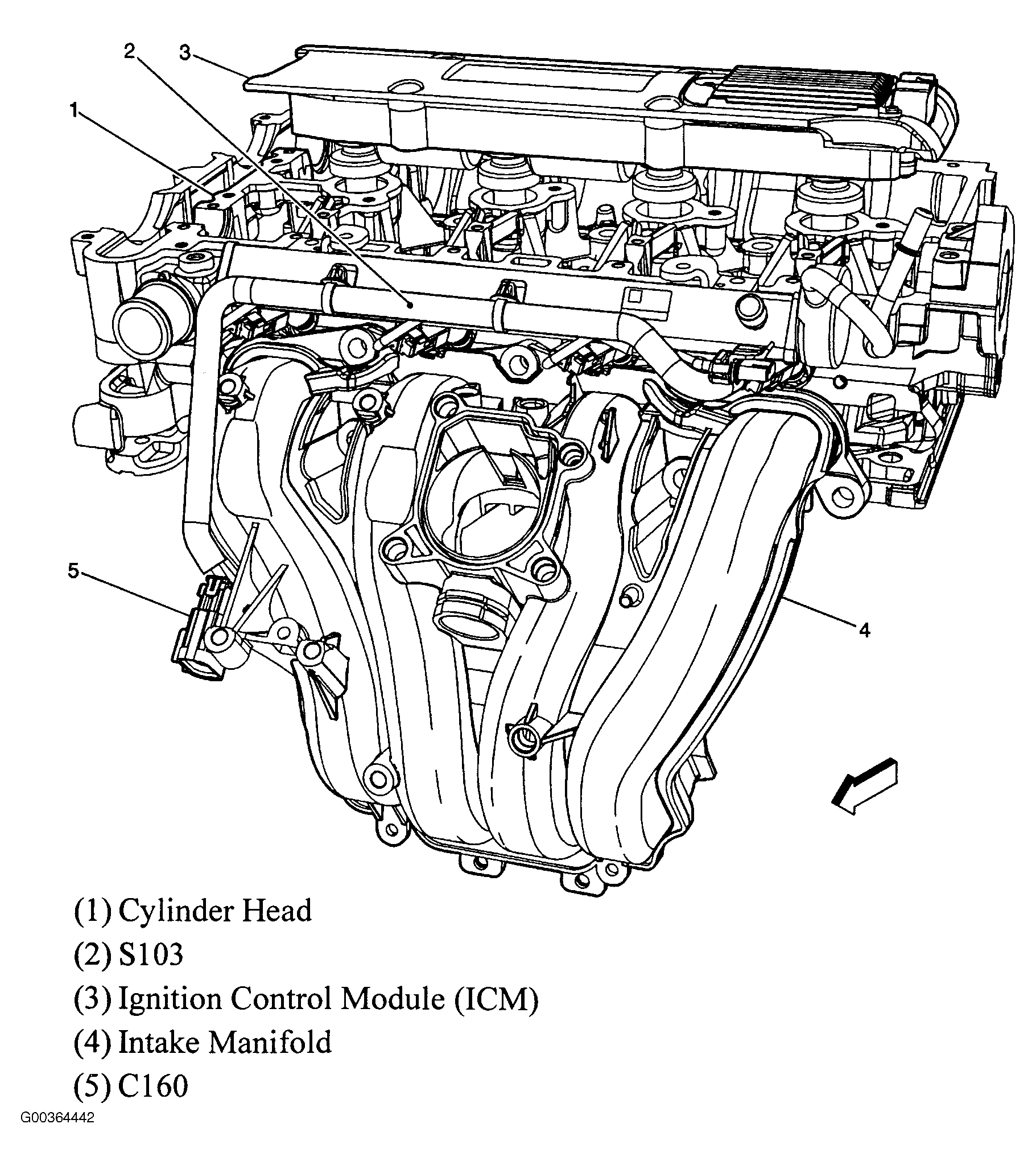

Fig 23: Cylinder Head
Courtesy of GENERAL MOTORS CORP.

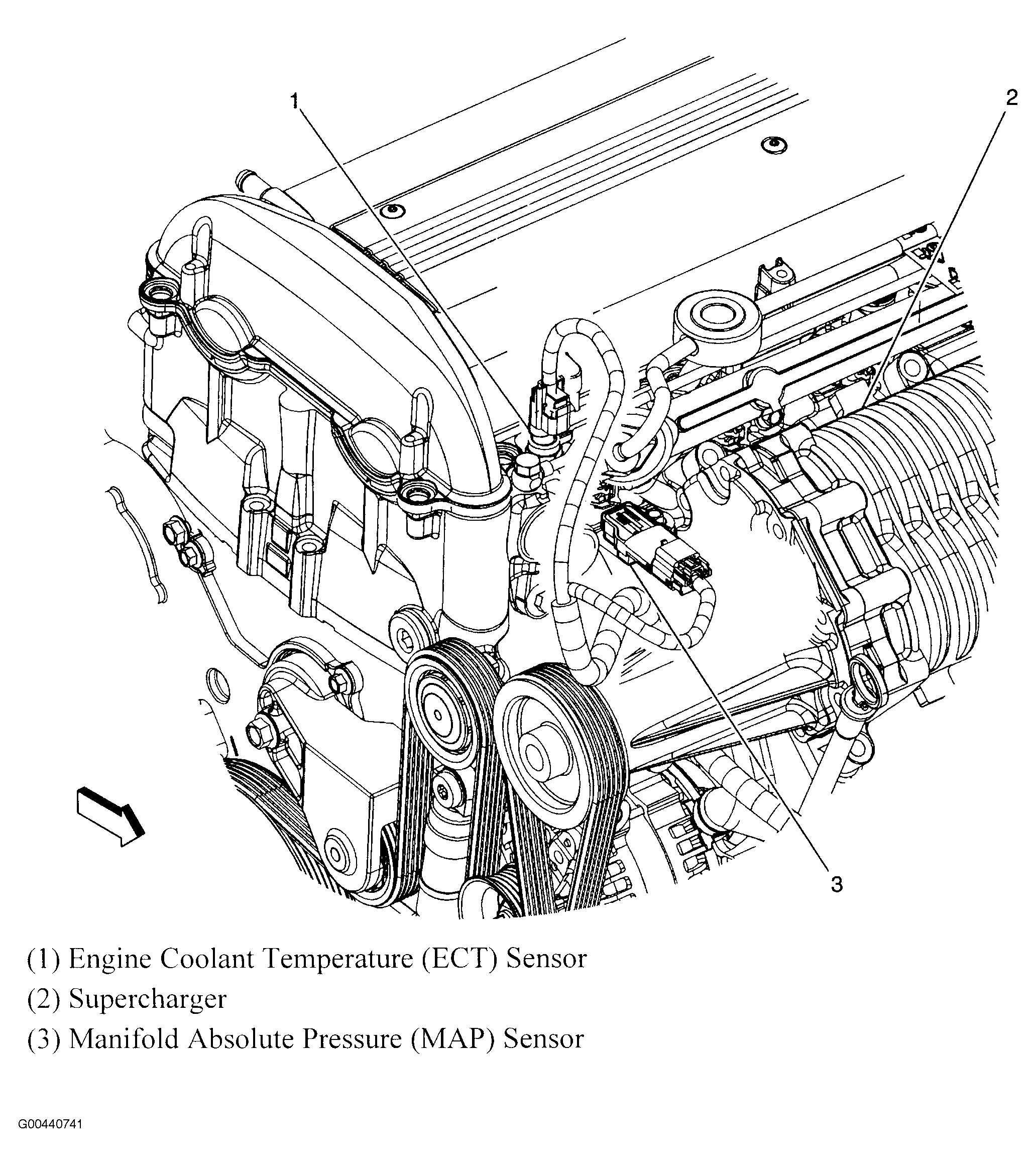

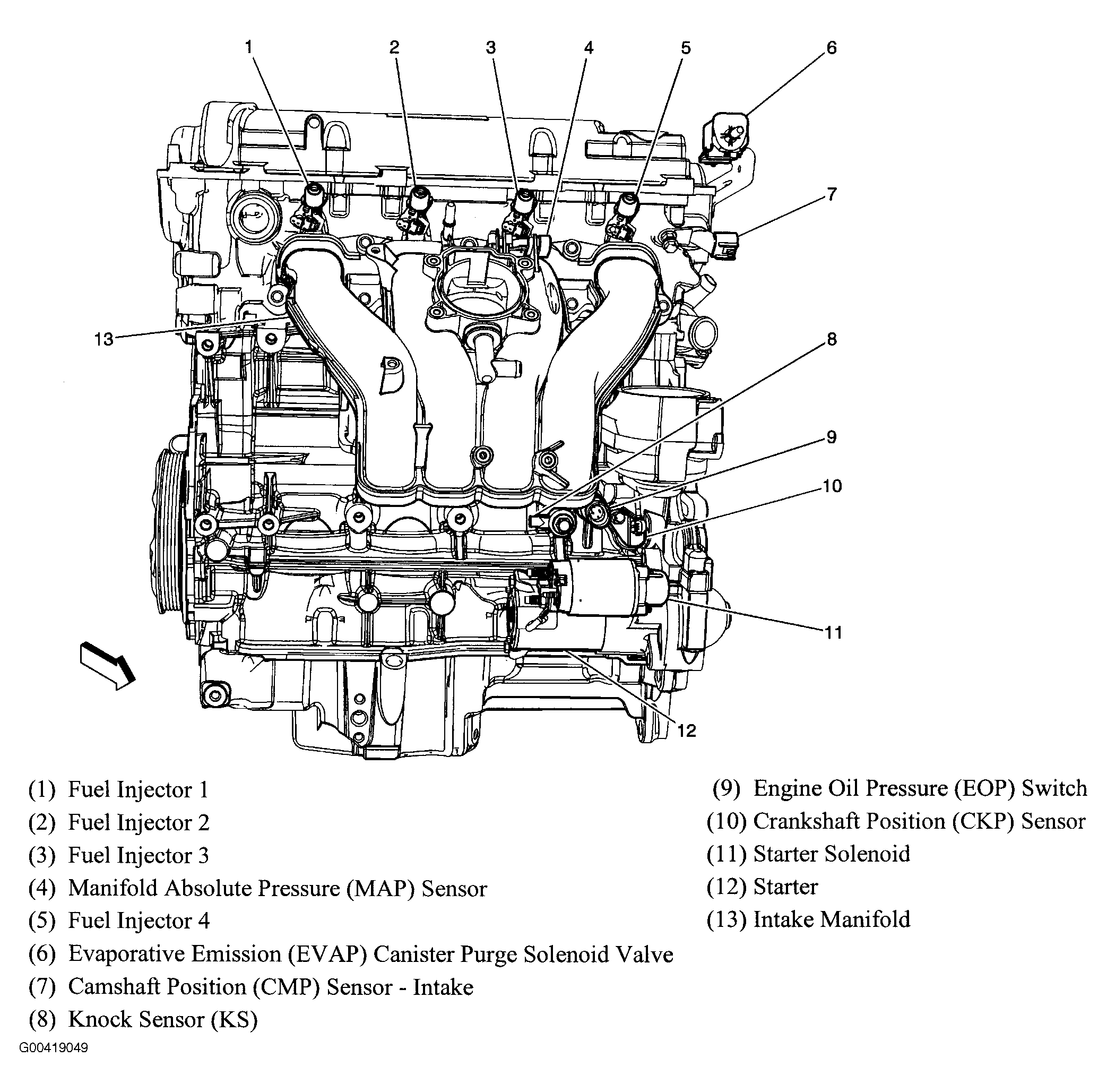

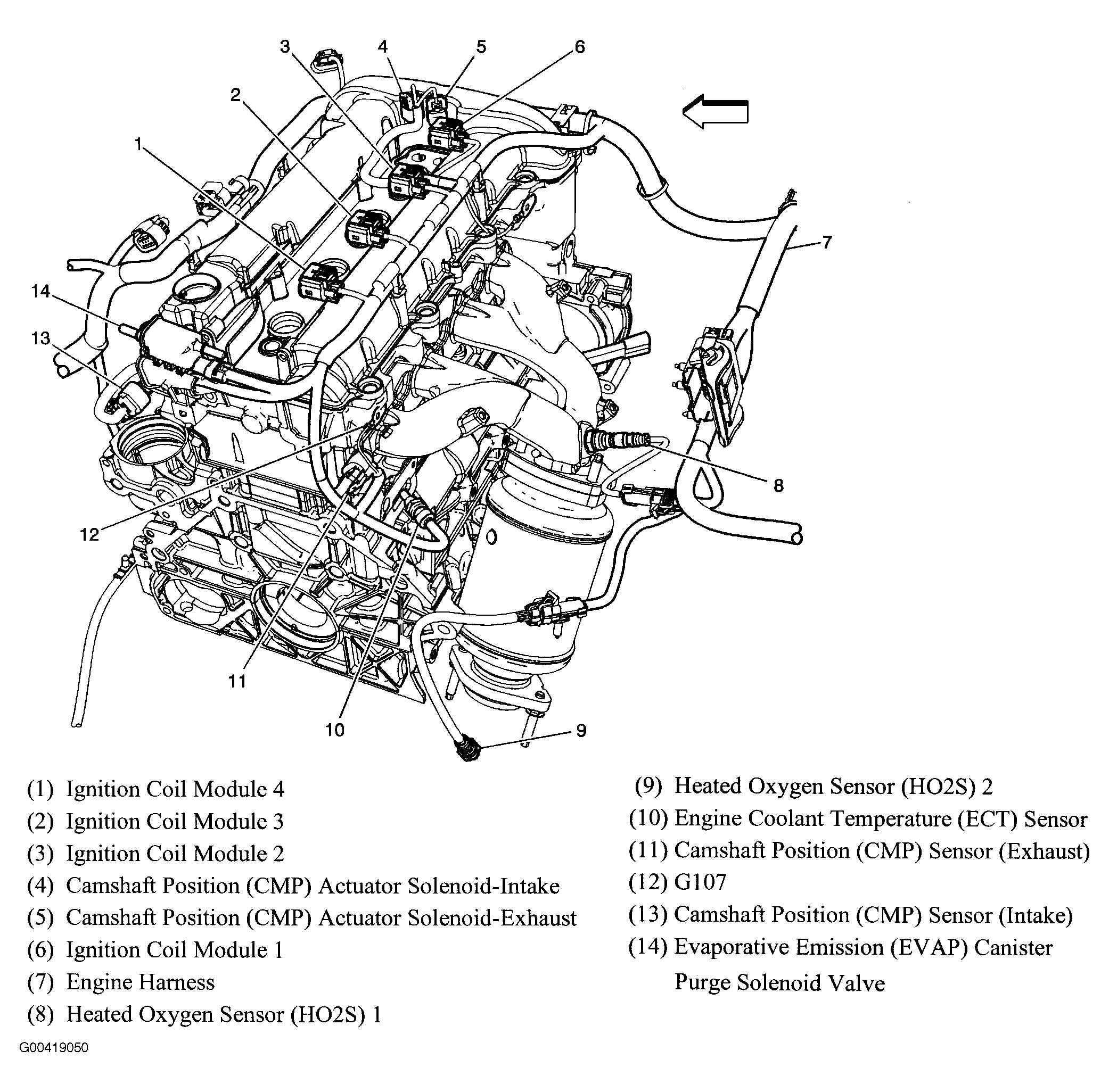

Fig 24: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Rear Of Engine Assembly (2.4L)
Courtesy of GENERAL MOTORS CORP.

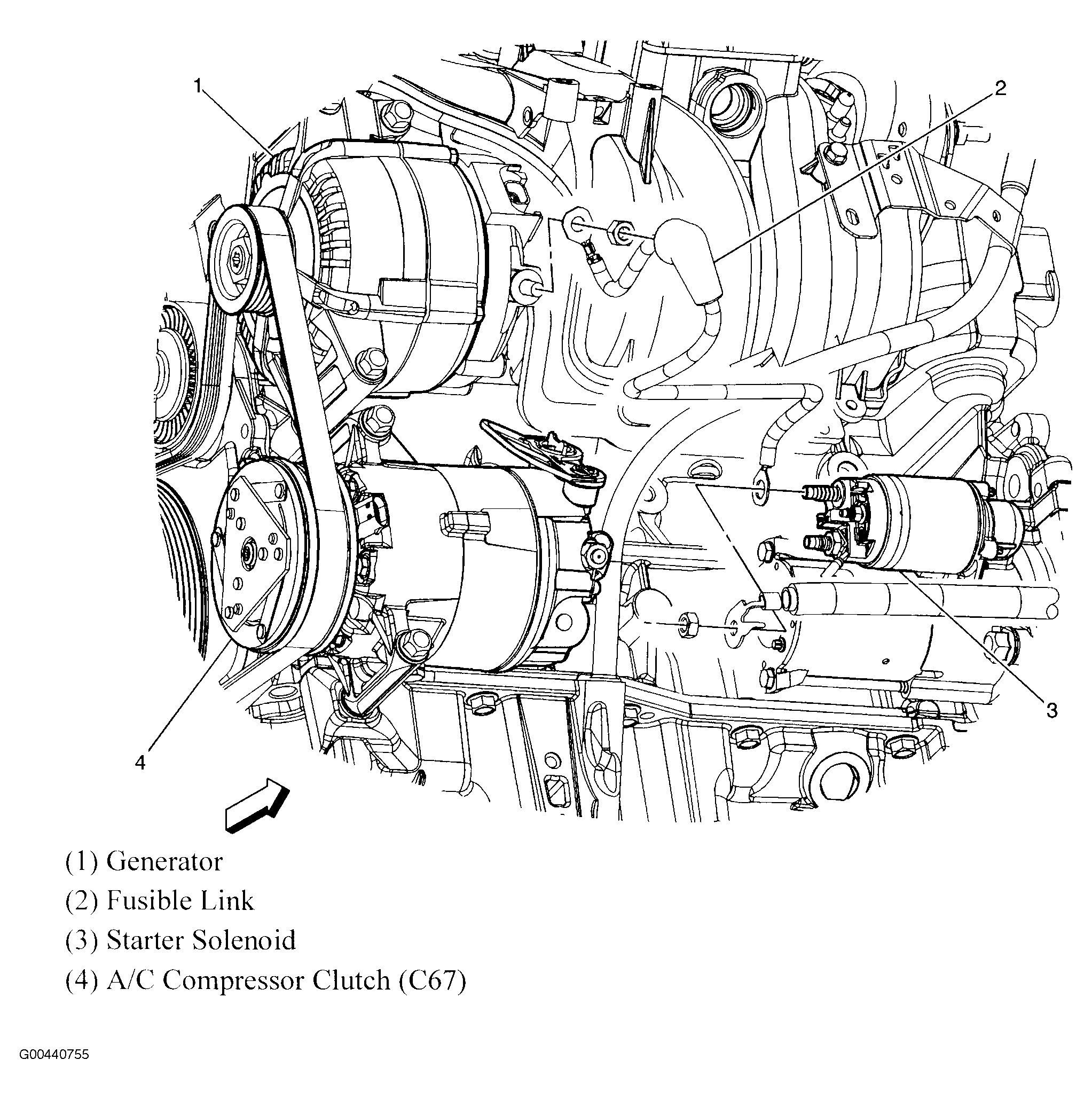

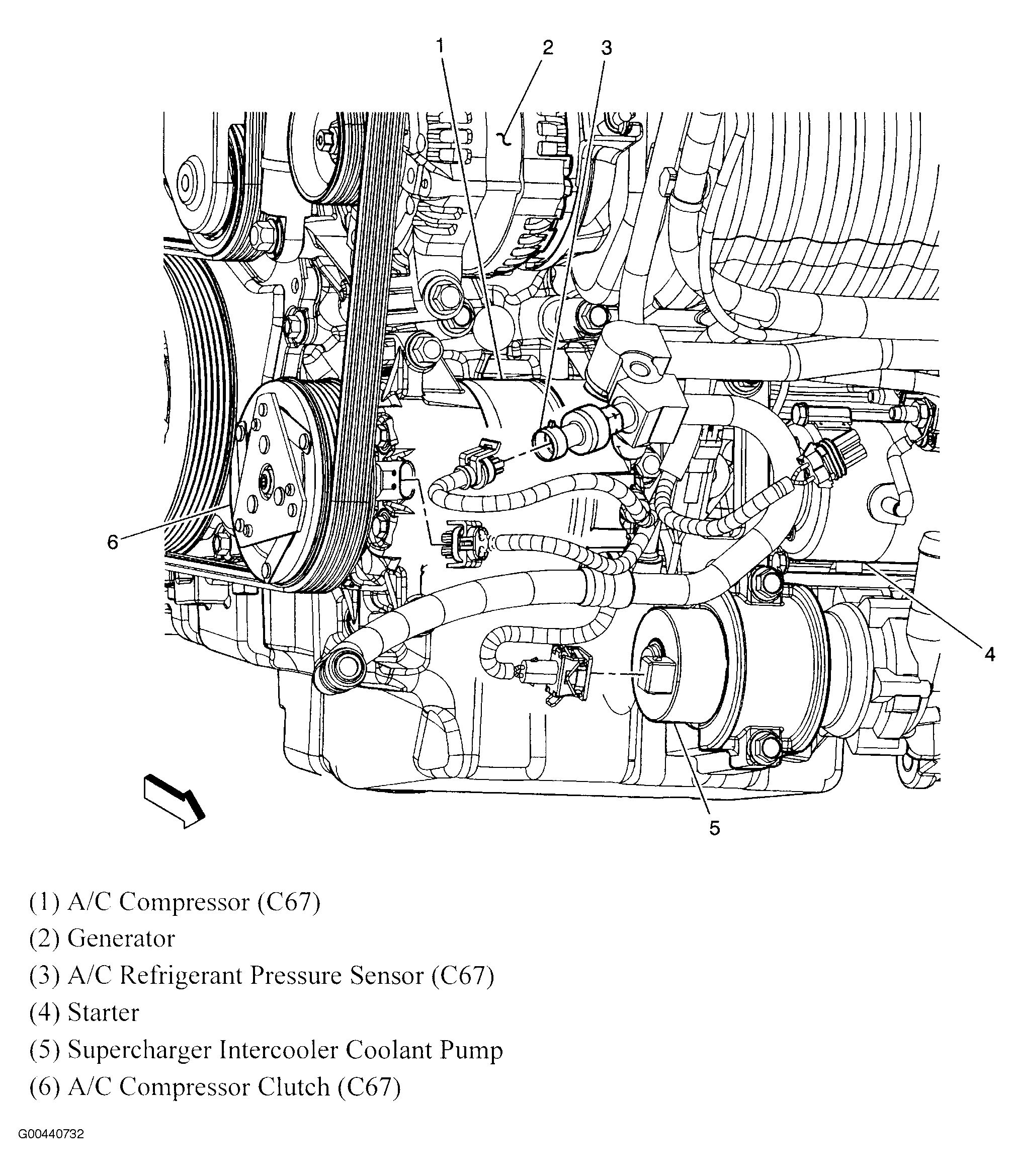

Fig 27: Lower Front, Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.

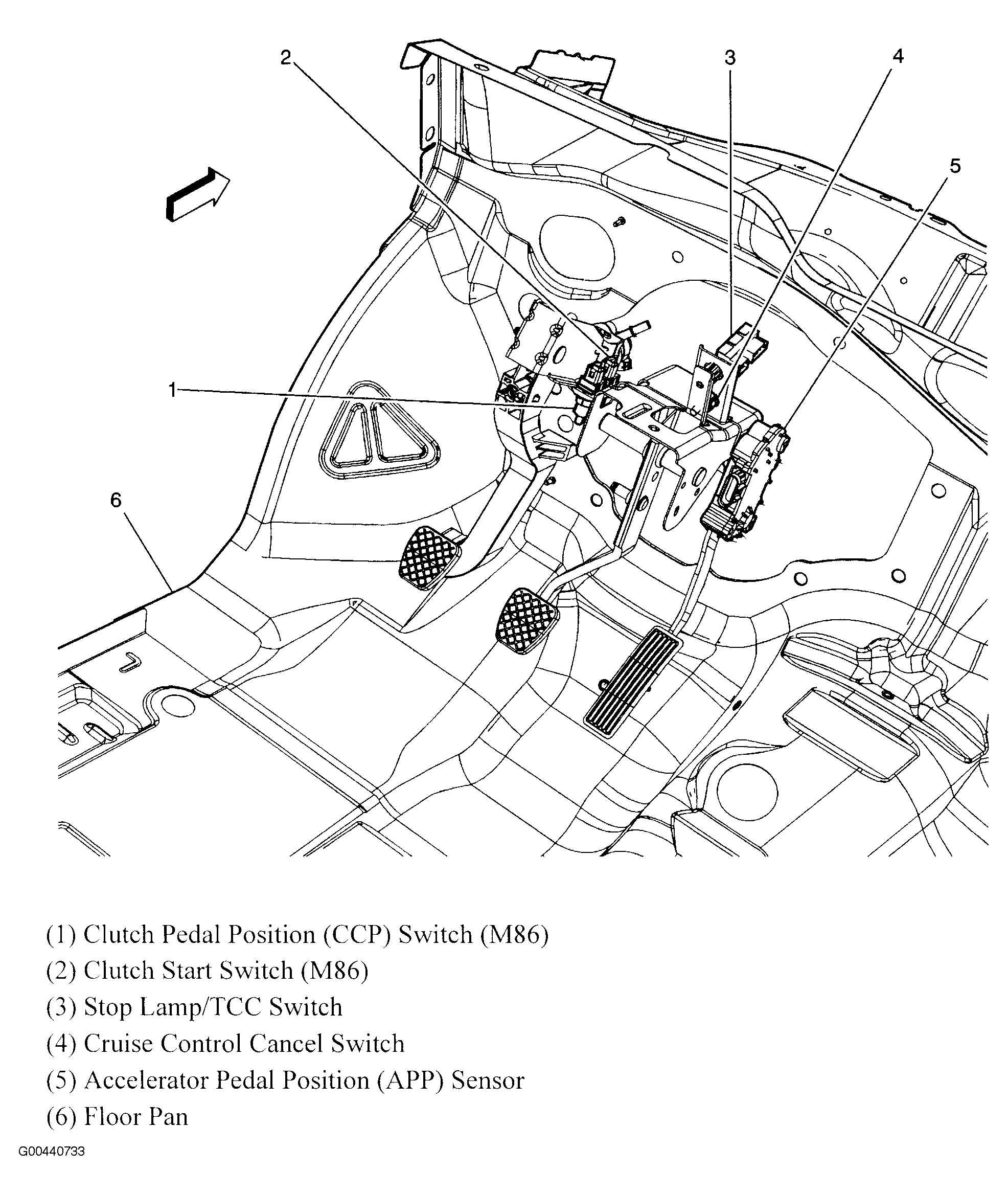

Fig 28: Pedal Components
Courtesy of GENERAL MOTORS CORP.
Fig 29: Interior HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 30: Dash Components
Courtesy of GENERAL MOTORS CORP.
Fig 31: Top Rear, Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 32: Rear Floor Pan Components
Courtesy of GENERAL MOTORS CORP.
Fig 33: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

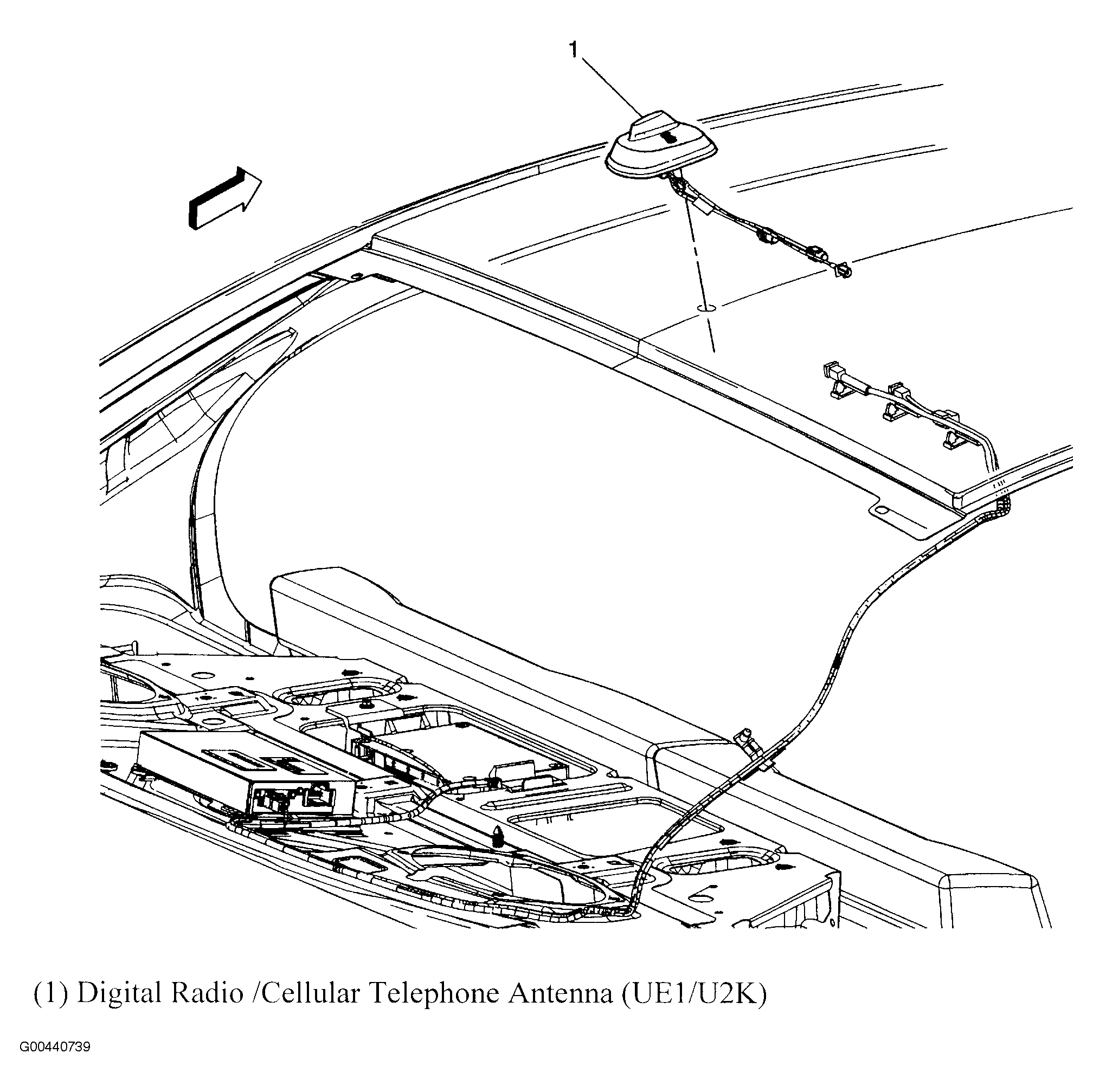

Fig 34: Digital Radio/Cellular Antenna
Courtesy of GENERAL MOTORS CORP.

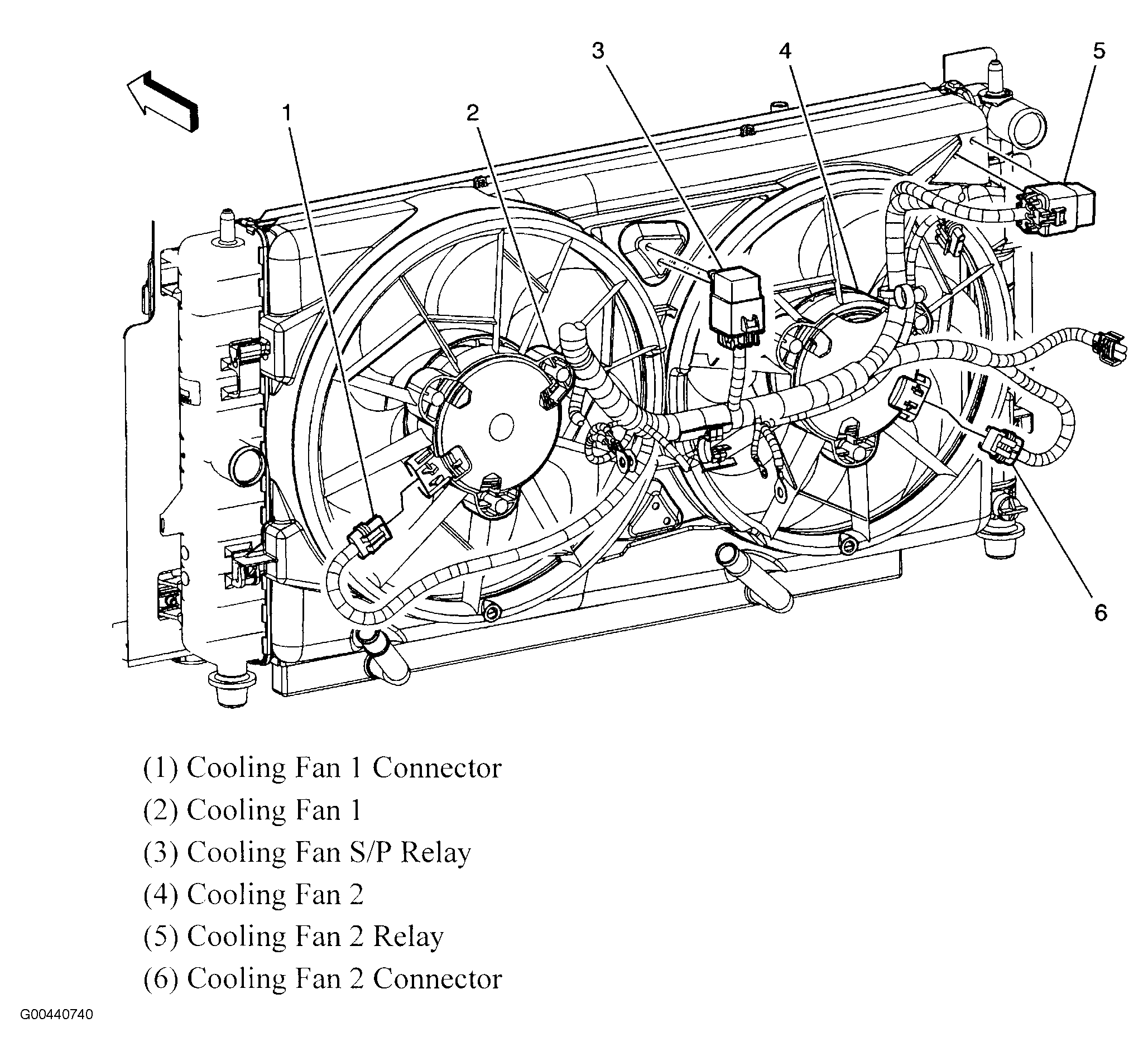

Fig 35: Cooling Fans (2.0L)
Courtesy of GENERAL MOTORS CORP.

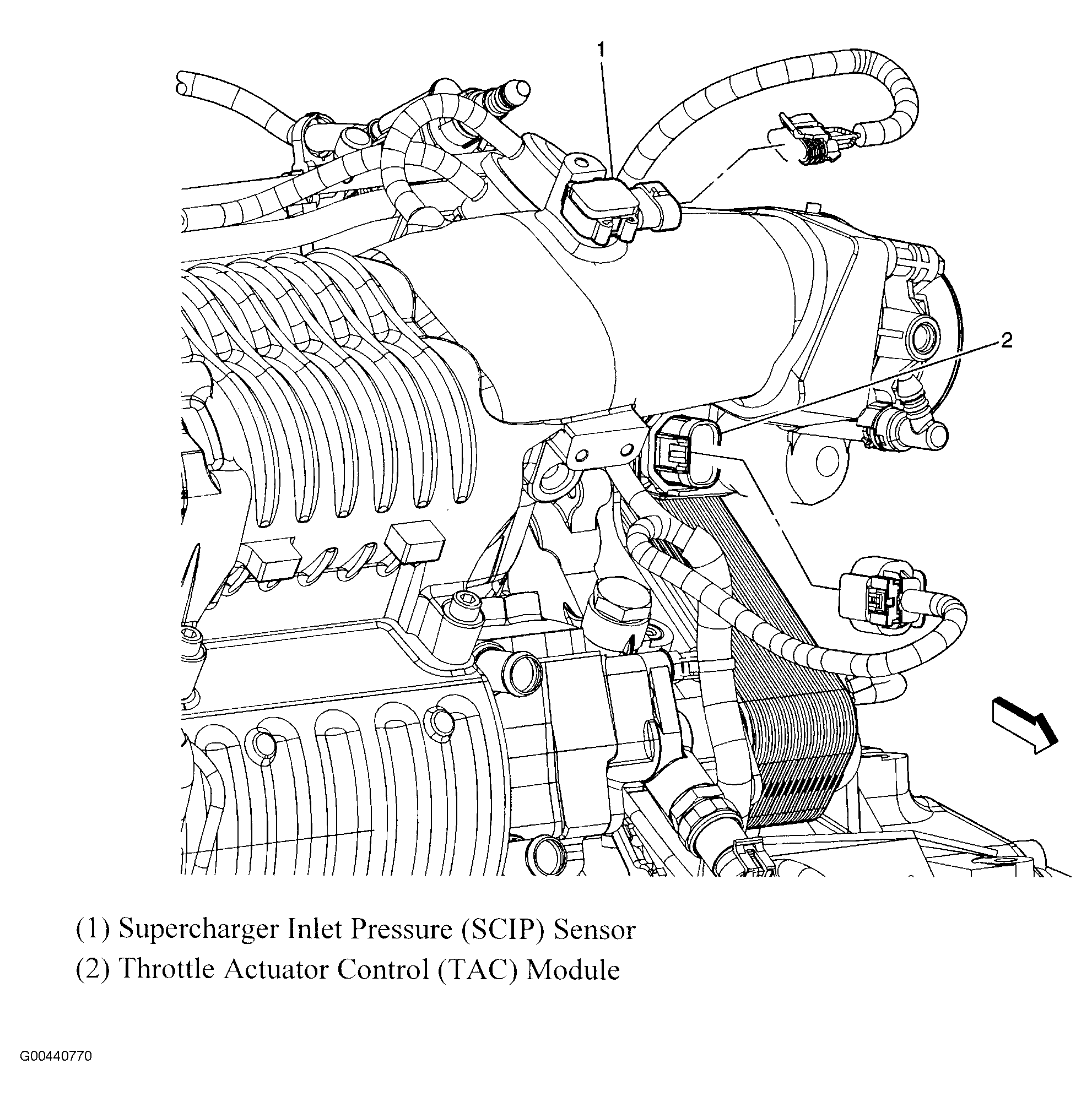

Fig 36: Top Front Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 38: Lower Rear, Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 39: Rear Shelf Components
Courtesy of GENERAL MOTORS CORP.

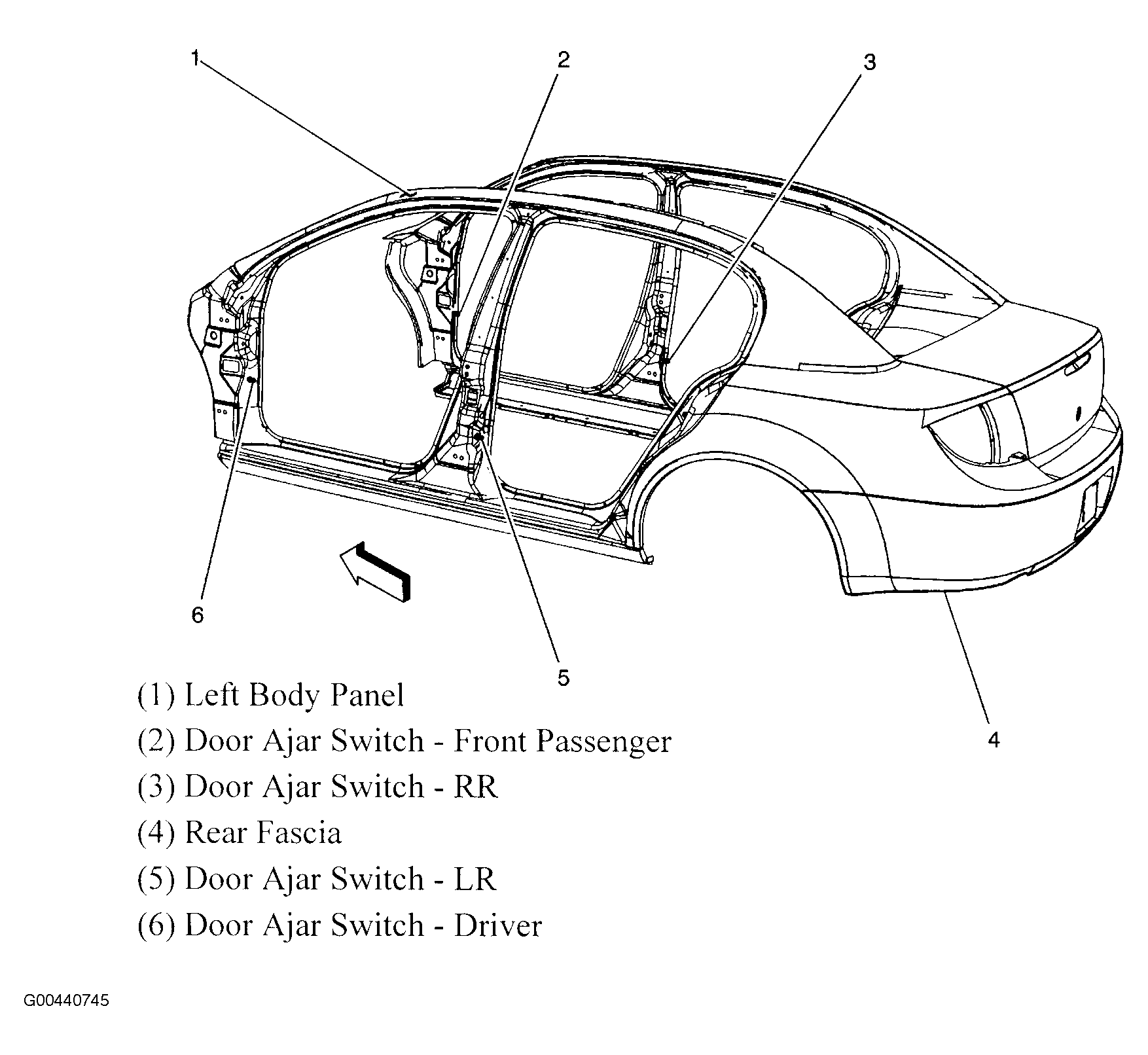

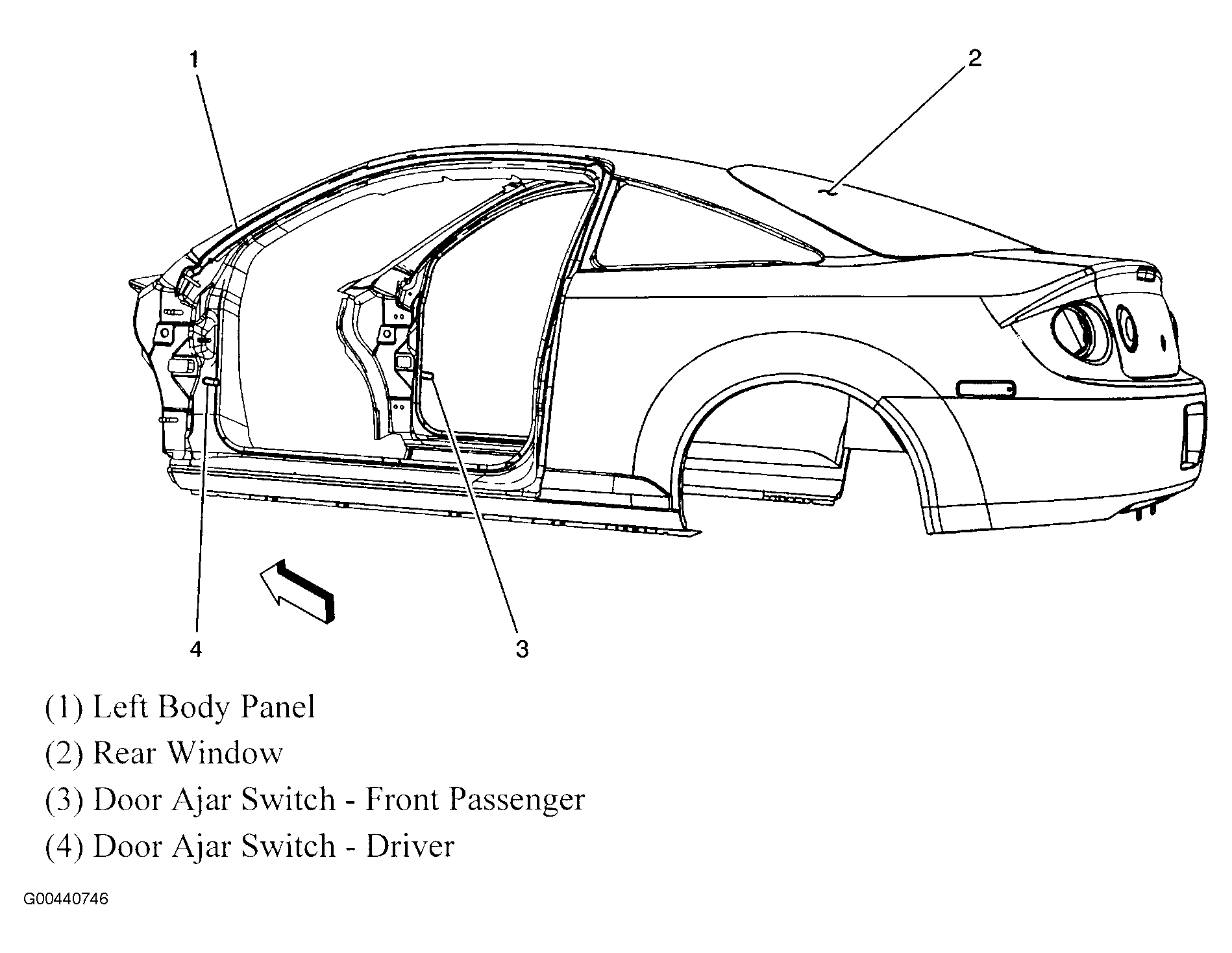

Fig 40: Door Jamb Switches (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Door Jamb Switches (Coupe)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Driver Door Components
Courtesy of GENERAL MOTORS CORP.

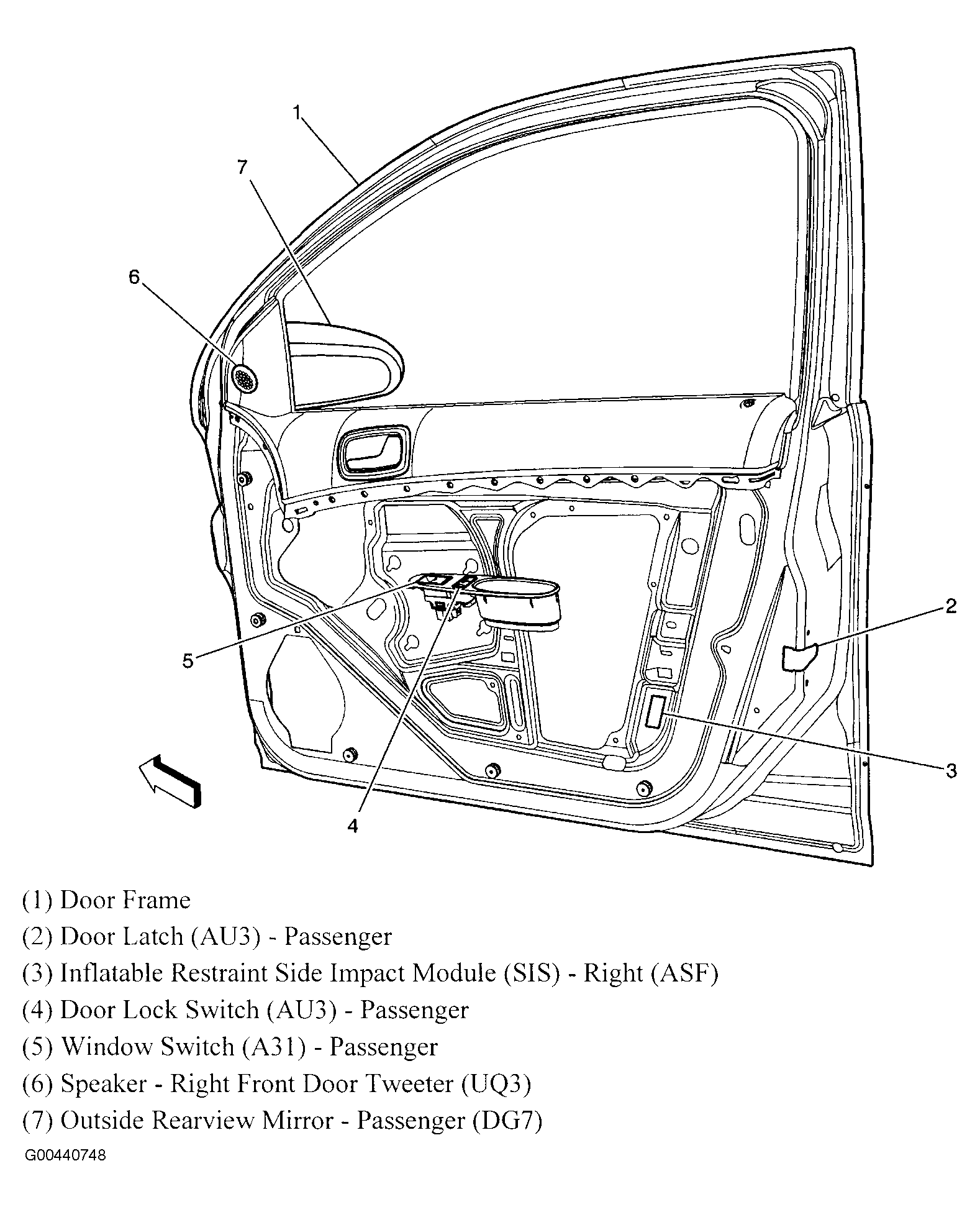

Fig 43: Front Passenger Door Components
Courtesy of GENERAL MOTORS CORP.

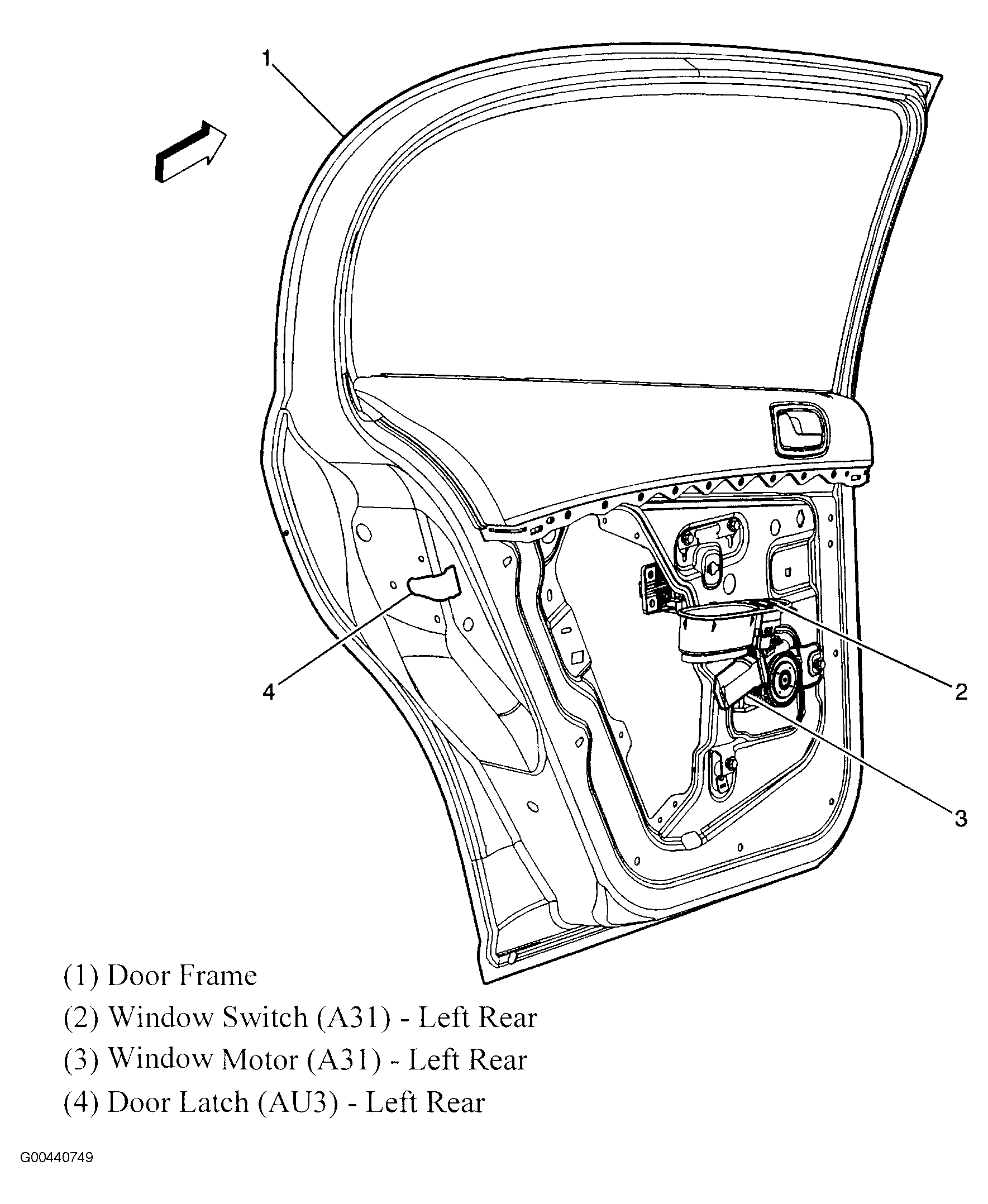

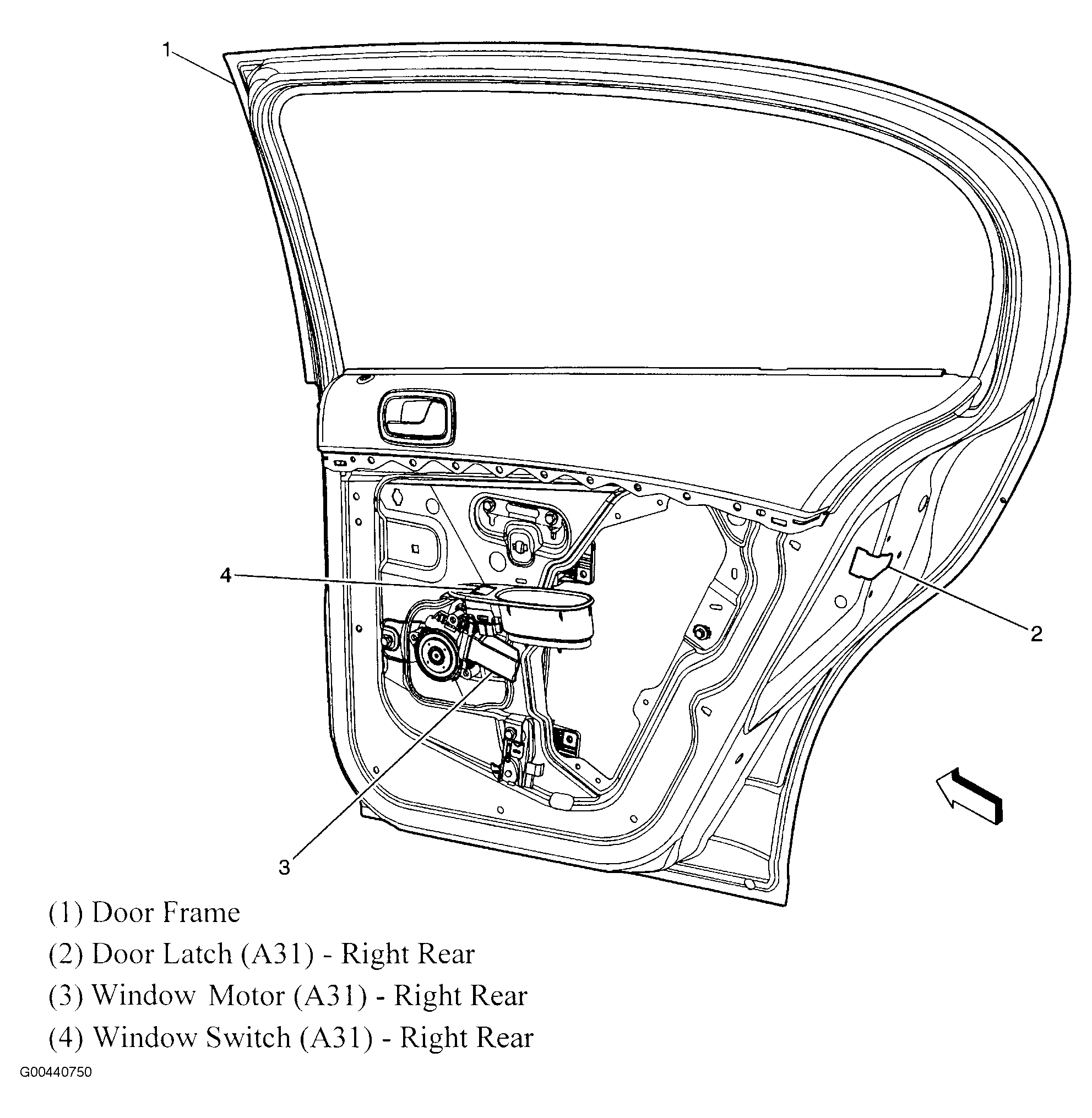

Fig 44: Left Rear Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 45: Right Rear Door Components
Courtesy of GENERAL MOTORS CORP.

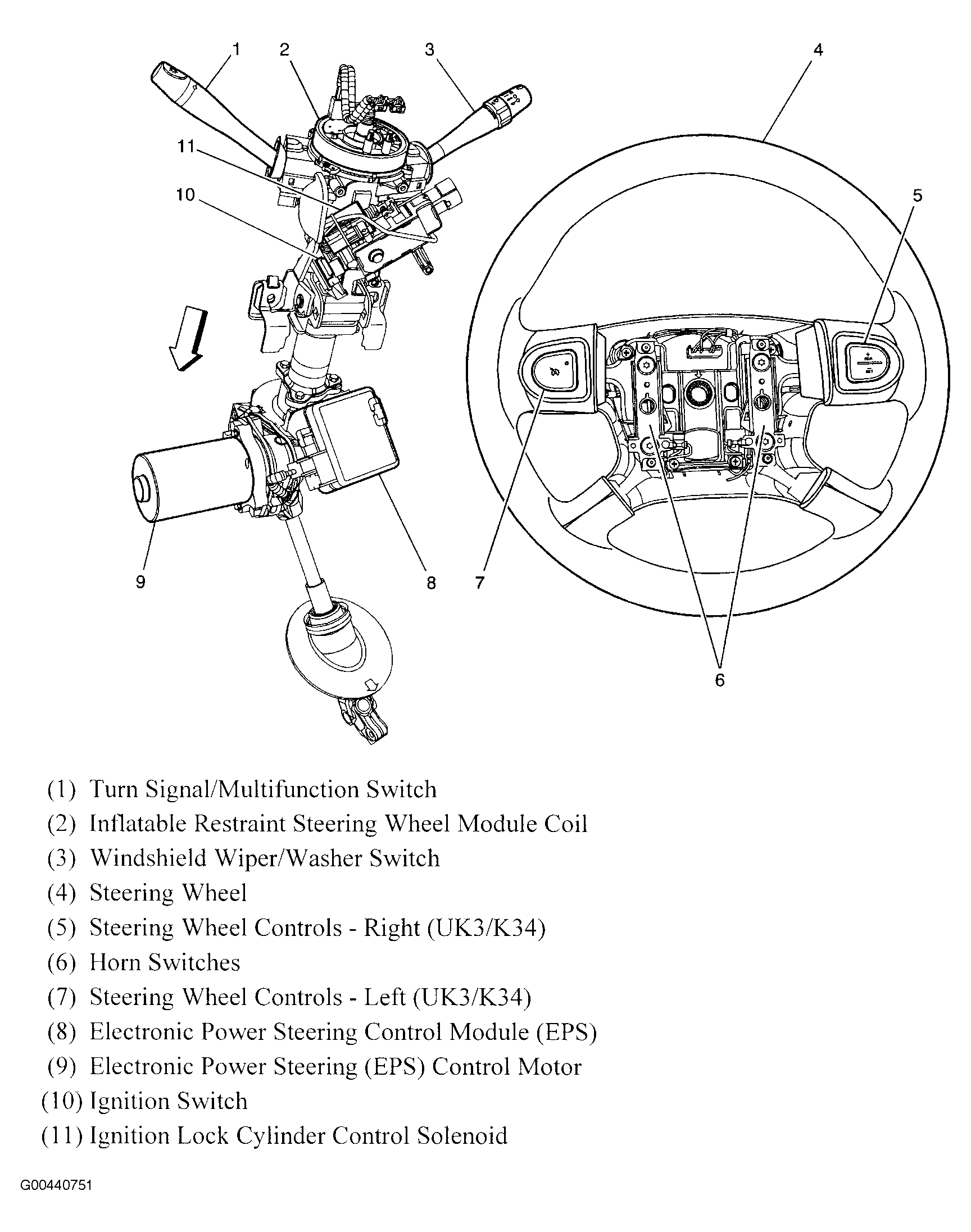

Fig 46: Steering Column Components
Courtesy of GENERAL MOTORS CORP.

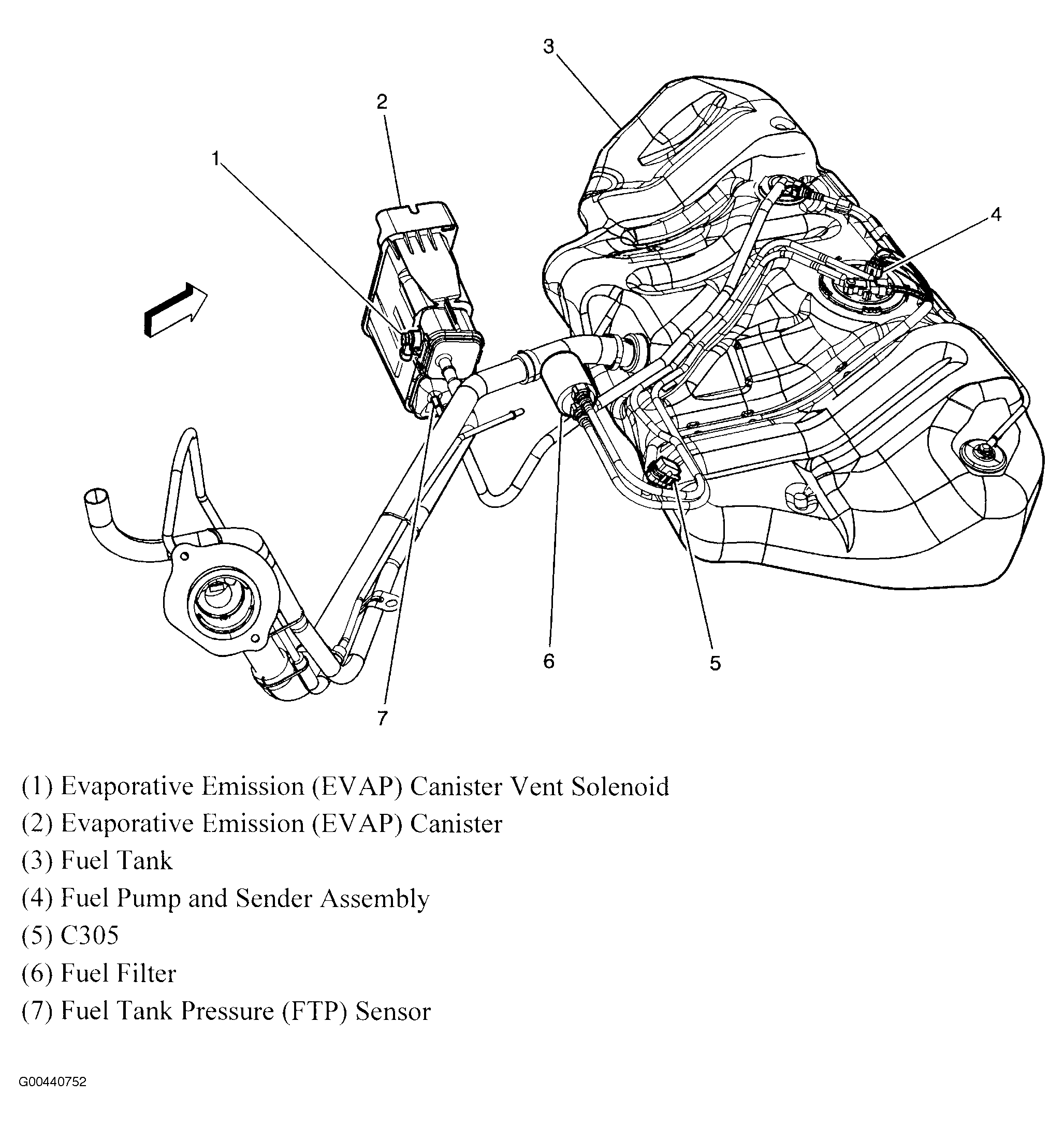

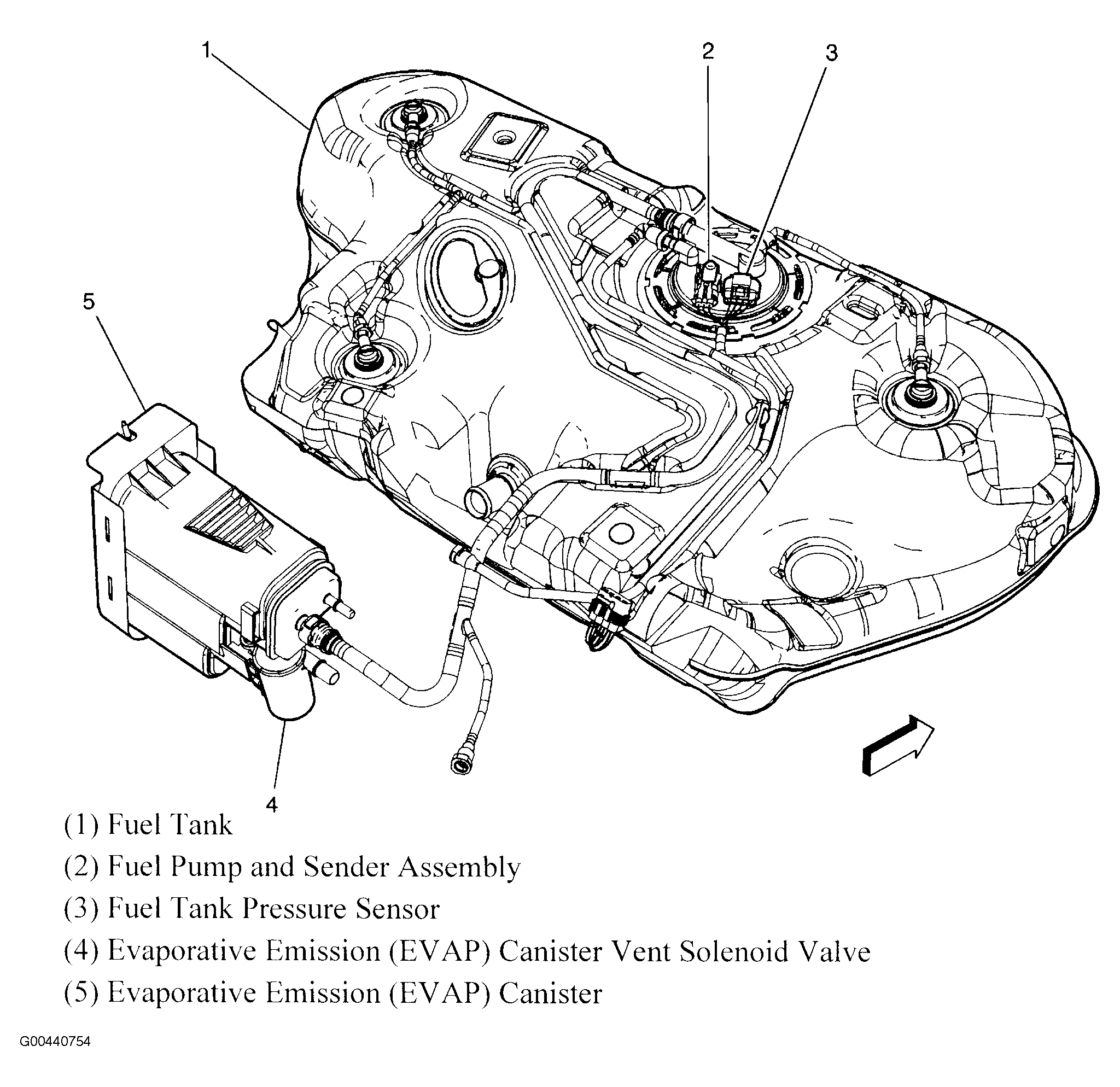

Fig 47: Fuel Tank Components (2.0L)
Courtesy of GENERAL MOTORS CORP.

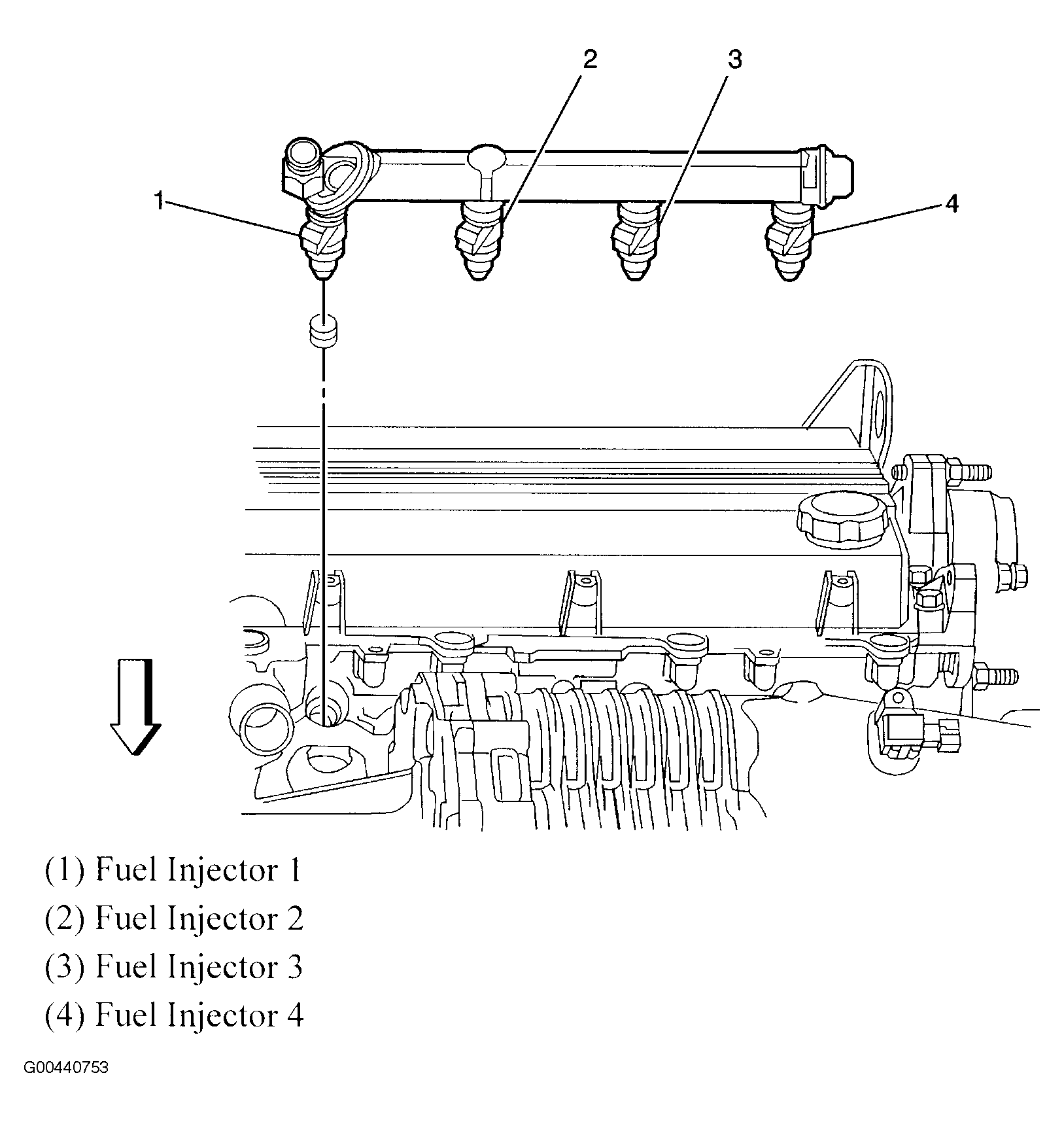

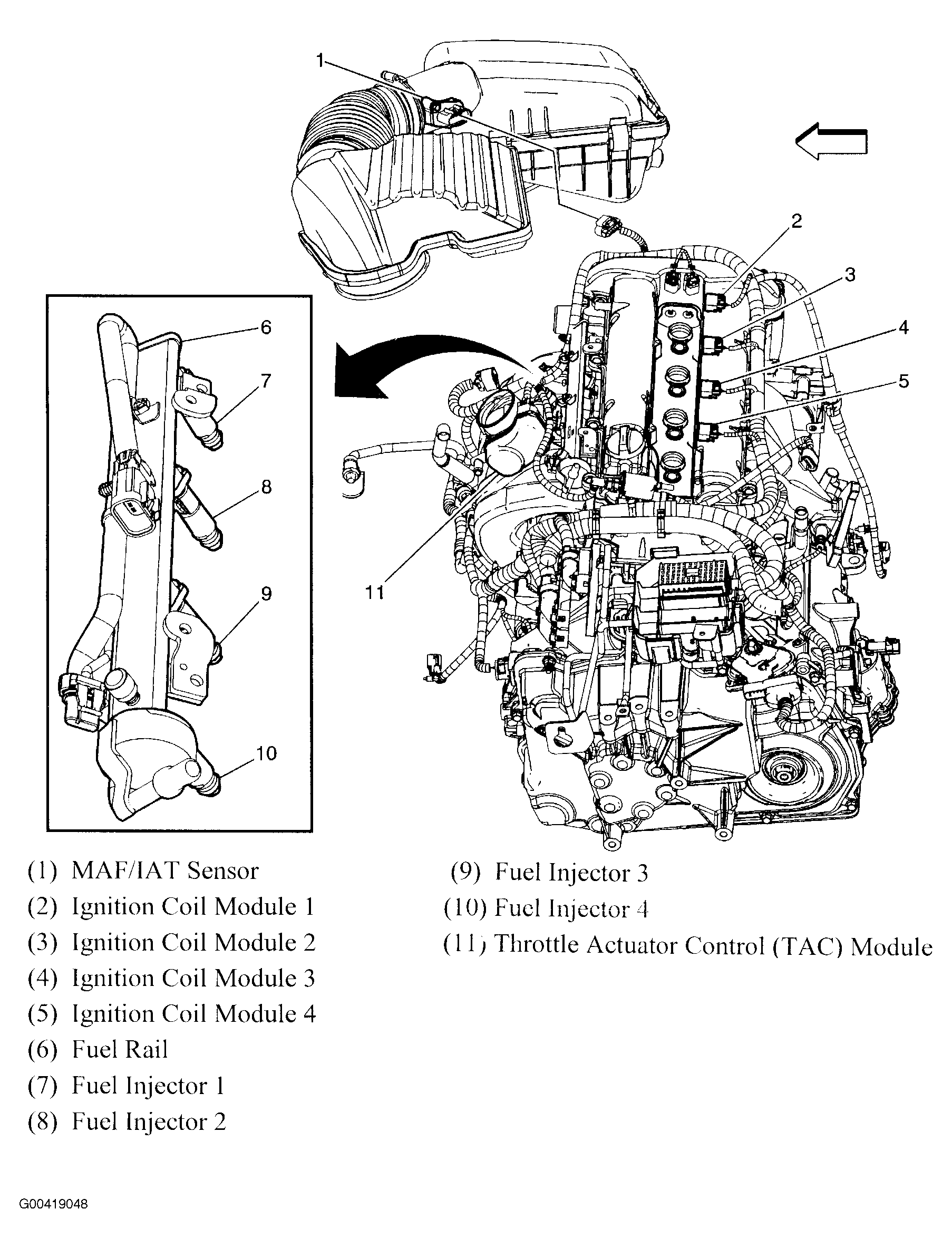

Fig 48: Fuel Injectors
Courtesy of GENERAL MOTORS CORP.
Fig 49: Fuel Tank Components (2.2L & 2.4L)
Courtesy of GENERAL MOTORS CORP.

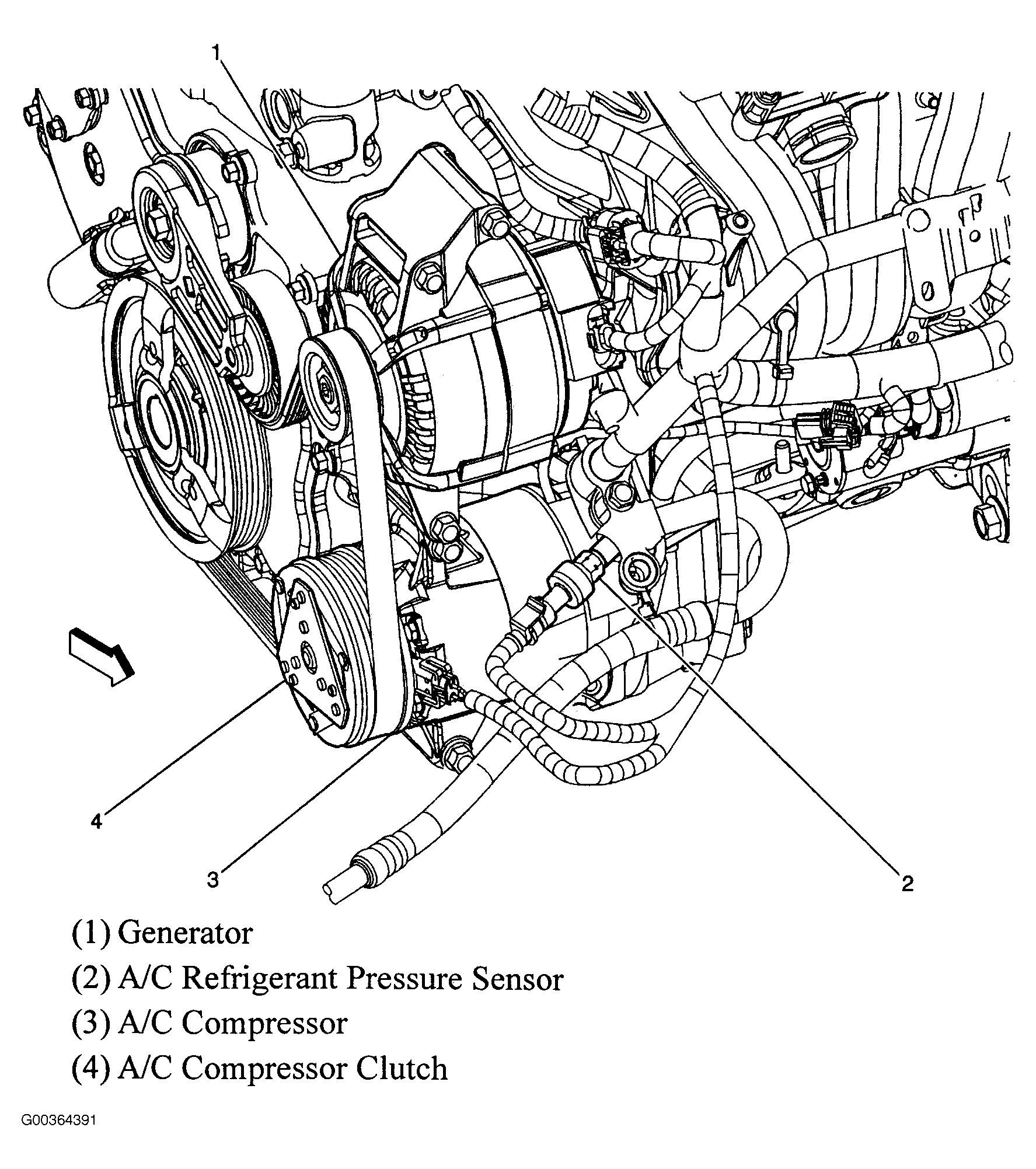

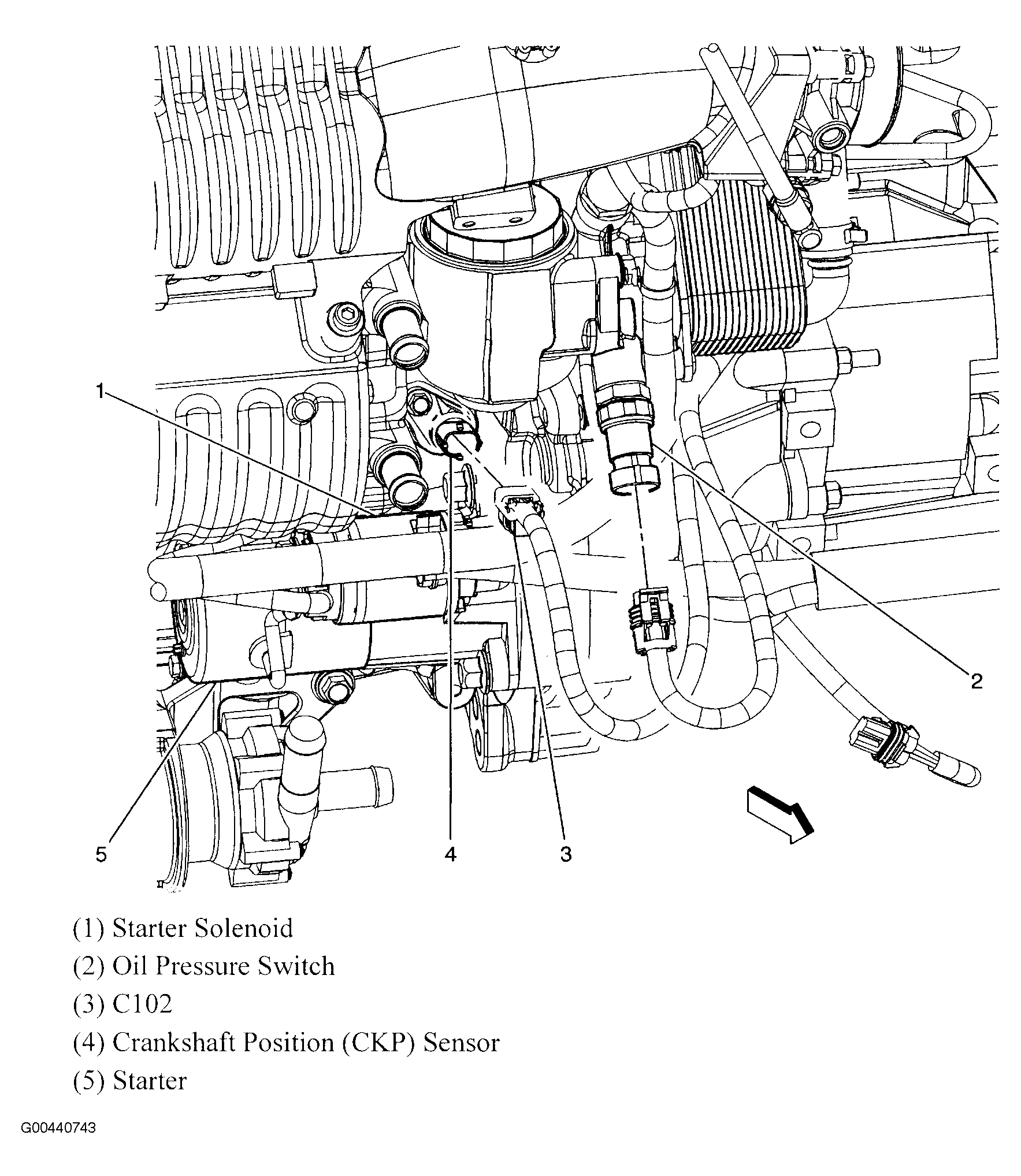

Fig 50: Lower Front, Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 51: Rear, Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

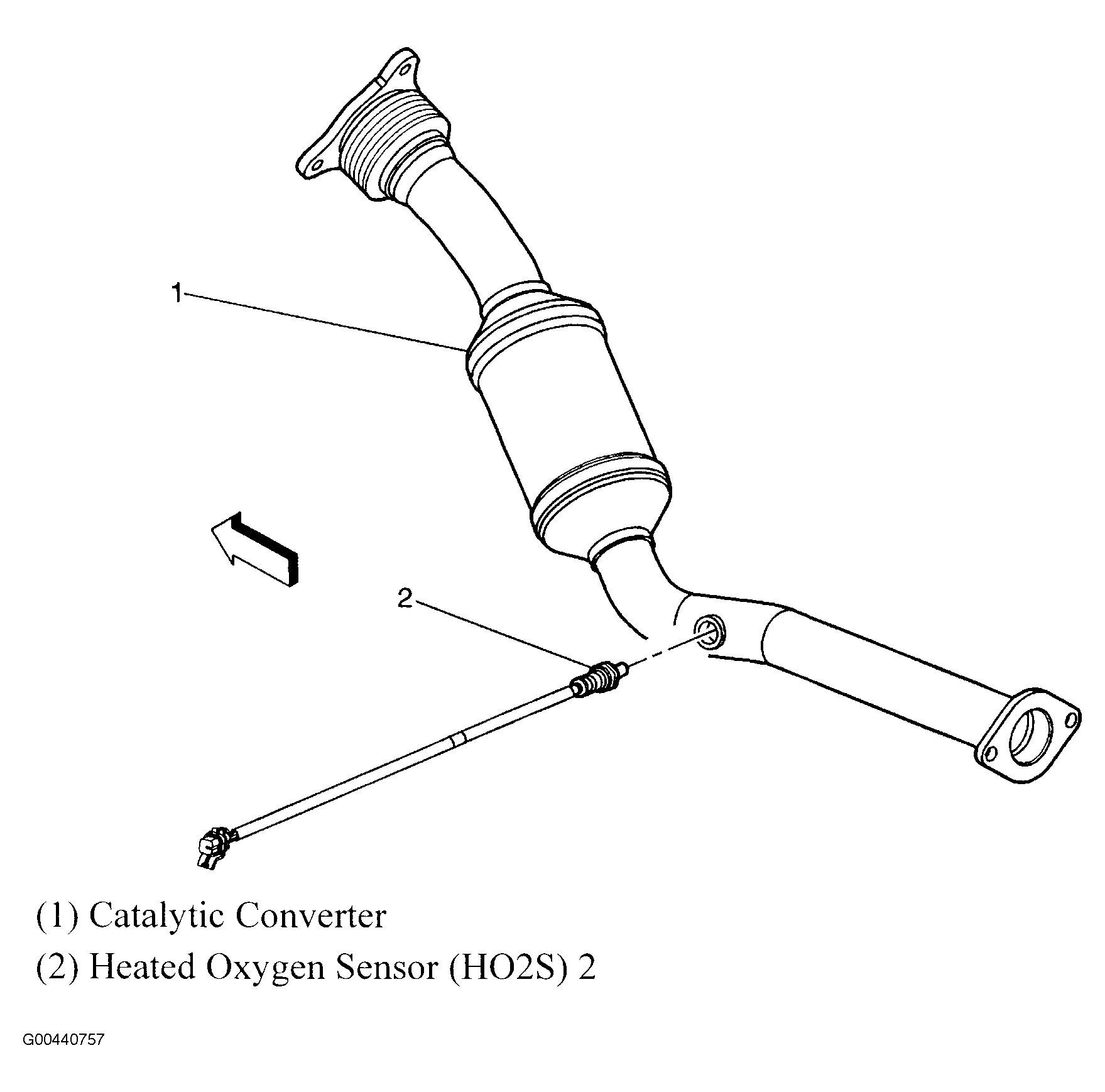

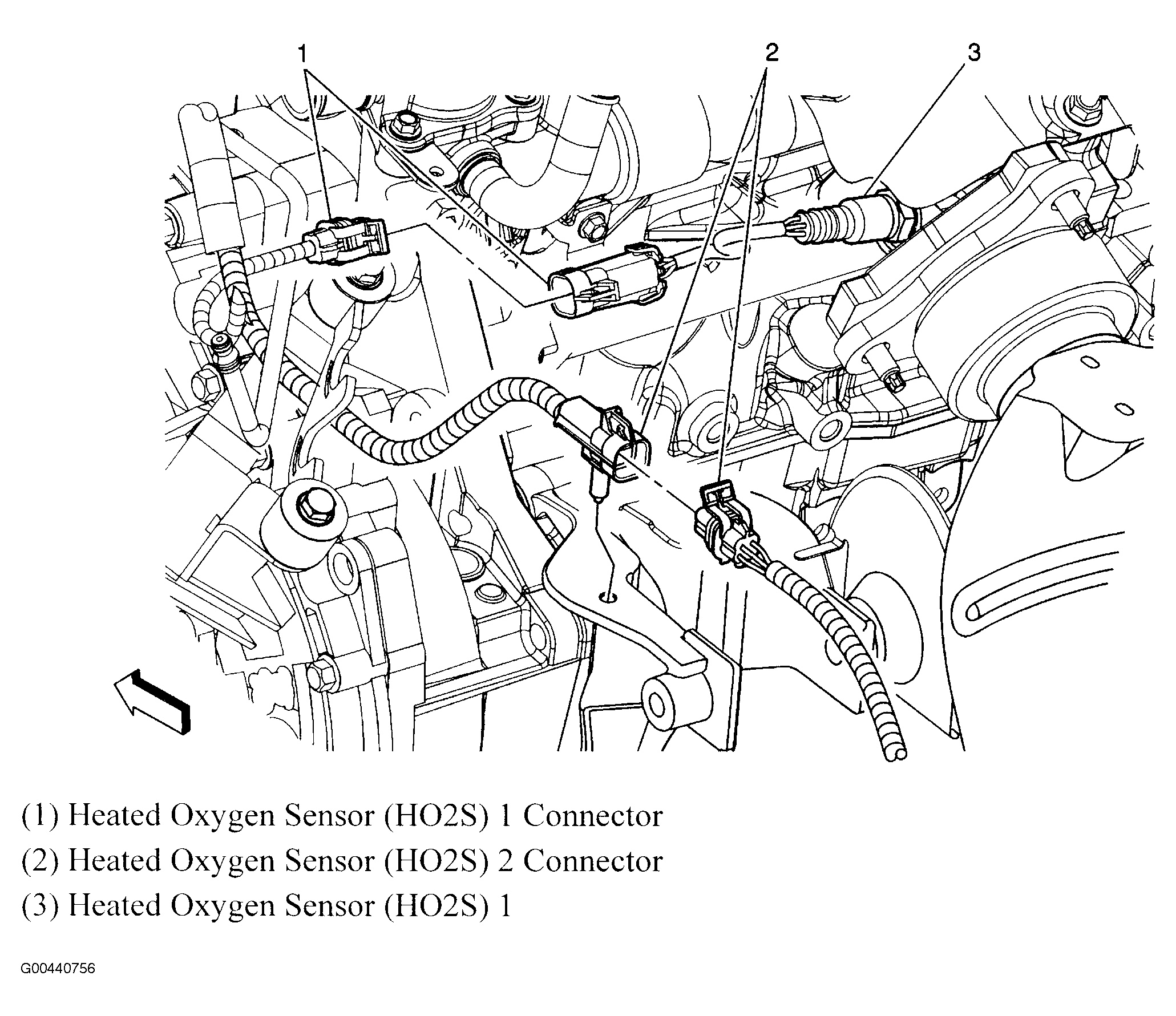

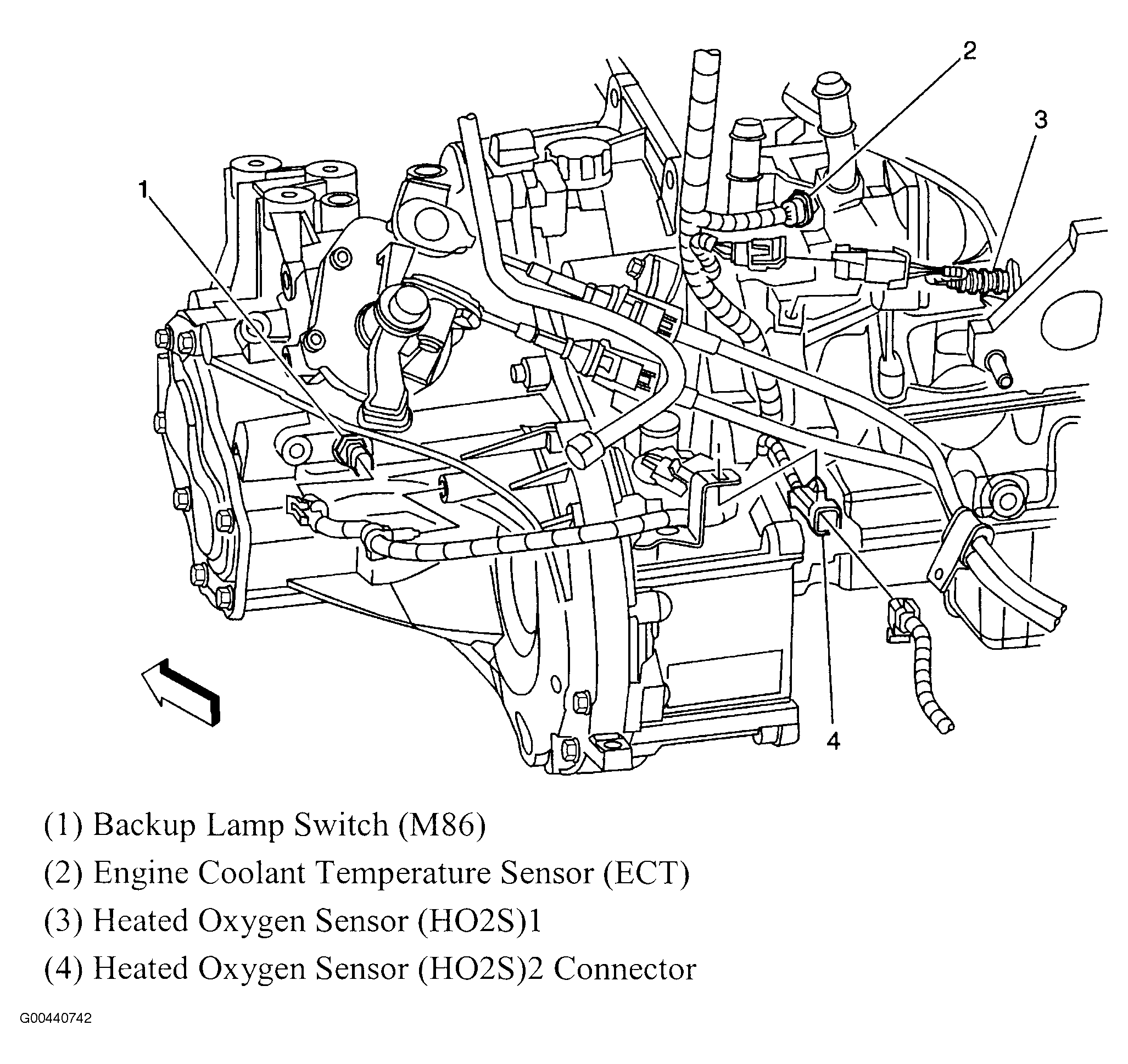

Fig 52: Heated Oxygen Sensor (HO2S2)
Courtesy of GENERAL MOTORS CORP.

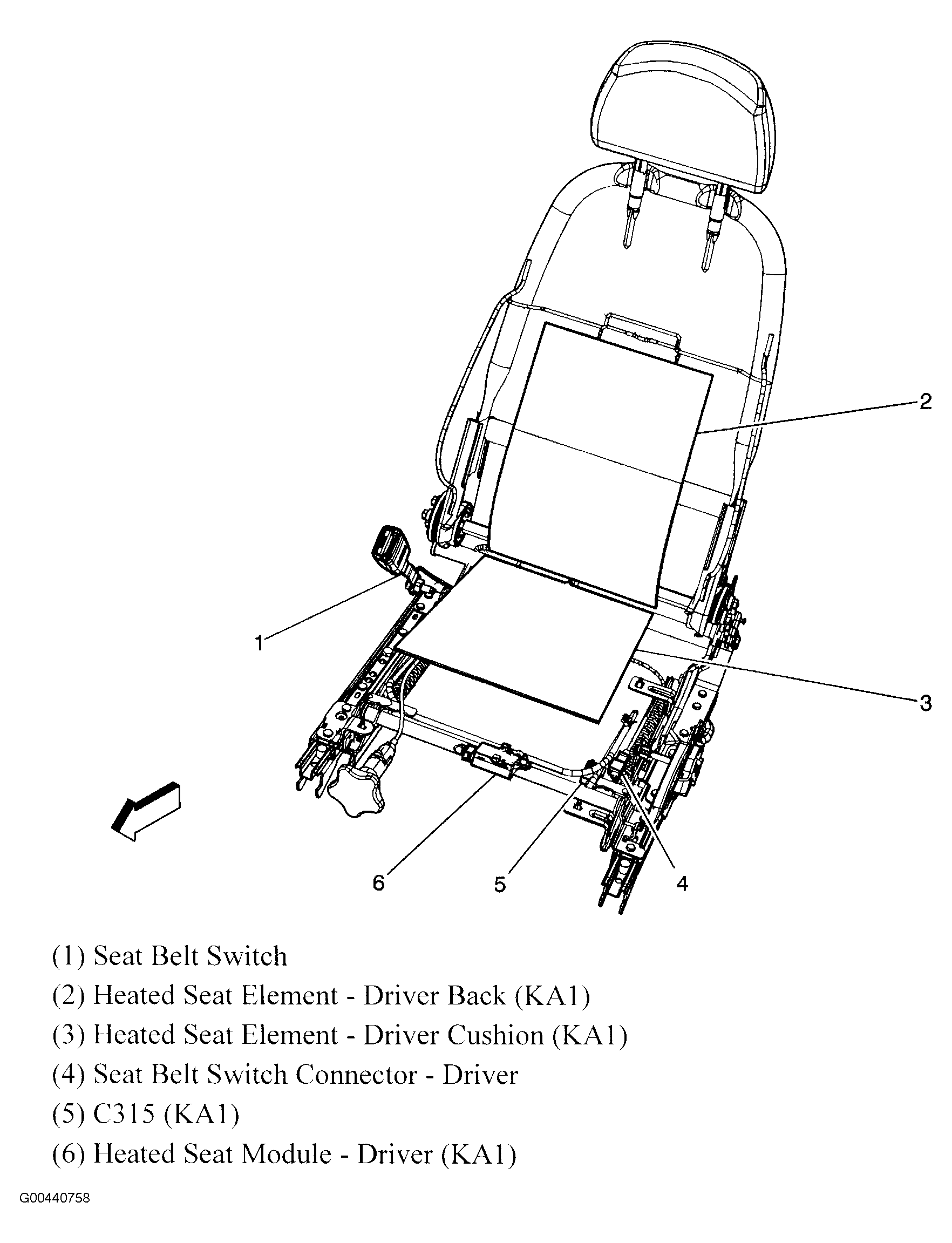

Fig 53: Driver Seat (Belt & Heater Components)
Courtesy of GENERAL MOTORS CORP.

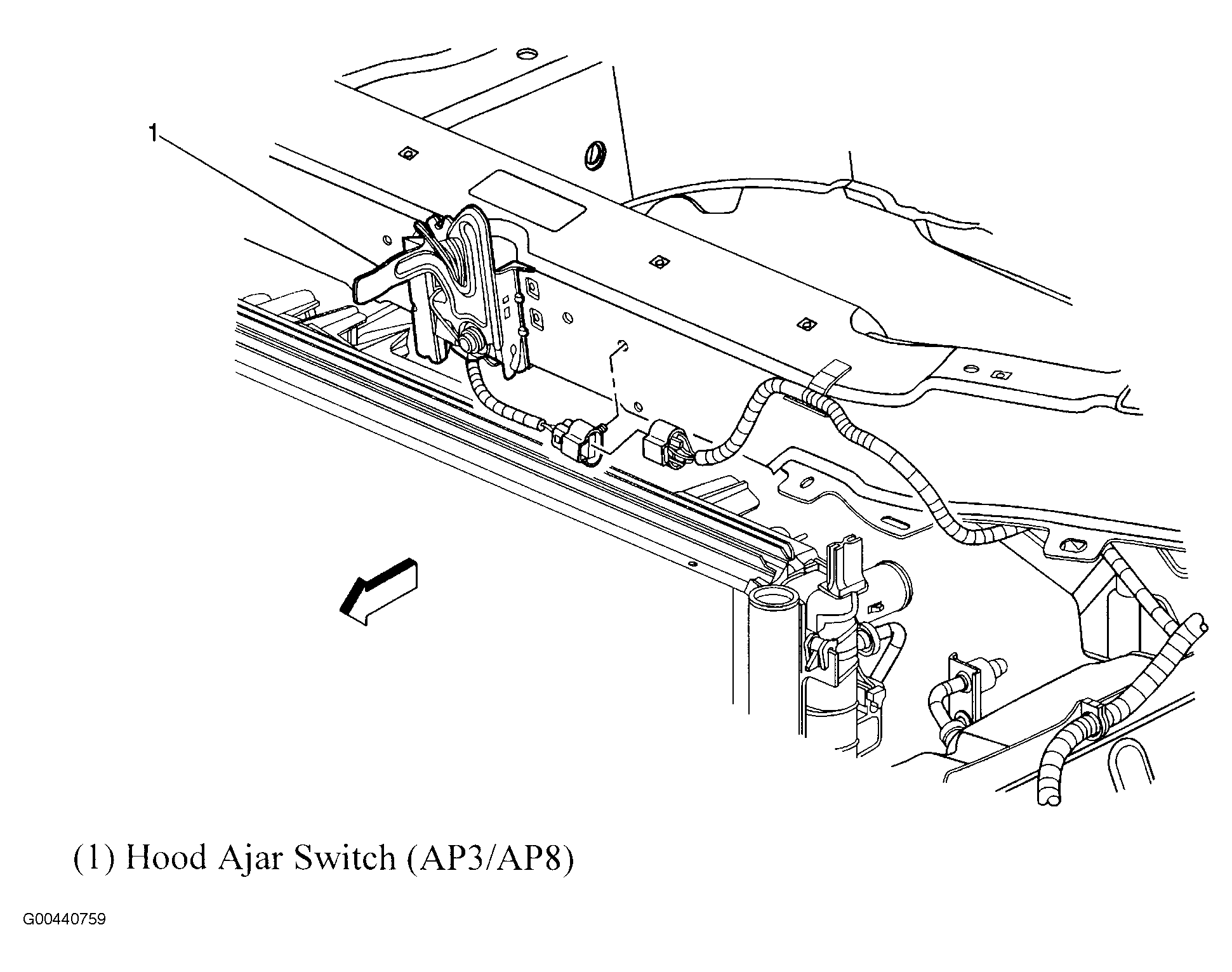

Fig 54: Hood Ajar Switch
Courtesy of GENERAL MOTORS CORP.

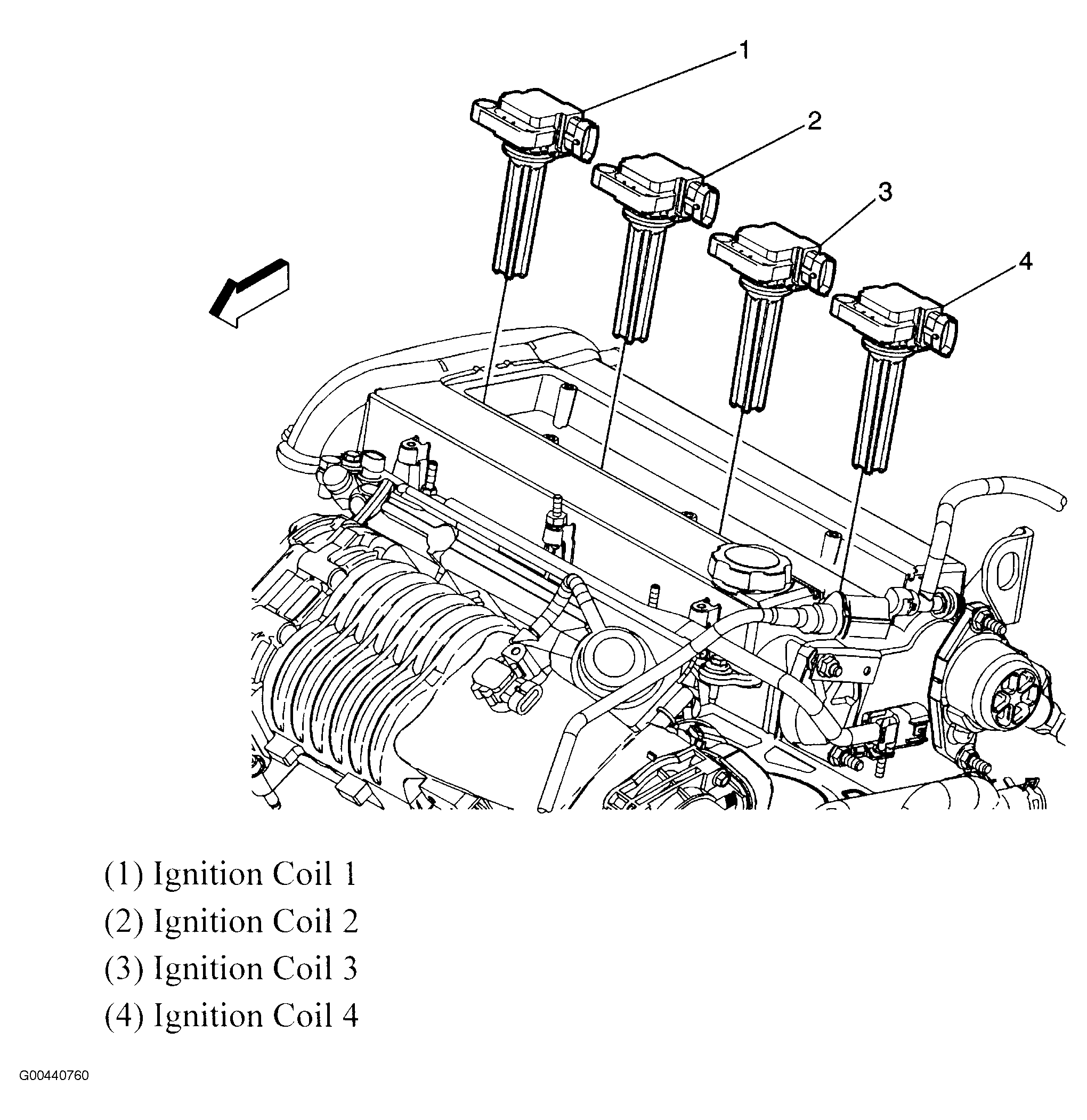

Fig 55: Ignition Coils
Courtesy of GENERAL MOTORS CORP.

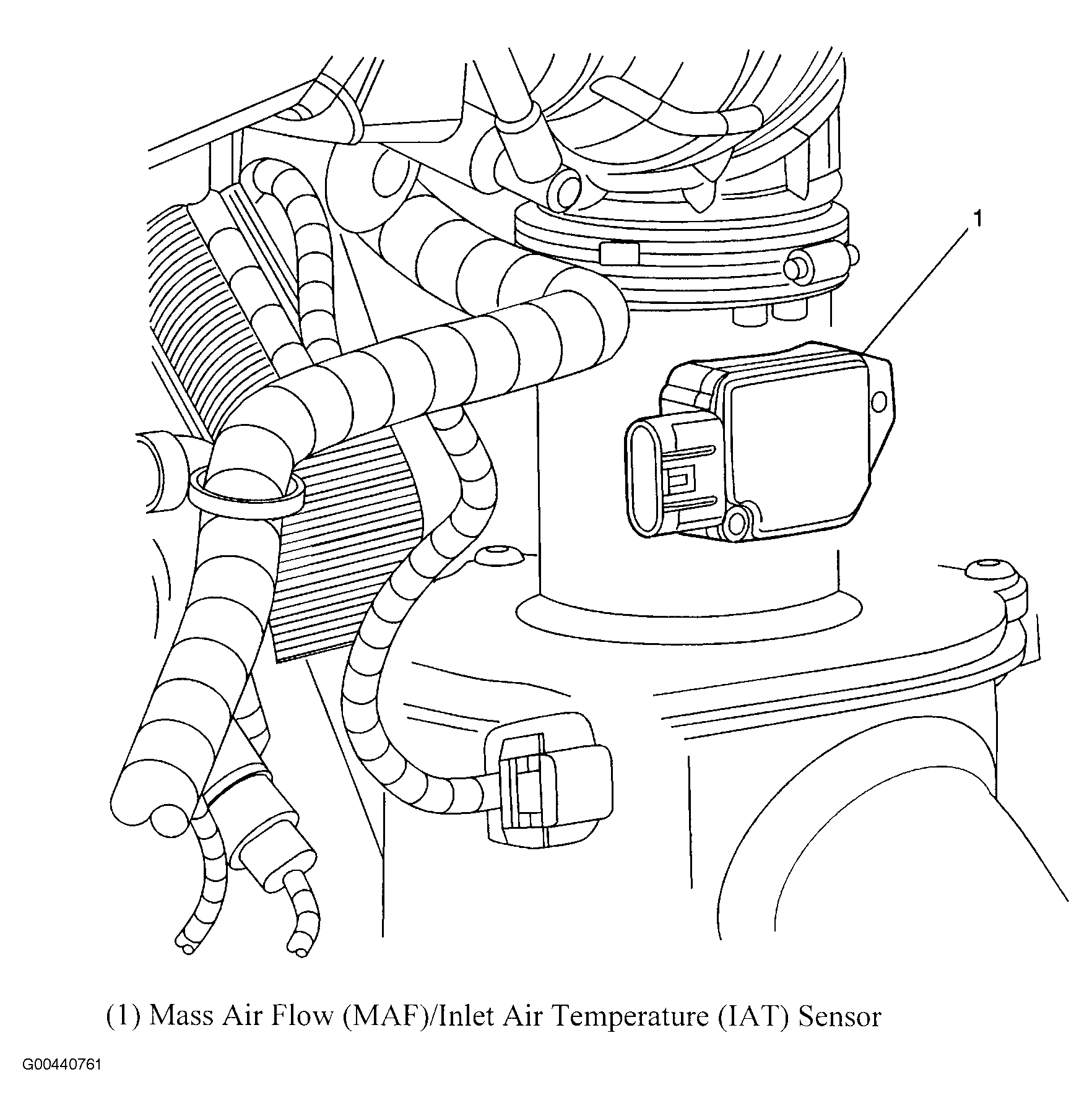

Fig 56: Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor
Courtesy of GENERAL MOTORS CORP.

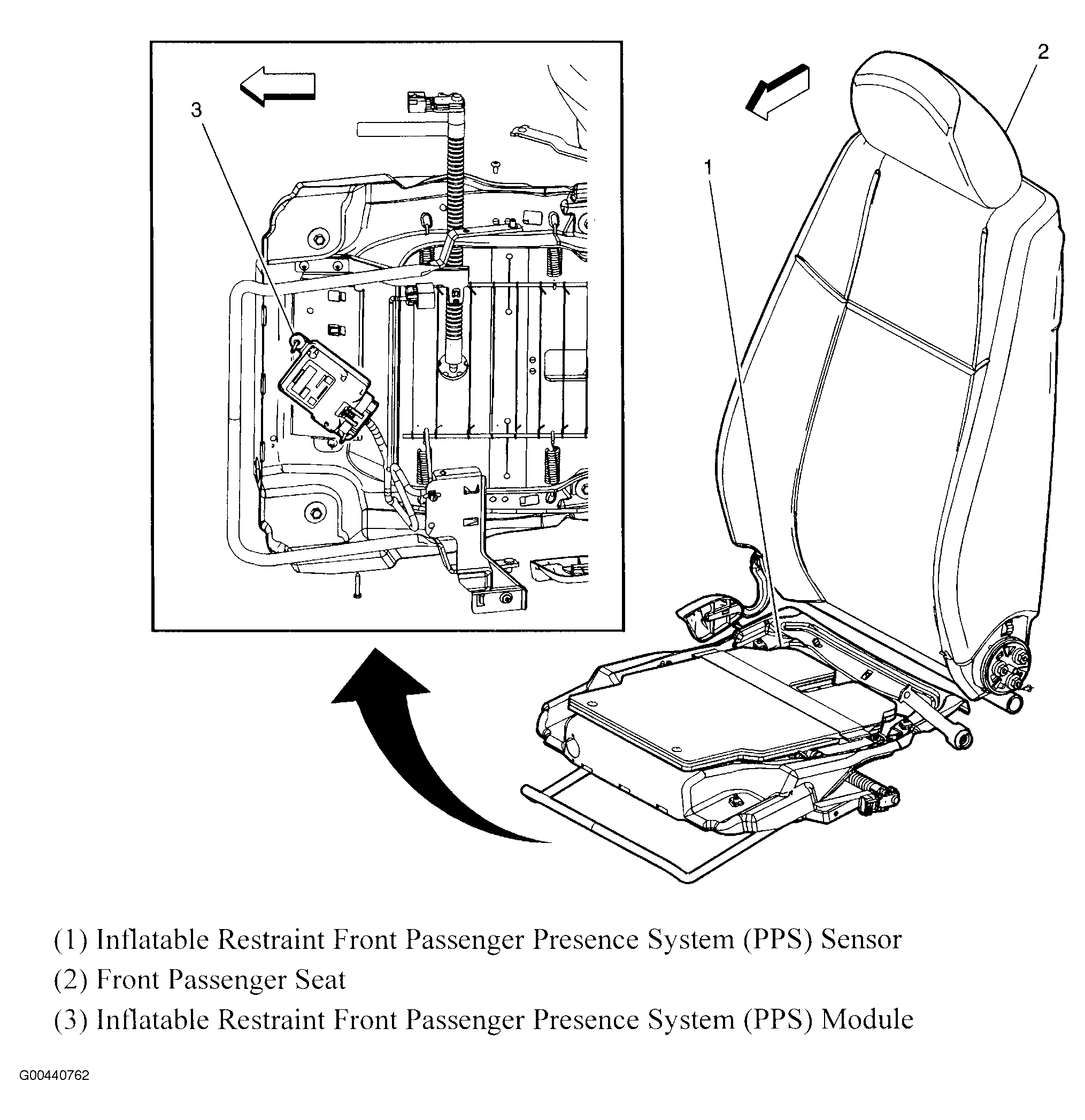

Fig 57: Passenger Presence System Components
Courtesy of GENERAL MOTORS CORP.

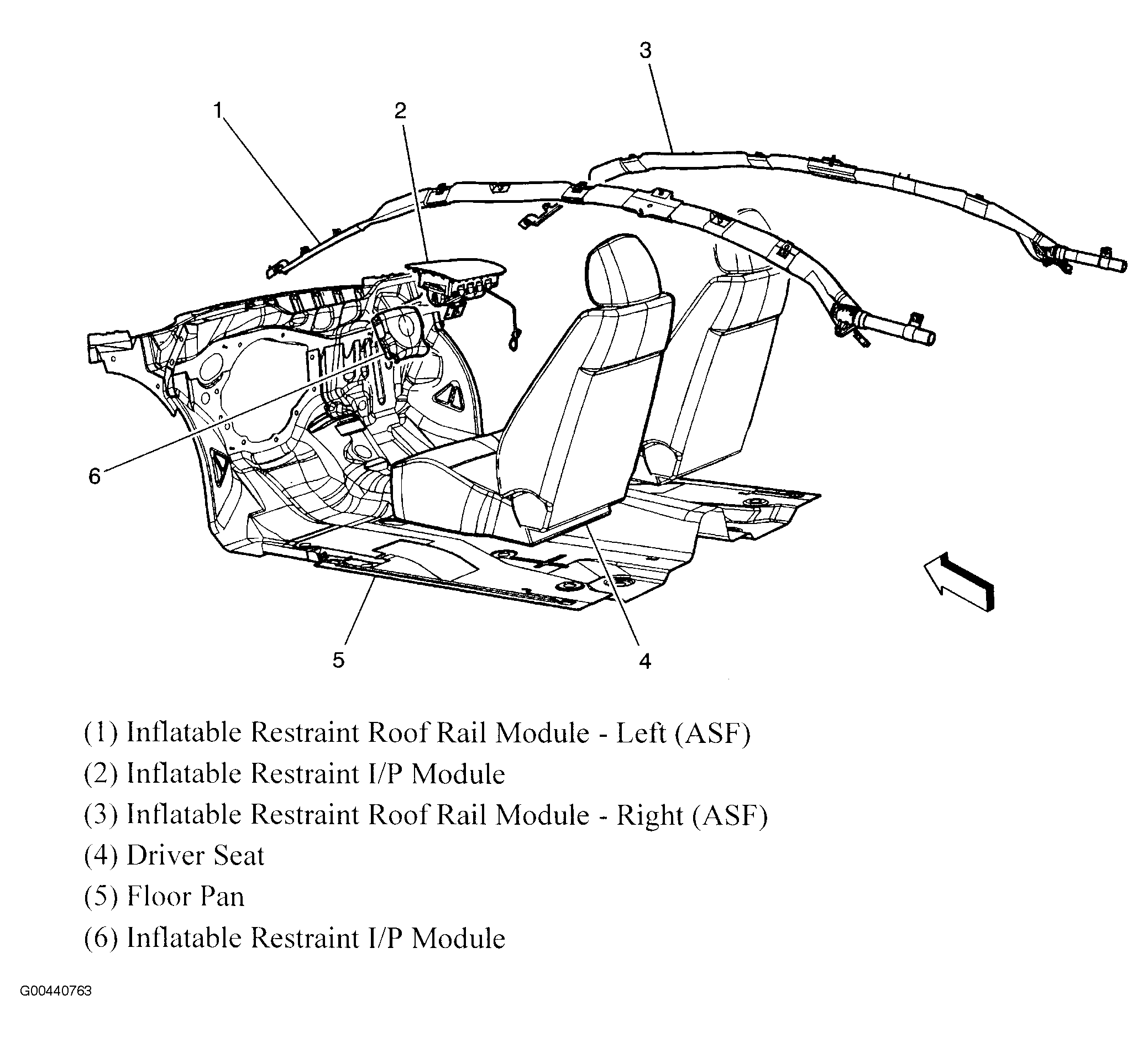

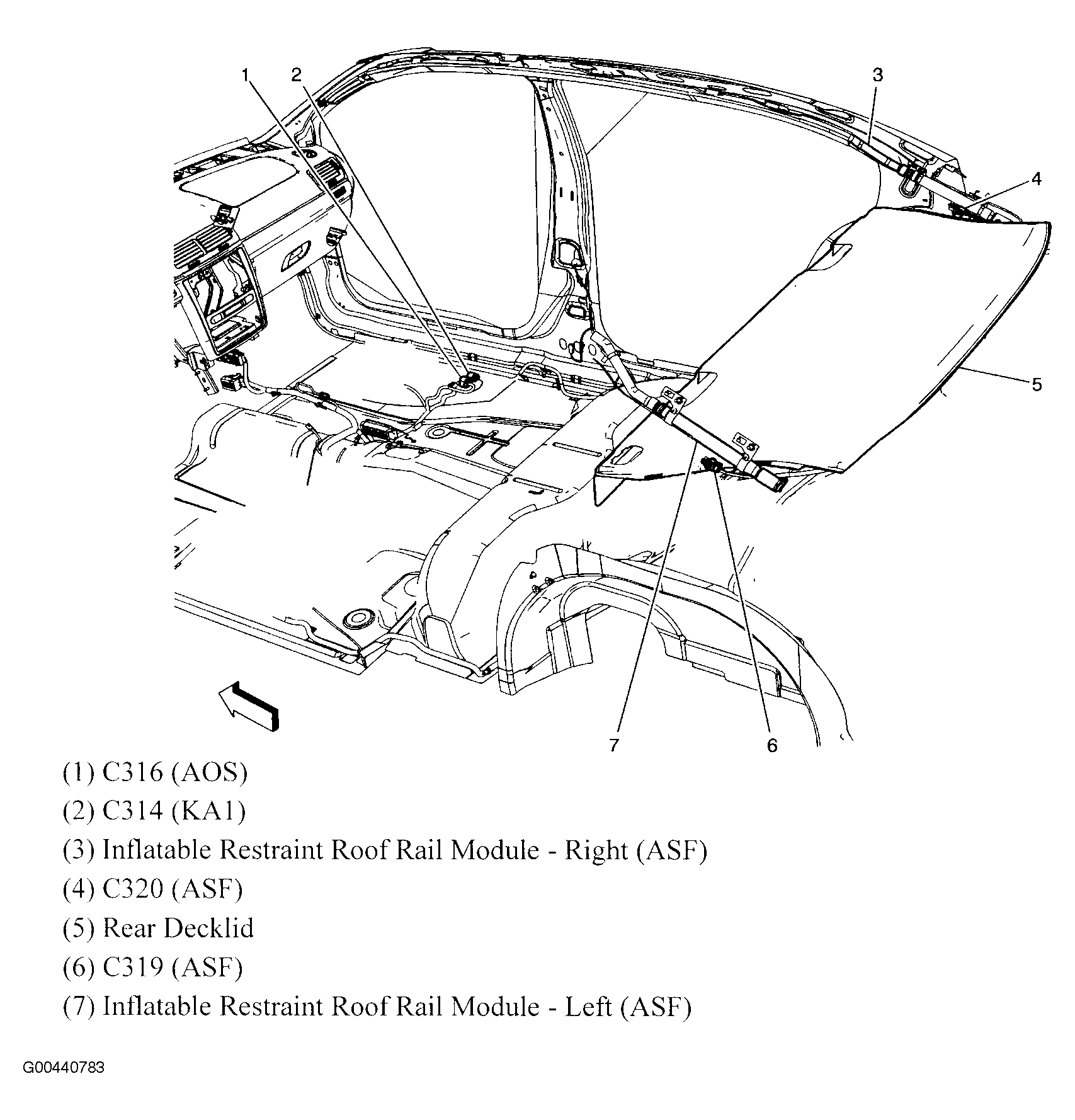

Fig 58: Front Passenger/Side Air Bags
Courtesy of GENERAL MOTORS CORP.

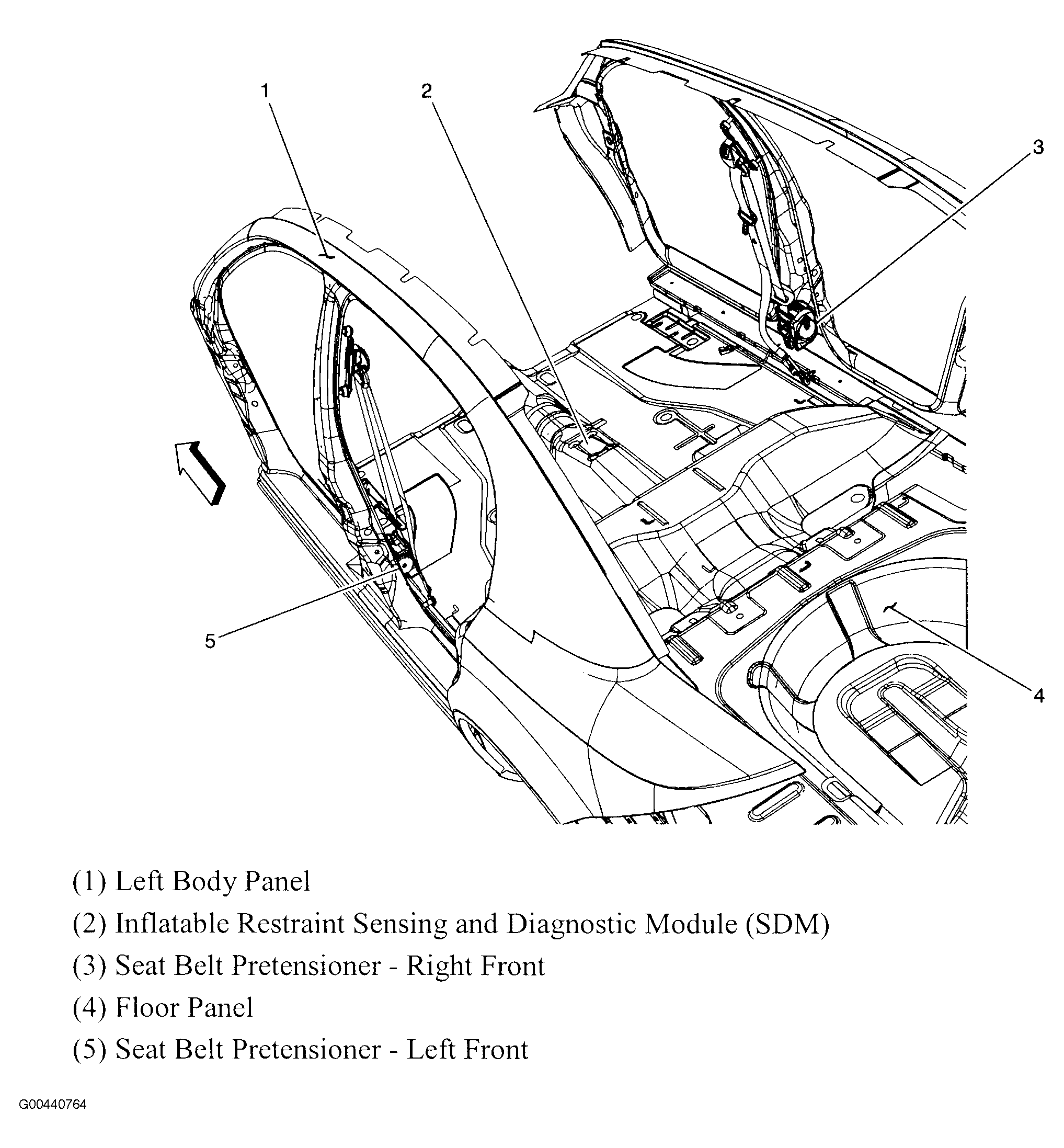

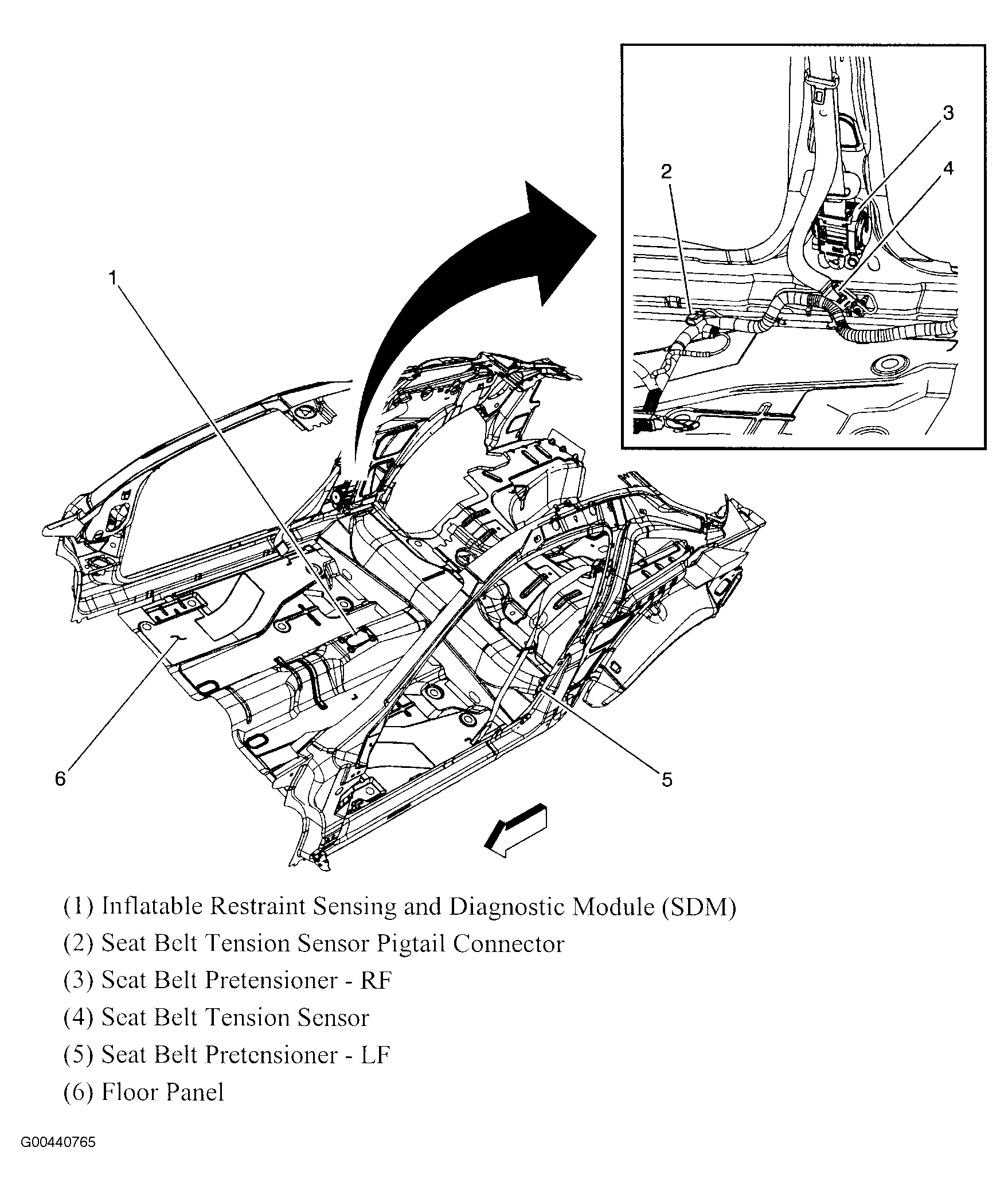

Fig 59: Seat Belt Pretensioners (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Seat Belt Pretensioners (Coupe)
Courtesy of GENERAL MOTORS CORP.

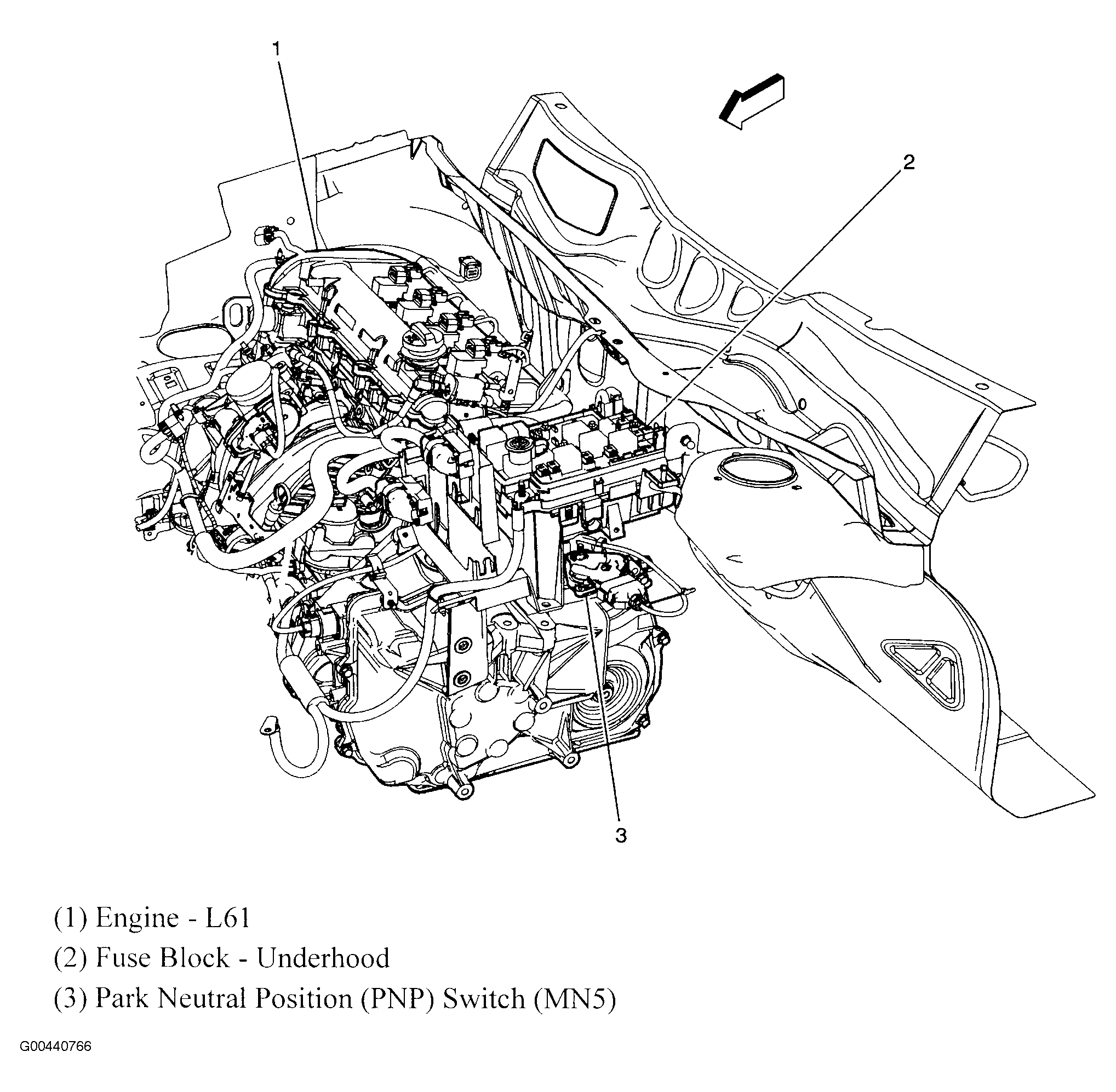

Fig 61: Park Neutral Position (PNP) Switch
Courtesy of GENERAL MOTORS CORP.

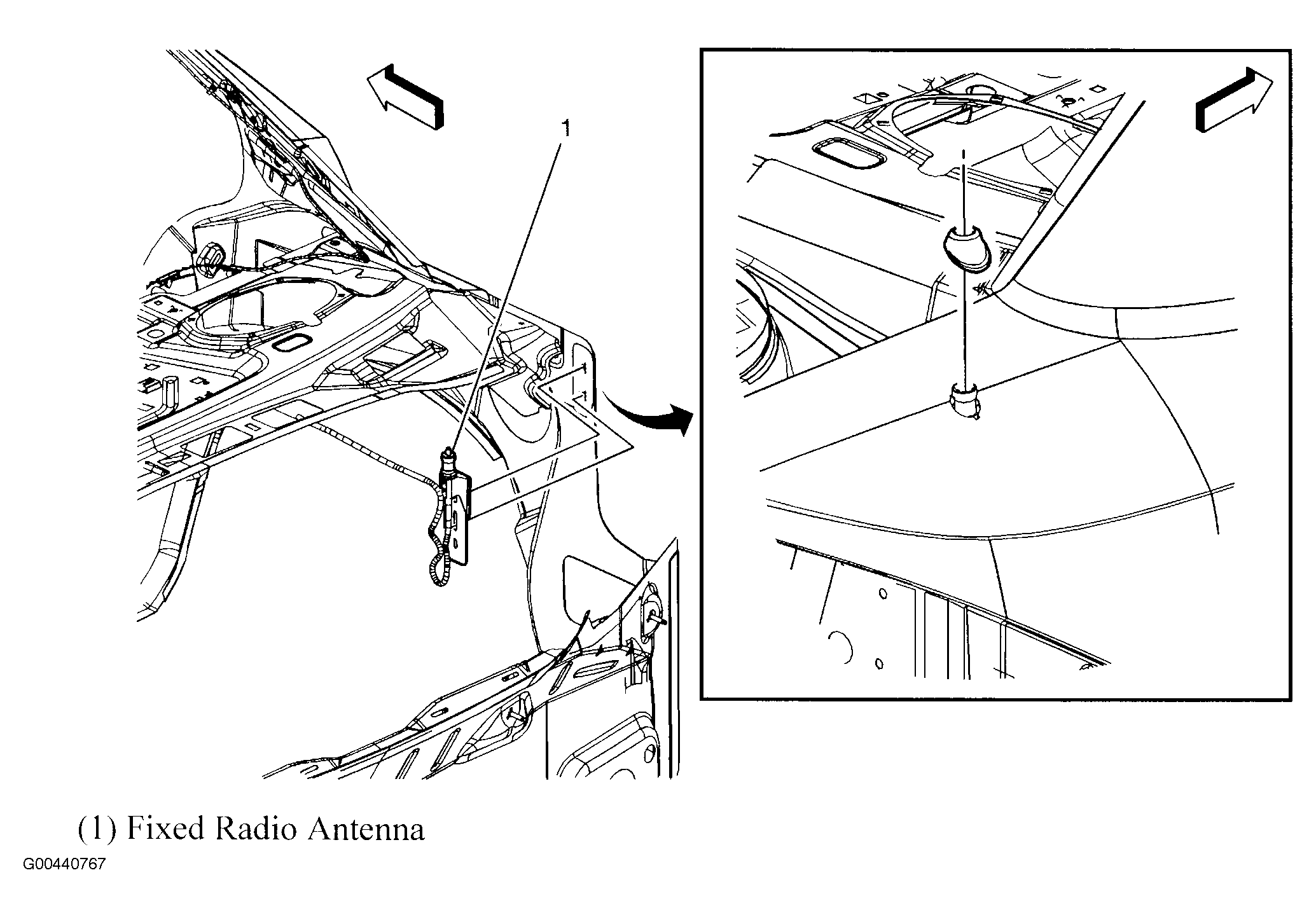

Fig 62: Fixed Radio Antenna
Courtesy of GENERAL MOTORS CORP.

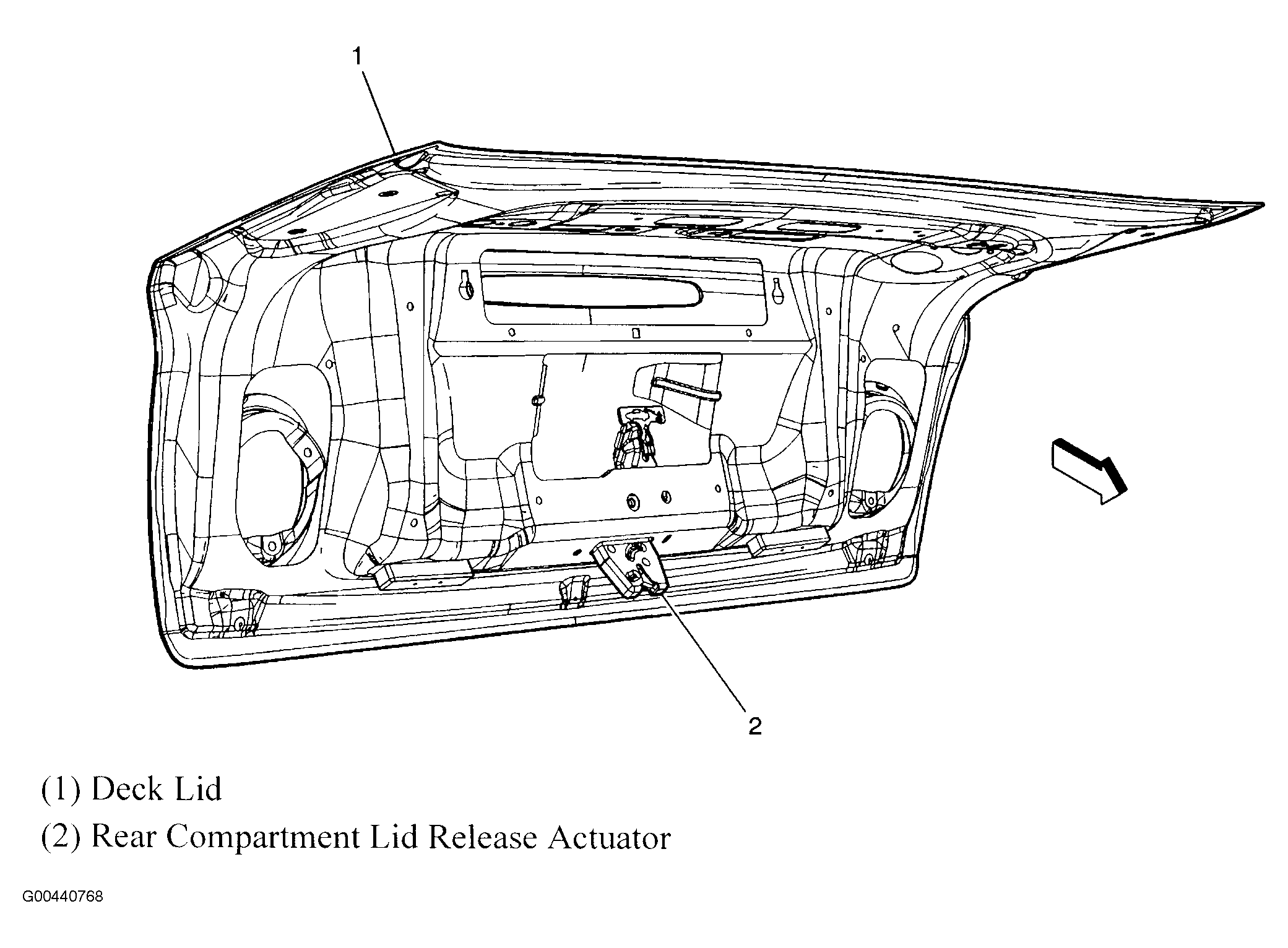

Fig 63: Rear Lid Components
Courtesy of GENERAL MOTORS CORP.

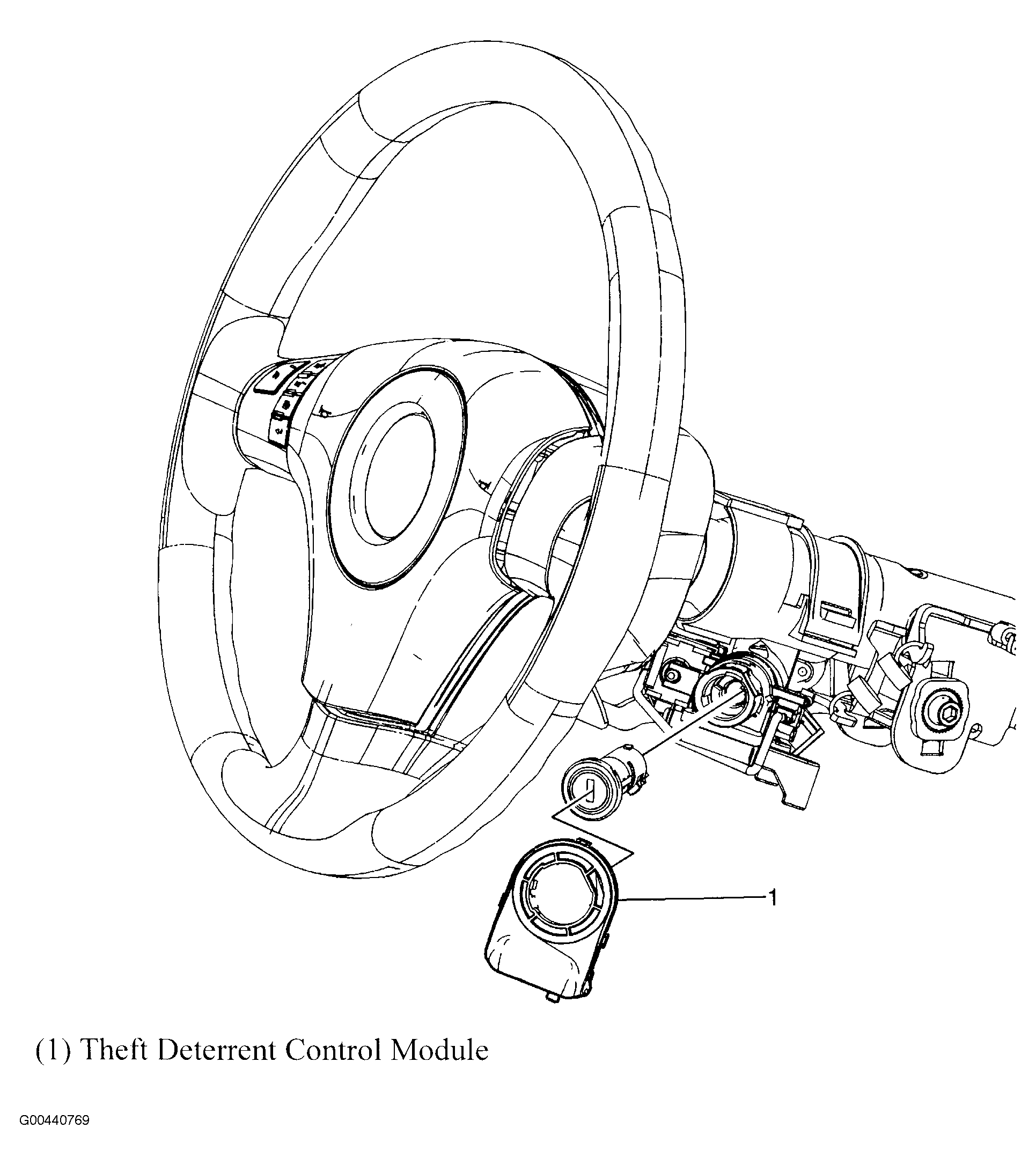

Fig 64: Theft Deterrent Control Module
Courtesy of GENERAL MOTORS CORP.

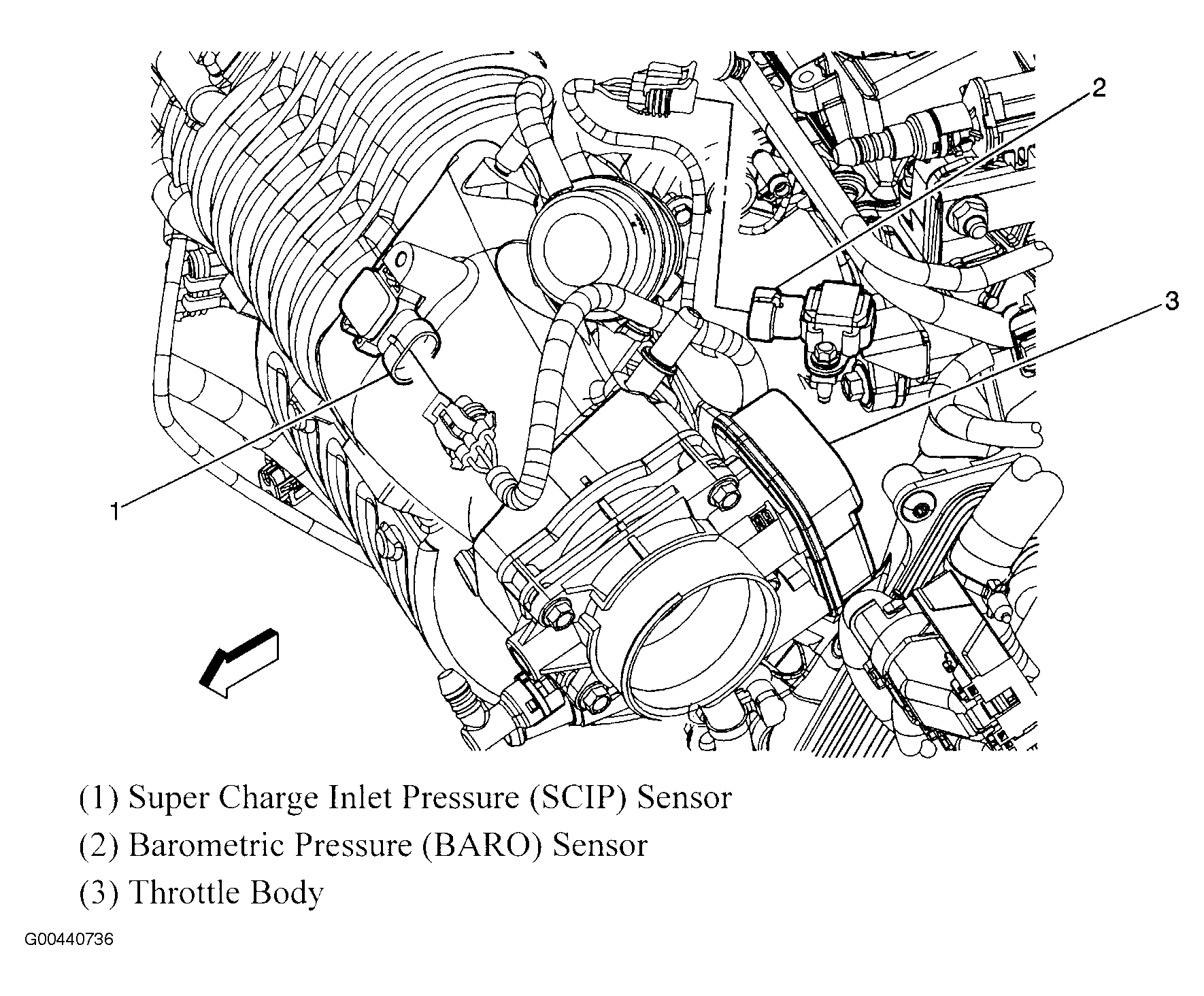

Fig 65: Engine Intake Components (2.0L)
Courtesy of GENERAL MOTORS CORP.

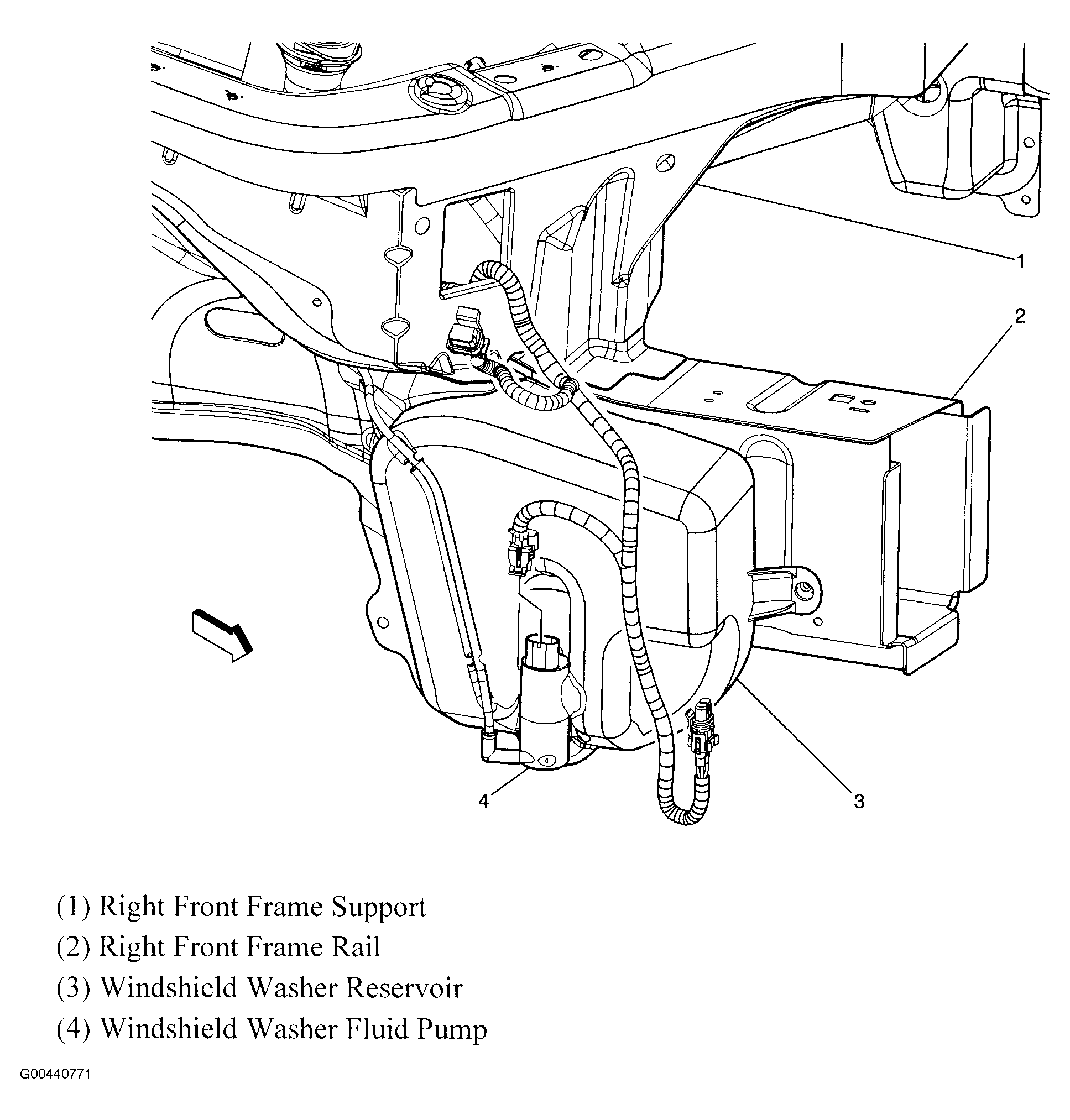

Fig 66: Windshield Washer Pump
Courtesy of GENERAL MOTORS CORP.

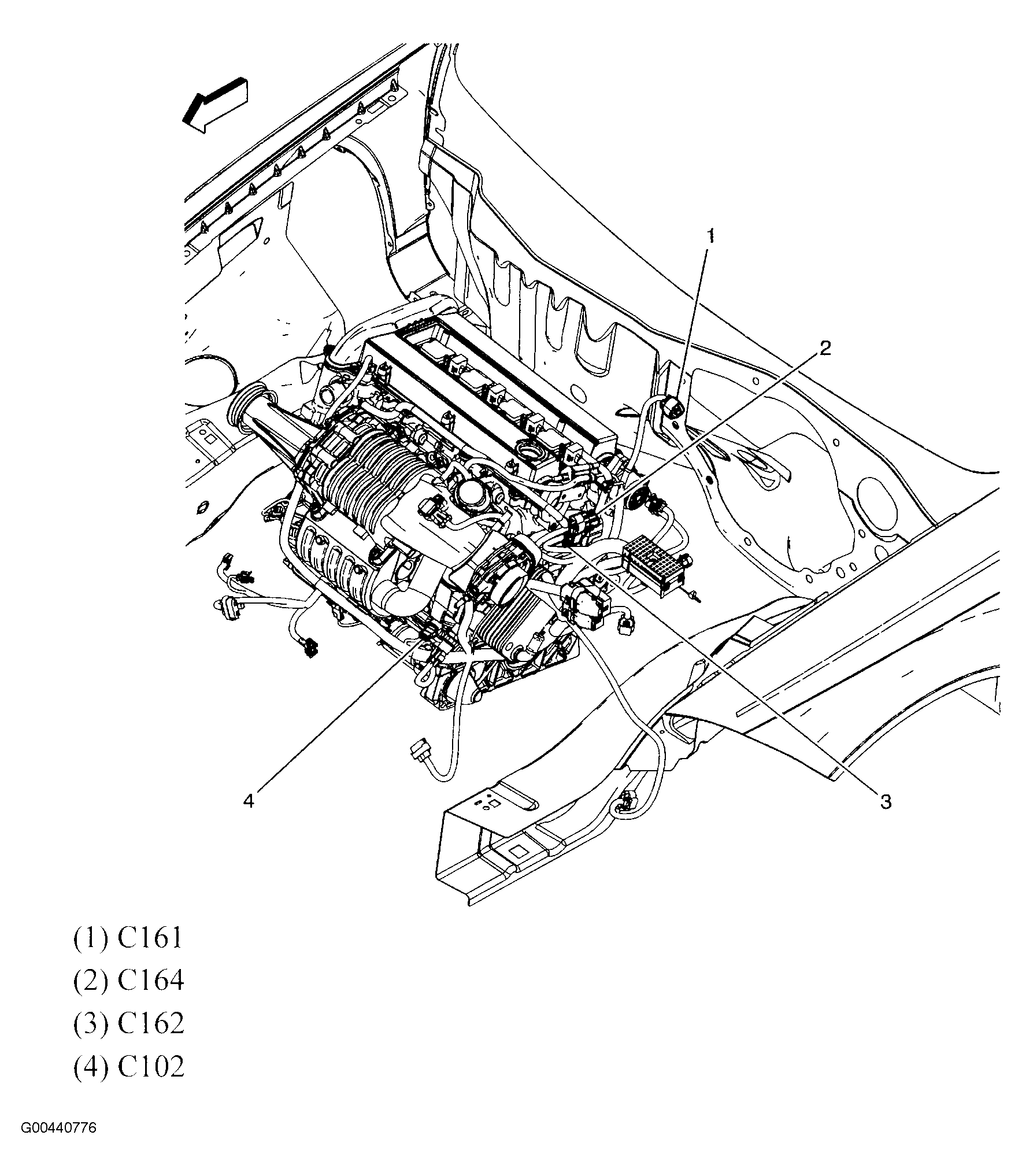

Fig 67: Engine Harness Routing (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Engine Harness Routing (2.4L)
Courtesy of GENERAL MOTORS CORP.

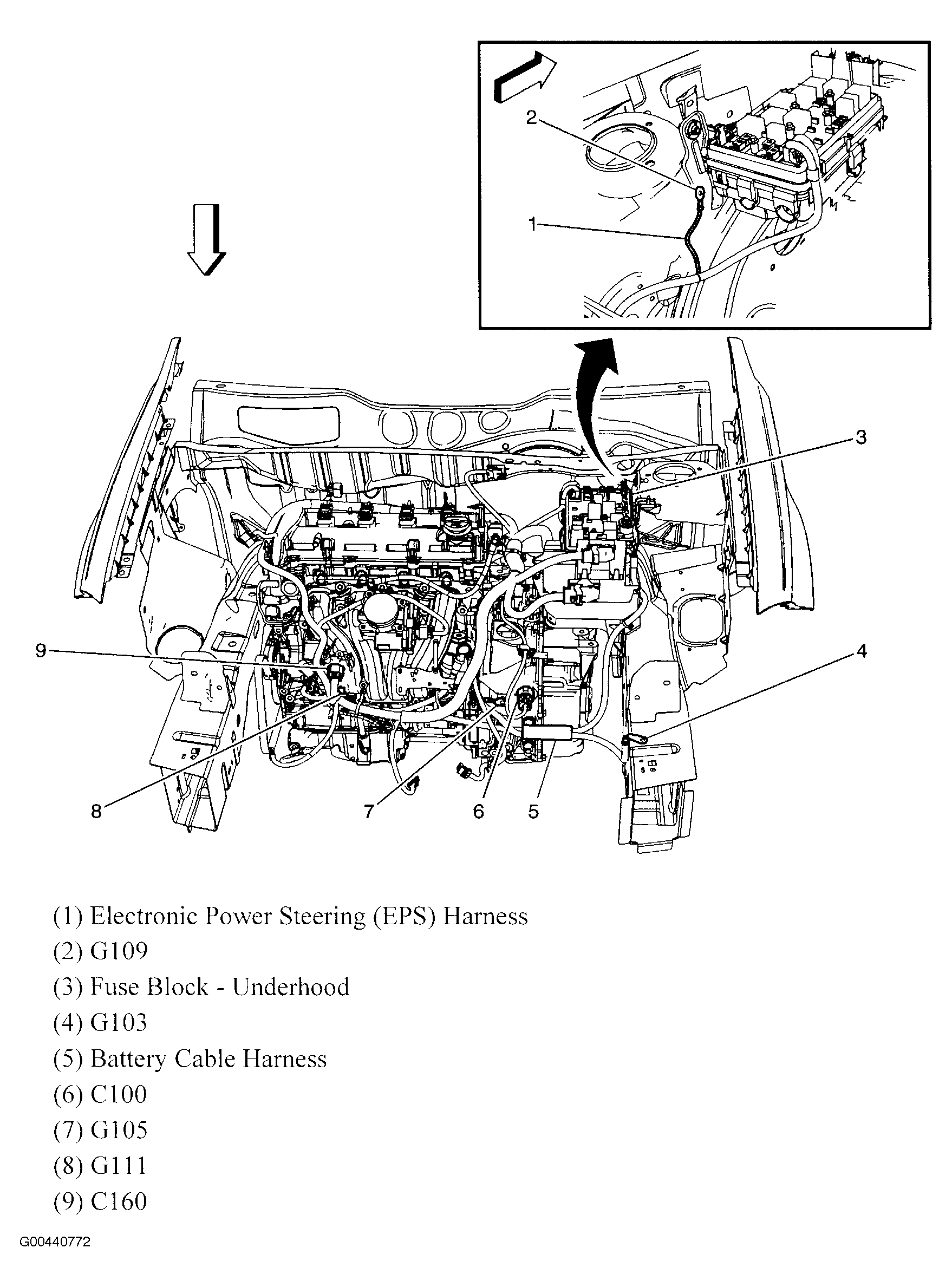

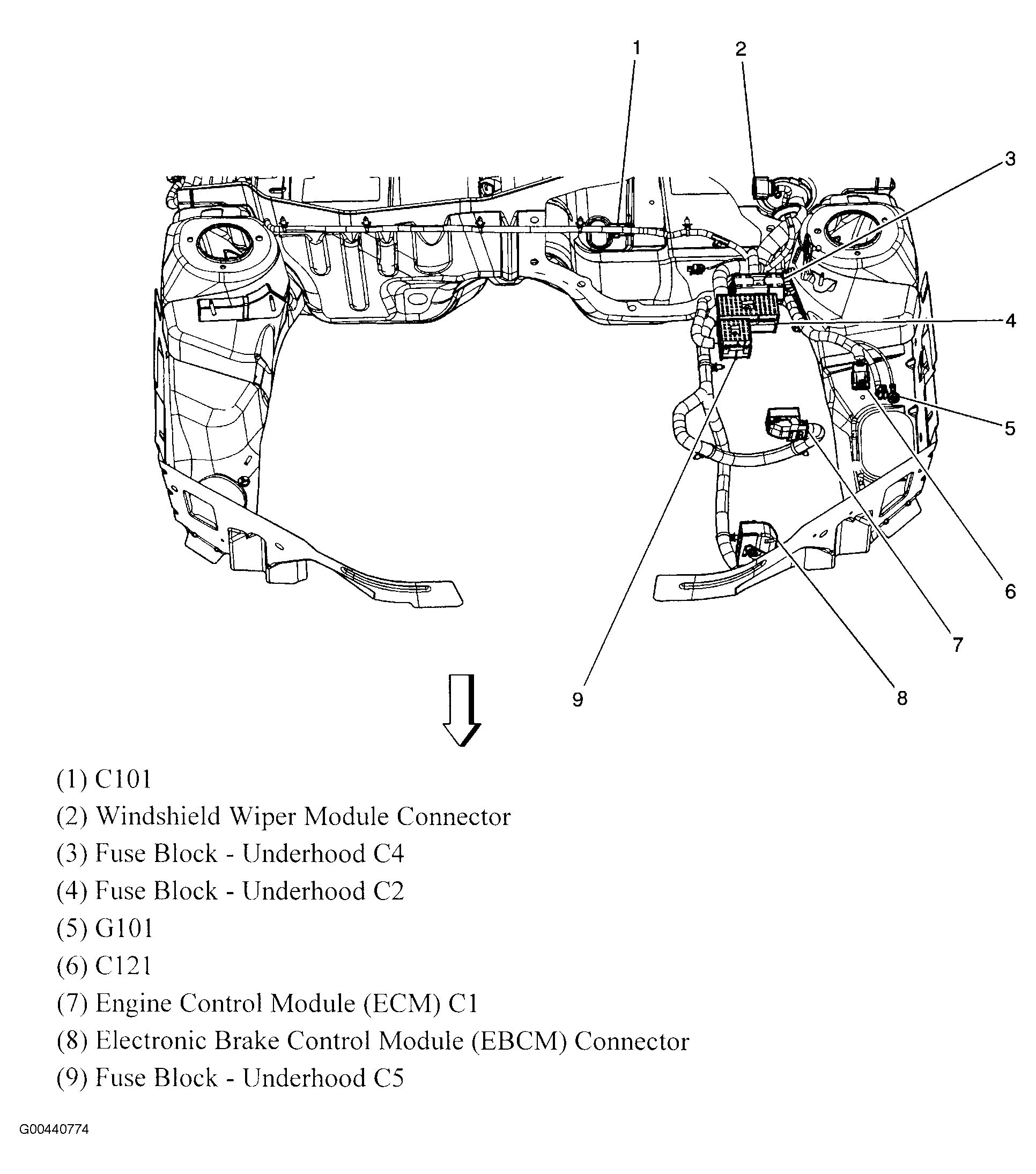

Fig 69: Body Harness In Engine Compartment
Courtesy of GENERAL MOTORS CORP.

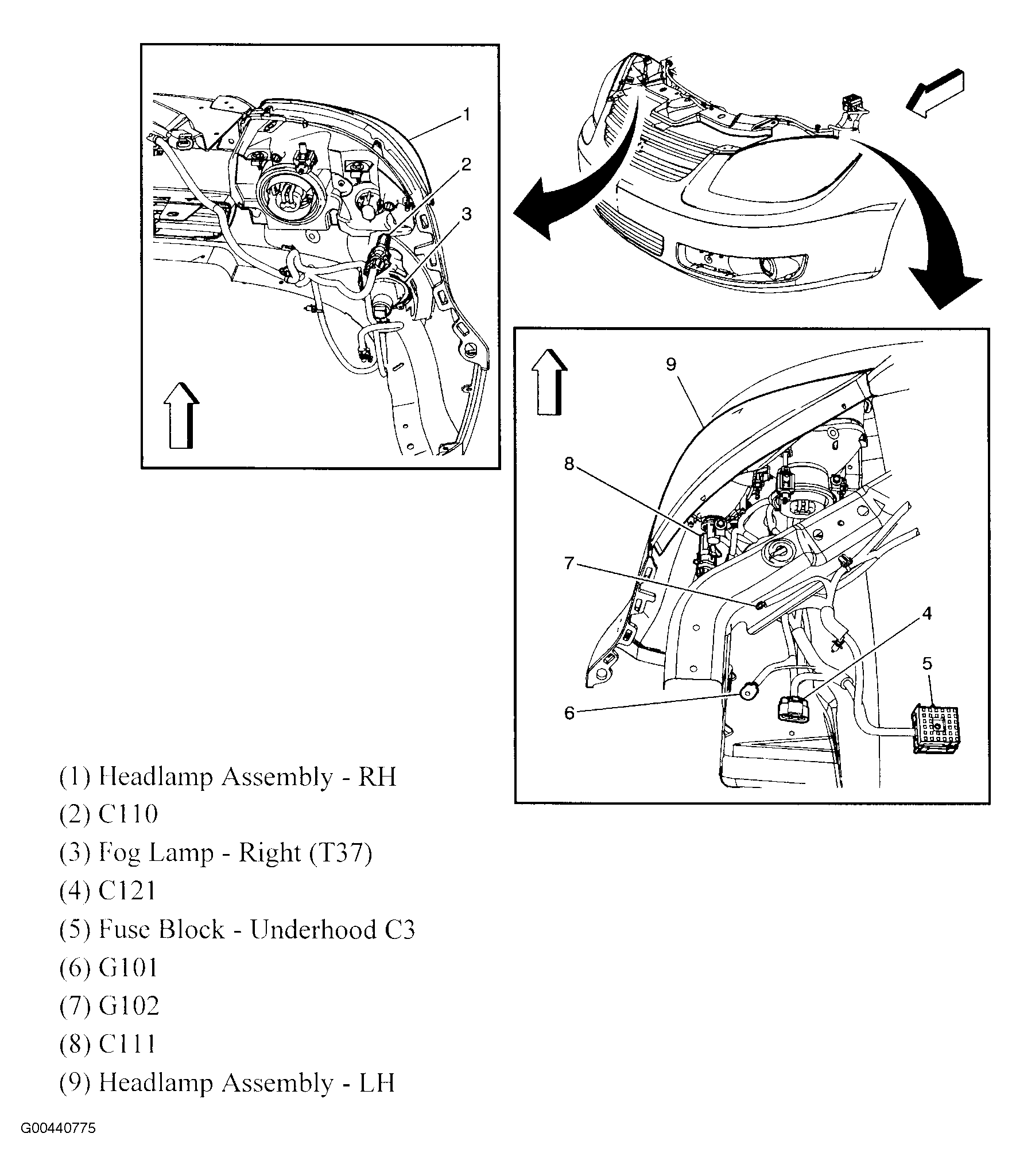

Fig 70: Forward Lamp Harness Routing
Courtesy of GENERAL MOTORS CORP.

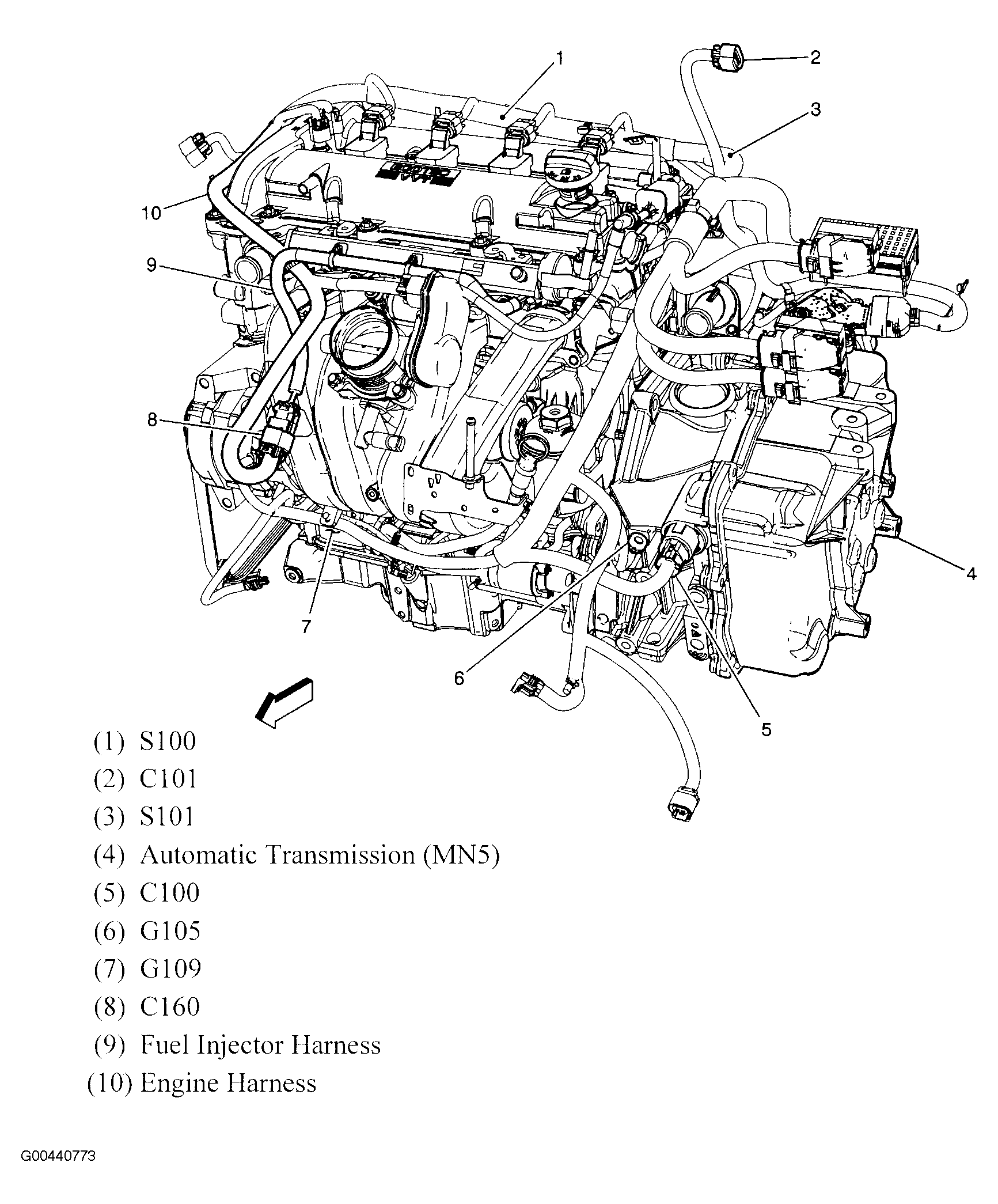

Fig 71: Engine Harness Routing (2.0L)
Courtesy of GENERAL MOTORS CORP.

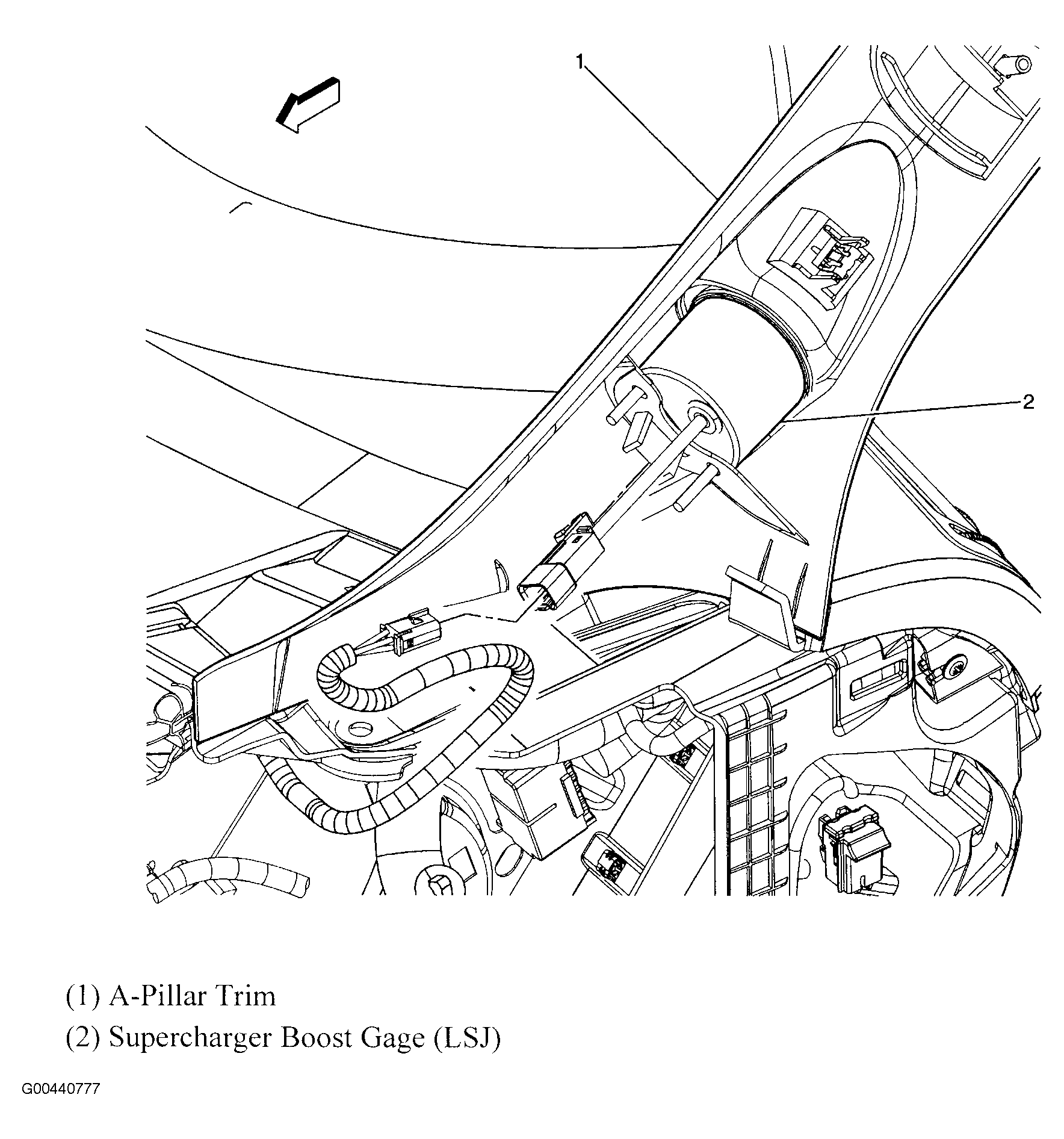

Fig 72: Supercharger Boost Gage
Courtesy of GENERAL MOTORS CORP.

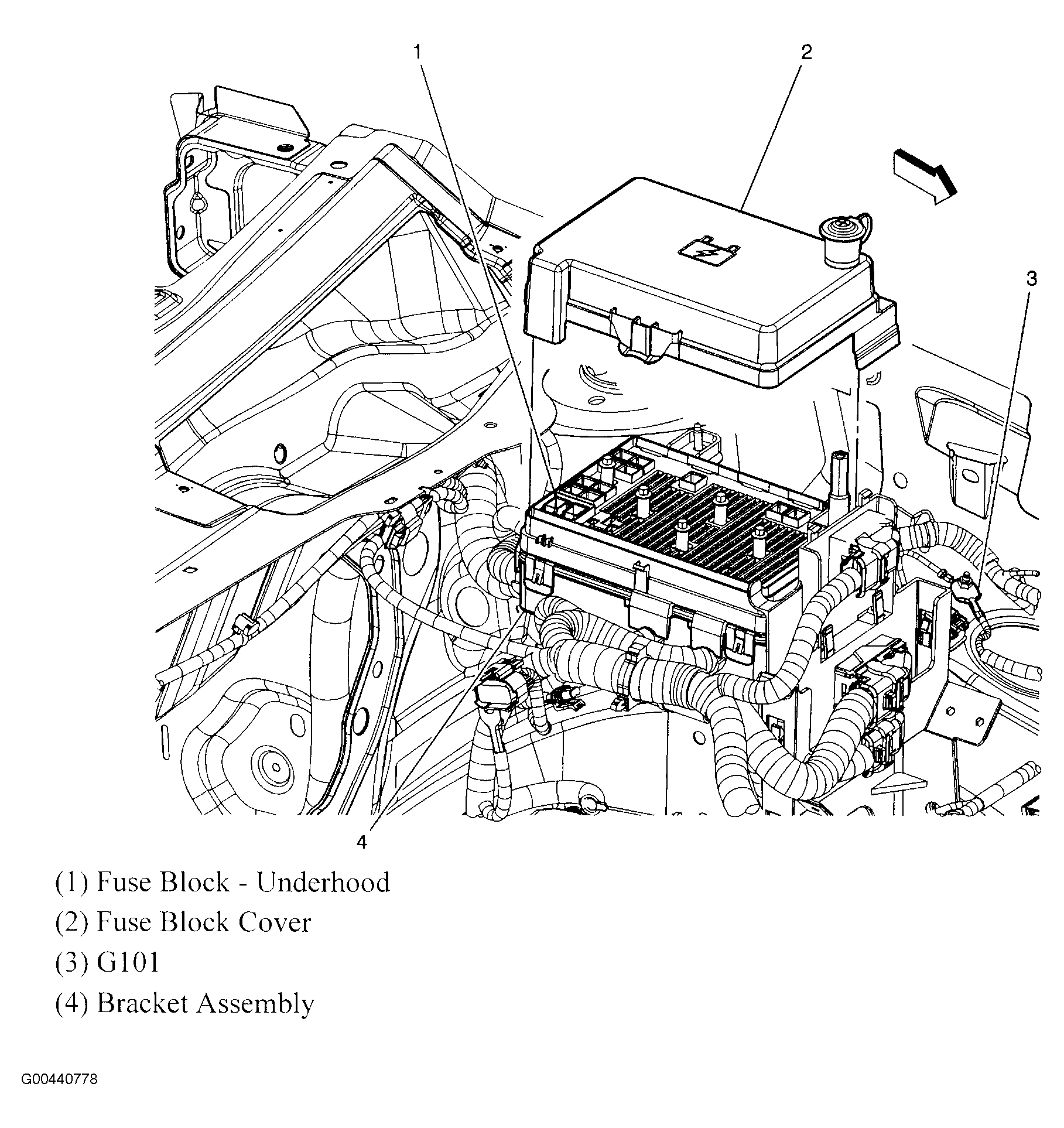

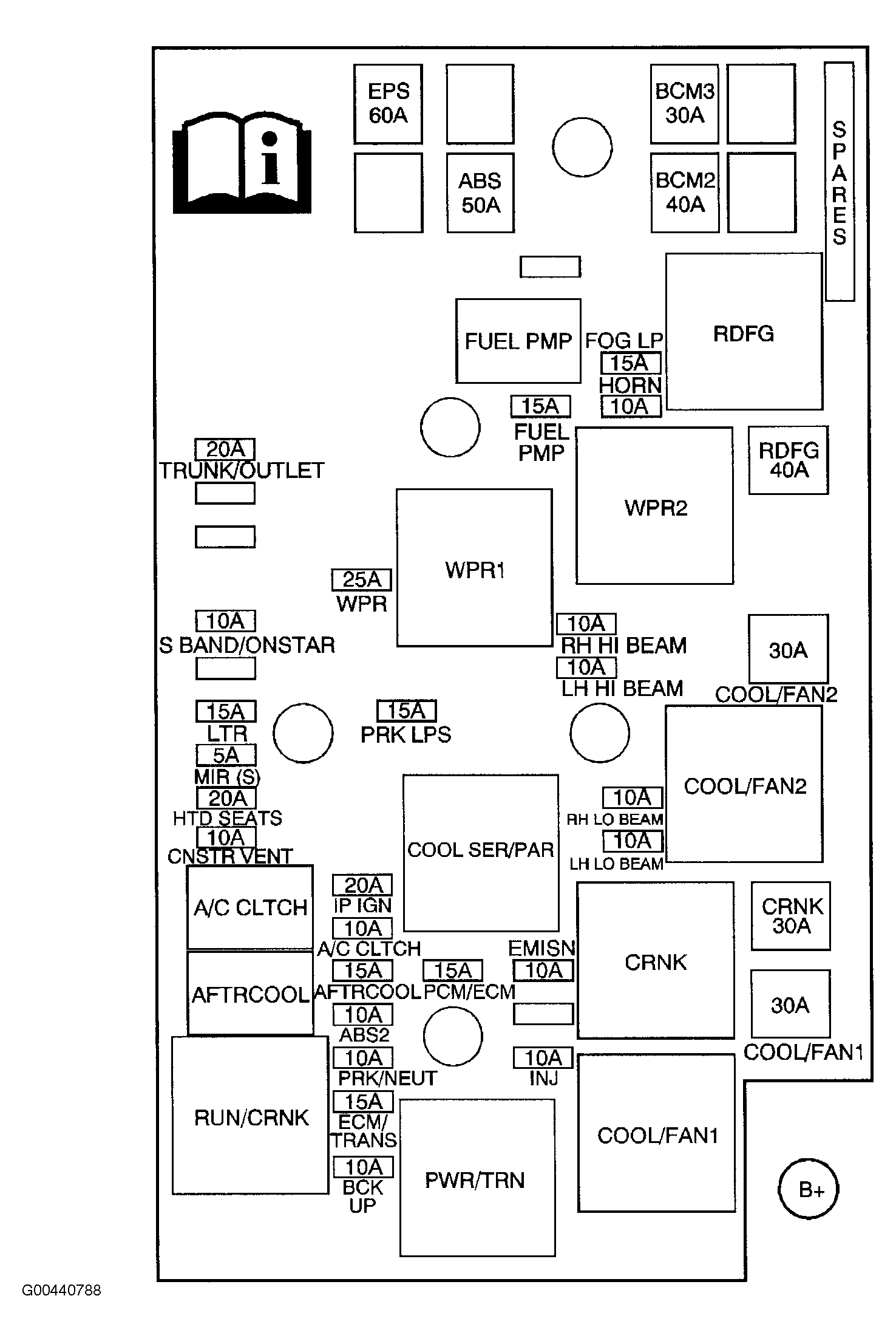

Fig 73: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

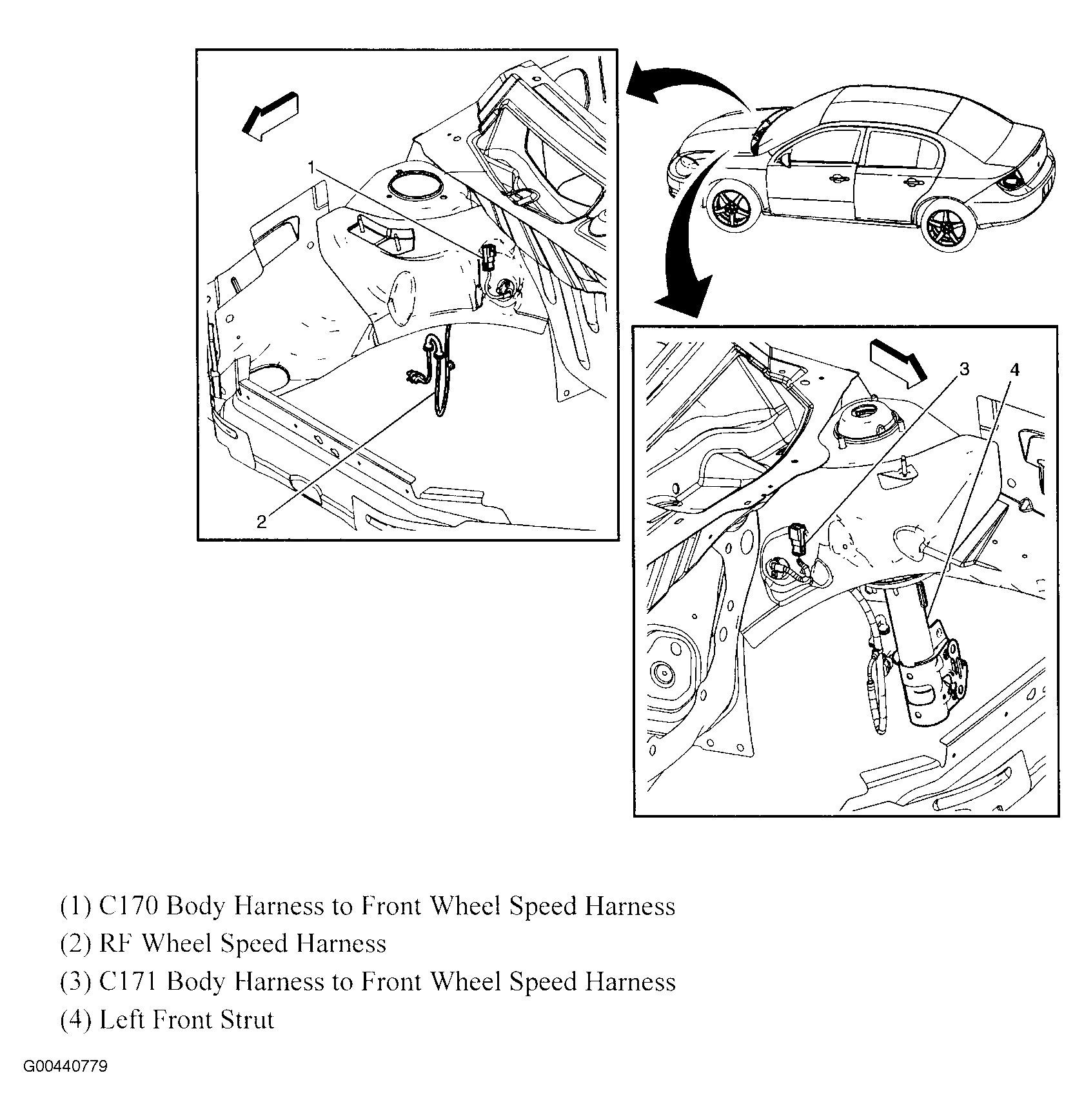

Fig 74: Body Harness To Front Wheel Speed Harness
Courtesy of GENERAL MOTORS CORP.

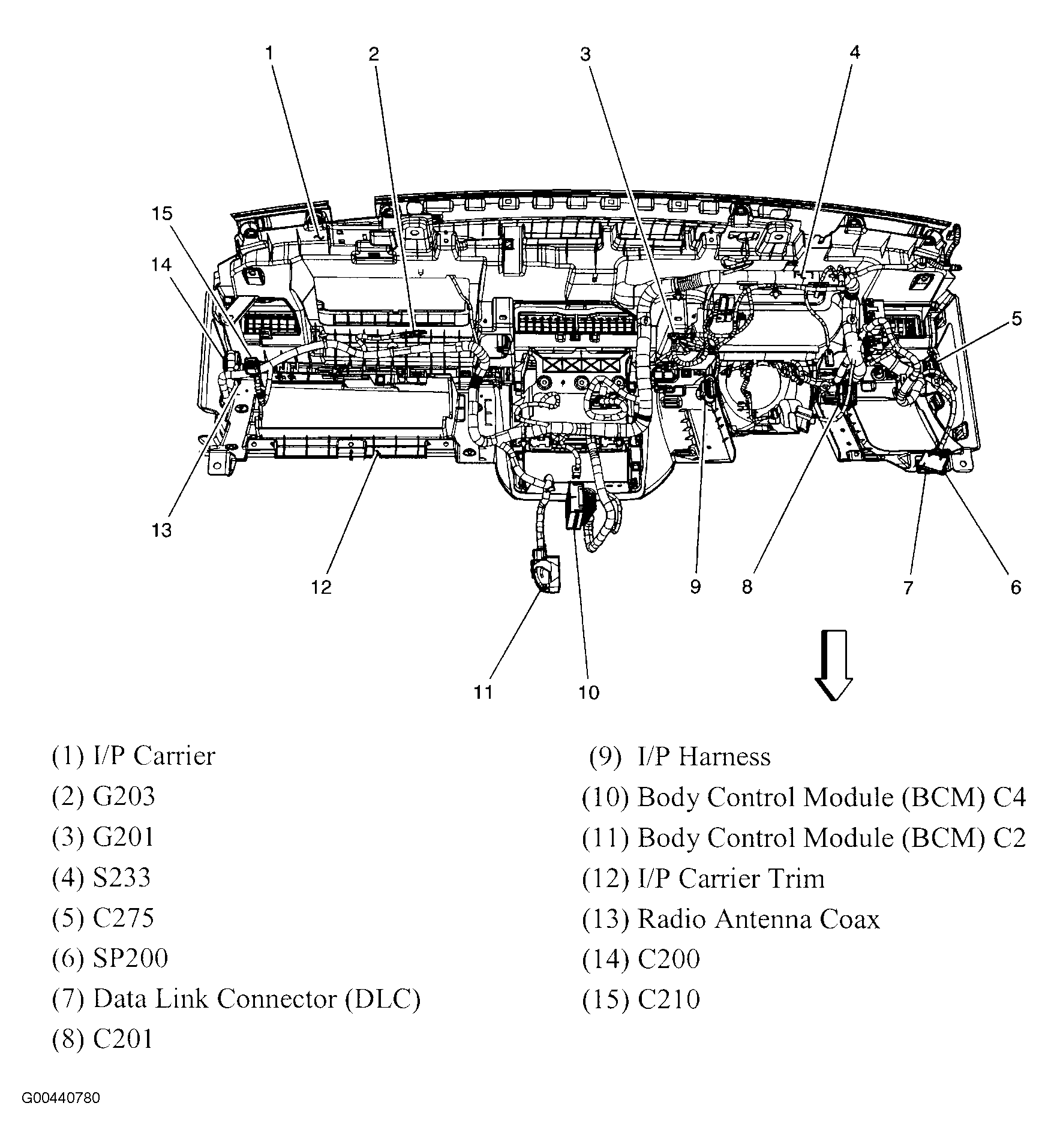

Fig 75: Dash Harness Routing
Courtesy of GENERAL MOTORS CORP.

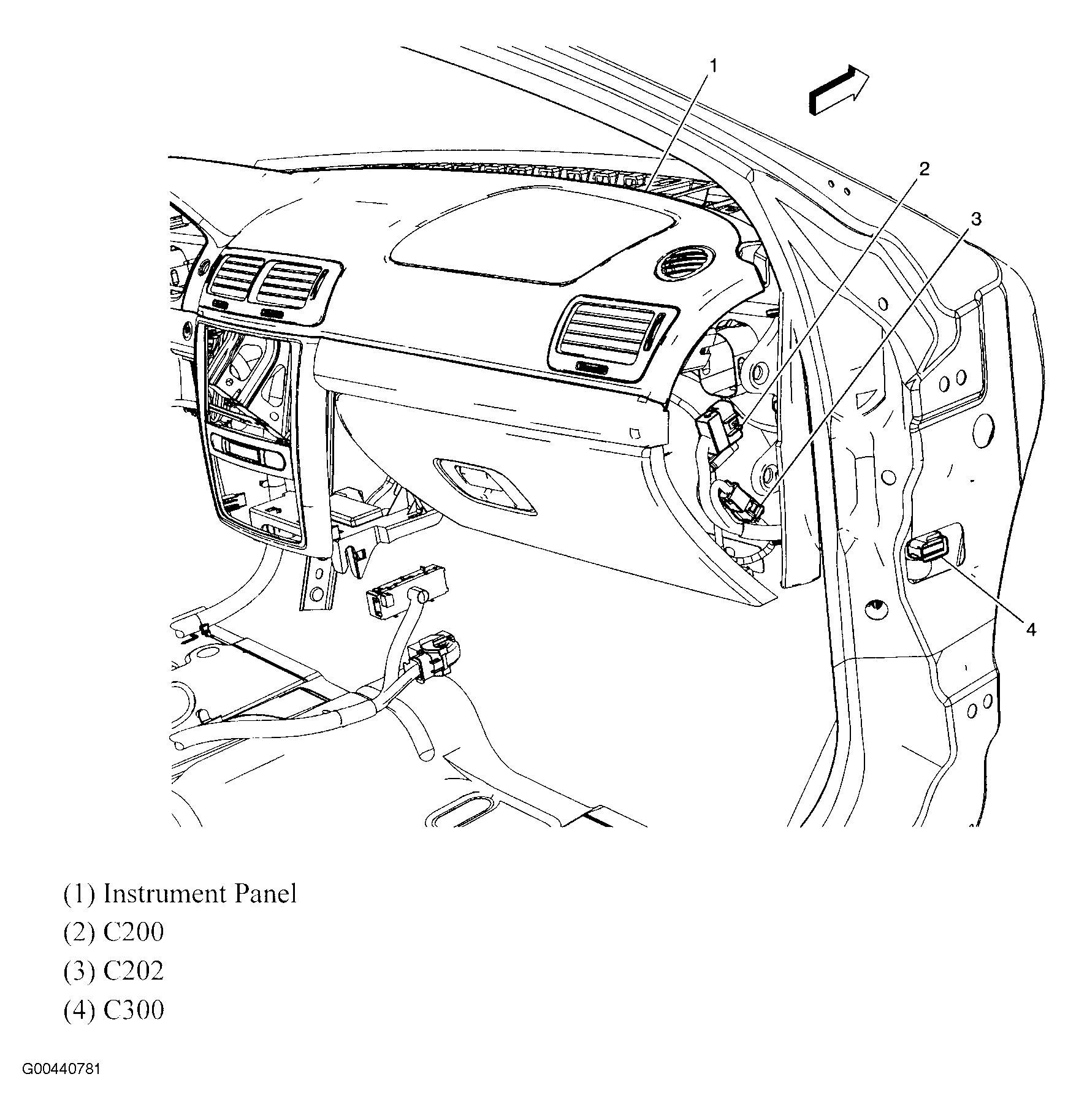

Fig 76: Connector Location (C200 & C202)
Courtesy of GENERAL MOTORS CORP.

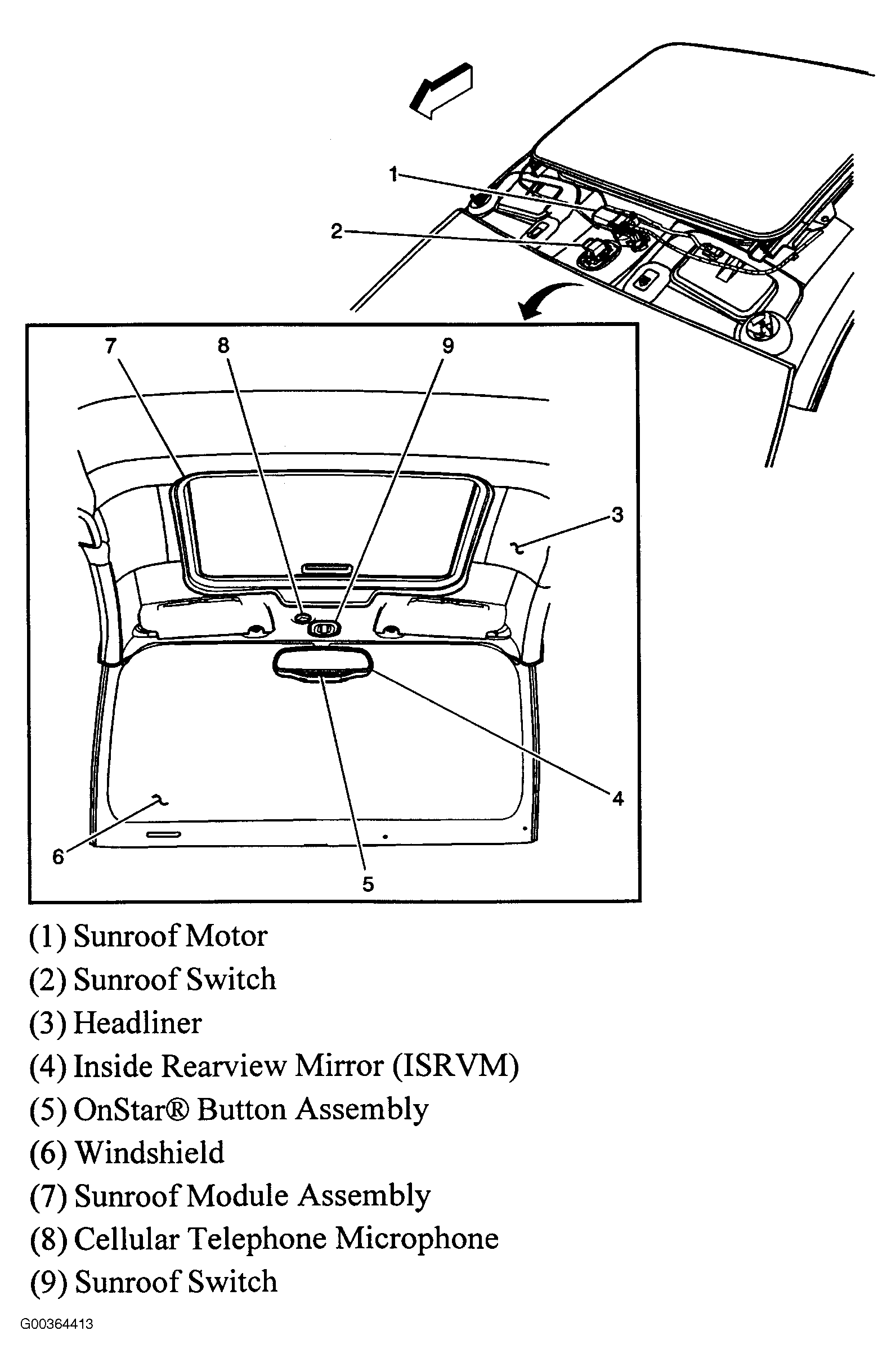

Fig 77: Headliner Harness (Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Body Harness Components (Passenger Compartment)
Courtesy of GENERAL MOTORS CORP.

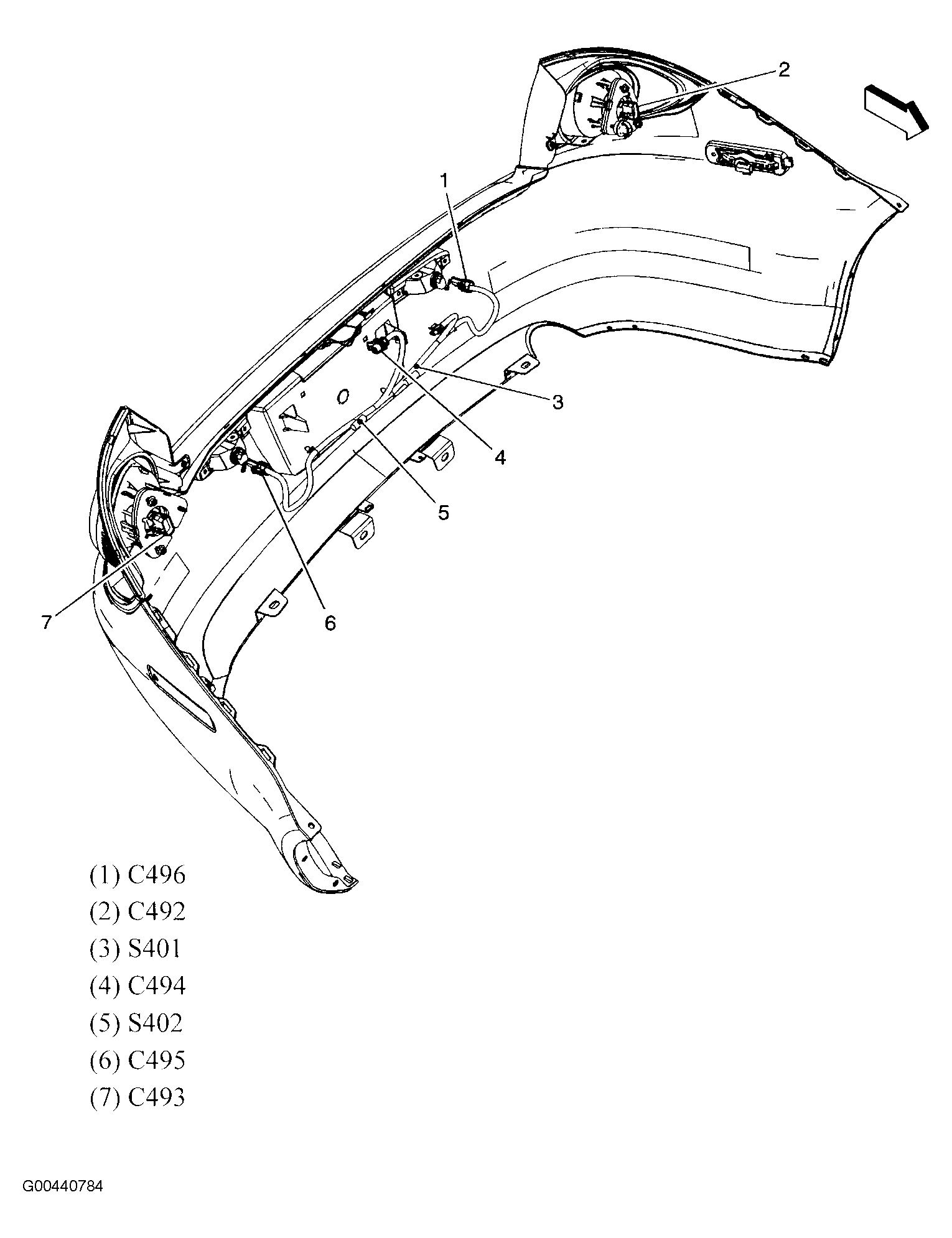

Fig 79: Rear Fascia (G5)
Courtesy of GENERAL MOTORS CORP.
Fig 80: G102
Courtesy of GENERAL MOTORS CORP.
Fig 81: Body Harness (Passenger Compartment)
Courtesy of GENERAL MOTORS CORP.

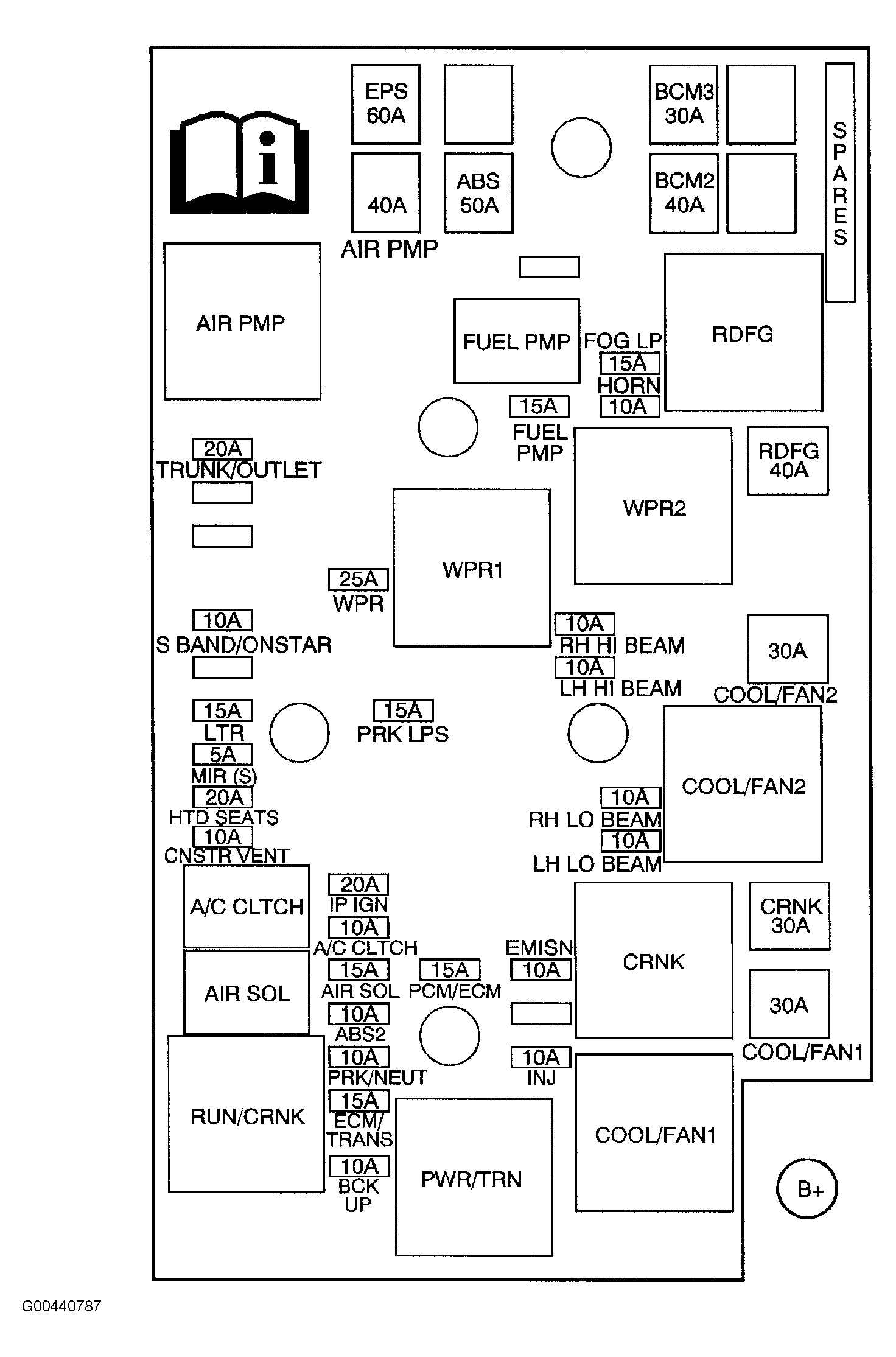

Fig 82: Underhood Fuse Block Label (2.2L & 2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Underhood Fuse Block Label (2.0L)
Courtesy of GENERAL MOTORS CORP.

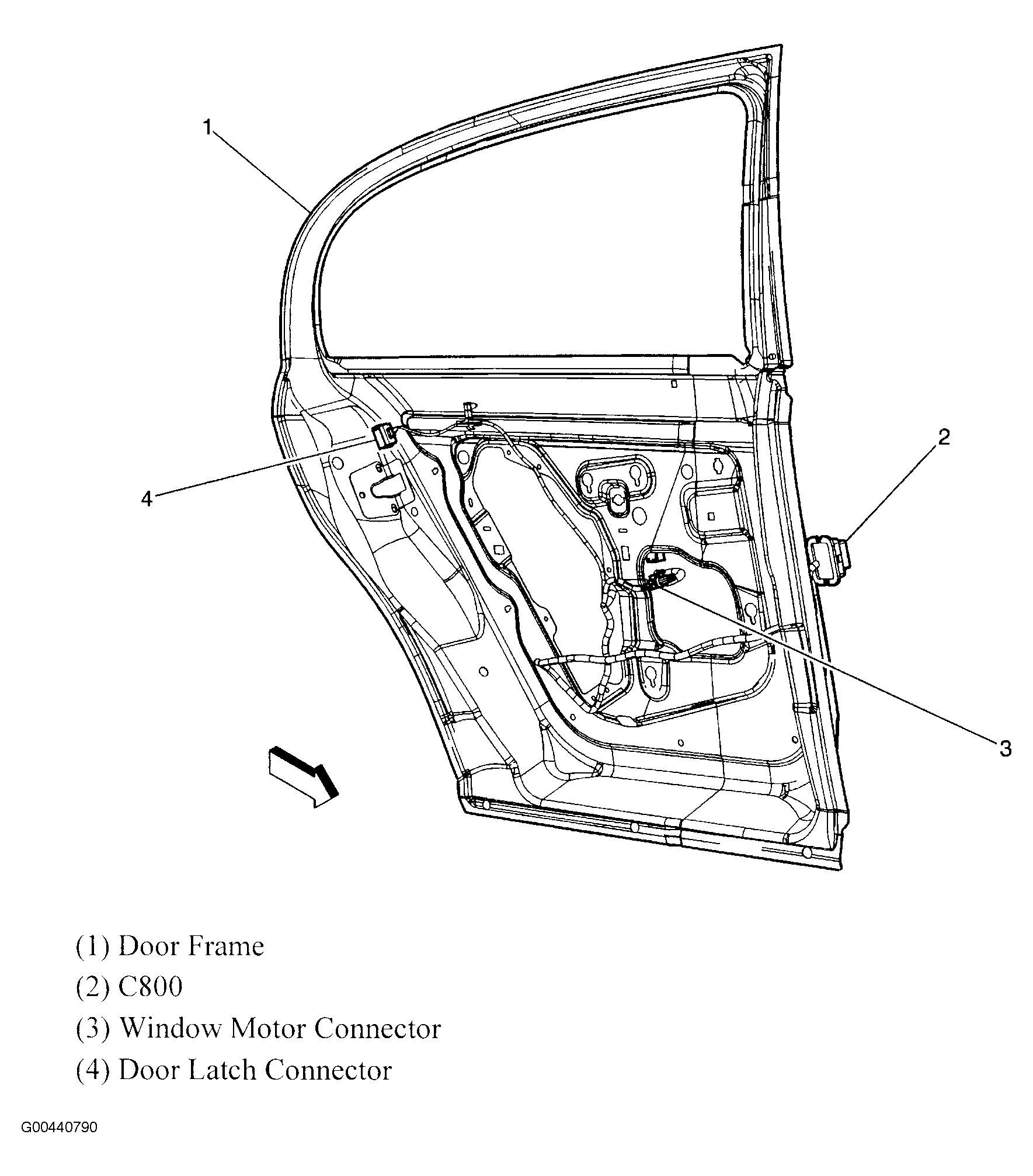

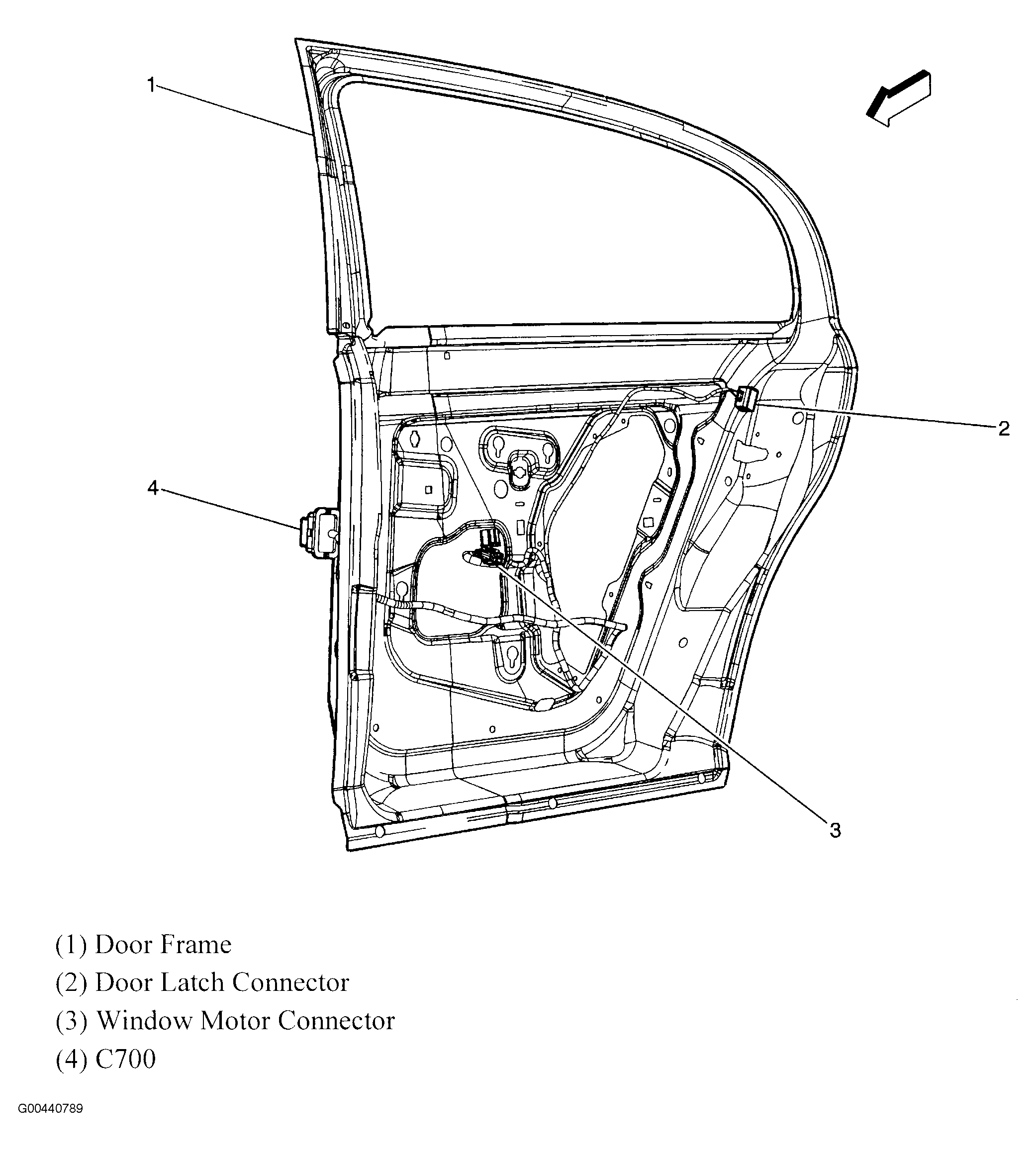

Fig 84: Left Rear Door Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 85: Right Rear Door Harness Routing
Courtesy of GENERAL MOTORS CORP.

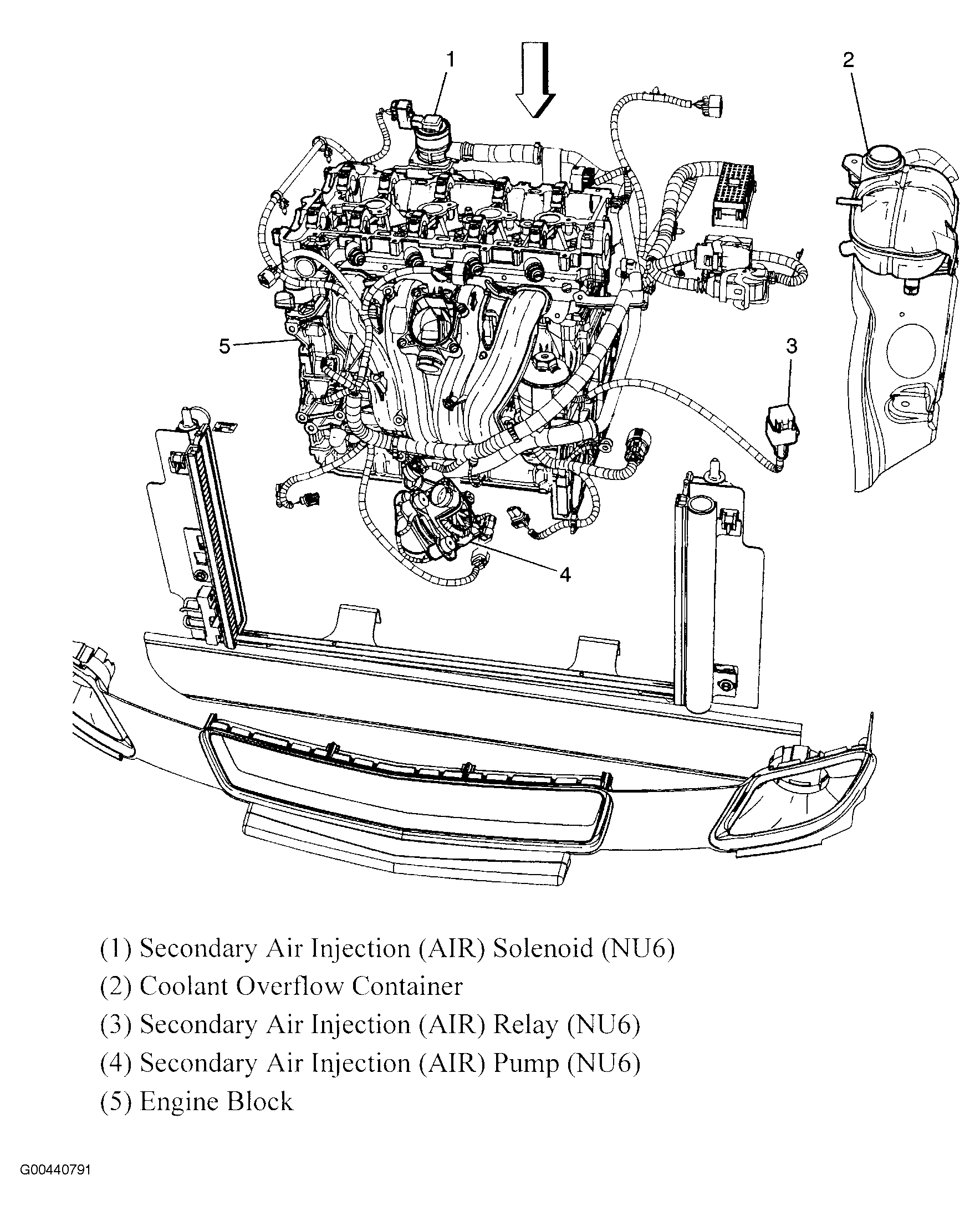

Fig 86: Secondary Air Injection (AIR) Components (2.2L)
Courtesy of GENERAL MOTORS CORP.
