Instrument Panel/Center Console Component Views

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel Front Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light Sensor
3	Hazard Warning Switch
4	Radio
5	Remote Control Door Lock Receiver (RCDLR) (AUO)
6	Heated Seat Switch - Passenger (KA1)
7	HVAC Control Module
8	Inflatable Restraint Passenger Air Bag On/Off Indicator (AL0 or ASA)
9	Body Control Module (BCM)
10	Heated Seat Switch - Driver (KA1)
11	Traction Control Switch (JL4 of JL9)
12	I/P Dimmer Switch
13	Fog Lamp Switch (T37)
14	Data Link Connector (DLC)
15	Rear Compartment Lid Release Switch
16	I/P Trim

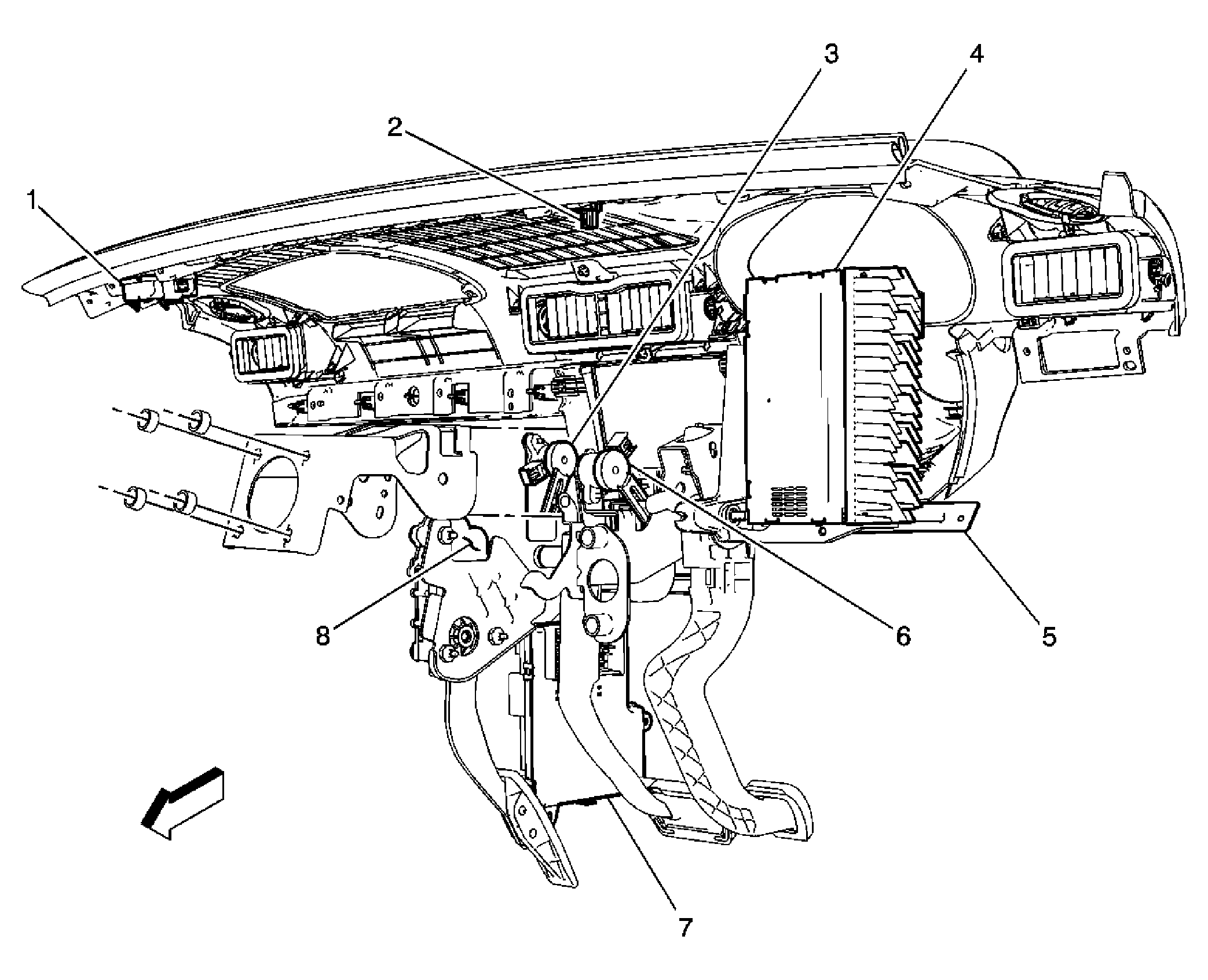

Fig 2: Instrument Panel Rear Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR) (AUO)
2	Ambient Light Sensor
3	Brake Pedal Position (BPP) Sensor
4	Audio Amplifier (UQ3)
5	Data Link Connector (DLC)
6	Clutch Pedal Position (CPP) Sensor (M86 or MU3)
7	Body Control Module (BCM)
8	Accelerator Pedal Position (APP) Sensor

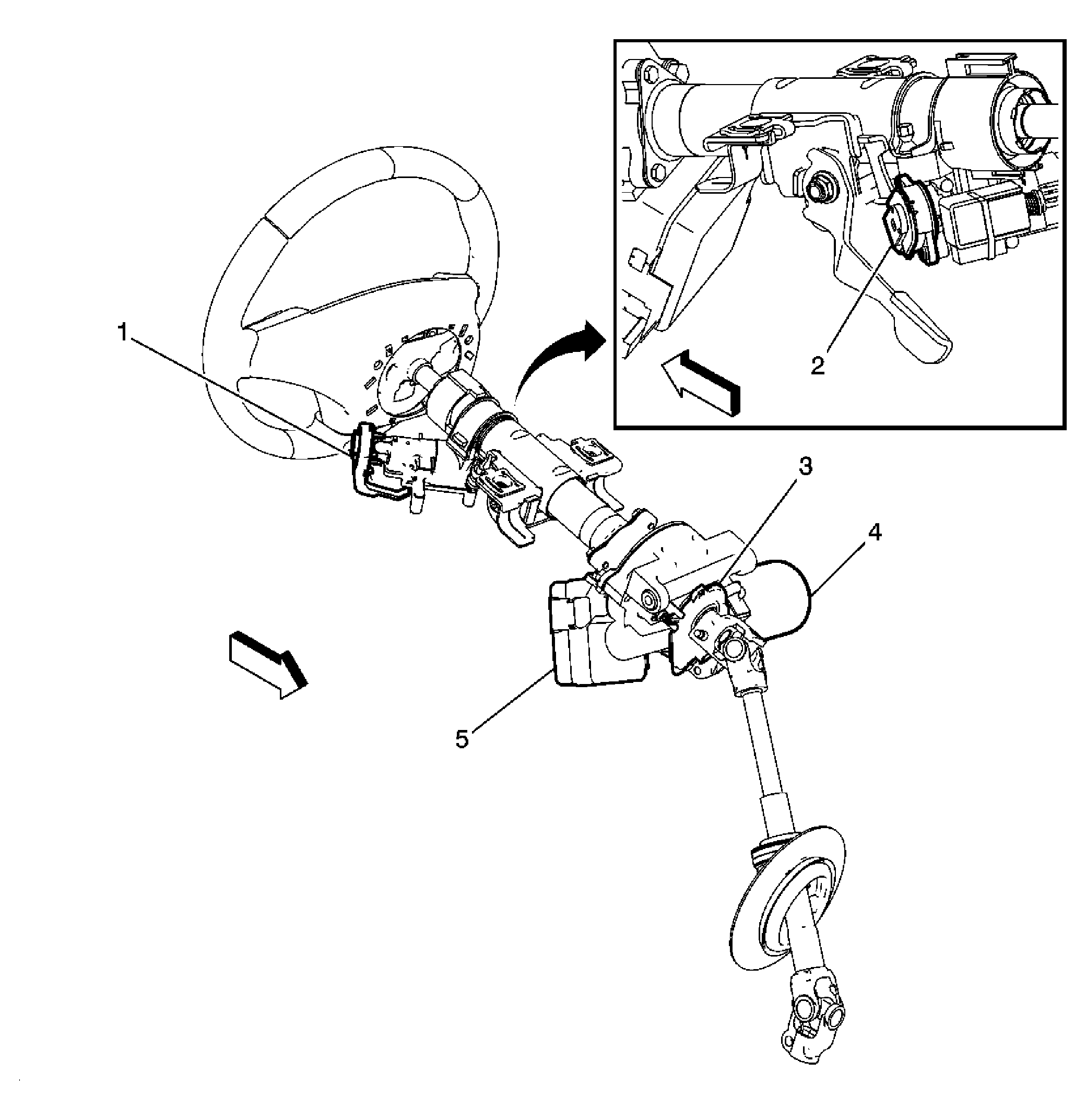

Fig 3: Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Module (TDM)
2	Ignition Switch
3	Steering Angle Sensor (JL4)
4	Electric Power Steering (EPS) Motor
5	Power Steering Control Module (PSCM)

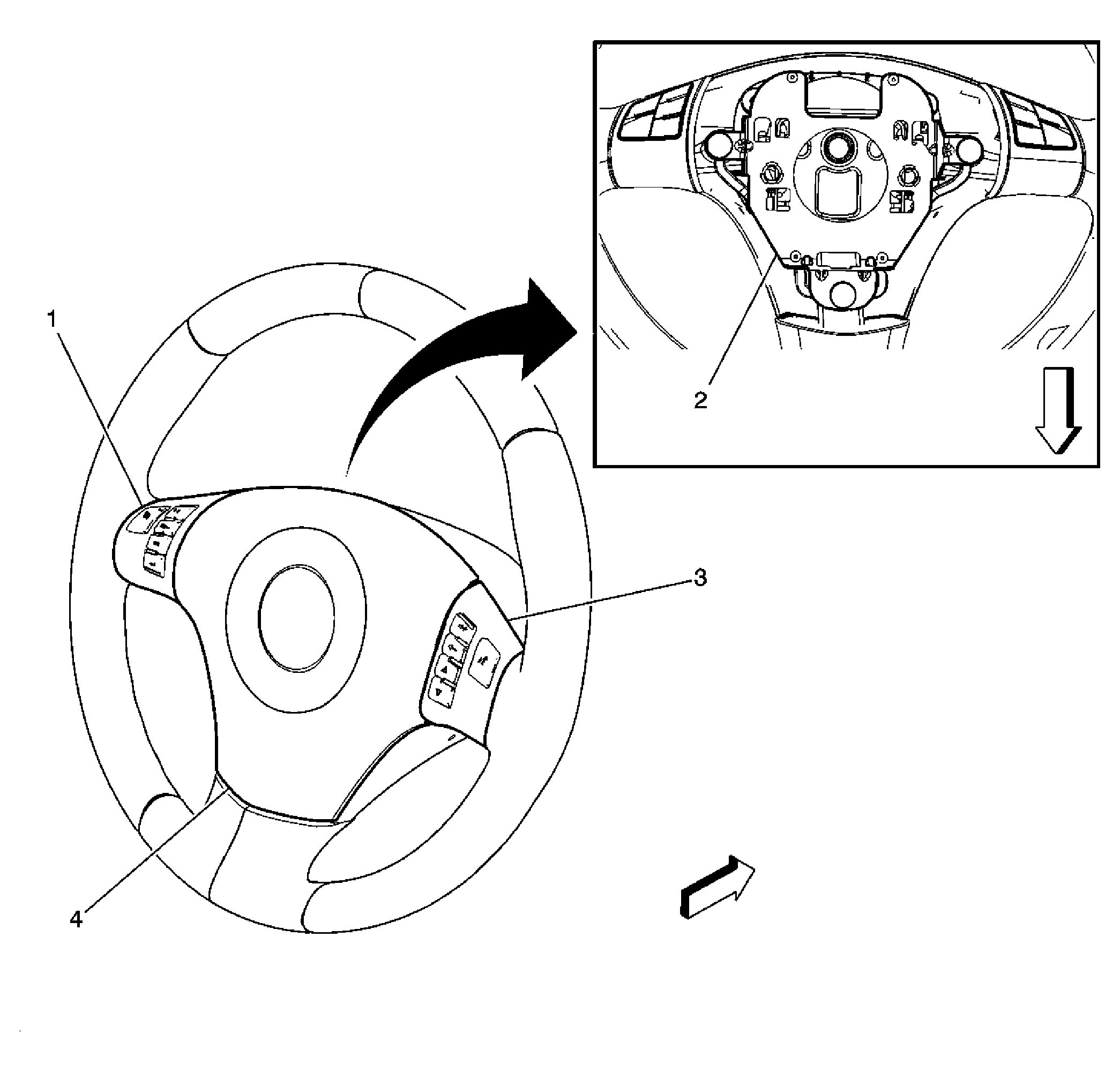

Fig 4: Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch - Left (UK3)
2	Horn Switch
3	Steering Wheel Control Switch - Right (UK3)
4	Inflatable Restraint Steering Wheel Module

Fig 5: Interior HVAC Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Box Assembly
2	Blower Motor Resistor
3	Blower Motor
4	Recirculation Actuator
5	Mode Actuator
6	Air Temperature Actuator

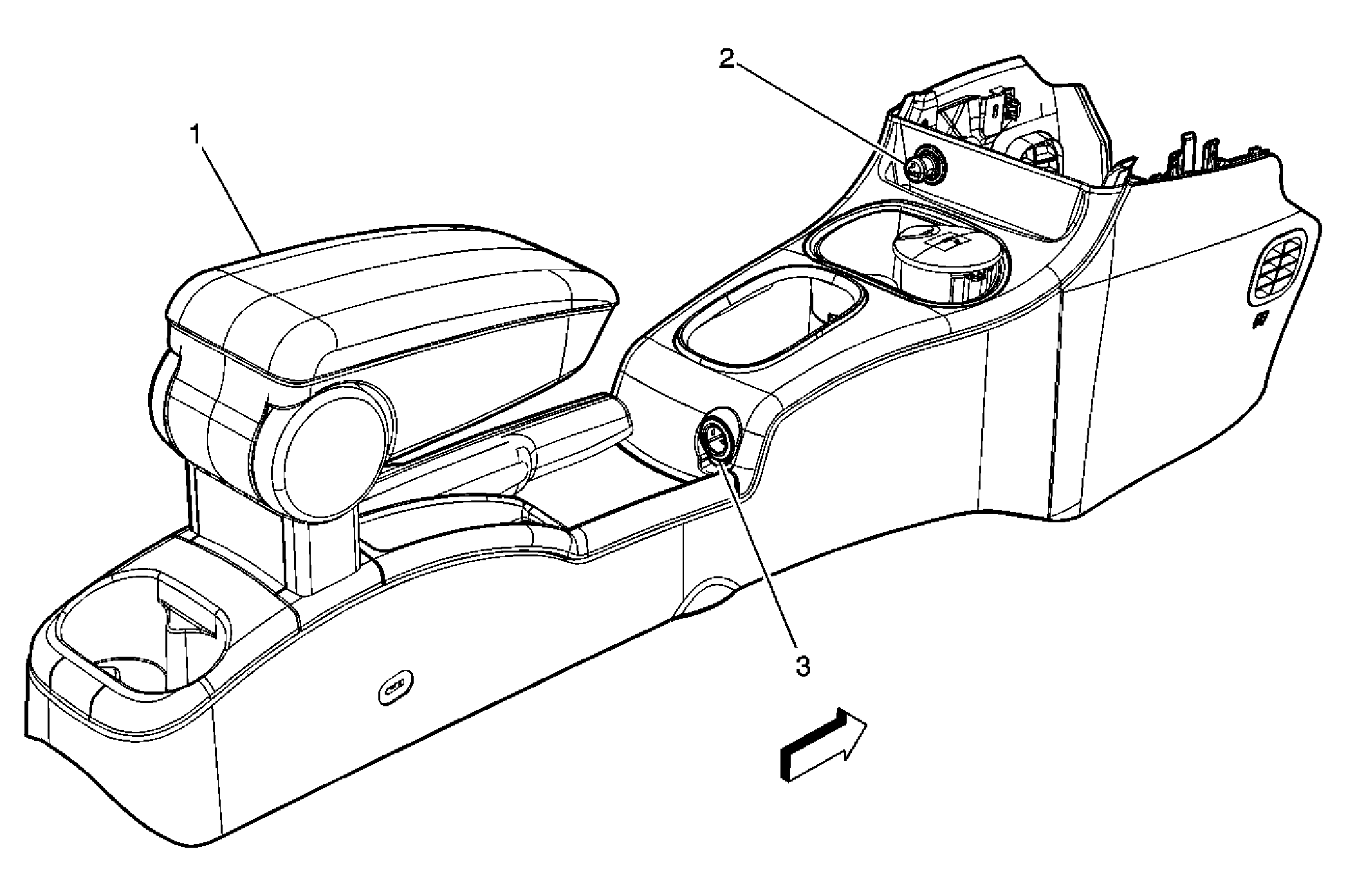

Fig 6: Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Armrest
2	Cigar Lighter (DT4), Accessory Power Outlet (without DT4)
3	Accessory Power Outlet - Center Console

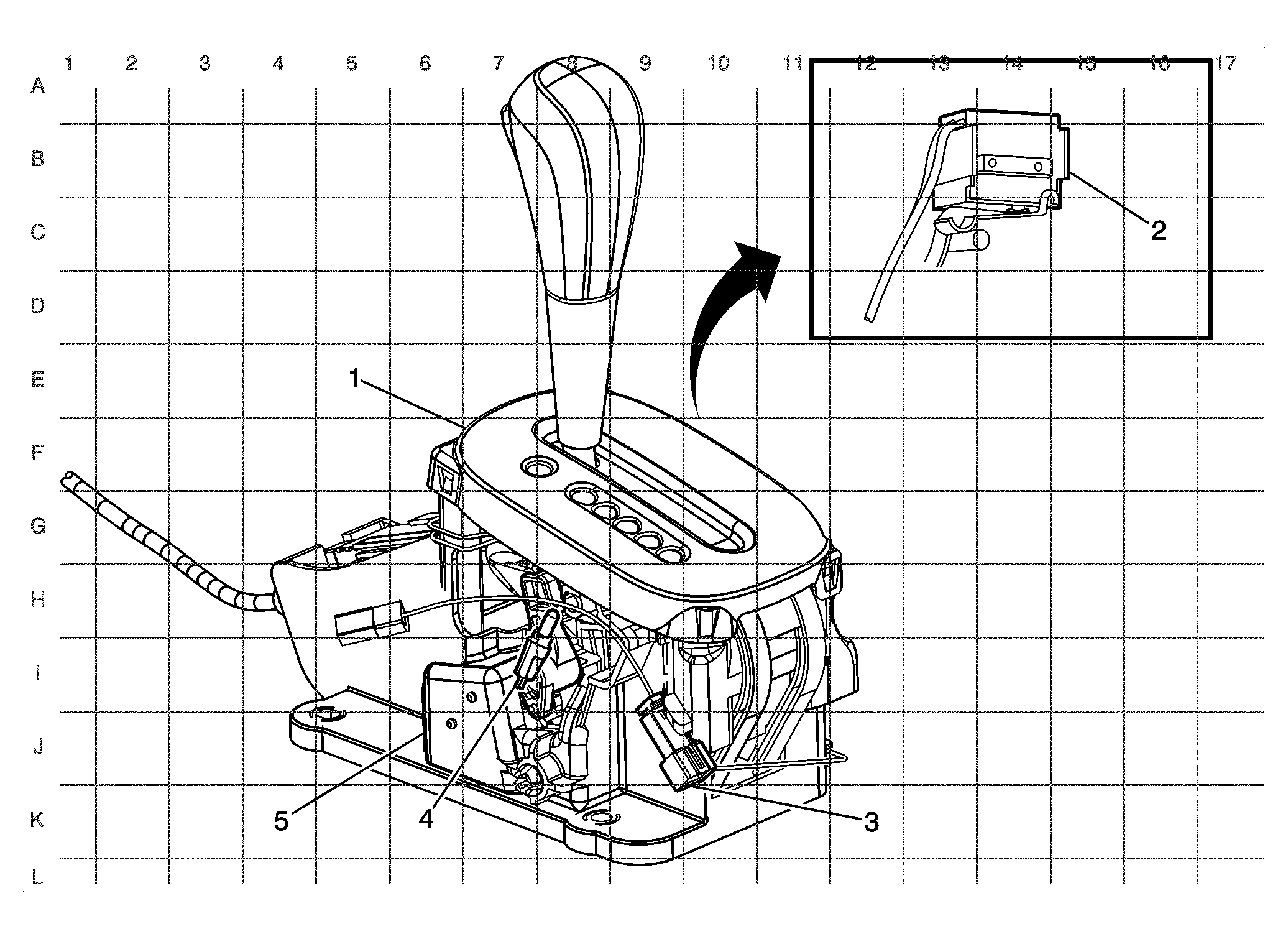

Fig 7: Automatic Transmission Shift Lever Components (MN5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lever
2	Park Position Switch
3	X307
4	Automatic Transmission Shift Lever Bulb and Socket
5	Automatic Transmission Shift Lock Control Solonoid
