Seat Belt Component Views

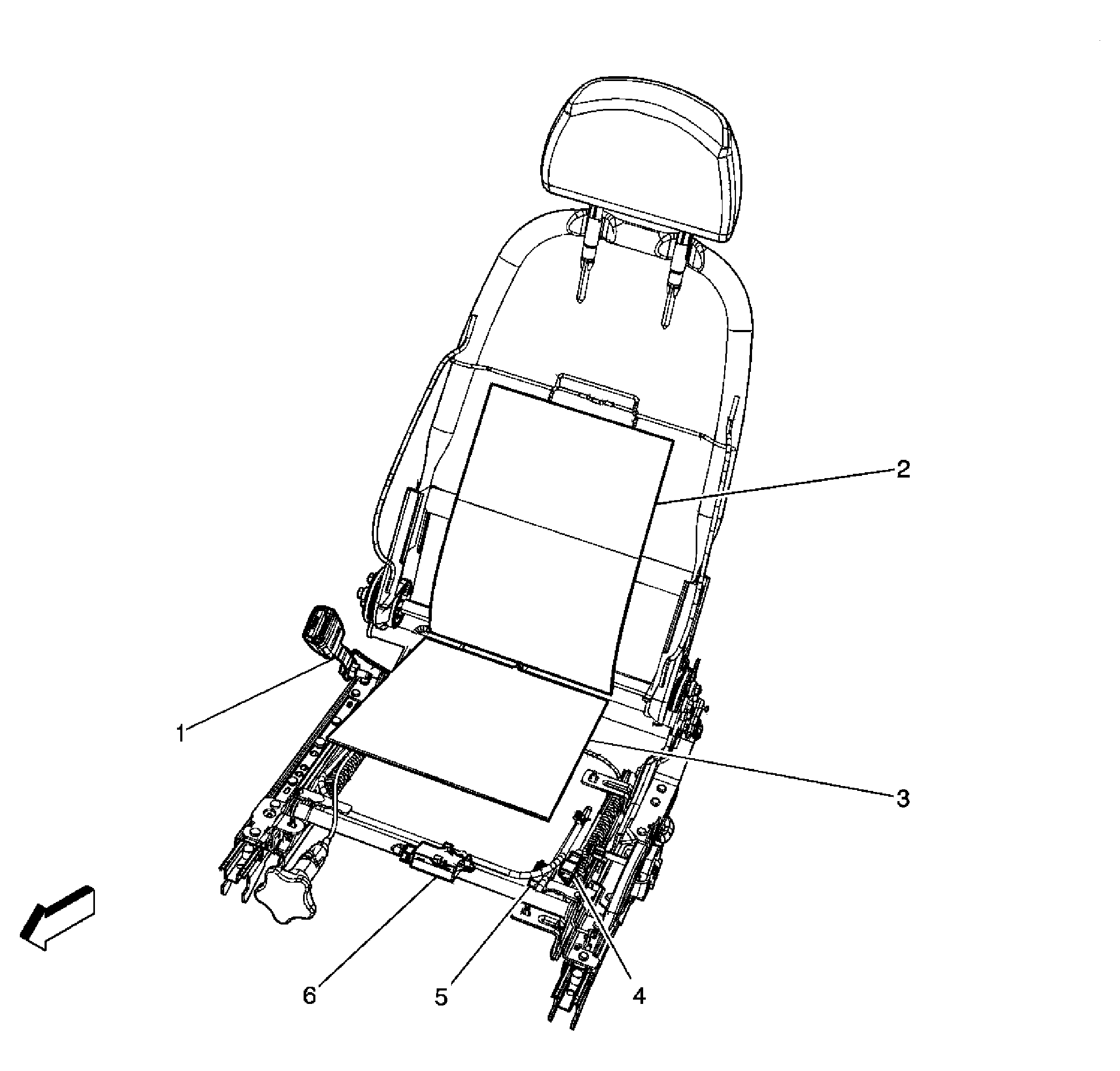

Fig 1: Driver Seat

GM1524033

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch
2	Heated Seat Element - Driver Back (KA1)
3	Heated Seat Element - Driver Cushion (KA1)
4	Seat Belt Switch Connector - Driver
5	C315 (KA1)
6	Heated Seat Module - Driver (KA1)

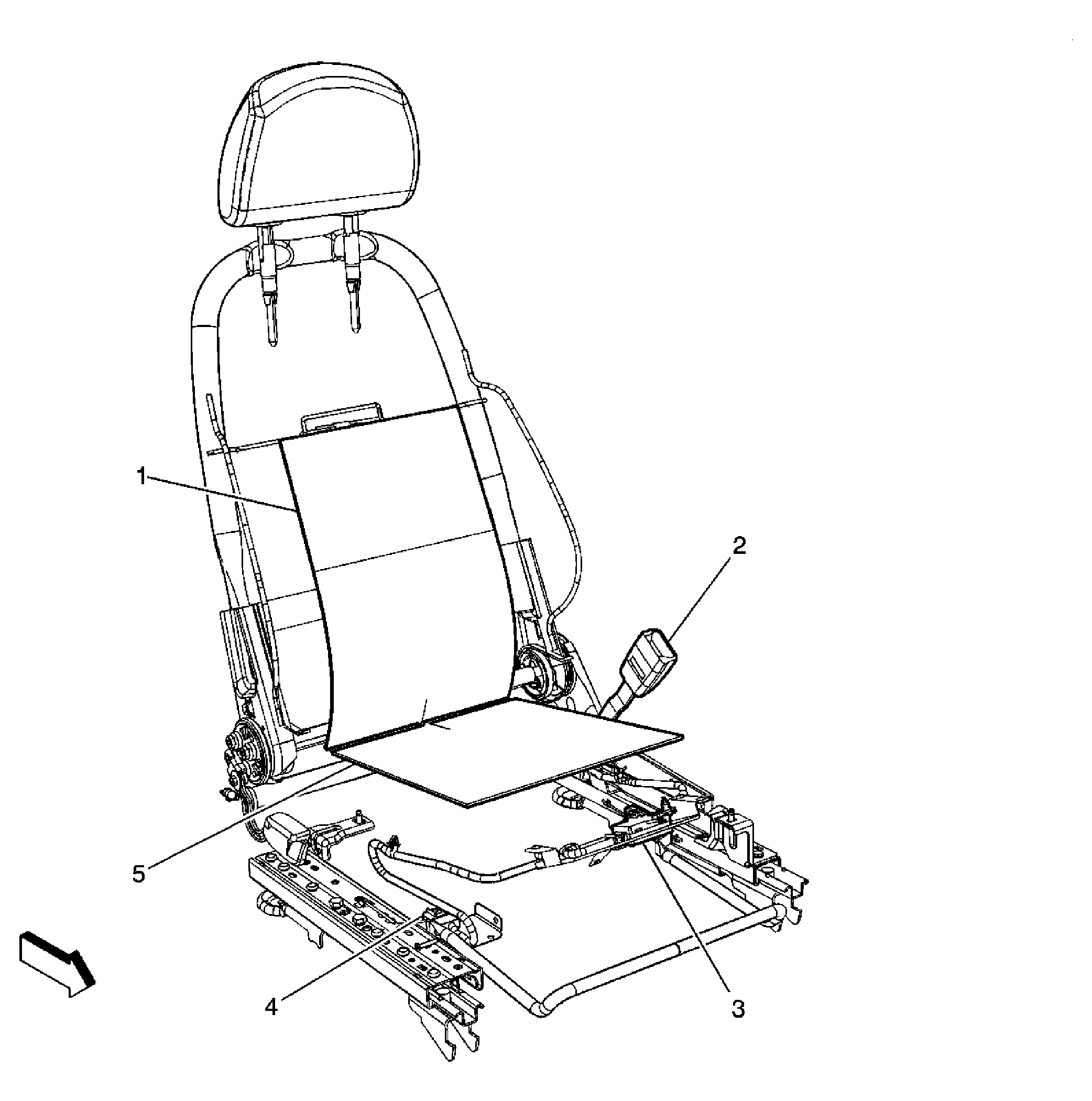

Fig 2: Passenger Seat

GM1524032

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger Back (KA1)
2	Seat Belt Buckle/Seat Belt Switch
3	Heated Seat Module - Passenger (KA1)
4	C314 (KA1)
5	Heated Seat Element - Passenger Cushion (KA1)
