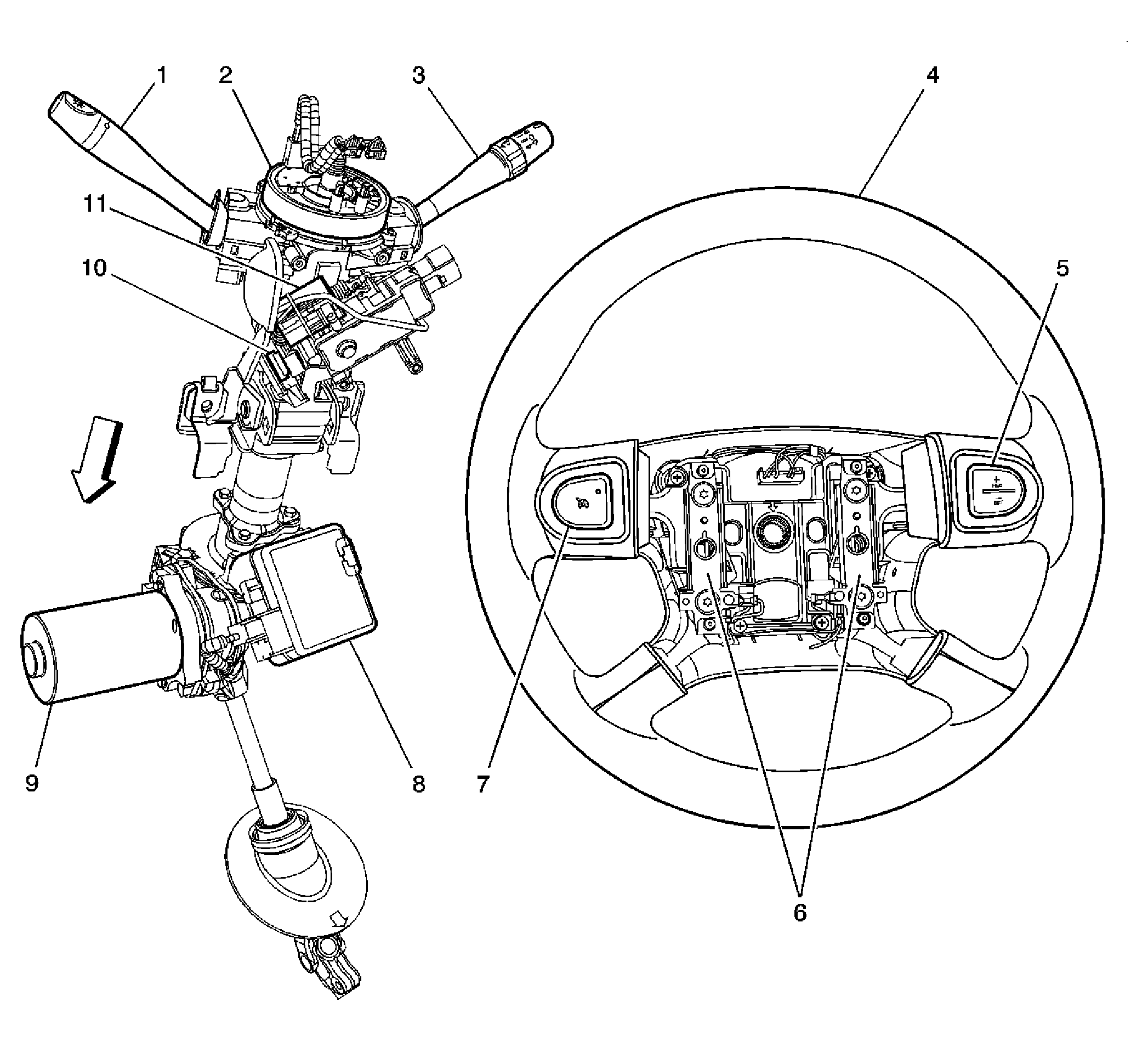

Power Steering Component Views
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Inflatable Restraint Steering Wheel Module Coil |
| 3 | Windshield Wiper/Washer Switch |
| 4 | Steering Wheel |
| 5 | Steering Wheel Controls - Right (UK3/K34) |
| 6 | Horn Switchs |
| 7 | Steering Wheel Controls - Left (UK3/K34) |
| 8 | Electronic Power Steering Control Module (EPS) |
| 9 | Electronic Power Steering (EPS) Control Motor |
| 10 | Ignition Switch |
| 11 | Ignition Lock Cylinder Control Solenoid (MN5) |
