Shift Lock Control Component Views

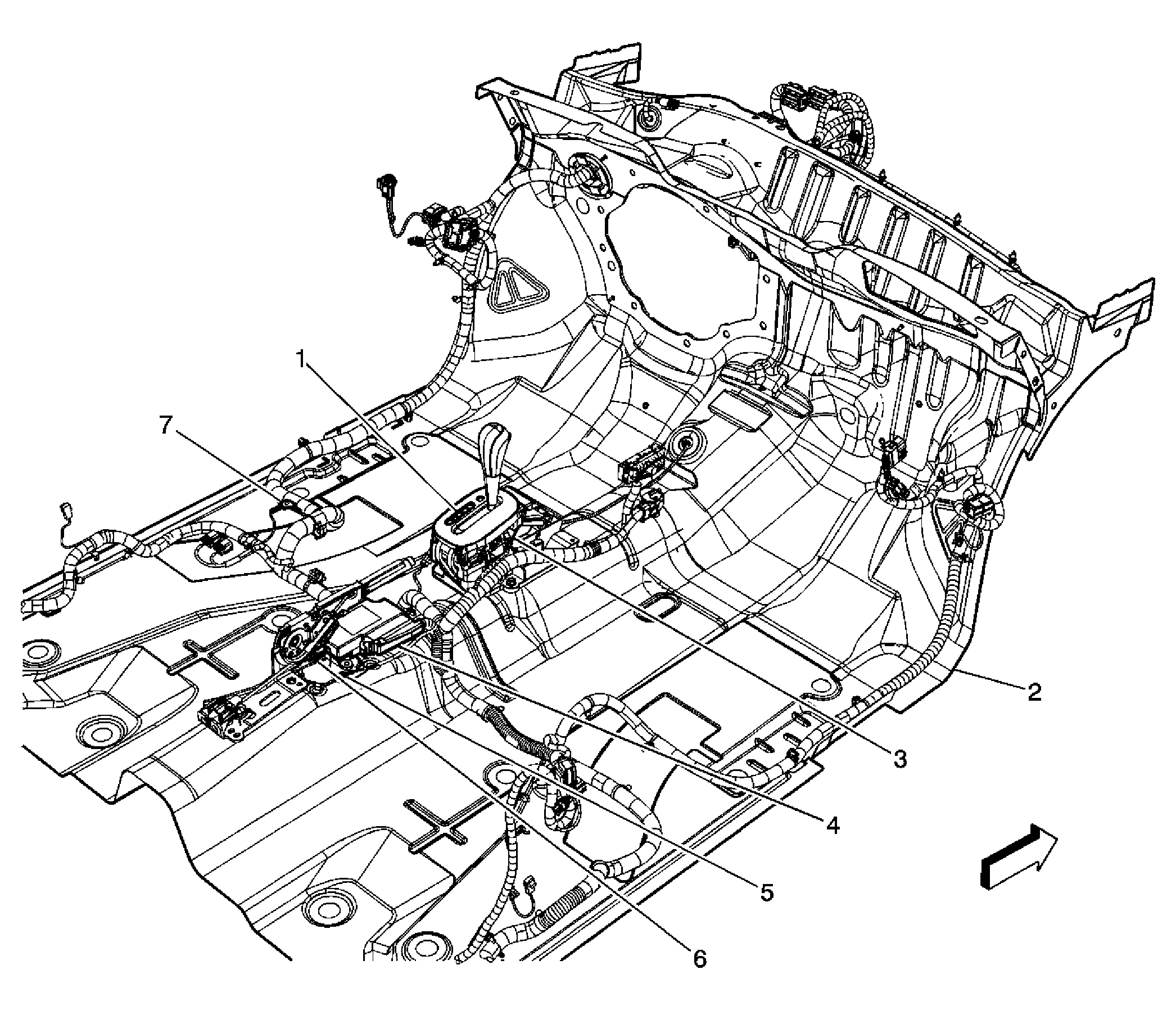

Fig 1: Floor Panel Components and Grounds
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Floor Shift Light
2
Floor Pan
3
A/T Shift Lock Control Solenoid (MN5)
4
Inflatable Restraint Sensing and Diagnostic Module (SDM)
5
G306
6
Park Brake Switch
7
G301
