Body Control Module (BCM) - C1

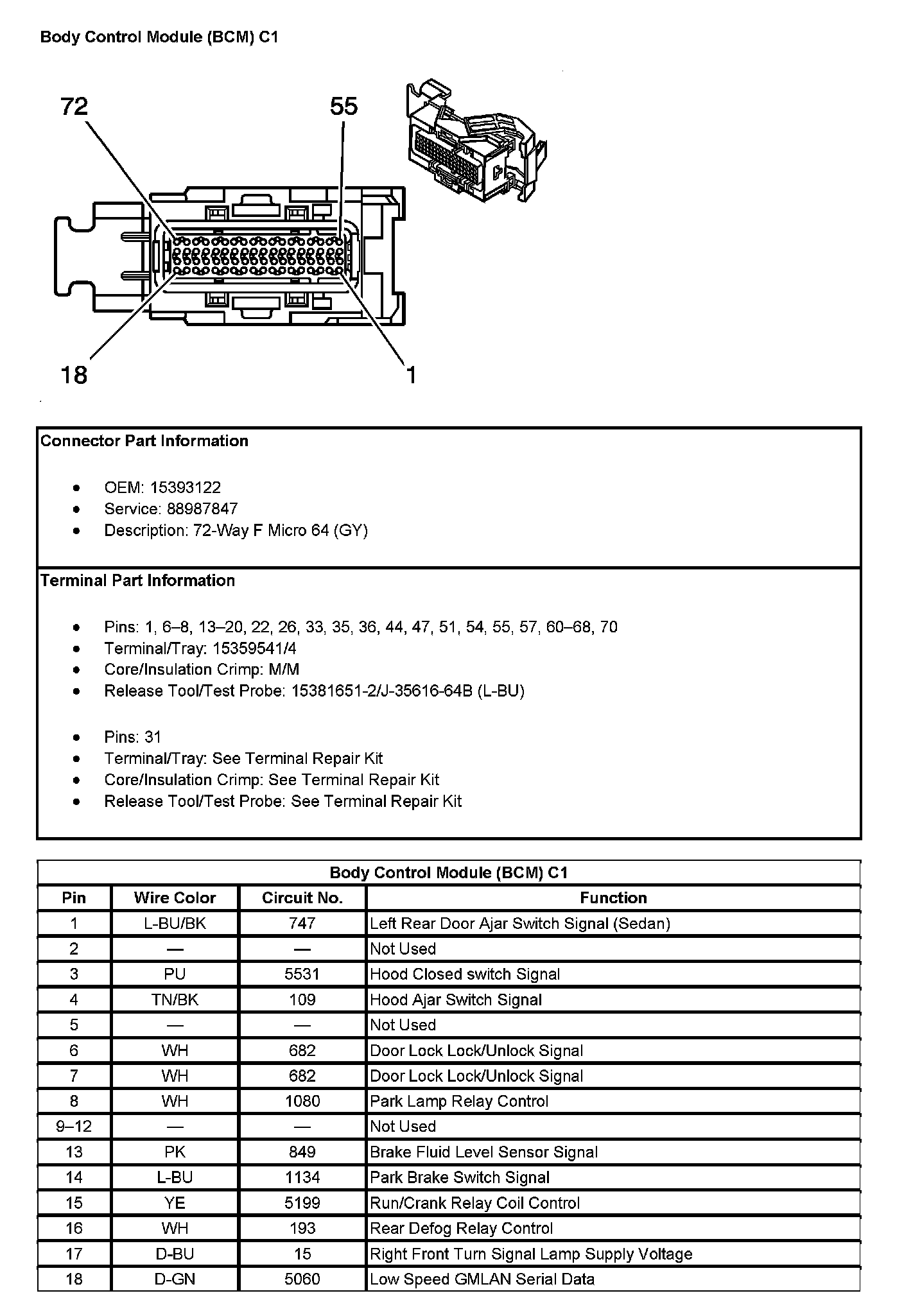

g � Body Control Module (BCM) C1 (Pin 1 To 18):

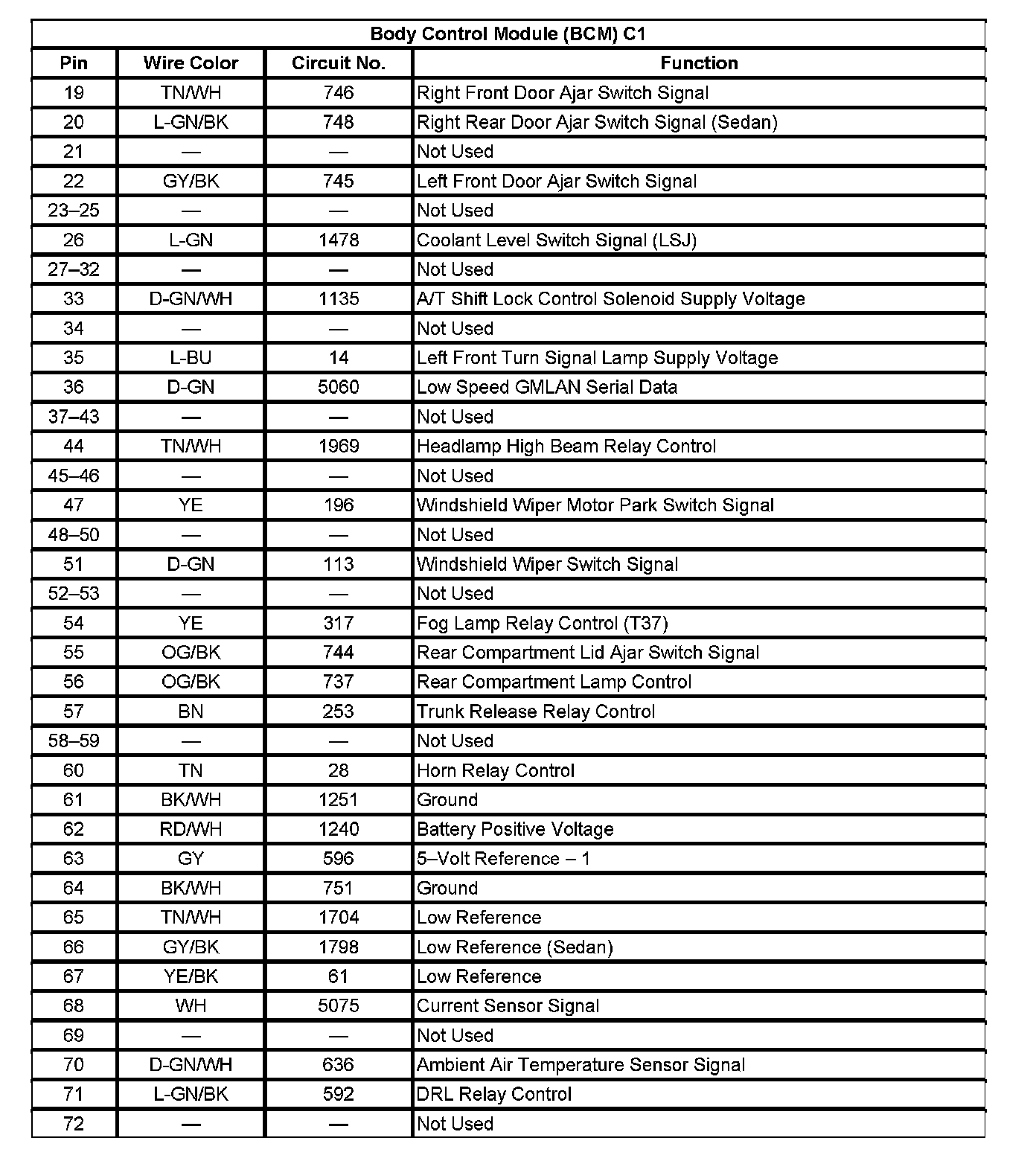

Body Control Module (BCM) C1 (Pin 19 To 72):
