System Diagram



Power Steering Connector End Views

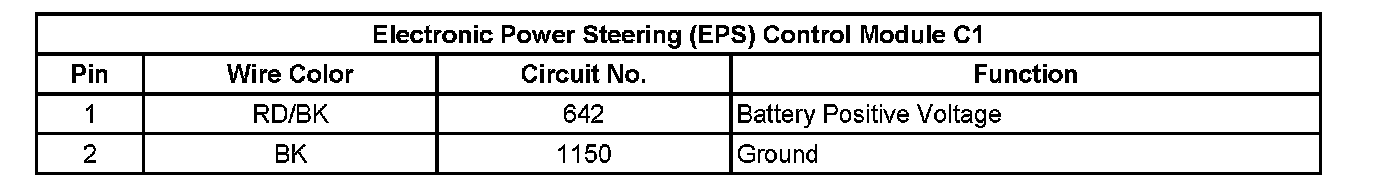

Electronic Power Steering (EPS) Control Module C1

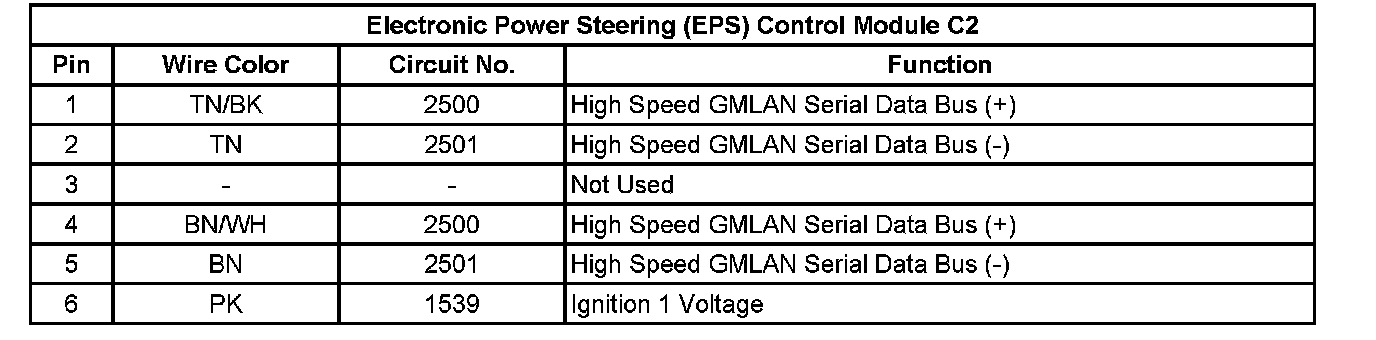

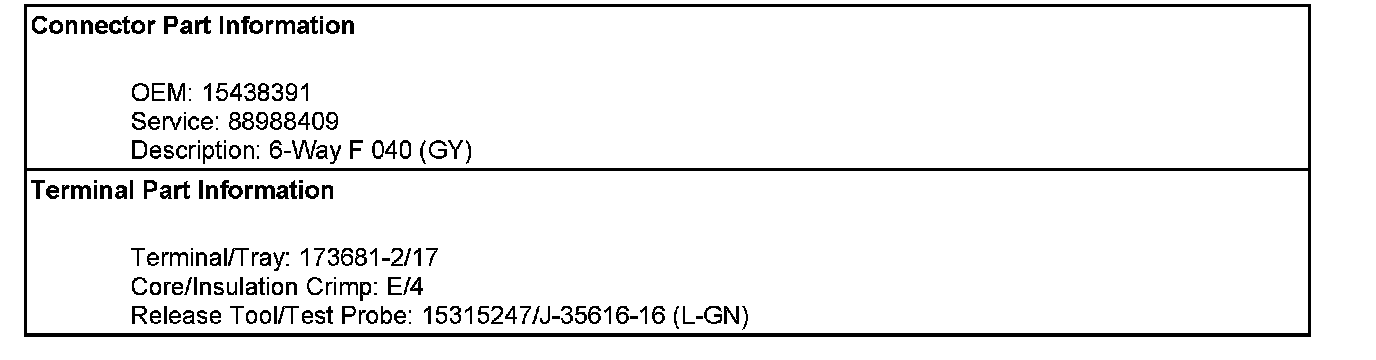

Electronic Power Steering (EPS) Control Module C2
