Control Assembly: Service and Repair

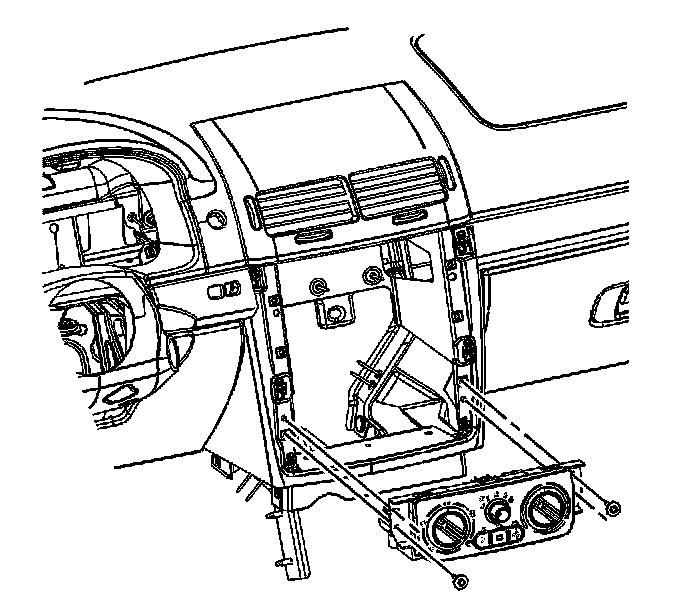

HVAC Control Assembly Replacement

Removal Procedure

1. Remove the instrument panel (I/P) center trim panel.




2. Remove the HVAC control module assembly screws.
3. Remove the HVAC control module assembly.
4. Disconnect the HVAC control module assembly electrical connectors.

Installation Procedure




1. Connect the HVAC control module assembly electrical connectors.
2. Install the HVAC control module assembly.

Notice: Refer to Fastener Notice.

3. Install the HVAC control module screws.

Tighten the screws to 2.2 N.m (19 lb in).

4. Install the I/P center trim panel.
