Control Module HVAC: Locations

HVAC Component Views

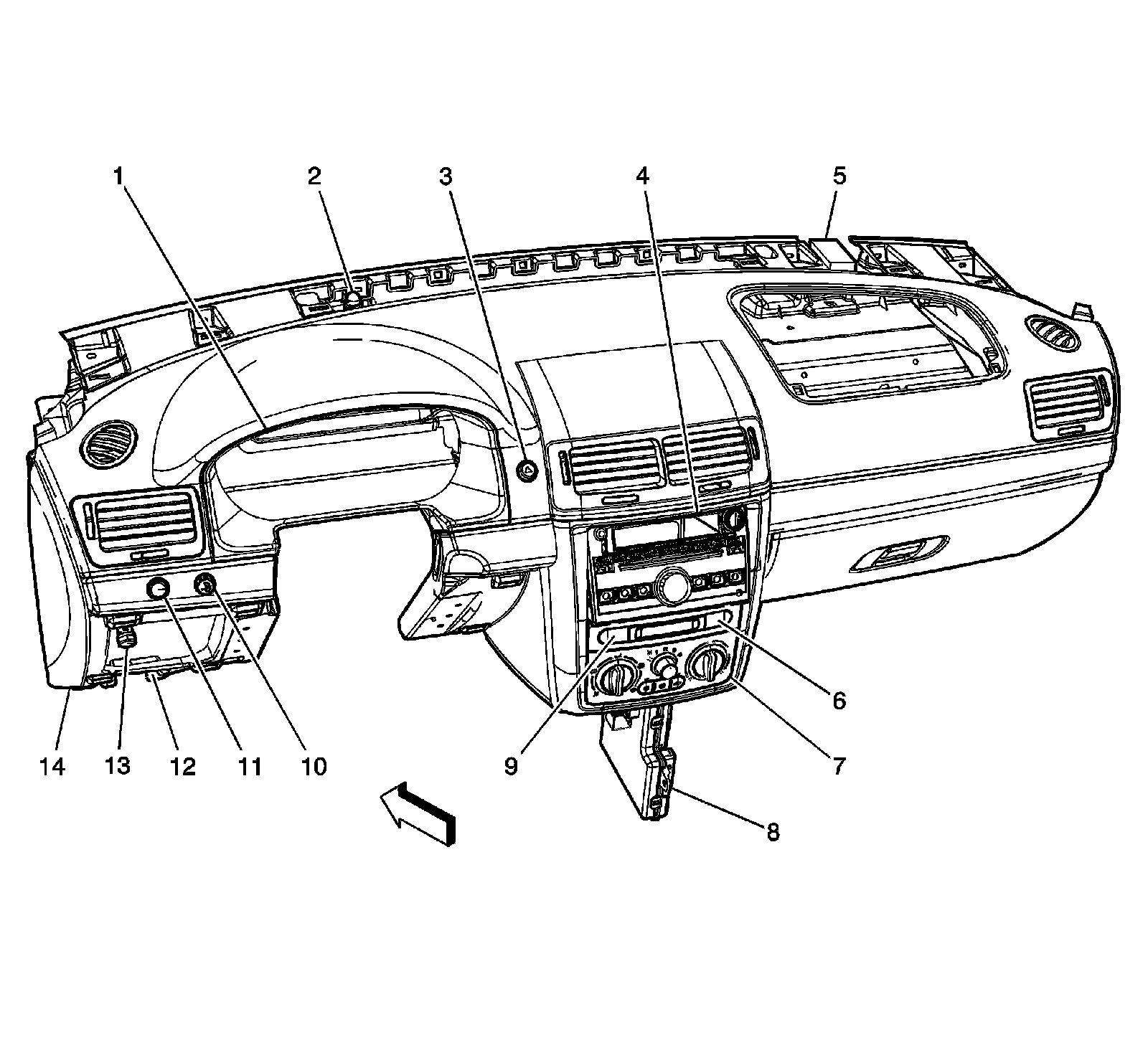

I/P Components




1 - Instrument Panel Cluster (IPC)
2 - Ambient Light Sensor
3 - Hazard Switch
4 - Radio
5 - Remote Control Door Lock Receiver (RCDLR) (AUO)
6 - Heated Seat Switch - Passenger (KA1)
7 - I/P Dimmer Switch
8 - Body Control Module (BCM)
9 - Heated Seat Switch - Driver (KA1)
10 - I/P Dimmer Switch
11 - Fog Lamp Switch (T37)
12 - Data Link Connector (DLC)
13 - Rear Compartment Lid Release Switch
14 - I/P Trim
