Connector Views



Engine Control Module Connector End Views

Engine Control Module (ECM) C1

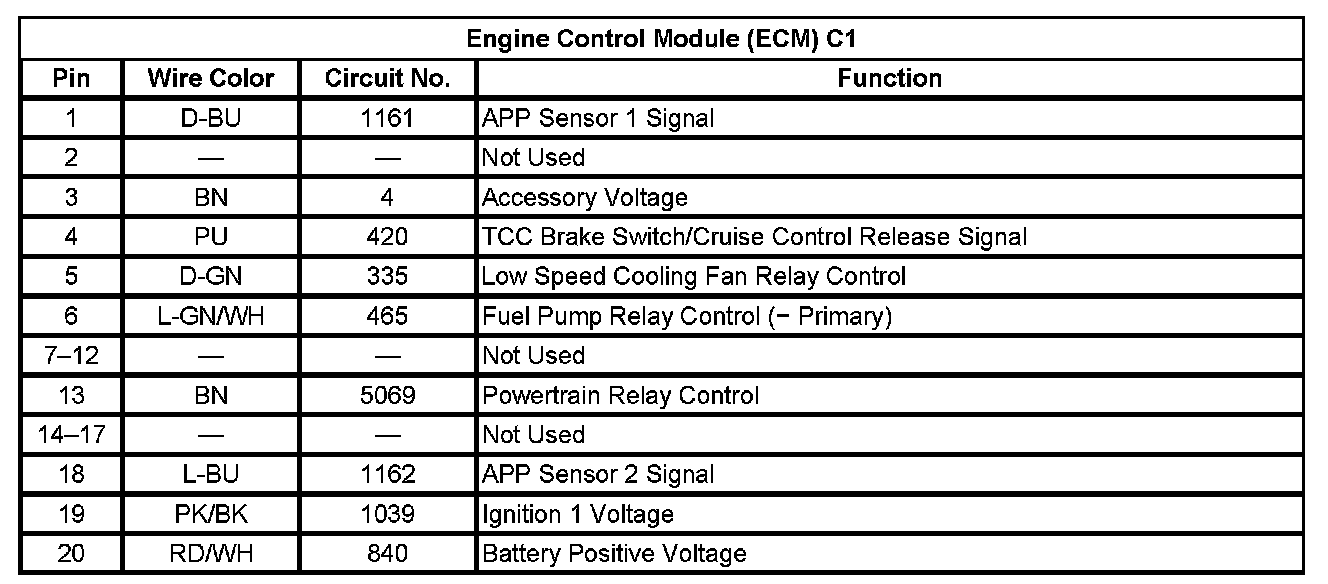

Engine Control Module (ECM) C1 (Pin 1 To Pin 20):

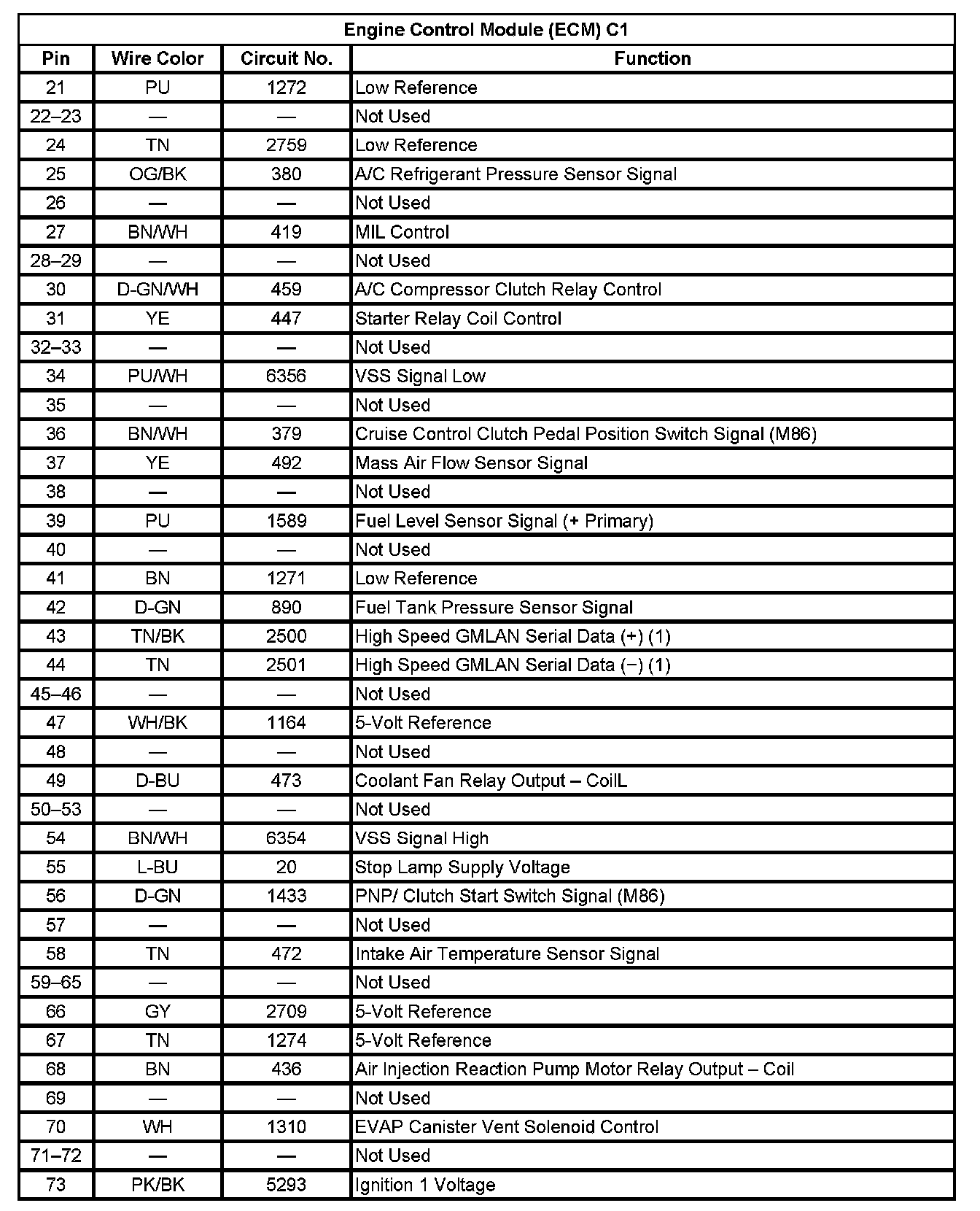

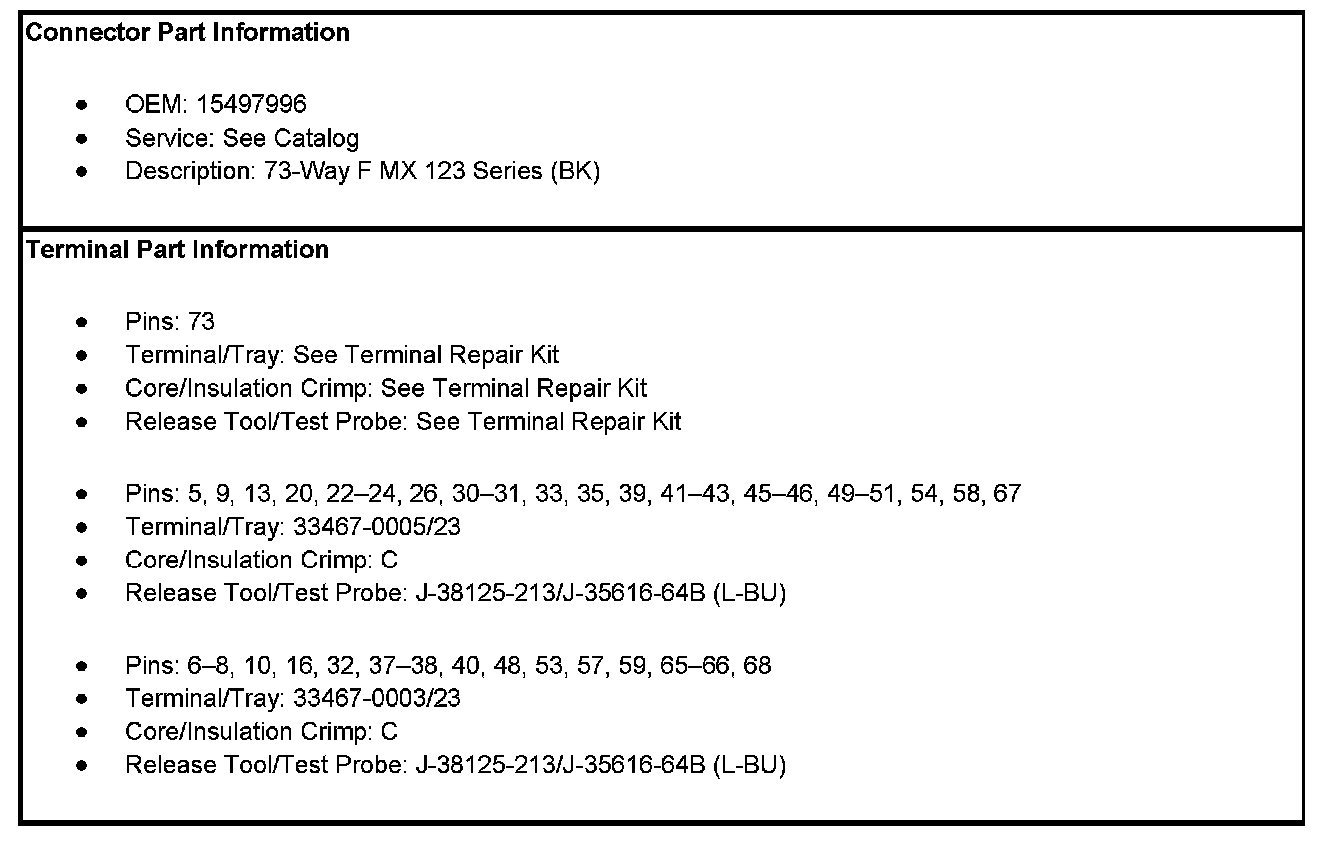

Engine Control Module (ECM) C1 (Pin 21 To Pin 73):






Engine Control Module (ECM) C2

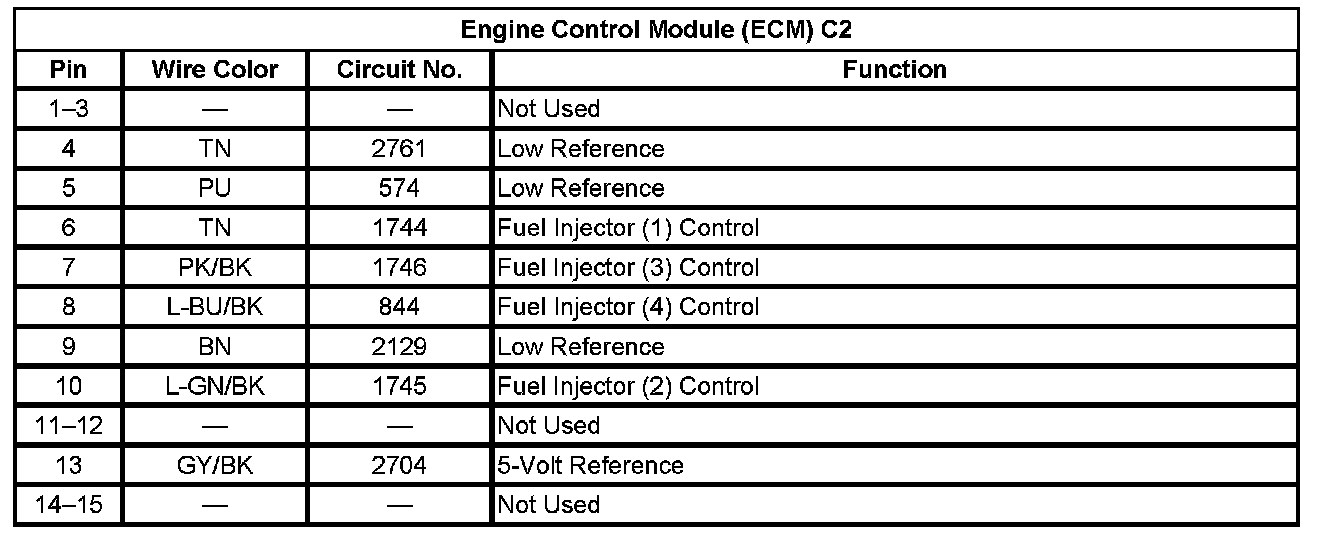

Engine Control Module (ECM) C2 (Pin 1 To Pin 15):

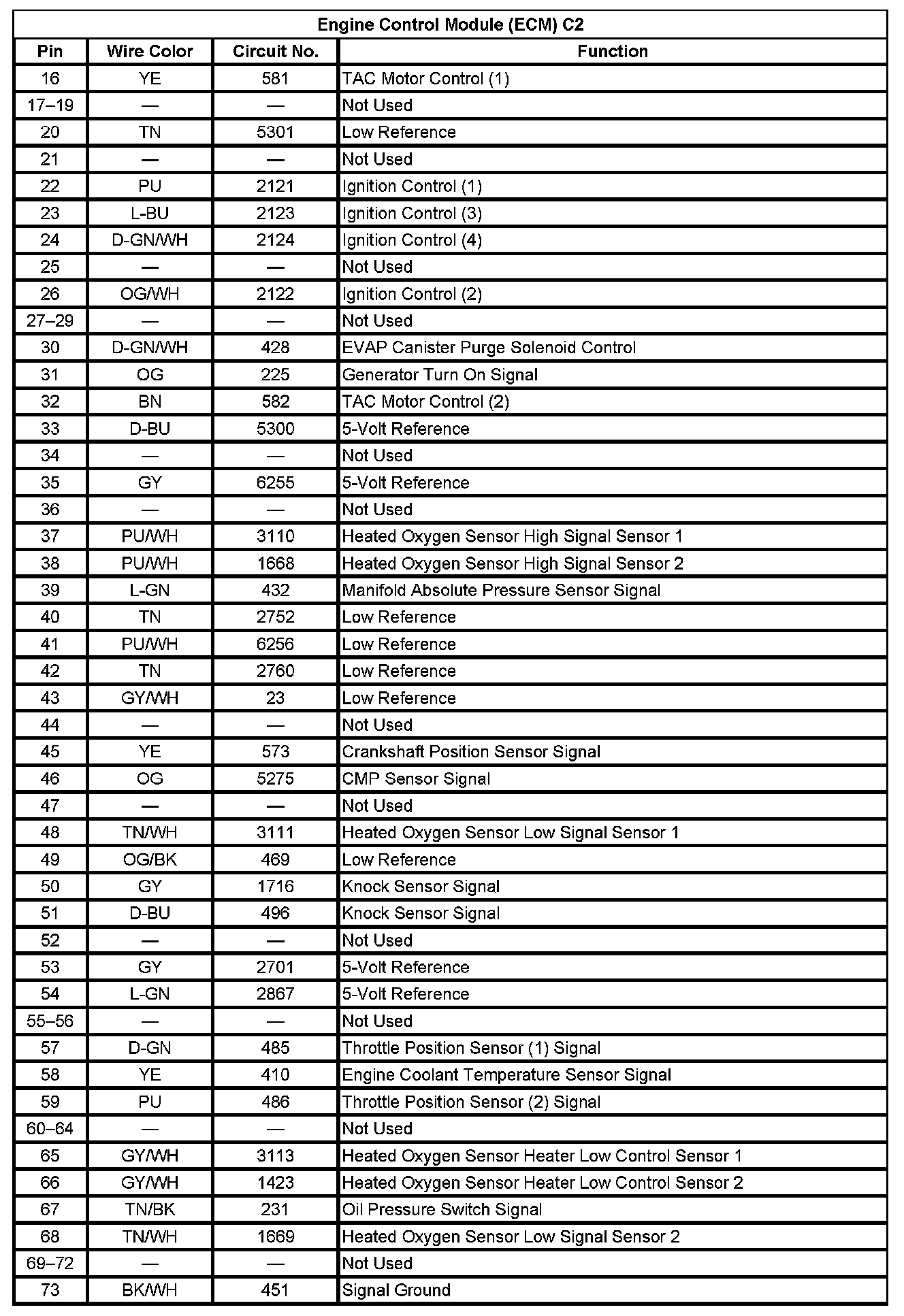

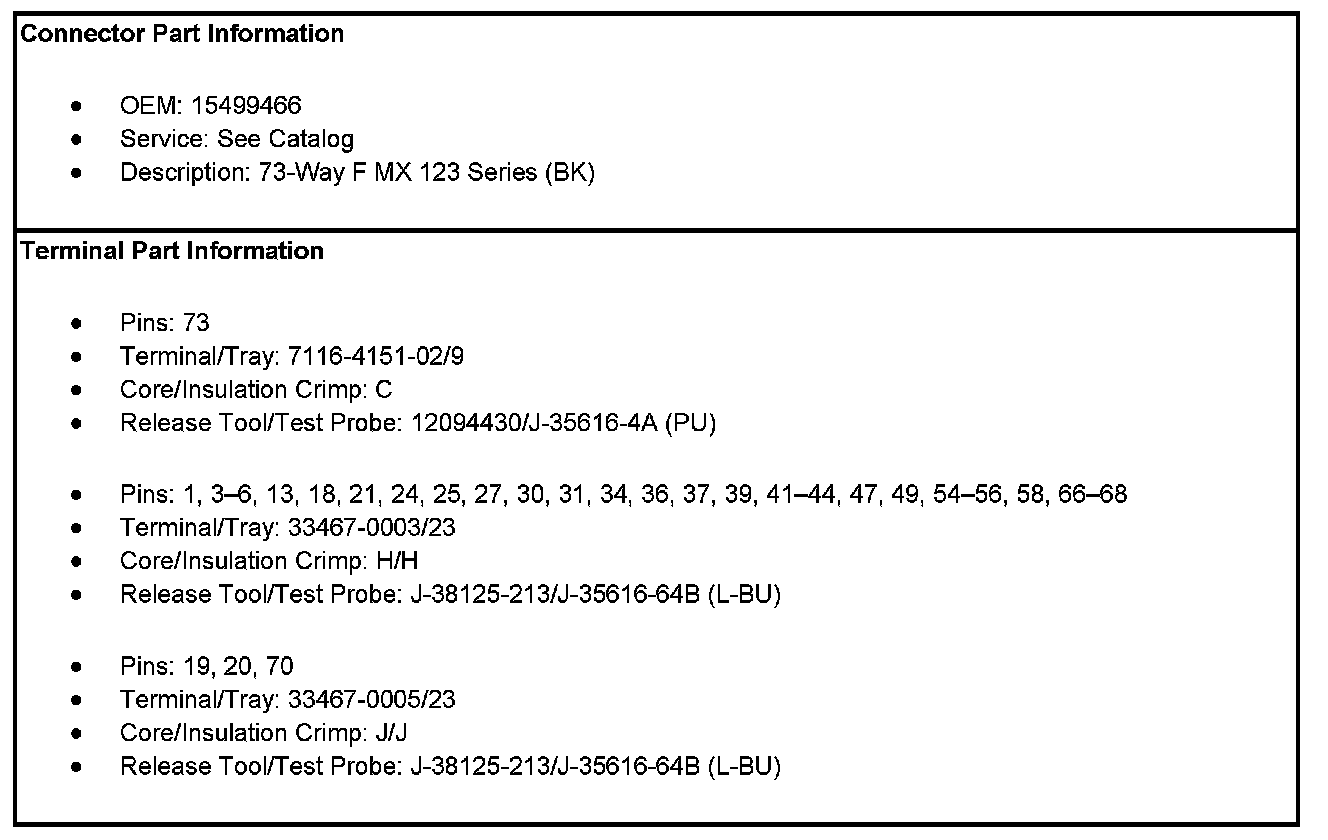

Engine Control Module (ECM) C2 (Pin 16 To Pin 73):
