Body Control System Schematics

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

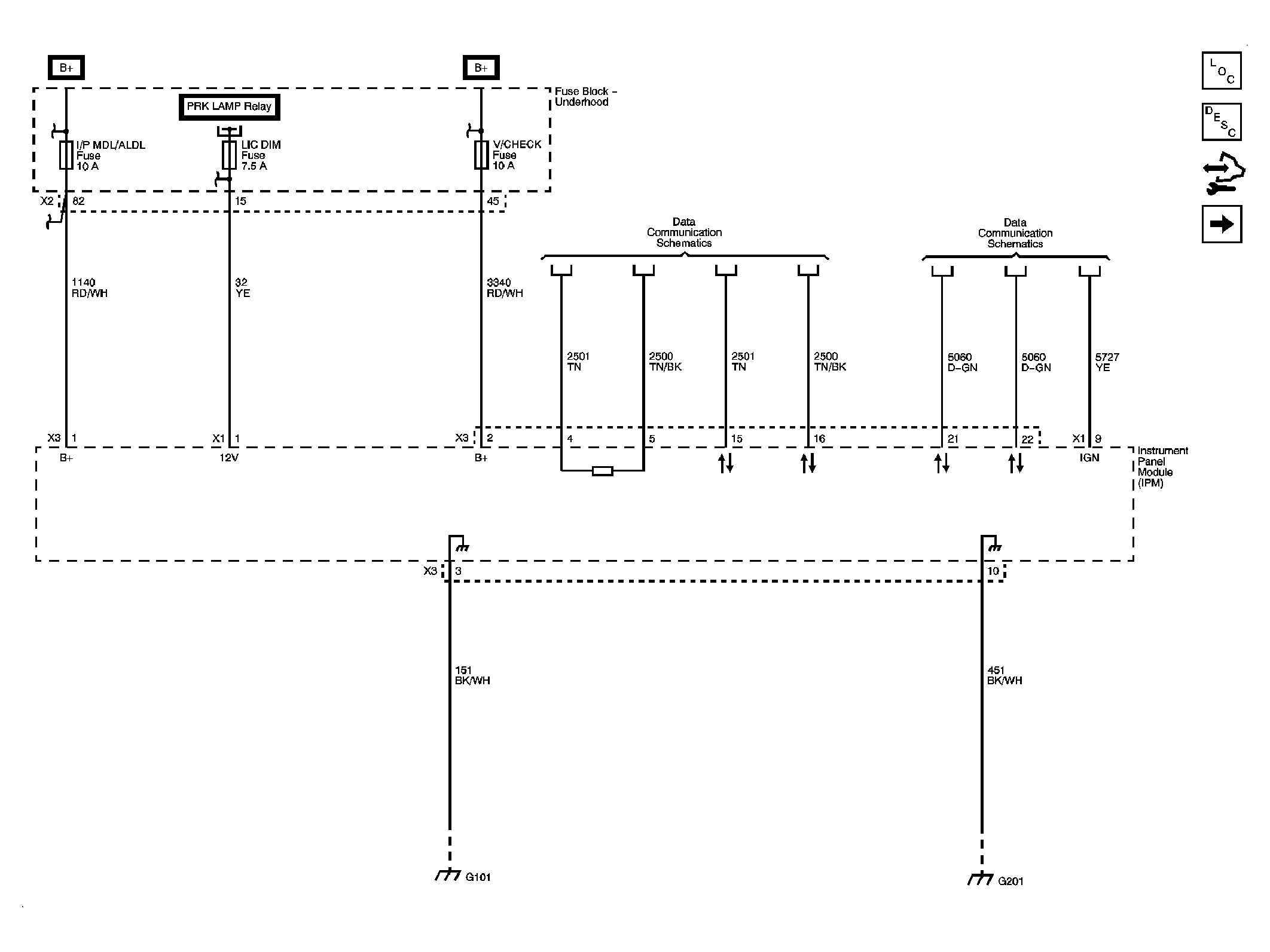

Fig 1: IPM Power, Ground and DLC

Courtesy of GENERAL MOTORS CORP.

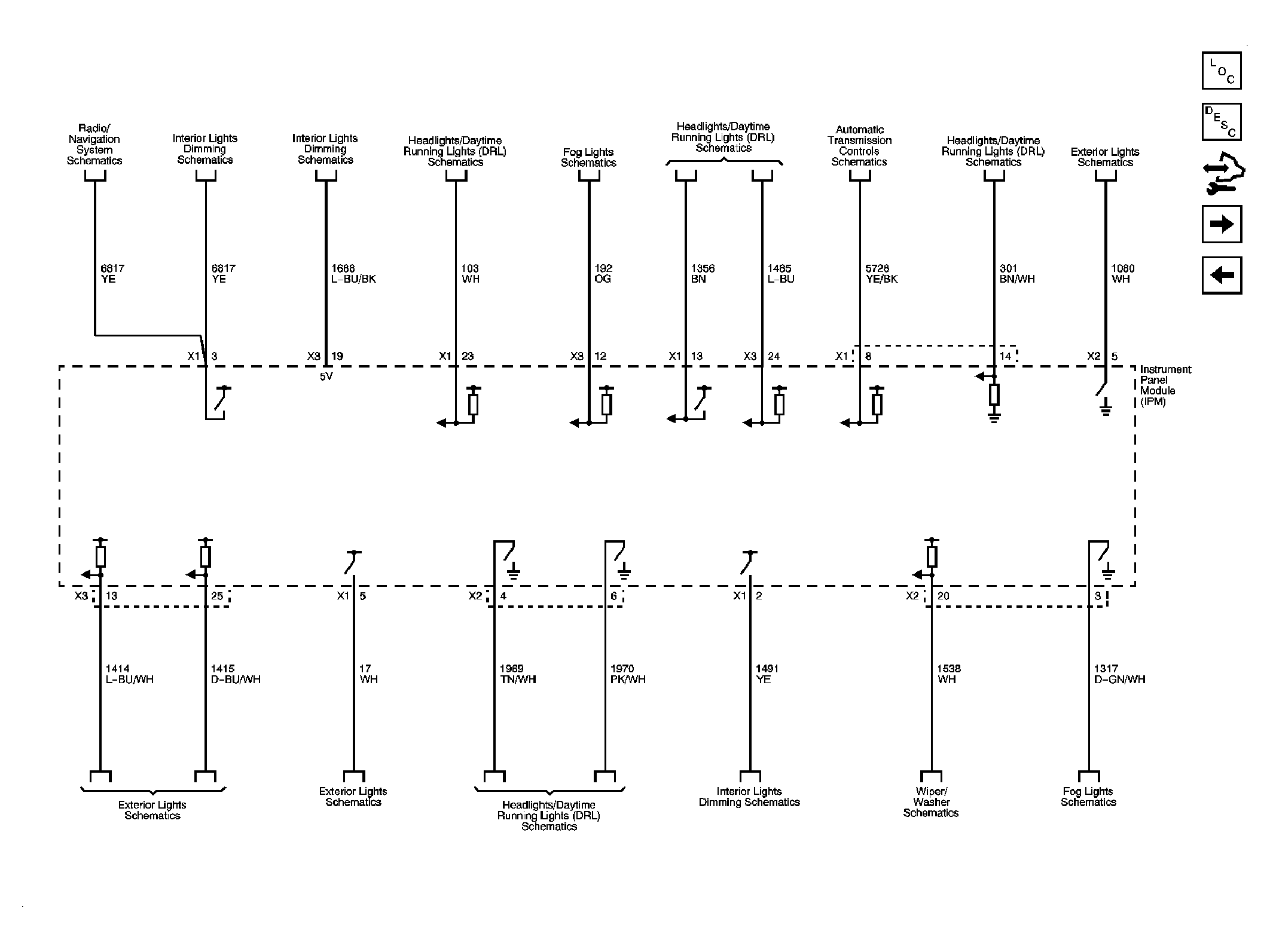

Fig 2: IPM Inputs and Outputs (1 of 3)

Courtesy of GENERAL MOTORS CORP.

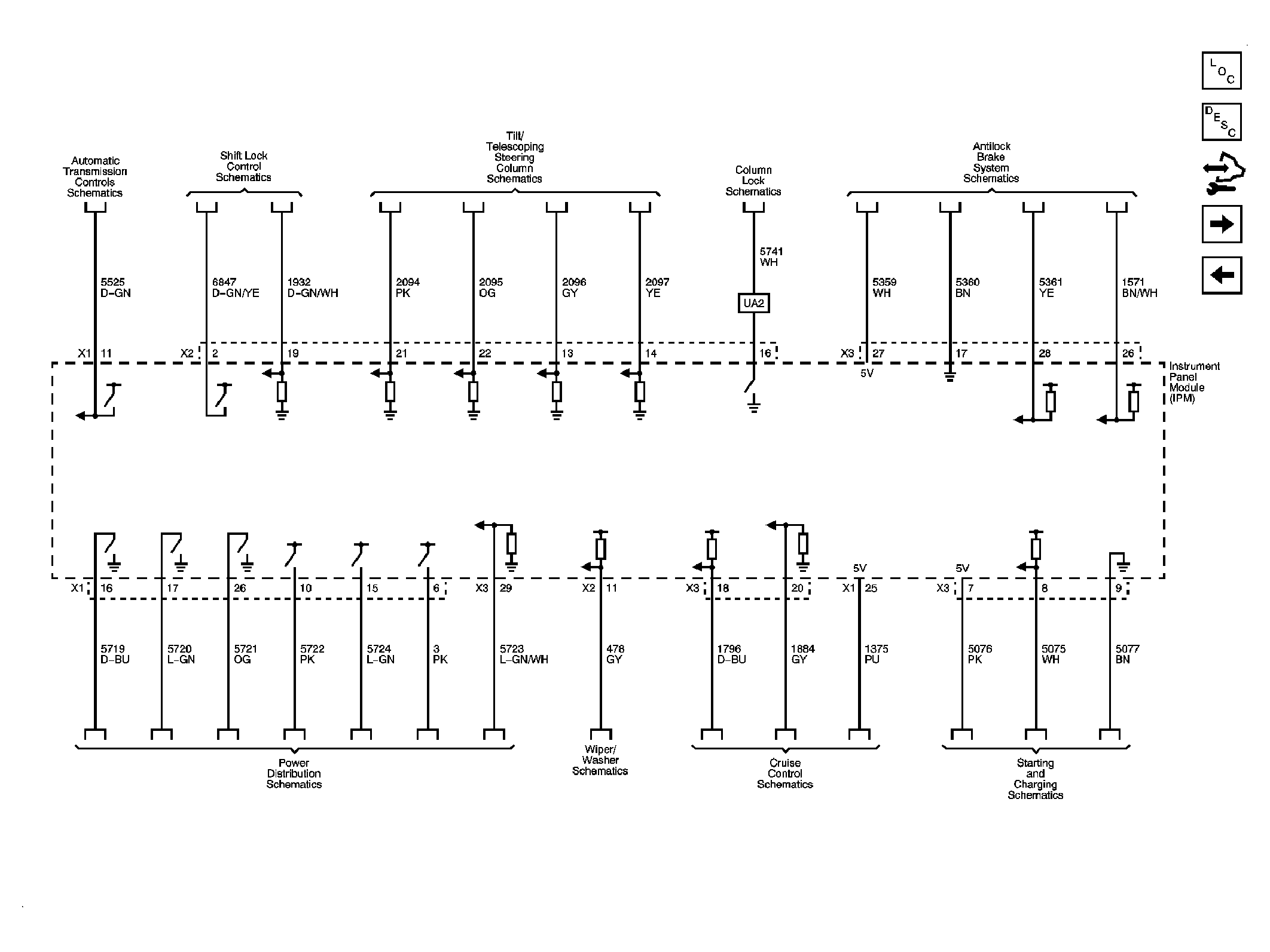

Fig 3: IPM Inputs and Outputs (2 of 3)

Courtesy of GENERAL MOTORS CORP.

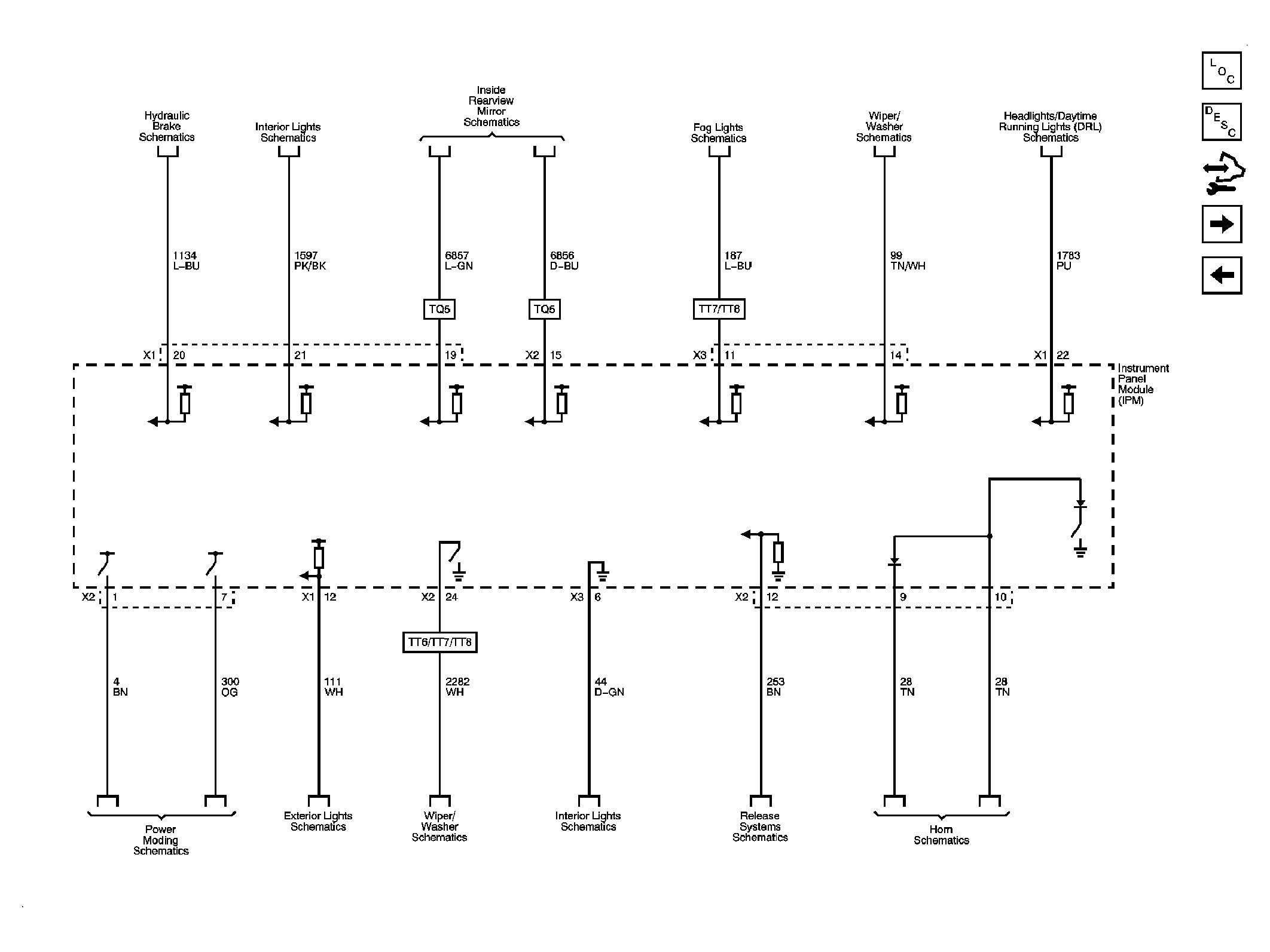

Fig 4: IPM Input and Outputs (3 of 3)

Courtesy of GENERAL MOTORS CORP.

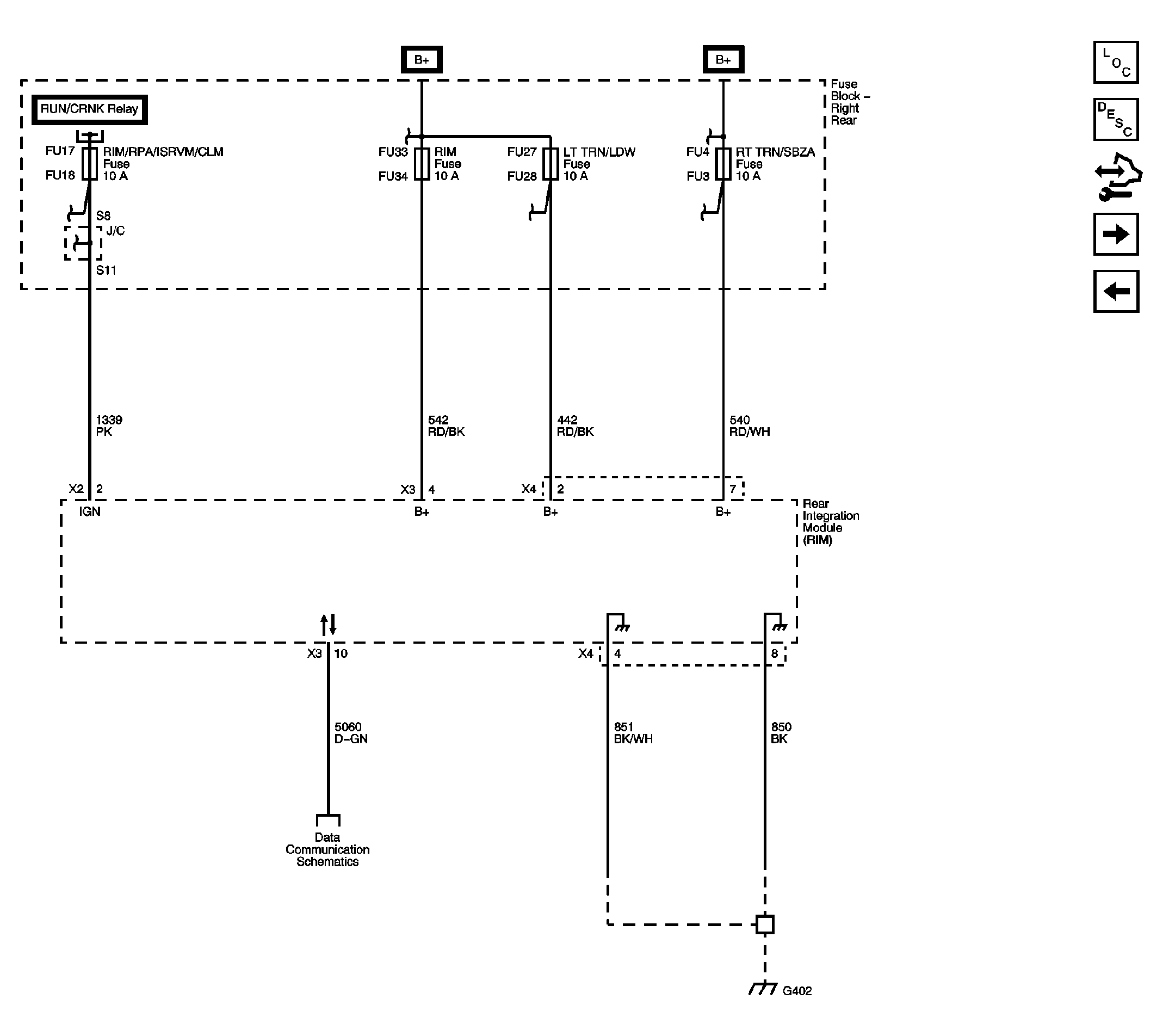

Fig 5: RIM Power, Ground and DLC

Courtesy of GENERAL MOTORS CORP.

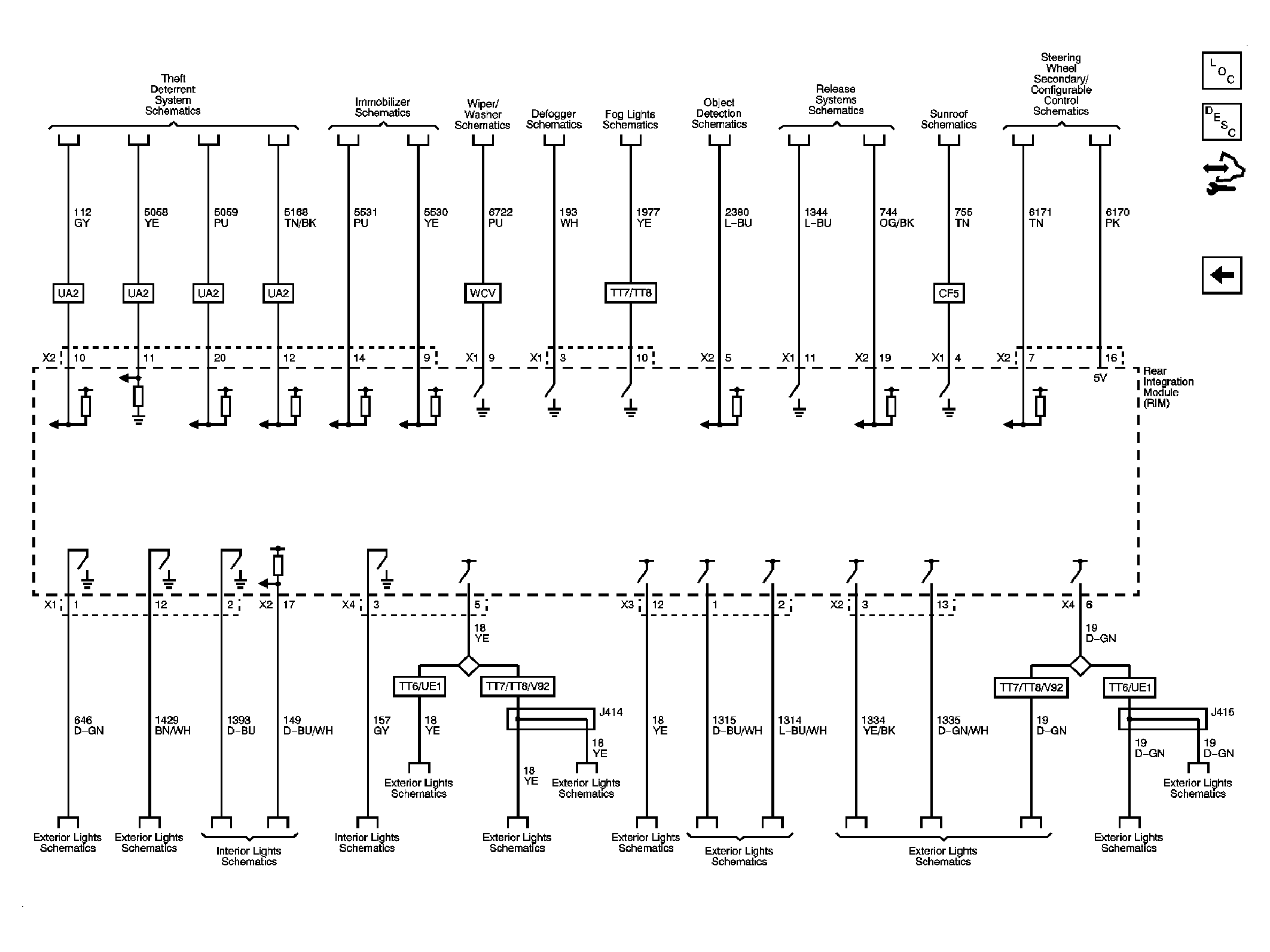

Fig 6: RIM Inputs and Outputs

Courtesy of GENERAL MOTORS CORP.
