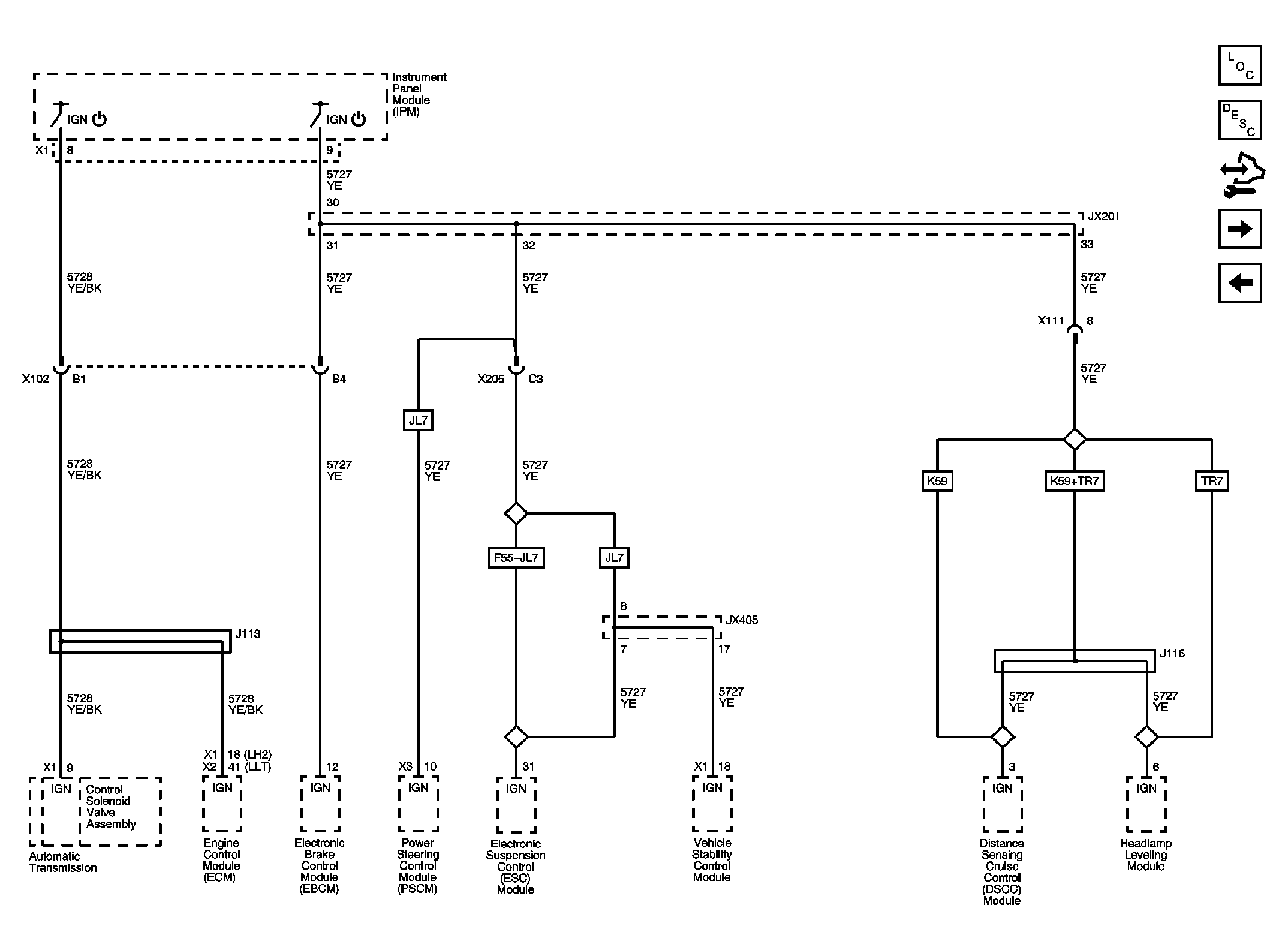

Fig 1: Power, Ground, and Low Speed GMLAN Serial Data
Courtesy of GENERAL MOTORS CORP.

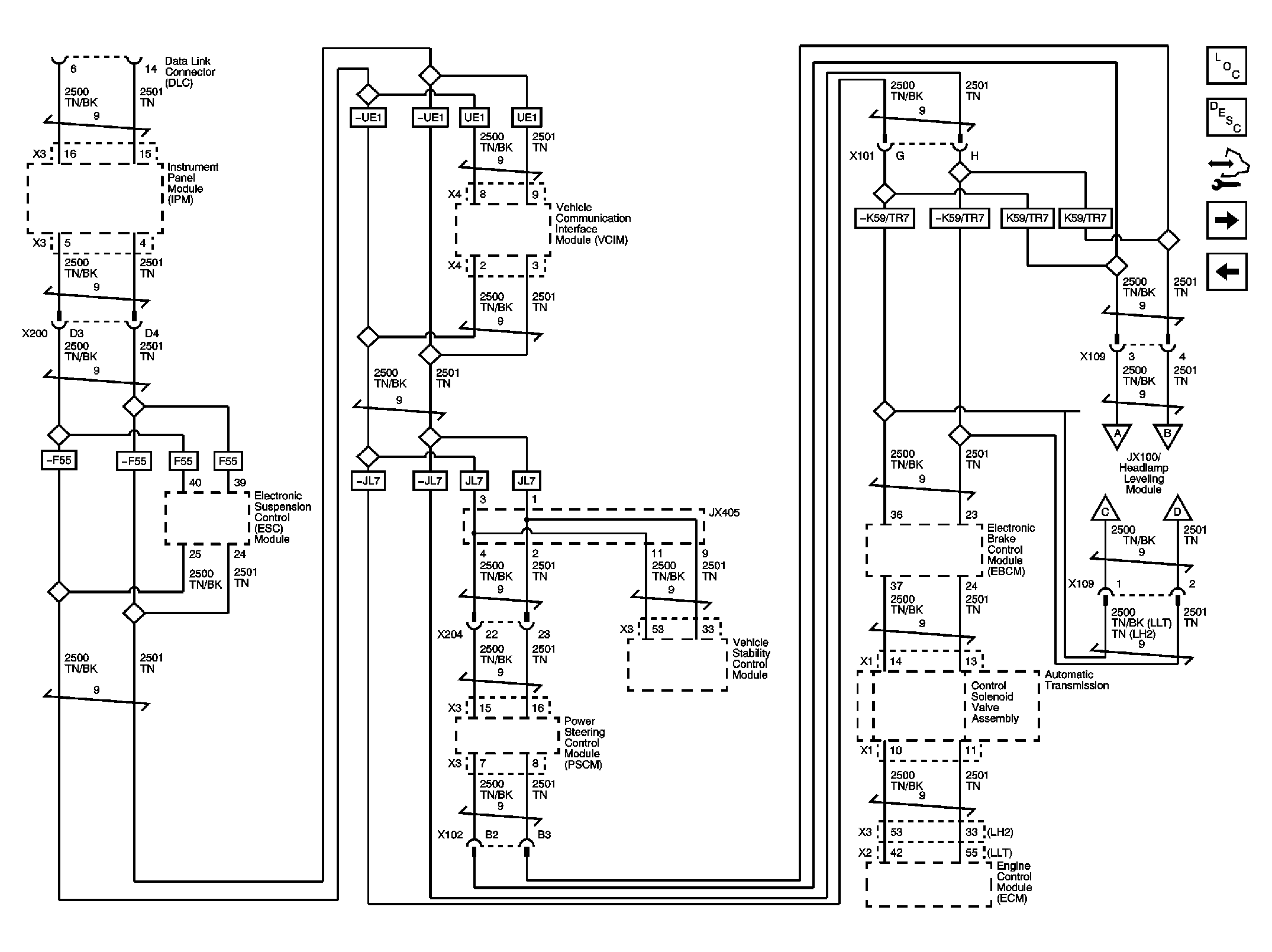

Fig 2: GMLAN - High Speed Serial Data Wake Up
Courtesy of GENERAL MOTORS CORP.

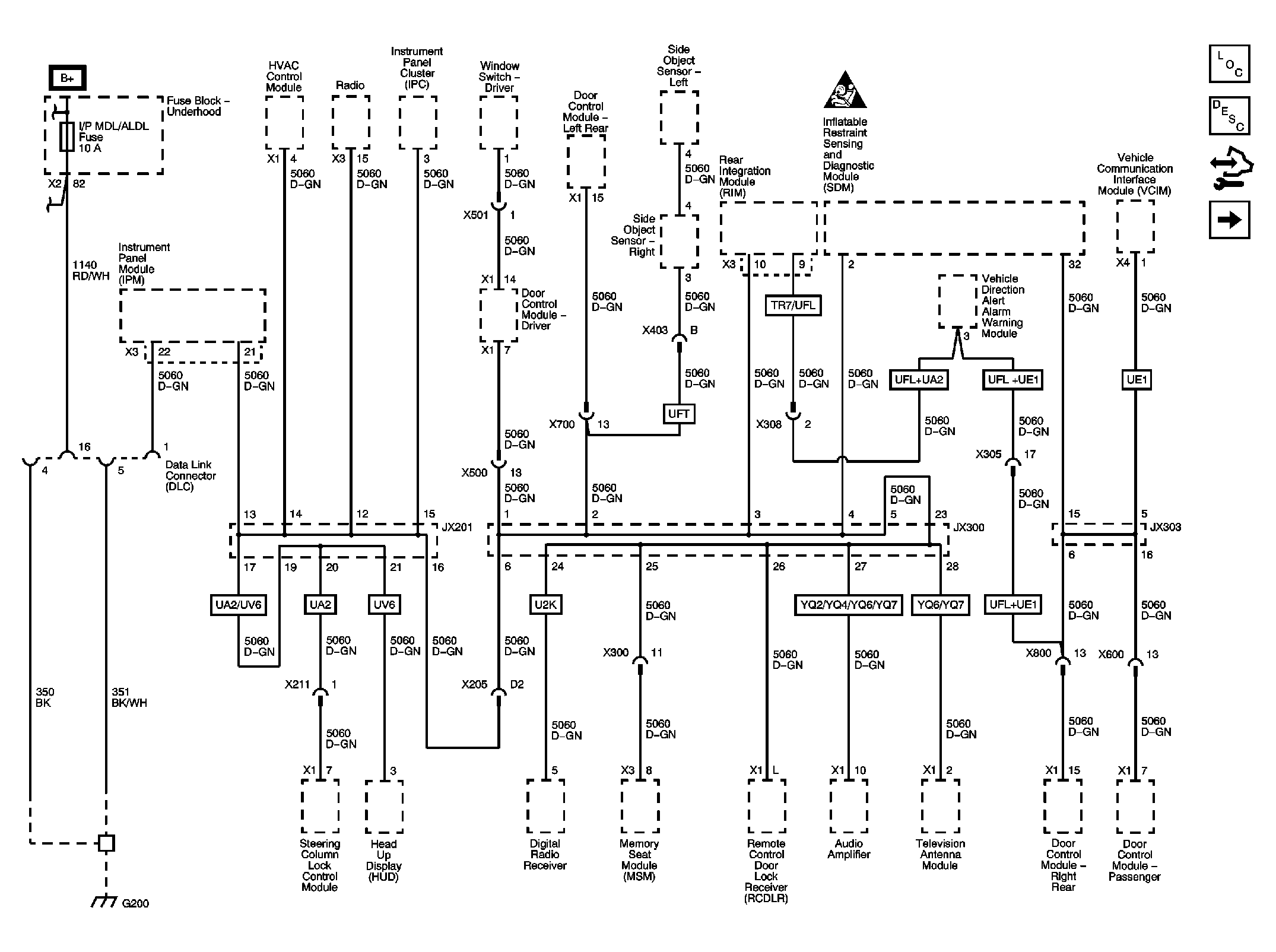

Fig 3: GMLAN High Speed Serial Data (LH2 with LHD)
Courtesy of GENERAL MOTORS CORP.
Fig 4: GMLAN High Speed Serial Data (LLT or LH2 with RHD)
