Seat Temperature Control Module: Locations

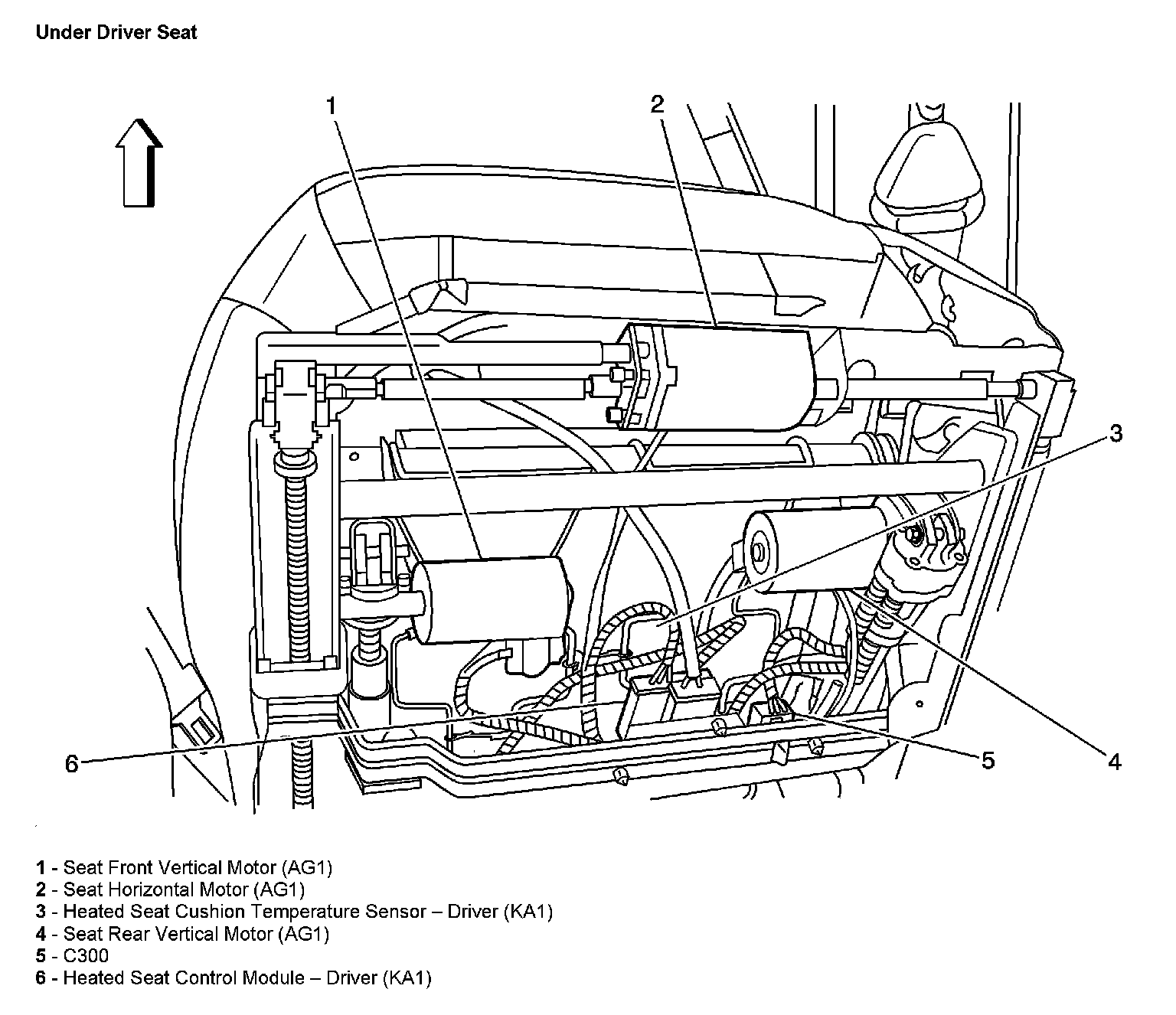

Under Driver Seat:

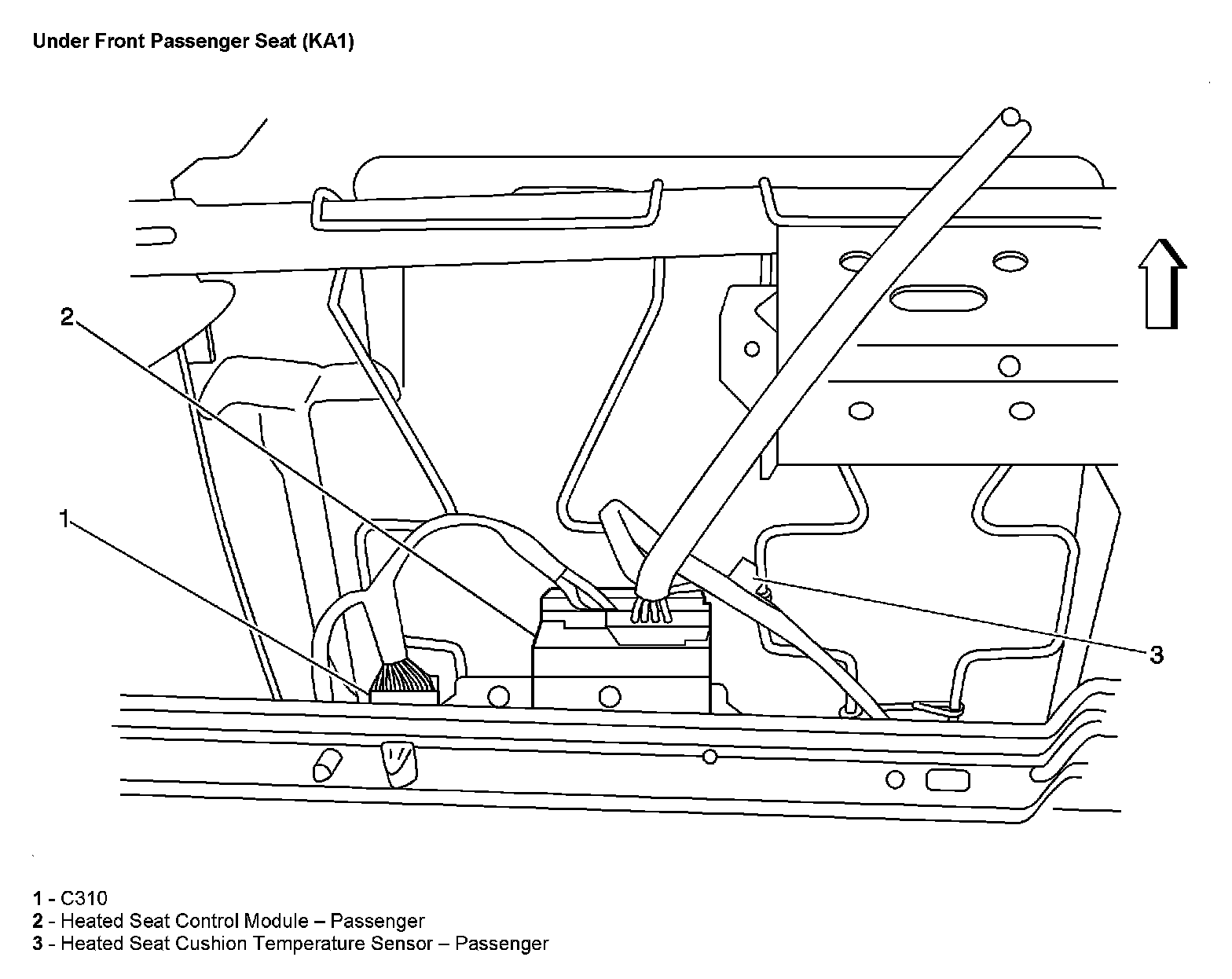

Under Front Passenger Seat (with RPO Code KA1):
