Cruise Control: Locations

Cruise Control Component Views

Steering Wheel Components (3-Spoke)

1 - Steering Wheel Controls - Left
2 - Steering Wheel Controls - Right
3 - Horn Switch

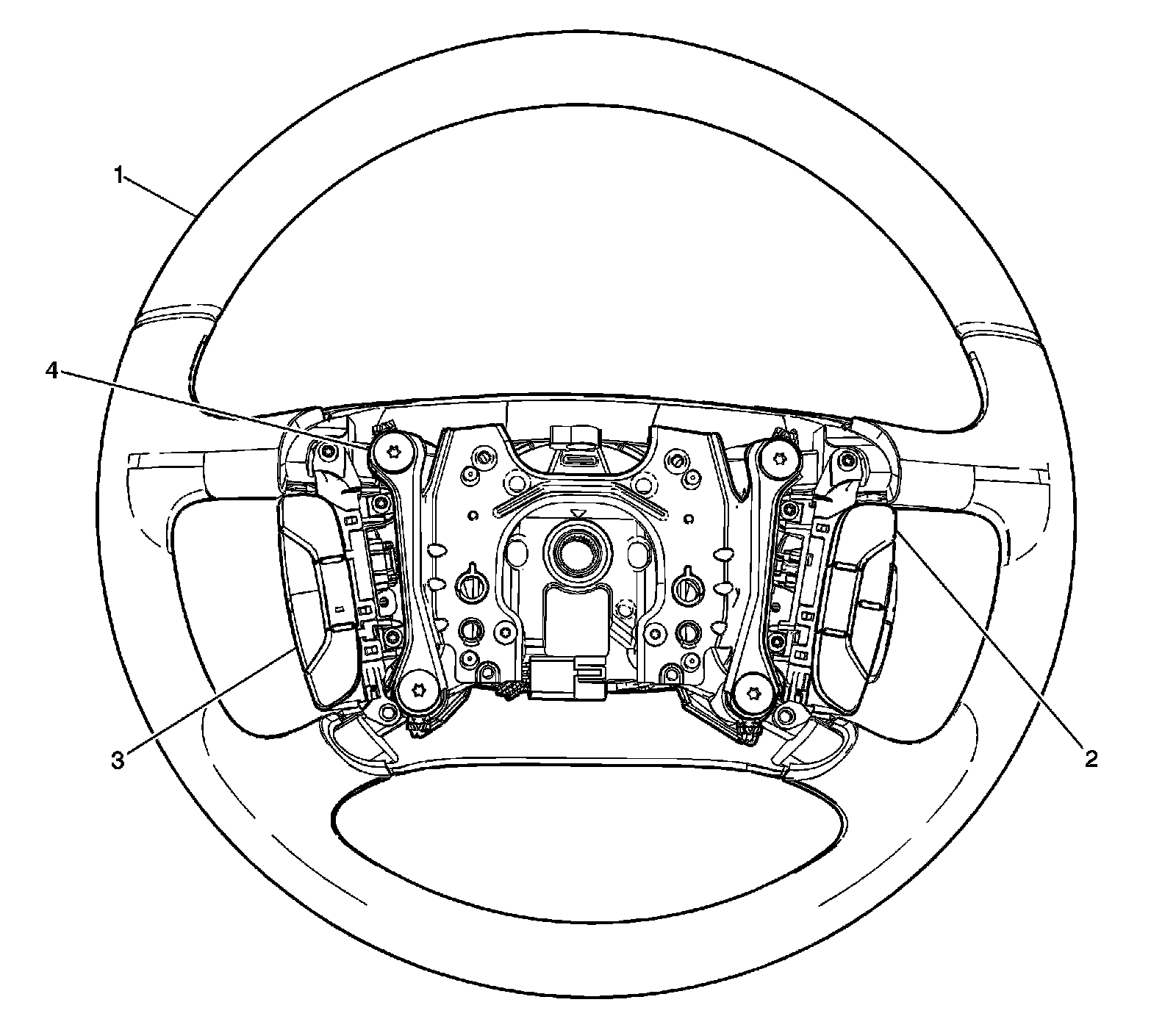

Steering Wheel Components (4-Spoke)

1 - Steering Wheel
2 - Steering Wheel Controls - Right
3 - Steering Wheel Controls - Left
4 - Horn Switch

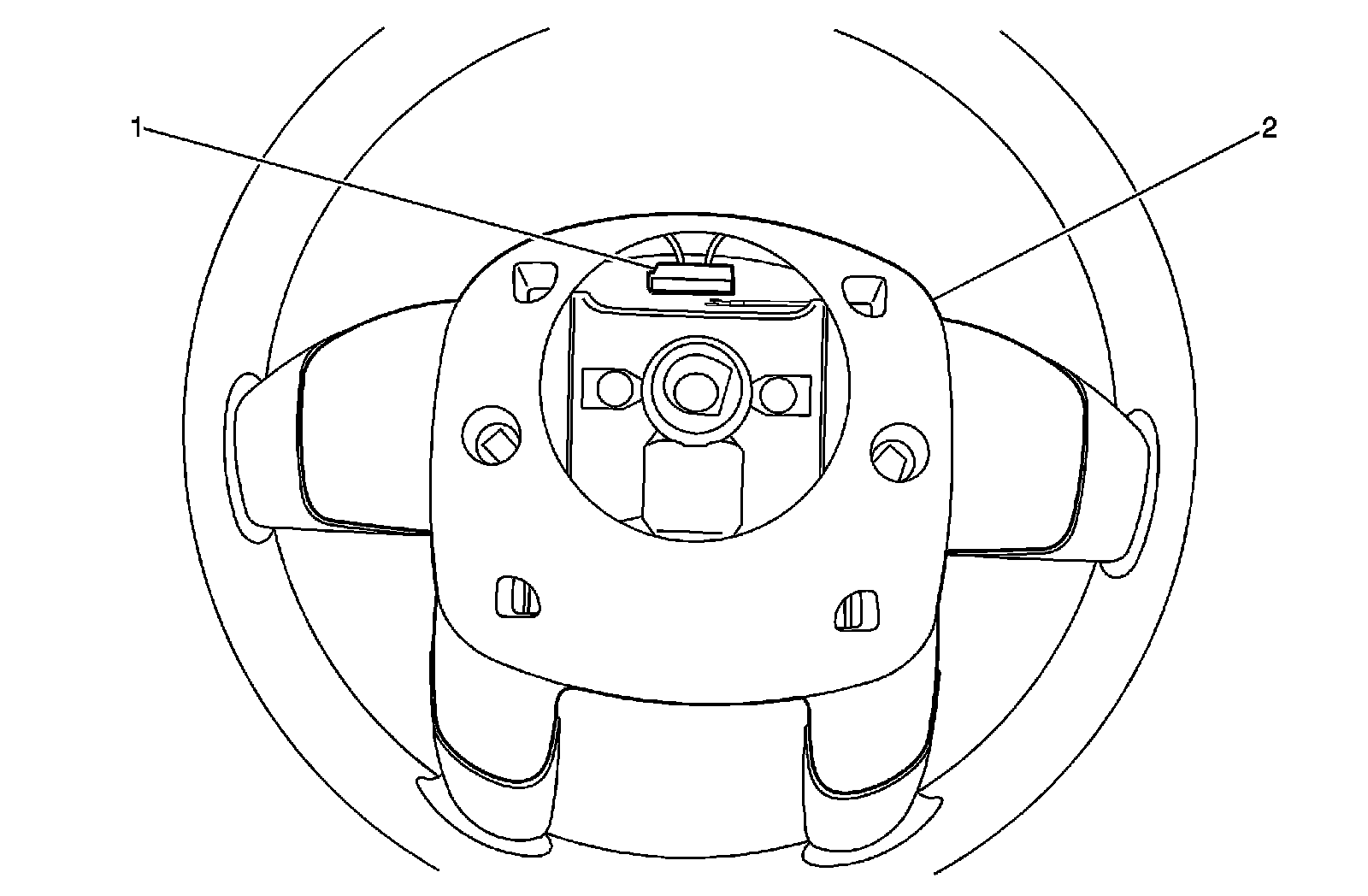

Rear of Steering Wheel

1 - Inflatable Restraint Steering Wheel Module Coil C3
2 - Rear Shroud
