Alarm Module, (Vehicle Antitheft)
>>
Theft Deterrent System Connector End Views
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

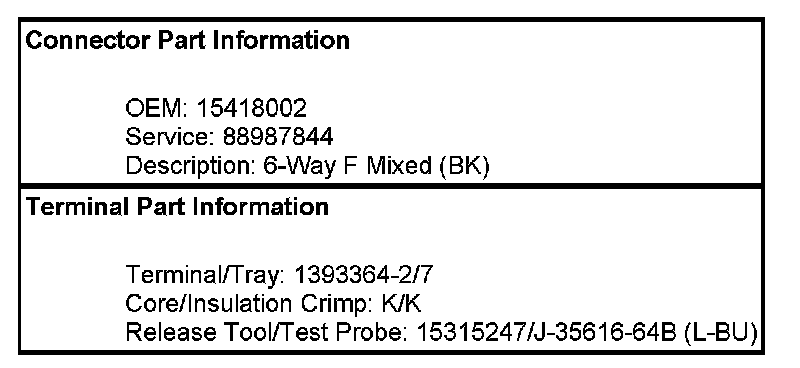

Theft Deterrent System Connector End Views
Theft Deterrent System Connector End Views

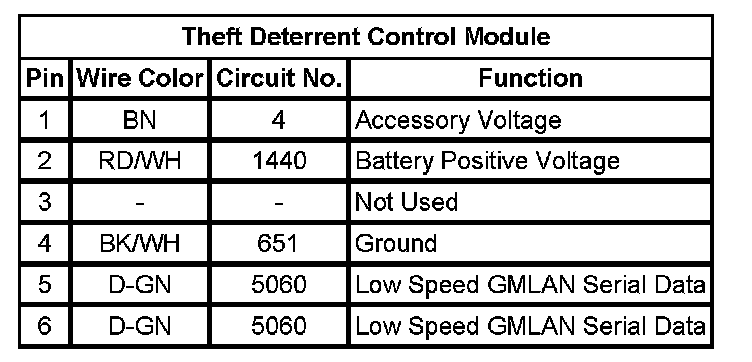

Theft Deterrent Control Module
