Convertible Top Control Module

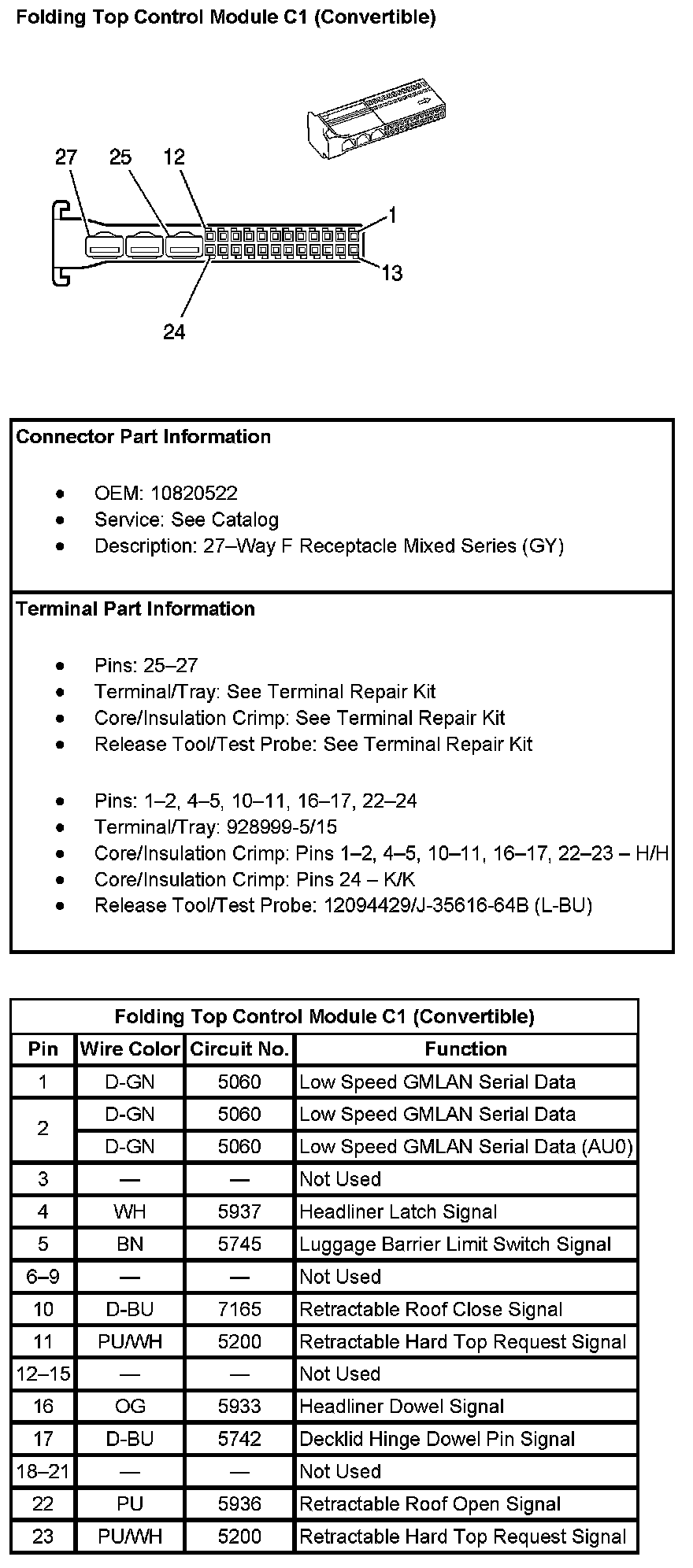

Folding Top Control Module C1 (Convertible) (Pin 1 To 23):

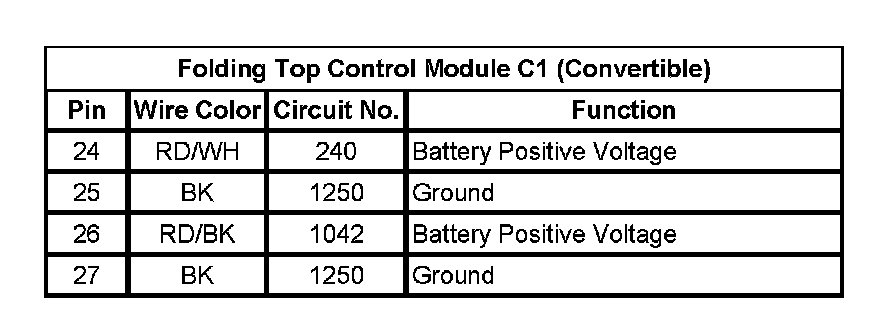

Folding Top Control Module C1 (Convertible) (Pin 24 To 27):

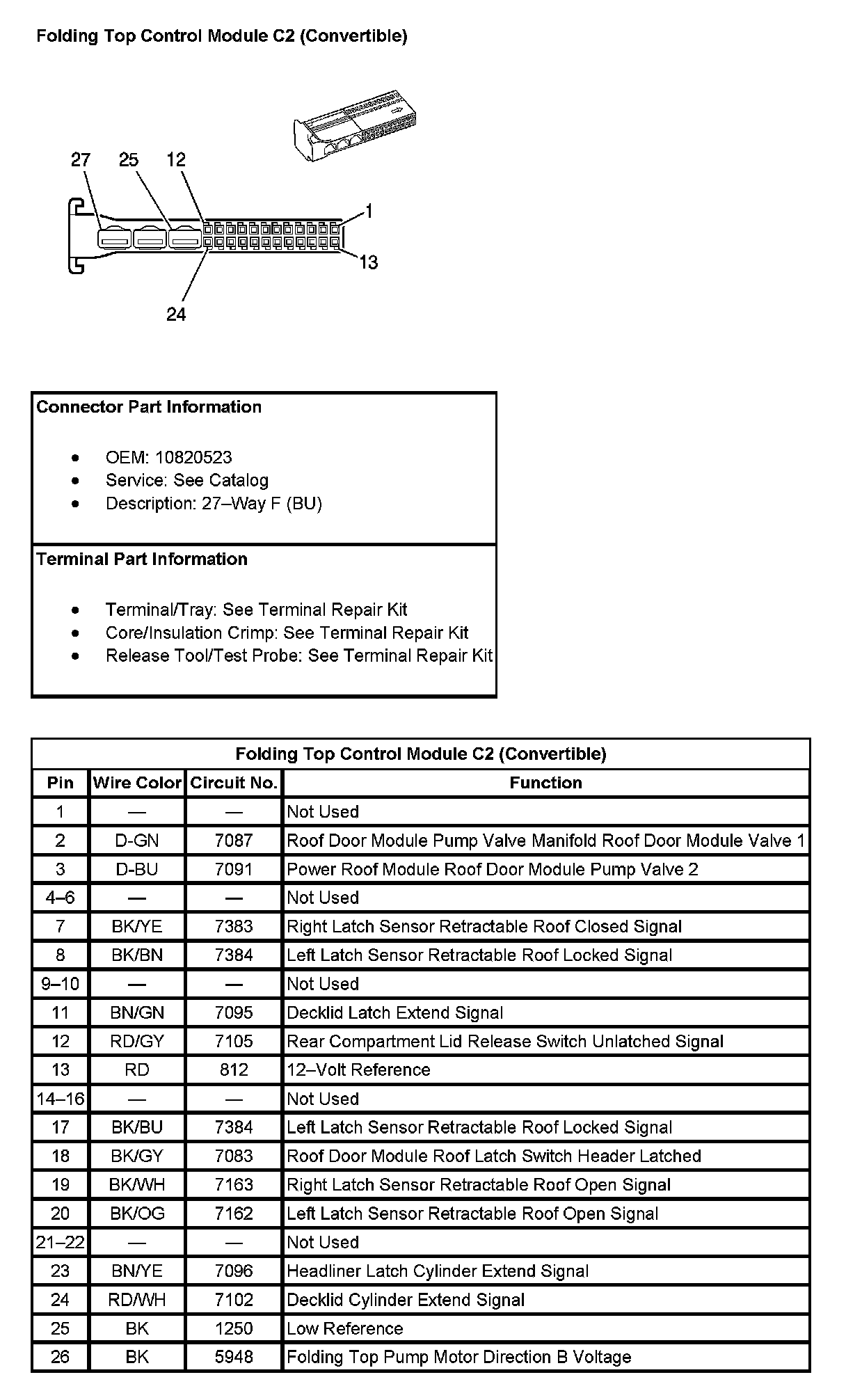

Folding Top Control Module C2 (Convertible) (Pin 1 To 26):

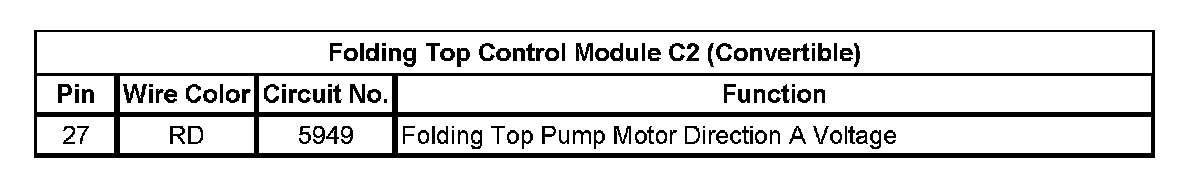

Folding Top Control Module C2 (Convertible) (Pin 27):
